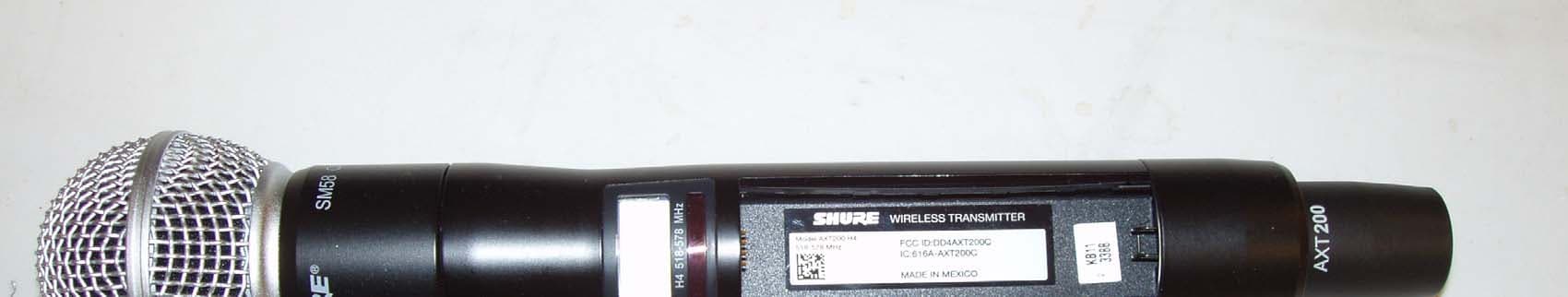

DD4AXT200CWireless Microphone Transmitter

AXT200 Handheld Frequency Diversity Transmitter ©2011 Shure Incorporated 27A15018 (Rev. 1) Printed in USA READ these instructions.1. KEEP these instructions.2. HEED all warnings.3. FOLLOW all instructions.4. DO NOT use this apparatus near water.5. CLEAN ONLY with dry cloth.6. DO NOT block any ventilation openings. Install in accordance with 7. the manufacturer’s instructions. DO NOT install near any heat sources such as radiators, heat 8. registers, stoves, or other apparatus (including amplifiers) that produce heat. DO NOT defeat the safety purpose of the polarized or grounding-9. type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wider blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. PROTECT the power cord from being walked on or pinched, 10. particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. ONLY USE attachments/accessories specified by the 11. manufacturer. 12. UNPLUG this apparatus during lightning storms or when unused 13. for long periods of time. REFER all servicing to qualified service personnel. Servicing is 14. required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. DO NOT expose the apparatus to dripping and splashing. DO 15. NOT put objects filled with liquids, such as vases, on the appara- tus. The MAINS plug or an appliance coupler shall remain readily oper-16. able. The airborne noise of the Apparatus does not exceed 70dB (A).17. Apparatus with CLASS I construction shall be connected to a 18. MAINS socket outlet with a protective earthing connection. To reduce the risk of fire or electric shock, do not expose this ap-19. paratus to rain or moisture. Do not attempt to modify this product. Doing so could result in 20. personal injury and/or product failure. IMPORTANT SAFETY INSTRUCTIONS USE only with a cart, stand, tripod, bracket, or table speci- fied by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. This symbol indicates that dangerous voltage constituting a risk of electric shock is present within this unit. This symbol indicates that there are important operating and maintenance instructions in the literature accompanying this unit. WARNING: This product contains a chemical known to the State of California to cause cancer and birth defects or other reproductive harm. WARNING • Battery packs may explode or release toxic materials. Risk of fire or burns. Do not open, crush, modify, disassemble, heat above 212°F (100°C), or incinerate • Follow instructions from manufacturer • Never put batteries in mouth. If swallowed, contact your physician or local poison control center • Do not short circuit; may cause burns or catch fire • Do not charge or use battery packs with other than specified Shure products • Dispose of battery packs properly. Check with local vendor for proper disposal of used battery packs WARNING: No user-serviceable parts inside. Refer all servicing to qualified service personnel. 5 Optional Accessories Handheld Rechargeable BatteryAXT920 or AXT920SL Portable Handheld Charging Station AXT904 1-AA Battery Carrier for AXT200 Handheld Transmitter AXT921 Talk Switch (may not be available in all regions) AXT651 or AXT651 SL Microphone Stand AdaptorWA371 Shure Microphone Cartridges: SM58 RPW112 BETA 87A RPW120 SM86 RPW114 BETA 87C RPW122 SM87A RPW116 KSM9 Champagne RPW180 VP68 RPW124 KSM9 Black RPW184 BETA 58A RPW118 AXT200 Axient Handheld Transmitter The AXT200 Handheld Frequency Diversity Transmitter is a rechargeable, remotely controllable handheld transmitter with Frequency Diversity for seamless, uninterrupted audio in even the most challenging RF environments. In addition to Frequency Diversity, the AXT200 delivers ultra-linear RF performance for more channels on-air and superb audio quality. Its advanced power management supports extended battery life and highly accurate status metering. ShowLink™ Remote Control enables comprehensive real-time remote control of all transmitter parameters, including real-time frequency adjustments. Features Transmitter Overview Included Components Handheld Rechargeable Battery (2) AXT920 or AXT920SL Transmitter Carrying Case95A15475 Zipper Bag26A14 Microphone Stand Adaptor WA371 Choice of (1) Shure Microphone Cartridge from the following list: SM58 RPW112 BETA 87C RPW122 BETA 58A RPW118 KSM9 Champagne RPW180 BETA 87A RPW120 KSM9 Black RPW184 • Frequency Diversity enables simultaneous transmission on two independent frequencies to ensure seamless, uninterrupted audio for mission-critical transmitters. Single carrier mode is available if Frequency Diversity is not required. • Ultra-linear RF performance enables more channels on-air • IR Sync function automatically tunes transmitter to the receiver frequency • Comprehensive real-time remote control of all transmitter parameters when a Linked transmitter is within range of a ShowLink Access Point • Shure lithium-ion rechargeable battery delivers up to 9 hours of runtime from a single charge • Advanced control menu to adjust frequency and audio settings from the transmitter • 42 dB of adjustable gain for optimal audio quality • Lockable user interface prevents accidental or inadvertent changes to controls once settings are made ① Microphone Cartridge Interchangeable with a variety of Shure cartridges ② LCD Display View menu screens and settings. Momentarily press power button to activate backlight. ③ Infrared (IR) Port Use for automated transmitter programming. Links transmitter to AXT400 Receiver ④ Shure Rech…

Text truncated - open the document above for the full version.

May 17, 2011 Elite Electronic Engineering, Inc. 1516 Centre Circle Downers Grove, Illinois 60515-1082 SUBJECT: REQUEST FOR NON-DISCLOSURE FOR FCC ID: DD4AXT200 To Whom It May Concern: Pursuant to 47 CFR Section 0.459, Shure Incorporated hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application for FCC ID # DD4AXT200: a. Schematic Diagrams b. Operational Description c. Block Diagram d. Parts List e. Tune-up Procedure Above materials contain trade secrets, proprietary and technical information which would customarily be guarded from competitors under 47 CFR section 0.457(d)(2). Disclosure or publication of any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. Shure Incorporated understands that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. Sincerely yours, Craig Kozokar Project Engineer, Global Compliance Shure Incorporated

Axient Wireless Department AXT100/200 Test Data Revision: 1 Date: 6/2/20111 Author: Mohit Shringi Page: 1 of 38 Shure Incorporated © 2009 Measurements of Shure AXT100/200 for FCC Part 74 and Canada IC RSS123 Regulatory Approval. Conducted spurious emissions measurement. Report prepared by: Mohit Shringi 6/2/2011 Axient Wireless Department AXT100/200 Test Data Revision: 1 Date: 6/2/20111 Author: Mohit Shringi Page: 2 of 38 Shure Incorporated © 2009 Table of Contents 1. Introduction .................................................................................................................. ......... 4 1.1 Test Equipment used: .................................................................................................... 4 1.2 Test set up: .................................................................................................................. .. 4 1.2.1 FCC Part 74 requirement: ................................................................................... 4 1.2.2 Canada IC RSS-123 requirement: ...................................................................... 4 1.3 Review and Approval ..................................................................................................... 5 1.4 Revision History ............................................................................................................. 5 1.5 References .................................................................................................................... . 6 1.6 Acronyms and Definitions............................................................................................... 6 2. AXT 200 (HH TX) conducted UHF spurious measurements: ............................................ 7 2.1 FCC Part 74 ................................................................................................................... 7 Spurious emissions should be below -13dBm (green display line in the plots). ...................... 7 2.1.1 G1 band 470-530 MHz ....................................................................................... 7 2.1.2 H4 band 518-578 MHz ........................................................................................ 8 2.1.3 J5 Band 578-638 MHz ........................................................................................ 9 2.1.4 L3 band 638-698 MHz ...................................................................................... 10 2.2 Canada IC RSS123: ..................................................................................................... 11 Spurious emissions should be below -25dBm (green display line in the plots). .................... 11 2.2.1 G1 band 470-530 MHz ..................................................................................... 11 2.2.2 H4 band 518-578 MHz ...................................................................................... 14 2.2.3 J5 Band 578-638MHz ....................................................................................... 17 2.2.4 L3 band 638-698MHz ....................................................................................... 20 3. AXT 100 (BP TX) conducted UHF spurious measurements: ........................................... 23 3.1 FCC Part 74 ................................................................................................................. 2 3 Axient Wireless Department AXT100/200 Test Data Revision: 1 Date: 6/2/20111 Author: Mohit Shringi Page: 3 of 38 Shure Incorporated © 2009 Spurious emissions should be below -13dBm (green display line in the plots). .................... 23 3.1.1 G1 Band 470-530MHz ...................................................................................... 23 3.1.2 H4 band 518-578MHz ....................................................................................... 24 3.1.3 J5 Band 578-638 MHz ...................................................................................... 25 3.1.4 L3 Band 638-698MHz ....................................................................................... 26 3.2 Canada IC RSS123: ..................................................................................................... 27 Spurious emissions should be below -25dBm (green display line in the plots) ..................... 27 3.2.1 G1 band 470-530MHz ...................................................................................... 27 3.2.2 H4 band 518-578MHz ....................................................................................... 30 3.2.3 J5 band 578-638MHz ....................................................................................... 33 3.2.4 L3 band 638-698MHz ....................................................................................... 36 Axient Wireless Department AXT100/200 Test Data Revision: 1 Date: 6/2/20111 Author: Mohit Shringi Page: 4 of 38 Shure Incorporated © 2009 1. Introduction Conducted spurious emissions measurements of AXT100 (B P TX) and AXT200 (HH TX) for FCC Part74 and Canada IC RSS-123 approval. 1.1 Test Equipment used:  Spectrum Analyzer – Agilent E4407B (SN: MY45116757, Cal Date: 04/14/2011, Cal due:04/30/2012, Cal#46410-103. Calibration performed by SIMCO)  Shure Axient System: AXT200, AXT100. 1.2 Test set up: 1.2.1 FCC Part 74 requirement: FCC part 74 limit requires all spurious emissions to be less than (below the carrier) 43 + 10 x log 10 (Output power in Watts). AXT200 HH TX has maximum output of 50mW (16.9 dBm) in high power mode. All spurious emissions should be less than -13dBm in frequency range of 30MHz to 10 th harmonic of highest UHF frequency. Measurement setting:  TX set to mid frequency in high power mode.  Zigbee turned off  Spectrum analyzer swept from 30MHz -1GHz with resolution bandwidth of 100KHz and from 1GHz – 7GHz with resolution bandwidth of 1MHz. 1.2.2 Canada IC RSS-123 requirement: IC RSS-123 limit requires all spurious emissions to be less than (below the carrier) 55 + 10 x log 10 (Output power in Watts). AXT…

Text truncated - open the document above for the full version.

Axient Wireless Department AXT100/200 Test Data Revision: 1 Date: 6/2/20111 Author: Mohit Shringi Page: 1 of 311 Shure Incorporated © 2009 Measurements of Shure AXT100/200 for FCC and ETSI Regulatory Approval. Conducted Zigbee-UHF IMDs for FCC Part15. Report Prepared by: Mohit Shringi 6/2/2011 Axient Wireless Department AXT100/200 Test Data Revision: 1 Date: 6/2/20111 Author: Mohit Shringi Page: 2 of 311 Shure Incorporated © 2009 Table of Contents 1. Introduction .................................................................................................................. ......... 5 1.1 Test Equipment used: .................................................................................................... 5 1.2 Review and Approval ..................................................................................................... 5 1.3 Revision History ............................................................................................................. 5 1.4 References .................................................................................................................... . 6 1.5 Acronyms and Definitions............................................................................................... 6 2. AXT 100 (BP TX) UHF-Zigbee IMD Measurements ............................................................. 7 2.1 G1 band (470-530 MHz) UHF-Zigbee IMD .................................................................... 8 2.1.1 Zigbee low frequency (Channel 11) 2405 MHz................................................... 9 2.1.2 Zigbee Mid frequency (Channel 19) 2445 MHz ................................................ 15 2.1.3 Zigbee High frequency (Channel 26) 2480MHz:............................................... 21 2.2 H4 Band (518-578 MHz) UHF-Zigbee IMD: ................................................................. 27 2.2.1 Zigbee low frequency (Channel 11) 2405 MHz................................................. 28 2.2.2 Zigbee mid frequency (Channel 19) 2445 MHz ................................................ 33 2.2.3 Zigbee high frequency (Channel 26) 2480 MHz ............................................... 39 2.3 J5 band (578-638 MHz) UHF-Zigbee IMD ................................................................... 45 2.3.1 Zigbee low frequency (Channel 11) 2405 MHz................................................. 46 2.3.2 Zigbee mid frequency (Channel 19) 2445 MHz ................................................ 52 2.3.3 Zigbee high frequency (Channel 26) 2480 MHz ............................................... 58 2.4 L3 band 638-698 MHz UHF- Zigbee IMD ..................................................................... 64 2.4.1 Zigbee low frequency (Channel 11) 2405 MHz................................................. 65 2.4.2 Zigbee mid frequency (Channel 19) 2445 MHz ................................................ 71 2.4.3 Zigbee high frequency (Channel 26) 2480 MHz ............................................... 77 2.5 P8 band 710-790 MHz UHF-Zigbee IMD ..................................................................... 83 2.5.1 Zigbee low channel (Channel 11) 2405 MHz: ................................................... 84 Axient Wireless Department AXT100/200 Test Data Revision: 1 Date: 6/2/20111 Author: Mohit Shringi Page: 3 of 311 Shure Incorporated © 2009 2.5.2 Zigbee mid frequency (channel 19) 2445 MHz ................................................. 90 2.5.3 Zigbee high frequency (channel 26) 2480 MHz ................................................ 96 2.6 K4E band 606-666 MHz UHF-Zigbee IMD ................................................................. 102 2.6.1 Zigbee low frequency (Channel 11) 2405 MHz............................................... 103 2.6.2 Zigbee mid frequency (Channel 19) 2445 MHz .............................................. 109 2.6.3 Zigbee high frequency (Channel 26) 2480 MHz ............................................. 115 2.7 M8E band 666-730 MHz UHF-Zigbee IMD: ............................................................... 121 2.7.1 Zigbee low frequency (Channel 11) 2405 MHz............................................... 122 2.7.2 Zigbee mid frequency (Channel 19) 2445 MHz .............................................. 128 2.7.3 Zigbee high frequency (Channel 26) 2480 MHz ............................................. 134 2.8 Q5 band 740-814 MHz UHF- Zigbee IMD: ................................................................. 140 2.8.1 Zigbee low frequency (Channel 11) 2405 MHz............................................... 141 2.8.2 Zigbee mid frequency (Channel 19) 2445 MHz .............................................. 147 2.8.3 Zigbee high frequency (Channel 26) 2480 MHz ............................................. 153 3. AXT200 (HH TX) UHF-Zigbee IMD Measurements .......................................................... 159 3.1 G1 band 470-530 MHz UHF-Zigbee IMD ................................................................... 160 3.1.1 Zigbee low band (channel 11) 2405MHz ........................................................ 161 3.1.2 Zigbee mid frequency (channel 19) 2445 MHz ............................................... 167 3.1.3 Zigbee high frequency (channel 26) 2480 MHz .............................................. 173 3.2 H4 band 518-578 MHz UHF-Zigbee IMD ................................................................... 179 3.2.1 Zigbee low frequency (Channel 11) 2405 MHz............................................... 180 3.2.2 Zigbee mid frequency (channel 19) 2445 MHz ............................................... 186 3.2.3 Zigbee high frequency (channel 26) 2480 MHz .............................................. 192 3.3 J5 band 578-638 MHz UHF-Zigbee IMD .................................................................... 198 3.3.1 Zigbee low frequency (Channel 11) 2405 MHz............................................... 199 3.3.2 Zigbee mid frequency (Channel 19) 2 44…

Text truncated - open the document above for the full version.

Axient Wireless Department AXT100/200 Test Data Revision: 1 Date: 6/2/20111 Author: Mohit Shringi Page: 259 of 311 Shure Incorporated © 2009 3.6.1.2 UHF power high 50mW UHF Freq (MHz) UHF Pwr UHF-ZB IMD Freq low (MHz) IMD Pwr (dBm) UHF-ZB IMD Freq high (MHz) IMD Pwr (dBm) 606 50mw 1799 -72.7 3011 -85 Axient Wireless Department AXT100/200 Test Data Revision: 1 Date: 6/2/20111 Author: Mohit Shringi Page: 260 of 311 Shure Incorporated © 2009 UHF Freq (MHz) UHF Pwr UHF-ZB IMD Freq low (MHz) IMD Pwr (dBm) UHF-ZB IMD Freq high (MHz) IMD Pwr (dBm) 636 50mw 1769 -86 3041 -76 Axient Wireless Department AXT100/200 Test Data Revision: 1 Date: 6/2/20111 Author: Mohit Shringi Page: 261 of 311 Shure Incorporated © 2009 UHF Freq (MHz) UHF Pwr UHF-ZB IMD Freq low (MHz) IMD Pwr (dBm) UHF-ZB IMD Freq high (MHz) IMD Pwr (dBm) 666 50mw 1739 -77 3071 -80 Axient Wireless Department AXT100/200 Test Data Revision: 1 Date: 6/2/20111 Author: Mohit Shringi Page: 262 of 311 Shure Incorporated © 2009 3.6.2 Zigbee mid frequency (Channel 19) 2445 MHz 3.6.2.1 UHF power low 10mW UHF Freq (MHz) UHF Pwr UHF-ZB IMD Freq low (MHz) IMD Pwr (dBm) UHF-ZB IMD Freq high (MHz) IMD Pwr (dBm) 606 10mw 1839 -72 3051 -90 Axient Wireless Department AXT100/200 Test Data Revision: 1 Date: 6/2/20111 Author: Mohit Shringi Page: 263 of 311 Shure Incorporated © 2009 UHF Freq (MHz) UHF Pwr UHF-ZB IMD Freq low (MHz) IMD Pwr (dBm) UHF-ZB IMD Freq high (MHz) IMD Pwr (dBm) 636 10mw 1809 -76 3081 -80 Axient Wireless Department AXT100/200 Test Data Revision: 1 Date: 6/2/20111 Author: Mohit Shringi Page: 264 of 311 Shure Incorporated © 2009 UHF Freq (MHz) UHF Pwr UHF-ZB IMD Freq low (MHz) IMD Pwr (dBm) UHF-ZB IMD Freq high (MHz) IMD Pwr (dBm) 666 10mw 1779 -79 3111 -81 Axient Wireless Department AXT100/200 Test Data Revision: 1 Date: 6/2/20111 Author: Mohit Shringi Page: 265 of 311 Shure Incorporated © 2009 3.6.2.2 UHF power high 50mW UHF Freq (MHz) UHF Pwr UHF-ZB IMD Freq low (MHz) IMD Pwr (dBm) UHF-ZB IMD Freq high (MHz) IMD Pwr (dBm) 606 50mw 1839 -70 3051 -79 Axient Wireless Department AXT100/200 Test Data Revision: 1 Date: 6/2/20111 Author: Mohit Shringi Page: 266 of 311 Shure Incorporated © 2009 UHF Freq (MHz) UHF Pwr UHF-ZB IMD Freq low (MHz) IMD Pwr (dBm) UHF-ZB IMD Freq high (MHz) IMD Pwr (dBm) 636 50mw 1809 -73 3081 -80 Axient Wireless Department AXT100/200 Test Data Revision: 1 Date: 6/2/20111 Author: Mohit Shringi Page: 267 of 311 Shure Incorporated © 2009 UHF Freq (MHz) UHF Pwr UHF-ZB IMD Freq low (MHz) IMD Pwr (dBm) UHF-ZB IMD Freq high (MHz) IMD Pwr (dBm) 696 50mw 1779 -76 3111 -85 Axient Wireless Department AXT100/200 Test Data Revision: 1 Date: 6/2/20111 Author: Mohit Shringi Page: 268 of 311 Shure Incorporated © 2009 3.6.3 Zigbee high frequency (Channel 26) 2480 MHz 3.6.3.1 UHF power low 10mW UHF Freq (MHz) UHF Pwr UHF-ZB IMD Freq low (MHz) IMD Pwr (dBm) UHF-ZB IMD Freq high (MHz) IMD Pwr (dBm) 606 10mw 1874 -72 3086 -90 Axient Wireless Department AXT100/200 Test Data Revision: 1 Date: 6/2/20111 Author: Mohit Shringi Page: 269 of 311 Shure Incorporated © 2009 UHF Freq (MHz) UHF Pwr UHF-ZB IMD Freq low (MHz) IMD Pwr (dBm) UHF-ZB IMD Freq high (MHz) IMD Pwr (dBm) 636 10mw 1844 -74.9 3116 -86 Axient Wireless Department AXT100/200 Test Data Revision: 1 Date: 6/2/20111 Author: Mohit Shringi Page: 270 of 311 Shure Incorporated © 2009 UHF Freq (MHz) UHF Pwr UHF-ZB IMD Freq low (MHz) IMD Pwr (dBm) UHF-ZB IMD Freq high (MHz) IMD Pwr (dBm) 696 10mw 1814 -73 3146 -79 Axient Wireless Department AXT100/200 Test Data Revision: 1 Date: 6/2/20111 Author: Mohit Shringi Page: 271 of 311 Shure Incorporated © 2009 3.6.3.2 UHF power high 50mW UHF Freq (MHz) UHF Pwr UHF-ZB IMD Freq low (MHz) IMD Pwr (dBm) UHF-ZB IMD Freq high (MHz) IMD Pwr (dBm) 606 50mw 1874 -71 3086 -87 Axient Wireless Department AXT100/200 Test Data Revision: 1 Date: 6/2/20111 Author: Mohit Shringi Page: 272 of 311 Shure Incorporated © 2009 UHF Freq (MHz) UHF Pwr UHF-ZB IMD Freq low (MHz) IMD Pwr (dBm) UHF-ZB IMD Freq high (MHz) IMD Pwr (dBm) 636 50mw 1844 -72 3116 -81 Axient Wireless Department AXT100/200 Test Data Revision: 1 Date: 6/2/20111 Author: Mohit Shringi Page: 273 of 311 Shure Incorporated © 2009 UHF Freq (MHz) UHF Pwr UHF-ZB IMD Freq low (MHz) IMD Pwr (dBm) UHF-ZB IMD Freq high (MHz) IMD Pwr (dBm) 696 50mw 1814 -73 3146 -81 Axient Wireless Department AXT100/200 Test Data Revision: 1 Date: 6/2/20111 Author: Mohit Shringi Page: 274 of 311 Shure Incorporated © 2009 3.7 M8E band 666-730 MHz UHF-Zigbee IMD UHF Freq (MHz) Zb freq (MHz) UHF ‐ ZB IMD Freq low (MHz) IMD Pwr (dBm) UHF ‐ ZB IMD Freq high (MHz) IMD Pwr (dBm) Zigbee Low band 666 2405 1739 ‐ 78.4 3071 ‐ 86.3 698 2405 1707 ‐ 77 3103 ‐ 82 730 2405 1675 ‐ 77.3 3135 ‐ 83.4 Zigbee mid band 666 2445 1779 ‐ 79.4 3111 ‐ 88 698 2445 1747 ‐ 77 3143 ‐ 84 730 2445 1715 ‐ 79 3175 ‐ 86 Zigbee high band 666 2480 1814 ‐ 74 3146 ‐ 83 698 2480 1782 ‐ 77.5 3178 ‐ 81 730 2480 1750 ‐ 79 3210 ‐ 84 Zigbee Low band 666 2405 1739 ‐ 74 3071 ‐ 85 698 2405 1707 ‐ 77 3103 ‐ 85 730 2405 1675 ‐ 77 3135 ‐ 87 Zigbee mid band 666 2445 1779 ‐ 71 3111 ‐ 81 698 2445 1747 ‐ 75 3143 ‐ 86 730 2445 1715 ‐ 75 3175 ‐ 88 Zigbee high band 666 2480 1814 ‐ 78 3146 ‐ 82 698 2480 1782 ‐ 77 3178 ‐ 85 730 2480 1750 ‐ 77 3210 ‐ 86 Axient Wireless Department AXT100/200 Test Data Revision: 1 Date: 6/2/20111 Author: Mohit Shringi Page: 275 of 311 Shure Incorporated © 2009 3.7.1 Zigbee low frequency (Channel 11) 2405 MHz 3.7.1.1 UHF power low 10mW UHF Freq (MHz) UHF Pwr UHF-ZB IMD Freq low (MHz) IMD Pwr (dBm) UHF-ZB IMD Freq high (MHz) IMD Pwr (dBm) 666 10mw 1739 -78 3071 -86 Axient Wireless Department AXT100/200 Test Data Revision: 1 Date: 6/2/20111 Author: Mohit Shringi Page: 276 of 311 Shure Incorporated © 2009 UHF Freq (MHz) UHF Pwr UHF-ZB IMD Freq low (MHz) IMD Pwr (dBm) UHF-ZB IMD Freq high (MHz) IMD Pwr (dBm) 698 10mw 1707 -77 3103 -82 Axient Wireless Department AXT100/200 Test Data Revision: 1 Date: 6/2/20111 Author: Mohit Shringi Page: 277 of 311 Shure Incorporate…

Text truncated - open the document above for the full version.

For Shure, Incorporated 5800 West Touhy Avenue Niles, IL 60714 P.O. Number 4500195539 Date Received March 21, 2011 Date Tested April 15, 2011 through May 19, 2011 Test Personnel Mark Longinotti Specification FCC "Code of Federal Regulations" Title 47, Part 15, Subpart C, Sections 15.207 and 15.247 for Digital Modulation Intentional Radiators Operating within the 2400-2483.5MHz Band FCC “Code of Federal Regulations” Title 47, Part15, Subpart 15B, Section 15.107 and 15.109 for Receivers Industry Canada RSS-210 Industry Canada RSS-GEN Test Report By: Mark Longinotti EMC Engineer Requested By: Barry Zuckerman Shure, Incorporated Approved By: Raymond J. Klouda Registered Professional Engineer of Illinois - 44894 Engineering Test Report No. 1003369-03 Measurement of RF Interference from an AXT200 Axient Handheld Frequency Diversity Transmitter with Zigbee Transceiver Elite Electronic Engineering Inc. 1516 Centre Circle Downers Grove, IL 60515 Tel : (630) 495-9770 Fax: (630) 495-9785 www.elitetest.com Engineering Test Report No. 1003369-03 THIS REPORT SHALL NOT BE REPRODUCED, EXCEPT IN FULL, WITHOUT THE WRITTEN APPROVAL OF ELITE ELECTRONIC ENGINEERING INCORPORATED. Page 2 of 230 TABLE OF CONTENTS PARAGRAPH DESCRIPTION OF CONTENTS PAGE NO. 1 INTRODUCTION ............................................................................................................................................... 5 1.1 Scope of Tests .......................................................................................................................................... 5 1.2 Purpose ..................................................................................................................................................... 5 1.3 Deviations, Additions and Exclusions ....................................................................................................... 5 1.4 EMC Laboratory Identification .................................................................................................................. 5 1.5 Laboratory Conditions ............................................................................................................................... 5 2 APPLICABLE DOCUMENTS ............................................................................................................................ 5 3 EUT SET-UP AND OPERATION ...................................................................................................................... 6 3.1 General Description .................................................................................................................................. 6 3.1.1 Power Input .......................................................................................................................................... 6 3.1.2 Peripheral Equipment ........................................................................................................................... 6 3.1.3 Interconnect Cables ............................................................................................................................. 6 3.1.4 Grounding ............................................................................................................................................. 6 3.2 Operational Mode ..................................................................................................................................... 6 3.3 EUT Modifications ..................................................................................................................................... 7 4 TEST FACILITY AND TEST INSTRUMENTATION .......................................................................................... 7 4.1 Shielded Enclosure ................................................................................................................................... 7 4.2 Test Instrumentation ................................................................................................................................. 7 4.3 Calibration Traceability ............................................................................................................................. 7 4.4 Measurement Uncertainty ......................................................................................................................... 7 5 TEST PROCEDURES ....................................................................................................................................... 8 5.1 Receiver .................................................................................................................................................... 8 5.1.1 Powerline Conducted Emissions .......................................................................................................... 8 5.1.1.1 Requirements .............................................…

Text truncated - open the document above for the full version.
