Shure Incorporated 3/20 • • • • • • • • GLXD4+ and GLXD4R+ System Overview The GLX-D+ wireless systems from Shure combines the leading edge of automatic frequency management technology with best­in­class intelligent lithium­ion battery rechargeability, world­renowned microphones and unparalleled design and construc­ tion. Available in a wide offering of bodypack and handheld configurations - including vocal, headset and presenter systems as well as traditional guitar options. The GLX-D+ wireless systems define the newest standard for seamless ease of operation and exceptional digital audio clarity. Exceptional digital audio clarity Operates in 2.4 GHz and 5.8 GHz spectrum, available worldwide Rechargeable batteries deliver cost-efficiency and up to 17 hours of runtime at 2.4 GHz and 12 hours of runtime at 5.8 GHz. Adjustable transmitter gain to optimize audio signal Automatically moves away from interference without audio interruption RF back-channel for remote control of transmitter functions Globally­unlicensed 2.4 GHz and 5.8 GHz frequency band allows operation of up to 4 compatible systems in a typical set­ ting and up to 8 compatible systems under ideal conditions Automatic transmitter power-off to conserve battery life when transmitter is not in use Quick Start To reduce set up time, the transmitter and receiver automatically link to form an audio channel the first time they are powered on and never have to be linked again. Note: When setting up multiple receiver systems, turn on and link each transmitter/receiver pair one at a time to prevent cross-linking. Step ① Connect power supply to the receiver and plug cord into an AC power source. Connect the audio output to an amplifier or mixer. Step ②Install charged transmitter batteries. Step ③ Turn on the transmitter and receiver. The blue RF LED will flash while the transmitter and re­ ceiver form a link. When the link has successfully formed, the RF LED will remain illuminat­ ed. Note: The transmitter and receiver will remain linked for future usage. At power-up, the blue RF LED will illuminate, skipping the linking step. Step ④Check the audio and adjust the gain if necessary. DRAFT Shure Incorporated 4/20 ◦ ◦ ◦ Receiver Controls and Connectors ①Antenna Two antennas per receiver. Antennas pick up the signal from the transmitter. ②RF Status LED ON = Linked transmitter is on Flashing = Searching for transmitter OFF = Linked transmitter off or transmitter unlinked DRAFT Shure Incorporated 5/20 ◦ ◦ ◦ ◦ ◦ ◦ ③Group Button Press and hold for two seconds to enable manual group edit. ④Link Button Press to manually link receiver to a transmitter or to activate the remote ID function ⑤Channel Momentary press to start a channel scan Press and hold 2 seconds to enable manual channel edit ⑥LCD Screen Displays receiver and transmitter status. ⑦Gain Buttons Press to increase or decrease transmitter gain in 1 dB increments. ⑧Battery Charging Indicator Illuminates when battery is in charging bay: Red = battery charging Green Flashing = battery charge > 90% Green = battery charged Amber Flashing = charging error, replace battery ⑨Battery Charging Bay Charges transmitter battery. ⑩Power Switch Powers the unit on and off. Note: The battery continues to charges even when the switch is off. ⑪Power Supply Jack Connect the supplied 15 V DC external power supply. ⑫Mic Out XLR microphone output jack supplies microphone-level audio output. ⑬USB-C Port For uploading firmware updates ⑭Instr Out TRS ¼" (6.35mm) audio output. Connect to mixers, recorders, and amplifiers. DRAFT Shure Incorporated 6/20 ◦ ◦ ◦ Receiver Screen ①Group Displays the selected group. ②Channel Displays the selected channel. ③Transmitter Battery Runtime Displays remaining battery life in hours and minutes. Alternatively displays the following battery status: CALC = battery life calculation Lo = battery life less than 15 minutes Err = replace battery ④Audio Meter Indicates audio signal level and peaks. ⑤Gain Displays transmitter gain settings (dB). ⑥OL Indicator Indicates audio overload, reduce gain. ⑦Transmitter Locked Displayed when linked transmitter controls are locked. ⑧Scanning Indicates a scan is in progress. ⑨Auto Indicates that the selected group has backup channels available. DRAFT Shure Incorporated 7/20 ◦ ◦ Transmitters ①Antenna Carries wireless signal. ②Status LED LED color and state indicate transmitter status. ③Power Switch Turns the transmitter on/off. ④TA4M Input Jack Connects to a 4-Pin mini connector (TA4F) microphone or instrument cable. ⑤USB-C Charging Port Connect to USB-C battery charger. ⑥Link Button Press and hold within 5 seconds of power-on to manually link with receiver Press momentarily to activate Remote ID function ⑦Battery Compartment Holds 1 Shure rechargeable battery. ⑧Microphone Cartridge GLXD2+ transmitter models are available with the following cartridge types: SM58, Beta 58, SM86, Beta 87A. DRAFT Shure Incorporated 8/20 1. 2. 3. 1. 2. 3. Installing Transmitter Batteries Bodypack Transmitter Move the locking lever to the open position and slide the battery door open. Place the battery into the transmitter. Close the battery door and slide the latch to lock. Handheld Transmitter Unscrew and remove the battery cover. Place the battery into the transmitter. Replace and tighten the battery cover. Multiple Receiver Systems For ease of set up, frequencies are divided into groups to best match the channel requirements for your system. Select the group by determining the total number of receivers in your system (channel count). All receivers in the system must be set to the same group. DRAFT Shure Incorporated 9/20 1. 2. 3. 1. 2. 3. Group Channel Count (Number of Re­ ceivers) Number of Backup Frequencies Notes 1Up to 43Initial factory setting. 2Up to 5*3 Best multi-channel group if you experience interfer­ ence. 3Up to 8*0 For large multi-channel systems. Only use Group 3 in controlled Wi-Fi environments because there are no backup frequencies to avoid interference…

Text truncated - open the document above for the full version.

Declaration of Authorization We Name: Shure Incorporated Address: 5800 West Touhy Avenue, Niles, IL 60714-4608, USA Declare that: Name Representative of agent: Wu Jian Agent Company name: MRT Technology (Suzhou) Co., Ltd Address: D8 Building, Youxin Industrial Park, No.2 Tian'edang Rd., Wuzhong Economic Development Zone, City: Suzhou Country China is authorized to apply for Certification of the following product(s): Product description: Wireless Bodypack Transmitter Type designation: GLXD1+ Z3 Trademark: , FCC ID: DD4GLXD1Z3 IC: 616A-GLXD1Z3 on our behalf. --------------------------------------------------- Signature: Craig Kozokar, EMC Project Engineer Date: 2021/05/24

Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: DD4GLXD1Z3 Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Operation Description Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments until (180 days): External Photos Internal Photos Test Setup Photos User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Signature: Name: Craig Kozokar Title: EMC Project Engineer TEL: 847-600-8652 Email: [email protected]

Date: May 24, 2021 Federal Communications Commission Authorization and Evaluation Division FCC ID: DD4GLXD1Z3 To Whom It May Concern: This letter is to ascertain that the following information of applicant, product with model(s) have been the units used for conducting FCC compliance testing, the SDoC part will be tested by FCC recognized test lab. Product: Wireless Bodypack Transmitter Model: GLXD1+ Z3 If you have any question or concerns, pls. contact us. Signature: Name: Craig Kozokar Title: EMC Project Engineer TEL: 847-600-8652 Email: [email protected]

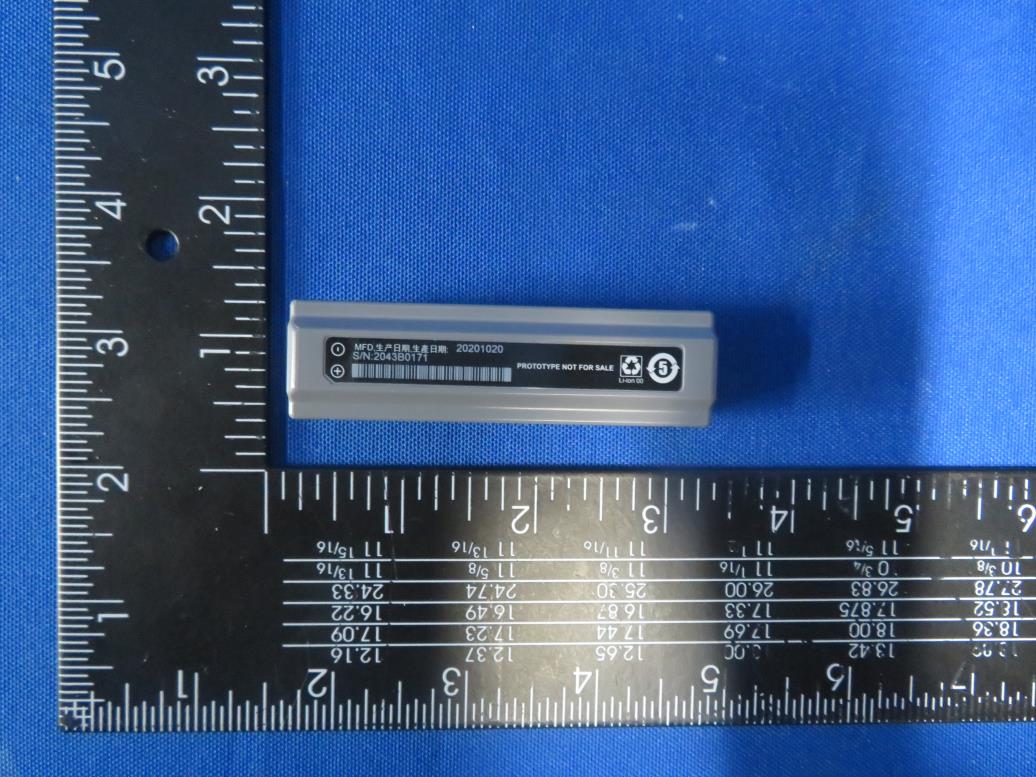

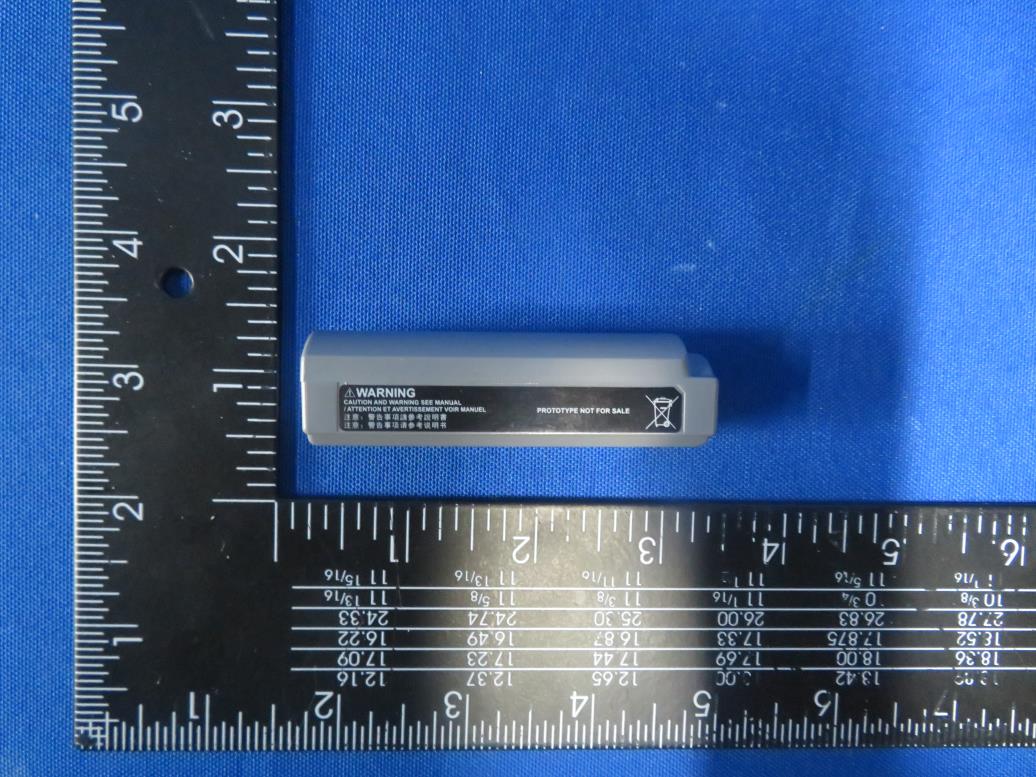

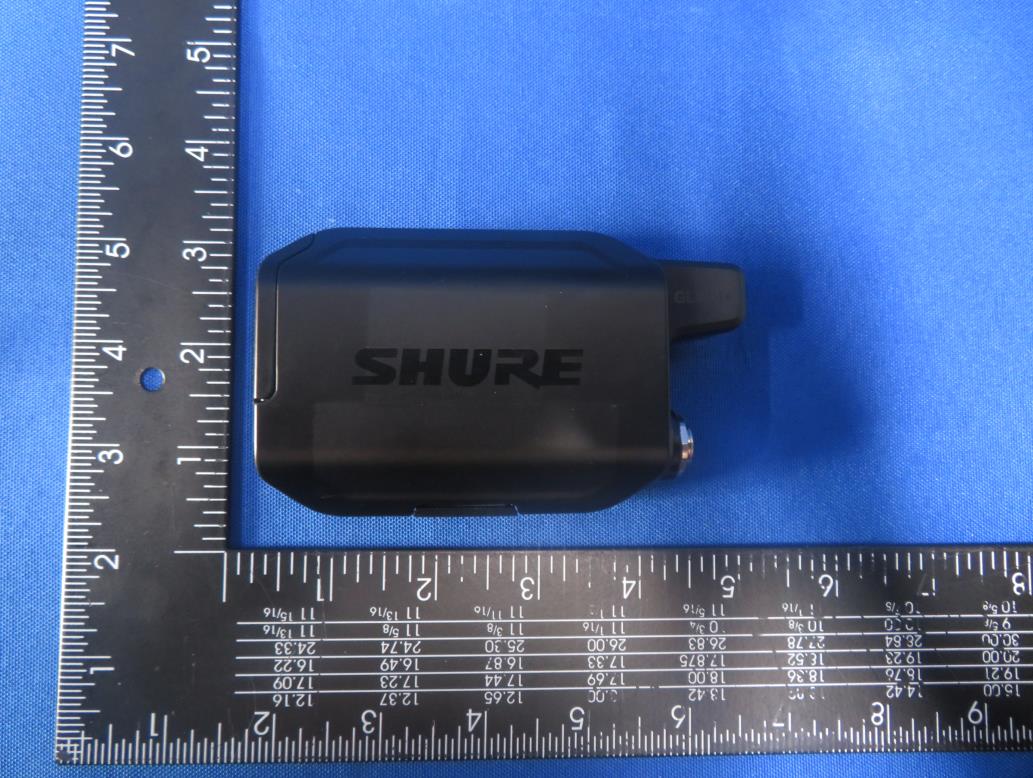

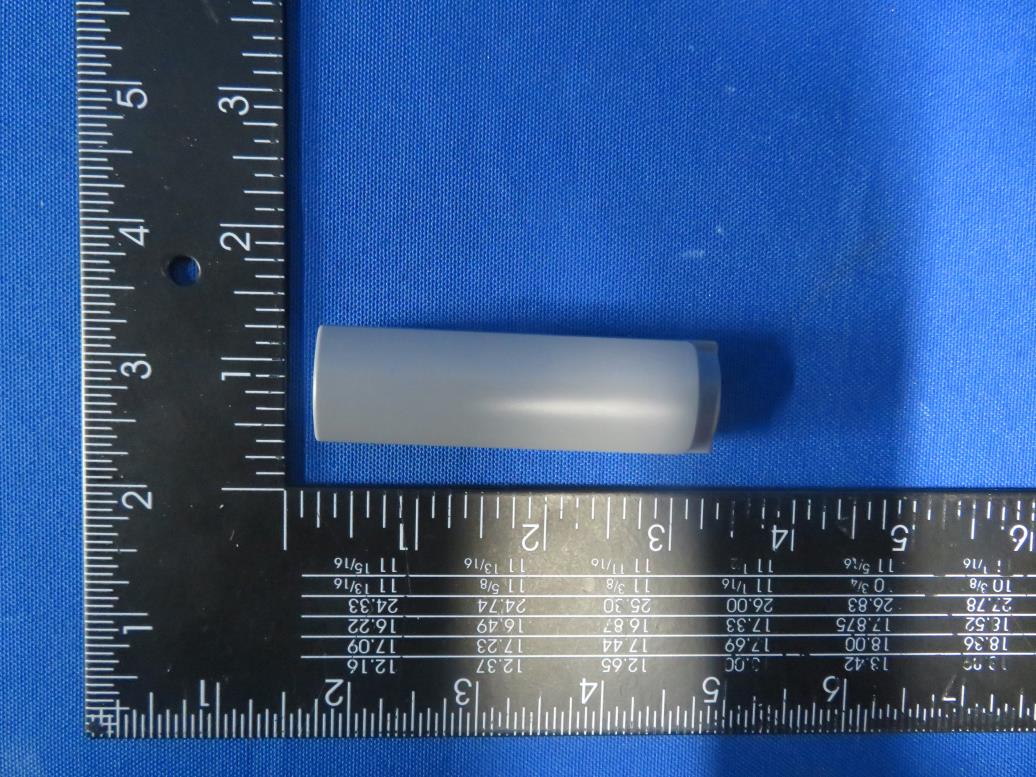

Report No.: 2103RSU004-UE 1 of 10 EUT External Photograph (1) EUT Photo (2) EUT Photo Report No.: 2103RSU004-UE 2 of 10 (3) EUT Photo (4) EUT Photo Report No.: 2103RSU004-UE 3 of 10 (5) EUT Photo (6) EUT Photo Report No.: 2103RSU004-UE 4 of 10 (7) EUT Photo (8) EUT Photo Report No.: 2103RSU004-UE 5 of 10 (9) EUT Photo (10) EUT Photo Report No.: 2103RSU004-UE 6 of 10 (11) EUT Photo (12) EUT Photo Report No.: 2103RSU004-UE 7 of 10 (13) EUT Photo (14) EUT Photo Report No.: 2103RSU004-UE 8 of 10 (15) EUT Photo (16) EUT Photo Report No.: 2103RSU004-UE 9 of 10 (17) EUT Photo (18) EUT Photo Report No.: 2103RSU004-UE 10 of 10 (19) EUT Photo

GLXD1+ Label and Label Location Label: Location:

Report No.: 2103RSU004-UE 1 of 3 EUT Internal Photograph (1) EUT Photo (2) EUT Photo Report No.: 2103RSU004-UE 2 of 3 (3) EUT Photo (4) EUT Photo Report No.: 2103RSU004-UE 3 of 3 (5) EUT Photo

MRT Technology (Suzhou) Co., Ltd Report No.: 2103RSU004-U3 Phone: +86-512-66308358 Report Version: V01 Web: www.mrt-cert.com Issue Date: 04-13-2021 1 of 11 RF Exposure Evaluation Declaration FCC ID: DD4GLXD1Z3 APPLICANT: Shure Incorporated Application Type: Certification Product: Wireless Bodypack Transmitter Model No.: GLXD1+ Z3 Brand Name: , FCC Rule Part(s): FCC Part 2 (Section 2.1091) Test Date: November 22, 2020 ~ April 07, 2021 Reviewed By: Jame Yuan Approved By: Robin Wu The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standards through the calibration of the equipment and evaluated measurement uncertainty herein. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 2103RSU004-U3 2 of 11 Revision History Report No. Version Description Issue Date Note 2103RSU004-U3 Rev. 01 Initial Report 04-13-2021 Valid Report No.: 2103RSU004-U3 3 of 11 1. Product Information 1.1. Equipment Description 1.2. RF Specification 1.3. Antenna Details Antenna Type Frequency Band (MHz) Max Peak Gain (dBi) Frequency Band (MHz) Max Peak Gain (dBi) PIFA Antenna 2404 2.72 5729 -0.20 2442 3.45 5788 -0.32 2478 2.33 5846 1.07 1.4. Applied Standards KDB 447498 D01v06 Product Name Wireless Bodypack Transmitter Model No. GLXD1+ Z3 Radio Specification 2.4GHz & 5.8GHz Operating Temperature 0 ~ 45 °C Power Type AC/DC Adapter or Rechargeable Li-ion Battery Input Accessories USB Adapter Model No.: SBC10-USB15WSUSTWJ Input Power: 100 - 240V ~ 50/60Hz, 0.6A Output Power: 5VDC 3A Rechargeable Li-ion Battery Model No.: SB904 Capacitance: 2420mAh/8.71Wh Rated Voltage: 3.6V Frequency Range 2404 ~ 2478MHz, 5729 ~ 5846MHz Declared Channel Bandwidth Full Bandwidth Mode: 2 MHz Half Bandwidth Mode: 1 MHz Channel Spacing 1MHz Type of Modulation 2-level CPM with Gaussian shaping (basically GFSK) Report No.: 2103RSU004-U3 4 of 11 2. Duty Cycle Factor Measurement 2.1. Test Requirement Unless otherwise specified, when the radiated emission limits are expressed in terms of the average value of the emission, and pulsed operation is employed, the measurement field strength shall be determined by averaging over one complete pulse train, including blanking intervals, as long as the pulse train does not exceed 0.1 s (100 ms). In cases where the pulse train exceeds 0.1 s, the measured field strength shall be determined during a 0.1 s interval. The exact method of calculating the average field strength shall be submitted with any application for certification or shall be retrained in the measurement data file for equipment subject to notification or verification. 2.2. Test Procedures a. The EUT was set to communicate with GLXD4+ continuously. b. A horn antenna was positioned at a 3 meter distance from the EUT. The output of the antenna was connected to the input of a spectrum analyzer. c. The center frequency of the spectrum analyzer was set to the transmit frequency of the EUT. d. The frequency span of the spectrum analyzer was set to 0Hz so that the time domain trace of the transmitted pulse of the EUT was displayed on the spectrum analyzer. e. The sweep time of the spectrum analyzer was adjusted so that the beginning and end of a single pulse could be seen on the display of the spectrum analyzer. f. The single sweep function of the spectrum analyzer was used multiple times to determine the maximum pulse width of the EUT. g. The maximum pulse width display of the spectrum analyzer was recorded and then plotted using a 'screen dump' utility. h. The sweep time of the spectrum analyzer was then adjusted to 100msec. Report No.: 2103RSU004-U3 5 of 11 i. The single sweep function of the spectrum analyzer was used multiple times to determine the maximum number of transmitted pulses that occurred in a 100msec time period. j. The maximum number of pulses transmitted in a 100msec time period was recorded and then plotted using a ‘screen dump’ utility. k. The duty cycle correction was calculated using the following equation: Duty Cycle Correction Factor (dB) = D.C. (dB) D.C. (dB) = 20 x log (((pulse width (msec))x(#pulses in a 100msecperiod)/100msec) Report No.: 2103RSU004-U3 6 of 11 2.3. Test Result Test Site SIP-SR5 Test Engineer Alisa Deng Test Date 2021/04/19 Test Mode Frequency (MHz) Single Pulse Width (us) Number of Packet In 100ms Duty Cycle Factor (dB) Full BW 2453 264.8 86 -12.85 Half BW 2453 831.0 37 -10.24 Note: Duty Cycle Correction Factor (dB) = 20 x log (((pulse width (msec)) x (#pulses in a 100msecperiod) / 100msec). Full BW, Channel 2453MHz Pulse Width 100ms Period Half BW, Channel 2453MHz Pulse Width 100ms Period Report No.: 2103RSU004-U3 7 of 11 Test Site SIP-SR5 Test Engineer Alisa Deng Test Date 2021/04/19 Test Mode Frequency (MHz) Single Pulse Width (us) Number of Packet In 100ms Duty Cycle Factor (dB) Full BW 5733 265.1 79 -13.58 Half BW 5733 832.0 34 -10.97 Note: Duty Cycle Correction Factor (dB) = 20 x log (((pulse width (msec)) x (#pulses in a 100msecperiod) / 100msec). Full BW, Channel 5733MHz Pulse Width 100ms Period Half BW, Channel 5733MHz Pulse Width 100ms Period Report No.: 2103RSU004-U3 8 of 11 3. RF Exposure Evaluation 3.1. Test Limit SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table. The equation and threshold in Note 1 must be applied to determine SAR test exclusion. MHz 5 10 15 20 25 mm 150 39 77 116 155 194 SAR Test Exclusion Threshold (mW) 300 27 55 82 110 137 450 22 45 67 89 112 835 16 33 49 66 82 900 16 32 47 63 79 1500 12 24 37 49 61 1900 11 22 33 44 54 2450 10 19 29 38 48 3600 8 16 24 32 40 5200 7 13 20 26 33 5400 6 13 19 26 32 5800 6 12 19 25 31 MHz 30 35 40 45 50 mm 150 232 271 310 349 387 SAR Test Exclusion Threshold (mW) 300 164 192 219 246 274 450 134 157 179 201 224 835 98 115 131 148 164 …

Text truncated - open the document above for the full version.

MRT Technology (Suzhou) Co., Ltd Report No.: 2103RSU004-U1 Phone: +86-512-66308358 Report Version: V01 Web: www.mrt-cert.com Issue Date: 04-13-2021 1 of 73 FCC ID: DD4GLXD1Z3 Applicant: Shure Incorporated Application Type: Certification Product: Wireless Bodypack Transmitter Model No.: GLXD1+ Z3 Brand Name: , FCC Classification: Digital Transmission System (DTS) FCC Rule Part(s): Part 15 Subpart C (Section 15.247) Test Procedure(s): ANSI C63.10-2013 Test Date: November 21, 2020 ~ April 07, 2021 MEASUREMENT REPORT FCC PART 15C Reviewed By: Jame Yuan Approved By: Robin Wu The test results relate only to the samples tested. This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.10-2013. Test results reported herein relate only to the item(s) tested. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 2103RSU004-U1 2 of 73 Revision History Report No. Version Description Issue Date Note 2103RSU004-U1 Rev. 01 Initial Report 04-13-2021 Valid Report No.: 2103RSU004-U1 3 of 73 CONTENTS Description Page 1. General Information ............................................................................................................... 5 1.1. Applicant ...................................................................................................................... 5 1.2. Manufacturer ................................................................................................................ 5 1.3. Testing Facility .............................................................................................................. 5 2. PRODUCT INFORMATION ...................................................................................................... 6 2.1. Equipment Description ................................................................................................. 6 2.2. Radio Specification ....................................................................................................... 6 2.3. Test Frequencies .......................................................................................................... 6 2.4. Antennas Details .......................................................................................................... 7 2.5. Test Mode .................................................................................................................... 7 2.6. Test Configuration and Software .................................................................................. 7 2.7. Duty Cycle .................................................................................................................... 8 2.8. EMI Suppression Device(s)/Modifications ..................................................................... 8 2.9. Labeling Requirements ................................................................................................. 8 2.10. Test Environment Condition ......................................................................................... 9 3. ANTENNA REQUIREMENTS................................................................................................. 10 4. TEST EQUIPMENT CALIBRATION DATE ............................................................................. 11 5. MEASUREMENT UNCERTAINTY ......................................................................................... 15 6. TEST RESULT ....................................................................................................................... 16 6.1. Summary .................................................................................................................... 16 6.2. 6dB Bandwidth Measurement ..................................................................................... 17 6.2.1. Test Limit ................................................................................................................ 17 6.2.2. Test Procedure used ............................................................................................... 17 6.2.3. Test Setting ............................................................................................................. 17 6.2.4. Test Setup .............................................................................................................. 17 6.2.5. Test Result .............................................................................................................. 18 6.3. Output Power Measurement ....................................................................................... 21 6.3.1. Test Limit ................................................................................................................ 21 6.3.2. Test Procedure Used .............................................................................................. 21 6.3.3. Test Setting ............................................................................................................. 21 6.3.4. Test Setup .............................................................................................................. 22 6.3.5. Test Result .............................................................................................................. 23 6.4. Power Spectral Density Measurement ........................................................................ 24 6.4.1. Test Limit ................................................................................................................ 24 Report No.: 2103RSU004-U1 4 of 73 6.4.2. Test Procedure Used .............................................................................................. 24 6.4.3. Test Setting ............................................................................................................. 24 6.4.4. Test Setup .................................................…

Text truncated - open the document above for the full version.

Report No.: 2103RSU004-U1 50 of 73 Site: SIP-AC3 Time: 2021/03/18 - 10:44 Limit: FCC_Part15_15.209 RE(3m) Engineer: White Wang Probe: SIP-AC3_HF907_102861_1-18GHz Polarity: Horizontal EUT: Wireless Bodypack Transmitter Power: By Battery Test Mode: Transmit by Full BW at channel 2404MHz No Flag Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Margin (dB) Limit (dBuV/m) Factor (dB) Type 1 2389.500 47.366 15.104 -6.634 54.000 32.263 AV 2 2390.000 46.795 14.530 -7.205 54.000 32.265 AV 3 * 2404.000 100.058 67.720 N/A N/A 32.337 AV Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB) Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m). Report No.: 2103RSU004-U1 51 of 73 Site: SIP-AC3 Time: 2021/03/18 - 10:46 Limit: FCC_Part15_15.209 RE(3m) Engineer: White Wang Probe: SIP-AC3_HF907_102861_1-18GHz Polarity: Vertical EUT: Wireless Bodypack Transmitter Power: By Battery Test Mode: Transmit by Full BW at channel 2404MHz No Flag Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Margin (dB) Limit (dBuV/m) Factor (dB) Type 1 2369.200 58.971 26.791 -15.029 74.000 32.180 PK 2 2390.000 57.598 25.333 -16.402 74.000 32.265 PK 3 * 2404.500 94.833 62.493 N/A N/A 32.341 PK Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB) Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m). Report No.: 2103RSU004-U1 52 of 73 Site: SIP-AC3 Time: 2021/03/18 - 10:49 Limit: FCC_Part15_15.209 RE(3m) Engineer: White Wang Probe: SIP-AC3_HF907_102861_1-18GHz Polarity: Vertical EUT: Wireless Bodypack Transmitter Power: By Battery Test Mode: Transmit by Full BW at channel 2404MHz No Flag Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Margin (dB) Limit (dBuV/m) Factor (dB) Type 1 2390.000 47.082 14.817 -6.918 54.000 32.265 AV 2 * 2403.950 91.703 59.366 N/A N/A 32.337 AV Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB) Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m). Report No.: 2103RSU004-U1 53 of 73 Site: SIP-AC3 Time: 2021/03/18 - 19:02 Limit: FCC_Part15_15.209 RE(3m) Engineer: White Wang Probe: SIP-AC3_HF907_102861_1-18GHz Polarity: Horizontal EUT: Wireless Bodypack Transmitter Power: By Battery Test Mode: Transmit by Full BW at channel 2478MHz No Flag Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Margin (dB) Limit (dBuV/m) Factor (dB) Type 1 * 2477.348 102.725 69.990 N/A N/A 32.734 PK 2 2483.500 64.654 31.882 -9.346 74.000 32.772 PK 3 2483.536 65.651 32.879 -8.349 74.000 32.772 PK Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB) Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m). Report No.: 2103RSU004-U1 54 of 73 Site: SIP-AC3 Time: 2021/03/18 - 19:20 Limit: FCC_Part15_15.209 RE(3m) Engineer: White Wang Probe: SIP-AC3_HF907_102861_1-18GHz Polarity: Horizontal EUT: Wireless Bodypack Transmitter Power: By Battery Test Mode: Transmit by Full BW at channel 2478MHz No Flag Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Margin (dB) Limit (dBuV/m) Factor (dB) Type 1 * 2478.216 98.859 66.119 N/A N/A 32.740 AV 2 2483.500 49.111 16.339 -4.889 54.000 32.772 AV 3 2485.986 49.391 16.604 -4.609 54.000 32.787 AV Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB) Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m). Report No.: 2103RSU004-U1 55 of 73 Site: SIP-AC3 Time: 2021/03/18 - 19:24 Limit: FCC_Part15_15.209 RE(3m) Engineer: White Wang Probe: SIP-AC3_HF907_102861_1-18GHz Polarity: Vertical EUT: Wireless Bodypack Transmitter Power: By Battery Test Mode: Transmit by Full BW at channel 2478MHz No Flag Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Margin (dB) Limit (dBuV/m) Factor (dB) Type 1 * 2477.222 98.220 65.486 N/A N/A 32.734 PK 2 2483.500 61.170 28.398 -12.830 74.000 32.772 PK 3 2483.956 61.914 29.140 -12.086 74.000 32.774 PK Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB) Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m). Report No.: 2103RSU004-U1 56 of 73 Site: SIP-AC3 Time: 2021/03/18 - 19:33 Limit: FCC_Part15_15.209 RE(3m) Engineer: White Wang Probe: SIP-AC3_HF907_102861_1-18GHz Polarity: Vertical EUT: Wireless Bodypack Transmitter Power: By Battery Test Mode: Transmit by Full BW at channel 2478MHz No Flag Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Margin (dB) Limit (dBuV/m) Factor (dB) Type 1 * 2478.034 94.706 61.967 N/A N/A 32.739 AV 2 2483.500 48.695 15.923 -5.305 54.000 32.772 AV 3 2485.790 48.860 16.075 -5.140 54.000 32.786 AV Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB) Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m). Report No.: 2103RSU004-U1 57 of 73 Site: SIP-AC3 Time: 2021/03/18 - 11:19 Limit: FCC_Part15_15.209 RE(3m) Engineer: White Wang Probe: SIP-AC3_HF907_102861_1-18GHz Polarity: Horizontal EUT: Wireless Bodypack Transmitter Power: By Battery Test Mode: Transmit by Half BW at channel 2404MHz No Flag Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Margin (dB) Limit (dBuV/m) Factor (dB) Type 1 2363.850 59.155 26.985 -14.845 74.000 32.170 PK 2 2390.000 58.245 25.980 -15.755 74.000 32.265 PK 3 * 2404.500 103.390 71.050 N/A N/A 32.341 PK Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB) Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m). Report No.: 2103RSU004-U1 58 of 73 Site: SIP-AC3 Time: 2021/03/18 - 11:23 Limit: FCC_Part15_15.209 RE(3m) Engineer: White Wang Probe: SIP-AC3_HF907_102861_1-18GHz Polarity: Horizontal EUT: Wireless Bodypack Transmitter Power: By Battery Test Mode: Transmit by Half BW at channel 2404MHz No Flag Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Margin (dB) Limit (dBuV/m) Factor (dB) Type 1 2382.900 46.815 14.589 -7.185 54.000 32.227 AV 2 2390.000 46.728 14.463 -7.272 54.000 32.265 AV 3 * 2403.900 101.652 69.315 N/A N/A 32.337 AV Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB) Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m). Report No.: 2103RSU004-U1 59 of 73 …

Text truncated - open the document above for the full version.

Antenna Specification 1, General Information Antenna Type, PIFA Antenna Host Information: GLXD1+ Report No.: 2011WSU022-1 Test Date: 2021-02-06 Antenna Gain Summary Frequency (MHz) Peak Gain (dBi) 2404 2.72 2442 3.45 2478 2.33 5729 -0.20 5788 -0.32 5846 1.07 2, Antenna Pattern 2.4GHz Frequency Band 5.8GHz Frequency Band 3, Test Laboratory Information Test Site MRT Technology (Suzhou) Co., Ltd Address 4b Building, Liando U Valley, No.200 Xingpu Rd., Shengpu Town, Suzhou Industrial Park, China Laboratory Accreditations A2LA: 3628.01 CNAS: L10551 FCC: CN1166 ISED: CN0001 4, Measuring Instrument Instrument Name Manufacturer Model No. Asset No. Cali. Interval Cal. Due Date Test Site Signal Analyzer Keysight N9010B MRTSUE06559 1 year 2021-07-23 SIP-AC3 Horn Antenna Schwarzbeck BBHA 9170 MRTSUE06598 1 year 2021-11-26 SIP-AC3 Thermohygrometer testo 608-H1 MRTSUE06619 1 year 2021-11-25 SIP-AC3 Thermohygrometer testo 608-H1 MRTSUE06622 1 year 2021-12-03 SIP-AC3 Preamplifier EMCI EMC012645SE MRTSUE06642 1 year 2022-01-13 SIP-AC3 Anechoic Chamber RIKEN SIP-AC3 MRTSUE06782 1 year 2021-12-24 SIP-AC3 Signal Generator Keysight N5182B MRTSUE06605 1 year 2021-11-23 SIP-AC3 USB Power Sensor Keysight U2021XA MRTSUE06595 1 year 2021-09-26 SIP-AC3 Software Version Function EMI Software V3.0.0 EMI Test Software Controller_MF 7802 1.02 RE Antenna & Turntable Agilent Power Panel V R03.09.00 Power 5, Antenna Photo

Report No.: 2103RSU004-UT 1 of 2 RF Test Setup Photograph Description: Radiated Emission Test Setup for below 1GHz Description: Radiated Emission Test Setup for above 1GHz Report No.: 2103RSU004-UT 2 of 2 Description: RF Conducted Test Setup
