DD4MXW6XWireless Microphone

Shure Incorporated 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. 14. 15. 16. 17. 18. 19. 20. 21. 22. MXWPlus MXW+ Quick Start Guide IMPORTANT SAFETY INSTRUCTIONS READ these instructions. KEEP these instructions. HEED all warnings. FOLLOW all instructions. DO NOT use this apparatus near water. CLEAN ONLY with dry cloth. DO NOT block any ventilation openings. Allow sufficient distances for adequate ventilation and install in accordance with the manufacturer’s instructions. DO NOT install near any heat sources such as open flames, radiators, heat registers, stoves, or other apparatus (in­ cluding amplifiers) that produce heat. Do not place any open flame sources on the product. DO NOT defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wider blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replace­ ment of the obsolete outlet. PROTECT the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. ONLY USE attachments/accessories specified by the manufacturer. USE only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. UNPLUG this apparatus during lightning storms or when unused for long periods of time. REFER all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. DO NOT expose the apparatus to dripping and splashing. DO NOT put objects filled with liquids, such as vases, on the apparatus. The MAINS plug or an appliance coupler shall remain readily operable. The airborne noise of the Apparatus does not exceed 70dB (A). Apparatus with CLASS I construction shall be connected to a MAINS socket outlet with a protective earthing connec­ tion. To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. Do not attempt to modify this product. Doing so could result in personal injury and/or product failure. Operate this product within its specified operating temperature range. Follow local regulations and consult qualified personnel if the product installation or relocation requires construction work. Choose mounting hardware and an installation location that can support the weight of the product. Avoid loca­ tions subject to constant vibration. Use the required tools to install the product properly. Inspect the product periodically. Shure Incorporated • • • • • • • • This symbol indicates that dangerous voltage constituting a risk of electric shock is present within this unit. This symbol indicates that there are important operating and maintenance instructions in the literature accom­ panying this unit. WARNING If water or other foreign objects enter the inside of the device, fire or electric shock may result. Do not attempt to modify this product. Doing so could result in personal injury and/or product failure. WARNING: Voltages in this equipment are hazardous to life. No user­serviceable parts inside. Refer all servicing to qualified service personnel. The safety cer­ tifications do not apply when the operating voltage is changed from the factory setting. General Description The MXW APXD2 is an all-in-one wireless microphone system that combines a 2-channel wireless transceiver, digital audio processing and two charging bays into a convenient tabletop device. On­board Dante, analog, USB and Bluetooth audio con­ nections enable local sound reinforcement and video conferencing applications in either standalone or networked installations. The front panel includes at-a-glance indicators and touch-sensitive buttons to facilitate quick out-of-the-box setup and intuitive system use, without the need for additional screen-based user interfaces. In networked installations, a computer can remotely control and monitor connected units via the built-in network interface. Features Standalone and networked installations Front panel user interface for simple setup and intuitive use Audio I/O: analog, Dante, USB, Bluetooth Built-in audio DSP: Automixer, Echo Cancellation, Noise Reduction Dual RJ45 to separate audio and control traffic (3 modes) Two built-in charging bays for wireless microphones Microphone Transmitters MXW+ microphones transmit an encrypted, wireless audio signal to the access point. Three form factors are available: Hybrid Bodypack (MXW1X) The bodypack secures to a belt or strap for hands­free, mobile communication. It features a TQG input for lavalier connec­ tion and an integrated omnidirectional microphone. Handheld (MXW2X) The handheld enables presenters to communicate using legendary Shure SM58, SM86, BETA58 and VP68 microphone cartridges. Boundary (MXW6X/C, MXW6X/O, MXW6XW/C, MXW6XW/O) Shure Incorporated The boundary transmitter sits on a table or desk to transmit speech while discreetly blending into any conference environ­ ment. Callouts ①Mute/Active Button Changes the audio status from Active to Mute, or Mute to Active. Button behavior for some transmitter type can be set inde­ pendently from the Preferences tab of the control software. Note: For MXW1X and MXW2X, press and hold the Mute/Active button for five seconds to turn the transmitter on or off. ②Status LED Indicates the transmitter's status. The color indicators for Mute and Active can be customized from the Preferences tab. See the Status LED table for the default LED behavior for MXW+ transmitters. ③Display Shows menu options, receiver and transmitter setting…

Text truncated - open the document above for the full version.

050523-17 rev 8 Certification Application Attestation Statements Date: June 5, 2023 American Certification Body, Inc. 313 Park Avenue Suite 300 Falls Church, VA 22046 To Whom It May Concern: Statement for 47 CFR section 2.911(d)(5)(i) ______Shure Incorporated______ certifies that as of the date of the application the equipment for which authorization is sought is not “covered” equipment 1 prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, including affiliates or subsidiaries of the named companies, the applicant must include an explanation on why the equipment is not “covered” equipment. Additional Explanation: <N/A> Statement for 47 CFR section 2.911(d)(5)(ii) ______Shure Incorporated______ (“the applicant”) certifies that, as of the date of the filing of this application, the applicant ☐ - is / ☐ - is not identified on the Covered List as an entity producing “covered” equipment. Thank you, By: __________________________ _____ Craig Kozokar ______ (Signature 2 ) (Print name) Title: _____ EMC Project Engineer _______ 1 - The Commission’s Covered List is published by the Public Safety and Homeland Security Bureau and posted on the Commission’s website. This Covered List, which is periodically updated, identifies particular equipment, produced by particular entities, that constitutes “covered” equipment. https://www.fcc.gov/supplychain/coveredlist . 2 - Letters must be placed on appropriate letterhead. 050523-17 rev 8 Company: _____ Shure Incorporated _____ Telephone: _____847-600-8652_____

U.S. Agent Designation for Service of Process TO: American Certification Body, Inc. 313 Park Avenue Suite 300 Falls Church, VA 22046 ATTENTION: FCC Certification – Section 2.911(d)(7) Information This letter is to confirm that the Applicant will also serve as the U.S. Agent for Service of Process as required by 47 CFR 2.911(d)(7). The Applicant acknowledges that they must maintain an agent for no less than one year after terminating all marketing and importation OR the conclusion of any Commission-related proceeding involving the equipment. The Applicant further acknowledges their responsibility to inform the FCC whenever the Designated U.S. Agent information changes. Applicant Company name: Shure Incorporated FRN #: 0030683478 Grantee Code: DD4 Contact Name: Craig Kozokar Street Address: 5800 West Touhy Avenue City/Province/Zip: Niles, IL 60714-4608, USA Telephone No: (847) 600-8652 Email: [email protected] Applicant Signature 1 : Date: 2023-05-25 Signed by (Printed Name/Title): Craig Kozokar / EMC Project Engineer 1 - Letters must be placed on appropriate letterhead. The signee for the applicant must be one of the following: Applicant (grantee) contact of record in the FCC’s authorization system, or authorized officers or employee of the applicant (grantee).

Declaration of Authorization We Name: Shure Incorporated Address: 5800 West Touhy Avenue, Niles, IL 60714-4608, USA Declare that: Name Representative of agent: Marlin Chen Agent Company name: MRT Technology (Suzhou) Co., Ltd Address: D8 Building, Youxin Industrial Park, No.2 Tian'edang Rd., Wuzhong Economic Development Zone, City: Suzhou Country China is authorized to apply for Certification of the following product(s): Product description: Wireless Microphone Regulation Model Number (RMN): MXW6X Trademark: , FCC ID: DD4MXW6X IC: 616A-MXW6X on our behalf. --------------------------------------------------- Signature: Craig Kozokar, EMC Project Engineer Date: 2023/05/25

050222-17 Request for Confidentiality Date: June 5, 2023 Subject: Confidentiality Request for: ______DD4MXW6X _____ Pursuant to FCC 47 CFR 0.457(d) and 0.459 and/or IC RSP-100, Section 12.4, the applicant requests that a part of the subject application(s) be held confidential. Type of Confidentiality Requested Exhibit ☐ Short Term ☒ Permanent Block Diagrams ☒ Short Term --------------------------- External Photos ☒ Short Term ☐ Permanent * 1 Internal Photos ☐ Short Term ☒ Permanent Operation Description/Theory of Operation ☐ Short Term ☐ Permanent Parts List & Placement/BOM ☐ Short Term ☐ Permanent Tune-Up Procedure ☐ Short Term ☒ Permanent Schematics ☒ Short Term --------------------------- Test Setup Photos ☒ Short Term ☐ Permanent * 1 User’s Manual _____ Shure Incorporated_______ has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality for FCC Applications: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of __ (specify number of days not to exceed 180) 2 ___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public before the requested period has expired. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. Short Term Confidentiality for Industry Canada Applications: Starting May 2022, ISED will recognize short term confidentiality on certain exhibits until the intended date of marketing. The applicant requests the exhibits selected above as short term confidential be withheld from public view until: (specify ISED expiration date / date of marketing) . Sincerely, By: ____________________________ ______ Craig Kozokar______ (Signature/Title 3 ) (Print name) 1 - The asterisked items (*) require further information to be provided to ACB before permanent confidentiality will be extended to these exhibits. Please refer to FCC KDB 726920 and the specific Document link for D01 found at: https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=41731 and review section II, 3) regarding specific information that must accompany these requests. 2 - Please refer to https://acbcert.com/documents/misc-docs/Memo-Short-Term-Vs-Standard-Confidentiality.pdf for complete details. 3 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent s been provided. Letters should be placed on appropriate letterhead.

Declaration letter Date: June 5, 2023 For our business issue and marketing requirement, we would like to list different model numbers as following: FCC ID: DD4MXW6X Product Number: MXW6X/C Z10, MXW6X/O Z10, MXW6XW/C Z10, MXW6XW/O Z10 Product Number Difference Difference MXW6X/C Z10 MXW6XW/C Z10 MXW6X/O Z10 MXW6XW/O Z10 Enclosure Black White Black White Built-in MIC Same, Cardioid Same, Omnidirectional Signature: Print Name: Craig Kozokar Title: EMC Project Engineer Shure Incorporated

Cover Letter Date: June 5, 2023 Federal Communications Commission Authorization and Evaluation Division FCC ID: DD4MXW6X Please be notified that we, the undersigned, Shure Incorporated declares that the product which bears the above FCC ID is also compliant with the FCC requirements for SDoC. And the SDoC procedure shall be carried out prior to marketing the device in the US. Sincerely, Signature： Print Name: Craig Kozokar Title: EMC Project Engineer Shure Incorporated

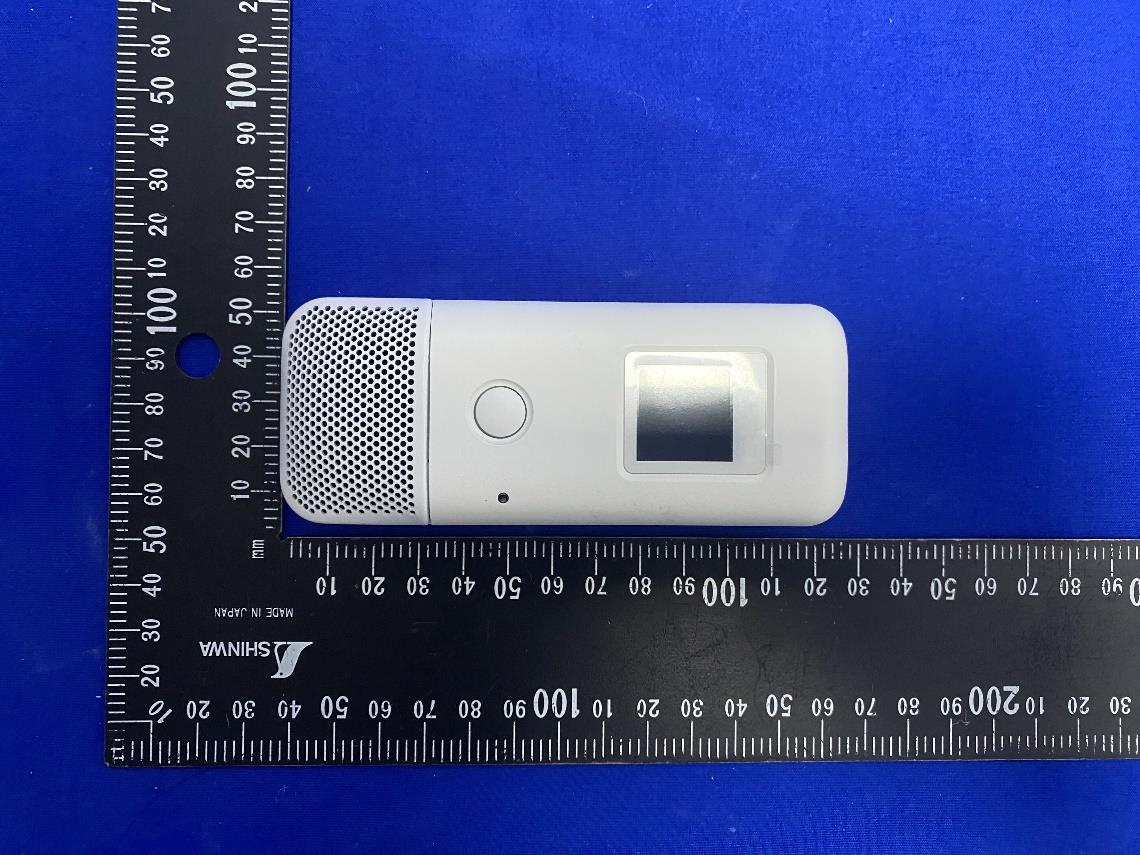

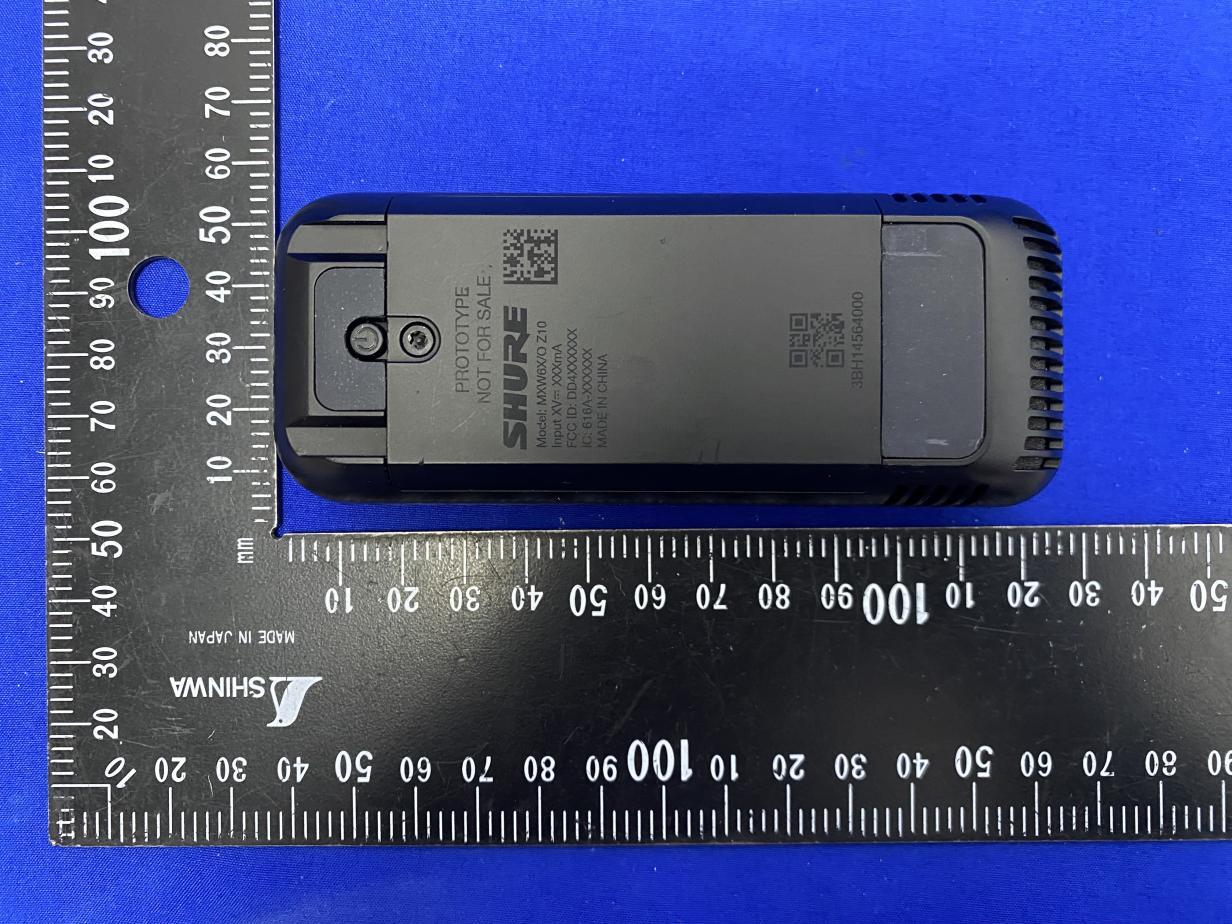

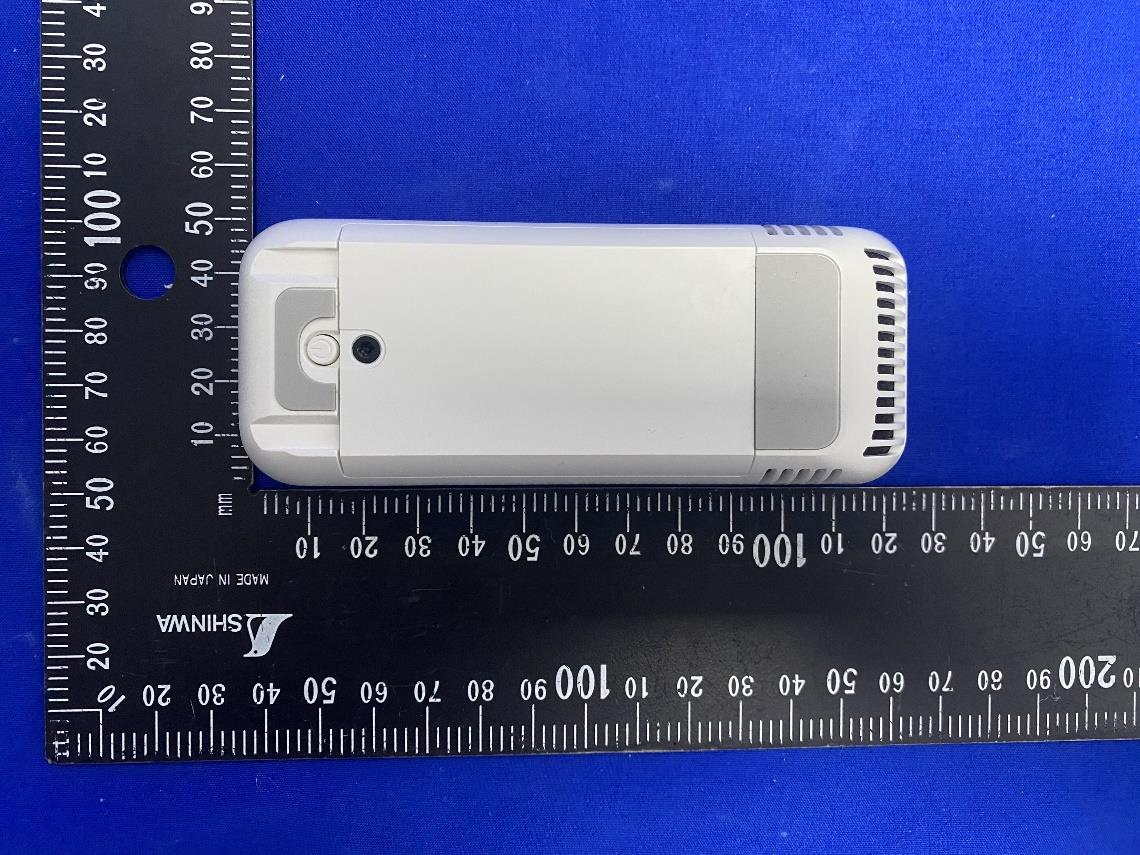

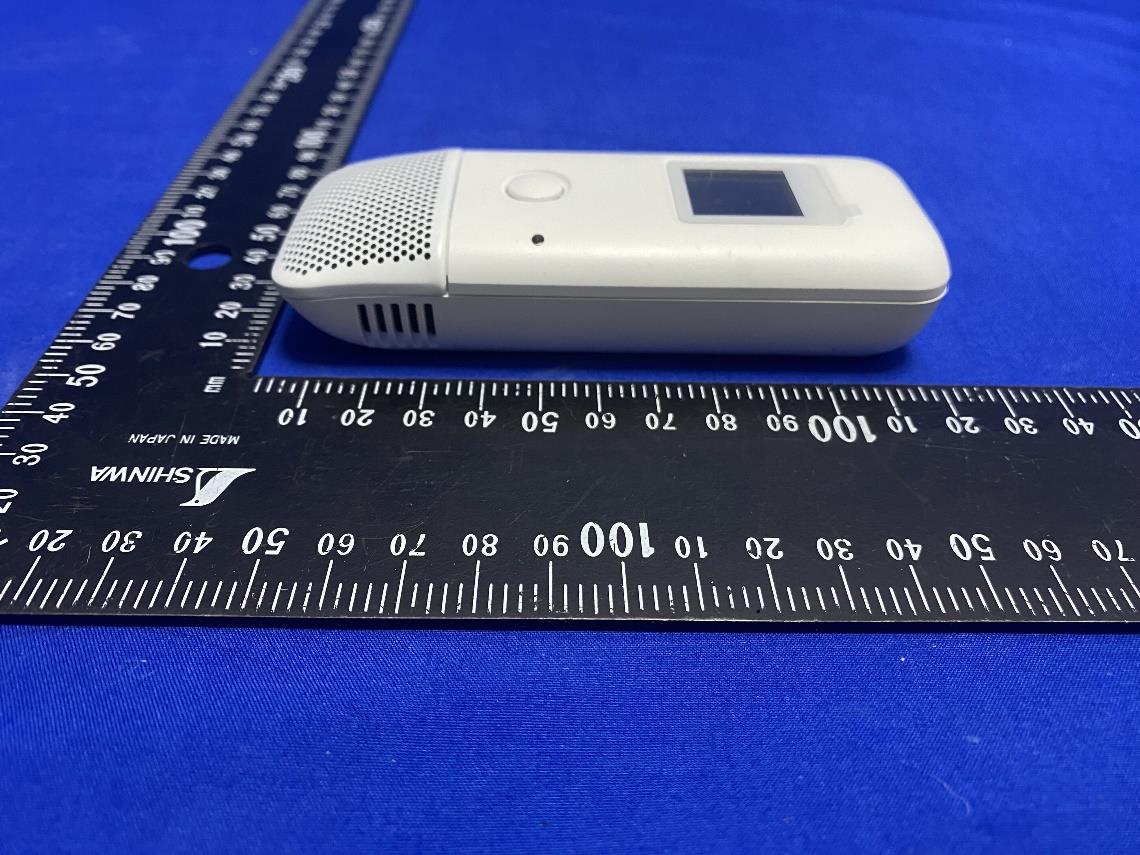

Report No.: 2211RSU056-UE 1 of 6 EUT Photograph (1) EUT Photo (MXW6X/C, MXW6X/O) (2) EUT Photo (MXW6X/C, MXW6X/O) Report No.: 2211RSU056-UE 2 of 6 (3) EUT Photo (MXW6X/C, MXW6X/O) (4) EUT Photo (MXW6X/C, MXW6X/O) Report No.: 2211RSU056-UE 3 of 6 (5) EUT Photo (MXW6X/C, MXW6X/O) (6) EUT Photo (MXW6X/C, MXW6X/O) Report No.: 2211RSU056-UE 4 of 6 (7) EUT Photo (MXW6XW/C, MXW6XW/O) (8) EUT Photo (MXW6XW/C, MXW6XW/O) Report No.: 2211RSU056-UE 5 of 6 (9) EUT Photo (MXW6XW/C, MXW6XW/O) (10) EUT Photo (MXW6XW/C, MXW6XW/O) Report No.: 2211RSU056-UE 6 of 6 (11) EUT Photo (MXW6XW/C, MXW6XW/O) (12) EUT Photo (MXW6XW/C, MXW6XW/O)

Report No.: 2211RSU056-UE 1 of 8 EUT Photograph (1) EUT Photo (2) EUT Photo Report No.: 2211RSU056-UE 2 of 8 (3) EUT Photo (4) EUT Photo Report No.: 2211RSU056-UE 3 of 8 (5) EUT Photo (6) EUT Photo Report No.: 2211RSU056-UE 4 of 8 (7) EUT Photo (8) EUT Photo Report No.: 2211RSU056-UE 5 of 8 (9) EUT Photo (10) EUT Photo Report No.: 2211RSU056-UE 6 of 8 (11) EUT Photo (12) EUT Photo Report No.: 2211RSU056-UE 7 of 8 (13) EUT Photo (14) EUT Photo (Omnidirectional Built-in MIC) Report No.: 2211RSU056-UE 8 of 8 (15) EUT Photo (Cardioid Built-in MIC)

MRT Technology (Suzhou) Co., Ltd Report No.: 2211RSU056-U3 Phone: +86-512-66308358 Report Version: V02 Web: www.mrt-cert.com Issue Date: 2023-07-13 Template Version:0.0 1 of 10 RF Exposure Evaluation Declaration FCC ID: DD4MXW6X Applicant: Shure Incorporated Product: Wireless Microphone Regulatory Model Number (RMN): MXW6X Product Number: MXW6X/C Z10, MXW6X/O Z10 MXW6XW/C Z10, MXW6XW/O Z10 Trademark: , FCC Classification: Digital Transmission System (DTS) Unlicensed PCS Base Station (PCS) FCC Rule Part(s): FCC Part 2.1091 Result: Complies Reviewed By: Jame Yuan Approved By: Robin Wu The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standards through the calibration of the equipment and evaluated measurement uncertainty herein. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 2211RSU056-U3 2 of 10 Revision History Report No. Version Description Issue Date Note 2211RSU056-U3 V01 Initial Report 2023-05-16 Invalid 2211RSU056-U3 V02 change Bluetooth Version from V5.0 to V5.3 2023-07-13 Valid Report No.: 2211RSU056-U3 3 of 10 CONTENTS Description Page 1. General Information ................................................................................................................................ 4 1.1. Applicant........................................................................................................................................ 4 1.2. Manufacturer ................................................................................................................................. 4 1.3. Testing Facility ............................................................................................................................... 4 1.4. Product Information ....................................................................................................................... 5 1.5. Antenna Details ............................................................................................................................. 5 1.6. Applied Standards ......................................................................................................................... 5 2. RF Exposure Evaluation ......................................................................................................................... 6 2.1. Test Limits ..................................................................................................................................... 6 2.1. MPE Exemptions ........................................................................................................................... 7 2.2. Calculated Result ........................................................................................................................ 10 Report No.: 2211RSU056-U3 4 of 10 1. General Information 1.1. Applicant Shure Incorporated 5800 West Touhy Avenue, Niles, IL 60714-4608, USA 1.2. Manufacturer Shure Incorporated 5800 West Touhy Avenue, Niles, IL 60714-4608, USA 1.3. Testing Facility Test Site – MRT Suzhou Laboratory Laboratory Location (Suzhou - Wuzhong) D8 Building, No.2 Tian’edang Rd., Wuzhong Economic Development Zone, Suzhou, China Laboratory Location (Suzhou - SIP) 4b Building, Liando U Valley, No.200 Xingpu Rd., Shengpu Town, Suzhou Industrial Park, China Laboratory Accreditations A2LA: 3628.01 CNAS: L10551 FCC: CN1166 ISED: CN0001 VCCI: R-20025 G-20034 C-20020 T-20020 R-20141 G-20134 C-20103 T-20104 Test Site – MRT Shenzhen Laboratory Laboratory Location (Shenzhen) 1G, Building A, Junxiangda Building, Zhongshanyuan Road West, Nanshan District, Shenzhen, China Laboratory Accreditations A2LA: 3628.02 CNAS: L10551 FCC: CN1284 ISED: CN0105 Test Site – MRT Taiwan Laboratory Laboratory Location (Taiwan) No. 38, Fuxing 2nd Rd., Guishan Dist., Taoyuan City 333, Taiwan (R.O.C.) Laboratory Accreditations TAF: L3261-190725 FCC: 291082, TW3261 ISED: TW3261 Report No.: 2211RSU056-U3 5 of 10 1.4. Product Information Product Name Wireless Microphone RMN MXW6X Product Number MXW6X/C Z10, MXW6X/O Z10 MXW6XW/C Z10, MXW6XW/O Z10 DECT Specification 1920 ~ 1930MHz Bluetooth Specification V5.3 signal mode, BLE only Antenna Information Refer to section 1.5 Working Voltage Power by Li-ion battery or USB-C input Operating Temperature 5 ~ 40 °C Accessories Rechargeable Li-ion Battery Model: SB906 Rating: 3.7Vdc, 1150mAh, 4.255Wh Remark: 1, The information of EUT was provided by the manufacturer, and the accuracy of the information shall be the responsibility of the manufacturer. 2, Difference between models is that the EUT has different built-in MIC. 3, MXW6X/C Z10, MXW6X/O Z10: Black enclosure; MXW6XW/C Z10, MXW6XW/O Z10: White enclosure. 1.5. Antenna Details Antenna Type Frequency Band (GHz) Max Peak Gain (dBi) Internal Chip 2.4 ~ 2.5 2.63 Internal Chip 1.88 ~ 1.90 1.72 -0.70 1.6. Applied Standards According to the specifications of the manufacturer, the EUT must comply with the requirements of the following standards: ⚫ FCC Part 2.1091 & KDB 447498 D04 Interim General RF Exposure Guidance v01 Report No.: 2211RSU056-U3 6 of 10 2. RF Exposure Evaluation 2.1. Test Limits According to FCC §1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in §1.1307(b) Limits For Maximum Permissible Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 0.3-3.0 614 1.63 *(100) ≤6 3.0-30 1842/f 4.89/f *(900/f 2 ) <6 30-300 61.4 0.163 1.0 <6 300-1,500 -- -- f/300 <6 1,500-100,000 -- -- 5 <6 (B) Limits for General Population/ Uncontrolled Exposures 0.3-1.34 614 1.63 *(100) <30 1.34-30 824/f 2.19/f *(180/f 2 ) <30 30-300 27.5 0.073 0.2 <30 300-1,500 -- -- f/1500 <30 1,500-100,000 -- -- 1.…
