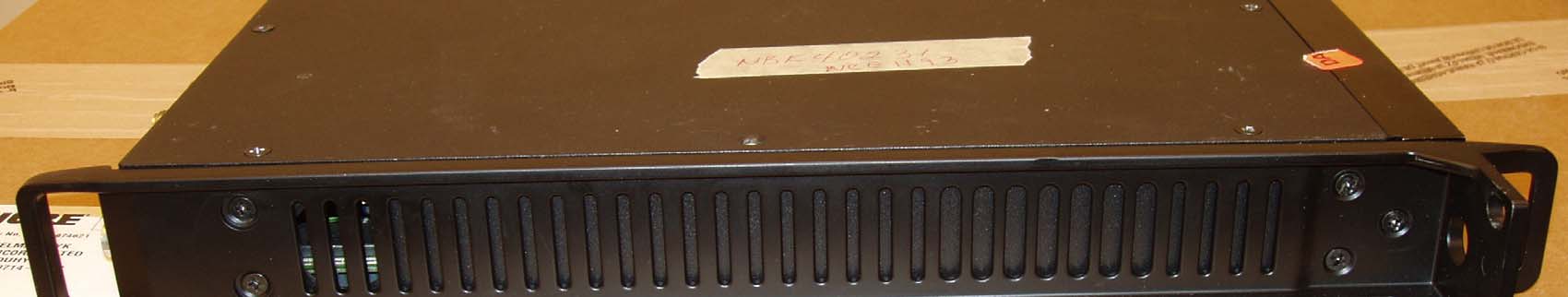

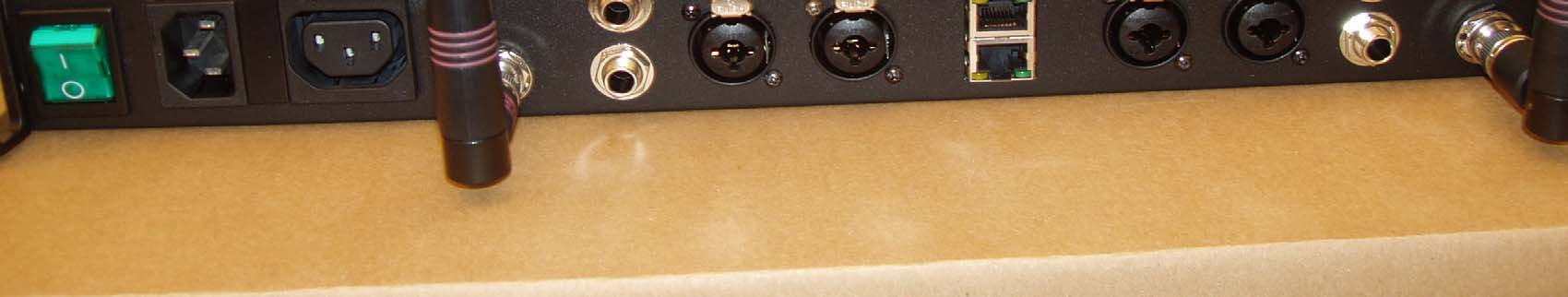

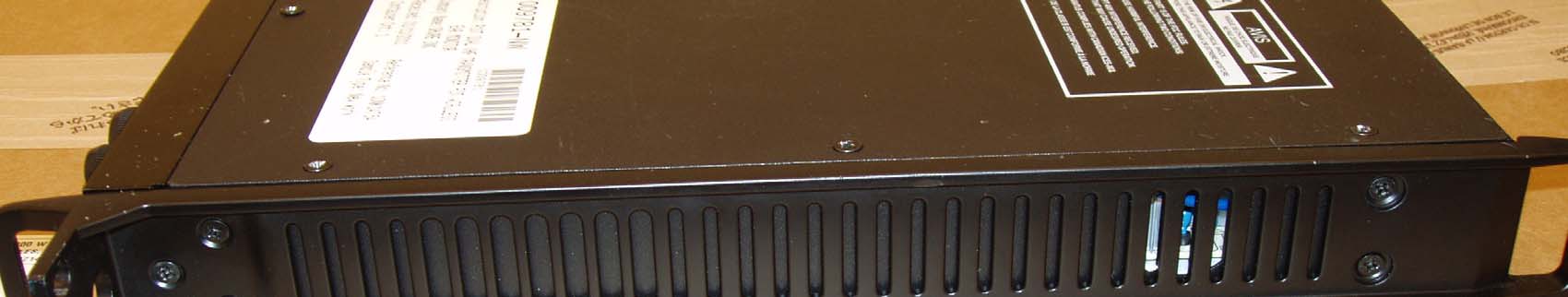

DD4P10TDPersonal monitor system dual-channel transmitter

© 2010 Shure Incorporated Printed in U.S.A. 27A14811 (Rev. 1) PSM ® 1000 Personal Monitor Wireless System Guide de l’utilisation du système de retour personnel Personal Monitor System Bedienungsanleitung Guía del usuario del sistema de monitoreo personal Guida all’uso del sistema di monitoraggio personale Manual do Usuário do Sistema de Monitoração Pessoal Система личного монитора беспроволочная For Placement Only 1. READ these instructions. 2. KEEP these instructions. 3. HEED all warnings. 4. FOLLOW all instructions. 5. DO NOT use this apparatus near water. 6. CLEAN ONLY with dry cloth. 7. DO NOT block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8. DO NOT install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifi ers) that produce heat. 9. DO NOT defeat the safety purpose of the polarized or grounding- type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wider blade or the third prong are provided for your safety. If the provided plug does not fi t into your outlet, consult an electrician for replacement of the obsolete outlet. 10. PROTECT the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11. ONLY USE attachments/accessories specifi ed by the manufacturer. 12. 13. UNPLUG this apparatus during lightning storms or when unused for long periods of time. 14. REFER all servicing to qualifi ed service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. 15. DO NOT expose the apparatus to dripping and splashing. DO NOT put objects fi lled with liquids, such as vases, on the appara- tus. 16. The MAINS plug or an appliance coupler shall remain readily oper- able. 17. The airborne noise of the Apparatus does not exceed 70dB (A). 18. Apparatus with CLASS I construction shall be connected to a MAINS socket outlet with a protective earthing connection. 19. To reduce the risk of fi re or electric shock, do not expose this ap- paratus to rain or moisture. 20. Do not attempt to modify this product. Doing so could result in personal injury and/or product failure. IMPORTANT SAFETY INSTRUCTIONS USE only with a cart, stand, tripod, bracket, or table speci- fi ed by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. This symbol indicates that dangerous voltage constituting a risk of electric shock is present within this unit. This symbol indicates that there are important operating and maintenance instructions in the literature accompanying this unit. iii AVERTISSEMENT ! L'ÉCOUTE AUDIO À UN VOLUME SONORE EXCESSIF PEUT CAUSER DES LÉSIONS AUDITIVES PERMANENTES. RÉGLER LE VOLUME LE PLUS BAS POSSIBLE. Une surexposition à des volumes sonores excessifs peut causer des lésions aux oreilles entraînant une perte auditive permanente due au bruit. Se conformer aux directives ci-dessous, établies par l'Occupational Safety Health Administration (OSHA) pour les limites de durée d'exposition aux pressions acoustiques (SPL) avant de risquer des lésions auditives. SPL de 90 dB pendant 8 heures SPL de 95 dB pendant 4 heures SPL de 100 dB pendant 2 heures SPL de 105 dB pendant 1 heure SPL de 110 dB pen- dant 1/2 heure SPL de 115 dB pendant 15 minutes SPL de 120 dB À éviter : risque de lésions auditives WARNING! LISTENING TO AUDIO AT EXCESSIVE VOLUMES CAN CAUSE PERMANENT HEARING DAMAGE. USE AS LOW A VOLUME AS POSSIBLE. Over exposure to excessive sound levels can damage your ears resulting in permanent noise- induced hearing loss (NIHL). Please use the following guidelines established by the Occupational Safety Health Administration (OSHA) on maximum time exposure to sound pressure levels before hearing damage occurs. 90 dB SPL at 8 hours 95 dB SPL at 4 hours 100 dB SPL at 2 hours 105 dB SPL at 1 hour 110 dB SPL at ½ hour 115 dB SPL at 15 minutes 120 dB SPL Avoid or damage may occur ACHTUNG! MÖGLICHST GERINGE LAUTSTÄRKEPEGEL VERWENDEN. Längerfristiges Hören bei übermäßigen Schallpegeln kann zu Hörschäden und zu permanentem, durch Lärm verursachten Gehörverlust führen. Bitte orientieren Sie sich an den folgenden von der Occupational Safety Health Administration (OSHA; US- Arbeitsschutzbehörde) erstellten Richtlinien für die maximale zeitliche Belastung durch Schalldruckpegel, bevor es zu Hörschäden kommt. bei 90 dB Schalldruckpegel max. 8 Stunden bei 95 dB Schalldruckpegel max. 4 Stunden bei 100 dB Schalldruckpegel max. 2 Stunden bei 105 dB Schalldruckpegel max. 1 Stunde bei 110 dB Schalldruckpegel max. ½ Stunde bei 115 dB Schalldruckpegel max. 15 Minuten 120 dB Schalldruckpegel vermeiden; ansonsten können Schäden auftreten ADVERTENCIA EL ESCUCHAR REPRODUCCIONES DE AUDIO A NIVELES EXCESIVOS DE VOLUMEN PUEDE CAUSAR DAÑOS PERMANENTES AL OIDO. USE EL VOLUMEN MAS BAJO POSIBLE. La exposición prolongada a niveles sonoros excesivamente intensos puede dañar los oídos y causar una pérdida permanente del oído causada por ruidos. Respete los lineamientos dados a continuación, los cuales fueron establecidos por la Administración de Salud y Seguridad Ocupacional (OSHA) de los EE.UU. e indican el tiempo máximo que puede escucharse un nivel determinado de presión sonora (SPL) antes de producirse daños al oído. 90 dB SPL por 8 horas 95 dB SPL por 4 horas 100 dB SPL por 2 horas 105 dB SPL por 1 hora 110 dB SPL por 1/2 hora 115 dB SPL por 15 minutos 120 dB SPL Evítese por completo, puesto que puede causar daños inmediatos SAFETY PRECAUTIONS The possible results of incorrect use are marked by one of the two symbols - “WARNING” AND “CAUT…

Text truncated - open the document above for the full version.

February 18, 2011 Elite Electronic Engineering, Inc. 1516 Centre Circle Downers Grove, Illinois 60515-1082 SUBJECT: REQUEST FOR NON-DISCLOSURE FOR FCC ID: DD4P10TD To Whom It May Concern: Pursuant to 47 CFR Section 0.459, Shure Incorporated hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application for FCC ID # DD4P10TD: a. Schematic Diagrams b. Operational Description c. Block Diagram d. Parts List e. Tune Up Procedure Above materials contain trade secrets, proprietary and technical information which would customarily be guarded from competitors under 47 CFR section 0.457(d)(2). Disclosure or publication of any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. Shure Incorporated understands that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. Sincerely yours, Thomas E. Braxton Senior Engineer, Global Compliance Shure Incorporated

Maximum Permissible Exposure calculations The MPE distance will be calculated for the worst case of a 100% transmitter duty cycle. For an isotropic radiator the surface area of a sphere can be used to determine the area over which the transceiver energy is radiated. Surface area of a sphere = 4 * π * radius2 In the case where there is an antenna gain, the worst case energy density is increased by the antenna gain. In this case, the exposure level for a controlled environment can be calculated as follows: MPE distance =((output power*duty cycle*10*(antenna gain/10))/(4* π*Exposure Limit [mW/cm2]))1/2 In the case of 2.15 dBi antenna at 698MHz MPE distance = ((100 mW * 1 * 1.64) /( 4 * 3.14 * 0.47)) 1/2 = 5.3 cm

Engineering Test Report No. 1002721-04 Electromagnetic Compatibility Tests on a Transmitter, Part No. P10T For : Shure Inc. 5800 West Touhy Avenue Niles, IL 60714 P.O. No. : 4500191364 Date Received : December 6, 2010 Dates Tested : December 13, 2010 through February 23, 2011 Test Personnel : Craig M. Dinsmore, Mark E. Longinotti Specification : FCC "Code of Federal Regulations” Title 47 Part 74 Industry Canada RSS-123 Test Report By : Mark E. Longinotti EMC Engineer Approved By : Raymond J. Klouda Registered Professional Engineer of Illinois - 44894 Elite Electronic Engineering Inc. 1516 Centre Circle Downers Grove, IL 60515 Tel : (630) 495-9770 Fax: (630) 495-9785 www.elitetest.com Engineering Test Report No. 1002721-04 THIS REPORT SHALL NOT BE REPRODUCED, EXCEPT IN FULL, WITHOUT THE WRITTEN APPROVAL OF ELITE ELECTRONIC ENGINEERING INCORPORATED. Page 2 of 217 TABLE OF CONTENTS PARAGRAPH DESCRIPTION OF CONTENTS PAGE NO. 1. Introduction ........................................................................................................................................................ 5 1.1 Scope of Tests .......................................................................................................................................... 5 1.2 Purpose .................................................................................................................................................... 5 1.3 Deviations, Additions, and Exclusions ...................................................................................................... 5 1.4 EMC Laboratory Identification .................................................................................................................. 5 1.5 Laboratory Conditions .............................................................................................................................. 5 2. Applicable Documents ....................................................................................................................................... 5 3. Test Item Setup and Operation ......................................................................................................................... 6 3.1 General Description .................................................................................................................................. 6 3.1.1 Power Input .......................................................................................................................................... 6 3.1.2 Peripheral Equipment ........................................................................................................................... 6 3.1.3 Signal Input/Output Leads .................................................................................................................... 6 3.1.4 Grounding ............................................................................................................................................. 6 3.1.5 Frequency of Test Item ........................................................................................................................ 6 3.2 Operational Mode ..................................................................................................................................... 6 3.3 Test Item Modifications ............................................................................................................................. 6 4. Test Facility and Test Instrumentation .............................................................................................................. 7 4.1 Shielded Enclosure ................................................................................................................................... 7 4.2 Test Instrumentation ................................................................................................................................. 7 4.3 Calibration Traceability ............................................................................................................................. 7 4.4 Measurement Uncertainty ........................................................................................................................ 7 5. Test Procedures ................................................................................................................................................ 7 5.1 RF POWER OUTPUT MEASUREMENTS ............................................................................................... 7 5.1.1 Requirements ....................................................................................................................................... 7 5.1.2 Procedures ........................................................................................................................................... 7 5.1.3 Results .................................................................................................................................................. 7 5.2 MODULATION CHARACTERISTICS ....................................................................................................... 8 5.2.1 Requirements ....................................................................................................................................... 8 5.2.2 Procedures ........................................................................................................................................... 8 5.2.3 Results .................................................................................................................................................. 8 5.3 FREQUENCY STABILITY ........................................................................................................................ 8 5.3.1 Requirements ....................................................................................................................................... 8 5.3.2 Procedures ................................................................…

Text truncated - open the document above for the full version.

Engineering Test Report No. 1002721-04 Page 73 of 217 Engineering Test Report No. 1002721-04 Page 74 of 217 Engineering Test Report No. 1002721-04 Page 75 of 217 Engineering Test Report No. 1002721-04 Page 76 of 217 Engineering Test Report No. 1002721-04 Page 77 of 217 Engineering Test Report No. 1002721-04 Page 78 of 217 Engineering Test Report No. 1002721-04 Page 79 of 217 Engineering Test Report No. 1002721-04 Page 80 of 217 Engineering Test Report No. 1002721-04 Page 81 of 217 Engineering Test Report No. 1002721-04 Page 82 of 217 Engineering Test Report No. 1002721-04 Page 83 of 217 Engineering Test Report No. 1002721-04 Page 84 of 217 Engineering Test Report No. 1002721-04 Page 85 of 217 Engineering Test Report No. 1002721-04 Page 86 of 217 Engineering Test Report No. 1002721-04 Page 87 of 217 Engineering Test Report No. 1002721-04 Page 88 of 217 Engineering Test Report No. 1002721-04 Page 89 of 217 Engineering Test Report No. 1002721-04 Page 90 of 217 Engineering Test Report No. 1002721-04 Page 91 of 217 Engineering Test Report No. 1002721-04 Page 92 of 217 Engineering Test Report No. 1002721-04 Page 93 of 217 Engineering Test Report No. 1002721-04 Page 94 of 217 Engineering Test Report No. 1002721-04 Page 95 of 217 Engineering Test Report No. 1002721-04 Page 96 of 217 Engineering Test Report No. 1002721-04 Page 97 of 217 Engineering Test Report No. 1002721-04 Page 98 of 217 Engineering Test Report No. 1002721-04 Page 99 of 217 Engineering Test Report No. 1002721-04 Page 100 of 217 Engineering Test Report No. 1002721-04 Page 101 of 217 Engineering Test Report No. 1002721-04 Page 102 of 217 Engineering Test Report No. 1002721-04 Page 103 of 217 Engineering Test Report No. 1002721-04 Page 104 of 217 Engineering Test Report No. 1002721-04 Page 105 of 217 Engineering Test Report No. 1002721-04 Page 106 of 217 Engineering Test Report No. 1002721-04 Page 107 of 217 Engineering Test Report No. 1002721-04 Page 108 of 217 Engineering Test Report No. 1002721-04 Page 109 of 217 Engineering Test Report No. 1002721-04 Page 110 of 217 Engineering Test Report No. 1002721-04 Page 111 of 217 Engineering Test Report No. 1002721-04 Page 112 of 217 Engineering Test Report No. 1002721-04 Page 113 of 217 Engineering Test Report No. 1002721-04 Page 114 of 217 Engineering Test Report No. 1002721-04 Page 115 of 217 Engineering Test Report No. 1002721-04 Page 116 of 217 Engineering Test Report No. 1002721-04 Page 117 of 217 Engineering Test Report No. 1002721-04 Page 118 of 217 Engineering Test Report No. 1002721-04 Page 119 of 217 Engineering Test Report No. 1002721-04 Page 120 of 217 Engineering Test Report No. 1002721-04 Page 121 of 217 Engineering Test Report No. 1002721-04 Page 122 of 217

Engineering Test Report No. 1002721-04 Page 145 of 217 Engineering Test Report No. 1002721-04 Page 146 of 217 Engineering Test Report No. 1002721-04 Page 147 of 217 Engineering Test Report No. 1002721-04 Page 148 of 217 Engineering Test Report No. 1002721-04 Page 149 of 217 Engineering Test Report No. 1002721-04 Page 150 of 217 Engineering Test Report No. 1002721-04 Page 151 of 217 Engineering Test Report No. 1002721-04 Page 152 of 217 Engineering Test Report No. 1002721-04 Page 153 of 217 Engineering Test Report No. 1002721-04 Page 154 of 217 Engineering Test Report No. 1002721-04 Page 155 of 217 Engineering Test Report No. 1002721-04 Page 156 of 217 Engineering Test Report No. 1002721-04 Page 157 of 217 Engineering Test Report No. 1002721-04 Page 158 of 217 Engineering Test Report No. 1002721-04 Page 159 of 217 Engineering Test Report No. 1002721-04 Page 160 of 217 Engineering Test Report No. 1002721-04 Page 161 of 217 Engineering Test Report No. 1002721-04 Page 162 of 217 Engineering Test Report No. 1002721-04 Page 163 of 217 Engineering Test Report No. 1002721-04 Page 164 of 217 Engineering Test Report No. 1002721-04 Page 165 of 217 Engineering Test Report No. 1002721-04 Page 166 of 217 Engineering Test Report No. 1002721-04 Page 167 of 217 Engineering Test Report No. 1002721-04 Page 168 of 217 Engineering Test Report No. 1002721-04 Page 169 of 217 Engineering Test Report No. 1002721-04 Page 170 of 217 Engineering Test Report No. 1002721-04 Page 171 of 217 Engineering Test Report No. 1002721-04 Page 172 of 217 Engineering Test Report No. 1002721-04 Page 173 of 217 Engineering Test Report No. 1002721-04 Page 174 of 217 Engineering Test Report No. 1002721-04 Page 175 of 217 Engineering Test Report No. 1002721-04 Page 176 of 217 Engineering Test Report No. 1002721-04 Page 177 of 217 MANUFACTURER : Shure Inc. MODEL : PSM1000 P10T Transmitter SERIAL NO. : None Assigned SPECIFICATION : RSS-123 Spurious Radiated Emissions DATE : December 13, 2010 through February 1, 2011 MODE : Transmit at 470MHz, 10mW (10dBm) UNIT : A EQUIPMENT USED : RBB0, NTA2, NWH0, NDQ0, NWF0, GRE0, GXA1, APW3 Freq. MHz Ant Pol Meter Reading dBuV Amb Matched Sig Gen dBm Antenna Gain dB Cable Factor dB ERP Total dBm Atten. dB Part 74 Min. Attn. dB RSS-123 Min. Attn. dB 940.3 H 20.0 * -53.8 0.0 2.0 -55.8 65.8 23.0 35.0 940.3 V 20.0 * -51.7 0.0 2.0 -53.7 63.7 23.0 35.0 1410. 4 H 32.4 -85.7 4.5 2.4 -83.6 93.6 23.0 35.0 1410. 4 V 33.1 -84.8 4.5 2.4 -82.7 92.7 23.0 35.0 1880. 5 H 32.9 -81.9 5.0 2.7 -79.6 89.6 23.0 35.0 1880. 5 V 31.8 -82.2 5.0 2.7 -79.9 89.9 23.0 35.0 2350. 6 H 31.0 -82.1 5.7 3.2 -79.5 89.5 23.0 35.0 2350. 6 V 31.5 -79.6 5.7 3.2 -77.1 87.1 23.0 35.0 2820. 8 H 29.3 -82.3 6.0 3.6 -79.8 89.8 23.0 35.0 2820. 8 V 30.5 -78.7 6.0 3.6 -76.2 86.2 23.0 35.0 3290. 9 H 31.2 -78.8 6.5 3.9 -76.2 86.2 23.0 35.0 3290. 9 V 31.3 -76.9 6.5 3.9 -74.3 84.3 23.0 35.0 3761. 0 H 31.2 -75.6 6.9 4.2 -72.9 82.9 23.0 35.0 3761. 0 V 32.2 -73.6 6.9 4.2 -70.9 80.9 23.0 35.0 4231. 1 H 29.5 -75.4 7.6 4.4 -72.3 82.3 23.0 35.0 4231. 1 V 29.9 -75.0 7.6 4.4 -71.8 81.8 23.0 35.0 4701. 3 H 30.3 -73.9 8.2 4.7 -70.4 80.4 23.0 35.0 4701. 3 V 29.8 -74.8 8.2 4.7 -71.3 81.3 23.0 35.0 * - Ambient Engineering Test Report No. 1002721-04 Page 178 of 217 ERP Total (dBm) = Matched Sig Gen (dBm) + Antenna Gain (dB) – Cable Factor (dB) Atten. (dB) = Output Power (dBm) – ERP (dBm) Checked By: Mark E. Longinotti Engineering Test Report No. 1002721-04 Page 179 of 217 MANUFACTURER : Shure Inc. MODEL : PSM1000 P10T Transmitter SERIAL NO. : None Assigned SPECIFICATION : RSS-123 Spurious Radiated Emissions DATE : December 13, 2010 through February 1, 2011 MODE : Transmit at 470MHz, 100mW (20dBm) UNIT : A EQUIPMENT USED : RBB0, NTA2, NWH0, NDQ0, NWF0, GRE0, GXA1, APW3 Freq. MHz Ant Pol Meter Reading dBuV Amb Matched Sig Gen dBm Antenna Gain dB Cable Factor dB ERP Total dBm Atten. dB Part 74 Min. Attn. dB RSS-123 Min. Attn. dB 940.3 H 19.6 -54.2 0.0 2.0 -56.2 76.2 33.0 45.0 940.3 V 19.7 -52.0 0.0 2.0 -54.0 74.0 33.0 45.0 1410. 4 H 33.2 -84.9 4.5 2.4 -82.8 102.8 33.0 45.0 1410. 4 V 34.0 -83.9 4.5 2.4 -81.8 101.8 33.0 45.0 1880. 5 H 31.2 -83.6 5.0 2.7 -81.3 101.3 33.0 45.0 1880. 5 V 32.1 -81.9 5.0 2.7 -79.6 99.6 33.0 45.0 2350. 6 H 34.3 -78.8 5.7 3.2 -76.2 96.2 33.0 45.0 2350. 6 V 33.8 -77.3 5.7 3.2 -74.8 94.8 33.0 45.0 2820. 8 H 32.2 -79.4 6.0 3.6 -76.9 96.9 33.0 45.0 2820. 8 V 31.8 -77.4 6.0 3.6 -74.9 94.9 33.0 45.0 3290. 9 H 30.8 -79.2 6.5 3.9 -76.6 96.6 33.0 45.0 3290. 9 V 31.3 -76.9 6.5 3.9 -74.3 94.3 33.0 45.0 3761. 0 H 30.9 -75.9 6.9 4.2 -73.2 93.2 33.0 45.0 3761. 0 V 31.2 -74.6 6.9 4.2 -71.9 91.9 33.0 45.0 4231. 1 H 32.0 -72.9 7.6 4.4 -69.8 89.8 33.0 45.0 4231. 1 V 31.0 -73.9 7.6 4.4 -70.7 90.7 33.0 45.0 4701. 3 H 30.8 -73.4 8.2 4.7 -69.9 89.9 33.0 45.0 4701. 3 V 31.3 -73.3 8.2 4.7 -69.8 89.8 33.0 45.0 * - Ambient Engineering Test Report No. 1002721-04 Page 180 of 217 ERP Total (dBm) = Matched Sig Gen (dBm) + Antenna Gain (dB) – Cable Loss (dB) Atten. (dB) = Output Power (dBm) – ERP (dBm) Checked By: Mark E. Longinotti Engineering Test Report No. 1002721-04 Page 181 of 217 MANUFACTURER : Shure Inc. MODEL : PSM1000 P10T Transmitter SERIAL NO. : None Assigned SPECIFICATION : RSS-123 Spurious Radiated Emissions DATE : December 13, 2010 through February 1, 2011 MODE : Transmit at 506MHz, 10mW (10dBm) UNIT : A EQUIPMENT USED : RBB0, NTA2, NWH0, NDQ0, NWF0, GRE0, GXA1, APW3 Freq. MHz Ant Pol Meter Reading dBuV Amb Matched Sig Gen dBm Antenna Gain dB Cable Factor dB ERP Total dBm Atten. dB Part 74 Min. Attn. dB RSS-123 Min. Attn. dB 1012. 0 H 32.1 -84.2 2.6 2.0 -83.5 93.5 23.0 35.0 1012. 0 V 32.5 -84.6 2.6 2.0 -84.0 94.0 23.0 35.0 1518. 0 H 32.0 -86.0 4.9 2.5 -83.6 93.6 23.0 35.0 1518. 0 V 32.3 -85.7 4.9 2.5 -83.3 93.3 23.0 35.0 2024. 0 H 31.5 -82.5 5.1 2.8 -80.2 90.2 23.0 35.0 2024. 0 V 30.6 -82.4 5.1 2.8 -80.1 90.1 23.0 35.0 2530. 0 H 29.9 -82.7 5.9 3.3 -80.1 90.1 23.0 35.0 2530. 0 V 30.8 -79.4 5.9 3.3 -76.8 86.8 23.0 35.0 3036. 0 H 29.8 -81.1 6.1 3.7 -78.7 88.7 23.0 …
