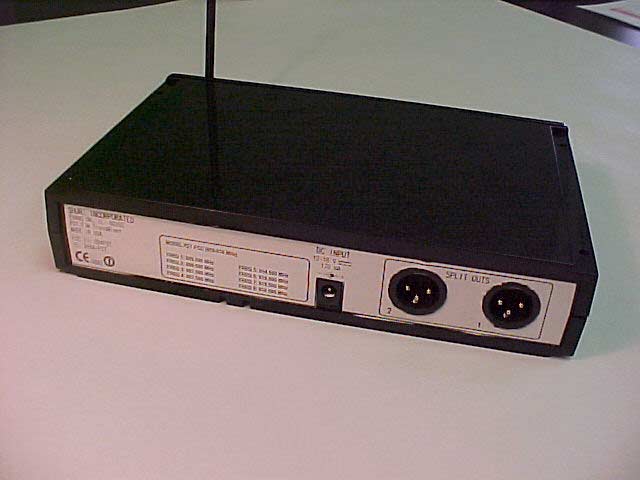

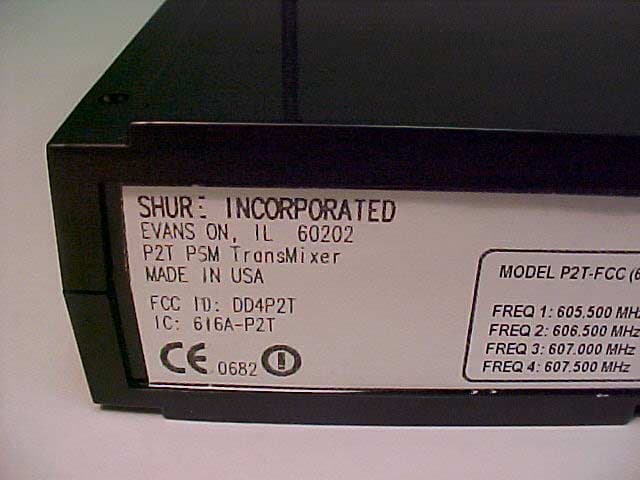

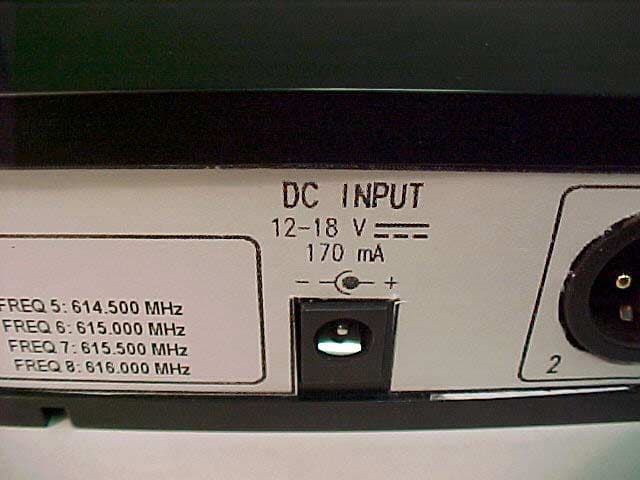

Shure Incorporated PSM200 Wireless Personal Monitor Transmitter FCC ID#: DD4P2T Photo One Front Cover with Antenna, IO Ports and Controls Shure Incorporated PSM200 Wireless Personal Monitor Transmitter FCC ID#: DD4P2T Photo Two Back Cover with IO Ports and Power Input from Wall Transformer FCC Label Information Part of Rear Art Work Shure Incorporated PSM200 Wireless Personal Monitor Transmitter FCC ID#: DD4P2T Photo Three Close-up of FCC ID Label Information Canada ID also shown Shure Incorporated PSM200 Wireless Personal Monitor Transmitter FCC ID#: DD4P2T Photo Four Close-up of Power Input Connector

Microphones and Audio Electronics SHURE Incorporated 222 Hartrey Avenue Evanston, IL 60202 – 3696 • USA Phone: 847-866-2200 FAX: 847-866-2433 Web Address: www.shure.com 4 March, 2002 Company: Shure Incorporated Product: P2T Transmitter Contact: Ahren Hartman Phone: 847-866-2694 Shure CORE - FRN Registration Number: 0003-7325-26 Shure FCC Grantee Code: DD4 ----------------------------------------------------------------------------------------------------------- Technical Contact: Ahren J. Hartman Staff Engineer, Advanced Development 222 Hartrey Avenue Department 1690 Evanston, Illinois 60202 USA (847) 866-2694 [email protected] Description of Product as Marketed: Wireless Personal Monitor Transmitter P2T Transmitter Label Material: .010” Thick polycarbonate subsurface printed with 3M 9552HL pressure sensitive adhesive. P2R Receiver Label Material: .002” Thick polyester subsurface printed with a pressure sensitive adhesive backing and .001” think matte overlaminate

Shure Incorporated PSM200 Wireless Personal Monitor Transmitter FCC ID#: DD4P2T Photo Five Open for Inspection Shure Incorporated PSM200 Wireless Personal Monitor Transmitter FCC ID#: DD4P2T Photo Nine Close-up of Antenna Connection Shure Incorporated PSM200 Wireless Personal Monitor Transmitter FCC ID#: DD4P2T Photo Eight Close-up of Transmitter Section with Shielding Removed Shure Incorporated PSM200 Wireless Personal Monitor Transmitter FCC ID#: DD4P2T Photo Seven Transmitter Section Shielded with Antenna Attachment Shure Incorporated PSM200 Wireless Personal Monitor Transmitter FCC ID#: DD4P2T Photo Six Inside, Single PCB with Transmitter Section Shielded Shure Incorporated PSM200 Wireless Personal Monitor Transmitter FCC ID#: DD4P2T Photo Ten Flip Side of PCB, No Components Shure Incorporated PSM200 Wireless Personal Monitor Transmitter FCC ID#: DD4P2T Photo Eleven Overview of PCB with Antenna

Shure PSM-200 transmitter Bill Of Materials (preliminary) PCA# 90A8913 group dependant parts set up for "H2" 518-554MHz band rev C3 03-19-2002Item Qt y Part Type Description Mfg Part # Manufacture r Referenc e V alue TOL. Dielectri c V oltage/Po w PCB Decal 1 2 150GA332KB 0603 SIZE CERAMIC CAPACITOR C46 C107 .0033uF 10% X7R 50V 603 2 3 150GA392JB 0603 SIZE CERAMIC CAPACITOR C66 C175 C176 .0039uF 5% X7R 50V 603 3 13 150GA103KB 0603 SIZE CERAMIC CAPACITOR C2 C5 C6 C8 C13 C15 C25 C26 C81 C93 C96 C147 C172 .01uF 10% X7R 50V 603 4 1 150GA223KB 0603 SIZE CERAMIC CAPACITOR C47 .022uF 10% X7R 50V 603 5 1 150DF224KB 0805 SIZE CERAMIC CAPACITOR C148 .22uF 10% X7R 16V 805 6 42 150GC104KB 0603 SIZE CERAMIC CAPACITOR C1 C4 C14 C22 C33 C40 C64 C71 C72 C73 C77 C85 C92 C94 C100 C111 C114 C117 C122 C136 C138 C139 C140 C142 C146 C160 C161 C162 C163 C164 C165 C166 C167 C168 C169 C171 C177 C179 C181 C188 C189 C190 .1uF 10% X7R 16V 603 7 1 150GB158BA 0603 SIZE CERAMIC CAPACITOR C55 from pop option table 1.5pF .1p F NPO 100V 603 8 8 150GB102JB 0603 SIZE CERAMIC CAPACITOR C7 C68 C69 C121 C124 C157 C158 C178 1000pF 5% X7R 100V 603 9 1 150GD102FA 0603 SIZE CERAMIC CAPACITOR C80 1000pF 1% NPO 25V 603 10 23 150GA101JA 0603 SIZE CERAMIC CAPACITOR C3 C10 C11 C36 C43 C48 C49 C67 C87 C91 C97 C102 C108 C118 C119 C120 C126 C134 C135 C151 C154 C180 C182 100pF 5% NPO 50V 603 11 1 150GB100JA 0603 SIZE CERAMIC CAPACITOR C159 from pop option table 10pF 5% NPO 100V 603 12 2 150GB120JA 0603 SIZE CERAMIC CAPACITOR C51 C109 C51 from pop option table 12pF 5% NPO 100V 603 13 1 150GA150JA 0603 SIZE CERAMIC CAPACITOR C60 from pop option table 15pF 5 % NPO 50V 603 14 1 150GB151JA 0603 SIZE CERAMIC CAPACITOR C98 150pF 5% NPO 100V 603 15 3 150GA271JA 0603 SIZE CERAMIC CAPACITOR C65 C112 C115 270pF 5% NPO 50V 603 16 3 150GB270JA 0603 SIZE CERAMIC CAPACITOR C45 C84 C90 27pF 5% NPO 100V 603 17 1 150GA228CA 0603 SIZE CERAMIC CAPACITOR C52 from pop option table 2.2 pF .25pF NPO 5 0V 603 18 1 150GB398CA 0603 SIZE CERAMIC CAPACITOR C54 from pop option table 3.9 pF .25pF NPO 1 00V 603 19 1 150GB330JA 0603 SIZE CERAMIC CAPACITOR C61 33pF 5% NPO 100V 603 20 8 150GB471KB 0603 SIZE CERAMIC CAPACITOR C38 C39 C41 C42 C127 C128 C131 C132 470pF 10% X7R 100V 603 21 10 150GB470JA 0603 SIZE CERAMIC CAPACITOR C18 C19 C20 C70 C103 C104 C110 C133 C155 C156 47pF 5% NPO 100V 603 22 4 150GB568BA 0603 SIZE CERAMIC CAPACITOR C56 C57 C141 C143 C56 57 from pop option table 5.6pF .1pF NPO 100V 603 23 6 150GB560JA 0603 SIZE CERAMIC CAPACITOR C24 C34 C50 C58 C191 C192 from pop option table 56pF 5% NPO 100V 603 24 1 150GB688BA 0603 SIZE CERAMIC CAPACITOR C59 from pop option table 6.8pF .1pF NPO 100V 603 25 2 150GB828BA 0603 SIZE CERAMIC CAPACITOR C153 C170 from pop option table 8.2pF .1pF NPO 100V 603 26 1 150GA681KB 0603 SIZE CERAMIC CAPACITOR C106 680pF 10% X7R 50V 603 27 5 150GB820JA 0603 SIZE CERAMIC CAPACITOR C9 C16 C21 C23 C82 82pF 5% NPO 100V 603 28 8 0603 SIZE CERAMIC CAPACITOR C83 C105 C145 C183 C184 C193 C194 C195 part position currently not populated NP 29 1 151AD226KC SMT TANTALUM CAPACITOR C32 22uF 10% 16V 6032 30 7 151DC156KA SMT TANTALUM CAPACITOR C12 C17 C86 C113 C116 C185 C186 15uF 10% 10V 3216 31 6 151AD106KB SMT TANTALUM CAPACITOR C27 C44 C75 C79 C95 C125 10uF 10% 16V 3528 32 1 151AC107MD SMT TANTALUM CAPACITOR C31 100uF 20% 10V 7243 33 1 151AD474KA SMT TANTALUM CAPACITOR C35 .47uF 10% 16V 3216 34 2 151AB227MD SMT TANTALUM CAPACITOR C76 C173 220uF 20% 6.3V 7243 35 3 151BF106MC SMT ALUMINUM ELECTROLYTIC CAPACITOR C78 C99 C187 10uF 20% 35V CSABC 36 3 151BD107MD SMT ALUMINUM ELECTROLYTIC CAPACITOR C89 C123 C144 100uF 20% 16V CSABD 37 5 151BG105KB SMT ALUMINUM ELECTROLYTIC CAPACITOR C62 C74 C88 C101 C149 1uF 10% 50V CSABB 38 1 151BG225MB SMT ALUMINUM ELECTROLYTIC CAPACITOR C63 2.2uF 20% 50V CSABB 39 8 151CG106MD Non-polarized Electrolytic Capacitor C28 C29 C30 C37 C129 C130 C150 C174 10uF 20% 50V CSABD 40 1 TANTALUM CAPACITOR C137 part position currently not populated NP CSABB 41 1 152E04 SMT TRIMMER CAPACITOR NPO TZV2R200A110 MURATA ERIE C152 4.5-20 pF TCAPV02 42 1 152A07 SMT TRIMMER CAPACITOR NPO JS010 VOLTRONICS C53 from pop option table .4-1.0 pF TCAPV02 43 1 184A07 SILICON ZENER DIODE MMBD2836LT1 ON SEMICONDUCTOR D16 SOT23 44 15 184A08 DUAL SWITCHING DIODE MMBD7000L ON SEMICONDUCTOR D1 D2 D4 D5 D6 D8 D9 D10 D11 D12 D13 D17 D18 D19 D20 SOT23 45 1 184A36 SMT VARACTOR DIODE BB545 SIEMENS D3 SOD323 46 1 184A16 1 AMP SCHOTTKY DIODE MBRS140T3 ON SEMICONDUCTOR D7 40V 403A03 47 1 140C15 CERAMIC RESONATOR W/CAPS CSTCC4.00MG-TC MURATA ERIE FL1 4.0MHz CERRES 48 1 140A26 SMT QUARTZ CRYSTAL TN4-25702 TOYOCOM CR1 16.MHz 10ppm TSX-8A 49 2 95A8744 XLR CONNECTOR (MALE) NC3MAH Neutrik J1 J7 XLRM90 50 1 95A8278 MINI RF PIN JACK TMP-J01X-V6 NA RAE CORPORATION; KOREA J2 VCOAXJAC 51 2 95A8877 XLR+1/4" PHONE COMBO (FE) NON-LATCHING NCJ9FI-H-O NEUTRIK J3 J4 XLRCOMBO 52 1 95B8854 BOARD MOUNT PIVOTING ANTENNA ROD ???? Gacrux Co. A1 NP ANTRD 53 1 95A8328 DC POWER JACK SCD438CCS011000 SHIUA CHYUAN PRECISION J8 P166 54 1 162AE56 SMT INDUCTOR LL1608-FSR15K TOKO L1 150nH 10% L603SM 55 10 162A12 SMT FERRITE BEAD BLM21A601SPT MURATA ERIE L2 L3 L4 L5 L11 L12 L13 L14 L15 L19 805 56 1 162A03 SMT FERRITE BEAD BLM31A700SPT MURATA ERIE L10 805 57 3 162AC56 SMT INDUCTOR LL1608-FSR10J TOKO L6 L7 L8 100nH 5% L603SM 58 1 162M56 SMT INDUCTOR LL1608-FS10NJ TOKO L9 10nH 5% L603SM 59 2 162R56 SMT INDUCTOR LL1608-FS18NJ TOKO L17 L18 from pop option table 18nH 5% L603SM 60 1 162B20 SMT MINISPRING INDUCTOR A02TJ COILCRAFT L16 from pop option table 5.0nH 5% SPRINGIND 61 1 86A8444 SINGLE EIGHT SEGMENT LED DISPLAY SA56-11GWA-SBI KINGBRIGHT LED1 8SEGSNGL 62 2 184A39 BI-COLOR SMT LED RED/GREEN 597-7701-507 Dialight LED5 LED6 MLED507 63 1 184B18 Surface Mount LED AY1102W-TR Stanley LED7 LED110 64 2 95A8947 RIGHT ANGLE LIGHT PIPE 515-1039 DIALIGHT Z1 Z2 for LED5 and LED6 NP 65 1 183A24 GENERAL PURPOSE NPN TRANSISTOR MMBT2222ALT1 ON SEMICONDUCTOR Q1 SOT23 66 2 183A46 POWER MOSFET NDS355NCT FAIRCHILD Q7 Q1…

Text truncated - open the document above for the full version.

L.S. Compliance, Inc. W66 N220 Commerce Court Cedarburg, WI 53012 262-375-4400 COMPLIANCE TESTING OF: PSM 200 wireless system P2T TransMixer PREPARED FOR: Shure Incorporated 222 Hartrey Avenue Evanston, IL 60202 TEST REPORT NUMBER: 301423 DATE(S) OF TESTING: March, 2002 All results of this report relate only to the items that were tested. This report is not to be reproduced, except in full, without written approval of L. S. Compliance, Inc. L.S. Compliance, Inc. SHURE INCORPORATED; report # 301423 Page 2 of 31 FCC ID: DD4P2T I. Table of Contents Section Description Test Type Page Index 2 1 L. S. Compliance in Review 3 2 A2LA Certificate of Accreditation 4 3 A2LA Scope of Accreditation 5 4 Validation Letter-U.S. Competent Body for EMC Directive 89/336/EEC 6 5 Signature Page 7 1.1 Summary of Test Report 8 1.2 Introduction 8 1.3 Purpose 8 1.4 Radiated Emissions Test, enclosure FCC 9 1.5 Radiated Emissions Test, procedure FCC 9 1.6 Radiated Emissions Test, equipment used FCC 9 Photo FCC 10 calculations FCC 11 Emission table FCC 12 ERP table FCC 13 Plots FCC 14-18 1.7 Conducted Emission Test, direct RF output FCC 19 Photos FCC 20 2.1049 test; bandwidth FCC 21 2.1055 test; frequency error FCC 26 2.1047 test; frequency/limiting response FCC 28 1.8 Test Equipment List 31 L.S. Compliance, Inc. SHURE INCORPORATED; report # 301423 Page 3 of 31 FCC ID: DD4P2T 1. L. S. Compliance In Review L. S. Compliance, Inc. is located in Cedarburg, Wisconsin – United States. We may be contacted by: Mail: L. S. Compliance, Inc. W66 N220 Commerce Court Cedarburg, Wisconsin 53012 Phone: 262-375-4400 Fax: 262-375-4248 E-mail: [email protected] As an EMC Testing Laboratory, our Accreditation and Assessments are recognized through the following: A2LA – American Association for Laboratory Accreditation Accreditation based on ISO/IEC 17025 : 1999 with Electrical (EMC) Scope of Accreditation A2LA Certificate Number: 1255.01 U. S. Conformity Assessment Body (CAB) Validation Validated by the European Commission as a U. S. Conformity Assessment Body operating under the U. S. /EU, Mutual Recognition Agreement (MRA) operating under the European Union EMC Directive 89/336/EEC, Article 10.2. Date of Validation: January 16, 2001 Federal Communications Commission (FCC) – USA Listing of 3 Meter Semi-Anechoic Chamber based on 47CFR 2.948 FCC Registration Number: 90756 Listing of 3 and 10 meter OATS based on 47CFR 2.948 FCC Registration Number: 90757 Industry Canada On-file, 3 Meter Semi-Anechoic Chamber based on 47CRF 2.948 File Number: IC 3088 On-file 3 and 10 Meter OATS based on RSS-210 File Number: IC 3088-A L.S. Compliance, Inc. SHURE INCORPORATED; report # 301423 Page 4 of 31 FCC ID: DD4P2T 2. A2LA Certificate of Accreditation L.S. Compliance, Inc. SHURE INCORPORATED; report # 301423 Page 5 of 31 FCC ID: DD4P2T 3. A2LA Scope of Accreditation L.S. Compliance, Inc. SHURE INCORPORATED; report # 301423 Page 6 of 31 FCC ID: DD4P2T 4. Validation Letter – U.S. Competent Body for EMC Directive 89/336/EEC L.S. Compliance, Inc. SHURE INCORPORATED; report # 301423 Page 7 of 31 FCC ID: DD4P2T 5. Signature Page Prepared By: April 8, 2002 Kenneth L. Boston, EMC Lab Manager Date Tested By: April 8, 2002 Kenneth L. Boston, EMC Lab Manager Date Tested By: April 8, 2002 Thomas Smith, EMC Engineer Date Approved By: April 8, 2002 Kenneth L. Boston, EMC Lab Manager Date PE#31926 Licensed Professional Engineer Registered in the State of Wisconsin, United States L.S. Compliance, Inc. SHURE INCORPORATED; report # 301423 Page 8 of 31 FCC ID: DD4P2T 1.1 SUMMARY OF TEST REPORT MANUFACTURER: Shure Incorporated MODEL: PSM200; P2T SERIAL: preproduction; H2, FCC, Q3 DESCRIPTION: Low Power Auxiliary Transmitter FREQUENCY RANGE: TRANSMITTER; 518-608; 614-784 MHz The Shure PSM200 wireless transmitter was found to meet the General emission specification of Title 47 CFR FCC, Part 74, for a low power auxiliary transmitter. The emission tests were performed with the product operating in the UHF television frequency range of 518-608 MHz and 614-784 MHz, which is shared by Part 74.800 (subpart H) licensed wireless microphone systems. 1.2 INTRODUCTION During March of 2002, a suite of various Emissions tests were performed on a three sample models of the Shure PSM 200 system; P2T low power transmitter. Most of the tests were performed with the samples transmitting using the integral antenna. Certain samples were configured to allow a direct connection to be made to the TX output with a coaxial cable, to allow testing in an environmental chamber, and directly connected to an analyzer. These tests were performed using the test procedures outlined in ANSI C63.4-1992 for intentional radiators, as called for in section 2.1033 for a type accepted device, and in accordance with the limits set forth in FCC Part 74.861. These tests were performed by Kenneth L. Boston, PE and Thomas Smith of L. S. Compliance, Inc. 1.3 PURPOSE The above mentioned tests were performed in order to determine the compliance of the test sample with limits contained in various provisions of Title 47 CFR, including: 2.1046 2.1051 2.1057 2.1047 2.1053 74.861 (subpart H) 2.1049 2.1055 All radiated emissions tests were performed to measure the emissions in the frequency bands described by the above sections, and to determine whether said emissions are below the limits established by the above sections. These tests were performed in accordance with the procedure described in the American National Standard for methods of measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz (ANSI C63.4-1992). Another document used as reference for the EMI receiver specification was the International Special Committee on Radio Interference (CISPR) number 16-1 (1993). L.S. Compliance, Inc. SHURE INCORPORATED; report # 301423 Page 9 of 31 FCC ID: DD4P2T 1.4 RADIATED EMISSIONS TEST SETUP (47 CFR 2.1053) The test samples were operated within the 3 meter Semi-Anechoic,…

Text truncated - open the document above for the full version.

L. S. COMPLIANCE, Inc. FCC ID: DD4P2T LSC-Shure Inc- 301423 (addendum) 1 Additional tests performed: 16 April 2002 RE: Request from Curtis-Straus TCB In response to the request by Curtis-Straus for conducted RF emissions from the PSM 200 transmitter product, the following graphs are included to demonstrate the transmitter samples compliance with the FCC part 74 and 2.1051 requirements. Graphs were taken of the 3 sample units previously tested, which were the H2, Q3, and FCC designated samples; and covering three channels in the 518 to 608 MHz range, plus three channels in the 614 to 784 MHz range; with emissions to the 10 th harmonic being inspected. The worst case spurious signal seen was the second harmonic of channel 1 of the Q3 sample, at 1498.2 MHz. (Fo of 749.1 MHz) The level seen of this signal was -39.3 dBm, which is 26.3 dB below the -13 dBm specification level. All other spurious emissions that were seen were lower in level than this signal. GRAPHS FOLLOW L. S. COMPLIANCE, Inc. FCC ID: DD4P2T LSC-Shure Inc- 301423 (addendum) 2 H2 sample, TX on channel 1 (518.75 MHz) L. S. COMPLIANCE, Inc. FCC ID: DD4P2T LSC-Shure Inc- 301423 (addendum) 3 H2 sample, TX on channel 8 (553.25 MHz) L. S. COMPLIANCE, Inc. FCC ID: DD4P2T LSC-Shure Inc- 301423 (addendum) 4 FCC sample, TX on channel 4 (607.5 MHz) L. S. COMPLIANCE, Inc. FCC ID: DD4P2T LSC-Shure Inc- 301423 (addendum) 5 FCC sample, TX on channel 5 (614.5 MHz) L. S. COMPLIANCE, Inc. FCC ID: DD4P2T LSC-Shure Inc- 301423 (addendum) 6 Q3 sample, TX on channel 1 (749.1 MHz) L. S. COMPLIANCE, Inc. FCC ID: DD4P2T LSC-Shure Inc- 301423 (addendum) 7 Q3 sample, TX on channel 8 (781.9 MHz)

L.S. Compliance, Inc. SHURE INCORPORATED; report # 301423 Page 10 of 31 FCC ID: DD4P2T PHOTOS TAKEN DURING TESTING View of one of the PSM200 samples, while performing Radiated Emission Testing L.S. Compliance, Inc. SHURE INCORPORATED; report # 301423 Page 20 of 31 FCC ID: DD4P2T Views of the PSM200 P2T during Conducted Emission testing
