DD4P4TLo Power Base Station Transmitter

P4T Transmitter Shure Incorporated 222 Hartrey Avenue Evanston IL 60202-3696 U.S.A. Model P4T Transmitter User’s Guide 27A8712 (SC)
1999, Shure Incorporated Printed in U.S.A. WARNING! USING THIS SYSTEM AT EXCESSIVE VOLUMES CAN CAUSE PERMANENT HEARING DAMAGE. USE AS LOW A VOLUME AS POSSIBLE. In order to use this system safely, avoid prolonged listening at excessive sound pressure levels. Please use the following guidelines established by the Occupational Safety Health Administration (OSHA) on maximum time exposure to sound pressure levels before hearing damage occurs. 90 dB SPL at 8 hours 95 dB SPL at 4 hours 100 dB SPL at 2 hours 105 dB SPL at 1 hour 110 dB SPL at 1 / 2 hour 115 dB SPL at 15 minutes 120 dB SPL — avoid or damage may occur It is difficult to measure the exact Sound Pressure Levels (SPL) present at the eardrum in live applications. In addition to the volume setting on the PSM, the SPL in the ear is affected by ambient sound from floor wedges or other devices. The isolation provided by the fit of quality earpieces is also an important factor in determining the SPL in the ear. Here are some general tips to follow in the use of this product to protect your ears from damage: 1. Turn up the volume control only far enough to hear properly. 2. Ringing in the ears may indicate that the gain levels are too high. Try lowering the gain levels. 3. Have your ears checked by an audiologist on a regular basis. If you experience wax buildup in your ears, stop using the system until an audiologist has examined your ears. 4. Wipe the ear molds with an antiseptic before and after use to avoid infections. Stop using the earphones if they are causing great discomfort or infection. This symbol indicates that dangerous voltage constituting a risk of electric shock is present within this unit. This symbol indicates that there are important operating and maintenance instructions in the literature accompanying this unit. FCC Statement. The P4R Receiver complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device does not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Licensing Statement. A user license may be required for operation. Contact the com- munications authority in your country for more information. Modifications to Approved Equipment. Changes or modifications not expressly ap- proved by Shure Brothers Incorporated could affect compliance with telecommunications standards, thereby voiding the user’s authority to operate this product. Introduction Thank you for buying the P4T Transmitter. The P4T is a component in the PSM400 family of wireless personal monitors. When used in conjunction with a P4R Receiver, it provides the many advantages of an in–ear monitoring system, including: Improved Sound Quality - high fidelity without the risk of feedback, Increased Mobility - your mix moves with you, Personal Control - through volume adjustment and MixMode. This user’s guide covers the use and features of the P4T Transmitter. For further instruction on the use of the PSM400 system, see the PSM400 system user’s guide, availaible on the web at www.shure.com. P4T Transmitter Features 1 2 3 4 5 6 7 8 9 Front Panel Back Panel 1.Local Earphone Output Jack (1/8 inch): Connects to E1 or E5 earphones. 2.Local Earphone Level Control: This knob adjusts the volume of the local earphone jack’s amplifier. Always listen at low levels. 3.Input Level LEDs: Two vertical strings of four LEDs display the input level of the left and right input channels. The four LEDs on the left displays the status of the signal from channel 1 and the four LEDs on the right displays the status of the signal from channel 2: LEDSignal Status RED (top)Limiter Active YELLOW (middle)Nominal Level GREEN (bottom two)Signal Present 4.Frequency Select LED: This indicates which of the 16 Chan- nels (0 - 9 and A - F) is selected. 5.Frequency Select Button: This recessed button allows the transmission channel to be changed. To use, hold down the button until the desired channel number is displayed in the LED. Release the button and the number will flash. Quickly push and release the button again to confirm changes. 6.Front-Mounted Antenna: The units antenna is permanently attached and break-resistant. 7.Loop Out Jacks: Two 1/4” TRS jacks allow the audio signal to pass through the transmitter to other devices, such as other transmitters, tape recorders, or amplifiers. 8.Input Jacks: Two 1/4” TRS Switching Jacks for line level audio inputs. If only one input is used, the signal will be routed to both sides of the modulator for Mono operation. If both Jacks are used, the signals will be transmitted in Stereo/MixMode. 9.12VDC Locking Connector: Input for PS40 Power Cord. Set Up and Operation Follow these directions to set up the P4T for operation. 1.Plug the power cord into the P4T’s 12 VDC locking power connec- tor. Plug the other end of the power cord into a wall outlet. 2.Connect line level outputs of an audio source into the audio inputs of the P4T transmitter. Use both of the P4T’s input jacks for a two-channel source. Use either input jack for a mono source. The P4T Transmitter will transmit in MixMode/Stereo if both inputs are used, but will automatically transmit in mono if only one input is used. NOTE: All inputs are phantom power protected up to 50 VDC. 3.Select an operating frequency using the Frequency Select Button. The selected frequency will be displayed in the LED. IMPORTANT: Never set more than ONE transmitter to the same operating frequency. 4.Once audio is being transmitted by the P4T, observe the Input Level LEDs. If the input signal is consistently causing the red LED to illuminate, decrease the output level of the audio source until the red LED only flickers occasionally. 5.Set up the P4R receiver as directed in the P4R user’s guide, making sure that the frequency selected on the…

Text truncated - open the document above for the full version.

Cover Letter P4T FCC ID:DD4P4T Federal Communications Commission Equipment Approval Services October 13, 1999 Dear Ladies and Gentleman: We at Shure Incorporated are submitting a stereo transmitter, having a Model Number of P4T, and a FCC ID Number DD4P4T for Type Acceptance . This unit has been tested at DLS Electronic Systems Inc. and found to be in compliance with Part 74, Subpart H. Any Questions regarding this report should be directed to Edgar C. Reihl P.E. at (847) 866-2289 or [email protected]. In an effort to reduce the file size I removed some of the photos that I thought to be superfluous. Should it be required, these photos are available for submission. The emissions designator for this product is 176KF8E This is justified as follows: Formula Bn=2M+2DK Where M= The highest modulating frequency in this case 38kHz + 15kHz or 53kHz. Where D= The maximum deviation in this case +/- 35kHz. K= 1 Typically Therefore 53X2 + 35X2=176 K= kHz F= FM modulation 8= Two or more audio channels E= Telephony (Including Sound Broadcasting) I thank you for your assistance in this matter. Sincerely Yours Albert Wahout Development Engineer 1 (847) 866-2654 FAX (847) 866-2433 [email protected]

DD4P4T Cover Letter Two Ladies or Gentleman; I am writing with reference to a Form 731 submission that was filed on the 13 th of October 1999 for a transmitter with a FCC identifier of DD4P4T and a confirmation number of EA95649. I wish to have a correction made to the Equipment Specifications, Frequency range in MHz. Section. The range listed is 722 to 806MHz. I wish to have this corrected to read 720 to 806MHz. Thank you for your assistance with this matter Al. Wahout [email protected] (847) 866-2654

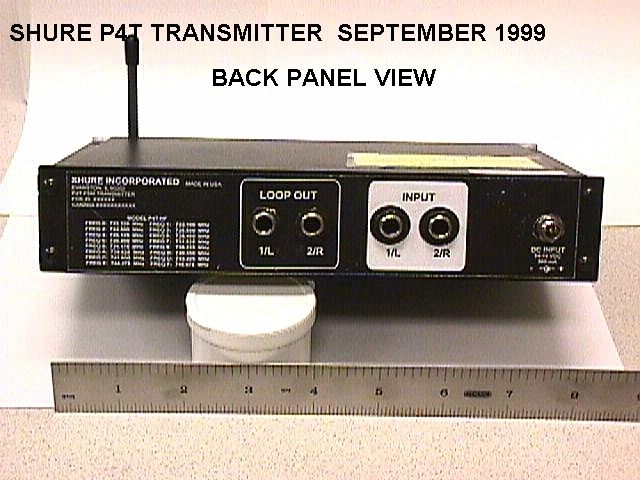

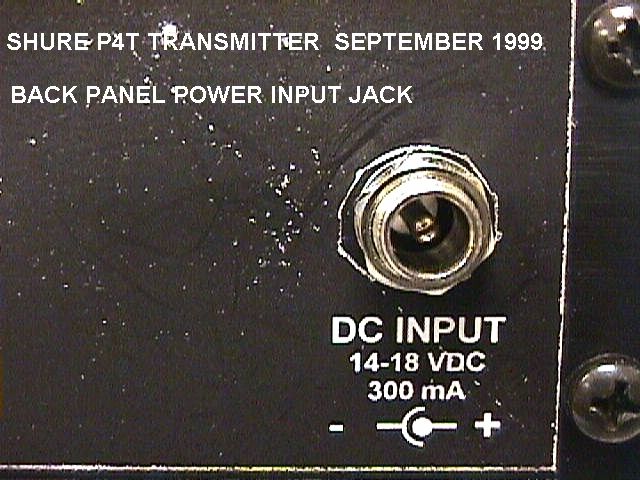

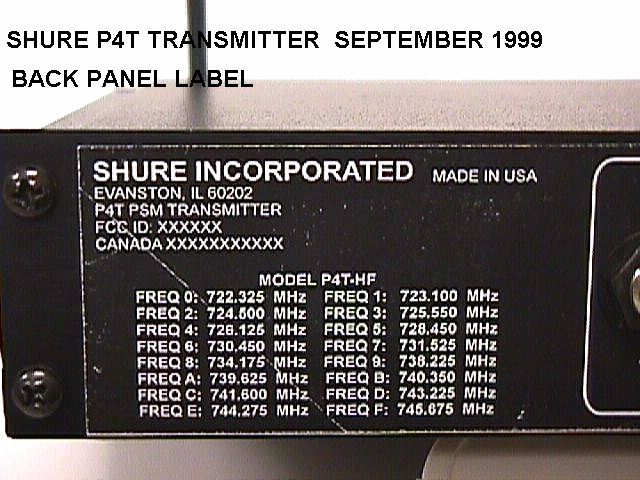

General Product Description The Shure P4T is a wireless transmitter designed for stereo transmission from a line level input. The signal is transmitted to a wireless body- pack receiver within the frequency ranges of (722-865) MHz into three different groups. Each transmitter/receiver combination has Eight available frequencies. The transmitter features a half-rack metal enclosure. This product was designed to be use by stage musicians and broadcast personnel.

16Description: PSM 400 TRANSMITTER (722-863 Mhz)DRWG : P4T-7 Refer To Drawing NOS. 90-XXXX-11, P4T-3 Page 1 of 16 ISSRecord of Changes Made 1.Production Release Exp Dwg. No: 16948 Used in: SHURE BROTHERS INC. 222 HARTREY AVENUE EVANSTON, IL 60202 PHONE 847-866-2200 Microphones-Electronic Components Typed: A.Voukidis 10/4/99 Checked: A.Voukidis Approved: Approved: Shure Model PSM400 Personal Stereo Monitor Transmitter Specification Project # 17174 Outline General Product Description I Special Features II Circuit Description III Test Equipment IV Alignment Procedure V Test for Product Acceptance VI Agency Approvals VII Additional Product Specifications VIII Mechanical Specification IX Environmental Specification X Bench Checks, Service Evaluation and Troubleshooting XI Appendix A () General Product Description The Shure PSM400T is a wireless transmitter designed for stereo transmission from a line level input. The signal is transmitted to a wireless body-pack receiver within the frequency ranges of (722-865) MHz into three different groups. Each transmitter/receiver combination has Eight available frequencies. The transmitter features a half-rack metal enclosure. This product was designed to be use by stage musicians and broadcast personnel. I Special Features 1. Each transmitter/receiver combination has sixteen available transmission frequencies that must match on both units for proper reception. 2. Balanced 1/4 in. line level inputs. 3. 1/4 in. loop through. 4. Internal limmiter to protect the user from extremely high level signals and to limit the occupied bandwidth based on FCC standards. 5. Two rows of input level metering. Each row (left and right channel) has 4 LED’s with the last red LED indicating the point where the limiter is activated. 6. Headphone monitoring jacks(1/8in.) with volume control on front panel. 7. Half-rack steel chassis. 8. Phantom power protection. 14. Dynamic 2:1 Audio Companding. 16Description: PSM 400 TRANSMITTER (722-863 Mhz)DRWG : P4T-7 Refer To Drawing NOS. 90-XXXX-11, P4T-3 Page 2 of 16 ISSRecord of Changes Made 1.Production Release Exp Dwg. No: 16948 Used in: SHURE BROTHERS INC. 222 HARTREY AVENUE EVANSTON, IL 60202 PHONE 847-866-2200 Microphones-Electronic Components Typed: A.Voukidis 10/4/99 Checked: A.Voukidis Approved: Approved: 15. Stereo pilot used as tone-key. 16. Timing circuitry for quiet operation. II Circuit Description Audio Section The PSM transmitter requires a line level input source, balanced or unbalanced entering via (1 /4)” plugs. If only one connector is plugged in the signal is applied to both left and right input sections. The input signal (left and/or right) is converted from a balanced to an unbalanced signal through an active network (U201, U301). The unbalanced signal then gets sent to the headphone amp as well it goes through a 15kHz brick wall low pass filter (FL201, FL301). So that any 19kHz information from the input does not confuse the receiver pilot-detection circuitry. The signal is then buffered, pre-emphasized (R219, C211), (R319, C311) and AC coupled into the compressor/limiter (NE571 U502A,B). The NE571 utilizes external amplifiers (U501A, B). The compander performs 2:1 logarithmic compression of the audio signal, which then feeds into U601, the stereo modulator. These two signals are “window” compared by U401 against fixed levels. If either signal exceeds these levels current is fed into the rectifying capacitors (C505, C515) thus lowering the gain on the compressor. The stereo modulator outputs both the stereo modulated signal, and a 19kHz tone to be used as a pilot. The pilot tone is filtered and adjusted for proper phase (L601). The pilot tone is then mixed with the modulated audio (U602A). The level of pilot relative to audio is adjusted with trimmer pot R608. The mixed signal passes through a switch (SW601) controlled by the microprocessor, which is used to eliminate “popping” when frequencies are changed. The LED ballistics are somewhere between peak and VU, with the intention of giving peak indication that is slow enough for the user to visually catch short transients. RF section Processed audio and pilot tone enter R35, an internal potentiometer that is adjusted for 35kHz deviation (100% modulation). The audio is then fed to the tuning voltage pin of the voltage Controlled oscillator (VCO), and modulates the carrier directly. The VCO is shielded to prevent external Rf fields from affecting its operation. Regulated 5vdc power is provided to ensure frequency stability. The VCO is capable of tuning from 722 to 746 MHz (UA- Model) and 800 to 863 MHz (M and K - Models) witha1to9volt tuning voltage range. At the output of the VCO the RF signal splits into two paths. The output of the VCO is coupled by C36 the frequency control pin of the synthesizer U29. The synthesizers internal circuitry divides the signal as necessary to the desired reference frequency. The synthesizer contains a quartz-controlled reference oscillator circuit operating 16Description: PSM 400 TRANSMITTER (722-863 Mhz)DRWG : P4T-7 Refer To Drawing NOS. 90-XXXX-11, P4T-3 Page 3 of 16 ISSRecord of Changes Made 1.Production Release Exp Dwg. No: 16948 Used in: SHURE BROTHERS INC. 222 HARTREY AVENUE EVANSTON, IL 60202 PHONE 847-866-2200 Microphones-Electronic Components Typed: A.Voukidis 10/4/99 Checked: A.Voukidis Approved: Approved: from a 4.0 MHz crystal Y30, which is adjusted by means of trimmer C41. The output of the synthesizer is a series of current pulses, which are integrated by a passive loop filter to produce a control voltage signal. The control voltage signal is then connected to the VCO through amplifier U30A, which is used to isolate the PLL filter from the audio modulation signals the transmitter operates on eight selectable frequencies. Frequency selection is made via microprocessor U5 which interfaces with the user by means of switch SW20A. The VCO output is also coupled to a RF MMIC Q100 amplifier through a resistive pad. The RF sig…

Text truncated - open the document above for the full version.

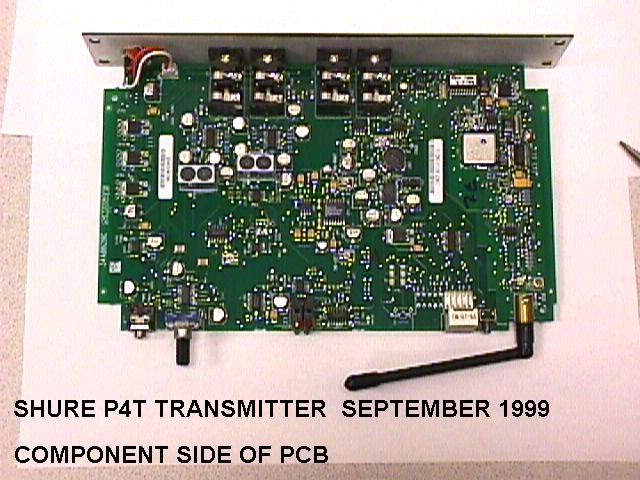

Description: P4T TRANSMITTER PCB ASSEMBLY DRWG NO. 90- Refer To Drawing NOS. 90--11 Page 1 of 6 ISS.Record of Changes Made 1.Production Release Exp Dwg. No: Used in: P7T SHURE BROTHERS INC. 222 HARTREY AVENUE EVANSTON, IL 60202 PHONE 847-866-2200 Microphones-Electronic Components Typed: A Voukidis 10/7/98 Checked: A. Voukidis 10/22/98 Approved: K. Mikes 10/26/98 Approved: Bill Of Materials for p4t_d2.sch on Mon Oct 4 18:48:44 1999 ----------------------------------------------------------------------------------------- Shure P/N Qty Description Ref. Des. ----------------------------------------------------------------------------------------- 140A11 1 Y601 140A14 1 Dielectric Resonator FL55 140C15 1 Ceramic resonators Y1 145BF1500 4 SMT Resistor 150 1% R105-108 145BF7500 4 SMT Resistor 750 1% R100-103 145BJ1R0 3 SMT Resistor 1 5% R901-903 145CF1212 4 SMT Resistor 12.1K 1% R201 R207 R302 R307 145FF000 8 SMT Resistor 0 5% R116 R409 R507 R509 R517 R519 R712 R715 145FF1000 5 SMT Resistor 100 1% R32 R406 R710 R713 R839 145FF1001 22 SMT Resistor 1.00K 1% R3 R5 R8-23 R41 R617 R809 R823 145FF1002 20 SMT Resistor 10.0K 1% R4 R6 R26 R40 R51 R90-91 R115 R211-212 R311-312 R408 R504 R514 R619 R711 R714 R908-909 145FF1003 21 SMT Resistor 100K 1% R7 R38 R202 R206 R215 R301 R306 R315 R404 R407 R701-703 R705-707 R803 R805 R828-829 R913 145FF1004 5 SMT Resistor 1.00M 1% R405 R622 R830-831 R838 145FF1212 2 SMT Resistor 12.1K 1% R602 R604 145FF1500 1 SMT Resistor 150 1% R36 145FF1501 2 SMT Resistor 1.50K 1% R44 R110 145FF1503 3 SMT Resistor 150K 1% R834-835 R912 145FF2000 4 SMT Resistor 200 1% R816 R821-822 R827 145FF2001 4 SMT Resistor 2.00K 1% R610 R612 R817 R826 145FF2002 7 SMT Resistor 20.0K 1% R204 R209 R214 R304 R309 R314 R807 145FF2003 5 SMT Resistor 200K 1% R403 R613-614 R802 R804 145FF2004 2 SMT Resistor 2.00M 1% R25 R27 145FF2210 1 SMT Resistor 221 1% R54 145FF2490 3 SMT Resistor 249 1% R29 R92 R905 145FF2491 3 SMT Resistor 2.49K 1% R607 R615-616 145FF2492 1 SMT Resistor 24.9K 1% R620 145FF2493 2 SMT Resistor 249K 1% R601 R603 145FF3011 1 SMT Resistor 3.01K 1% R907 145FF3321 3 SMT Resistor 3.32K 1% R216 R316 R611 145FF3651 1 SMT Resistor 3.65K 1% R109 Description: P4T TRANSMITTER PCB ASSEMBLY DRWG NO. 90- Refer To Drawing NOS. 90--11 Page 2 of 6 ISS.Record of Changes Made 1.Production Release Exp Dwg. No: Used in: P7T SHURE BROTHERS INC. 222 HARTREY AVENUE EVANSTON, IL 60202 PHONE 847-866-2200 Microphones-Electronic Components Typed: A Voukidis 10/7/98 Checked: A. Voukidis 10/22/98 Approved: K. Mikes 10/26/98 Approved: 145FF3652 4 SMT Resistor 36.5K 1% R502-503 R512-513 145FF3921 1 SMT Resistor 3.92K 1% R53 145FF4020 1 SMT Resistor 402 1% R34 145FF4021 10 SMT Resistor 4.02K 1% R213 R218 R313 R318 R812-815 R824-825 145FF4022 4 SMT Resistor 40.2K 1% R510 R520 R606 R621 145FF4023 2 SMT Resistor 402K 1% R836-837 145FF4321 1 4.32K 1% R52 145FF4990 2 SMT Resistor 499 1% R2 R39 145FF4991 6 SMT Resistor 4.99K 1% R37 R45 R205 R210 R305 R310 145FF4992 11 SMT Resistor 49.9K 1% R24 R33 R47 R219 R319 R401-402 R501 R511 R605 R618 145FF4993 2 SMT Resistor 499K 1% R832-833 145FF6041 2 SMT Resistor 6.04K 1% R220 R320 145FF6042 2 SMT Resistor 60.4K 1% R505 R515 145FF7500 4 SMT Resistor 750 1% R30-31 R93 R104 145FF7501 7 SMT Resistor 7.50K 1% R203 R208 R217 R303 R308 R317 R906 145FF7502 3 SMT Resistor 75.0K 1% R414 R506 R516 145FF10R0 3 SMT Resistor 10.0 1% R910-911 R914 145FF49R9 5 SMT Resistor 49.9 1% R1 R111-113 R123 146B02 1 RESISTOR VARIABLE 1K ohm R35 146F02 2 Trimpot 20kOhm R508 R518 146H02 2 Trimpot 100k R410 R608 150AD224KB 5 SMT Capacitor .22uF 10% 25V C505 C515 C701-702 C815 150DA223JB 1 SMT Capacitor .022 5% 50V C611 uF 150DB181JA 1 SMT Capacitor 180pF 5% 100V C615 150DB392JB 2 SMT Capacitor 3900pF 5% 100V C509 C519 150DB682KB 1 SMT Capacitor 6800pF 10% 100V C616 150GA103KB 17 SMT Capacitor .01uF 10% 50V C1-3 C5-7 C15 C19 C33 C42 C94-95 C97 C102-103 C118 C120 150GA151JA 1 SMT Capacitor 150pF 5% 50V C111 150GA222JB 1 SMT Capacitor .0022u 5% 50V C617 F 150GA223KB 2 SMT Capacitor .022uF 10% 50V C211 C311 150GA332KB 1 SMT Capacitor .0033u 10% 50V C46 F 150GA472KB 1 SMT Capacitor .0047u 10% 50V C609 F Description: P4T TRANSMITTER PCB ASSEMBLY DRWG NO. 90- Refer To Drawing NOS. 90--11 Page 3 of 6 ISS.Record of Changes Made 1.Production Release Exp Dwg. No: Used in: P7T SHURE BROTHERS INC. 222 HARTREY AVENUE EVANSTON, IL 60202 PHONE 847-866-2200 Microphones-Electronic Components Typed: A Voukidis 10/7/98 Checked: A. Voukidis 10/22/98 Approved: K. Mikes 10/26/98 Approved: 150GA682KB 2 SMT Capacitor .0068u 10% 50V C802 C805 F 150GB100JA 1 SMT Capacitor 10pF 5% 100V C607 150GB101JA 30 SMT Capacitor 100pF 5% 100V C123 C155 C201 C204 C210 C212 C250 C301 C304 C310 C312 C401-402 C425-426 C521-522 C606 C621-623 C625 C707-709 C711 C807 C900 C911 C914 150GB102JB 5 SMT Capacitor 1000pF 5% 100V C602 C604 C614 C901 C905 150GB108BA 1 SMT Capacitor 1.0pF .1p F 100V C55 150GB120JA 3 SMT Capacitor 12pF 5% 100V C60 C110 C119 150GB151JA 3 SMT Capacitor 150pF 5% 100V C126 C506 C516 150GB221JA 3 SMT Capacitor 220pF 5% 100V C104-105 C121 150GB228BA 1 SMT Capacitor 2.2 pF .1pF 100V C54 150GB270JA 14 SMT Capacitor 27pF 5% 100V C34 C37-39 C45 C92 C203 C206 C303 C306 C703-704 C712-713 150GB271JA 2 SMT Capacitor 270pF 5% 100V C213 C313 150GB330JA 5 SMT Capacitor 33pF 5% 100V C50 C58 C61 C502 C512 150GB338BA 2 SMT Capacitor 3.3 pF .1pF 100V C36 C128 150GB398BA 1 SMT Capacitor 3.9 pF .1PF 100V C106 150GB470JA 1 SMT Capacitor 47pF 5% 100V C122 150GB561JA 2 SMT Capacitor 560pF 5% 100V C112 C125 150GB688CA 1 SMT Capacitor 6.8 pF .25PF 100V C100 150GB820JA 3 SMT Capacitor 82pF 5% 100V C40 C129 C153 150GC104KB 15 SMT Capacitor .1uF 10% 16V C29 C501 C511 C608 C610 C620 C624 C801 C804 C808 C811-812 C903 C908 C913 151AC476MD 2 SMT Capacitor 47uF 20% 10V C4 C31 151AD105KA 1 SMT Capacitor 1uF 10% 16V C619 151AD474KA 3 SMT Capacitor .47uF 10% 16V C30 C32 C35 151AD475KB 16 SMT Capacitor 4.7uF 10% 16V C18 C44 C96 C101 C403 C503-504 C508 C513-514 C518 C…

Text truncated - open the document above for the full version.

P4T (722-806MHz) Input Level Vs Deviation 05 101520253035404550556065707580 -30 -20 -10 0 10 Input Level dBV +/-kHz Deviation 80Hz500Hz2.5kHz10kHz15kHz

P4T Modulation vs Frequency for -20dBV RMS Input 05 1015202530354045505560657075 50Hz 100Hz 250Hz 500Hz 1kHz 2kHz 4kHz 6kHz 8kHz 10kHz 15kHz 20kHz Frequency Deviation kHz

Additional Instrument Calibration: Tektronix 492AP Spectrum Analyzer. Serial #B010123 Calibrated August 11,1999 Due August 11,2000 Boonton 8200 Modulation Analyzer. Serial #20802BG Calibrated June 25,1999 Due June 25,2000 H/P 7475A Plotter. Calibration not required. Krohn-Hite 4300A Audio Oscillator Calibration not required. Beckman 320B Voltmeter Serial #70512899 Calibrated Nov. 1998 Due Nov. 1999 H/P 6218A Power Supply Calibration not required.

EMC Test ServicesReport No. 7627 1250 Peterson Drive, Wheeling, Illinois 60090, USA10/01/99 Page 1 TEST SPECIFICATION: FCC "Rules and Regulations", Part 74, Experimental Radio, Auxiliary, Special Broadcast and Other Program Distribution Services for Operation in the 614 to 806 MHz Band Subpart H, Low Power Auxiliary Stations Sections 74.801 to 74.882 THE FOLLOWING MEETS THE ABOVE TEST SPECIFICATION Formal Name:Wireless Personal Monitor System Kind of Equipment:FM Transmitter Test Configuration:Modulated 16 dB>50% Emission Designator:120KF3E Transmitter FCC ID:DD4P4T Model Number: P4T Serial Number: NA Dates of Test:September 23 & 24, 1999 Test Conducted For:Shure, Inc. 222 Hartrey Avenue Evanston, Illinois 60202 NOTICE:Please see change information listed inside of this report. This report must not be used by the customer to claim product endorsement by NVLAP or any agency of the United States Government, and it cannot be reproduced (except in full), without the approval of D.L.S. Electronic Systems Inc. EMC Test ServicesReport No. 7627 1250 Peterson Drive, Wheeling, Illinois 60090, USA10/01/99 Page 2 SIGNATURE PAGE Report Written By: Arnom C. Rowe Test Engineer EMC-001375-NE Report Reviewed by: Jack Prawica Lab Manager Report Approved by: Brian J. Mattson General Manager Company Official: Shure, Inc. Page 3 Page 4 EMC Test ServicesReport No. 7627 1250 Peterson Drive, Wheeling, Illinois 60090, USA10/01/99 Page 5 1.Cover Pagei 2.Signature Pageii 3.NBS Certificate of Accreditationiii 5.Table of Contentsiv 7.Summary of Test Report1.0 7.Introduction2.0 7.Object3.0 7.Test Set-up4.0 8.Test Equipment (Bandwidths and Detector Function)5.0 8.RF Power Output6.0 9.Graphs taken of the RF Power Output Measurements6.0 14.Modulation Characteristics7.0 15.Graphs taken of the Modulation Characteristics7.0 18.Occupied Bandwidth8.0 19.Graphs taken of the Occupied Bandwidth8.0 20.Frequency Deviation9.0 21.Graphs taken of the Frequency Deviation9.0 22.Spurious Emission Measurements at Antenna Terminals10.0 23.Conducted Emission Data taken10.0 24.Conducted Emission Graphs Taken10.0 EMC Test ServicesReport No. 7627 1250 Peterson Drive, Wheeling, Illinois 60090, USA10/01/99 Page 6 25.Field Strength of Spurious Emission Measurements11.0 27.Radiated Data taken for Field Strength Measurements11.0 32.Radiated Graphs taken for Field Strength Measurements11.0 45.Frequency Stability (Temperature)12.0 46.Graphs taken of Frequency Stability (Temperature)12.0 57.Frequency Stability (Voltage Variation)13.0 58.Graphs taken of Frequency Stability13.0 63.Photo Information and Test Set-Up14.0 64.Photos Taken During Testing15.0 66.Change Information16.0 68.Results of Tests17.0 68.Conclusion18.0 69.Equipment ListTABLE 1 EMC Test ServicesReport No. 7627 1250 Peterson Drive, Wheeling, Illinois 60090, USA10/01/99 Page 7 1.0SUMMARY OF TEST REPORT It was found that the Wireless Personal Monitor System S/N NA meets the radio interference emission requirements of the FCC "Rules and Regulations", Part 74, Subpart H, Sections 74.801 to 74.882 for Low Power Auxiliary Stations operating in the 720 to 806 MHz Frequency Band. 2.0INTRODUCTION On September 23 & 24, 1999, a series of radio frequency interference measurements were performed on FM Transmitter, S/N NA. The tests were performed according to the procedures of FCC as stated in Part 2 Subpart J, Equipment Authorization Procedures of the Code of Federal Regulations 47, by personnel of D.L.S. Electronic Systems, Inc. who are responsible to Donald L. Sweeney, Senior EMC Engineer. 3.0OBJECT The purpose of this series of tests was to determine if the test sample could meet the radio frequency emission requirements of the FCC "Rules and Regulations", Part 74, Subpart H, Sections 74.801 to 74.882 for Low Power Auxiliary Stations operating in the 720 to 806 MHz Frequency Band. 4.0TEST SET-UP All radiated emission tests were performed at D.L.S. Electronic Systems, Inc. The radiated tests were made with the test item placed on a wooden turntable located in the Test Room with the receive antenna placed one meter from the device under test. EMC Test ServicesReport No. 7627 1250 Peterson Drive, Wheeling, Illinois 60090, USA10/01/99 Page 8 5.0TEST EQUIPMENT (Bandwidths and Detector Function) All data was automatically plotted using peak detector function. This information was then used to determine the frequencies of maximum emissions. Manual measurements were performed on these frequencies using a peak detector function of the Analyzer with the bandwidths specified by the FCC. From 200 MHz to 1000 MHz a bandwidth of 100 kHz was used (except for Occupied Bandwidth), and above 1000 MHz, wide enough bandwidths were used, depending upon the test being made, to ensure proper measurement of the narrowband signal. A list of the equipment used can be found in Table 1. All equipment was calibrated per the instruction manuals supplied by the manufacturer. 6.0RF POWER OUTPUT - PART 2.1046 As stated in PART 74.861 (e-1), the output power should not exceed 250 milliwatts (24 dBm). The Wireless Personal Monitor System was tuned according to the tune-up procedures specified in Part 2.1033 (c-9), and adjusted for its maximum output power. The RF output power was measured in the open field, using the following test method: The radiated signal from the EUT was measured. The EUT was then substituted with a signal generator and a tuned dipole antenna. The output of the signal generator was increased until the level received by the tuned dipole equaled that of the previous measured from the EUT. Actual Measurements Taken: 85.6 dBuV Measured output of the transmitter +38.5dBuV Total system losses (Antenna, Pads & Cable) 124.10 dBuV which equals 0.05 watts LIMIT: Manufacturer's rated output power = 0.05 watts MARGIN: 0.25 watts - 0.05 watts = 0.20 watts NOTE: See the following pages for the graphs of the actual measurements made: EMC Test ServicesReport No. 7627 1250 Peterson Drive, Wheeling, Illinois 60090, USA10/01/9…

Text truncated - open the document above for the full version.
