DD4P9TANon-Broadcast Base Station Transmitter

PSM ® 900 >>SE425>>P9R>>P9T Pat. 6597301; Pat. App. Pending levelLRmenusyncvolumepower CLIP sync Pat. 6597301; Pat. App. Pending levelLRmenusyncvolumepower CLIP sync © 2010 Shure Incorporated Printed in U.S.A. 27A12695 (Rev. 1) Personal Monitor System User Guide ii iii WARNING! USING THIS SYSTEM AT EXCESSIVE VOLUMES CAN CAUSE PERMANENT HEARING DAMAGE. USE AS LOW A VOLUME AS POSSIBLE. In order to use this system safely, avoid prolonged listening at excessive sound pressure levels. Please use the fol-lowing guidelines established by the Occupational Safety Health Administration (OSHA) on maximum time exposure to sound pressure levels before hearing damage occurs. 90 dB SPL at 8 hours 95 dB SPL at 4 hours 100 dB SPL at 2 hours 105 dB SPL at 1 hour 110 dB SPL at 1/2 hour 115 dB SPL at 15 minutes 120 dB SPL — avoid or hearing damage may occur It is difficult to measure the exact Sound Pressure Levels (SPL) present at the eardrum in live applications. In addition to the volume setting on the PSM, the SPL in the ear is affected by ambient sound from floor wedges or other devices. The isolation provided by the fit of quality earphones is also an important factor in determining the SPL in the ear. Here are some general tips to follow in the use of this product to protect your ears from damage: 1. Turn up the volume control only far enough to hear properly. 2. Ringing in the ears may indicate that the gain levels are too high. Try lowering the gain levels. 3. Have your ears checked by an audiologist on a regular basis. If you experience wax buildup in your ears, stop using the sys- tem until an audiologist has examined your ears. 4. Wipe the earphones with an antiseptic before and after use to avoid infections. Stop using the earphones if they are causing great discomfort or infection. This symbol indicates important operating and maintenance instructions in the literature accompanying this unit. ENGLISH Superb audio quality • Digital stereo encoder provides a wider stereo field with exceptional separation, enhancing audio detail and clarity • Patented Audio Reference Companding sounds more like wired • Available with Shure SE425 Sound Isolating™ Earphones featuring dual high-definition MicroDrivers for accurate and balanced audio response Robust RF Performance • Precision front-end RF filtering for a cleaner, stronger RF signal and fewer dropouts and audible artifacts. • Exceptional transmitter linearity vastly reduces frequency intermodulation, allowing more channels per frequency band. • Automatic RF gain control prevents signal distortion due to RF overload. Advanced Setup and Operation • Patent-pending CueMode allows monitoring of the stage mixes of up to 20 separate transmitters from one bodypack. • Front panel RF mute switch for disabling RF transmission during setup • Scan and Sync setup identifies the best group and channel for your system and assigns it over a wireless IR link • MixMode ® Technology allows the bodypack user to adjust their own onstage monitor mix • High-frequency EQ boost on bodypack PSM900 The PSM 900 Wireless Personal Monitor System from Shure of- fers an unprecedented combination of superb audio quality, robust RF performance, and category-leading setup features for the most demanding professional applications. All new, patent-pending CueMode allows the sound engineer to monitor different stage mixes with the touch of a button. Precision front-end RF filtering signifi- cantly reduces dropouts from RF interference, and the enhanced digital stereo encoder provides excellent stereo separation and audio clarity. 2 Frequency Scan The scan feature analyzes the RF environment for interference to identify available frequencies. The PSM900 has two frequency scan modes: • Channel Scan Press the scan button on the bodypack. Finds the first available channel. • Group Scan Press and hold the scan button for two seconds. Finds the group with the greatest number of available channels. (Each group contains a set of frequencies that are compatible when operating multiple systems in the same environment.) Sync The PSM900 transfers settings in either direction: from the bodypack to the rack unit, or from the rack unit to the bodypack. • Sending settings to the bodypack: Align the IR windows and press the sync button on the rack unit. The blue LED on the bodypack flashes. • Downloading settings from the bodypack: First press the scan button on the bodypack. Then align the IR windows and press the sync button on the rack unit while the bodypack display is flashing “SYNC NOW...”. The level LEDs flash on the rack unit. MixMode Some performers need to hear more of their own voice or instrument, while others want to hear more of the band. With MixMode, the performer creates their own mix using the balance control (▼▲ buttons) on the bodypack. To use MixMode, send a solo mix of the perform- er to the CH. 1 IN input on the transmitter, and send a band mix to the CH. 2 IN input. Set the performers bodypack for MixMode. The bodypack combines the two signals and sends them to both earphones, while the balance control on the bodypack adjusts the relative levels for each. LOOP Applications Use LOOP OUT L (left) and R (right) outputs to send a copy of the audio signal going into the transmit- ter to other devices. Following are a few of the many applications for these outputs. Note: The input level control and the input pad do not affect the LOOP OUT signals. Stereo for Multiple Systems Send one stereo signal from the mixing console the inputs on the first transmitter, then connect the LOOP outputs to the inputs on the next transmit- ter. Repeat for all transmitters to form a chain. Floor Monitors Send the audio from the LOOP outputs to onstage loudspeakers. The bodypack and the onstage monitors receive the same audio signals. Recording Devices To record a performance, connect the LOOP out- puts to the inputs of a recording device. CueMode CueMode allows you to upload the name and fre- quency setting…

Text truncated - open the document above for the full version.

Elite Electronics A U T H O R I Z A T I O N Date: 01/05/2010 To: Elite Electronics, Inc. 1615 Centre Circle Downers Grove, IL 60515 From: Juan Castrejon Phone: 847-600-8651 Senior Engineer, Global Compliance Fax: 847-600-8555 Applicant: Shur e Incorporated E-Mail: [email protected] ______________________________________________________________________ To Whom It May Concern: Elite Electronic Engineering, Inc. is authorized to act on our behalf, until otherwise notified, for applications to Elite Electronic Engineering, Inc. We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b) to the application is subject to denial of federal benefits, that includes FCC benefits . Dated this 21st day of December, 2009. By: Juan M. Castrejon Title: Senior Engineer, Global Compliance Phone: 847-600-8651 FAX: 847-600-8555

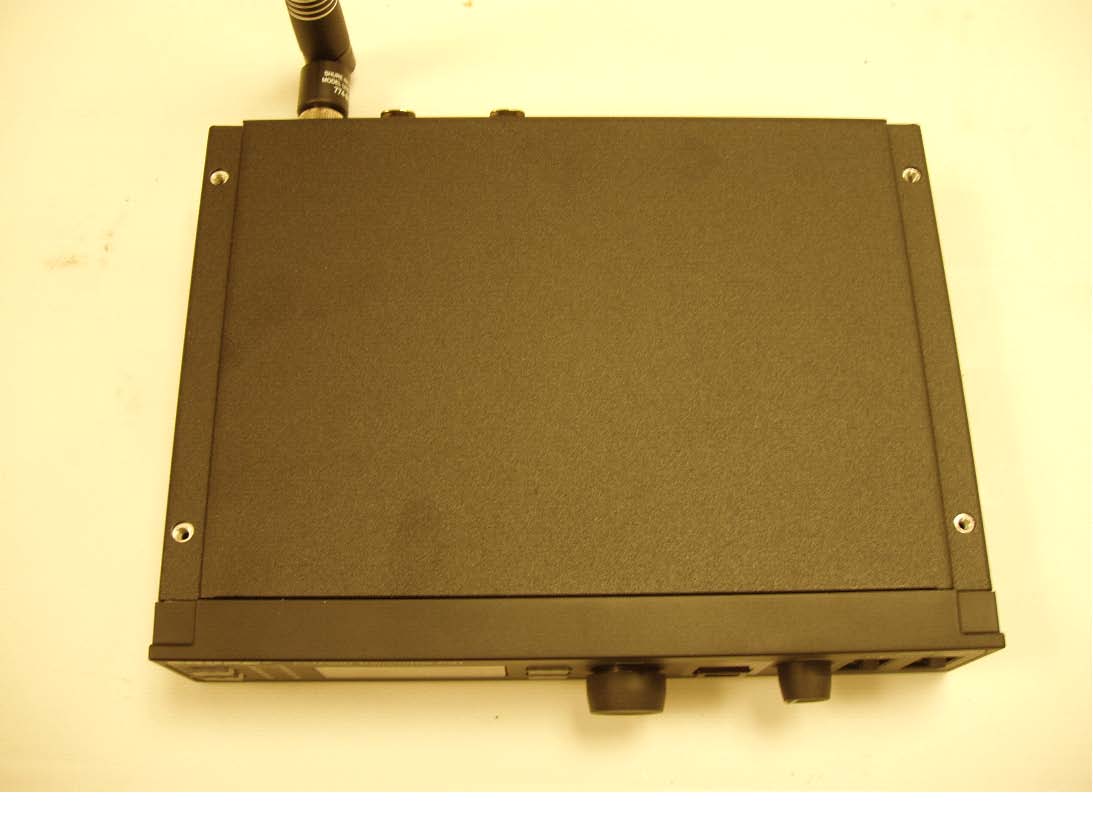

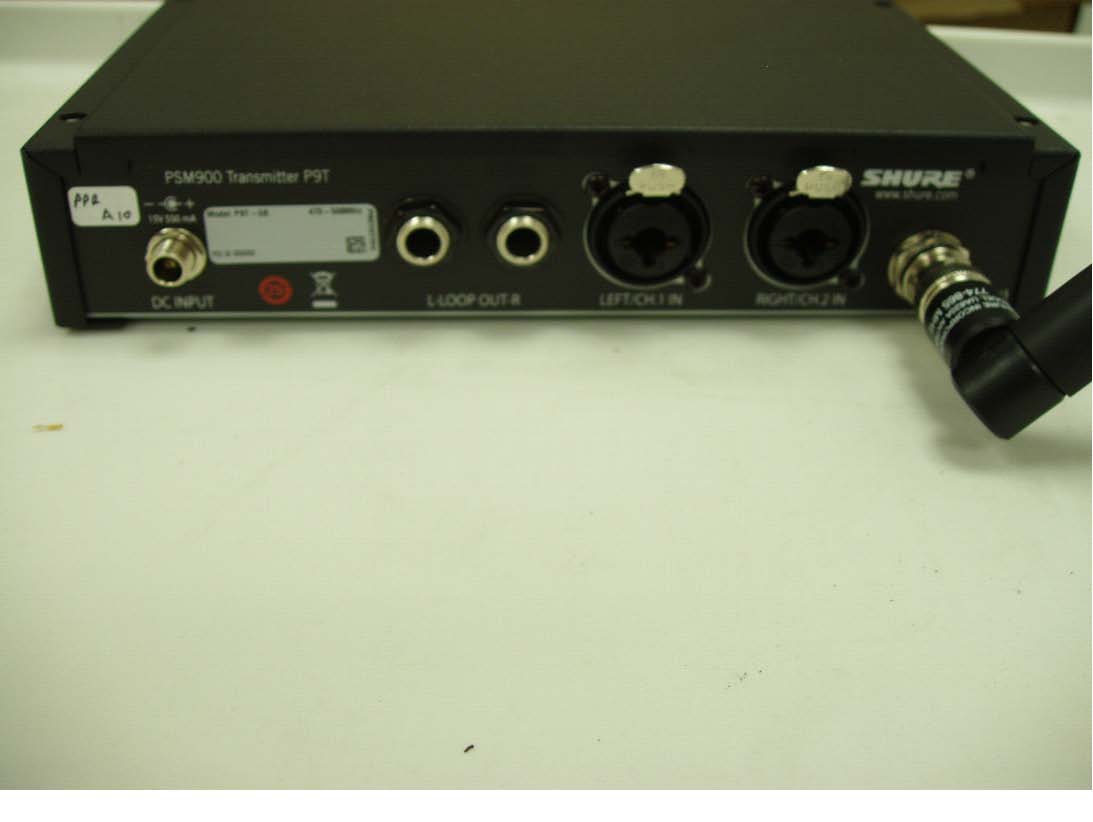

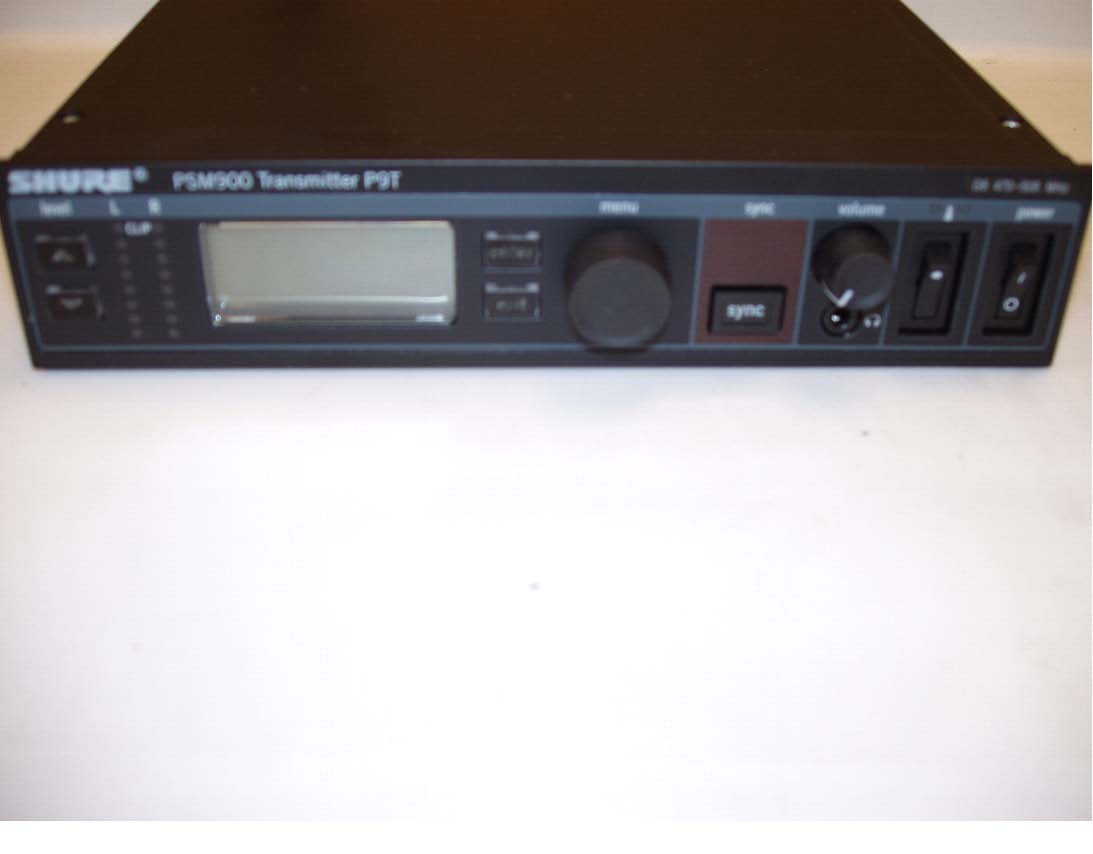

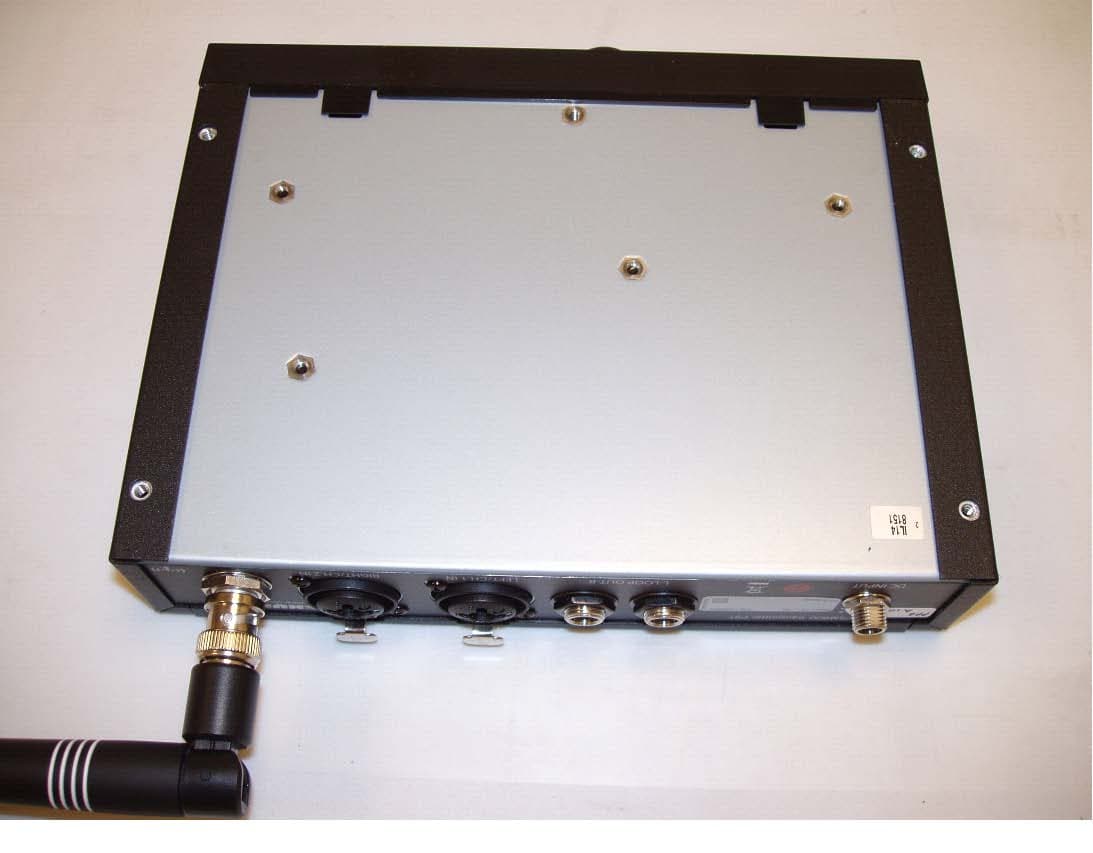

Shure P9T External Photographs Shure P9T Front View Shure P9T Back View Shure P9T Left Side View Shure P9T Right Side View Shure P9T Top View Shure P9T Bottom View

Model P9T-R20 794-806 MHz Model P9T-P7702-742 MHz Model P9T-Q14 740-752 MHz 790-830 MHz Model P9T-R22 Model P9T-R21 794-806 MHz Model P9T-Q15750-790 MHz Model P9T-G7 506-542 MHz Model P9T-G6E 470-506 MHz Model P9T-L6E 656-692 MHz Model P9T-L6 656-692 MHz Model P9T-K1 596-632 MHz Model P9T-A24 779-806 MHz Model P9T-X1 944-952 MHz Model P9T-S7 830-866 MHz 470-506 MHz Model P9T-G6 R FCC ID: XXXXXX XXXX XXXX XXXX XXXX CMII ID:XXXXXXXXXX Model P9T-G7 506-542 MHz Model P9T-G6E 470-506 MHz Model P9T-L6 656-692 MHz Model P9T-K1 596-632 MHz 470-506 MHz Model P9T-G6 Model P9T-R20 794-806 MHz Model P9T-P7702-742 MHz Model P9T-Q14 740-752 MHz Model P9T-R21 794-806 MHz Model P9T-L6E 656-692 MHz 790-830 MHz Model P9T-R22 Model P9T-Q15750-790 MHz Model P9T-A24 779-806 MHz Model P9T-X1 944-952 MHz Model P9T-S7 830-866 MHz FCC ID: XXXXXX IC: XXXX-XXX FCC ID: XXXXXX IC: XXXX-XXX FCC ID: XXXXXX IC: XXXX-XXX FCC ID: XXXXXX IC: XXXX-XXX CMII ID:XXXXXXXXXX CMII ID:XXXXXXXXXX FCC ID: XXXXXX .93 X .43 .96 X .6 R FCC ID: XXXXXX IC: XXXX-XXX FCC ID: XXXXXX IC: XXXX-XXX FCC ID: XXXXXX IC: XXXX-XXX FCC ID: XXXXXX IC: XXXX-XXX CMII ID:XXXXXXXXXX XXXX XXXX XXXX XXXX Model P9T-L6E 656-692 MHz XXXX CMII ID:XXXXXXXXXX Model P9T-L6E 656-692 MHz CMII ID:XXXXXXXXXX XXXX Model P9T-L6E 656-692 MHz CMII ID:XXXXXXXXXX XXXX PLATE #: CR-2545 (39-12976) DESCRIPTION: Tx Compliance Label MODEL #: PSM900 P9T (Tx rack unit) PROJECT #: SCALE: 1:1 DESIGNER: C. BOYE-DOE APPROVED: 1.25 x .46 indicates .20 dot matrix location FCC ID: DD4P9TBIC: 616A-P9TB FCC ID: DD4P9TAIC: 616A-P9TA FCC ID: DD4P9TJ FCC ID: DD4P9TCIC: 616A-P9TCFCC ID: DD4P9TDIC: 616A-P9TD

Shure P9T Label Location Shure P9T Back View

Shure P9T Internal Photographs P9T PCB Top in Case P9T PCB Top P9T PCB Top (Shield removed) P9T PCB Bottom P9T Front Panel PCB (Front) P9T Front Panel PCB P9T Front Panel PCB (Back) P9T Front Panel PCB (Back)

Engineering Test Report No. 0903072-01 Electromagnetic Compatibility Tests on a Transmitter, Part No. P9T For : Shure Inc. 5800 West Touhy Avenue Niles, IL 60714 P.O. No. : 4500164699 Date Received : October 26, 2009 Dates Tested : October 26, 2009 through December 10, 2009 Test Personnel : Richard E. King, Mark E. Longinotti, Brandon Lugo Specification : FCC "Code of Federal Regulations” Title 47 Part 74 Industry Canada RSS-123 Test Report By : Mark E. Longinotti EMC Engineer Approved By : Raymond J. Klouda Registered Professional Engineer of Illinois - 44894 Elite Electronic Engineering Inc. 1516 Centre Circle Downers Grove, IL 60515 Tel : (630) 495-9770 Fax: (630) 495-9785 www.elitetest.com Engineering Test Report No. 0903072-01 THIS REPORT SHALL NOT BE REPRODUCED, EXCEPT IN FULL, WITHOUT THE WRITTEN APPROVAL OF ELITE ELECTRONIC ENGINEERING INCORPORATED. Page 2 of 220 TABLE OF CONTENTS PARAGRAPH DESCRIPTION OF CONTENTS PAGE NO. 1. Introduction........................................................................................................................................................ 5 1.1 Scope of Tests .......................................................................................................................................... 5 1.2 Purpose .................................................................................................................................................... 5 1.3 Deviations, Additions, and Exclusions...................................................................................................... 5 1.4 EMC Laboratory Identification .................................................................................................................. 5 1.5 Laboratory Conditions .............................................................................................................................. 5 2. Applicable Documents....................................................................................................................................... 5 3. Test Item Set-up and Operation ........................................................................................................................ 6 3.1 General Description .................................................................................................................................. 6 3.1.1 Power Input .......................................................................................................................................... 6 3.1.2 Peripheral Equipment........................................................................................................................... 6 3.1.3 Signal Input/Output Leads.................................................................................................................... 6 3.1.4 Grounding............................................................................................................................................. 6 3.1.5 Frequency of Test Item ........................................................................................................................ 6 3.2 Operational Mode ..................................................................................................................................... 6 3.3 Test Item Modifications............................................................................................................................. 6 4. Test Facility and Test Instrumentation .............................................................................................................. 6 4.1 Shielded Enclosure................................................................................................................................... 6 4.2 Test Instrumentation ................................................................................................................................. 6 4.3 Calibration Traceability ............................................................................................................................. 7 4.4 Measurement Uncertainty ........................................................................................................................ 7 5. Test Procedures ................................................................................................................................................ 7 5.1 RF POWER OUTPUT MEASUREMENTS ............................................................................................... 7 5.1.1 Requirements ....................................................................................................................................... 7 5.1.2 Procedures ........................................................................................................................................... 7 5.1.3 Results.................................................................................................................................................. 7 5.2 MODULATION CHARACTERISTICS....................................................................................................... 7 5.2.1 Requirements ....................................................................................................................................... 7 5.2.2 Procedures ........................................................................................................................................... 8 5.2.3 Results.................................................................................................................................................. 8 5.3 FREQUENCY STABILITY ........................................................................................................................ 8 5.3.1 Requirements ....................................................................................................................................... 8 5.3.2 Procedures .................................................................…

Text truncated - open the document above for the full version.

Engineering Test Report No. 0903072-01 Page 56 of 220 40.6 dB Offset A Unit dBm RF Att 20 dB Ref Lvl 20.3 dBm Ref Lvl 20.3 dBm 150 kHz/Center 614 MHzSpan 1.5 MHz P20 2MA RBW 2 kHz VBW 20 kHz SWT 940 ms IN1 2VIEW 3MAX3MA * -70 -60 -50 -40 -30 -20 -10 0 10 -79.7 20.3 1 Marker 1 [T2] 20.13 dBm 613.86322645 MHz 1 [T2] 20.13 dBm 613.86322645 MHz Date: 10.DEC.2009 09:16:4 6 Mask B FCC IC IC/FCC Occupied Bandwidth MANUFACTURER : Shure, Inc. MODEL NUMBER : P9T 596MHz to 632MHz SERIAL NUMBER : 2 TEST MODE : Tx at 614MHz TEST POWER : 100mW NOTES : CW EQUIPMENT USED : RBA0, GWH2, GWH4, T2S3, T2S4, RYE0 Engineering Test Report No. 0903072-01 Page 57 of 220 40.6 dB Offset A Unit dBm RF Att 20 dB Ref Lvl 20.3 dBm Ref Lvl 20.3 dBm 150 kHz/Center 614 MHzSpan 1.5 MHz P20 2MA RBW 2 kHz VBW 20 kHz SWT 940 ms IN1 2VIEW 3MAX3MA * -70 -60 -50 -40 -30 -20 -10 0 10 -79.7 20.3 1 Marker 1 [T2] 20.13 dBm 613.86322645 MHz 1 [T2] 20.13 dBm 613.86322645 MHz Date: 10.DEC.2009 09:17:4 7 Mask B FCC IC IC/FCC Occupied Bandwidth MANUFACTURER : Shure, Inc. MODEL NUMBER : P9T 596MHz to 632MHz SERIAL NUMBER : 2 TEST MODE : Tx at 614MHz TEST POWER : 100mW NOTES : 2500Hz at 16dB over 50% EQUIPMENT USED : RBA0, GWH2, GWH4, T2S3, T2S4, RYE0 Engineering Test Report No. 0903072-01 Page 58 of 220 40.6 dB Offset A Unit dBm RF Att 20 dB Ref Lvl 20.3 dBm Ref Lvl 20.3 dBm 150 kHz/Center 614 MHzSpan 1.5 MHz P20 2MA RBW 2 kHz VBW 20 kHz SWT 940 ms IN1 2VIEW 3MAX3MA * -70 -60 -50 -40 -30 -20 -10 0 10 -79.7 20.3 1 Marker 1 [T2] 20.13 dBm 613.86322645 MHz 1 [T2] 20.13 dBm 613.86322645 MHz Date: 10.DEC.2009 09:19:5 6 Mask B FCC IC IC/FCC Occupied Bandwidth MANUFACTURER : Shure, Inc. MODEL NUMBER : P9T 596MHz to 632MHz SERIAL NUMBER : 2 TEST MODE : Tx at 614MHz TEST POWER : 100mW NOTES : 15kHz at 85% EQUIPMENT USED : RBA0, GWH2, GWH4, T2S3, T2S4, RYE0 Engineering Test Report No. 0903072-01 Page 59 of 220 40.6 dB Offset A Unit dBm 3MA RF Att 20 dB 2VIEW 3MAX 2MA Ref Lvl 10.4 dBm Ref Lvl 10.4 dBm 150 kHz/Center 674 MHzSpan 1.5 MHz P20 RBW 2 kHz VBW 20 kHz SWT 940 ms IN1 * -80 -70 -60 -50 -40 -30 -20 -10 0 -89.6 10.4 1 Marker 1 [T2] 10.35 dBm 673.83316633 MHz 1 [T2] 10.35 dBm 673.83316633 MHz Date: 10.DEC.2009 08:02:4 9 Mask B FCC IC IC/FCC Occupied Bandwidth MANUFACTURER : Shure, Inc. MODEL NUMBER : P9T 656MHz to 692MHz SERIAL NUMBER : 2 TEST MODE : Tx at 674MHz TEST POWER : 10mW NOTES : CW EQUIPMENT USED : RBA0, GWH2, GWH4, T2S3, T2S4, RYE0, Engineering Test Report No. 0903072-01 Page 60 of 220 40.6 dB Offset A Unit dBm RF Att 20 dB 2MA Ref Lvl 10.4 dBm Ref Lvl 10.4 dBm 150 kHz/Center 674 MHzSpan 1.5 MHz P20 RBW 2 kHz VBW 20 kHz SWT 940 ms IN1 2VIEW 3MAX3MA * -80 -70 -60 -50 -40 -30 -20 -10 0 -89.6 10.4 1 Marker 1 [T2] 10.35 dBm 673.83316633 MHz 1 [T2] 10.35 dBm 673.83316633 MHz Date: 10.DEC.2009 08:07:0 0 Mask B FCC IC IC/FCC Occupied Bandwidth MANUFACTURER : Shure, Inc. MODEL NUMBER : P9T 656MHz to 692MHz SERIAL NUMBER : 2 TEST MODE : Tx at 674MHz TEST POWER : 10mW NOTES : 2500Hz at 16dB over 50% EQUIPMENT USED : RBA0, GWH2, GWH4, T2S3, T2S4, RYE0, Engineering Test Report No. 0903072-01 Page 61 of 220 40.6 dB Offset A Unit dBm RF Att 20 dB 2MA Ref Lvl 10.4 dBm Ref Lvl 10.4 dBm 150 kHz/Center 674 MHzSpan 1.5 MHz P20 RBW 2 kHz VBW 20 kHz SWT 940 ms IN1 2VIEW 3MAX3MA * -80 -70 -60 -50 -40 -30 -20 -10 0 -89.6 10.4 1 Marker 1 [T2] 10.35 dBm 673.83316633 MHz 1 [T2] 10.35 dBm 673.83316633 MHz Date: 10.DEC.2009 08:05:2 7 Mask B FCC IC IC/FCC Occupied Bandwidth MANUFACTURER : Shure, Inc. MODEL NUMBER : P9T 656MHz to 692MHz SERIAL NUMBER : 2 TEST MODE : Tx at 674MHz TEST POWER : 10mW NOTES : 15kHz at 85% Modulation EQUIPMENT USED : RBA0, GWH2, GWH4, T2S3, T2S4, RYE0, Engineering Test Report No. 0903072-01 Page 62 of 220 40.6 dB Offset A Unit dBm RF Att 20 dB Ref Lvl 17 dBm Ref Lvl 17 dBm 150 kHz/Center 674 MHzSpan 1.5 MHz P20 2MA RBW 2 kHz VBW 20 kHz SWT 940 ms IN1 2VIEW 3MAX3MA * -80 -70 -60 -50 -40 -30 -20 -10 0 10 -83 17 1 Marker 1 [T2] 16.98 dBm 673.74599198 MHz 1 [T2] 16.98 dBm 673.74599198 MHz Date: 10.DEC.2009 08:13:2 5 Mask B FCC IC IC/FCC Occupied Bandwidth MANUFACTURER : Shure, Inc. MODEL NUMBER : P9T 656MHz to 692MHz SERIAL NUMBER : 2 TEST MODE : Tx at 674MHz TEST POWER : 50mW NOTES : CW EQUIPMENT USED : RBA0, GWH2, GWH4, T2S3, T2S4, RYE0, Engineering Test Report No. 0903072-01 Page 63 of 220 40.6 dB Offset A Unit dBm RF Att 20 dB Ref Lvl 17 dBm Ref Lvl 17 dBm 150 kHz/Center 674 MHzSpan 1.5 MHz P20 2MA RBW 2 kHz VBW 20 kHz SWT 940 ms IN1 2VIEW 3MAX3MA * -80 -70 -60 -50 -40 -30 -20 -10 0 10 -83 17 1 Marker 1 [T2] 16.98 dBm 673.74599198 MHz 1 [T2] 16.98 dBm 673.74599198 MHz Date: 10.DEC.2009 08:22:0 9 Mask B FCC IC IC/FCC Occupied Bandwidth MANUFACTURER : Shure, Inc. MODEL NUMBER : P9T 656MHz to 692MHz SERIAL NUMBER : 2 TEST MODE : Tx at 674MHz TEST POWER : 50mW NOTES : 2500Hz at 16dB over 50% EQUIPMENT USED : RBA0, GWH2, GWH4, T2S3, T2S4, RYE0, Engineering Test Report No. 0903072-01 Page 64 of 220 40.6 dB Offset A Unit dBm RF Att 20 dB Ref Lvl 17 dBm Ref Lvl 17 dBm 150 kHz/Center 674 MHzSpan 1.5 MHz P20 2MA RBW 2 kHz VBW 20 kHz SWT 940 ms IN1 2VIEW 3MAX3MA * -80 -70 -60 -50 -40 -30 -20 -10 0 10 -83 17 1 Marker 1 [T2] 16.98 dBm 673.74599198 MHz 1 [T2] 16.98 dBm 673.74599198 MHz Date: 10.DEC.2009 08:20:2 1 Mask B FCC IC IC/FCC Occupied Bandwidth MANUFACTURER : Shure, Inc. MODEL NUMBER : P9T 656MHz to 692MHz SERIAL NUMBER : 2 TEST MODE : Tx at 674MHz TEST POWER : 50mW NOTES : 15kHz at 85% Modulation EQUIPMENT USED : RBA0, GWH2, GWH4, T2S3, T2S4, RYE0, Engineering Test Report No. 0903072-01 Page 65 of 220 40.6 dB Offset A Unit dBm RF Att 20 dB Ref Lvl 19.7 dBm Ref Lvl 19.7 dBm 150 kHz/Center 674 MHzSpan 1.5 MHz P20 2MA RBW 2 kHz VBW 20 kHz SWT 940 ms IN1 2VIEW 3MAX3MA * -70 -60 -50 -40 -30 -20 -10 0 10 -80.3 19.7 1 Marker 1 [T2] 19.68 dBm 673.69488978 MHz 1 [T2] 19.68 dBm 673.69488978 MHz Date: 10.DEC.2009 08:31:4 5 Mask B FCC IC IC/FCC Occupied Bandwidth MANUFACTURER : Shure, Inc. MODEL NUMBER : P9T 656MHz to 692MHz SERIAL NUMBER : 2 TEST MODE …

Text truncated - open the document above for the full version.

Engineering Test Report No. 0903072-01 Page 111 of 220 Ref 20 dBmAtt 10 dB * * Offset 40 dB 1 PK VIEW A LVL 3DB RBW 30 kHz VBW 100 kHz SWT 1.1 s AC Start 30 MHzStop 1 GHz97 MHz/ -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 D1 -25 dBm Date: 7.DEC.2009 14:25:24 MANUFACTURER :Shure, Inc. MODEL NUMBER :P9T 470MHz to 506MHz SERIAL NUMBER :2 TEST MODE :TRANSMIT AT 488.0MHz TEST PARAMETERS :IC Antenna Conducted Emissions NOTES : Modulated with signals representative of those encountered in a real system operation (2500Hz at 80% rated deviation) EQUIPMENT USED :RBE0, T2S4, T2S3 Engineering Test Report No. 0903072-01 Page 112 of 220 Ref 20 dBmAtt 10 dB * * Offset 40 dB 1 PK VIEW A LVL 3DB RBW 30 kHz VBW 100 kHz SWT 4.5 s AC Start 1 GHzStop 5 GHz400 MHz/ -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 D1 -25 dBm Date: 7.DEC.2009 14:30:24 MANUFACTURER :Shure, Inc. MODEL NUMBER :P9T 470MHz to 506MHz SERIAL NUMBER :2 TEST MODE :TRANSMIT AT 488.0MHz TEST PARAMETERS :IC Antenna Conducted Emissions NOTES : Modulated with signals representative of those encountered in a real system operation (2500Hz at 80% rated deviation) EQUIPMENT USED :RBE0, T2S4, T2S3 Engineering Test Report No. 0903072-01 Page 113 of 220 Ref 20 dBmAtt 10 dB * * Offset 40 dB 1 PK VIEW A LVL 3DB RBW 30 kHz VBW 100 kHz SWT 1.1 s AC Start 30 MHzStop 1 GHz97 MHz/ -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 D1 -25 dBm Date: 8.DEC.2009 08:55:59 MANUFACTURER :Shure, Inc. MODEL NUMBER :P9T 506MHz to 542MHz SERIAL NUMBER :2 TEST MODE :TRANSMIT AT 524.0MHz, 10mW TEST PARAMETERS :IC Antenna Conducted Emissions NOTES : Modulated with signals representative of those encountered in a real system operation (2500Hz at 80% rated deviation) EQUIPMENT USED :RBE0, T2S4, T2S3 Engineering Test Report No. 0903072-01 Page 114 of 220 Ref 20 dBmAtt 10 dB * * Offset 40 dB 1 PK VIEW A LVL 3DB RBW 30 kHz VBW 100 kHz SWT 4.5 s AC Start 1 GHzStop 5 GHz400 MHz/ -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 D1 -25 dBm Date: 8.DEC.2009 08:54:57 MANUFACTURER :Shure, Inc. MODEL NUMBER :P9T 506MHz to 542MHz SERIAL NUMBER :2 TEST MODE :TRANSMIT AT 524.0MHz, 10mW TEST PARAMETERS :IC Antenna Conducted Emissions NOTES : Modulated with signals representative of those encountered in a real system operation (2500Hz at 80% rated deviation) EQUIPMENT USED :RBE0, T2S4, T2S3 Engineering Test Report No. 0903072-01 Page 115 of 220 Ref 20 dBmAtt 10 dB * * Offset 40 dB 1 PK VIEW A LVL 3DB RBW 30 kHz VBW 100 kHz SWT 1.1 s AC Start 30 MHzStop 1 GHz97 MHz/ -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 D1 -25 dBm Date: 8.DEC.2009 08:51:04 MANUFACTURER :Shure, Inc. MODEL NUMBER :P9T 506MHz to 542MHz SERIAL NUMBER :2 TEST MODE :TRANSMIT AT 524.0MHz, 50mW TEST PARAMETERS :IC Antenna Conducted Emissions NOTES : Modulated with signals representative of those encountered in a real system operation (2500Hz at 80% rated deviation) EQUIPMENT USED :RBE0, T2S4, T2S3 Engineering Test Report No. 0903072-01 Page 116 of 220 Ref 20 dBmAtt 10 dB * * Offset 40 dB 1 PK VIEW * A LVL 3DB RBW 30 kHz VBW 100 kHz SWT 4.5 s AC Start 1 GHzStop 5 GHz400 MHz/ -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 D1 -25 dBm Date: 8.DEC.2009 08:52:57 MANUFACTURER :Shure, Inc. MODEL NUMBER :P9T 506MHz to 542MHz SERIAL NUMBER :2 TEST MODE :TRANSMIT AT 524.0MHz, 50mW TEST PARAMETERS :IC Antenna Conducted Emissions NOTES : Modulated with signals representative of those encountered in a real system operation (2500Hz at 80% rated deviation) EQUIPMENT USED :RBE0, T2S4, T2S3 Engineering Test Report No. 0903072-01 Page 117 of 220 Ref 20 dBmAtt 10 dB * * Offset 40 dB 1 PK VIEW A LVL 3DB RBW 30 kHz VBW 100 kHz SWT 1.1 s AC Start 30 MHzStop 1 GHz97 MHz/ -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 D1 -25 dBm Date: 7.DEC.2009 14:32:49 MANUFACTURER :Shure, Inc. MODEL NUMBER :P9T 506MHz to 542MHz SERIAL NUMBER :2 TEST MODE :TRANSMIT AT 524.0MHz TEST PARAMETERS :IC Antenna Conducted Emissions NOTES : Modulated with signals representative of those encountered in a real system operation (2500Hz at 80% rated deviation) EQUIPMENT USED :RBE0, T2S4, T2S3 Engineering Test Report No. 0903072-01 Page 118 of 220 Ref 20 dBmAtt 10 dB * * Offset 40 dB 1 PK VIEW A LVL 3DB RBW 30 kHz VBW 100 kHz SWT 4.5 s AC Start 1 GHzStop 5 GHz400 MHz/ -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 D1 -25 dBm Date: 7.DEC.2009 14:35:39 MANUFACTURER :Shure, Inc. MODEL NUMBER :P9T 506MHz to 542MHz SERIAL NUMBER :2 TEST MODE :TRANSMIT AT 524.0MHz TEST PARAMETERS :IC Antenna Conducted Emissions NOTES : Modulated with signals representative of those encountered in a real system operation (2500Hz at 80% rated deviation) EQUIPMENT USED :RBE0, T2S4, T2S3 Engineering Test Report No. 0903072-01 Page 119 of 220 Ref 20 dBmAtt 10 dB * * Offset 40 dB 1 PK VIEW A LVL 3DB RBW 30 kHz VBW 100 kHz SWT 1.1 s AC Start 30 MHzStop 1 GHz97 MHz/ -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 D1 -25 dBm Date: 8.DEC.2009 08:36:13 MANUFACTURER :Shure, Inc. MODEL NUMBER :P9T 596MHz to 632MHz SERIAL NUMBER :2 TEST MODE :TRANSMIT AT 614.0MHz, 10mW TEST PARAMETERS :IC Antenna Conducted Emissions NOTES : Modulated with signals representative of those encountered in a real system operation (2500Hz at 80% rated deviation) EQUIPMENT USED :RBE0, T2S4, T2S3 Engineering Test Report No. 0903072-01 Page 120 of 220 Ref 20 dBmAtt 10 dB * * Offset 40 dB 1 PK VIEW A LVL 3DB RBW 30 kHz VBW 100 kHz SWT 4.5 s AC Start 1 GHzStop 5 GHz400 MHz/ -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 D1 -25 dBm Date: 8.DEC.2009 08:37:47 MANUFACTURER :Shure, Inc. MODEL NUMBER :P9T 596MHz to 632MHz SERIAL NUMBER :2 TEST MODE :TRANSMIT AT 614.0MHz, 10mW TEST PARAMETERS :IC Antenna Conducted Emissions NOTES : Modulated with signals representative of those encountered in a real system operation (2500Hz at 80% rated deviation) EQUIPMENT USED :RBE0, T2S4, T2S3 Engineering Test Report No. 0903072-01 Page 121 of 220 Ref 20 dBmAtt 10 dB * * Offset 40 dB 1 PK VIEW A LVL 3DB RBW 30 kHz VBW 100 kHz SWT 1.1 s AC Start 30 MHzStop 1 GHz97 MHz/ -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 D1 -25 dBm Date: 8.DEC.2…

Text truncated - open the document above for the full version.

Engineering Test Report No. 0903072-01 Page 138 of 220 Engineering Test Report No. 0903072-01 Page 139 of 220 Engineering Test Report No. 0903072-01 Page 140 of 220 Engineering Test Report No. 0903072-01 Page 141 of 220 Engineering Test Report No. 0903072-01 Page 142 of 220 Engineering Test Report No. 0903072-01 Page 143 of 220 Engineering Test Report No. 0903072-01 Page 144 of 220 Engineering Test Report No. 0903072-01 Page 145 of 220 Engineering Test Report No. 0903072-01 Page 146 of 220 Engineering Test Report No. 0903072-01 Page 147 of 220 Engineering Test Report No. 0903072-01 Page 148 of 220 Engineering Test Report No. 0903072-01 Page 149 of 220 Engineering Test Report No. 0903072-01 Page 150 of 220 Engineering Test Report No. 0903072-01 Page 151 of 220 Engineering Test Report No. 0903072-01 Page 152 of 220 Engineering Test Report No. 0903072-01 Page 153 of 220 Engineering Test Report No. 0903072-01 Page 154 of 220 Engineering Test Report No. 0903072-01 Page 155 of 220 Engineering Test Report No. 0903072-01 Page 156 of 220 Engineering Test Report No. 0903072-01 Page 157 of 220 Engineering Test Report No. 0903072-01 Page 158 of 220 Engineering Test Report No. 0903072-01 Page 159 of 220 Engineering Test Report No. 0903072-01 Page 160 of 220 Engineering Test Report No. 0903072-01 Page 161 of 220 Engineering Test Report No. 0903072-01 Page 162 of 220 Engineering Test Report No. 0903072-01 Page 163 of 220 Engineering Test Report No. 0903072-01 Page 164 of 220 Engineering Test Report No. 0903072-01 Page 165 of 220

Engineering Test Report No. 0903072-01 Page 166 of 220 Engineering Test Report No. 0903072-01 Page 167 of 220 Engineering Test Report No. 0903072-01 Page 168 of 220 Engineering Test Report No. 0903072-01 Page 169 of 220 Engineering Test Report No. 0903072-01 Page 170 of 220 Engineering Test Report No. 0903072-01 Page 171 of 220 Engineering Test Report No. 0903072-01 Page 172 of 220 Engineering Test Report No. 0903072-01 Page 173 of 220 Engineering Test Report No. 0903072-01 Page 174 of 220 Engineering Test Report No. 0903072-01 Page 175 of 220 Engineering Test Report No. 0903072-01 Page 176 of 220 Engineering Test Report No. 0903072-01 Page 177 of 220 Engineering Test Report No. 0903072-01 Page 178 of 220 Engineering Test Report No. 0903072-01 Page 179 of 220 Engineering Test Report No. 0903072-01 Page 180 of 220 Engineering Test Report No. 0903072-01 Page 181 of 220 Engineering Test Report No. 0903072-01 Page 182 of 220 Engineering Test Report No. 0903072-01 Page 183 of 220 Engineering Test Report No. 0903072-01 Page 184 of 220 Engineering Test Report No. 0903072-01 Page 185 of 220 Engineering Test Report No. 0903072-01 Page 186 of 220 Engineering Test Report No. 0903072-01 Page 187 of 220 Engineering Test Report No. 0903072-01 Page 188 of 220 Engineering Test Report No. 0903072-01 Page 189 of 220 Engineering Test Report No. 0903072-01 Page 190 of 220 Engineering Test Report No. 0903072-01 Page 191 of 220 M…
