DD4PA821Antenna Combiner

PSM R Antenna Combiner Model PA821 User Guide 27A8807 (CF)

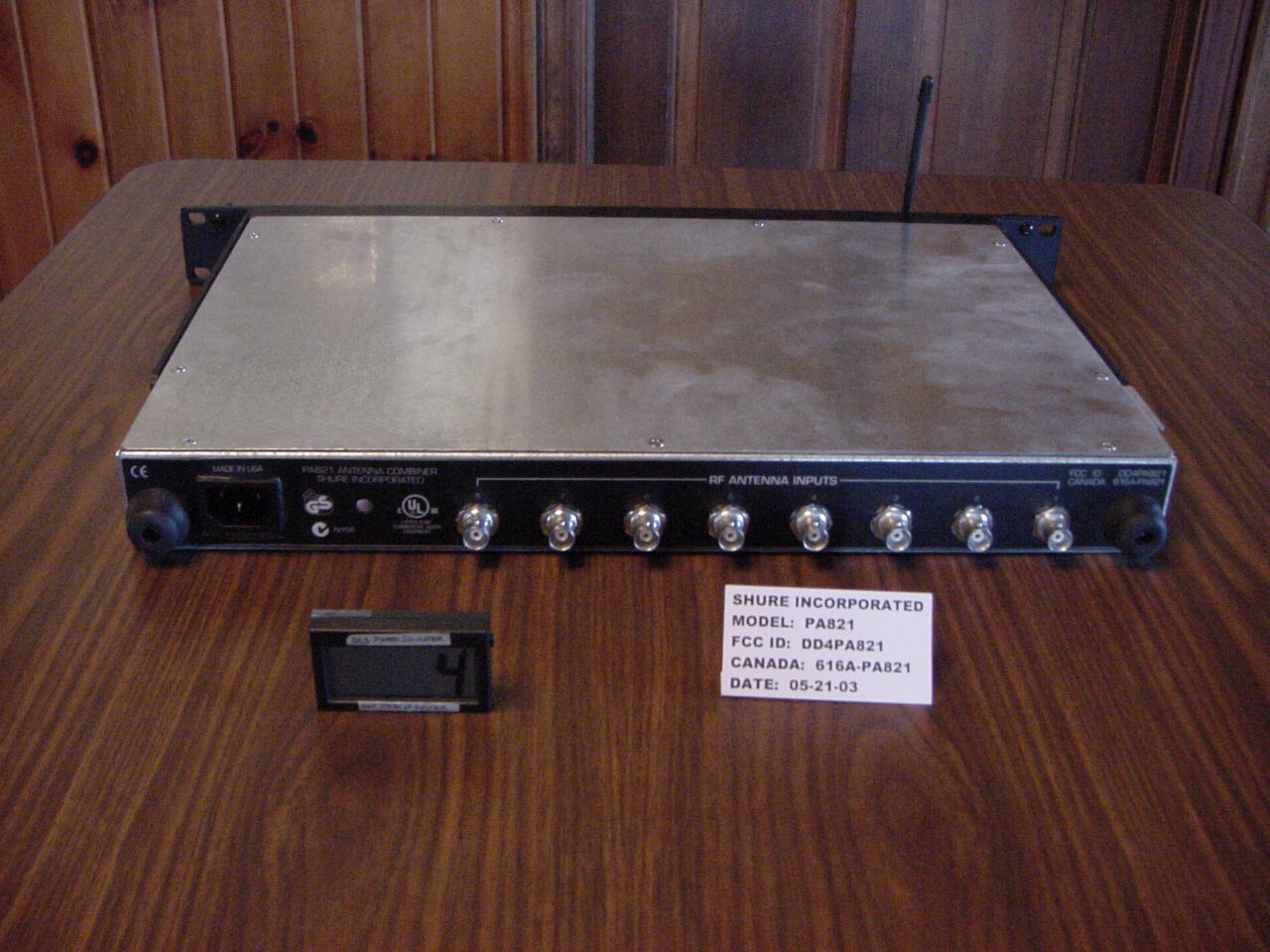

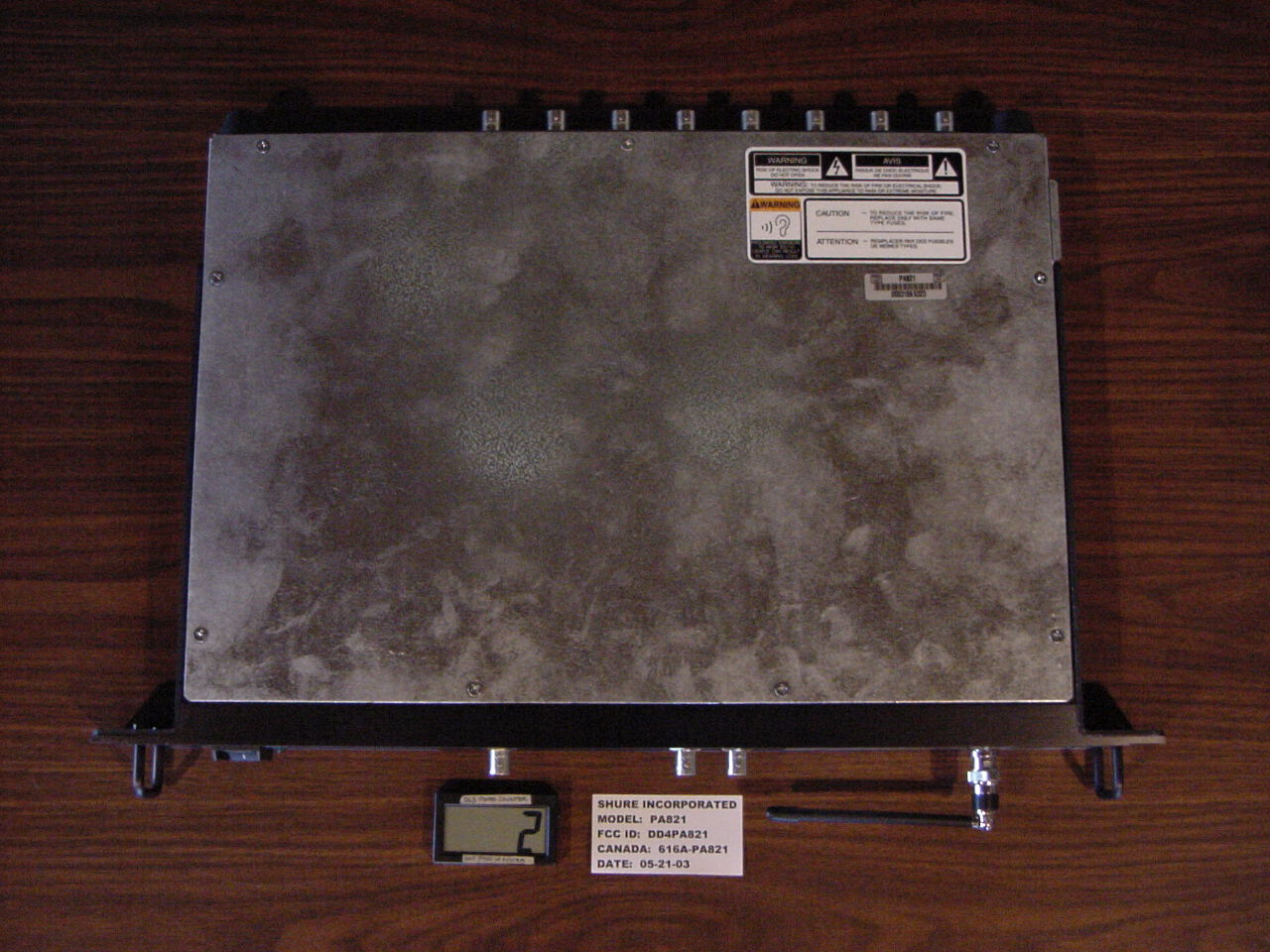

©2003 Shure Incorporated Printed in U.S.A. PSM R Antenna Combiner User Guide Guide de l'utilisateur du répartiteur d'antenne PSM Bedienungsanleitung für die Antennenweiche PSM Guía del usuario del combinador de antenas PSM Guida d'uso del combinatore di antenne PSM PA821 PSM Antenna Combiner 470-870 Mhz MAIN OUT INPUT SIGNAL ACTIVE COMBINER 1 2 3 4 5 6 7 8 50 OHM S AIN BIN E XPANSION P ORT A+B O U T P O WER 1 ENGLISH DESCRIPTION The Shure PA821 Antenna Combiners actively combine antenna out- puts from up to eight PSM wireless transmitters to a single antenna, im- proving RF performance and reducing rack clutter. INSTALLATION Set the power switch on the front panel to Off before installing. Connect the unit to an AC power source using the supplied power cable. Switch the power On to use the device. The power light will illuminate. Power the unit Off when not in use or before disconnecting the unit from the AC power source. 8-TO-1 COMBINING: 1.Using the supplied BNC-BNC cables, connect the ANTENNA OUT- PUT of each transmitter to the ANTENNA INPUTS of the PA821 (Figure 2). 2.Attach an antenna to the MAIN OUT of PA821. For wideband appli- cations, use PA805WB directional antenna (Figure 1). 3.Connect the PA821 to a power outlet using one of the supplied power cables. The PA821 contains a universal power supply to oper - ate anywhere in the world. FIGURE 1 FIGURE 2 ! IMPORTANT SAFETY INSTRUCTIONS ! 1.READ these instructions. 2.KEEP these instructions. 3.HEED all warnings. 4.FOLLOW all instructions. 5.DO NOT use this apparatus near water. 6.CLEAN ONLY with dry cloth. 7.DO NOT block any ventilation openings. Install in accordance with the manu- facturer's instructions. 8.DO NOT install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9.DO NOT defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wider blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10.PROTECT the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11.ONLY USE attachments/accessories specified by the manufacturer. 12. 13.UNPLUG this apparatus during lightning storms or when unused for long periods of time. 14.REFER all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is dam- aged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. 15.DO NOT expose the apparatus to dripping and splashing. DO NOT put objects filled with liquids, such as vases, on the apparatus. USE only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. This symbol indicates that there are important operating and maintenance instructions in the literature accompanying this unit. This symbol indicates that dangerous voltage constituting a risk of electric shock is present within this unit. WARNING: Voltages in this equipment are hazardous to life. No user-serviceable parts inside. Refer all servicing to qualified service personnel. The safety certifications do not apply when the operating voltage is changed from the factory setting. 87654321 ANTENNA COMBINER SHURE INCORPORATED RF ANTENNA INPUTS MADE IN USA POWER 12345678 ® PA821 PA821 87654 RFANTENNA INPUTS PA821 ANTENNACOMBINER SHURE INCORPORATED MADE IN USA 321 50
BNC AC POWER PSM Transmitters 2 ENGLISH FOR MORE THAN 8 TANSMITTERS: 1.Using the supplied BNC-BNC cables, connect the ANTENNA OUT- PUT of each transmitter to the ANTENNA INPUTS of the PA821. 2.Use the 1 ft. jumper BNC-BNC cable to connect the MAIN OUT- PUT of the PA821 to the A IN of the EXPANSION PORT. 3.Connect another ANTENNA OUTPUT (from a ninth PSM trans- mitter, second PA821 or other antenna port) to the B IN of the EXPANSION PORT. 4.Attach an antenna to the A + B OUT of the EXPANSION PORT. For wideband applications, use the PA805WB directional antenna. See Figure 3. FIGURE 3 SPECIFICATIONS RF Carrier Frequency Range 470-870 MHz (470-806 MHz in U.S.A. and Canada) System Gain +0/-5 dB Output Port Isolation Greater than 55 dB Third Order Intercept Point (3 OIP) Greater than 25 dBm Input AC Line Voltage 100-240 Vac, 50/60 Hz Maximum Input Line VA 100 VA Maximum Current Drain 0.42-1.0 Amperes (Amperes = 100 VA/Input AC Line Voltage) Maximum RF Input Power 24 dBm (250 mW) Impedance 50  nominal Operating Temperature Range 0
F (-18

C) to +135

F (+57 C)
NOTE: Electrical safety approval is based on a maximum ambient temperature of 35°C. Overall Dimensions 43.4 mm high x 398.8 mm wide x331.5 mm deep (1 11/16 in. H x 15 11/16 in. W x 13 1/2 in. D) Net Weight 4.53 Kg (10 lbs unpackaged, without power and RF cables) Input/Output Connector Type BNC-type 8 input, 1 output ACTIVE 2 Inputs, 1 output EXPANSION PORT FURNISHED ACCESSORIES (8) 2 ft. Coaxial Cable (RG58/U) ...................................... UA802 1 ft Jumper..................................................................... 95E2035 120 VAC Power Line Cord............................................. 95A8389 230 VAC Power Line Cord............................................. 95A8247 240 VAC Power Line Cord (U.K.) .................................. 95A8713 OPTIONAL ACCESSORIES Wideband Unidirectional Antenna (470-870 MHz) ...... PA805WB 10 ft. Coaxial Cable (RG-58/U) ......................................... PA725 25 ft. Coaxial Cable (…

Text truncated - open the document above for the full version.

Microphones and Audio Electronics SHURE Incorporated 5800 Touhy Avenue Niles, IL 60714 – 4608 • USA Phone: 847-600-2000 FAX: 847-600-1212 Web Address: www.shure.com June 19, 2003 American TCB, Inc. 6731 Whittier Avenue McLean, VA 22101 Subject: Request for Non disclosure for FCC ID: DD4PA821 To Whom It May Concern: Pursuant to 47 CFR Section 0.459, Shure Incorporated hereby requests non- disclosure and confidential treatment of the following materials submitted in support of FCC certification application for FCC ID # DD4PA821: a. Schematic Diagrams b. Operational Description c. Block Diagram Above materials contain trade secrets, proprietary and technical information which would customarily be guarded from competitors under 47 CFR section 0.457(d)(2). Disclosure or publication of any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. Shure Incorporated understands that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. Sincerely yours, Edgar C. Reihl Director, Global Compliance Shure Incorporated

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 June 25, 2003 RE: FCC ID: DD4PA821 Attention: Edgar C. Reihl / Anders Melberg I have a few comments on this Application. 1. Page 71 of the report states the highest fundamental of the combiner is 704MHz. Page 65 of the report indicates that the highest frequency was 746MHz. Power measurements were made at 533 and 746MHz. This would indicate that the 704MHz listed on page 71 of the report is incorrect. Please explain. 2. The 731 states 470MHz to 870MHz. Please note that part 74 devices do not operate in the 824 to 849MHz band as this is a part 22 cell band. Thus these frequencies are not proper for a part 74 grant. Please note that the frequencies 470-608 and 614-806 MHz are more correct. The grant would therefore be 470MHz to 806 MHz. Also, other information in the report suggest that the passband of the device would be 533MHz to 746MHz. Please correct the 731 to be in line with the frequencies allocated to Part 74 and/or the actual passband of the device. 3. Please note that the lowest frequency test in the device is 533MHz. Please note that the highest frequency tested is 746MHz. This is 63MHz away from the low band edge and 60MHz from the upper band edge (806MHz) at which you state the device operates (i.e. see 731). In accordance with the requirements for auxiliary devices under Part 74.861e, please show compliance of the device at the upper and lower band edges for Part 74 devices (470MHz and 806MHz). If the actual passband of the device is 533MHz to 806MHz, please correct the 731 accordingly. 4. Please note that intermodulation tests should typically be done using frequencies near the upper and lower edges of the pass band of the device in question. Please explain why the frequencies used were selected and not frequencies closer to the band edges. (see items 2 and 3). 5. Please provide a separate operational / technical description of the device. Dennis Ward mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

Microphones and Audio Electronics SHURE Incorporated 5800 Touhy Avenue Niles, IL 60714 – 4608 • USA Phone: 847-600-2000 FAX: 847-600-1212 Web Address: www.shure.com Date: 06/26/2003 Time: 9:00 AM To: Dennis Ward American TCB, Inc. 6731 Whittier Avenue McLean, VA 22101 From: Edgar C. Reihl Phone: 847-866-2289 Director, Global Compliance Fax: 847-866-2433 Applicant: Shure Incorporated E-Mail: [email protected] ______________________________________________________________________ Dear Dennis: Thank you for your letter of June 25, 2003. We would like to respond to your questions as follows: 1. We will have the test report corrected. Craig Kozokar of our Corporate Quality Engineering department will contact D.L.S. to arrange this. I will upload a corrected copy as soon as it is available. 2. I have modified the 731 form to state a frequency range of 470 to 806 MHz for Part 74 Certification. The PA821 broadband antenna combiner is designed for operation up to 870 MHz, because in other countries where it is sold, e.g. Europe, wireless microphone systems have frequency assignments in those bands. 3. The test frequencies mentioned in the report were chosen according to the availability of the transmitters that are used with it. Because the device is a broadband antenna combiner, it can be expected to meet the requirements of FCC Part 74.861e when used with compliant transmitters anywhere within the range of 470-806 MHz (including up to 870 MHz outside the USA). The device does not modify the occupied bandwidth of the signal source. The broadband nature of the equipment can be verified by reviewing the schematic and other information being supplied with the application. Other test sources could be used to drive the amplifier for test purposes, but we felt that the most representative results would be obtained using the transmitters that we manufacture. 4. Please see above response. 5. The operational/technical description was not yet available since it was still in review here. It is being supplied with this correspondence. Best regards, By: Edgar C. Reihl, P.E. Title: Director, Global Compliance Phone: 847-866-2289

MaterialPA8211WH01Alt.Usage1 ANTENNA COMBINERValid######## Reqd qty1EABase quant1EA LvItemComponent no.QuantUn IctAsm DescriptionEx. 1800127D868041EAL USER GUIDE - PA760/E, PA765,A/PA770,E 1800229A830611EAL CARTON,CORRUGATED,200#B 1800429B830611EAL WRAP,INSERT,CORRUGATED,275#C 1800529C830612EAL INSERT,SIDE,CORRUGATED,275#DW 1800629D817781EAL BAG,POLYETHYLENE,14.5"X25" 1800795A2035118EAL CABLE,BNC,22" 1800895E2035111EAL CABLE,BNC,11" 1800995A871331EAL CORD,POWER,BSI 1801095A838941EAL CORD,POWER,AC,TYPE SJT 1801195A824791EAL CORD,POWER,EURO,10A 1801265A845613EAL PLUG,CAP,PLOYETHELENE,CONDUCTIVE,BLACK 1801390J810021EAL HARDWARE 1801428NC8048661EAL LABEL - PA821 1801594A842411EALX ANTENNA COMBINER - PA821 1801627A317511EAL WARRANTY 1801727C876161EAL PUR. REG. REP. BY 27C3092, ECO 82746 1801828A817741EALX LABEL,ATE 1094A8424ANTENNA COMBINER - PA821 2130C8168B22EAL SCREW,SEMS,HEAD,HEX,PH,STEEL,PLTD,#4-40 2230B8161B226EAL SCREW,MACHINE,HEAD,FLAT,PH,STL,PLT,#6-32 2330C925B1410EAL SCREW,SEMS,HEAD,PAN,PH,STL,PLATED,#6-32 2430A803012EAL NUT,KEPS,STEEL,PLATED,#6-32 2530A104122EAL NUT,KEPS,STEEL,PLATED,#4-40 2748A804911EAL PANEL,FRONT,EXTRUDED 2895A902211EAL CHASSIS/REAR NAMEPLATE 2953A855812EAL COVER,STEEL,GALVANIZED 21053A856012EAL BRACKET,MOUNT,RACK,ALUMINUM,ANODIZED,BLK 21280A58312EAL TIE,CABLE,NYLON,BLACK,4" 21390A896811EAL DC INTERCONNECT ASSEMBLY 21490A894811EAL AC GROUND CABLE, 9.5" 21695A897011EAL FAN, SUNON 12V/2 POS. CONNECTOR 21795A897111EAL POWER SUPPLY, 100W, 12V 21895A876121EAL RECEPTACLE,POWER,AC 21995W8631812EAL NUT,HEX,1/2-28 22095X8631812EAL LOCKWASHER,INTERNAL TOOTH,1/2" 22165A843512EAL LIGHT PIPE,3mm,4 ARRAY 22295B897721EAL .SSEMBLY,LED,FEMALE CONN,HE GREEN 22355A813911EAL SWITCH,THERMOSTAT,DISC 224190A018-0221EAL PRINTED CIRCUIT BOARD 22539A844711EAL NAMEPLATE,FRONT PANEL 22628B819851EAL LABEL - PA821 22728A817741EALX LABEL,ATE 22990A897111EAL AC HARNESS AY. 23080A825212EAL HANDLE,ROUND,ALUMINUM 23266A807112EAL BUMPER,RUBBER,W/WASHER 23330H925B1410EAL SCREW,SEMS,HEAD,PAN,PH,STL,PLATED,#6-32 23480A812731EAL CLIP,PVC,BLACK 1028A8177LABEL,ATE 21028D80111EAL STOCK,LABEL,PRECUT,SILVER,#60018 22017A66520.197FTL RIBBON,THERMAL TRANSFER,BLACK,#620257 2028A8177LABEL,ATE 31028D80111EAL STOCK,LABEL,PRECUT,SILVER,#60018 32017A66520.197FTL RIBBON,THERMAL TRANSFER,BLACK,#620257 Material190A018-022WH01Alt.UsageE PRINTED CIRCUIT BOARDValid######## Reqd qty1EABase quant1EA LvItemComponent no.QuantUn IctAsm DescriptionEx. 11145BF49R968EAL RESISTOR,SMD 805,49.9,1/8W,1% NIC #NRC10F49R9 SEE SHURE AVL FOR ALTERNATE VENDORS R120 R220 R320 R420 R520 R620 R720 R820 12145CF1R00216EAL RESISTOR,SMD1206,1.0,1/4W,1% NIC #NRC12F1R00 SEE SHURE AVL FOR ALTERNATE VENDORS R101 R126 R201 R226 R301 R326 R401 R426 R501 R526 R601 R626 R701 R726 R801 R826 13145CF49R928EAL RESISTOR,SMD1206,49.9,1/4W,1% Dale #CRCW120649R9F SEE SHURE AVL FOR ALTERNATE VENDORS R118 R218 R318 R418 R518 R618 R718 R818 14145CF124028EAL RESISTOR,SMD1206,124,1/4W,1% Dale #CRCW12061240F SEE SHURE AVL FOR ALTERNATE VENDORS R121 R221 R321 R421 R521 R621 R721 R821 15145FF10R0516EAL RESISTOR,SMD 603,10,1/10W,1% Dale #CRCW060310R0F SEE SHURE AVL FOR ALTERNATE VENDORS R111 R128 R211 R228 R311 R328 R411 R428 R511 R528 R611 R628 R711 R728 R811 R828 16145FF1001518EAL RESISTOR,SMD 603,1K,1/10W,1% Dale #CRCW06031001F SEE SHURE AVL FOR ALTERNATE VENDORS R182 R185 R282 R285 R382 R385 R482 R485 R582 R585 R682 R685 R782 R785 R882 R885 R955 R957 17145FF100251EAL RESISTOR,SMD 603,10K,1/10W,1% Dale #CRCW06031002F SEE SHURE AVL FOR ALTERNATE VENDORS R971 18145FF110258EAL RESISTOR,SMD 603,11.0K,1/10W,1% Dale #CRCW06031102F SEE SHURE AVL FOR ALTERNATE VENDORS R935 R936 R937 R938 R943 R944 R945 R946 19145FF121058EAL RESISTOR,SMD 603,121,1/10W,1% Dale #CRCW06031210F SEE SHURE AVL FOR ALTERNATE VENDORS R122 R222 R322 R422 R522 R622 R722 R822 110145FF1211516EAL RESISTOR,SMD 603,1.21K,1/10W,1% Dale #CRCW06031211F SEE SHURE AVL FOR ALTERNATE VENDORS R109 R209 R309 R409 R509 R609 R709 R809 R959 R960 R961 R962 R963 R964 R965 R966 111145FF150159EAL RESISTOR,SMD 603,1.5K,1/10W,1% Dale #CRCW06031501F SEE SHURE AVL FOR ALTERNATE VENDORS R930 R931 R932 R933 R934 R947 R948 R949 R950 112145FF162251EAL RESISTOR,SMD 603,16.2K,1/10W,1% NIC #NRC06F1622 SEE SHURE AVL FOR ALTERNATE VENDORS R970 113145FF1650516EAL RESISTOR,SMD 603,165,1/10W,1% NIC #NRC06F1650 SEE SHURE AVL FOR ALTERNATE VENDORS R180 R183 R280 R283 R380 R383 R480 R483 R580 R583 R680 R683 R780 R783 R880 R883 114145FF2000516EAL RESISTOR,SMD 603,200,1/10W,1% NIC #NRC06F2000 SEE SHURE AVL FOR ALTERNATE VENDORS R193 R196 R293 R296 R393 R396 R493 R496 R593 R596 R693 R696 R793 R796 R893 R896 115145FF301058EAL RESISTOR,SMD 603,301,1/10W,1% NIC #NRC06F3010 SEE SHURE AVL FOR ALTERNATE VENDORS R939 R940 R941 R942 R951 R952 R953 R954 116145FF49R9524EAL RESISTOR,SMD 603,49.9,1/10W,1% NIC #NRC06F49R9 SEE SHURE AVL FOR ALTERNATE VENDORS R110 R124 R127 R210 R224 R227 R310 R324 R327 R410 R424 R427 R510 R524 R527 R610 R624 R627 R710 R724 R727 R810 R824 R827 117145FF576152EAL RESISTOR,SMD 603,5.76K,1/10W,1% NIC #NRC06F5761 SEE SHURE AVL FOR ALTERNATE VENDORS R956 R958 118145FF7150516EAL RESISTOR,SMD 603,715,1/10W,1% NIC #NRC06F7150 SEE SHURE AVL FOR ALTERNATE VENDORS R181 R184 R281 R284 R381 R384 R481 R484 R581 R584 R681 R684 R781 R784 R881 R884 119145KF105014EAL RESISTOR,SMD2512S,105,2W,1% IMS #RCI-2512S-1050F SEE SHURE AVL FOR ALTERNATE VENDORS R908 R911 R914 R917 120145KF150011EAL RESISTOR,SMD2512S,150,2W,1% IMS #RCI-2512S-1500F SEE SHURE AVL FOR ALTERNATE VENDORS R925 121145KF196011EAL RESISTOR,SMD2512S,196,2W,1% IMS #RCI-2512S-1960F SEE SHURE AVL FOR ALTERNATE VENDORS R928 122145KF200012EAL RESISTOR,SMD2512S,200,2W,1% IMS #RCI-2512S-2000F SEE SHURE AVL FOR ALTERNATE VENDORS R919 R922 123145KF215014EAL RESISTOR,SMD2512S,215,2W,1% IMS #RCI-2512S-2150F SEE SHURE AVL FOR ALTERNATE VENDORS R907 R910 R913 R916 124145KF324011EAL RESISTOR,SMD2512S,324,2W,1% IMS #RCI-2512S-3240F SEE SHURE AVL FOR ALTERNATE VENDORS R924 125145KF549012EAL RESIST…

Text truncated - open the document above for the full version.

Description: PA821 Antenna Combiner DRWG. PA821-7 Refer To Drawing NO. 190-018 Page 4 of 11 IV Alignment Procedure. The Antenna Combiner will be aligned in a production test fixture. 16 voltage tuning adjustments will be required and coordinated via the ATE software. No RF tuning or alignment is required.

1250 Peterson Dr., Wheeling, IL 60090 Page - 1 - Company: Shure Inc. Model Tested: PA821 Report Number: 10185 FCC Rules and Regulations / Intentional Radiators Low Power Auxiliary Stations Part 74, Subpart H, Sections 74.801 - 74.882 THE FOLLOWING ''MEETS'' THE ABOVE TEST SPECIFICATION Formal Name: PSM Antenna Combiner Kind of Equipment: Antenna Combiner Test Configuration: BNC to BNC (Tested at 120 vac, 60 Hz) Model Number(s): PA821 Model(s) Tested: PA821 Serial Number(s): DM007 Date of Tests: May 6, 8 & 14, 2003 Test Conducted For: Shure Inc. 222 Hartrey Avenue Evanston, Illinois 60202 NOTICE: “This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government”. Please see the "Additional Description of Equipment Under Test" page listed inside of this report. This report must not be reproduced (except in full), without the approval of D.L.S. Electronic Systems. 1250 Peterson Dr., Wheeling, IL 60090 Page - 2 - Company: Shure Inc. Model Tested: PA821 Report Number: 10185 SIGNATURE PAGE Report By: Arnom C. Rowe Test Engineer EMC-001375-NE Reviewed By: William Stumpf OATS Manager Approved By: Brian Mattson General Manager Company Official: Shure Inc. 1250 Peterson Dr., Wheeling, IL 60090 Page -3- Company: Shure Inc. Model Tested: PA821 Report Number: 10185 1250 Peterson Dr., Wheeling, IL 60090 Page -4- Company: Shure Inc. Model Tested: PA821 Report Number: 10185 1250 Peterson Dr., Wheeling, IL 60090 Page -5- Company: Shure Inc. Model Tested: PA821 Report Number: 10185 1250 Peterson Dr., Wheeling, IL 60090 Page -6- Company: Shure Inc. Model Tested: PA821 Report Number: 10185 1250 Peterson Dr., Wheeling, IL 60090 Page -7- Company: Shure Inc. Model Tested: PA821 Report Number: 10185 TABLE OF CONTENTS i. Cover Page ...................................................................................................................................... 1 ii. Signature Page ................................................................................................................................ 2 iii. NVLAP Certificate of Accreditation .............................................................................................. 3 iv. NVLAP Scope of Accreditation ..................................................................................................... 4 v. Table of Contents ............................................................................................................................ 7 1.0 Summary of Test Report ................................................................................................................. 9 2.0 Introduction..................................................................................................................................... 9 3.0 Object .............................................................................................................................................. 9 4.0 Test Set-Up ................................................................................................................................... 10 5.0 Test Equipment ............................................................................................................................. 11 6.0 Conducted Emission Measurements ............................................................................................. 12 7.0 Radiated Emission Measurements ................................................................................................ 13 8.0 Description of Test Sample........................................................................................................... 14 8.0 Additional Description of Test Sample......................................................................................... 15 8.0 Description of Test Sample........................................................................................................... 16 9.0 Additional Description of Test Sample......................................................................................... 17 10.0 Photo Information and Test Set-Up .............................................................................................. 18 11.0 Radiated Photos Taken During Testing ........................................................................................ 19 12.0 Results of Tests ............................................................................................................................. 21 13.0 Conclusion .................................................................................................................................... 21 TABLE 1 – EQUIPMENT LIST .............................................................................................................. 22 1250 Peterson Dr., Wheeling, IL 60090 Page -8- Company: Shure Inc. Model Tested: PA821 Report Number: 10185 TABLE OF CONTENTS Appendix A – Electric Field Radiated Emissions Test............................................................................. 23 1.0 Test Set-Up ................................................................................................................................... 24 2.0 RF Power Output .......................................................................................................................... 24 2.0 RF Power Output Photos Taken During Testing .......................................................................... 25 2.0 Graph(s) taken of the RF Power Output (Signal In vs Signal Out) .............................................. 26 3.0 Modulation Characteristics ........................................................................................................... 33 3.0 Graph(s) taken of the Modulation Characteristics ........................................................................ 34 4.0 Occupied Bandwidth..................................................................................................................... 35 4.0 Occ…
