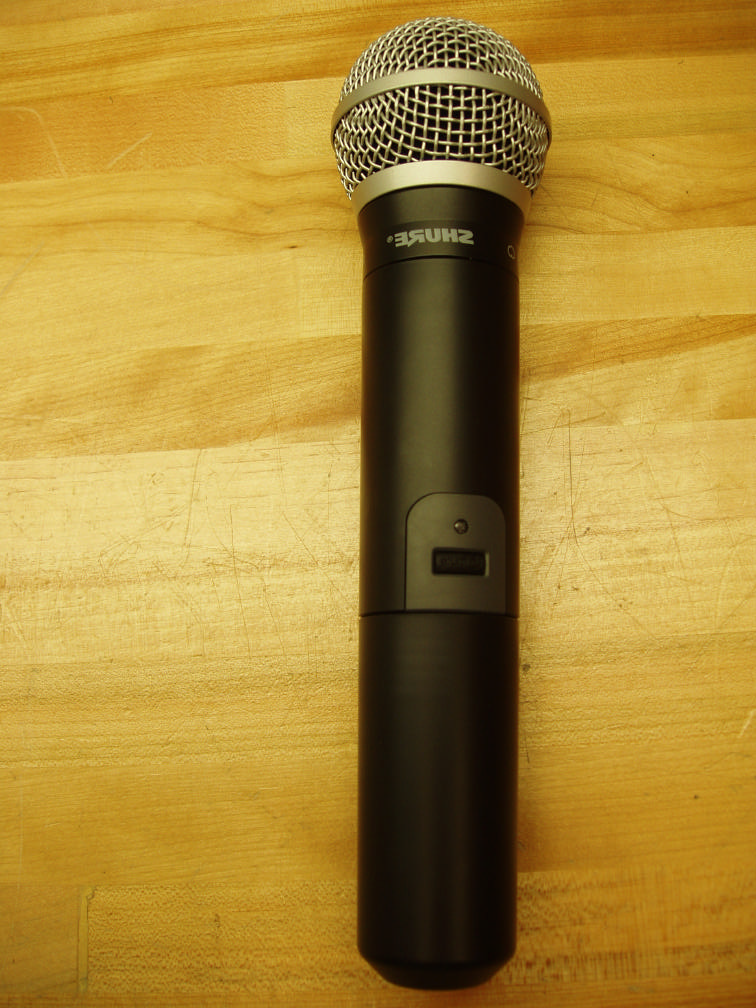

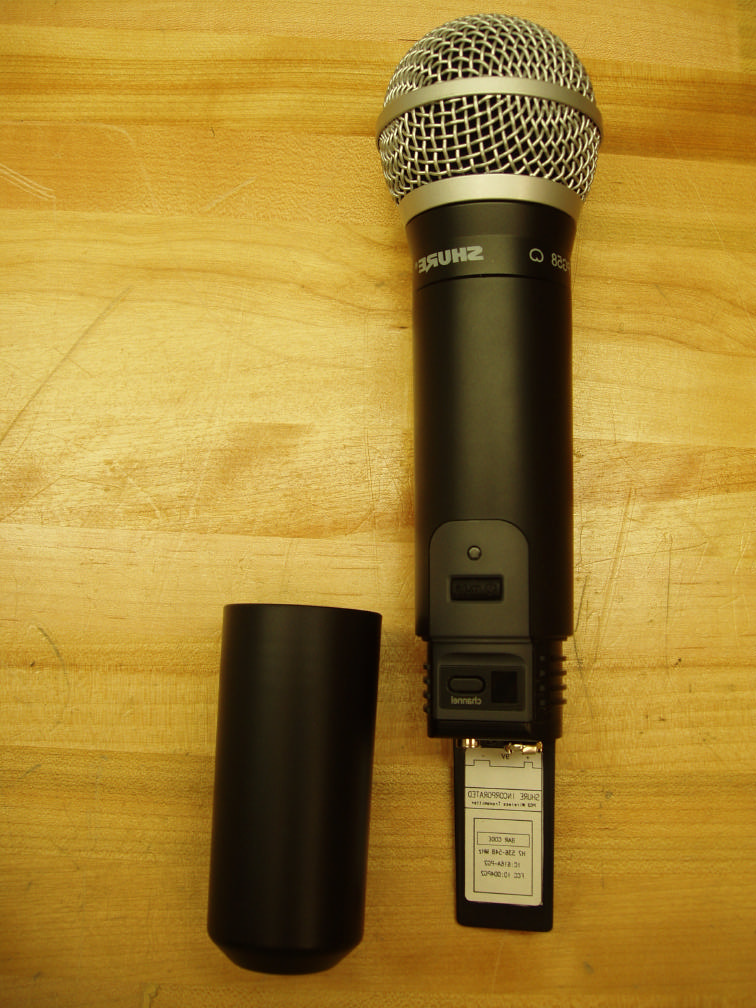

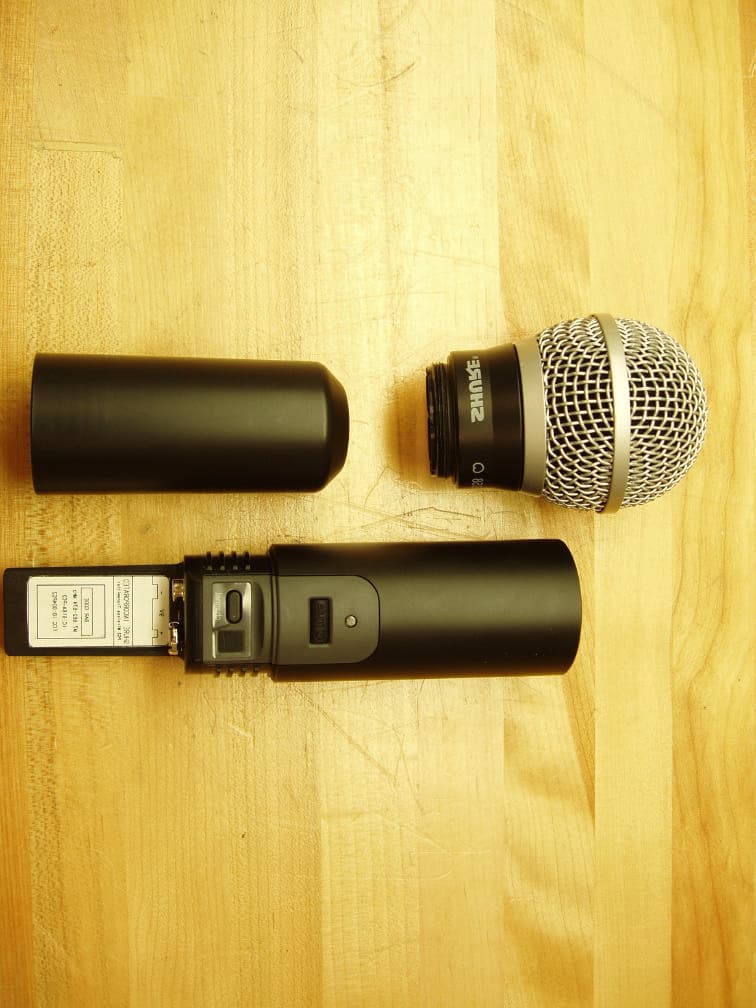

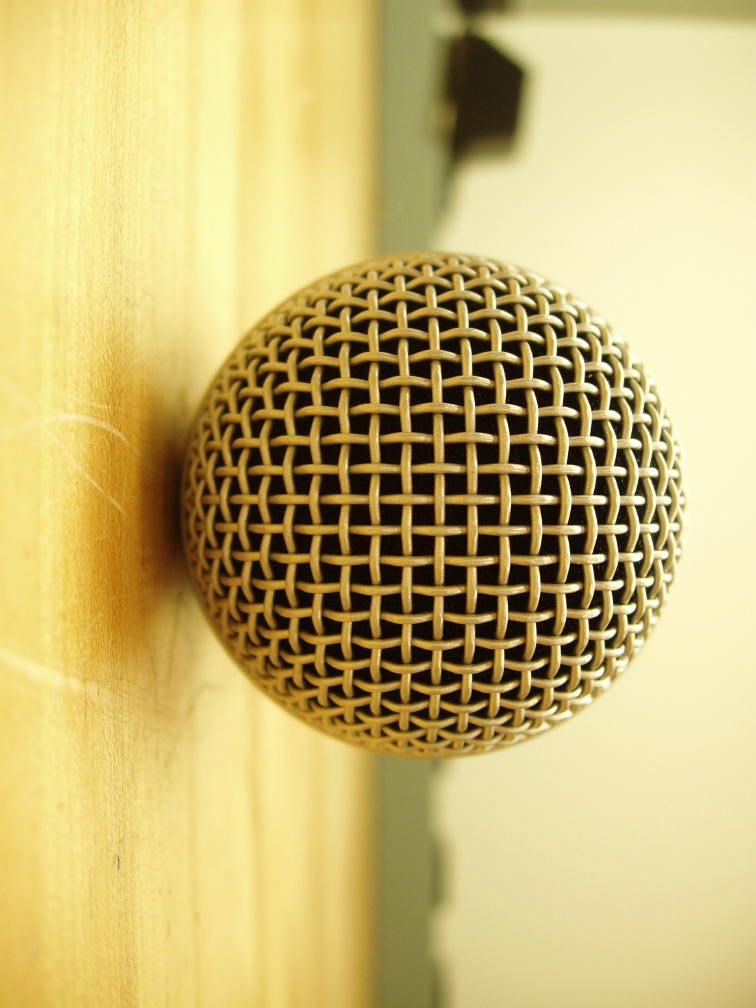

DD4PG2Non-Broadcast Transmitter Held to Face

Performance Gear Series Wireless 2 Patent numbers 6,597,301 and 6,296,565 Shure Performance Gear Wireless Designed especially for performers who manage their own sound, Shure Performance Gear profes- sional audio products deliver legendary Shure sound quality, stage-proven durability and hassle- free setup for worry-free performance. Performance Gear Wireless systems are available in a variety of configurations - for handheld, guitar, headset and presentation applications. Manual frequency selection and transmitter setup provide specific choice and precise control to locate the clearest channel, every time. System Components All systems include Internal Antenna Diversity PG4 receiver One 9 volt battery Power supply User guide Vocalist systems include Microphone Head PG2 handheld transmitter Microphone clip Lavalier, Headworn, and Instrument systems include PG1 body pack transmitter Microphone (choice of PG185, PG30) Guitar systems include PG1 bodypack transmitter 4-pin mini connector (TA4F) to 1/4” connector cable English 3 PG4 Receiver Features Figure 1. Front Panel  audio LED Indicates strength of incoming audio signal: green for normal, amber for strong, red for peak.  Channel Display See “System Setup” on page 6.  ready LED Green LED indicates system is ready for use.  channel button Press and hold to change the frequency channel. Figure 2. Back Panel  AC adapter jack XLR balanced microphone output jack  Adapter cord relief 1/4” unbalanced output jack         English 4 PG2 Handheld Transmitter  Power/Mute Button  Power/Mute LED (See LED status below)  Channel Display (Display turns off after 10 seconds to conserve battery)  Channel Button  Battery Cover — Twist counter-clockwise to remove.  Battery Compartment LED StatusSignifies GreenReady AmberMute is on RedBattery is low Flashing Red on startup Battery dead (must be replaced for transmitter to operate). Flashing Green and Red Controls are locked Flashing Amber and Red Mute is on and battery is low Changing Battery • Expected life for a 9 volt alkaline battery is approximately 8 hours. • When the Power/Mute LED glows red, the battery should be replaced immediately. Adjusting Gain • Access the Gain Adjustment Switch by unscrewing the microphone head. Use the tip of a pen or a small screwdriver to move the switch. (See fig. 4) • The switch can be positioned in two gain settings on the PG2: Gain SettingSuggested Uses 0dBFor quiet to normal vocal performance. –10dBUse only if audio is distorted due to high vocal levels.   Figure 3. Figure 4.     English 5 PG1 Bodypack Transmitter  4-Pin Microphone Input Jack  Power/Mute Button. Press and hold to turn on/off. Press and release to mute/unmute.  Power/Mute LED (see LED Status below)  Antenna  Channel Display  Channel Button  Gain Switch  9V Battery compartment  Battery Cover. Pinch sides to fold open. LED StatusSignifies... GreenReady AmberMute is on RedBattery is low Flashing red on startup Battery dead (must be replaced for transmitter to operate). Flashing Green and Red Flashing Green and Red Flashing Amber and Red Mute is on and battery is low Wearing the Bodypack Transmitter • Clip the transmitter to belt or guitar strap as shown. If using a belt, slide the transmitter until the belt is pressed against the base of the clip. Changing Battery • Expected life for a 9 volt alkaline battery is approximately 8 hours. • When the Power/Mute LED glows red, the battery should be replaced immediately. Adjusting Gain • Three gain settings are available on the PG1: Gain Settings Suggested Use micMicrophone 0 Guitar -10Use only if audio is distorted due to high input level  Figure 6.      Figure 5.   Figure 7. Battery Cover, pinch sides to fold open English 6 Figure 8. Figure 9. System Setup English In any wireless setup, each transmitter and receiver pair must be tuned to the same frequency, or channel. Follow these steps to set the transmitter and receiver to the same channel: 1. Plug in the receiver to turn power on. Turn transmitter power off. 2. Press and hold the channel button on the receiver for about one second to enter select mode. Release the button as soon as the display begins flashing. 3. Press the channel button while the number is flashing to change to the next channel *. 4. To activate a newly selected channel, simply wait until the number stops flashing. 5. Turn on the corresponding transmitter. 6. Press and hold the channel button on the transmitter to enter select mode. Release the button as soon as the display begins flashing. 7. Press the channel button while the number is flashing to change to the next channel. Scroll through the channels until the transmitter setting matches the channel on the receiver. 8. The transmitter channel is set when the number stops flashing. The green “ready” LED on the receiver will indicate the system is ready for use. Single Receiver Setup *Note: Some of the frequencies available on the PG4 receiver may be occupied by sources of interference such as broadcast television or other wireless devices. Use the Busy Indica- tor on the receiver channel display to avoid selecting an occupied channel while in select mode. Busy Indicator When selecting channels, if the display flashes between a number and a blank screen, the channel is clear. If the display flashes between a number and a dash as shown in Figure 9, the channel is busy. This means that the channel is occupied by another device or source of interference. In this case, it is recommended to select another channel. 7 To set up multiple systems, repeat the previous steps for each transmitter and receiver pair. Once transmitters have been set, leave them on. Be sure to set each transmitter and receiver pair to a different frequency. For information about frequencies and compatibility, refer to the guide below. Multiple System Setup In each group, channels 1,3,5,7 and 9 are a compatible set and channels 2,4,6,8 and 0 are a compatible set. When operatin…

Text truncated - open the document above for the full version.

Microphones and Audio Electronics SHURE Incorporated 5800 Touhy Avenue Niles, IL 60714 – 4608 • USA Phone: (847) 600-2000 Phone: 847-600-2000 FAX: 847-600-1212 Web Address: www.shure.com December 27, 2005 Elite Electronic Engineering, Inc. 1516 Centre Circle Downers Grove, Illinois 60515-1082 SUBJECT: REQUEST FOR NON-DISCLOSURE FOR FCC ID: DD4PG2 To Whom It May Concern: Pursuant to 47 CFR Section 0.459, Shure Incorporated hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application for FCC ID # DD4PG2: a. Schematic Diagrams b. Operational Description c. Block Diagram d. Parts List e. Tune Up Procedure Above materials contain trade secrets, proprietary and technical information which would customarily be guarded from competitors under 47 CFR section 0.457(d)(2). Disclosure or publication of any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. Shure Incorporated understands that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. Sincerely yours, Dillard J. Gilmore Senior Engineer, Global Compliance Shure Incorporated

Microphones and Audio Electronics SHURE Incorporated 5800 Touhy Avenue Niles, IL 60714 – 4608 • USA Phone: (847) 600-2000 Phone: 847-600-2000 FAX: 847-600-1212 Web Address: www.shure.com RF SAFETY STATEMENT Date: 12/27/2005 To: Elite Electronics, Inc. 1516 Centre Circle Downers Grove, IL 60515-1082 From: Dillard Gilmore Phone: 847-600-8550 Senior Engineer, Global Compliance Fax: 847-660-8555 Applicant: Shure Incorporated E-Mail: [email protected] ______________________________________________________________________ Dear Ladies and/or Gentlemen: The Shure Model PG2 Wireless Handheld Transmitter is intended to be worn on the body. The Effective Radiated Power of this device is under 30 mW. Dated this 27th day of December, 2005. By: Dillard J. Gilmore Title: Senior Engineer, Global Compliance Phone: 847-600-8550 FAX: 847-600-8555

Page 1 of 48 Engineering Test Report No. 35907-02 Transmitter Tests for Three (3) Wireless Handheld Microphones For : Shure Inc. Niles, IL P.O. No. : 4500092965 Dates Tested : November 21 through December 31, 2005. Test Personnel : Richard E. King, EMC Engineer Specification : FCC "Code of Federal Regulations” Title 47 Part 74 and Industry Canada RSS-123 Test Report By : Richard E. King EMC Engineer Witnessed By : Juan Casttrejon Shure Inc. Approved By : Raymond J. Klouda Registered Professional Engineer of Illinois - 44894 Elite Electronic Engineering Inc. 1516 Centre Circle Downers Grove, IL 60515 Tel : (630) 495-9770 Fax: (630) 495-9785 www.elitetest.com Engineering Test Report No. 35907-02 THIS REPORT SHALL NOT BE REPRODUCED, EXCEPT IN FULL, WITHOUT THE WRITTEN APPROVAL OF ELITE ELECTRONIC ENGINEERING INCORPORATED. Page 2 of 48 TABLE OF CONTENTS PARAGRAPH DESCRIPTION OF CONTENTS PAGE NO. 1.0 INTRODUCTION....................................................................................................................................5 1.1 DESCRIPTION OF TEST ITEM.........................................................................................................5 1.2 PURPOSE..........................................................................................................................................5 1.3 DEVIATIONS, ADDITIONS AND EXCLUSIONS.............................................................................5 1.4 APPLICABLE DOCUMENTS............................................................................................................5 1.5 SUBCONTRACTOR IDENTIFICATION...........................................................................................6 1.6 LABORATORY CONDITIONS.........................................................................................................6 2.0 TEST ITEM SETUP AND OPERATION................................................................................................6 2.1 POWER INPUT..................................................................................................................................6 2.2 GROUNDING.....................................................................................................................................6 2.3 PERIPHERAL EQUIPMENT.............................................................................................................6 3.0 TEST EQUIPMENT................................................................................................................................6 3.1 TEST EQUIPMENT LIST...................................................................................................................6 3.2 CALIBRATION TRACEABILITY.....................................................................................................6 4.0 REQUIREMENTS, PROCEDURES AND RESULTS..............................................................................6 4.1 RF POWER OUTPUT MEASUREMENTS.........................................................................................6 4.1.1 REQUIREMENTS........................................................................................................................6 4.1.2 PROCEDURES............................................................................................................................6 4.1.3 RESULTS....................................................................................................................................7 4.2 MODULATION CHARACTERITICS.................................................................................................7 4.2.1 REQUIREMENTS........................................................................................................................7 4.2.2 PROCEDURES............................................................................................................................7 4.2.3 RESULTS....................................................................................................................................8 4.3 FREQUENCY STABILITY................................................................................................................8 4.3.1 REQUIREMENTS........................................................................................................................8 4.3.2 PROCEDURES............................................................................................................................8 4.3.3 RESULTS....................................................................................................................................8 4.4 OCCUPIED BANDWIDTH MEASUREMENTS.................................................................................8 4.4.1 REQUIREMENTS........................................................................................................................8 4.4.2 PROCEDURES............................................................................................................................9 4.4.3 RESULTS....................................................................................................................................9 4.5 SPURIOUS EMISSIONS AT ANTENNA TERMINAL.......................................................................9 4.5.1 REQUIREMENTS........................................................................................................................9 4.6 FIELD STRENGTH OF SPURIOUS EMISSIONS...............................................................................9 4.6.1 PRELIMINARY RADIATED MEASUREMENTS.....................................................................10 4.6.1.1 REQUIREMENTS...............................................................................................................10 Engineering Test Report No. 35907-02 THIS REPORT SHALL NOT BE REPRODUCED, EXCEPT IN FULL, WITHOUT THE WRITTEN APPROVAL OF ELITE ELECTRONIC ENGINEERING INCORPORATED. Page 3 of 48 TABLE OF CONTENTS PARAGRAPH …

Text truncated - open the document above for the full version.

Engineering Test Report No. 35907-02 Page 25 of 48 Engineering Test Report No. 35907-02 Page 26 of 48 Engineering Test Report No. 35907-02 Page 27 of 48 Engineering Test Report No. 35907-02 Page 28 of 48 Engineering Test Report No. 35907-02 Page 29 of 48 Engineering Test Report No. 35907-02 Page 30 of 48 Engineering Test Report No. 35907-02 Page 31 of 48 Engineering Test Report No. 35907-02 Page 32 of 48 Engineering Test Report No. 35907-02 Page 33 of 48 Engineering Test Report No. 35907-02 Page 34 of 48 Engineering Test Report No. 35907-02 Page 35 of 48 Engineering Test Report No. 35907-02 Page 36 of 48 Engineering Test Report No. 35907-02 Page 37 of 48 Engineering Test Report No. 35907-02 Page 38 of 48 Engineering Test Report No. 35907-02 Page 39 of 48 Engineering Test Report No. 35907-02 Page 40 of 48 Engineering Test Report No. 35907-02 Page 41 of 48 Engineering Test Report No. 35907-02 Page 42 of 48 Engineering Test Report No. 35907-02 Page 43 of 48 MANUFACTURER : Shure Inc. MODEL NO. : PG2-H7 10mW SERIAL NO. : None assigned SPECIFICATION : FCC-74 Spurious Radiated Emissions DATE : November 22, 2005 NOTES : Test Distance is 3 Meters Freq. (MHz) Ant Pol Meter Reading (dBuV) Ambient Matched Sig Gen (dBm) Antenna Gain (dB) Cable Factor (dB) ERP Total (dBm) Part 74 Atten. (dB) Part 74 Min. Atten. (dB) 1072.0 H 12.4 -65.0 2.6 3.0 -65.4 75.4 23 1072.0 V 14.7 -65.3 2.6 3.0 -65.7 75.7 23 1608.0 H 13.4 -69.0 5.0 3.8 -67.8 77.8 23 1608.0 V 15.1 -62.8 5.0 3.8 -61.6 71.6 23 2144.0 H 47.4 -61.6 5.3 4.3 -60.6 70.6 23 2144.0 V 49.5 -61.6 5.3 4.3 -60.6 70.6 23 2680.0 H 48.3 -54.4 5.3 5.0 -54.1 64.1 23 2680.0 V 49.6 -54.4 5.3 5.0 -54.1 64.1 23 3216.0 H 42.7 -55.3 5.9 5.5 -55.0 65.0 23 3216.0 V 42.8 -55.3 5.9 5.5 -55.0 65.0 23 3752.0 H 42.1 -55.8 6.8 5.9 -54.9 64.9 23 3752.0 V 42.1 -55.8 6.8 5.9 -54.9 64.9 23 4288.0 H 38.4 * -65.4 7.8 6.4 -64.0 74.0 23 4288.0 V 38.5 * -65.4 7.8 6.4 -64.0 74.0 23 4824.0 H 39.0 * -62.0 8.0 6.8 -60.8 70.8 23 4824.0 V 38.5 * -62.0 8.0 6.8 -60.8 70.8 23 5360.0 H 39.6 -57.2 7.5 7.2 -56.9 66.9 23 5360.0 V 39.4 -57.2 7.5 7.2 -56.9 66.9 23 Checked BY : ________________________________ Richard E. King Engineering Test Report No. 35907-02 Page 44 of 48 MANUFACTURER : Shure Inc. MODEL NO. : PG2-H7 10mW SERIAL NO. : None assigned SPECIFICATION : RSS-123 Spurious Radiated Emissions DATE : November 22, 2005 NOTES : Test Distance is 3 Meters Freq. (MHz) Ant Pol Meter Reading (dBuV) Ambient Matched Sig Gen (dBm) Antenna Gain (dB) Cable Factor (dB) ERP Total (dBm) RSS- 123 Atten. (dB) RSS-123 Min. Atten. (dB) 1072.0 H 12.4 -65.0 2.6 3.0 -65.4 75.4 35 1072.0 V 14.7 -65.3 2.6 3.0 -65.7 75.7 35 1608.0 H 13.4 -69.0 5.0 3.8 -67.8 77.8 35 1608.0 V 15.1 -62.8 5.0 3.8 -61.6 71.6 35 2144.0 H 47.4 -61.6 5.3 4.3 -60.6 70.6 35 2144.0 V 49.5 -61.6 5.3 4.3 -60.6 70.6 35 2680.0 H 48.3 -54.4 5.3 5.0 -54.1 64.1 35 2680.0 V 49.6 -54.4 5.3 5.0 -54.1 64.1 35 3216.0 H 42.7 -55.3 5.9 5.5 -55.0 65.0 35 3216.0 V 42.8 -55.3 5.9 5.5 -55.0 65.0 35 3752.0 H 42.1 -55.8 6.8 5.9 -54.9 64.9 35 3752.0 V 42.1 -55.8 6.8 5.9 -54.9 64.9 35 4288.0 H 38.4 * -65.4 7.8 6.4 -64.0 74.0 35 4288.0 V 38.5 * -65.4 7.8 6.4 -64.0 74.0 35 4824.0 H 39.0 * -62.0 8.0 6.8 -60.8 70.8 35 4824.0 V 38.5 * -62.0 8.0 6.8 -60.8 70.8 35 5360.0 H 39.6 -57.2 7.5 7.2 -56.9 66.9 35 5360.0 V 39.4 -57.2 7.5 7.2 -56.9 66.9 35 Checked BY : ________________________________ Richard E. King Engineering Test Report No. 35907-02 Page 45 of 48 MANUFACTURER : Shure Inc. MODEL NO. : PG2-M7 10mW SERIAL NO. : None assigned SPECIFICATION : FCC-74 Spurious Radiated Emissions DATE : November 22, 2005 NOTES : Test Distance is 3 Meters Freq. (MHz) Ant Pol Meter Reading (dBuV) Ambient Matched Sig Gen (dBm) Antenna Gain (dB) Cable Factor (dB) ERP Total (dBm) Part 74 Atten. (dB) Part 74 Min. Atten. (dB) 1342.4 H 15.7 -61.7 4.1 2.1 -59.7 69.7 23 1342.4 V 19.4 -58.8 4.1 2.1 -56.8 66.8 23 2013.6 H 52.3 -54.0 5.3 2.5 -51.2 61.2 23 2013.6 V 52.5 -53.1 5.3 2.5 -50.3 60.3 23 2684.8 H 52.6 -51.2 5.3 3.0 -48.9 58.9 23 2684.8 V 50.8 -51.2 5.3 3.0 -48.9 58.9 23 3356.0 H 44.8 -57.3 6.2 3.4 -54.5 64.5 23 3356.0 V 47.9 -57.3 6.2 3.4 -54.5 64.5 23 4027.2 H 43.5 -56.6 7.1 3.7 -53.1 63.1 23 4027.2 V 44.3 -56.6 7.1 3.7 -53.1 63.1 23 4698.4 H 42.7 -54.4 8.1 4.0 -50.3 60.3 23 4698.4 V 41.6 -54.4 8.1 4.0 -50.3 60.3 23 5369.6 H 39.8 -56.0 7.5 4.3 -52.8 62.8 23 5369.6 V 40.1 -56.0 7.5 4.3 -52.8 62.8 23 6040.8 H 40.1 * -59.6 7.7 4.6 -56.6 66.6 23 6040.8 V 41.3 * -59.6 7.7 4.6 -56.6 66.6 23 6712.0 H 42.5 * -53.1 8.0 5.2 -50.3 60.3 23 6712.0 V 41.1 * -53.1 8.0 5.2 -50.3 60.3 23 Checked BY : ________________________________ Richard E. King Engineering Test Report No. 35907-02 Page 46 of 48 MANUFACTURER : Shure Inc. MODEL NO. : PG2-M7 10mW SERIAL NO. : None assigned SPECIFICATION : RSS-123 Spurious Radiated Emissions DATE : November 22, 2005 NOTES : Test Distance is 3 Meters Freq. (MHz) Ant Pol Meter Reading (dBuV) Ambient Matched Sig Gen (dBm) Antenna Gain (dB) Cable Factor (dB) ERP Total (dBm) RSS- 123 Atten. (dB) RSS-123 Min. Atten. (dB) 1342.4 H 15.7 -61.7 4.1 2.1 -59.7 69.7 35 1342.4 V 19.4 -58.8 4.1 2.1 -56.8 66.8 35 2013.6 H 52.3 -54.0 5.3 2.5 -51.2 61.2 35 2013.6 V 52.5 -53.1 5.3 2.5 -50.3 60.3 35 2684.8 H 52.6 -51.2 5.3 3.0 -48.9 58.9 35 2684.8 V 50.8 -51.2 5.3 3.0 -48.9 58.9 35 3356.0 H 44.8 -57.3 6.2 3.4 -54.5 64.5 35 3356.0 V 47.9 -57.3 6.2 3.4 -54.5 64.5 35 4027.2 H 43.5 -56.6 7.1 3.7 -53.1 63.1 35 4027.2 V 44.3 -56.6 7.1 3.7 -53.1 63.1 35 4698.4 H 42.7 -54.4 8.1 4.0 -50.3 60.3 35 4698.4 V 41.6 -54.4 8.1 4.0 -50.3 60.3 35 5369.6 H 39.8 -56.0 7.5 4.3 -52.8 62.8 35 5369.6 V 40.1 -56.0 7.5 4.3 -52.8 62.8 35 6040.8 H 40.1 * -59.6 7.7 4.6 -56.6 66.6 35 6040.8 V 41.3 * -59.6 7.7 4.6 -56.6 66.6 35 6712.0 H 42.5 * -53.1 8.0 5.2 -50.3 60.3 35 6712.0 V 41.1 * -53.1 8.0 5.2 -50.3 60.3 35 Checked BY : ________________________________ Richard E. King Engineering Test Report No. 35907-02 Page 47 of 48 MANUFACTURER : Shure Inc. MODEL NO. : PG2-R12 10mW SERIAL NO. : None assigned SPECIFICATION : FCC-7…

Text truncated - open the document above for the full version.
