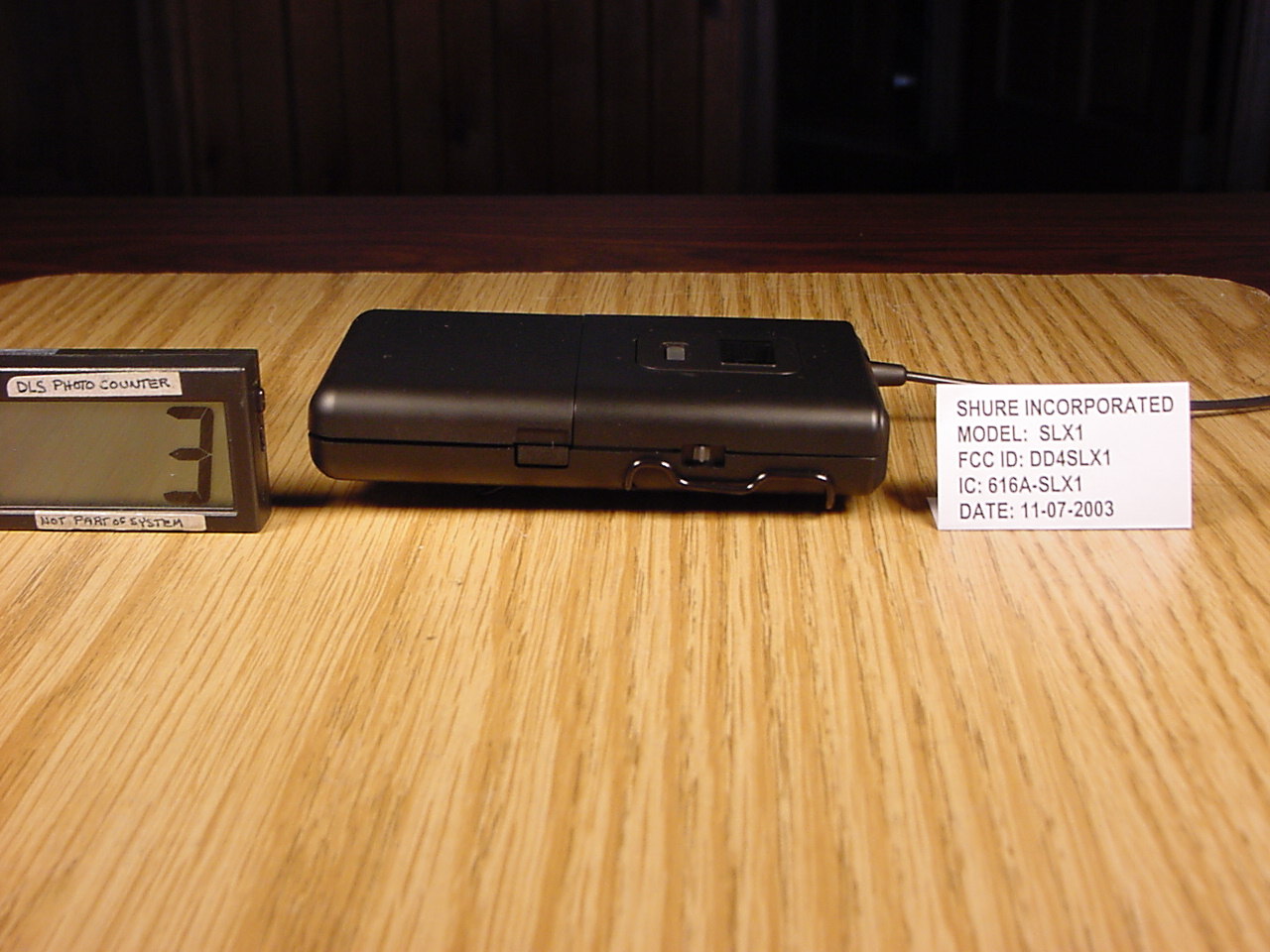

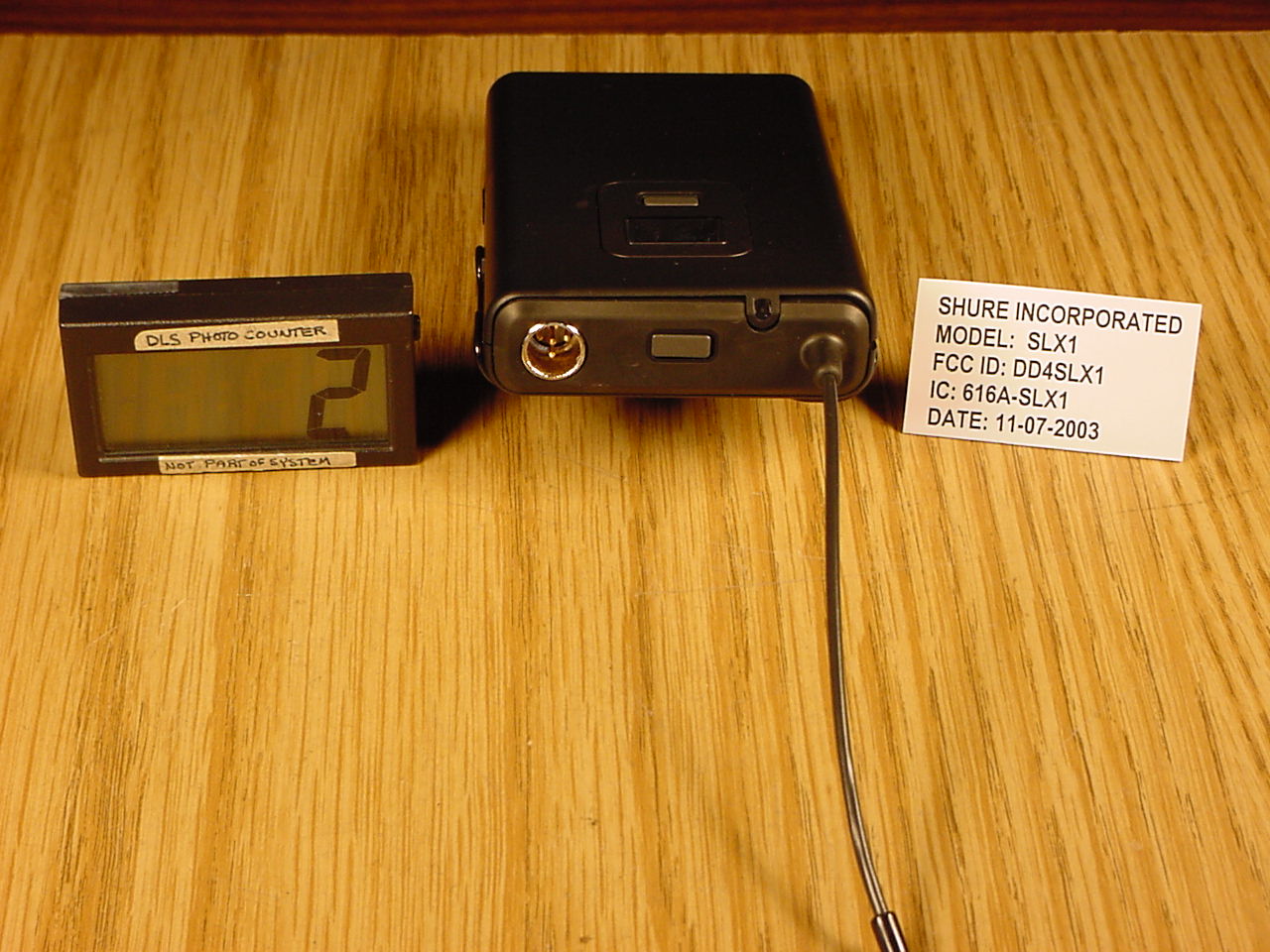

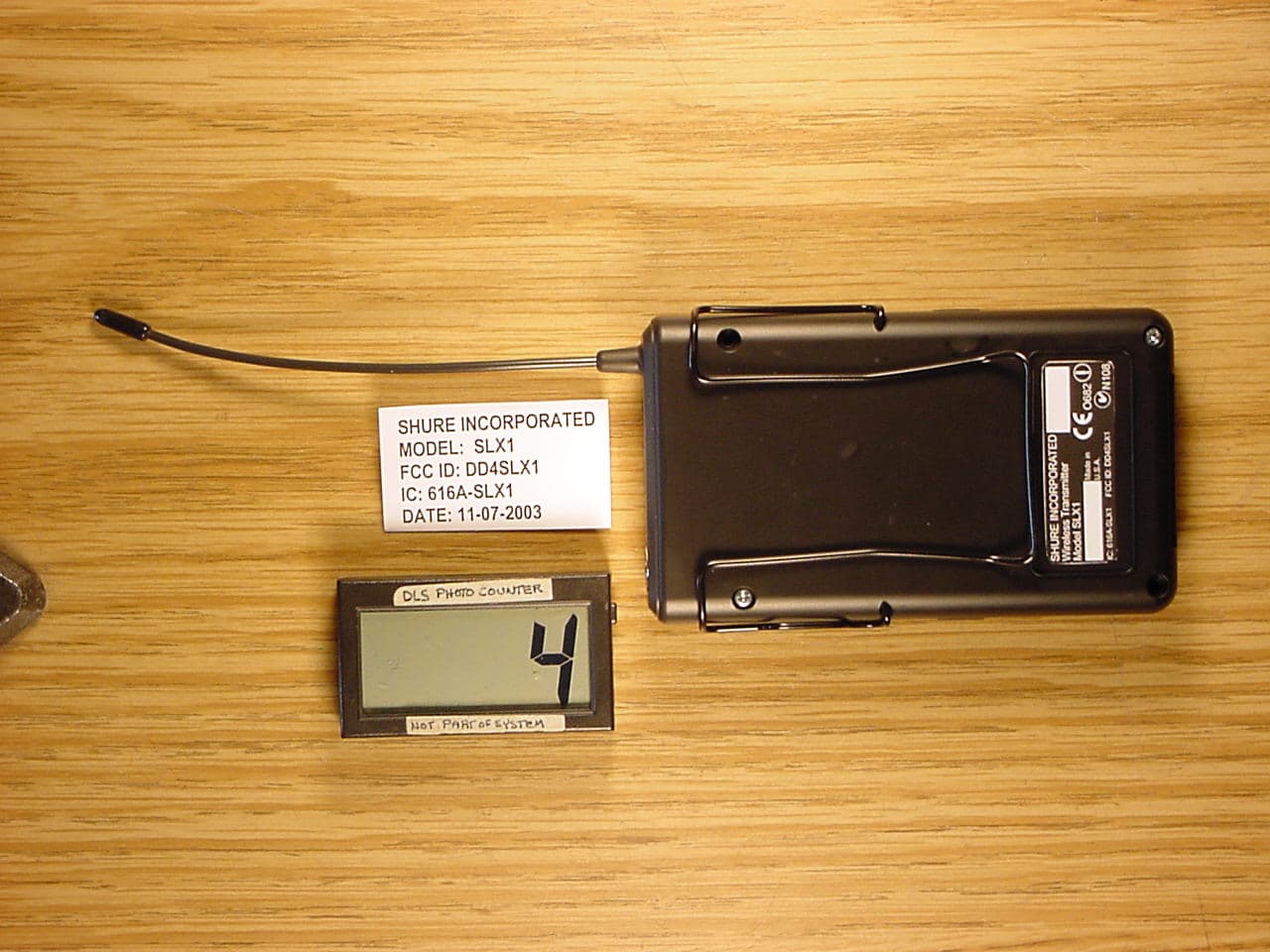

DD4SLX1Wireless SLX1 Bodypack Transmitter

1 Shure SLX Wireless Systems English . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Français . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Deutsch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Español. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Italiano . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Portuguese . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Japanese . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Chinese. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Russian. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Korean . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Arabic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Shure SLX Wireless Shure SLX Wireless Smart, Hard-working Wireless Congratulations! Welcome to Shure SLX Wireless. Your new system is rugged, reliable, easy to set up and operate, and produces outstanding audio clarity. Whether you’re a vocalist, guitarist, or instru- mentalist, your SLX Wireless system will show you how easy wireless can be, and how good wireless can sound. This user guide and the Quick Setup guide included with your system will tell you all you need to know to get your system working right away. Welcome to the world of SLX: smart, hard-working wireless. Frequency Band Selection Most countries closely regulate the radio frequencies used in the transmission of wireless informa- tion. These regulations state which devices can use which frequencies, and help to limit the amount of RF (radio frequency) interference in all wireless communications. To be flexible enough to operate worldwide, SLX receivers are available in multiple dedicated fre- quency models. Each dedicated frequency range, or band, spans up to 24 MHz of the wireless broad- cast spectrum. Available bands are: H5: 518–542 MHz J3: 572–596 MHz L4: 638–662 MHz P4: 702–726 MHz R5: 800–820 MHz S6: 838–865 MHz JB: 806–810 MHz Q4: 740–752 MHz To facilitate system setup and protect against RF interference, each system comes with multiple predefined frequency groups and channels. When using a single SLX system, the operating frequency will generally not have to be changed. In an installation with multiple receiver/transmitter systems, each system must operate on a separate channel. The group and channel system provides an optimum frequency spread when using multiple systems. Within a single frequency band, up to 12 individual transmitter/receiver systems may be used in a single installation. In regions where additional frequency bands are available, it is possible to operate up to 20 systems simultaneously. Check with your local Shure retailer for information on which bands are available in your area. What Do You Want to Do Now? Learn about your SLX4 Receiver Power, lock/unlock, front and back panel features: See “SLX4 Receiver Features” on page 5 and “SLX4 Receiver Programming” on page 9. Learn about your SLX2 Handheld Transmitter Power, mute, gain, lock/unlock, other features: See “SLX2 Handheld Transmitter” on page 6 and “SLX1 and SLX2 Transmitter Programming” on page 10. Learn about your SLX1 Bodypack Transmitter Power, mute, gain, lock/unlock, other features: See “SLX1 Bodypack Transmitter” on page 7 and “SLX1 and SLX2 Transmitter Programming” on page 10. Program your SLX Receiver and Transmitter Frequency selection, LCD features, using the select and menu buttons: See “SLX Programming” on page 9. Learn how to use multiple systems in a single installation See “Multiple System Setup” on page 8. Troubleshoot your SLX system See “Troubleshooting” on page 12. 3 English Table of Contents System Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 SLX4 Receiver Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 SLX2 Handheld Transmitter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 SLX1 Bodypack Transmitter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Single System Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Multiple System Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 SLX Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 SLX4 Receiver Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 SLX1 and SLX2 Transmitter Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 The Master Frequency List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Rack-Mounting SLX Receivers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Receiver Volume Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12 Tips for Improving System Performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Replacement Parts and Accessories. . . . . . . . . . . . . . . . . . . . . . . …

Text truncated - open the document above for the full version.

Microphones and Audio Electronics SHURE Incorporated 5800 Touhy Avenue Niles, IL 60714 – 4608 • USA Phone: (847) 600-2000 Phone: 847-866-2200 FAX: 847-866-2433 Web Address: www.shure.com Re: DD4SLX1 Date:12/22/2003 Time: 1:30 PM To:Timothy R. Johnson American TCB, Inc. 6731 Whittier Avenue McLean, VA 22101 From:Edgar C. Reihl Phone: 847-866-2289 Director, Global Compliance Fax: 847-866-2456 Applicant: Shure IncorporatedE-Mail: [email protected] ______________________________________________________________________ Dear Mr. Johnson; We would like to respond to your correspondence of December 19, 2003 as follows: 1. We requested confidentiality for certain files submitted to you via your secure server, using the option provided by you for that purpose. We would like to request that all items that can legally be held confidential according to FCC rules, be so held. This would include the schematic, parts list, block diagram, circuit description, and photos, if permissible. It is possible that this information would otherwise become publicly available before the product is introduced to the market. 2. The requested photograph has been taken by DLS EMC and will be uploaded with this response. It is photo #11. 3. Shure requested 470-806 MHz on the 731 form because that is the FCC - permitted frequency range for this type of device. The Shure Model SLX1 will be available in various ranges in accordance with national directives in other countries. The available bands for the US market will initially be the H5, J3, and L4 bands. The 731 form is being amended to show a frequency range of 518 - 608 and 614 - 662 MHz (excluding the Radio Astronomy band at 608-614 MHz). 4. The R5 frequency band will not be offered for sale in the US. This is a European frequency band. Accordingly, FCC approval was not requested for this range. All frequencies that the user can select will fall within permissible US frequencies. 5. There is only one model of this product; the SLX1. As indicated above in item (3), the SLX1 will be offered in various frequency bands according to national directives. The only bands applicable to the US market at this time are the H5, J3, and L4 bands. This is why the test report only covered these bands. Approval is being sought for the frequency range of 518 – 608 and 614 – 662 MHz. The schematics do not show values for certain other bands, since they have not been fully determined at this time. The bands for which values have not been determined are not applicable to the US market and will not be sold in the US. 6. This typographical error has been corrected by DLS EMC in the revised test report uploaded with this response. 7. See revised test report. 8. See revised test report. 9. See revised test report. 10. See revised test report. 11. The Collector voltage for the final RF amplifier transistor (Q601) is 4.5 Vdc and the Collector current is 23 mAdc. Best regards, Microphones and Audio Electronics SHURE Incorporated 5800 Touhy Avenue Niles, IL 60714 – 4608 • USA Phone: (847) 600-2000 Phone: 847-866-2200 FAX: 847-866-2433 Web Address: www.shure.com By: Edgar C. Reihl, P.E. Title: Director, Global Compliance Phone: 847-866-2289 FAX: 847-866-2433

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 December 19, 2003 RE: Shure Incorporate FCC ID: DD4SLX1 I have a few comments on the above referenced Application. 1) Confidentiality appears to be desired on certain exhibits. Please provide a cover letter that addresses which exhibits are being requested to be held as confidential. Note that only exhibits that contain proprietary information can typically be held as confidential (i.e. schematics, block diagrams, etc.). 2) Please provide internal photographs showing the main board with the subshield(s) removed. 3) The 731 form mentions a frequency range of 470 - 806 MHz. However from the users manual, the lowest frequency appears to be 518 MHz and the highest appears to be 865. Note that the schematics appear to only cover models H5, J3, L4, R5, S6. Please explain. 4) The model R5 shows a frequency range of 800-820 MHz, however Part 74 only allows operation up to 806 MHz. Please explain how all model R5's for sale in the U.S. will only be operational in the 800-806 MHz band. Note the end user should not have the capability of selecting frequencies outside of what the device is approved for. Note that page 10 of the users manual shows that the user may select the frequency from the LCD panel. 5) The test report mentions 8 models (section 8.1), but the schematics only appear to cover 5. Also see questions 3 & 4 above. Additionally, the test report only appears to covers H5, J3, and L4 models. Please comment and make corrections as necessary. 6) Note that one of the measurements in section 2 (page 93) of the report states mW, while the results appear to be in Watts. Please verify and/or correct as necessary. 7) The RF power output tests (all reports) appear to explain a conducted measurement, while the plots suggest a radiated measurement in the title and conducted in the notes. Please define the method used. Additionally, if the measurements was performed radiated, is the power calculated as conducted, ERP, or EIRP? 8) The frequencies listed on pages 47, 49, 50, 109, 111, 171 do not appear to match the bands of this transmitter or the tests performed and do not appear proper for this report. Please explain and/or correct. 9) Plots on page 115, 117, 175, 177 appear blank. Please explain. 10) The test report seems to present spurious test data following typical radiated methods such as ANSI C63.4 and then calculating TX power via far field equations. Please note that when the limits are given in dBc (i.e. 43 + 10 log P) then the device must be tested following substitution methods specified in EIA/TIA 603. However the FCC has stated that it is only necessary to perform the substitution method for data that is within 20 dB of the limit. Given the nature of the results obtained on this device, only a few points need be verified (see pages 180, 183, 192, & 195). Please provide this information. 11) Please supply the DC voltages & Currents into the several elements of the final radio frequency amplifying device for normal operation over the power range. Timothy R. Johnson Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. z Page 2December 19, 2003 Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

Microphones and Audio Electronics SHURE Incorporated 5800 Touhy Avenue Niles, IL 60714 – 4608 • USA Phone: (847) 600-2000 Phone: 847-866-2200 FAX: 847-866-2433 Web Address: www.shure.com ATCB A U T H O R I Z A T I O N Date: 12/11/2003 Time: 10:30 AM To: American TCB, Inc. 6731 Whittier Avenue McLean, VA 22101 From: Edgar C. Reihl Phone: 847-866-2289 Director, Global Compliance Fax: 847-866-2456 Applicant: Shure Incorporated E-Mail: [email protected] ______________________________________________________________________ Dear Ladies and/or Gentlemen: I appoint American TCB, Inc., to act as agent in the approval of applications under Part 74 of the Rules and Regulations of the Federal Communications Commission. I certify that the exhibitions properly describe the device being submitted under this application and will implement any changes described in the test report. The labels described will be affixed to each item. The following statement is required by the Federal Communications Commission: By checking Yes, the applicant certifies that, in the case of an individual applicant, he or she is not subject to a denial of federal benefits, that included FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C 853(a), or, in the case of a non-individual applicant (e.g. corporation, partnership, or other unincorporated association), no party to the application is subject to a denial of federal benefits, that includes FCC benefits, pursuant to that section. ___X___YES _______NO Dated this 11th day of December, 2003. By: Edgar C. Reihl, P.E. Title: Director, Global Compliance Phone: 847-866-2289 FAX: 847-866-2433

Microphones and Audio Electronics SHURE Incorporated 5800 Touhy Avenue Niles, IL 60714 – 4608 • USA Phone: 847-600-2000 FAX: 847-600-1212 Web Address: www.shure.com January 6, 2004 American TCB, Inc. 6731 Whittier Avenue McLean, VA 22101 Subject: Request for Non disclosure for FCC ID: DD4SLX1 To Whom It May Concern: Pursuant to 47 CFR Section 0.459, Shure Incorporated hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application for FCC ID # DD4SLX1: a. Schematic Diagrams b. Operational Description c. Block Diagram d. Parts List e. Tune Up Procedure Above materials contain trade secrets, proprietary and technical information which would customarily be guarded from competitors under 47 CFR section 0.457(d)(2). Disclosure or publication of any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. Shure Incorporated understands that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. Sincerely yours, Edgar C. Reihl Director, Global Compliance Shure Incorporated

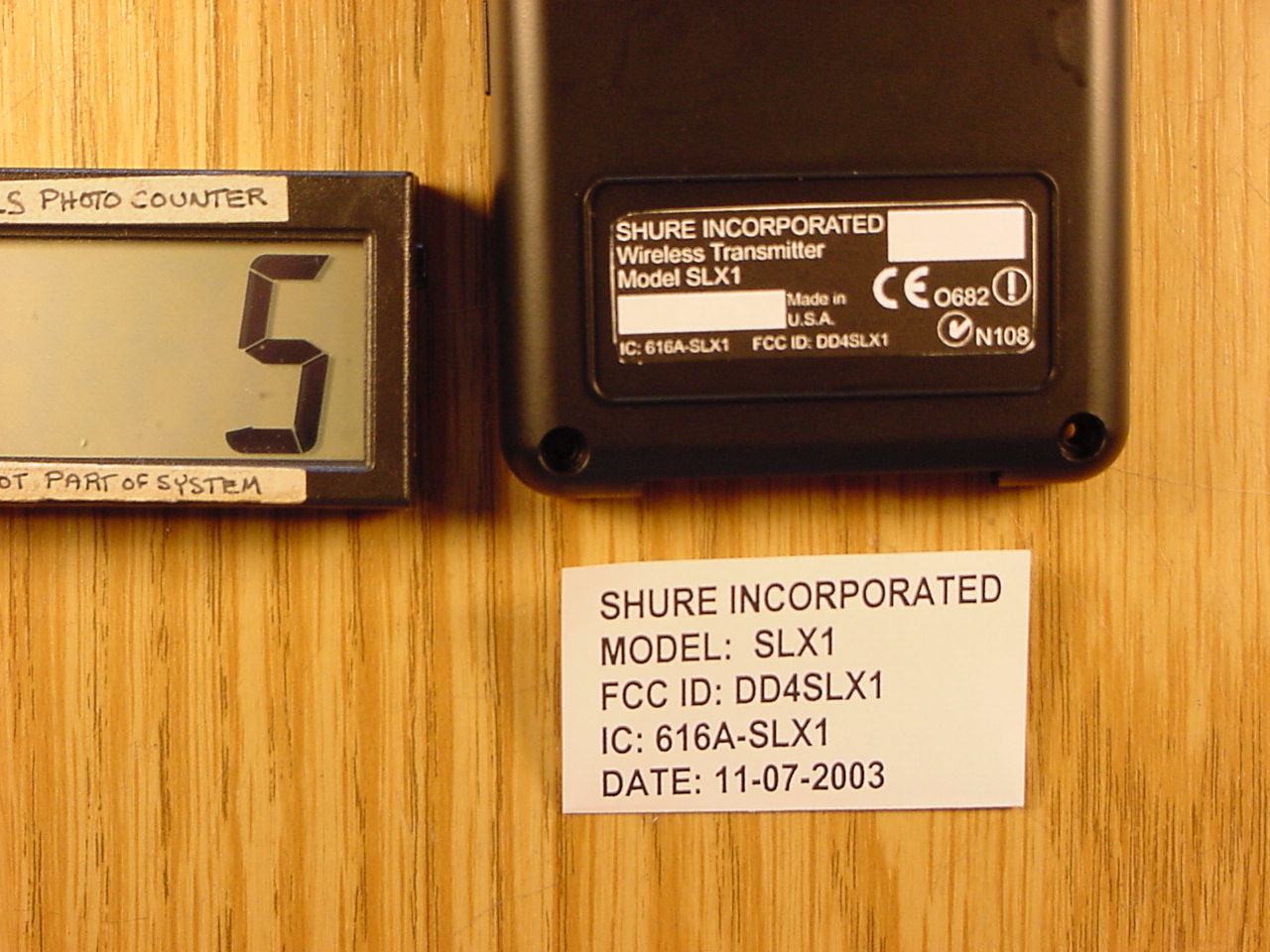

CAMERA READY ARTWORK PLATE #: CR-1979 DESCRIPTION: SLX1 LABEL MODEL #: SLX1 PROJECT #: 17437 SCALE: 1:1 DESIGNER: MICHAEL DAHLQUIST APPROVED: SHURE INCORPORATED, EVANSTON, IL. 60202 SHURE INCORPORATED Model SLX1 FCC ID: DD4SLX1IC: 616A-SLX1 Wireless Transmitter N108 O682

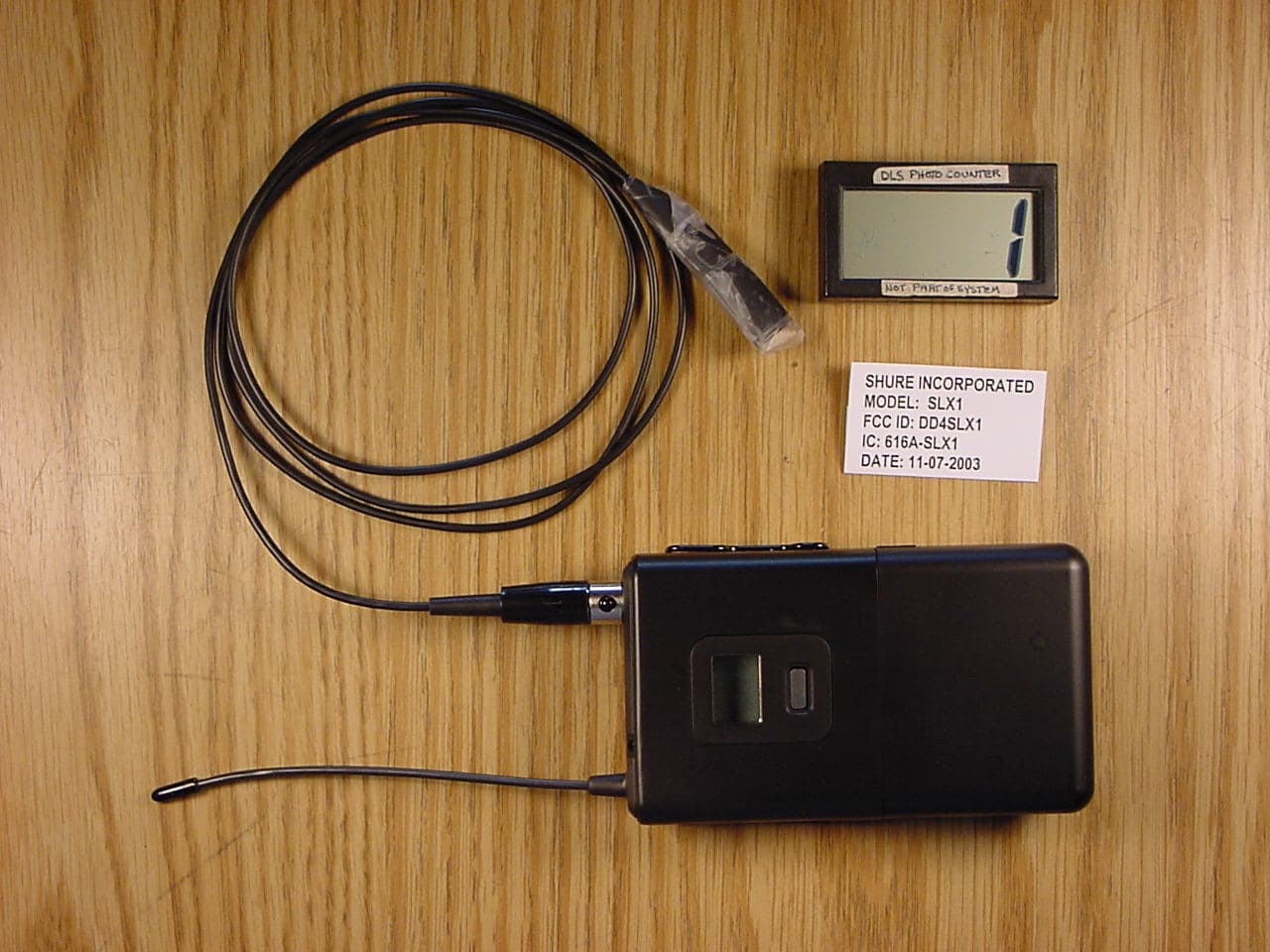

1250 Peterson Dr., Wheeling, IL 60090 Page - 1 - Company: Shure Inc. Model Tested: SLX1 Report Number: 10422 FCC Rules and Regulations / Intentional Radiators Low Power Auxiliary Stations Part 74, Subpart H, Sections 74.801 - 74.882 Formal Name: SLX Wireless BodyPack Transmitter Kind of Equipment: Wireless microphone transmitter Test Configuration: Connects to lavalier microphone or guitar as audio input Model Number(s): SLX1 Model(s) Tested: SLX1 Serial Number(s): NA Date of Tests: October 31 and November 3, & 4, 2003 Test Conducted For: Shure Inc. 222 Hartrey Ave. Evanston, Illinois 60202 NOTICE: “This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government”. Please see the "Additional Description of Equipment Under Test" page listed inside of this report. This report must not be reproduced (except in full), without the approval of D.L.S. Electronic Systems. 1250 Peterson Dr., Wheeling, IL 60090 Page - 2 - Company: Shure Inc. Model Tested: SLX1 Report Number: 10422 SIGNATURE PAGE Report By: Arnom C. Rowe Test Engineer EMC-001375-NE Reviewed By: William Stumpf OATS Manager Approved By: Brian Mattson General Manager Company Official: Shure Inc. 1250 Peterson Dr., Wheeling, IL 60090 Page -3- Company: Shure Inc. Model Tested: SLX1 Report Number: 10422 1250 Peterson Dr., Wheeling, IL 60090 Page -4- Company: Shure Inc. Model Tested: SLX1 Report Number: 10422 1250 Peterson Dr., Wheeling, IL 60090 Page -5- Company: Shure Inc. Model Tested: SLX1 Report Number: 10422 1250 Peterson Dr., Wheeling, IL 60090 Page -6- Company: Shure Inc. Model Tested: SLX1 Report Number: 10422 1250 Peterson Dr., Wheeling, IL 60090 Page -7- Company: Shure Inc. Model Tested: SLX1 Report Number: 10422 1250 Peterson Dr., Wheeling, IL 60090 Page -8- Company: Shure Inc. Model Tested: SLX1 Report Number: 10422 1250 Peterson Dr., Wheeling, IL 60090 Page -9- Company: Shure Inc. Model Tested: SLX1 Report Number: 10422 1250 Peterson Dr., Wheeling, IL 60090 Page -10- Company: Shure Inc. Model Tested: SLX1 Report Number: 10422 1250 Peterson Dr., Wheeling, IL 60090 Page -11- Company: Shure Inc. Model Tested: SLX1 Report Number: 10422 1250 Peterson Dr., Wheeling, IL 60090 Page -12- Company: Shure Inc. Model Tested: SLX1 Report Number: 10422 1250 Peterson Dr., Wheeling, IL 60090 Page -13- Company: Shure Inc. Model Tested: SLX1 Report Number: 10422 TABLE OF CONTENTS i. Cover Page .......................................................................................................................................... 1 ii. Signature Page .................................................................................................................................... 2 iii. NVLAP Certificate of Accreditation .............................................................................................. 3 iv. NVLAP Scope of Accreditation ..................................................................................................... 4 v. Table of Contents .............................................................................................................................. 13 1.0 Summary of Test Report ............................................................................................................... 17 2.0 Introduction................................................................................................................................... 17 3.0 Object ............................................................................................................................................ 17 4.0 Test Set-Up ................................................................................................................................... 18 5.0 Test Equipment ............................................................................................................................. 19 6.0 Conducted Emission Measurements ............................................................................................. 20 7.0 Radiated Emission Measurements ................................................................................................ 21 8.0 Description of Test Sample........................................................................................................... 22 8.0 Additional Description of Test Sample......................................................................................... 23 9.0 Additional Description of Test Sample......................................................................................... 25 10.0 Photo Information and Test Set-Up .............................................................................................. 26 11.0 Radiated Photos Taken During Testing ........................................................................................ 27 12.0 Results of Tests ............................................................................................................................. 29 13.0 Conclusion .................................................................................................................................... 29 TABLE 1 – EQUIPMENT LIST .............................................................................................................. 30 1250 Peterson Dr., Wheeling, IL 60090 Page -14- Company: Shure Inc. Model Tested: SLX1 Report Number: 10422 TABLE OF CONTENTS Appendix A – 518 MHz to 542 MHz ....................................................................................................... 32 1.0 Test Set-Up ................................................................................................................................... 33 2.0 RF Power Output .......................................................................................................................... 33 2.0 Graph(s) taken of the RF Power Output ....................................................................................... 34 3.0 Modulation …

Text truncated - open the document above for the full version.

1250 Peterson Dr., Wheeling, IL 60090 Page - 25 - Company: Shure Inc. Model Tested: SLX1 Report Number: 10422 11.0 RADIATED PHOTOS TAKEN DURING TESTING 1250 Peterson Dr., Wheeling, IL 60090 Page - 26 - Company: Shure Inc. Model Tested: SLX1 Report Number: 10422 11.0 RADIATED PHOTOS TAKEN DURING TESTING
