DD4U1BLO POWER BODY PACK TRANSMITTER

Shure Incorporated

Click to zoom

Application Details

Equipment Class: TNT - Licensed Non-Broadcast Transmitter Worn on Body
Date of Grant: Apr 01, 1999
Application Purpose: Original Equipment
Date of Application: Jan 19, 1999
Equipment Note: LO POWER BODY PACK TRANSMITTER
Frequency Range: 692.00000000 - 716.00000000
Company: Shure Incorporated
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

27A8571 (RA) Printed in U.S.A. Copyright 1998, Shure Brothers Incorporated The Sound of Professionals...Worldwide  Shure Brothers Incorporated 222 Hartrey Avenue, Evanston, Illinois 60202–3696 Phone: 847/866–2200 Fax: 847/866-2279 In Europe, Phone: 49-7131-72140 Fax: 49-7131-721414 Internationally, Phone: 847/866–2200 Fax: 847/866-2585  UHF User’s Guide ENGLISH ENGLISH TABLE OF CONTENTS SYSTEM DESCRIPTION 4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . SYSTEM FEATURES 4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . SYSTEM COMPONENTS 5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . U1 BODY-PACK TRANSMITTER CONTROLS & INDICATORS 6 . . . . . . . . . . . . . . . . . . . . . . . U2 MICROPHONE-TRANSMITTER CONTROLS & INDICATORS 7 . . . . . . . . . . . . . . . . . . . . . . U4S & U4D RECEIVER CONTROLS & CONNECTORS 8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . RECEIVER SETUP 10 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Installing Rear Mounted Receiver Antennas 10 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Installing Front Mounted Receiver Antennas 10 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Basic Receiver Connections 12 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . VIEWING CURRENT RECEIVER SETTINGS 13 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . PROGRAMMING THE RECEIVER 13 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Changing Receiver Group/Channel Settings 13 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Changing Receiver Frequency Setting 15 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Changing Receiver Name 16 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Changing Receiver Squelch Level Setting 17 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Locking the Receiver Display 20 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Unlocking the Receiver Display 20 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . TRANSMITTER SETUP 21 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Transmitter Battery Installation 21 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Checking Transmitter Batteries 22 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Connecting a Lavalier Microphone or Instrument Cable to the U1 Transmitter 23 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . PROGRAMMING THE TRANSMITTER 23 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Changing Transmitter Group/Channel Settings 23 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Locking the Power Switch in the ON Position 26 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Cancelling the Power On Lock Function 26 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Activating the Frequency Lock Function 27 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Cancelling the Frequency Lock Function 28 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . OPERATING THE U1 BODY–PACK SYSTEM 28 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . OPERATING THE U2 HAND-HELD SYSTEM 29 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ADJUSTING TRANSMITTER AUDIO GAIN LEVEL 30 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ADJUSTING TRANSMITTER AUDIO INPUT LEVEL 31 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . TIPS FOR ACHIEVING OPTIMUM PERFORMANCE 32 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . TROUBLESHOOTING 32 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . SPECIFICATIONS 33 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LICENSING INFORMATION 33 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . APPENDIX: NETWORK INTERFACE PIN MAP 34 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 3 ENGLISH ENGLISH SYSTEM DESCRIPTION The Shure UHF Wireless microphone system is a frequency-agile diversity sys- tem operating in the UHF band. Both the receiver and the transmitter are synthesizercontrolled via Phase Locked Loop (PLL) circuitry for clear, steady radio frequency(RF) signal. The receiver is available in either dual or single models that fit into a stan-dard 19 inch (482 mm) equipment rack. An auxiliary unswitched AC output jack al-lows multiple receivers to be linked “daisy chain” style. The optional UA830 RemoteAntenna Kits can be powered by 12 Vdc, 500 mA output provided through the anten-na connectors. The optional UA840 Antenna Distribution Amplifier Kits allows con-nection of multiple receivers using only two antennas. SYSTEM FEATURES Shure UHF Wireless Systems offer many exceptional features, including: • Frequency Agility. The operating frequency of transmitters and receivers can be easily switched to any setting in the UHF range. Settings are available in pre-pro-grammed incremental steps that allow for necess…

Text truncated - open the document above for the full version.

Block Diagram

U1B Block Diagram

Cover Letter(s)

TABLE OF CONTENTS LIST APPLICANT: MONICOR ELECTRONIC CORPORATION FCC ID: GES4BAM2000T TEST REPORT: PAGE 1......COVER SHEET - GENERAL INFORMATION & TECHNICAL DESCR. PAGE 2......TECHNICAL DESCRIPTION CONTD. & RF POWER OUTPUT PAGE 3......RF POWER OUTPUT CONTD. & MODULATION CHARACTERISTICS PAGE 4......OCCUPIED BANDWIDTH PAGE 5......SPURIOUS EMISSIONS AT ANTENNA TERMINALS AND FIELD STRENGTH OF SPURIOUS EMISSIONS PAGE 6......FREQUENCY STABILITY PAGE 7......CERTIFICATION OF TECHNICAL DATA AND LIST OF TEST EQUIPMENT EXHIBITS CONTAINING: EXHIBIT 1.........POWER OF ATTORNEY LETTER EXHIBIT 2.........FCC ID LABEL SAMPLE AND SKETCH OF LOCATION EXHIBIT 3A........EXTERNAL FRONT VIEW PHOTOGRAPH EXHIBIT 3B........EXTERNAL REAR VIEW PHOTOGRAPH EXHIBIT 3C........INTERNAL COMPONENT SIDE PHOTOGRAPH EXHIBIT 3D........INTERNAL SOLDER SIDE PHOTOGRAPH EXHIBIT 3E........INTERNAL PHOTO - BOARDS IN CHASSIS EXHIBIT 4.........BLOCK DIAGRAM EXHIBIT 5A-5C.....PARTS LIST EXHIBIT 6A........SCHEMATIC - DIGITAL BOARD EXHIBIT 6B........SCHEMATIC - RF BOARD EXHIBIT 7A-7B.....TUNING PROCEDURE EXHIBIT 8.........CRYSTAL SPECIFICATION EXHIBIT 9A-9G.....CIRCUIT DESCRIPTION EXHIBIT 10........USER'S MANUAL EXHIBIT 11........OCCUPIED BANDWIDTH CW PLOT EXHIBIT 12........OCCUPIED BANDWIDTH PLOT - 2400 Hz EXHIBIT 13........OCCUPIED BANDWIDTH PLOT - 4800 Hz EXHIBIT 14........POWERLINE CONDUCTED PLOT - LINE 1 EXHIBIT 15........POWERLINE CONDUCTED PLOT - LINE 2 APPLICANT: MONICOR ELECTRONIC CORPORATION FCC ID: GES4BAM2000T REPORT #: F:\CUS\M\MON\MON34U9.RPT PAGE: TABLE OF CONTENTS GENERAL_INFORMATION_REQUIRED FOR_TYPE_ACCEPTANCE 2.983 (a,b,c) MONICOR ELECTRONIC CORPORATION will sell the GES4BAM2000T, in quantity, for use under FCC RULES PART 90.217(a). 2.983 (d) TECHNICAL_DESCRIPTION (1) ALLOWED AUTHORIZED BANDWIDTH = 11.25KHz. 90.209(b)(5) Bn=2M+2DK M = 4800/2 = 2400 D = 2.0KHz (Peak Deviation) K=1 Bn = 2(2.4K) + 2(2.0K)(1) = 4.8K + 4.0K = 8.8K This transmitter uses MSK(MINIMUM SHIFT KEYING). Type of Emission: 8K8F1D (2) ALLOWED AUTHORIZED BANDWIDTH = 20.0KHz. 90.209(b)(5) Bn=2M+2DK M = 4800/2 = 2400 D = 4.0KHz (Peak Deviation) K=1 Bn = 2(2.4K) + 2(4.0K)(1) = 4.8K + 8.0K = 12.8K This transmitter is frequency modulated F2d using two(2) different tones, 1900Hz & 3000Hz. Type of Emission: 12K8F1D (2) Frequency Range: Part 90: 432-470MHz (3) Power Range and Controls:Power is has no controls. (4) Maximum Output Power Rating: 120 Milli-Watts into a 50 ohm resistive load. (5) DC Voltages and Current into Final Amplifier: Not Applicable. (6) Function of each electron tube or semiconductor device or other active circuit device: SEE EXHIBITS 6A-6C. APPLICANT: MONICOR ELECTRONIC CORPORATION FCC ID: GES4BAM2000T REPORT #: F:\CUS\M\MON\MON34U9.RPT PAGE #: 1 2.983(d) (7) Complete Circuit Diagrams: The circuit diagram is included as Exhibit 6A-6B. The block diagram is included as Exhibit 4. The part list is in- cluded as Exhibit 5A-5C. (8) Instruction book. The instruction manual is in- cluded as Exhibit 10. (9) Tune-up procedure. The tune-up procedure is given in Exhibit 7A-7B. (10) Description of all circuitry and devices provided for determining and stabilizing frequency. The transmitter frequency is controlled by a crystal, the crystal specifications are included in PAGE 20. (11) Description of any circuits or devices employed for suppression of spurious radiation, for limit- ing modulation, and for limiting power. This circuitry is described in PAGE 9A-9G. Limiting Modulation: The transmitter audio circuitry is contained in IC101, and IC102. Limiting Power: There is no provision for limiting power. (12) Digital modulation. This unit does use digital modulation. 2.983(e) The data required by 2.985 through 2.997 is sub- mitted below. 2.985(a) RF_power_output. ERP was measured by connecting a signal generator to a dipole antenna and adjusting the level to produce the same field strength at the UUT. APPLICANT: MONICOR ELECTRONIC CORPORATION FCC ID: GES4BAM2000T REPORT #: F:\CUS\M\MON\MON34U9.RPT PAGE #: 2 R.F. POWER OUTPUT HP Spectrum Analyzer /-------\ /-----------------\ | | | | TRANSMITTER | | | | | UNDER TEST WITH | \--| | | INTERNAL ANTENNA| | | | \-----------------/ | | | | | \-------/ |?- 3.0 meters---?| /-------------\ | SIGNAL | DIPOLE | Tuned, Calibrated | GENERATOR | ANTENNA | Antenna which may | |----------/ be raised from 1 \-------------/ to 4 meters above ground and changed in polarization Equipment placed 1 meter above ground on a rotatable platform. The center of the Dipole antenna at the center of the platform and the output of the signal generator adjusted to produce the same meter reading as measured for the fundamental in the radiated emissions test. 2.987(a)(b) Modulation_characteristics: AUDIO_FREQUENCY_RESPONSE Not required. AUDIO_LOW_PASS_FILTER Not required this part. 2.987(b) Audio_input_versus_modulation Not applicable because there is no I/O port. APPLICANT: MONICOR ELECTRONIC CORPORATION FCC ID: GES4BAM2000T REPORT #: F:\CUS\M\MON\MON34U9.RPT PAGE #: 3 2.989(c) Occupied_bandwidth: Data in the plots show that the 30 dB occuppied band- width is less than 20KHz. The plots show the transmit- ter modulated with the worst(greatest bandwidth) case combination of controls. Test procedure diagram OCCUPIED BANDWIDTH MEASUREMENT NEAR FIELD /------------\ PROBE | | /----\ | Transmitter| |____|------\ | under test | \----/ | \------------/ | || || /------------\ /-----------\ |||| | Audio | | Spectrum | | Oscillator | | Analyzer | | | \-----------/ \------------/ REQUIREMENT: PART 90.217 EMISSION BANDWIDTH PLUS FREQUENCY STABILITY <40KHz AT 30dB. APPLICANT: MONICOR ELECTRONIC CORPORATION FCC ID: GES4BAM2000T REPORT #: F:\CUS\M\MON\MON34U9.RPT PAGE #: 4 2.991 Spurious_emissions_at_antenna_terminals(conducted): Not required because this unit does not have a connector. 2.993(a)(b) Field_strength_of_spurious_emissions: S90.217(a) REQUIREMENTS: Emissions must be 30dB below the mean power output of the transmitter. 30 dB below the unmodulat…

Text truncated - open the document above for the full version.

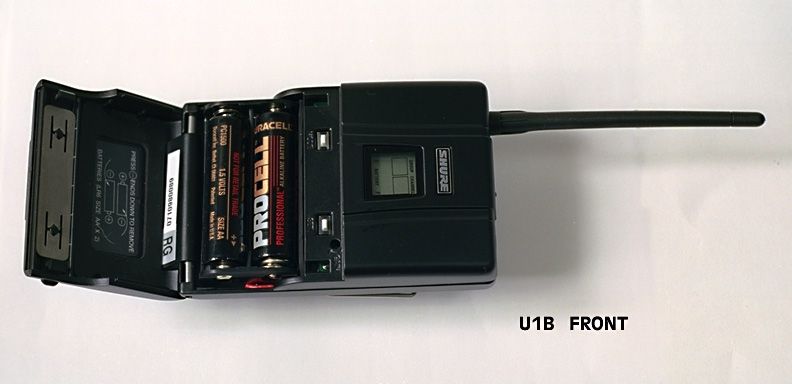

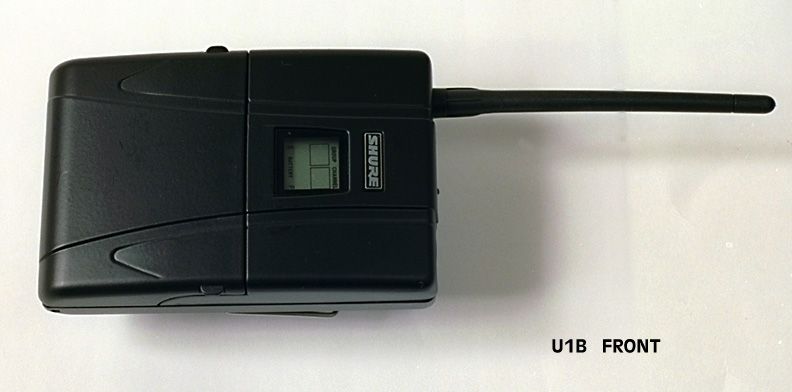

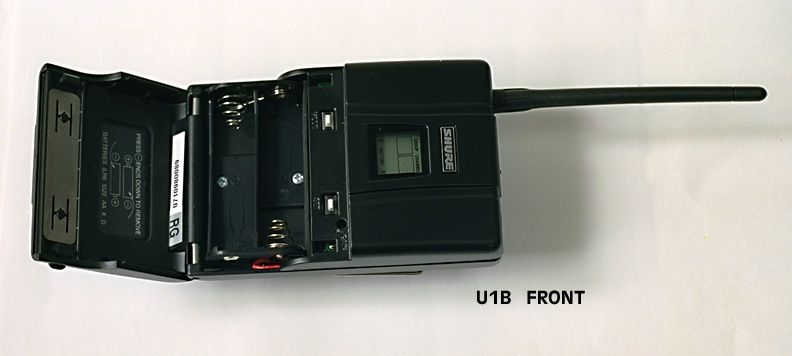

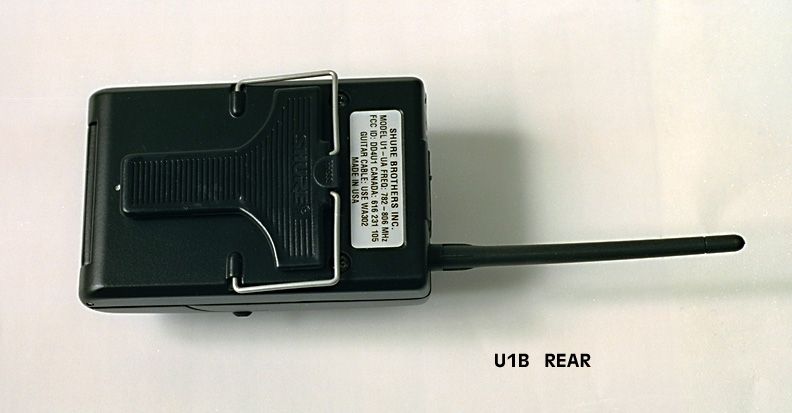

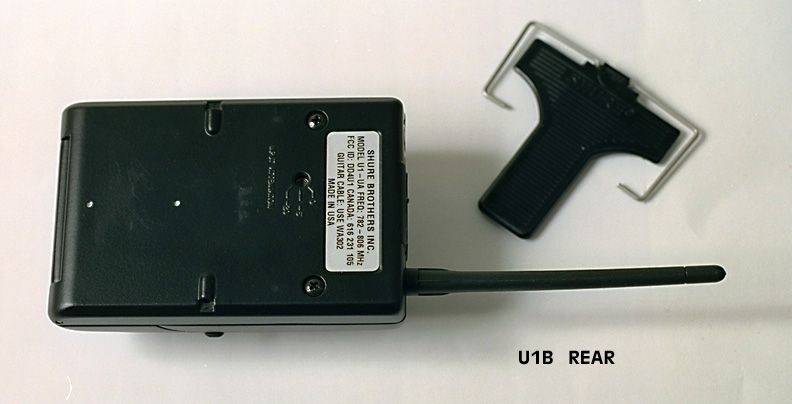

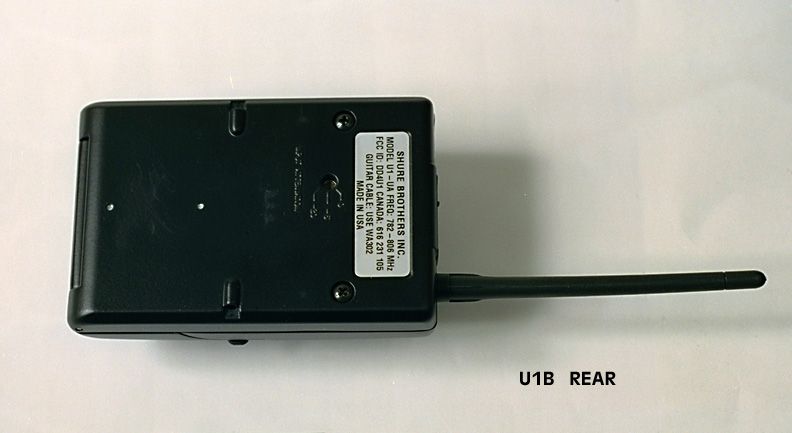

ID Label/Location Info

EMC Test ServicesReport No. 6994 1250 Peterson Drive, Wheeling, Illinois 60090, USA07/05/01 Page 1 TEST SPECIFICATION: FCC "Rules and Regulations", Part 74, Experimental Radio, Auxiliary, Special Broadcast and Other Program Distribution Services for Operation in the 692.125 - 715.875 MHz Band Subpart H, Low Power Auxiliary Stations Sections 74.801 to 74.882 THE FOLLOWING MEETS THE ABOVE TEST SPECIFICATION Formal Name:U1B UHF-FM Body Pack Transmitter Kind of Equipment:UHF-FM Transmitter Test Configuration:NA Emission Designator: 120KF3B Transmitter FCC ID: DD4U1B Model Number: U1B Serial Number: 0710980089 Dates of Test:November 17, 1998 Test Conducted For: Shure Brothers, Inc 222 Hartrey Avenue Evanston, Illinois 60202 NOTICE:Please see change information listed inside of this report. This report must not be used by the customer to claim product endorsement by NVLAP or any agency of the United States Government, and it cannot be reproduced (except in full), without the approval of D.L.S. Electronic Systems Inc. EMC Test ServicesReport No. 6994 1250 Peterson Drive, Wheeling, Illinois 60090, USA07/05/01 Page 2 SIGNATURE PAGE Report Written By: Arnom C. Rowe Test Engineer EMC-001375-NE Report Reviewed by: Jack Prawica Lab Manager Report Approved by: Brian J. Mattson General Manager Company Official: Shure Brothers, Inc Page 3 Page 4 EMC Test ServicesReport No. 6994 1250 Peterson Drive, Wheeling, Illinois 60090, USA07/05/01 Page 5 1.Cover Pagei 2.Signature Pageii 3.NBS Certificate of Accreditationiii 5.Table of Contentsiv 7.Summary of Test Report1.0 7.Introduction2.0 7.Object3.0 7.Test Set-up4.0 8.Test Equipment (Bandwidths and Detector Function)5.0 8.RF Power Output6.0 9.Graphs taken of the RF output showing system and filter losses6.0 10.Modulation Characteristics7.0 11.Graphs taken of the Modulation Characteristics7.0 12. Graphs taken showing the Percentage of Modulation versus the Modulation Input Voltage7.0 13.Occupied Bandwidth8.0 14.Graphs taken of the Occupied Bandwidth8.0 15.Frequency Deviation9.0 16.Graphs taken of the Frequency Deviation9.0 17.Spurious Emission Measurements at Antenna Terminals10.0 18.Conducted Emission Data taken10.0 19.Conducted Emission Graphs Taken10.0 EMC Test ServicesReport No. 6994 1250 Peterson Drive, Wheeling, Illinois 60090, USA07/05/01 Page 6 20.Field Strength of Spurious Emission Measurements11.0 22.Radiated Data taken for Field Strength Measurements11.0 23.Radiated Graphs taken for Field Strength Measurements11.0 24.Frequency Stability (Temperature)12.0 25.Graphs taken of Frequency Stability (Temperature)12.0 26.Frequency Stability (Voltage Variation)13.0 27.Graphs taken of Frequency Stability13.0 28.Photo Information and Test Set-Up14.0 29.Photos Taken During Testing15.0 31.Change Information16.0 32.Results of Tests17.0 32.Conclusion18.0 33.Equipment ListTABLE 1 EMC Test ServicesReport No. 6994 1250 Peterson Drive, Wheeling, Illinois 60090, USA07/05/01 Page 7 1.0SUMMARY OF TEST REPORT It was found that the U1B UHF-FM Body Pack Transmitter S/N 0710980089 meets the radio interference emission requirements of the FCC "Rules and Regulations", Part 74, Subpart H, Sections 74.801 to 74.882 for Low Power Auxiliary Stations operating in the 692 - 716 MHz Frequency Band. 2.0INTRODUCTION On November 17, 1998, a series of radio frequency interference measurements were performed on UHF-FM Transmitter, S/N 0710980089. The tests were performed according to the procedures of FCC as stated in Part 2 Subpart J, Equipment Authorization Procedures of the Code of Federal Regulations 47, by personnel of D.L.S. Electronic Systems, Inc. who are responsible to Donald L. Sweeney, Senior EMC Engineer. 3.0OBJECT The purpose of this series of tests was to determine if the test sample could meet the radio frequency emission requirements of the FCC "Rules and Regulations", Part 74, Subpart H, Sections 74.801 to 74.882 for Low Power Auxiliary Stations operating in the 692 - 716 MHz Frequency Band. 4.0TEST SET-UP All radiated emission tests were performed at D.L.S. Electronic Systems, Inc. The radiated tests were made with the test item placed on a wooden turntable located in the Test Room with the receive antenna placed one meter from the device under test. EMC Test ServicesReport No. 6994 1250 Peterson Drive, Wheeling, Illinois 60090, USA07/05/01 Page 8 5.0TEST EQUIPMENT (Bandwidths and Detector Function) All data was automatically plotted using peak detector function. This information was then used to determine the frequencies of maximum emissions. Manual measurements were performed on these frequencies using a peak detector function of the Analyzer with the bandwidths specified by the FCC. From 200 MHz to 1000 MHz a bandwidth of 100 kHz was used (except for Occupied Bandwidth), and above 1000 MHz, wide enough bandwidths were used, depending upon the test being made, to ensure proper measurement of the narrowband signal. A list of the equipment used can be found in Table 1. All equipment was calibrated per the instruction manuals supplied by the manufacturer. 6.0RF POWER OUTPUT - PART 2.985 As stated in PART 74.861 (e-1), the output power should not exceed 250 milliwatts (24 dBm). The U1B UHF-FM Body Pack Transmitter was tuned according to the tune-up procedures specified in Part 2.983 (d-5), and adjusted for its maximum output power. The RF output power was measured in the open field, using the following test method: The radiated signal from the EUT was measured. The EUT was then substituted with a signal generator and a tuned dipole antenna. The output of the signal generator was increased until the level received by the tuned dipole equaled that of the previous measured from the EUT. Actual Measurements Taken: 10.6dBuV Measured output of the transmitter +0 dBuV Total system losses (Antenna, Pads & Cable) 10.60dBuV which equals 0.01 watts LIMIT: Manufacturer's rated output power = 0.01 watts Tolerance = 100 ppm MARGIN: 0.25 watts - 0.01 watts = 0.24 watts NOTE: See the followi…

Text truncated - open the document above for the full version.

Operational Description

General Product Description The Shure Model U1B is a UHF,μP (microprocessor) controlled, transmitter operating over the frequency range of 692 to716 MHz (With five different models). The transmitter features a minimum of 12hrs. battery life using 2 ‘AA’ alkaline batteries, an LCD readout of group/channel with a battery status indicator, a metal enclosure, and utilizes an external antenna to provide optimum range. This product is intended for use in high-end installed sound, rental, and concert sound markets.

Operational Description

CONTENTS SPECIFICATIONS2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . FURNISHED ACCESSORIES5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . OPTIONAL ACCESSORIES6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . REPLACEMENT PARTS6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . UHF WIRELESS SYSTEM COMPATIBILITY GUIDE7. . . . . . . . . . . . . . . . MASTER LIST8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Shure Brothers Incorporated 222 Hartrey Avenue Evanston IL 60202-3696 U.S.A. UHF Wireless System USER GUIDE SUPPLEMENT UB (692–716 MHz) 27AXXXX (SB) E1999, Shure Brothers Incorporated Printed in U.S.A. 2 SPECIFICATIONS RF Carrier Frequency Range 692–716 MHz Working Range U1, U2: 152.4 m, minimum, under typical conditions; 487.6 m line of sight U1H: 275 m, minimum, under typical conditions; 975 m line of sight NOTE: Actual working range depends on RF signal absorption, reflection and interference Audio Frequency Response 50 to 15,000 Hz, ±2 dB. NOTE: Overall system frequency response depends on the microphone element Gain Adjustment Range U1, U1H: 0 to 40 dB U2: 0 to 26 dB Modulation ±45 kHz deviation compressor-expander system with pre-and de-emphasis RF Power Output U1, U2: 10 mW maximum U1H: 50 mW maximum Dynamic Range >102 dB, A-weighted RF Sensitivity U4SU4D –110 dBm 12 dB SINAD –107 dBm 12 dB SINAD –105 dBm 30 dB SINAD –102 dBm 30 dB SINAD Image Rejection 90 dB typical Spurious Rejection 75 dB typical Ultimate Quieting (ref. 45 kHz deviation) >100 dB, A-weighted Audio Polarity Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 with respect to pin 3 of low impedance output and the tip of the high impedance 1 / 4 -inch output System Distortion (ref. ±45 kHz deviation, 1 kHz modulation) 0.3% Total Harmonic Distortion typical Power Requirements U1, U1H, U2: 1.5V AA alkaline battery (Duracell MN1500 recommended); Nicad optional U4: 90 to 230 Vac , 50/60 Hz Power Consumption: U4S: 9.6 W min., 13.2 W max. U4D: 12 W min.,16 W max. UA840: 15 W min., 16 W max. Battery Life (Typical) U1, U2: 12 hours (with Duracell MN1500 1.5V AA alkaline battery) U1H: 6 hours (with Duracell MN1500 1.5V AA alkaline battery) Operating Temperature Range -20° to 50° C NOTE: Battery characteristics may limit this range 3 Overall Dimensions U1: 92.2 mm L x 64.7 mm W x 24.2 mm D U2/58:254 mm L x 50.8 mm Dia. U2/BETA 58: 254 mm L x 53.2 mm Dia. U2/87:228.6 mm x 49.2 mm Dia. U2/BETA 87: 216 mm L x 50.8 mm Dia U4S/U4D: 44.5 mm H x 482.6 mm W x 295.3 mm D Net Weight U1, U1H: 175.2 g without battery U2/58, U2/BETA 58: 375.6 g without battery U2/87, U2/BETA 87: 303.1 g without battery U4S: 3.30 kg U4D: 3.85 kg Certification U1*, U2: FCC Part 74. BAPT Type Approved to FTZ 17TR 2019 and BAPT 122 R1; EMC Approved to ETS 300 445. U4S, U4D: VDE Certified to EN 60 950. BAPT Type Approved to FTZ 17TR 2019 and BAPT 122 R1; EMC Approved to ETS 300 445. Meets Low Voltage Directive. UHF Type Approved and EMC Approved systems are eligible to carry the CE marking. *The U1H transmitter does not carry the same approvals as the U1 transmitter. U1, U1H Transmitter Input Connector: Switchcraft TA4F Tini Q-G or LEMO connector (optional) Input Configuration: Unbalanced, active Actual Impedance: 18 kΩ with lavalier microphone 1 MΩ with instrument cable Maximum Input Level: 6 Vp–p (+7 dBV) for 1% THD at minimum gain setting using 1 kHz signal. TA4F Tini Q.G. Connector Pin Assignments: Pin 1: Tied to Ground Pin 2: Tied to +5 V Pin 3: Tied to Audio Pin 4: Tied thru 20kΩ Resistor to Ground. (On instrument adapter cable, Pin 4 floats) LEMO Connector Pin Assignments: Pin 1: Tied to Pin 3 and 10 kΩ to Ground Pin 2: +5V Pin 3: Tied to Pin 1 Pin 4: Tied to Shield (Ground for Positive Bias) Voltage for Remote Power: +5 V supplied to microphone cartridge U1, U1H Transmitter Output (Figure 1) Connector: SMC Actual Impedance: 50 Ω Nominal Output Level: +10 dBm (+17 dBm for U1H) Maximum Output Level: +11 dBm (+18 dBm for U1H) Pin Assignments: Shell = Ground Center = Signal 4 27 pF 20K Ω 27 pF +5 V AUDIO GROUND U1/U1H MIC JACK BOARD 2 1 4 500 Ω 500 Ω MICROPHONE ELEMENT 3 2 1 3 4 NOTE: LAVALIER MIC TIES PINS 3 AND 4 TOGETHER; GUITAR CABLE DOES NOT. 27 pF 499 Ω 499 Ω 3 27 pF 10K Ω AUDIO SHIELD U1L (LEMO 4 PIN) MIC JACK BOARD 1 4 2 BIAS FIGURE 1 U2 Transmitter Input Input Configuration:Unbalanced, active Actual Impedance:20 kΩ Maximum Input Level:3 Vp–p (0.5 dBV) for 1% THD at minimum gain setting using 1 kHz signal. U2 Transmitter Output Connector: SMC Actual Impedance: 50 Ω Nominal Output Level: +10 dBm Maximum Output Level: +11 dBm Pin Assignments: Shell = Ground Center = Signal 5 U4S and U4D Receiver Input Connector:AntennaPower InputNetwork Interface Connector Type:BNCIEC25–Pin D Actual Impedance:50 Ω–––– Nominal Input Level: –95 to –30 dBm90–230 VAC, 50/60 Hz CMOS Logic Maximum Input Level: +6 dBm (–20 dBm recommended) 230 VAC, 50/60 Hz–– Pin Assignments:Shell = Ground Center = Signal IEC Standard–– Voltage for Remote Power: 12 Vdc, 150 mA maximum ––5V, 700 mA max. U4S and U4D Receiver Output Connector:MonitorPower Output High Z Audio Low Z Audio* Network Interface Output Configuration: Unbalanced mono, 1/4 inch ––Un- balanced BalancedSee Appendix Actual Impedance: 300 Ω––1 kΩ30 ΩSee Appendix Nominal Input Level: ––90 to 230 VA C , 5 A ––––CMOS Logic Pin Assignments: Tip = Hot Ring = Hot Sleeve = Gnd IEC Standard Tip = Hot Ring/ Sleeve = Gnd 1 = Ground 2 = Hot 3 = Hot See Appendix Voltage/ Current/ Phantom Power Protection? Ye s––Ye sYe s5V, 700 mA resettable polyfuse *Output Level: Microphone Level = Line Level – 30 dB FURNISHED ACCESSORIES Microphone Stand Adapter (U2)WA370A. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Zipper Bag (U1)26A13. . . . . . . . . . . . . . . .…

Text truncated - open the document above for the full version.

Operational Description

FCC ID: DD4U1B LIST OF CRYSTAL FREQUENCIES The following is a list of crystal frequencies used in the Transmitter Model No: U1B 4 MHz, RF Board RF section for Synthesizer (U204) 4 MHz, RF Board, Digital Section for Microprocessor (U103) 32.768 kHz Audio Board, for Tone Key Oscillator

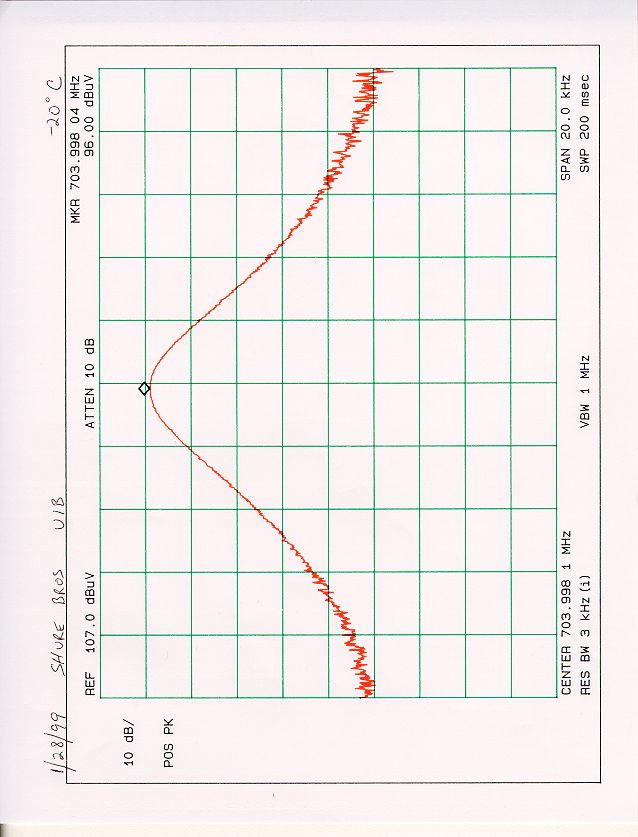

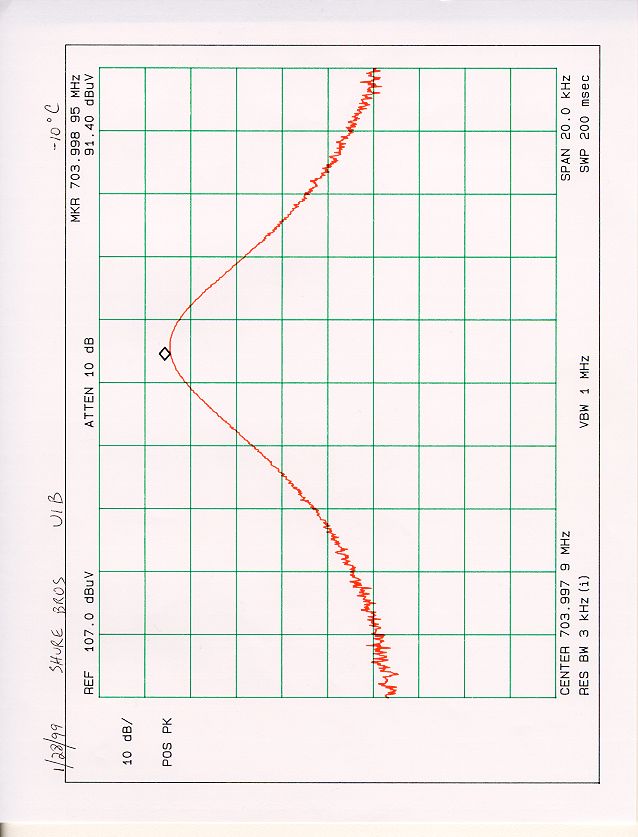

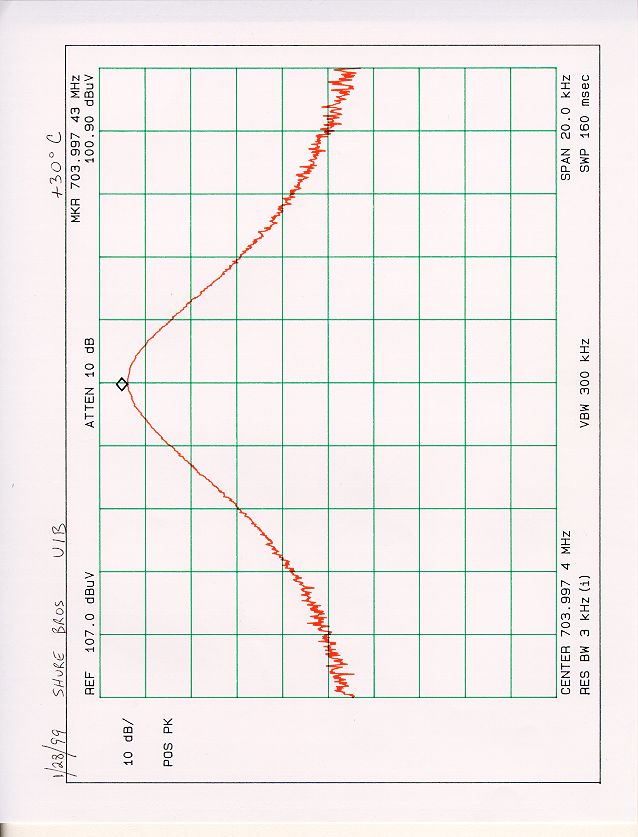

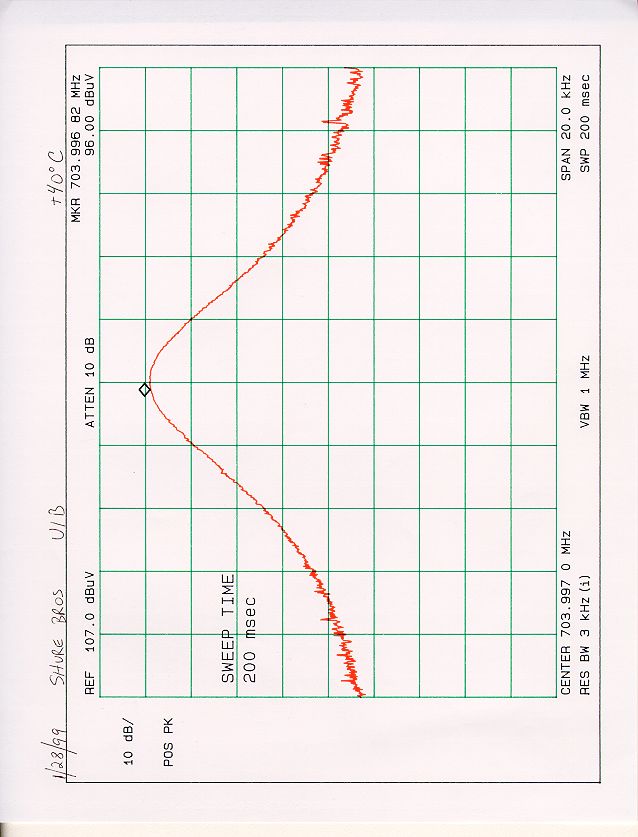

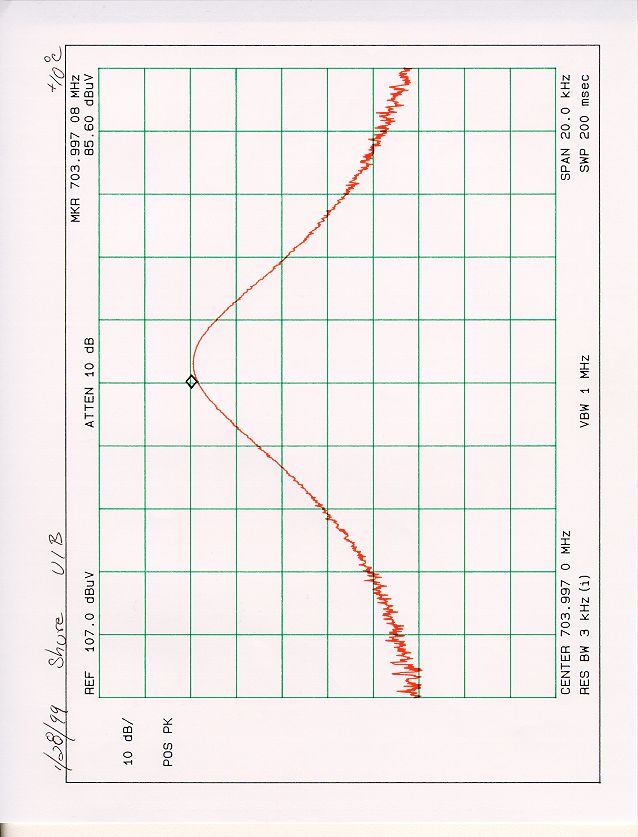

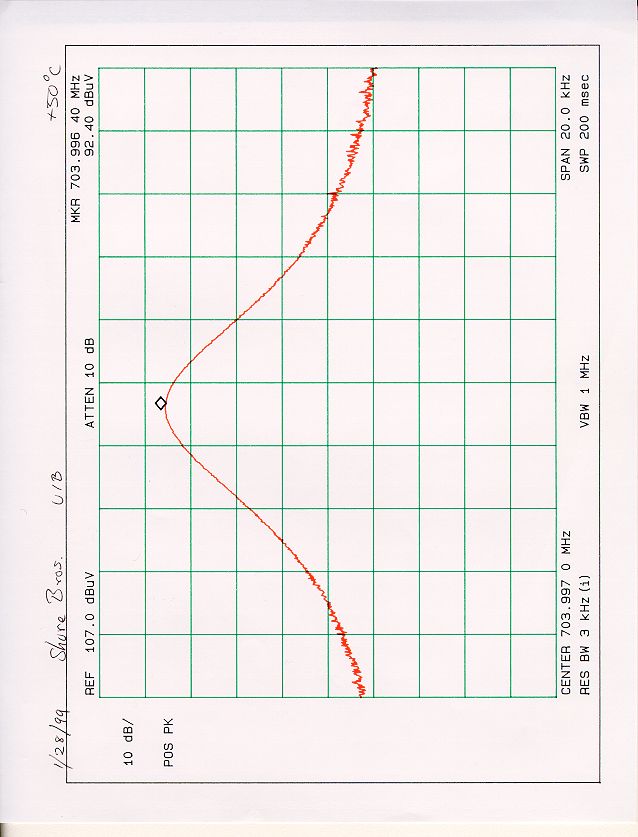

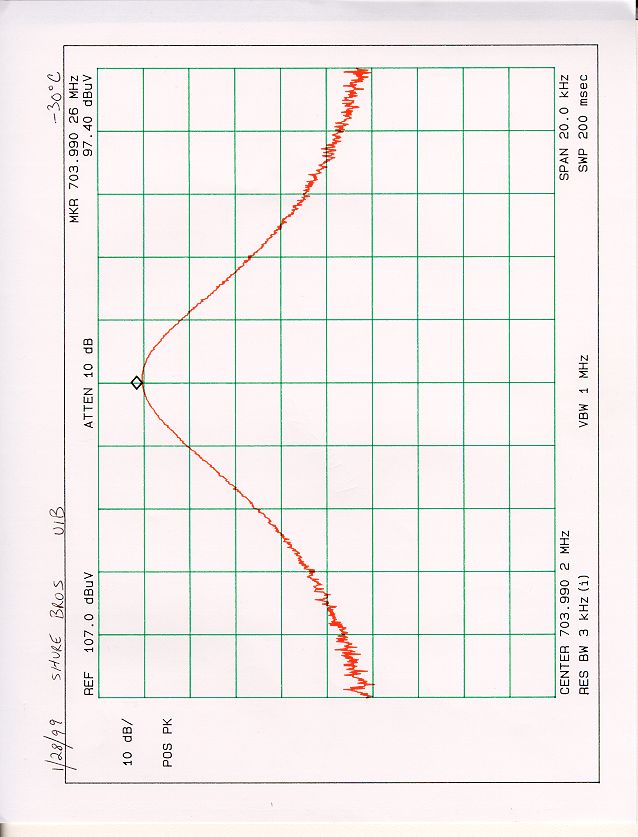

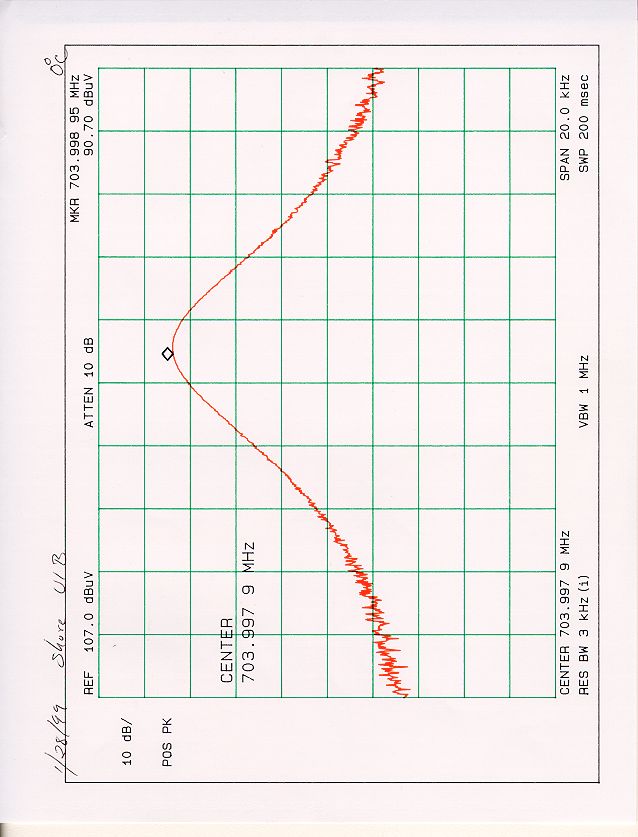

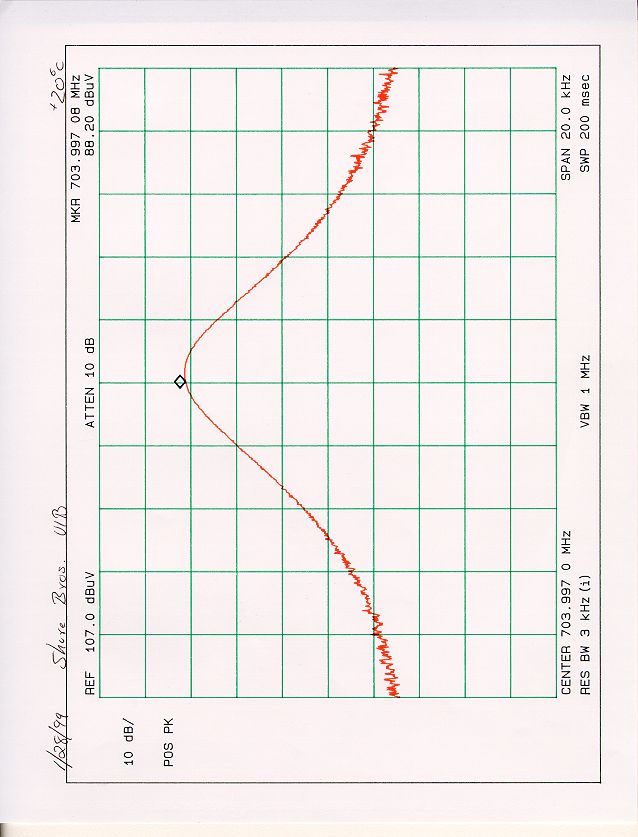

Test Report

Text truncated - open the document above for the full version.
