FCC ID: DD4ULX1 D.L.S. ELECTRONIC SYSTEMS, INC. 1250 Peterson Drive Wheeling, Illinois 60090 FCC Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21045-0429 Gentlemen: We are submitting for Shure, Inc., an UHF Wireless Transmitter, Model Number ULX1, with a FCC ID: DD4ULX1 for certification. This unit has been tested and complies to Part 74 Subpart H. If there are any questions in regards to this application, please call D.L.S. Electronic Systems, Inc. at (847) 537 6400. Enclosed you will find a copy of our test report with the information and results of tests that is required under Part 74 Section 74.861. Thank you for your assistance in this matter. Sincerely, Arnom C. Rowe EMC-001375-NE DLS/mm

Statement of Tunable Frequencies of the ULX1 Transmitter We at Shure, Inc do hereby state the following: “The user cannot tune the ULX1 transmitter outside the allowable US frequency ranges of 554 MHz to 608 MHz and 614 MHz to 806 MHz.” SHURE Incorporated 222 Hartrey Avenue Evanston, IL 60202-3696 - U.S.A. Microphones and Audio Electronics FCC Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21045-0429 Ladies and or Gentlemen: By Tit le PROJECT ENGINEER, EMC Applicant SHURE, INCORPORATED Telephone 847-866-2241 Phone: 847-866-2200 FAX: 847-866-2279 Web Address: http://www.shure.com

The 731 form, page 6 of the test report, and theory of operation should had stated the actual frequency operation for the ULX1 transmitter is 554 MHz to 608 MHz and 614 MHz to 806 MHz. Actual frequency range of operation for the ULX2 Transmitter SHURE Incorporated 222 Hartrey Avenue Evanston, IL 60202-3696 - U.S.A. Microphones and Audio Electronics FCC Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21045-0429 Ladies and or Gentlemen: By Tit le PROJECT ENGINEER, EMC Applicant SHURE, INCORPORATED Telephone 847-866-2241 Phone: 847-866-2200 FAX: 847-866-2279 Web Address: http://www.shure.com

The theory of operation stated 8 different frequency bands. There are only 4 bands actually used for the ULX1 Transmitter. The following are the frequency bands used for the ULX1 Transmitter: J1 554-590 MHz M1 662-690 MHz Q2 748-806 MHz R4 784-806 MHz The “R4” band listed here is not the full fre quency band because of the 806 MHz upper restriction. Four Frequency Bands for the ULX1 Transmitter SHURE Incorporated 222 Hartrey Avenue Evanston, IL 60202-3696 - U.S.A. Microphones and Audio Electronics FCC Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21045-0429 Ladies and or Gentlemen: By Tit le PROJECT ENGINEER, EMC Applicant SHURE, INCORPORATED Telephone 847-866-2241 Phone: 847-866-2200 FAX: 847-866-2279 Web Address: http://www.shure.com

10/26/01 Ar nom Row e DLS Electronics In reference to FCC ID: DD4ULX1 Upon completion of review of the application FCC ID: DD4ULX1, there are several issues that need to be addressed before the application can be granted by ATCB. Please address each issue below. 1) I need Verification of the actual Frequency of operation to be listed on grant. A) 731 form states 470—608 MHz 614- 806 MHz , this is the FCC band of operation for this device B) The Test Report states Page 6 states 554 – 806 MHz C) Test Data shows Center frequencies from 554 to 799 MHz D) Theory of operation stats device operates from 554 – 862 MHz 2) I need a statement that the device cannot be tuned out of the allow able US frequency by the user’s 3) The theory of Operation states 8 frequency bands, can you provide a list of the 8 frequency bands. David A. Case NCE Examining Engineer mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender

LETTER OF AUTHORIZATION X YES NO SHURE Incorporated 222 Hartrey Avenue Evanston, IL 60202-3696 - U.S.A. Microphones and Audio Electronics FCC Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21045-0429 Ladies and or Gentlemen: I appoint Brian J. Mattson or Arnom C. Rowe at D.L.S. Electronic Systems, Inc. to act as agent in the preparation of applications under Part 74 of the Rules and Regulations of the Federal Communications Commission. I certify that the exhibits properly describe the device being submitted under this application and will implement any changes described in the test report. The following statement is required by the Federal Communications Commission: By checking yes, the applicant certifies that, in the case of an individual applicant, he or she is not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a), or, in the case of an non-individual applicant (e.g. corporation, partnership or other unincorporated association), no party to the application is subject to a denial of federal benefits, that includes FCC benefits, pursuant to that section. Dated this 15th day of October Agency agreement expiration date: None 2001 By Tit le PROJECT ENGINEER, EMC Applicant SHURE, INCORPORATED Telephone 847-866-2241 Phone: 847-866-2200 FAX: 847-866-2279 Web Address: http://www.shure.com

Letter of Agency Date: October 16, 2001 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: Please be advised that Shure, Inc. authorizes D.L.S. Electronic Systems, Inc. to act on our behalf, until otherwise notified, for applications submitted to American Telecommunications Certification Body, Inc. (ATCB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse ACT of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002(b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you for your attention to this matter. Signatory, Arnom C. Rowe EMC ENGINEER EMC-001375-NE D.L.S. Electronic Systems, Inc. FCC Labeling Requirements and Information Date: October 16, 2001 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 RE: FCC Labeling Requirements FCC ID: DD4ULX1 The following label information is required by the FCC Rules and Regulations for certified devices. Also attached, please find marketing information required by the FCC Rules and Regulations. Thank you for your attention to these matters. Sincerely, Arnom C. Rowe EMC ENGINEER EMC-001375-NE D.L.S. Electronic Systems, Inc. Request for Confidentiality Date: October 16, 2001 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 RE: Certification Application FCC ID: DD4ULX1 Please be advised that the following information is to be held confidential and behalf of APPLICANT NAME: • Operational Description • Block Diagram • Schematics • Parts Lists • External Photos • Internal Photos The application contains technical information which Shure, Inc. deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention to this matter. Signatory Arnom C. Rowe EMC ENGINEER EMC-001375-NE D.L.S. Electronic Systems, Inc. Modification Letter Date: October 16, 2001 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue847-537-6488 Suite C110 McLean, VA 22101 RE: Certification Application FCC ID: DD4ULX1 Please be advised that the following information is a list of modifications that will be included in the production process for the above-referenced equipment. Change 1: There were no modifications made during testing. Change 2: Change 3: Change 4: Change 5: Change 6: Change 7: Change 8: Change 9 Change 10: Thank you for your attention to this matter. Signatory Arnom C. Rowe EMC ENGINEER EMC-001375-NE D.L.S. Electronic Systems, Inc. Manufacturer’s Letter Date: October 16, 2001 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 RE: Certification Application FCC ID: DD4ULX1 To Whom It May Concern: Please be advised that the manufacturer will ensure that the above-referenced model will be manufactured in accordance with the FCC Rules and Regulations. Thank you for your attention to this matter. Signatory Arnom C. Rowe EMC ENGINEER EMC-001375-NE D.L.S. Electronic Systems, Inc.

FRONT OF EUT TOP OF E UT MICROPHONE UNPLUGGED RIGHT SIDE OF EUT REAR OF EUT BELT CLIP REMOVED BOTTOM OF EUT BATTERY REMOVED

LOCATION OF FCC ID LABEL

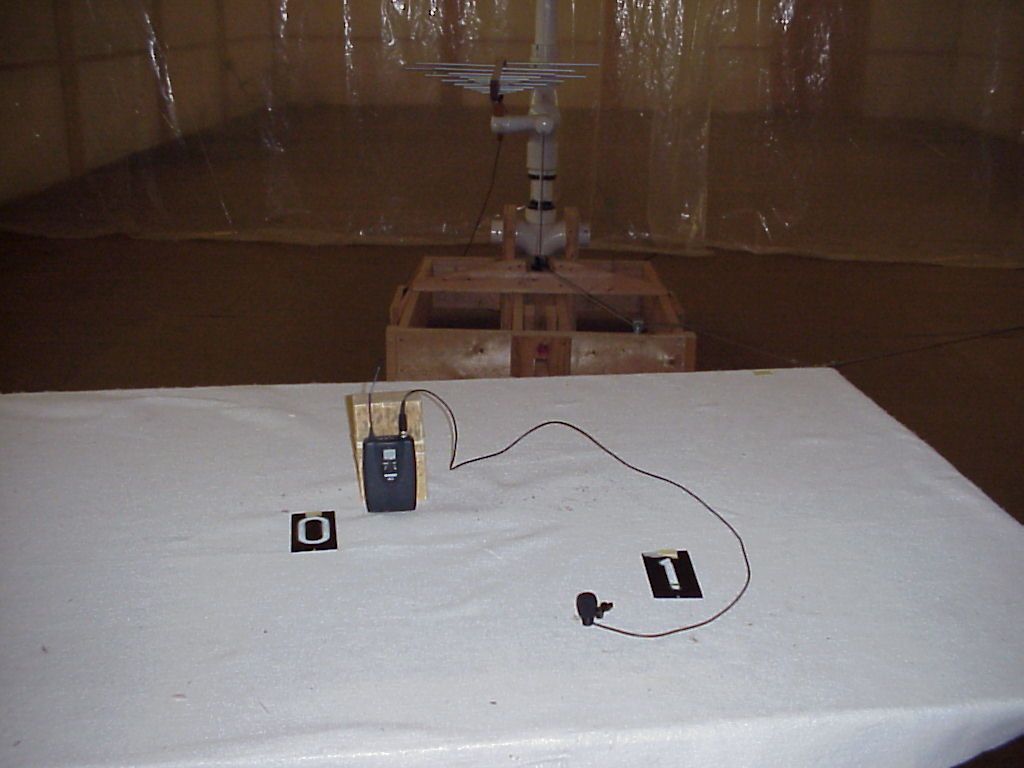

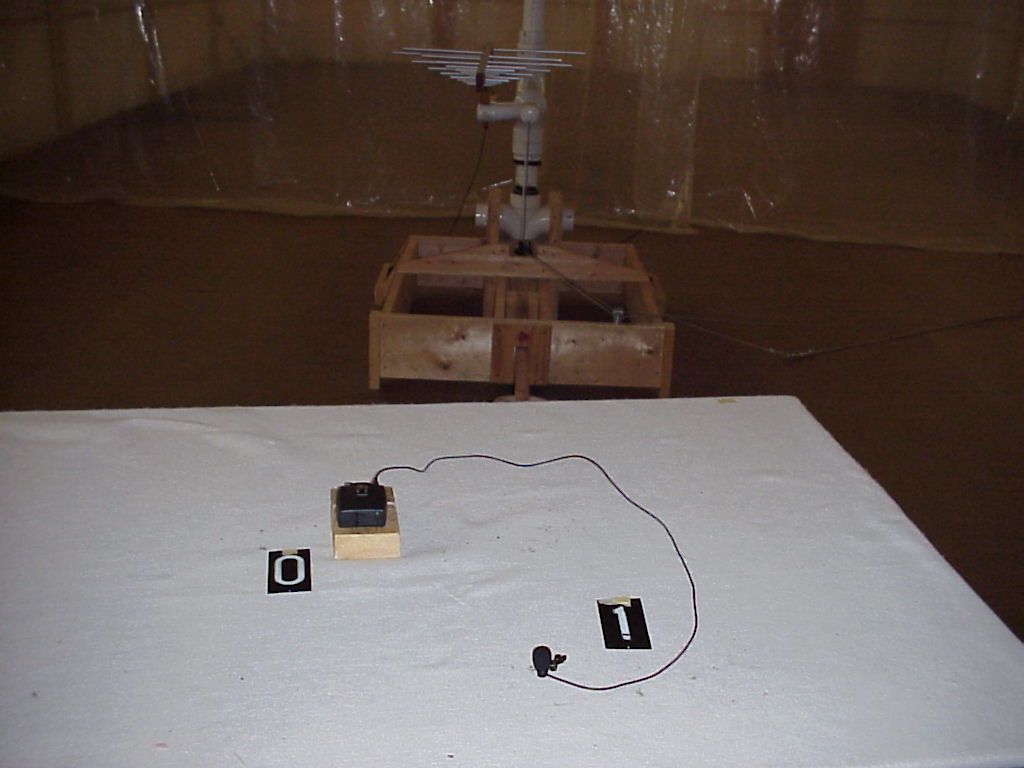

EMC Test Services Report No. 9273 1250 Peterson Drive, Wheeling, Illinois 60090, USA TEST SPECIFICATION: FCC "Rules and Regulations", Part 74, Experimental Radio, Auxiliary, Special Broadcast and Other Program Distribution Services for Operation in the 470 MHz to 608 MHz & 614 MHz to 806 MHz Frequency Bands Subpart H, Low Power Auxiliary Stations Sections 74.801 to 74.882 THE FOLLOWING MEETS THE ABOVE TEST SPECIFICATION Formal Name: UHF Wireless System Kind of Equipment: Wireless Microphone Test Configuration: Tested at 9 vdc Emission Designator: 120KF3E Transmitter FCC ID: DD4ULX1 Model Number: ULX1 Serial Number: NA Dates of Test: September 4, 5, 7 & 10 Test Conducted For: Shure, Inc. 222 Hartrey Avenue Evanston, Illinois 60015 NOTICE: Please see change information listed inside of this report. This report must not be used by the customer to claim product endorsement by NVLAP or any agency of the United States Government, and it cannot be reproduced (except in full), without the approval of D.L.S. Electronic Systems Inc. Page 1 EMC Test Services Report No. 9273 1250 Peterson Drive, Wheeling, Illinois 60090, USA SIGNATURE PAGE Report Written By: Arnom C. Rowe Test Engineer EMC-001375-NE Report Reviewed by: Jack Prawica Lab Manager Report Approved by: Brian J. Mattson General Manager Company Official: Shure, Inc. Page 2 EMC Test Services Report No. 9273 1250 Peterson Drive, Wheeling, Illinois 60090, USA NVLAP Certificate of Accreditation available upon request. Page 3 EMC Test Services Report No. 9273 1250 Peterson Drive, Wheeling, Illinois 60090, USA NVLAP Scope of Accreditation available upon request. Page 4 EMC Test Services Report No. 9273 1250 Peterson Drive, Wheeling, Illinois 60090, USA TABLE OF CONTENTS i. Cover Page......................................................................................................................................................................................1 ii. Signature Page ............................................................................................................................................................................2 iii NVLAP Certificate of Accreditation available upon request of Contents ................................................................3 iv NVLAP Scope Certificate of Accreditation available upon request of Contents ...................................................4 v. Table of Contents.......................................................................................................................................................................5 1.0 Summary of Test Report ..........................................................................................................................................................6 2.0 Introduction .................................................................................................................................................................................6 3.0 Object ............................................................................................................................................................................................6 4.0 Test Set-Up ..................................................................................................................................................................................6 5.0 Test Equipment (Bandwidths and Detector Function)....................................................................................................7 6.0 Modulation Characteristics .....................................................................................................................................................7 6.0 Graphs Taken Showing the Frequency Response of the Audio Modulating Circuit .............................................8 7.0 Occupied Bandwidth – Part 2.1049 ....................................................................................................................................11 7.0 Graphs taken of the Occupied Bandwidth Part 2.1049 .................................................................................................12 8.0 RF Power Output – Part 2.1046...........................................................................................................................................19 8.0 Graphs Taken of the RF Power ............................................................................................................................................20 9.0 Frequency Deviation and Tolerance – Part 74.861 ........................................................................................................27 10.0 Spurious Conducted Emission Measurements made at Antenna Terminals Part 2.105 ..................................28 10.0 Spurious Conducted Emission Data taken at the Antenna Terminals Part 2.1051 ...........................................29 10.0 Spurious Conducted Emission Graphs made at the Antenna Terminals Part 2.1051 ......................................30 11.0 Field Strength of Spurious Emission Measurements Part 2.1053 ..........................................................................31 11.0 Field Strength of Spurious Emission Measurements Part 2.1053 ..........................................................................32 11.0 Radiated Data & Graphs Taken for Field Strength Spurious Emission Measurements Part 2.1053 ...........33 12.0 Frequency Stability Part 2.1055a (Temperature) ............................................................................................................49 12.0 Graphs taken for Frequency Stability when varying the temperature Part 2.1055a .........................................50 13.0 Frequency Stability Part 2.1055d (Voltage) .................................................................................................................61 13.0 Graphs taken for Frequency Stability when varying the Primary Supply Part 2.1055d .......................…
