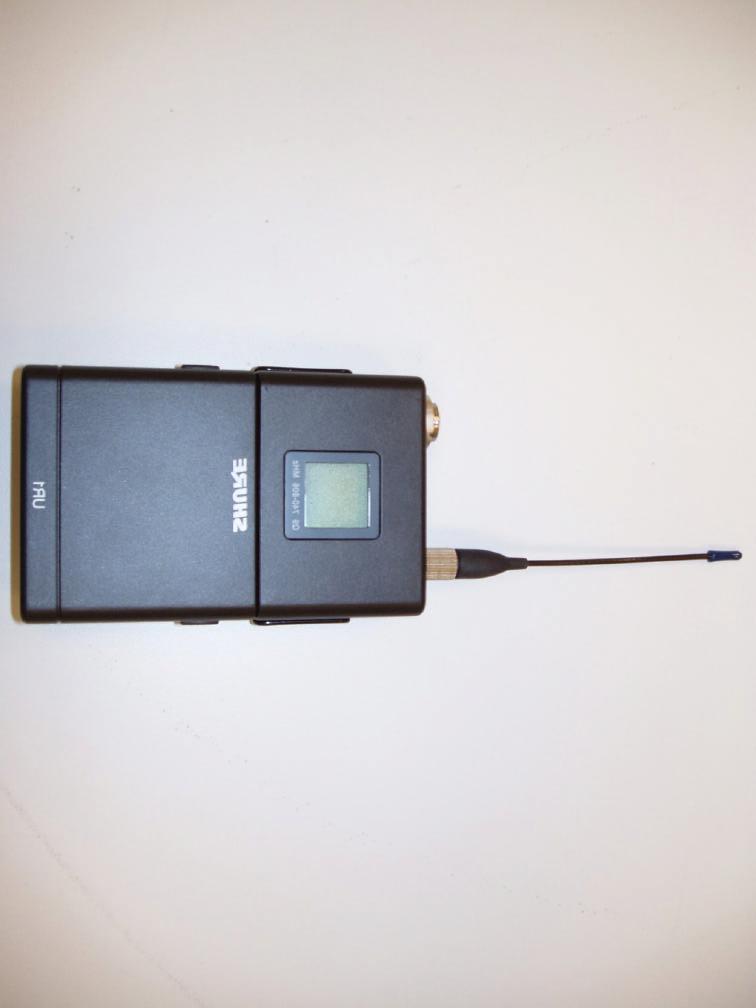

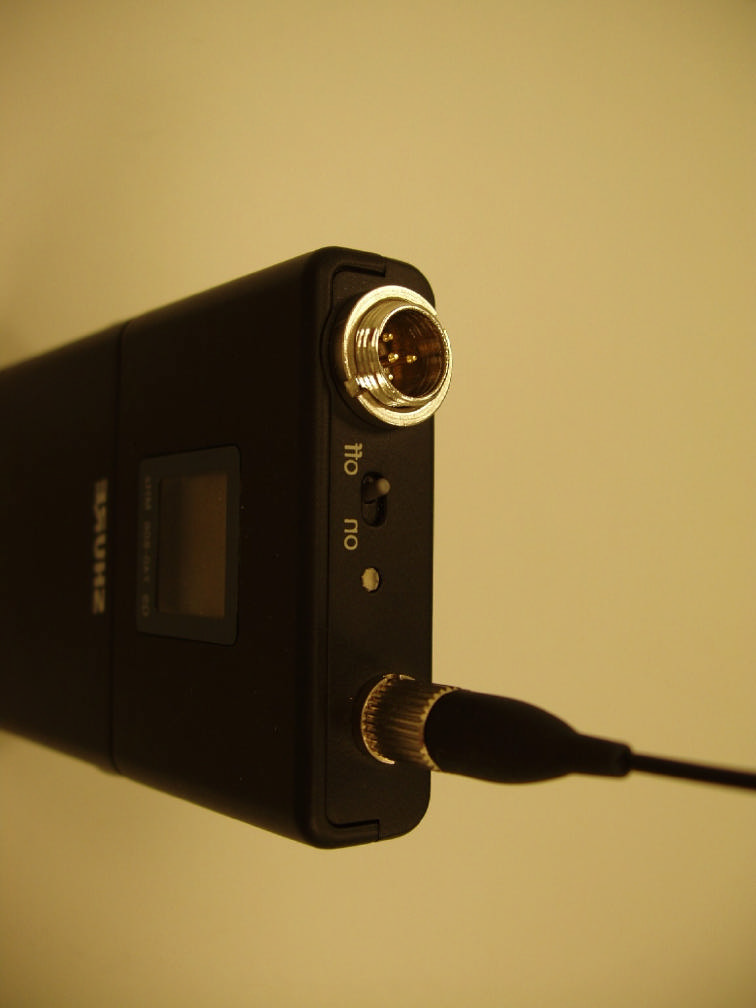

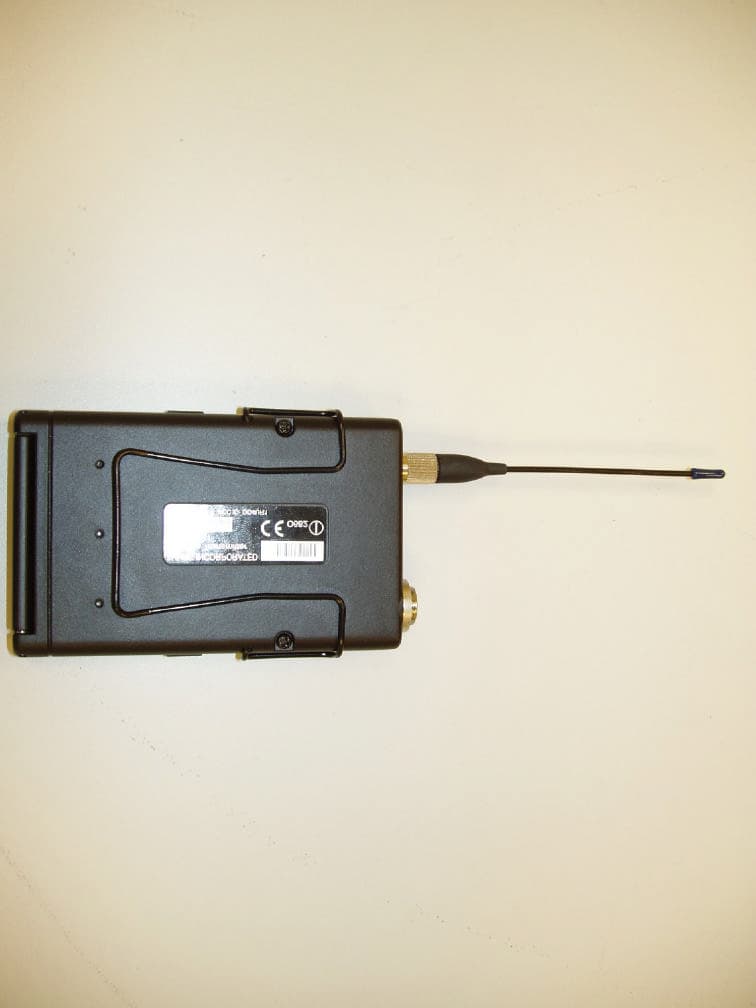

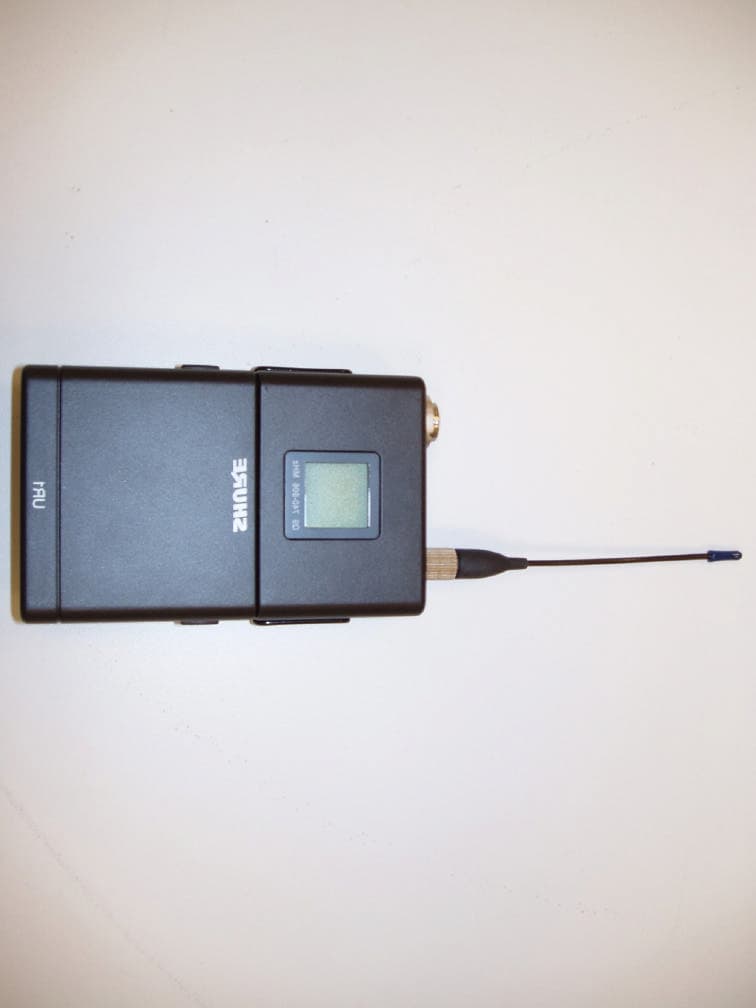

DD4UR1Wireless Transmitter Worn on Body

English Model UHF-R™ Wireless User Guide ©2004, Shure Incorporated 27XX8849A (Rev. 1) Printed in U.S.A. Contents Feature Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 System Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Receiver Controls and Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Receiver LCD Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Receiver Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Automatic Frequency Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Networking Receivers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Handheld and Bodypack Transmitter Controls and Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Transmitter LCD Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Transmitter Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Transmitter Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Setting Transmitter Gain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 RF Safety Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Automatic Transmitter Sync. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Tips for Improved Performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Replacement Parts and Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 2 Shure UHF-R Wireless Feature Overview The UHF-R™ Wireless Microphone System uses the latest wireless technology, delivers outstanding audio clarity, and is rugged and reliable. It is easy to set up and operate with advanced features for professional installations requiring multiple wireless microphone systems. Frequency Band Selection Shure offers wireless systems in a selection of bands that conform to the different government regulations of specific nations or geo- graphic regions. These regulations help limit radio frequency (RF) interference among different wireless devices and prevent interfer- ence with local public communications channels, such as television and emergency broadcasts. The system’s band and frequency range are identified on the face of the receiver and transmitter. For example, “H4 518–578 MHz.” For information on bands available in your area, consult your local dealer or phone Shure. More information is also available at Shure’s website (www.shure.com). Groups and Channels To transmit audio through a wireless system, the transmitter and receiver must be set to the same radio frequency, or channel. A wide selection of channels allows more microphones to be used at the same time, since each microphone must operate on a different chan- nel. It also provides a greater choice of open channels—those that are free from interference from television broadcasts, electronic devices, or other wireless systems. A group is a selection of compatible channels. Wireless microphones work better together when set to channels in the same group. Automatic Frequency Selection The following features scan the RF environment to find the best group and channel settings for a particular installation. •Group Scan—finds the group with the most open channels, then sets all networked receivers to channels in that group. • Channel Scan—finds the first open channel in the currently selected group and sets the receiver to that channel. Follow the steps on page 7 for instructions on using these features. Automatic Transmitter Sync This feature automatically transfers the group and channel settings from a receiver to a transmitter. You can also program other trans- mitter settings on a receiver and transfer those settings too. See page 11. Interface Lock This feature locks the receiver and transmitters so that users cannot change settings. The transmitter power switch can also be dis- abled so that the transmitter remains on if the power switch is accidently toggled during a performance. Audio Gain Structure The following settings allow you to adjust audio gain throughout the system: •Sensitivity (bodypack only). A 25 dB range of gain adjustment at the bodypack transmitter input. • Transmitter Gain. A 30dB range of audio gain adjustment within the transmitter (affects audio level at the receiver, as indicated by the Audio LEDS.) • Output Level. 32 dB of attenuation at the receiver output, plus a mute setting. • Mic/Line switch. –30 dB pad for matching audio levels at the receiver XLR output. Networking Each receiver has an RJ-45 port on the back for connecting to other receivers over an Ethernet network. Networking receivers allows you to automatically set channels f…

Text truncated - open the document above for the full version.

Microphones and Audio Electronics SHURE Incorporated 5800 Touhy Avenue Niles, IL 60714 – 4608 • USA Phone: (847) 600-2000 January 18, 2005 Elite Electronic Engineering, Inc. 1516 Centre Circle Downers Grove, Illinois 60515-1082 SUBJECT: REQUEST FOR NON-DISCLOSURE FOR FCC ID: DD4UR1 To Whom It May Concern: Pursuant to 47 CFR Section 0.459, Shure Incorporated hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application for FCC ID # DD4UR1: a. Schematic Diagrams b. Operational Description c. Block Diagram d. Parts List e. Tune Up Procedure Above materials contain trade secrets, proprietary and technical information which would customarily be guarded from competitors under 47 CFR section 0.457(d)(2). Disclosure or publication of any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. Shure Incorporated understands that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. Sincerely yours, Dillard J. Gilmore Senior Engineer, Global Compliance Shure Incorporated Phone: 847-600-2000 FAX: 847-600-1212 Web Address: www.shure.com

Microphones and Audio Electronics SHURE Incorporated 5800 Touhy Avenue Niles, IL 60714 – 4608 • USA Phone: (847) 600-2000 Elite Electronics A U T H O R I Z A T I O N Date: 01/18/2005 To: Elite Electronics, Inc. 1615 Centre Circle Downers Grove, IL 60515 From: Dillard Gilmore Phone: 847-600-8550 Senior Engineer, Global Compliance Fax: 847-600-8555 Applicant: Shure Incorporated E-Mail: [email protected] ______________________________________________________________________ Dear Ladies and/or Gentlemen: I appoint Elite Electronics, Inc., to act as agent in the approval of applications under Part 74 of the Rules and Regulations of the Federal Communications Commission for the Shure UR1 and UR2 (FCCID DD4UR1 and DD4UR2). I certify that the exhibitions properly describe the devices being submitted under this application and will implement any changes described in the test report. The labels described will be affixed to each item. Dated this 18th day of January, 2005. By: Dillard J. Gilmore Title: Senior Engineer, Global Compliance Phone: 847-600-8550 FAX: 847-600-8555 Phone: 847-600-2000 FAX: 847-600-1212 Web Address: www.shure.com

Hi Daniel - Katie H. asked me to comment. Please apply Suppl C procedures, which per your comments below seems like relevant freq. range should be 600-698. Note also Knowledge Database webpost 274856. Hope this helps. Best Regards Tim Harrington

© 2005 RF Exposure Lab, LLC 2867 Progress Place, Suite 4D • Escondido, CA 92029 • U.S.A. TEL (760) 737-3131 • FAX (760) 737-9131 http://www.rfexposurelab.com CERTIFICATE OF COMPLIANCE SAR EVALUATION Shure Incorporated Dates of Test: May 2, 2005 5800 W. Touhy Avenue Test Report Number: SAR.20050501 Niles, IL 60714 This wireless mobile and/or portable device has been shown to be compliant for localized specific absorption rate (SAR) for uncontrolled environment/general exposure limits specified in ANSI/IEEE Std. C95.1-1999 and had been tested in accordance with the measurement procedures specified in IEEE 1528-2003 and OET Bulletin 65 Supp. C (See test report). I attest to the accuracy of the data. All measurements were performed by myself or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. RF Exposure Lab, LLC certifies that no party to this application has been denied FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Jay M. Moulton Vice President FCC ID: DD4UR1 Model(s): UR1 – J5 Band & L3 Band Serial No.: Production Unit Equipment Type: UHF Transceiver Classification: Part 74 Portable Transmitter Next to Body TX Frequency Range: 578 – 698 MHz (Excluding 609-613 MHz) RX Frequency Range: 578 – 698 MHz (Excluding 609-613 MHz) Maximum RF Output: 20 dBm Conducted Signal Modulation: FM Antenna Type (Length): Flexible ½ Wave (117 mm x 2 mm) (J5 – UA820J), (L3 – UA820L3) Application Type: Certification FCC Rule Parts: Part 74 FCC ID: DD4UR1 © 2005 RF Exposure Lab, LLC Page 2 of 53 Table of Contents 1. Introduction ........................................................................................................................... 3 SAR Definition [5]...................................................................................................................... 3 2. SAR Measurement Setup ..................................................................................................... 4 Robotic System ......................................................................................................................... 4 System Hardware ..................................................................................................................... 4 System Description ................................................................................................................... 4 E-Field Probe ALS-E-020 .........................................................................................................5 3. Robot Specifications ............................................................................................................. 7 4. Phantom & Simulating Tissue Specifications........................................................................ 8 SAM Phantom ........................................................................................................................... 8 Brain & Muscle Simulating Mixture Characterization ................................................................ 8 Device Holder ........................................................................................................................... 8 5. Definition of Reference Points...............................................................................................9 Ear Reference Point.................................................................................................................. 9 Device Reference Points .......................................................................................................... 9 6. Test Configuration Positions ............................................................................................... 10 Positioning for Cheek/Touch [5] .............................................................................................. 10 Positioning for Ear / 15 ̊ Tilt [5]................................................................................................ 11 Body Worn Configurations ...................................................................................................... 12 7. ANSI/IEEE C95.1 – 1999 RF Exposure Limits [2]............................................................... 13 Uncontrolled Environment.......................................................................................................13 Controlled Environment .......................................................................................................... 13 8. Measurement Uncertainty ................................................................................................... 14 9. System Validation ............................................................................................................... 15 Tissue Verification................................................................................................................... 15 Test System Verification ......................................................................................................... 15 10. SAR Test Data Summary ................................................................................................ 16 Procedures Used To Establish Test Signal............................................................................. 16 Device Test Condition ............................................................................................................. 16 SAR Data Summary – 635 MHz Muscle (J5 Band) ................................................................ 17 SAR Data Summary – 635 MHz Muscle (L3 Band) ................................................................ 18 11. Test Equipment List ........................................................................................................19 12. Conclusion .......................................................................…

Text truncated - open the document above for the full version.

2867 Progress Place, Suite 4D • Escondido, CA 92029 • U.S.A. TEL (760) 737-3131 • FAX (760) 737-9131 http://www.rfexposurelab.com CERTIFICATE OF COMPLIANCE SAR EVALUATION Shure Incorporated Dates of Test: May 2, 2005 5800 W. Touhy Avenue Test Report Number: SAR.20050501 Niles, IL 60714 Revision 2 FCC ID: DD4UR1 Model(s): UR1 – J5 Band & L3 Band Serial No.: Production Unit Equipment Type: UHF Transceiver Classification: Part 74 Portable Transmitter Next to Body TX Frequency Range: 578 – 698 MHz (Excluding 609-613 MHz) RX Frequency Range: 578 – 698 MHz (Excluding 609-613 MHz) Maximum RF Output: 20 dBm Conducted Signal Modulation: FM Antenna Type (Length): Flexible ½ Wave (117 mm x 2 mm) (J5 – UA820J), (L3 – UA820L3) Application Type: Certification FCC Rule Parts: Part 74 This wireless mobile and/or portable device has been shown to be compliant for localized specific absorption rate (SAR) for uncontrolled environment/general exposure limits specified in ANSI/IEEE Std. C95.1-1999 and had been tested in accordance with the measurement procedures specified in IEEE 1528-2003 and OET Bulletin 65 Supp. C (See test report). I attest to the accuracy of the data. All measurements were performed by myself or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. RF Exposure Lab, LLC certifies that no party to this application has been denied FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Jay M. Moulton Vice President © 2005 RF Exposure Lab, LLC FCC ID: DD4UR1 Table of Contents 1. Introduction...........................................................................................................................3 SAR Definition [5]......................................................................................................................3 2. SAR Measurement Setup.....................................................................................................4 Robotic System.........................................................................................................................4 System Hardware.....................................................................................................................4 System Description...................................................................................................................4 E-Field Probe ALS-E-020.........................................................................................................5 3. Robot Specifications.............................................................................................................7 4. Phantom & Simulating Tissue Specifications........................................................................8 SAM Phantom...........................................................................................................................8 Brain & Muscle Simulating Mixture Characterization................................................................8 Device Holder...........................................................................................................................8 5. Definition of Reference Points...............................................................................................9 Ear Reference Point..................................................................................................................9 Device Reference Points.......................................................................................................... 9 6. Test Configuration Positions...............................................................................................10 Positioning for Cheek/Touch [5]..............................................................................................10 Positioning for Ear / 15 ̊ Tilt [5]................................................................................................11 Body Worn Configurations......................................................................................................12 7. ANSI/IEEE C95.1 – 1999 RF Exposure Limits [2]...............................................................13 Uncontrolled Environment.......................................................................................................13 Controlled Environment.......................................................................................................... 13 8. Measurement Uncertainty...................................................................................................14 9. System Validation...............................................................................................................15 Tissue Verification...................................................................................................................15 Test System Verification......................................................................................................... 15 10. SAR Test Data Summary................................................................................................16 Procedures Used To Establish Test Signal.............................................................................16 Device Test Condition............................................................................................................. 16 SAR Data Summary – 635 MHz Muscle (J5 Band)................................................................17 SAR Data Summary – 635 MHz Muscle (L3 Band)................................................................18 11. Test Equipment List........................................................................................................19 12. Conclusion......................................................................................................................20 13. References..............…

Text truncated - open the document above for the full version.

FCC ID: DD4UR1 Appendix D – Probe Calibration Data Sheets © 2005 RF Exposure Lab, LLC Page 51 of 73 NCL CALIBRATION LABORATORIES Calibration File No.: CP-399 Client.: RFEL C E R T I F I C A T E OF C A L I B R A T I O N It is certified that the equipment identified below has been calibrated in the NCL CALIBRATION LABORATORIES by qualified personnel following recognized procedures and using transfer standards traceable to NRC/NIST. Equipment: Miniature Isotropic RF Probe 2450 MHz BODY Manufacturer: APREL Laboratories Model No.: E-020 Serial No.: 217 Calibration Procedure: SSI/DRB-TP-D01-032-E020-V2 Project No: RFEB-ALSAS-10U-4087 Calibrated: 10 th June 2004 Released on: 11 th June 2004 This Calibration Certificate is Incomplete Unless Accompanied with the Calibration Results Summary Released By: ______________________________________________________ NCL CALIBRATION LABORATORIES 51 SPECTRUM WAY Division of APREL Lab. NEPEAN, ONTARIO TEL: (613) 820-4988 CANADA K2R 1E6 FAX: (613) 820-4161 NCL Calibration Laboratories Division of APREL Laboratories. Introduction This Calibration Report reproduces the results of the calibration performed in line with the SSI/DRB-TP-D01-032-E020-V2 E-Field Probe Calibration Procedure. The results contained within this report are for APREL E-Field Probe E-020 217. References SSI/DRB-TP-D01-032-E020-V2 E-Field Probe Calibration Procedure IEEE 1528 “Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Body Due to Wireless Communications Devices: Experimental Techniques” SSI-TP-011 Tissue Calibration Procedure Conditions Probe 217 was a new probe taken from stock prior to calibration. Ambient Temperature of the Laboratory: 22 qC +/- 0.5qC Temperature of the Tissue: 21 qC +/- 0.5qC Page 2 of 10Calibrated byApproved by: NCL Calibration Laboratories Division of APREL Laboratories. Calibration Results Summary Probe Type:E-Field Probe E-020 Serial Number: 217 Frequency: 2450 MHz Sensor Offset: 1.56 mm Sensor Length: 2.5 mm Tip Enclosure: Ertalyte* Tip Diameter: <5 mm Tip Length: 60 mm Total Length: 290 mm *Resistive to recommended tissue recipes per IEEE-1528 Sensitivity in Air Channel X:1.2 μV/(V/m) 2 Channel Y:1.2 μV/(V/m) 2 Channel Z:1.2 μV/(V/m) 2 Diode Compression Point: 95 mV Page 3 of 10Calibrated byApproved by: NCL Calibration Laboratories Division of APREL Laboratories. Sensitivity in Body Tissue Frequency: 2450 MHz Epsilon: 52.7 (+/-5%)Sigma:1.95 (+/-10%) ConvF Channel X: 3.6 Channel Y: 3.6 Channel Z: 3.6 Tissue sensitivity values were calculated using the load impedance of the APREL Laboratories Daq-Paq. Boundary Effect: Uncertainty resulting from the boundary effect is less than 2% for the distance between the tip of the probe and the tissue boundary, when less than 2.54mm. Spatial Resolution: The measured probe tip diameter is 5 mm (+/- 0.01 mm) and therefore meets the requirements of SSI/DRB-TP-D01-032 for spatial resolution. Page 4 of 10Calibrated byApproved by: NCL Calibration Laboratories Division of APREL Laboratories. Receiving Pattern 2450 MHz (Air) Receiving Pattern Probe s/n 217 2450MHz 0 0.2 0.4 0.6 0.8 1 1.2 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 Ch1Ch2Ch3Tot Page 5 of 10Calibrated byApproved by: NCL Calibration Laboratories Division of APREL Laboratories. Isotropy Error 2450 MHz (Air) Isotropy Error Probe s/n 217 2450MHz -10 -9 -8 -7 -6 -5 -4 -3 -2 -1 0 1 2 3 4 5 6 7 8 9 10 0100200300 Error [dB] Isotropy Plot Probe s/n 217 2450MHz 0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0100200300 Degrees (x10) Voltage (mV) Ch1Ch2Ch3 Isotropicity:0.10 dB Page 6 of 10Calibrated byApproved by: NCL Calibration Laboratories Division of APREL Laboratories. Dynamic Range Probe 217 Dynamic Range 0.01 0.1 1 10 100 1000 10000 1.0010.00100.001,000.0010,000.00100,000.001,000,000.0010,000,000.00 Electric Field [(V/m)^2] Voltage [microV] Uncompensated Compensated Page 7 of 10Calibrated byApproved by: NCL Calibration Laboratories Division of APREL Laboratories. Video Bandwidth Probe Frequency Characteristics -6 -5 -4 -3 -2 -1 0 1 110100100010000 Frequency (Hz) Video Bandwidth at 500 Hz1 dB Video Bandwidth at 1.02 KHz: 3 dB Page 8 of 10Calibrated byApproved by: NCL Calibration Laboratories Division of APREL Laboratories. Conversion Factor Uncertainty Assessment Frequency:2450MHz Epsilon: 52.7 (+/-5%)Sigma:1.95 S/m (+/-10%) ConvF Channel X: 3.6 7%(K=2) Channel Y: 3.6 7%(K=2) Channel Z: 3.6 7%(K=2) To minimize the uncertainty calculation all tissue sensitivity values were calculated using a load impedance of 5 M:. Boundary Effect: For a distance of 2.4mm the evaluated uncertainty (increase in the probe sensitivity) is less than 2%. Page 9 of 10Calibrated byApproved by: NCL Calibration Laboratories Division of APREL Laboratories. Test Equipment The test equipment used during Probe Calibration, manufacturer, model number and, current calibration status are listed and located on the main APREL server R:\NCL\Calibration Equipment\Instrument List May 2004. Page 10 of 10Calibrated byApproved by: FCC ID: DD4UR1 Appendix E – Dipole Calibration Data Sheets © 2005 RF Exposure Lab, LLC Page 62 of 73 NCLCALIBRATIONLABORATORIES CalibrationFileNo:CD-342 ProjectNumber:RFEB-ALSAS-10U-4087 CERTIFICATE OF CALIBRATION It iscertifiedthattheequipmentidentifiedbelowhasbeencalibratedinthe NCLCALIBRATIONLABORATORIESbyqualifiedpersonnelfollowingrecognized proceduresandusingtransferstandardstraceabletoNRC/NIST. RFEValidationDipole Manufacturer:APRELLaboratories Partnumber:ALS-D-2450-S-2 Frequency:2.45GHz SerialNo:RFE-278 Customer:RFE Calibrated:20February2004 Releasedon:20February2004 ~LCALIBRATIONLABORATORIES 51SPECTRUMWAY NEPEAN,ONTARIO CANADAK2R1E6 Divisionof APRELLab. TEL:(613)820-4988 FAX:(613)820-4161 NCLCalibrationLaboratories DivisionofAPRELLaboratories. CalibrationResultsSummary ThefollowingresultsrelatetheCalibratedDipoleandshouldbeusedasa quick referencefo…

Text truncated - open the document above for the full version.

Page 1 of 165 Engineering Test Report No. 34585-01 Transmitter Tests for Six (6) Wireless Microphones For : Shure Inc. Niles, IL P.O. No. : 4500082918 Date Received : January 19 2005 Dates Tested : January 19 through March 11, 2005 Test Personnel : Richard E. King, EMC Engineer Specification : FCC "Code of Federal Regulations” Title 47 Part 74 and Industry Canada RSS-123 Test Report By : Richard E. King EMC Engineer Witnessed By : Juan Casttrejon Shure Inc. Approved By : Raymond J. Klouda Registered Professional Engineer of Illinois - 44894 Elite Electronic Engineering Inc. 1516 Centre Circle Downers Grove, IL 60515 Tel : (630) 495-9770 Fax: (630) 495-9785 www.elitetest.com Engineering Test Report No. 34585-01 THIS REPORT SHALL NOT BE REPRODUCED, EXCEPT IN FULL, WITHOUT THE WRITTEN APPROVAL OF ELITE ELECTRONIC ENGINEERING INCORPORATED. Page 2 of 165 TABLE OF CONTENTS PARAGRAPH DESCRIPTION OF CONTENTS PAGE NO. 1.0 INTRODUCTION...................................................................................................................................4 1.1 DESCRIPTION OF TEST ITEM.........................................................................................................4 1.2 PURPOSE..........................................................................................................................................4 1.3 DEVIATIONS, ADDITIONS AND EXCLUSIONS.............................................................................4 1.4 APPLICABLE DOCUMENTS............................................................................................................4 1.5 SUBCONTRACTOR IDENTIFICATION...........................................................................................4 1.6 LABORATORY CONDITIONS.........................................................................................................4 2.0 TEST ITEM SETUP AND OPERATION................................................................................................5 2.1 POWER INPUT.................................................................................................................................5 2.2 GROUNDING....................................................................................................................................5 2.3 PERIPHERAL EQUIPMENT.............................................................................................................5 3.0 TEST EQUIPMENT...............................................................................................................................5 3.1 TEST EQUIPMENT LIST...................................................................................................................5 3.2 CALIBRATION TRACEABILITY.....................................................................................................5 4.0 REQUIREMENTS, PROCEDURES AND RESULTS..............................................................................5 4.1 RF POWER OUTPUT MEASUREMENTS.........................................................................................5 4.1.1 REQUIREMENTS.......................................................................................................................5 4.1.2 PROCEDURES...............................................…

Text truncated - open the document above for the full version.
