DD4UR1MCMicro Bodypack Transmitter

UR1M Micro Bodypack Transmitter Addendum 27A11964 (Rev. 1)Printed in U.S.A. ©2008 Shure Incorporated Specifications: The following specifications apply to the UR1M micro bodypack only. Features Same audio performance as UR1• Rapid two-way infrared (IR) data transmission• User-adjustable RF output level (10 mW or 50 mW)• Operates with two type of primary batteries: alkaline or • lithium Audio signal is input through a TA4F connector (UR1M) or • a LEMO connector (UR1MLEMO3) Selectable battery metering by battery type• Audio metering on UR1M transmitter that is the same as • UR4 receiver Frequency Range BandRange G1470-530 MHz H4, H4E518-578 MHz J5578-608, 614-638 MHz J5E578-638 MHz L3E, L3638-698 MHz Q5740-814 MHz Q6740-752 MHz Q9740-806 MHz R9790-865 MHz R16, R18794-806 MHz A24779-788, 797-806 MHz JBX806-810 MHz X1944-952 MHz RF Carrier Frequency Range 470-865, 944-952 MHz depending on region Working Range 150 m (500 ft.), under typical conditions 500 m (1600 ft.) line-of-sight, outdoors for a single system NOTE: Actual working range depends on RF signal absorption, reflection and interference RF Power Output 10 mW or 50 mW depending on region Power Requirements: Two 1.5V AAA alkaline, primary lithium, and NiMH batteries Current Drain: 130 mA max. at 3V (normal RF power setting) 200 mA max. at 3V (high RF power setting) Battery Life (Typical): Alkaline 5 hours (normal RF power) 3 hours (high RF power) Lithium primary 9 hours, typical NiMH 3 hours, typical Select Battery Type: Set the the micro bodypack transmitter switch to on Press enter key, then scroll using button to select battery type. Press enter key to confirm. Overall Dimensions 49 mm L x 60 mm W x 17 mm D (1.9 x 2.38 x 0.66 in.) Net Weight 62 g (2.2 oz.) without batteries Wiring TA4F Connector Microphone Element TA4F Connector TA4M Connector UR1 MIC JACK BOARD NOTE: LAVALIER MIC TIES PINS 3 AND 4 TOGETHER—GUITAR CABLE DOES NOT. Active Load Audio Ground LEMO Connector FVB.00.303XRB.00.303 UR1 LEMO BOARD Audio Ground Microphone Element UR1M UR1M Transmitter RF Output Connector: SMA Actual Impedance: 50 Ω Pin Assignments: Shell = Ground Center = Signal UR1M Transmitter Audio Input Connector:4-Pin male mini connector (TA4M) 3-Pin female mini connector (LEMO XRB.00.303) Input Configuration:Unbalanced, active Maximum Input Level:(1 kHz, 1% THD) +5 dBu (sensitivity 0 dB) +15 dBu (sensitivity –10 dB) TA4M Connector Pin Assignments: Pin 1: Ground Pin 2: +5 VDC bias Pin 3: Audio Pin 4: Tied through active load (on main board) to ground. (On instrument adapter cable, Pin 4 floats) LEMO Connector Pin Assignments: Pin 1: Ground Pin 2: +5 VDC bias Pin 3: Audio (8.2 kΩ between pin 2 and 3 internal to UR1M) REPLACEMENT PARTS AND ACCESSORIES Furnished Accessories Antenna, 470-530 MHz........................................................UA701 Antenna, 518-578 MHz........................................................UA711 Antenna, 578-638 MHz .......................................................UA721 Antenna, 638-698 MHz .......................................................UA722 Antenna, 740-865 MHz .......................................................UA731 Antenna, 944-952 MHz .......................................................UA741 Optional Accessories Bodypack Pouch (Black) ..................................................WA581B Bodypack Pouch (White) ................................................WA581W 3-Pin mini Lemo conversion kit...........................................WA335 3-Pin mini Lemo Jack for Lavalier ......................................WA336 Assembly Tool for WA336...................................................WA337 Certification UR1M: Type Accepted under FCC Parts 74 (FCC ID: DD4UR1MA, DD4UR1MB, DD4UR1MC, DD4UR1MF, DD4UR1MG). Certified by IC in Canada under RSS-123 and RSS-102 (IC: 616A-UR1MA, 616A-UR1MB, 616A-UR1MC). Meets the essential requirements of the European R&TTE Directive 99/5/EC (ETSI EN 300-422 Parts 1 & 2, EN 301 489 Parts 1 & 9) and is eligible to carry the CE marking. The “EU Declaration of Conformity” can be obtained from Shure Inc. or any of its European representatives. For contact information please visit www.shure.com LICENSING INFORMATION: Licensing: A ministerial license to operate this equipment may be required in certain areas. Consult your national authority for possible requirements. Changes or modifications not expressly approved by Shure Incorporated could void your authority to operate the equipment. Licensing of Shure wireless microphone equipment is the user’s responsibility, and licensability depends on the user’s classification and applica- tion, and on the selected frequency. Shure strongly urges the user to contact the appropriate telecommunications authority concerning proper licensing, and before choosing and ordering frequencies. Information to User This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-…

Text truncated - open the document above for the full version.

FCC ID: DD4UR1MC D.L.S. ELECTRONIC SYSTEMS, INC. 1250 Peterson Drive Wheeling, Illinois 60090 February 22, 2008 FCC Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21045-0429 Gentlemen: We are submitting for Shure, Inc., an Micro Bodypack Transmitter, Model Number UR1M L3, with a FCC ID: DD4UR1MC for certification. This unit has been tested and complies to Part 74 Subpart H. If there are any questions in regards to this application, please call D.L.S. Electronic Systems, Inc. at (847) 537 6400. Enclosed you will find a copy of our test report with the information and results of tests that is required under Part 74. Thank you for your assistance in this matter. Sincerely, Arnom C. Rowe EMC-001375-NE DLS/cp

Request for Confidentiality Date: February 22, 2008 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 RE: Certification Application FCC ID: DD4UR1MC Pursuant to 47 CFR Section 0.459 Shure, Inc. understands that requests for non disclosure and confidential treatment is being made for the following information as stated under the Code of Federal Regulations Chapter 47, Part 0.459 and behalf of APPLICANT NAME: • Block Diagram • Schematics • Technical Product Description • Parts Lists The above materials contain trade secrets, proprietary and technical information that would customarily be guarded from competitors under 47 CFR section 0.457(d)(2). Disclosure or publication of any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. Shure, Inc. understands that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. Thank you for your attention to this matter. Signatory Arnom C. Rowe EMC ENGINEER EMC-001375-NE D.L.S. Electronic Systems, Inc.

Letter of Agency Date: February 22, 2008 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: Please be advised that Shure, Inc. authorizes D.L.S. Electronic Systems, Inc. to act on our behalf, until otherwise notified, for applications submitted to American Telecommunications Certification Body, Inc. (ATCB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse ACT of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002(b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you for your attention to this matter. Signatory, Arnom C. Rowe EMC ENGINEER EMC-001375-NE D.L.S. Electronic Systems, Inc. FCC Labeling Requirements and Information Date: February 22, 2008 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 RE: FCC Labeling Requirements FCC ID: DD4UR1MC The following label information is required by the FCC Rules and Regulations for certified devices. Also attached, please find marketing information required by the FCC Rules and Regulations. Thank you for your attention to these matters. Sincerely, Arnom C. Rowe EMC ENGINEER EMC-001375-NE D.L.S. Electronic Systems, Inc. Modification Letter Date: February 22, 2008 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 RE: Certification Application FCC ID: DD4UR1MC Please be advised that the following information is a list of modifications that will be included in the production process for the above-referenced equipment. Change 1: There were no modifications made during testing. Change 2: Change 3: Change 4: Change 5: Change 6: Change 7: Change 8: Change 9 Change 10: Thank you for your attention to this matter. Signatory Arnom C. Rowe EMC ENGINEER EMC-001375-NE D.L.S. Electronic Systems, Inc. Manufacturer’s Letter Date: February 22, 2008 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 RE: Certification Application FCC ID: DD4UR1MC To Whom It May Concern: Please be advised that the manufacturer will ensure that the above-referenced model will be manufactured in accordance with the FCC Rules and Regulations. Thank you for your attention to this matter. Signatory Arnom C. Rowe EMC ENGINEER EMC-001375-NE D.L.S. Electronic Systems, Inc.

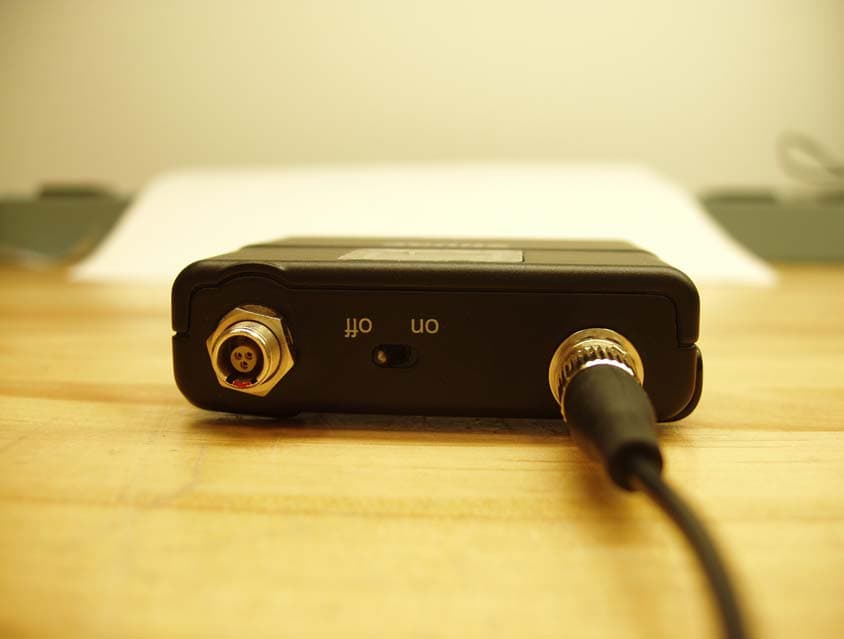

Shure UR1M (all models) External Photographs Shure UR1M Front View (all models) Shure UR1M & UR1MLEMO3 Back View Shure UR1M Left Side View (All) Shure UR1M Right Side View (All) Shure UR1M Top View with TQG Connector Shure UR1M Top View with LEMO3 Connector Shure UR1M & UR1MLEMO3 Bottom View Shure UR1M & UR1MLEMO3 Front View – Battery Door Open Shure UR1M Front View – Battery Door & Control Buttons (All)

Shure UR1M Front View (all models) Shure UR1M & UR1MLEMO3 Back View

Shure UR1M (All Models) Internal Photographs UR1M PCB Top in Case (All) UR1M PCB Top (All) UR1M PCB Top – Under LCD (All) UR1M PCB – Audio & RF PCB open (All) UR1M PCB – Audio & RF PCB open w/o Battery Holder (All) UR1M PCB Bottom (All) UR1M PCB Back – Audio & RF PCB open (All) UR1M PCB Back – Audio & RF PCB open w/o ribbon cable (All) UR1M Microphone Connector PCB (TQG) UR1M Microphone Connector PCB (LEMO3)

Shure UR1M L3 74.861e XMTR RF Exposure Statement 1. Standard Applicable According to 1.1307 (b)(1), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. This is a portable device. 2. Measurement Result: This is a portable device and the max peak output power is 17.10 dBm (51.29 mW). Lower than the low threshold 60/f GHz = (85.96 mW), d<2.5 cm general population category. The SAR measurement is not necessary.

1250 Peterson Dr., Wheeling, IL 60090 Page -1 of 71- Company: Shure Incorporated Model Tested: UR1M L3 Report Number: 13861 FCC Rules and Regulations / Intentional Radiators Low Power Auxiliary Stations Part 74, Subpart H, Sections 74.801 - 74.882 Part 74.861 (e) TV Broadcasting THE FOLLOWING MEETS THE ABOVE TEST SPECIFICATION Formal Name: Micro Bodypack Transmitter Kind of Equipment: Wireless Microphone Transmitter Test Configuration: Stand Alone (Tested at 3 vdc) Model Number(s): UR1M L3, UR1MLEMO3 L3 Model(s) Tested: UR1M L3 Serial Number(s): NA Emission Designator: 89KF3E Date of Tests: August 22, 2007 and September 7, 17, 18, 26, 28 & 29, 2007 Test Conducted For: Shure Incorporated 5800 West Touhy Avenue Niles, Illinois 60714-4608 NOTICE: “This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government”. Please see the "Additional Description of Equipment Under Test" page listed inside of this report. © Copyright 1983-2007 D.L.S. Electronic Systems, Inc COPYRIGHT NOTICE This report or any portion their of, may not be reproduced or modified in any form without the expressed written consent of D.L.S. Electronic Systems, Inc. 1250 Peterson Dr., Wheeling, IL 60090 Page -2 of 71- Company: Shure Incorporated Model Tested: UR1M L3 Report Number: 13861 SIGNATURE PAGE Report By: Arnom C. Rowe Test Engineer EMC-001375-NE Reviewed By: William Stumpf OATS Manager Approved By: Brian Mattson General Manager 1250 Peterson Dr., Wheeling, IL 60090 Page -3 of 71- Company: Shure Incorporated Model Tested: UR1M L3 Report Number: 13861 TABLE OF CONTENTS i. Cover Page ........................................................................................................................... 1 ii. Signature Page ..................................................................................................................... 2 iii. Table of Contents .................................................................................................................3 iv. NVLAP Certificate of Accreditation ................................................................................... 4 1.0 Summary of Test Report ......................................................................................................5 2.0 Introduction.......................................................................................................................... 5 3.0 Object ................................................................................................................................... 5 4.0 Test Set-Up ..........................................................................................................................6 5.0 Test Equipment .................................................................................................................... 7 6.0 Ambient Measurements ....................................................................................................... 8 7.0 AC Power Line Conducted Emission Measurements ..........................................................8 8.0 Description of Test Sample..................................................................................................9 9.0 Additional Description of Test Sample................................................................................9 10.0 Photo Information and Test Set-Up ................................................................................... 10 11.0 Radiated Photos Taken During Testing .............................................................................11 11.0 RFConducted Photos Taken During Testing .....................................................................14 12.0 Results of Tests ..................................................................................................................15 13.0 Conclusion .........................................................................................................................15 TABLE 1 – EQUIPMENT LIST ................................................................................................... 16 Appendix A – Transmitter Emission Tests ....................................................................................21 1.0 Test Set-Up ........................................................................................................................22 2.0 RF Power Output ...............................................................................................................22 2.0 Data taken of the RF Power Output ................................................................................... 23 3.0 RF Output Power Photos Taken During Testing ...............................................................30 4.0 Modulation Characteristics ................................................................................................ 31 4.0 Graph(s) taken of the Modulation Characteristics ............................................................. 32 5.0 Occupied Bandwidth..........................................................................................................36 5.0 Data and Graph(s) Taken of the 99% Occupied Bandwidth.............................................. 37 5.0 Data and Graph(s) Taken of the Emission Mask ............................................................... 41 6.0 Spurious Emissions At Antenna Terminals ....................................................................... 48 6.0 Conducted Emission Data and Charts made at the Antenna Terminals ...........................49 7.0 Field Strength of Spurious Emission Measurements ......................................................... 56 7.0 Radiated Data and Graph(s) Taken During Testing for Fundamental Emissions ............. 57 7.0 Radiated Data and Graph(s) Taken During Testing for Spurious Emissions ....................64 8.0 Frequency Stability (Temperature) ..........................................................................…

Text truncated - open the document above for the full version.

Company: Shure, Inc. Model: UR1M- L3 Photo Description: Radiated fundamental – x Company: Shure, Inc. Model: UR1M- L3 Photo Description: Radiated fundamental – y Company: Shure, Inc. Model: UR1M- L3 Photo Description: Radiated fundamental – z Company: Shure, Inc. Model: UR1M- L3 Photo Description: (FCC) Radiated spurious – x Company: Shure, Inc. Model: UR1M- L3 Photo Description: (FCC) Radiated spurious – y Company: Shure, Inc. Model: UR1M- L3 Photo Description: (FCC) Radiated spurious – z Company: Shure, Inc. Model: UR1M- L3 Photo Description: Conducted Output Power Company: Shure, Inc. Model: UR1M- L3 Photo Description: Bandwidth-Bandedge-Conducted Spurious-Mask Company: Shure, Inc. Model: UR1M- L3 Photo Description: Frequency Stability
