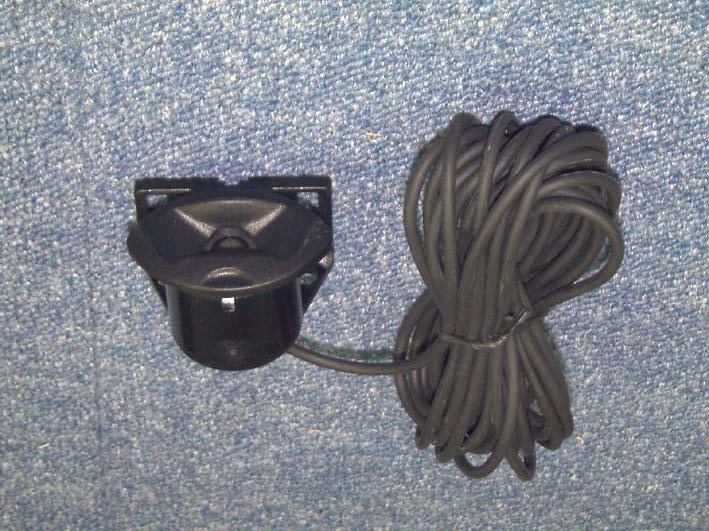

Report No.: E01.0228.FCC15C.0095.N FCC ID : DFCNSP-700 Date of Test: Feb. 28,2001 E-RAE Testing Laboratory Inc. 17 of 17 371-51, Gasan-Dong, Geumcheon-Gu, Seoul, 153-023, Korea EMC Testing Lab Tel:(02)858-0786 Fax:(02)858-0788 TeleVideo Inc. Backup View System NSP-700 Appendix C. External Photographs Front View (Transmitter) Rear View(Transmitter) Report No.: E01.0228.FCC15C.0095.N FCC ID : DFCNSP-700 Date of Test: Feb. 28,2001 E-RAE Testing Laboratory Inc. 18 of 18 371-51, Gasan-Dong, Geumcheon-Gu, Seoul, 153-023, Korea EMC Testing Lab Tel:(02)858-0786 Fax:(02)858-0788 TeleVideo Inc. Backup View System NSP-700 Rear View (Receiver) View of Sensor

Report No.: E01.0228.FCC15C.0095.N FCC ID : DFCNSP-700 Date of Test: Feb. 28,2001 E-RAE Testing Laboratory Inc. 15 of 15 371-51, Gasan-Dong, Geumcheon-Gu, Seoul, 153-023, Korea EMC Testing Lab Tel:(02)858-0786 Fax:(02)858-0788 TeleVideo Inc. Backup View System NSP-700 Appendix A. FCC ID Label and Location Product Label Sample with FCC ID Label information Label Location

Report No.: E01.0228.FCC15C.0095.N FCC ID : DFCNSP-700 Date of Test: Feb. 28,2001 E-RAE Testing Laboratory Inc. 19 of 19 371-51, Gasan-Dong, Geumcheon-Gu, Seoul, 153-023, Korea EMC Testing Lab Tel:(02)858-0786 Fax:(02)858-0788 TeleVideo Inc. Backup View System NSP-700 Appendix D. Internal Photographs Inside View of Transmitter Inside View of Receiver Report No.: E01.0228.FCC15C.0095.N FCC ID : DFCNSP-700 Date of Test: Feb. 28,2001 E-RAE Testing Laboratory Inc. 20 of 20 371-51, Gasan-Dong, Geumcheon-Gu, Seoul, 153-023, Korea EMC Testing Lab Tel:(02)858-0786 Fax:(02)858-0788 TeleVideo Inc. Backup View System NSP-700 Component Side View of Transmitter Solder side View of Transmitter Report No.: E01.0228.FCC15C.0095.N FCC ID : DFCNSP-700 Date of Test: Feb. 28,2001 E-RAE Testing Laboratory Inc. 21 of 21 371-51, Gasan-Dong, Geumcheon-Gu, Seoul, 153-023, Korea EMC Testing Lab Tel:(02)858-0786 Fax:(02)858-0788 TeleVideo Inc. Backup View System NSP-700 Component Side View of Receiver Solder side View of Transmitter Report No.: E01.0228.FCC15C.0095.N FCC ID : DFCNSP-700 Date of Test: Feb. 28,2001 E-RAE Testing Laboratory Inc. 24 of 24 371-51, Gasan-Dong, Geumcheon-Gu, Seoul, 153-023, Korea EMC Testing Lab Tel:(02)858-0786 Fax:(02)858-0788 TeleVideo Inc. Backup View System NSP-700 Inside View of Sensor

Report No.: E01.0228.FCC15C.0095.N FCC ID : DFCNSP-700 Date of Test: Feb. 28,2001 E-RAE Testing Laboratory Inc. 29 of 29 371-51, Gasan-Dong, Geumcheon-Gu, Seoul, 153-023, Korea EMC Testing Lab Tel:(02)858-0786 Fax:(02)858-0788 TeleVideo Inc. Backup View System NSP-700 Appendix G. Operational Description This device is mainly consisted of the two part as of the transmitter(control box) and receiver(display) unit. Circuit description of each part is as follows. 1. Control Box(Transmitter) 1) Pulse Output -. CNT1 : Left1 sensor input/output Pulse signal from the MPU IC(U1) pin21 is amplified by the Q1 and then transferred to the sensor through the matching trans(TH1) -. CNT2 : Left2 sensor input/output Pulse signal from the MPU IC(U1) pin22 is amplified by the Q2 and then transferred to the sensor through the matching trans(TH2) -. CNT3 : Right2 sensor input/output Pulse signal from the MPU IC(U1) pin23 is amplified by the Q3 and then transferred to the sensor through the matching trans(TH3) -. CNT4 : Right1 sensor input/output Pulse signal from the MPU IC(U1) pin24 is amplified by the Q4 and then transferred to the sensor through the matching trans(TH4) 2) Receving Signal Selection -. CNT1 : Left1 sensor input/output The signal to CNT1 is inputed to the U2 through the circuitry R3,C3,D2 in the condition of low level of the pin 9 and 10 of the Multiplexer(U2) -. CNT2 : Left2 sensor input/output The signal to CNT1 is inputed to the U2 through the circuitry R7,C4,D4 in the condition of low level of the pin 9 and high level of pin10 of the Multiplexer(U2) -. CNT3 : Right2 sensor input/output The signal to CNT3 is inputed to the U2 through the circuitry R8,C5,D6 in the condition of high level of the pin 9 and low level of the pin10 of the Multiplexer(U2) -. CNT4 : Right1 sensor input/output The signal to CNT4 is inputed to the U2 through the circuitry R9,C6,D5 in the condition of low level of the pin 9 and 10 of the Multiplexer(U2) 3) Receving signal amplify -. EQ AMP(U5-3) : The signal from the U2 pin3 is amplified at the EQ-AMP and the AMP gain is controlled by the U1. -. Bandpass Filter(U5-2) : 40 KHz frequency band is passed through this filter. -. Power AMP(U-1) : The receving signal from the bandpass filter is finally amplified in this AMP circuit. Report No.: E01.0228.FCC15C.0095.N FCC ID : DFCNSP-700 Date of Test: Feb. 28,2001 E-RAE Testing Laboratory Inc. 30 of 30 371-51, Gasan-Dong, Geumcheon-Gu, Seoul, 153-023, Korea EMC Testing Lab Tel:(02)858-0786 Fax:(02)858-0788 TeleVideo Inc. Backup View System NSP-700 -. Comparator(U-4) : The amplified signal is compared to the reference voltage and then converted into the digital signal. 4) TX Part Tx circuitry is consisted of OSC, Doubler, Drive AMP and Power AMP. -. Q12 : Overtone Oscillation circuitry consisted of the X2. -. C49 : Trimmer condenser for adjust the Tx frequency -. D14 : Varactor diode make FM modulation the signal data from the MPU(U1) -. Q13 and Q14 : AMP. Circuit. -. Q15 : power AMP. Circuit. 2. Display Unit( Receiving Part ) The receiver use the super heterrodyne circuitry and consisted of local oscillator mixer IF amp, detector and comparator. -. Overtone Osc. of 1 st local OSC. : Q7,X3 -. C22 : Trimmer of the local frequency -. Q4 : 1 ST IF frequency(21.4MHz) is made in this stage by mixing the signal from the antenna and 1 st local frequency -. U1 : FM IF AMP. -. CF1 : Bandpass filter for 2 nd IF Frequency -. X5 ; QUAD detection circuit for AF signal. 3. MCU IC Part MCU IC part is consisted of the EEPROM, SHIFT REGISTER, FND and BUZZER.

Report No.: E01.0228.FCC15C.0095.N FCC ID : DFCNSP-700 Date of Test: Feb. 28,2001 E-RAE Testing Laboratory Inc. 27 of 27 371-51, Gasan-Dong, Geumcheon-Gu, Seoul, 153-023, Korea EMC Testing Lab Tel:(02)858-0786 Fax:(02)858-0788 TeleVideo Inc. Backup View System NSP-700 Appendix F. Schematics Report No.: E01.0228.FCC15C.0095.N FCC ID : DFCNSP-700 Date of Test: Feb. 28,2001 E-RAE Testing Laboratory Inc. 28 of 28 371-51, Gasan-Dong, Geumcheon-Gu, Seoul, 153-023, Korea EMC Testing Lab Tel:(02)858-0786 Fax:(02)858-0788 TeleVideo Inc. Backup View System NSP-700

Report No.: E01.0228.FCC15C.0095.N FCC ID : DFCNSP-700 Date of Test: Feb. 28,2001 E-RAE Testing Laboratory Inc. 1 of 1 371-51, Gasan-Dong, Geumcheon-Gu, Seoul, 153-023, Korea EMC Testing Lab Tel:(02)858-0786 Fax:(02)858-0788 TeleVideo Inc. Backup View System NSP-700 Electromagnetic Emission FCC MEASUREMENT REPORT According to the FCC Rule Part 15 Subpart C Product : Backup View System Model : NSP-700 Serial Number : Prototype FCC ID : DFCNSP-700 Prepared for : TeleVideo, Inc. 2345 Harris Way San Jose, CA 95131 Prepared by: Report Date : March 06, 2001 E-RAE Testing Laboratory Inc. 371-51, Gasan-Dong, Geumcheon-Gu, Seoul, 153-023, Korea This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the E-RAE Testing Laboratory,Inc. Report No.: E01.0228.FCC15C.0095.N FCC ID : DFCNSP-700 Date of Test: Feb. 28,2001 E-RAE Testing Laboratory Inc. 2 of 2 371-51, Gasan-Dong, Geumcheon-Gu, Seoul, 153-023, Korea EMC Testing Lab Tel:(02)858-0786 Fax:(02)858-0788 TeleVideo Inc. Backup View System NSP-700 FCC Part 15, Subpart C MEASUREMENT REPORT For Product : Backup View System Model : NSP-700 Serial Number : Prototype FCC ID : DFCNSP-700 Prepared for : TeleVideo, Inc. 2345 Harris Way San Jose, CA 95131 Prepared by: E-RAE Testing Laboratory Inc. Signature Signature Tested by Yo Han, Park Reviewed by Kayoung Kim Title Test Engineer Title EMC Lab. Manager Date February 28,2001 Date March 06,2001 Report No.: E01.0228.FCC15C.0095.N FCC ID : DFCNSP-700 Date of Test: Feb. 28,2001 E-RAE Testing Laboratory Inc. 3 of 3 371-51, Gasan-Dong, Geumcheon-Gu, Seoul, 153-023, Korea EMC Testing Lab Tel:(02)858-0786 Fax:(02)858-0788 TeleVideo Inc. Backup View System NSP-700 Table of Contents Title Page Signature Page 1. Introduction 2. Product Information 3. Test Summary 4. Description of Radiated Emission Test 5. Radiated Emission Results 6. Sample Calculations 7. List of test Equipment Appendix A. FCC ID Label and Location Appendix B. Test Setup Photographs Appendix C. External Photographs Appendix D. Internal Photographs Appendix E. Block Diagram Appendix F. Schematics Appendix G. Operational Description Appendix H. Operating Manual Report No.: E01.0228.FCC15C.0095.N FCC ID : DFCNSP-700 Date of Test: Feb. 28,2001 E-RAE Testing Laboratory Inc. 4 of 4 371-51, Gasan-Dong, Geumcheon-Gu, Seoul, 153-023, Korea EMC Testing Lab Tel:(02)858-0786 Fax:(02)858-0788 TeleVideo Inc. Backup View System NSP-700 FCC MEASUREMENT REPORT Scope – Measurement and determination of electromagnetic emission(EME) of radio frequency devices including intentional radiators and/or unintentional radiators for compliance with the technical rules and regulations of the U.S Federal Communications Commission(FCC) EUT Type : Vehicle Backup View System Model Number : NSP-700 Trade Name : TeleVideo,Inc. Freq. Range : 447.700MHz – 447.725MHz Number of channel : 2 ch Channel Spacing : 25KHz FCC Rule Part(s) : FCC Part 15 Subpart B FCC Part 15 Subpart C Section15.209 FCC Procedure : Certification Dates of Tests : Feb.28 , 2001 Place of Tests : E-Rae Testing Lab. EMI Test Site 584, Sangwhal-Ri, Kanam-Myun, Yoju-Kun, Kyounggi-Do, Korea Tel : (031) 885-0072 Fax : (031) 885-0074 Test Report No. : E01.0228.FCC15C.0095.N Applicant Name : TeleVideo Inc. Address : 2345 Harris Way San Jose, CA 95131 Attention : JK Yum / Vice President &CTO Report No.: E01.0228.FCC15C.0095.N FCC ID : DFCNSP-700 Date of Test: Feb. 28,2001 E-RAE Testing Laboratory Inc. 5 of 5 371-51, Gasan-Dong, Geumcheon-Gu, Seoul, 153-023, Korea EMC Testing Lab Tel:(02)858-0786 Fax:(02)858-0788 TeleVideo Inc. Backup View System NSP-700 1. Introduction The measurement test for radiated and conductedd emission test were conducted at the open area test site of E-RAE Testing Laboratiry Inc. facility located at 584, Sangwhal-ri, Ganam-myun, Youju-kun, Kyoungki-do, Korea. The site is constructed in conformance with the requirements of the ANSI C63.4-1992 and CISPR Publication 22. Detailed description of test facility was found to be in compliance with the requirements of Section 2.948 FCC Rules according to the ANSI C63.4-1992 and registered to the Federal Communications Commission(Registration Number : 95422 ). The measurement procedure described in American National Standard for Method of Measurement of Radio-Noise Emission from Low-Voltage Electrical and Electronic Equipment in the Range of 9kHz to 40GHz (ANSI C.63.4-1992) was used in determining radiated and conducted emissions from the RF TECH CO., LTD. Model : RFN-350 Numeric Paging Receiver. ETL Site Location E-RAE Testing Laboratory Inc. 584, Sangwhal-ri, Ganam-myun, Youju-kun, Kyoungki-do, 469-880. Korea ETL has site descriptions on file with the FCC for 3 and 10 meter site configurations. Report No.: E01.0228.FCC15C.0095.N FCC ID : DFCNSP-700 Date of Test: Feb. 28,2001 E-RAE Testing Laboratory Inc. 6 of 6 371-51, Gasan-Dong, Geumcheon-Gu, Seoul, 153-023, Korea EMC Testing Lab Tel:(02)858-0786 Fax:(02)858-0788 TeleVideo Inc. Backup View System NSP-700 2. Product Information 2.1 Equipment Description The Equipment Under Test(EUT) Model : NSP-700 by the TeleVideo, Inc.is the wireless backup view system for fitment into the vehicle. The system assists the driver to be in better control when reversing. When the vehicle moves too close to an object within the detection zone, an alarm sounds, the sound increases in intensity proportional to the distance from the object, simultaneously displaying the direction and distance in metres. This allows the driver to have better control when parking in tight spaces and moving large vehicles with greatly improved safety level. 2.2 General Specification Freq. Range : 447.700 MHz ~ 447.725 MHz Channel Spacing : 25 kHz Crystal/ Oscillator(s) : Logic 76.8 kHz, RF 21.4 MHz Modulation : FM Detection : Ultrasonic Sensor(Freq. 40kHz) Antenna : Loop Power supply : DC 12V (vehicle battery) Weight : 910g Dimension( HxWxT) : Display Unit(97mm x 69mm x 27 mm) Control Bo…
