DFW-03Wireless Ambulatory Activity Monitor

actigraphcorp.com 49 E. Chase Street Pensacola, FL 32502 tel (850) 332-7900 fax (850) 332-7904 TAS14DOC07 User’s Manual Page 1 of 21 User’s Manual Document No. TAS14DOC07 Revision: A Effective Date: 6/25/2014 actigraphcorp.com 49 E. Chase Street Pensacola, FL 32502 tel (850) 332-7900 fax (850) 332-7904 TAS14DOC07 User’s Manual Page 2 of 21 Change Page About the change page table The following table describes the changes that have been made to this document since its original conception. Documents affected by the changes made need to be listed and updated in order to keep procedures up to date. This table shall be maintained as long as this document is active. Revision Description of Change/Documents Affected Effective Date A - Initial Release 6/25/14 actigraphcorp.com 49 E. Chase Street Pensacola, FL 32502 tel (850) 332-7900 fax (850) 332-7904 TAS14DOC07 User’s Manual Page 3 of 21 Document Approval Printed Name of Document Creator or Editor: ______________________________ Printed Name of Reviewing Manager: ______________________________ ☐ Approved Signature: ________________________ Date: ________________________ Printed Name of Reviewing Quality Department Representative: ________________________________ Signature: ________________________ Effective Date: _________________________ *Hard copies are to be printed, signed, and kept on file with the Quality Department. actigraphcorp.com 49 E. Chase Street Pensacola, FL 32502 tel (850) 332-7900 fax (850) 332-7904 TAS14DOC07 User’s Manual Page 4 of 21 Table of Contents Change Page .................................................................................................................................................. 2 Document Approval ...................................................................................................................................... 3 Table of Contents ...................................................................................................................................... 4 Important Information and Symbols ............................................................................................................ 6 Introduction ................................................................................................................................................ 10 Specifications and Functionality of the ActiGraph Link .............................................................................. 10 Data ......................................................................................................................................................... 10 Acceleration ........................................................................................................................................ 10 Gyroscope ........................................................................................................................................... 10 Magnetometer .................................................................................................................................... 11 Steps .................................................................................................................................................... 11 Inclinometer ........................................................................................................................................ 11 Low Frequency Extension ................................................................................................................... 12 Data Collection .................................................................................................................................... 12 Water Resistance ................................................................................................................................ 13 Wireless ................................................................................................................................................... 13 Heart Rate ........................................................................................................................................... 13 Wireless Reporting and Control .......................................................................................................... 13 Battery..................................................................................................................................................... 14 Low Voltage Mode (HALT) .................................................................................................................. 16 Recharging .......................................................................................................................................... 16 Wearing the Device ................................................................................................................................. 17 Miscellaneous Device Information ............................................................................................................. 17 Degradable Components ........................................................................................................................ 17 Other Possible Negative Effects .............................................................................................................. 17 Wear Locations ....................................................................................................................................... 17 Device Serial Number Label .................................................................................................................... 18 actigraphcorp.com 49 E. Chase Street Pensacola, FL 32502 tel (850) 332-7900 fax (850) 332-7904 TAS14DOC07 User’s Manual Page 5 of 21 Cleaning the Device ................................................................................................................................ 18 Device Storage and Life Expectancy .....................................................…

Text truncated - open the document above for the full version.

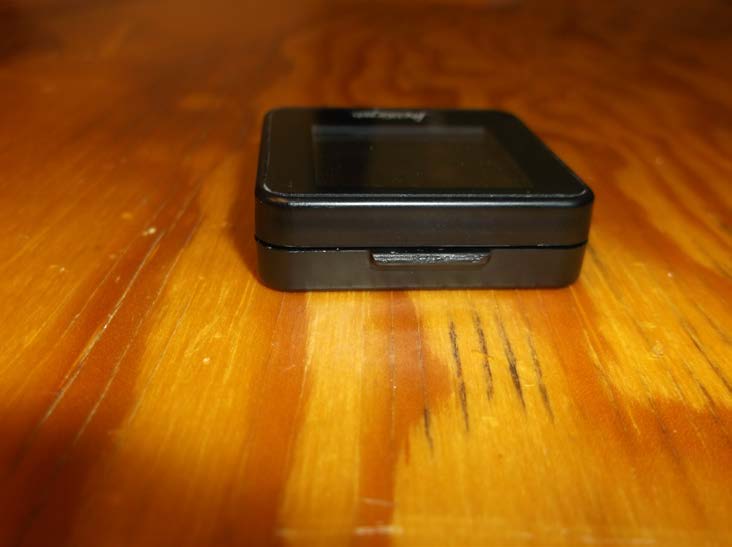

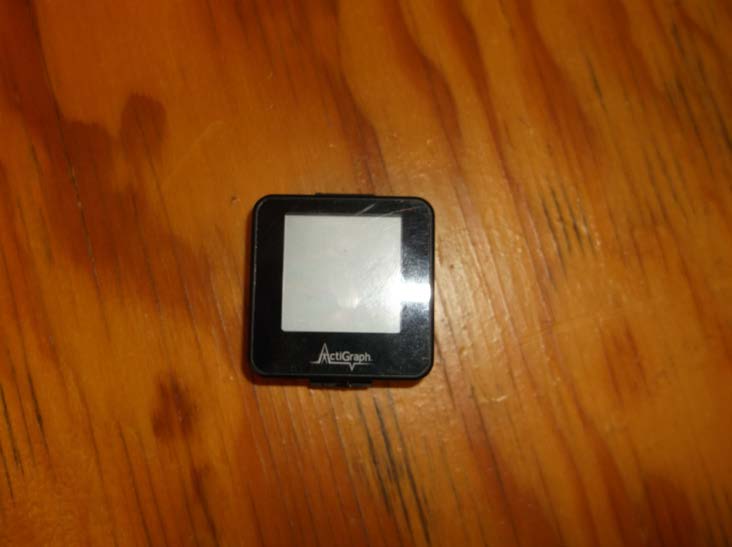

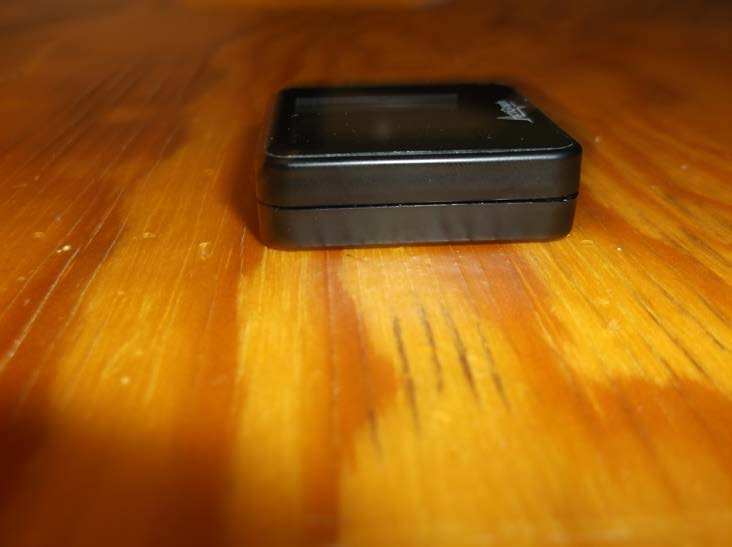

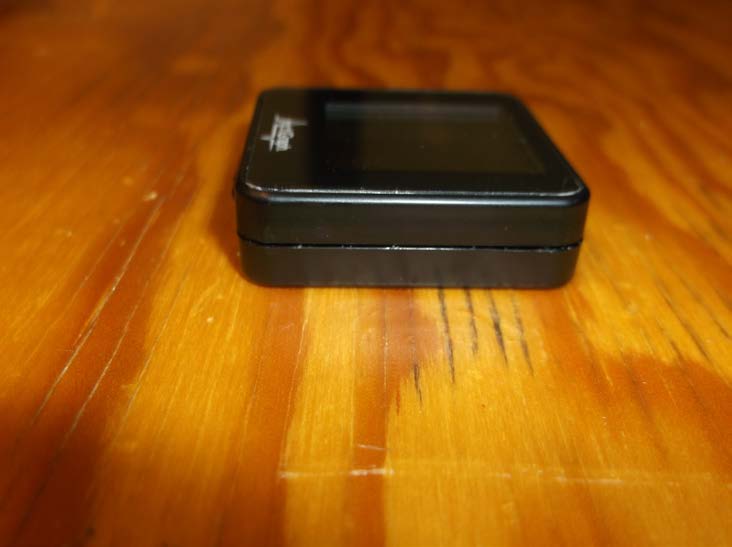

F2LQ6006A Page 1 of 3 July 24, 2014 PHOTOGRAPHS: EXTERNAL ActiGraph, LLC Model: GT9X; FCC ID: DFW-03 Order Number: F2LQ6006A Client: ActiGraph, LLC Model: GT9X F2LQ6006A Page 2 of 3 July 24, 2014 Order Number: F2LQ6006A Client: ActiGraph, LLC Model: GT9X F2LQ6006A Page 3 of 3 July 24, 2014

F2LQ6003A Page 1 of 4 July 24, 2014 PHOTOGRAPHS: INTERNAL ActiGraph, LLC Model: GT9X; FCC ID: DFW-03 Order Number: F2LQ6006A Client: ActiGraph, LLC Model: GT9X F2LQ6006A Page 2 of 4 Aug. 14, 2014 Order Number: F2LQ6006A Client: ActiGraph, LLC Model: GT9X F2LQ6006A Page 3 of 4 Aug. 14, 2014 Order Number: F2LQ6006A Client: ActiGraph, LLC Model: GT9X F2LQ6006A Page 4 of 4 Aug. 14, 2014

012413 Report Number: F2LQ6006A-06E Rev. 1 Page 1 of 7 Issue Date: Nov. 6, 2014 F2 Labs 16740 Peters Road Middlefield, Ohio 44062 United States of America www.f2labs.com CERTIFICATION TEST REPORT Manufacturer: Tabtronics 2153 Winners Circle Dayton, Ohio 45404-1176 United States of America Applicant: ActiGraph, LLC 49 East Chase Street Pensacola, Florida 32502 Product: ActiGraph Link Model: GT9X FCC ID: DFW-03 Testing Commenced: June 18, 2014 Testing Ended: June 20, 2014 Summary of Test Results: Page 4 Standards: • OET FCC Bulletin 65 • KDB447498 Evaluation Conducted by: Ken Littell, EMC Tech. Mgr. Report Reviewed by: Wendy Fuster, President F2 Labs F2 Labs 26501 Ridge Road 16740 Peters Road Damascus, MD 20872 Middlefield, OH 44062 Ph 301.253.4500 Ph 440.632.5541 Fax 301.253.5179 Fax 440.632.5542 This test report may be reproduced in full; partial reproduction only may be made with the written consent of F2 Labs. The results in this report apply only to the equipment tested. Order Number: F2LQ6006A Client: ActiGraph, LLC Model: GT9X 012413 Report Number: F2LQ6006A-06E Rev. 1 Page 2 of 7 Issue Date: Nov. 6, 2014 TABLE OF CONTENTS Section Title Page 1 ADMINISTRATIVE INFORMATION 3 2 SUMMARY OF TEST RESULTS/MODIFICATIONS 4 3 ENGINEERING STATEMENT 5 4 EUT INFORMATION AND DATA 6 5 RF EXPOSURE FOR DEVICE >20cm FROM HUMAN 7 Order Number: F2LQ6006A Client: ActiGraph, LLC Model: GT9X 012413 Report Number: F2LQ6006A-06E Rev. 1 Page 3 of 7 Issue Date: Nov. 6, 2014 1 ADMINISTRATIVE INFORMATION 1.1 Measurement Location: F2 Labs in Middlefield, Ohio. Site description and attenuation data are on file with the FCC's Sampling and Measurement Branch at the FCC Laboratory in Columbia, MD. 1.2 Measurement Procedure: All measurements were performed according to KDB558074. 1.4 Document History Document Number Description Issue Date Approved By F2LQ6006A-06E First Issue Sept. 17, 2014 W. Fuster F2LQ6006A-06E Rev. 1 Revision to manufacturer information. Nov. 6, 2014 W. Fuster Order Number: F2LQ6006A Client: ActiGraph, LLC Model: GT9X 012413 Report Number: F2LQ6006A-06E Rev. 1 Page 4 of 7 Issue Date: Nov. 6, 2014 2 SUMMARY OF TEST RESULTS Test Name Standard(s) Results RF Exposure for Device >20cm from Human OET FCC Bulletin 65 KDB447498 Complies Modifications Made to the Equipment None Order Number: F2LQ6006A Client: ActiGraph, LLC Model: GT9X 012413 Report Number: F2LQ6006A-06E Rev. 1 Page 5 of 7 Issue Date: Nov. 6, 2014 3 ENGINEERING STATEMENT This report has been prepared on behalf of ActiGraph, LLC. to provide documentation for the testing described herein. This equipment has been tested and found to comply with OET FCC Bulletin 65 and KDB447498. The test results found in this test report relate only to the items tested. Order Number: F2LQ6006A Client: ActiGraph, LLC Model: GT9X 012413 Report Number: F2LQ6006A-06E Rev. 1 Page 6 of 7 Issue Date: Nov. 6, 2014 4 EUT INFORMATION AND DATA 4.1 EUT INFORMATION AND DATA 4.1 Equipment Under Test: Product: ActiGraph Link Model: GT9X Serial No.: None assigned FCC ID: DFW-03 4.2 Trade Name: ActiGraph, LLC 4.3 Power Supply: Rechargeable Internal Battery 4.4 Applicable Rules: • OET FCC Bulletin 65 • KDB447498 4.5 Equipment Category: Radio Transmitter-DTS 4.6 Antenna: 0.5dBi Integral Chip Antenna 4.7 Accessories: USB Cable and Charger 4.8 Test Item Condition: The equipment to be tested was received in good condition. Order Number: F2LQ6006A Client: ActiGraph, LLC Model: GT9X 012413 Report Number: F2LQ6006A-06E Rev. 1 Page 7 of 7 Issue Date: Nov. 6, 2014 5. RF EXPOSURE FOR DEVICE >20cm FROM HUMAN 5.1 Limit: 1mW/cm 2 Formula used for result: E.I.R.P. 4 π R 2 Results: E.I.R.P. with .5dBi antenna: 0.100mW at the 2402 MHz Low Channel, which is the highest. .100mW =.100mW = .00001989mW/cm2 4 π R2 5026.55 SAR Exemption Statement for the .5dBi Integral Chip Antenna The minimum antenna-to-user separation distance is 5mm; however, the device is exempt from SAR testing for <20cm separation due to the low output power. The limit of 16mW in accordance with KDB 447498 is not exceeded.

091213 Report Number: F2LQ6006A-01E Rev. 1 Page 1 of 69 Issue Date: Nov. 6, 2014 F2 Labs 16740 Peters Road Middlefield, Ohio 44062 United States of America www.f2labs.com CERTIFICATION TEST REPORT Manufacturer: Tabtronics 2153 Winners Circle Dayton, Ohio 45404-1176 United States of America Applicant: ActiGraph, LLC 49 East Chase Street Pensacola, Florida 32502 Product: ActiGraph Link Model: GT9X FCC ID: DFW-03 Testing Commenced: June 18, 2014 Testing Ended: June 20, 2014 Summary of Test Results: Page 5 Standards: • FCC Part 15 Subpart C, Section 15.247 • FCC Part 15, Subpart C, Section 15.207 Order Number: F2LQ6006A Client: ActiGraph, LLC Model: GT9X 091213 Report Number: F2LQ6006A-01E Rev. 1 Page 2 of 69 Issue Date: Nov. 6, 2014 Evaluation Conducted by: Joe Knepper, EMC Proj. Eng. Ken Littell, EMC Tech. Mgr. Report Reviewed by: Wendy Fuster, President F2 Labs F2 Labs 26501 Ridge Road 16740 Peters Road Damascus, MD 20872 Middlefield, OH 44062 Ph 301.253.4500 Ph 440.632.5541 Fax 301.253.5179 Fax 440.632.5542 This test report may be reproduced in full; partial reproduction only may be made with the written consent of F2 Labs. The results in this report apply only to the equipment tested. Order Number: F2LQ6006A Client: ActiGraph, LLC Model: GT9X 091213 Report Number: F2LQ6006A-01E Rev. 1 Page 3 of 69 Issue Date: Nov. 6, 2014 TABLE OF CONTENTS Section Title Page 1 ADMINISTRATIVE INFORMATION 4 2 SUMMARY OF TEST RESULTS/MODIFICATIONS 5 3 TABLE OF MEASURED RESULTS 6 4 ENGINEERING STATEMENT 7 5 EUT INFORMATION AND DATA 8 6 LIST OF MEASUREMENT INSTRUMENTATION 9 7 FCC Part 15.247(a)(2) – -6dB Occupied Bandwidth 10 8 FCC Part 15.247(b)(3) – Conducted Output Power 14 9 FCC Part 15.247(d) – Conducted Spurious Emissions 18 10 Radiated Spurious Emission 31 11 FCC PART 15.247 – Peak Power Spectral Density (PSD) 60 12 FCC PART 15.207 – Conducted Emissions 64 13 Photos/Exhibits – Product Photos, Test Setups 67 Order Number: F2LQ6006A Client: ActiGraph, LLC Model: GT9X 091213 Report Number: F2LQ6006A-01E Rev. 1 Page 4 of 69 Issue Date: Nov. 6, 2014 1 ADMINISTRATIVE INFORMATION 1.1 Measurement Location: F2 Labs in Middlefield, Ohio. Site description and attenuation data are on file with the FCC's Sampling and Measurement Branch at the FCC Laboratory in Columbia, MD. 1.2 Measurement Procedure: All measurements were performed according to the 2009 version of ANSI C63.4 and recommended FCC procedure of measurement of DTS operating under Section 15.247 and in KDB558074. A list of the measurement equipment can be found in Section 6. 1.3 Uncertainty Budget: Radiated Emission • Combined Uncertainty (+ or -) 2.67 dB • Expanded Uncertainty (+ or -) 5.35 dB This uncertainty represents an expanded uncertainty expressed at approximately the 95% confidence level using a coverage factor of k=2. 1.4 Document History Document Number Description Issue Date Approved By F2LQ6006A-01E First Issue July 1, 2014 W. Fuster F2LQ6006A-01E Rev. 1 Revision to manufacturer information. Nov. 6, 2014 W. Fuster Order Number: F2LQ6006A Client: ActiGraph, LLC Model: GT9X 091213 Report Number: F2LQ6006A-01E Rev. 1 Page 5 of 69 Issue Date: Nov. 6, 2014 2 SUMMARY OF TEST RESULTS Test Name Standard(s) Results -6dB Occupied Bandwidth CFR 47 Part 15.247(a)(2) / KDB558074 Complies Conducted Output Power CFR 47 Part 15.247(b)(3) / KDB558074 Complies Conducted Spurious Emissions CFR 47 Part 15.247(d) / Part 15.209 / KDB558074 Complies Radiated Spurious Emission with 0.5dBi Integral Antenna CFR 47 Part 15.247(d) / Part 15.209 / KDB558074 Complies Peak Power Spectral Density CFR 47 Part 15.247(e) / KDB558074 Complies Conducted Emissions CFR 47 Part 15.207(a) Complies Note: Product was operated with fully charged internal battery. The device is placed into a charger fixture to get recharged. The charger fixture is connected to a computer via a USB cable. Conducted Emissions was performed on a laptop computer while the charger was connected and the EUT was charging. The device cannot be used while charging and the spurious emissions of the EUT were worse while it was in use; therefore, all other tests besides the Conducted Emissions were performed while the EUT was in use and not during charging. Modifications Made to the Equipment None Order Number: F2LQ6006A Client: ActiGraph, LLC Model: GT9X 091213 Report Number: F2LQ6006A-01E Rev. 1 Page 6 of 69 Issue Date: Nov. 6, 2014 3 TABLE OF MEASURED RESULTS Test High Channel 2.480GHz Mid Channel 2.440GHz Low Channel 2.402GHz Conducted Output Power 0.0804mW (-10.95dBm) 0.0801mW (-10.96dBm) 0.0891mW (-10.50dBm) Conducted Output Power Limit 1 Watt, (30dBm) 1 Watt, (30dBm) 1 Watt, (30dBm) E.I.R.P. with 0.5dBi Integral antenna 0.0902mW (-10.45dBm) 0.08995mW (-10.46dBm) 0.1000mW (-10.00dBm) E.I.R.P. Limit 4 Watts, (36.02dBm) 4 Watts, (36.02dBm) 4 Watts, (36.02dBm) Peak Power Spectral Density -22.11 dBm -21.65 dBm -21.21 dBm Peak Power Spectral Density Limit 8 dBm 8 dBm 8 dBm -6dB Occupied bandwidth 706.87 MHz 729.58 MHz 727.70 MHz -6dB Occupied Bandwidth Limit ≥ 500KHz ≥ 500KHz ≥ 500KHz Order Number: F2LQ6006A Client: ActiGraph, LLC Model: GT9X 091213 Report Number: F2LQ6006A-01E Rev. 1 Page 7 of 69 Issue Date: Nov. 6, 2014 4 ENGINEERING STATEMENT This report has been prepared on behalf of ActiGraph, LLC, to provide documentation for the testing described herein. This equipment has been tested and found to comply with Part 15.247 of the FCC Rules using ANSI C63.4 2009 and KDB558074 standards. The test results found in this test report relate only to the items tested. Order Number: F2LQ6006A Client: ActiGraph, LLC Model: GT9X 091213 Report Number: F2LQ6006A-01E Rev. 1 Page 8 of 69 Issue Date: Nov. 6, 2014 5 EUT INFORMATION AND DATA 5.1 Equipment Under Test: Product: ActiGraph Link Model: GT9X Serial No.: None assigned FCC ID: DFW-03 5.2 Trade Name: ActiGraph, LLC 5.3 Power Supply: Rechargeable Internal Battery 5.4 Applicable Rules: CFR 47, Part 15.247, subpart C 5.5 Equipment Category: Radio Transmitter-DTS 5.6 Ant…

Text truncated - open the document above for the full version.

F2LQ6006A Page 1 of 2 July 24, 2014 PHOTOGRAPHS: TEST SETUP ActiGraph, LLC Model: GT9X; FCC ID: DFW-03 Radiated Spurious Emission with 0.5dBi Integral Antenna Order Number: F2LQ6006A Client: ActiGraph, LLC Model: GT9X F2LQ6006A Page 2 of 2 July 24, 2014 Radiated Spurious Emission with 0.5dBi Integral Antenna, cont’d Conducted Output Power, Peak Power Spectral Density, -6dB Occupied Bandwidth, and Conducted Spurious Emissions
