  1. Home/
  2. Computime Limited/
  3. DI2-TDL6192

DI2-TDL6192US SMART PLUG

Computime Limited
US SMART PLUG - FCC ID DI2-TDL6192 - Computime Limited
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Oct 07, 2012
Application Purpose
Original Equipment
Date of Application
Oct 07, 2012
Equipment Note
US SMART PLUG
Frequency Range
2405.00000000 - 2480.00000000
Company
Computime Limited
Country
Hong Kong

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

US Smart Outlet Purchase Spec September 21, 2012 Doc: D10025-002 Tendril Confidential Page i US Smart Outlet Purchase Specification Revision 1.02 July 17, 2012 Document: D10025-002 Tendril Inc. 2560 55 th St Boulder, CO 80301 US Smart Outlet Purchase Spec September 21, 2012 Doc: D10025-002 Tendril Confidential Page ii This document contains information that is extremely sensitive to Tendril and its suppliers. It is an unpublished work that contains confidential and secret information that is protected under the copyright laws. The existence of the copyright notice is not to be construed as an admission of presumption that publication has occurred. Restricted Rights: Use, duplication, or disclosure by the U.S. Government are subject to restrictions as set forth in subparagraph © (1) (ii) of the Rights in Technical Data and Computer Software clause at DFARS 252.227-7013. Do not reproduce or further distribute without written consent from Tendril Corporation. Copyright © Tendril Corporation 2012. All Rights Reserved. Tendril and the Tendril logo are trademarks of Tendril Corporation, registered in the U.S.A. and other countries. Author / Editor Tim Hughes x2146 Devices Development Group Location //Filer/Groups/Engineering/Engineering Specs/US Smart Outlet Purchase Spec D10025-000.doc Revision History Document Name - Doc Number Date Summary US Smart Outlet Purchase Spec D10025-000.doc03/22/12 Initial Version US Smart Outlet Purchase Spec D10025-001.doc06/28/12 CUL / CSA added US Smart Outlet Purchase Spec D10025-002.doc07/17/12 Label Spec Updated US Smart Outlet Purchase Spec September 21, 2012 Doc: D10025-002 Tendril Confidential Page iii TABLE OF CONTENTS 1 INTRODUCTION .................................................................................................................................... 1 1.1 Executive Summary................................................................................................................... 1 1.2 About This Specification ............................................................................................................ 1 1.3 Related Documents ................................................................................................................... 1 2 PRODUCT DESCRIPTION .................................................................................................................... 2 2.1 Features..................................................................................................................................... 2 2.2 Electronic Hardware Description ............................................................................................... 2 2.2.1 Block Diagram..................................................................................................................... 3 2.3 Relay.......................................................................................................................................... 3 3 Performance Specifications ................................................................................................................ 4 3.1 Reliability ................................................................................................................................... 4 3.1.1 Reliability Testing ................................................................................................................ 4 3.2 Power......................................................................................................................................... 4 3.2.1 Power Source...................................................................................................................... 4 3.2.2 Power Consumption............................................................................................................ 4 3.2.3 Noise Rejection ................................................................................................................... 4 3.2.4 Power Cycling ..................................................................................................................... 4 3.3 Sub-metering Accuracy ............................................................................................................. 5 3.4 Radio ......................................................................................................................................... 5 3.4.1 HAN Radio Specifications ................................................................................................... 5 3.4.2 Channel Tx Power...............................................................................................................5 4 Physical Specifications........................................................................................................................ 6 4.1 Dimensions ................................................................................................................................ 6 4.2 Appearance ............................................................................................................................... 6 4.3 LEDs .......................................................................................................................................... 6 4.4 Button ........................................................................................................................................ 7 4.5 Device Labeling ......................................................................................................................... 7 4.5.1 Housing and Agency Label ................................................................................................. 7 4.5.1.1 Company and Product Name ................................................................................... 7 4.5.1.2 Tendril Logo.............................................................................................................. 7 4.5.1.3 Model Number .........................................................…

Text truncated - open the document above for the full version.

Cover Letter(s)

Federal Communications Commission Authorization and Evaluation Division Date: Sep.18,2012 Confidentiality Request regarding application for certification of FCC ID: DI2-TDL6192 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: 1.Schematic 2.Theory of Operation 3.Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, We do not want these documents to be accessible to the general public. Sincerely,

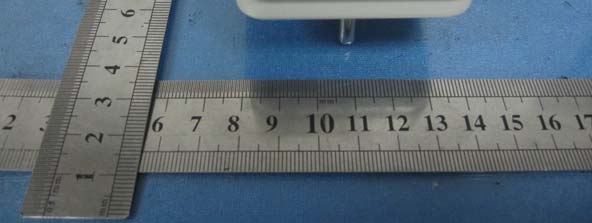

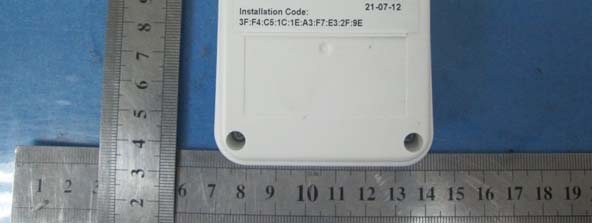

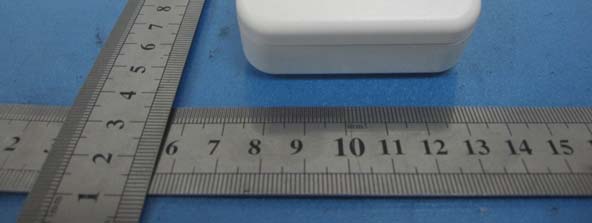

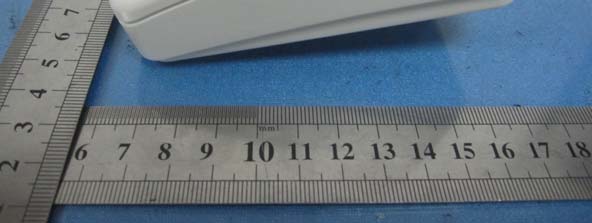

External Photos

External Photos

ID Label/Location Info

Material: Metalized Polyester with over-laminate Size: 44.5 x 21.5 mm Color: Black text with silver background REMARK: · Tendril Networks, Inc and the Tendril logo · Product model name and model number · All products except Translate use first 5 digits of the model number · Translate use first 9 digits of the model number · FCC logo and ID information · Safety agency logo and case ID information · Voltage rating information RoHS 4006284 Tendril OTL-8 ZigBee Smart Plug RF Frequency: 2.45GHz Input/Output:120V~,50/60Hz,15A Resistive,1800W Max. CONFORMS TO UL STD. 498A&916 CERTIFIED TO CSA STD.C22.2 NO.42&205 FCC ID:DI2-TDL6192 IC:1700A-TDL6192 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)this device may not cause harmful interference,and (2)this device must accept any interference received, including interference that may cause undesired operation Assembled in China by Computime Ltd. Model: TDL6192

Internal Photos

Internal Photos

RF Exposure Info

MPE TEST REPORT FCC Per 47 CFR 2.1091(b) & RSS-102 Report Reference No......................: FCC ID..............................................: IC. .....................................................: TRE1208004902 DI2-TDL6192 1700A-TDL6192 Compiled by ( position+printed name+signature)..: File administrators Eric Zhang Supervised by ( position+printed name+signature)..: Test Engineer Tim Zhang Approved by ( position+printed name+signature)..: Manager Wenliang Li Date of issue.....................................: Sep 18, 2012 Testing Laboratory Name..............: Shenzhen Huatongwei International Inspection Co., Ltd Address.............................................: Keji Nan No.12 Road, Hi-tech Park, Shenzhen, China Applicant’s name............................: Computime Ltd. Address.............................................: 9/F, Tower One, Lippo Centre, 89 Queensway, Hong Kong Test specification: Standard ...........................................: FCC Per 47 CFR 2.1091(b) TRF Originator ..................................: Shenzhen Huatongwei International Inspection CO., Ltd Master TRF.......................................: Dated 2006-06 Shenzhen Huatongwei International Inspection Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Huatongwei International Inspection Co., Ltd is acknowledged as copyright owner and source of the material. Shenzhen Huatongwei International Inspection Co., Ltd takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .................... : US SMART PLUG Trade Mark .......................................: / Model/Type reference.......................: TDL6192 Listed Models ..................................: / Result................................................: Positive Report No.: TRE1208004902 Page 2 of 8 Issued:2012-09-18 T E S T R E P O R T Test Report No. : TRE1208004902 Sep 18, 2012 ______________________________________________________________________________________________ Date of issue Equipment under Test : US SMART PLUG Model /Type : TDL6192 Listed Models : / Applicant : Computime Ltd. Address : 9/F, Tower One, Lippo Centre, 89 Queensway, Hong Kong Manufacturer Computime Ltd. Address : Computime Technology Park, DanZhuTou Cun, Buji, Longgang Region, Shenzhen, China The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: TRE1208004902 Page 3 of 8 Issued:2012-09-18 Contents 1. SUMMARY............................................................................. 4 1.1. EUT configuration 4 1.2. Power supply system utilised 4 1.3. Description of the test mode 4 1.4. NOTE 5 2. TEST ENVIRONMENT............................................................... 6 2.1. Address of the test laboratory 6 2.2. Environmental conditions 6 2.3. Statement of the measurement uncertainty 6 3. METHOD OF MEASUREMENT .................................................... 7 3.1. Applicable Standard 7 3.2. Limit 7 3.3. MPE Calculation Method 7 4. CONCLUSION ........................................................................ 8 Report No.: TRE1208004902 Page 4 of 8 Issued:2012-09-18 1. SUMMARY 1.1. EUT configuration The following peripheral devices and interface cables were connected during the measurement: ● - supplied by the manufacturer ○ - supplied by the lab ○ Power Cable Length (m) : / Shield : / Detachable : / ○ Multimeter Manufacturer : / Model No. : / 1.2. Power supply system utilised Power supply voltage : ● 120V / 60 Hz ○ 115V / 60Hz ○ 12 V DC ○ 24 V DC ○ Other (specified in blank below) 1.3. Description of the test mode The EUT has been tested under typical operating condition. The Applicant provides AT command to control the EUT for staying in continous transmitting and receiving mode for testing. There are sixteen channels of EUT, and the test carried out at the channel 11(lowest), channel 18(middle) and channel 26 (highest) channels. Channel Frequency Channel Frequency 11 2405 MHz 19 2445 MHz 12 2410 MHz 20 2450 MHz 13 2415 MHz 21 2455 MHz 14 2420 MHz 22 2460 MHz 15 2425 MHz 23 2465 MHz 16 2430 MHz 24 2470 MHz 17 2435 MHz 25 2475 MHz 18 2440 MHz 26 2480 MHz Report No.: TRE1208004902 Page 5 of 8 Issued:2012-09-18 1.4. NOTE 1. The EUT is a an IEEE 802.15 ZigBee Standard type device,The functions of the EUT listed as below: Test Standards Reference Report Zigbee FCC Part 15 Subpart C (Section15.247) TRE1208004901 Zigbee MPE report TRE1208004902 2. The frequency bands used in this EUT are listed as follows: Frequency Band(MHz) 2400-2483.5 5150-5350 5470-5725 5725-5850 Zigbee √ - - - 3. The EUT provides one completed transmitter and receiver. Modulation Mode TX Function Zigbee 1TX Report No.: TRE1208004902 Page 6 of 8 Issued:2012-09-18 2. TEST ENVIRONMENT 2.1. Address of the test laboratory Shenzhen Huatongwei International Inspection Co., Ltd Keji Nan No.12 Road, Hi-tech Park, Shenzhen, China Phone: 86-755-26715686 Fax: 86-755-26748089 The sites are constructed in conformance with the requirements of ANSI C63.7, ANSI C63.4 (2009) and CISPR Publication 22. 2.2. Environmental conditions During the measurement the environmental conditions were within the listed ranges: Temperature: 15-35 ° C Humidity: 30-60 % Atmospheric pressure: 950-1050mbar 2.3. Statement of the measurement uncertainty The data and results referenced in this document are true and accurate. The reader is cautioned that there may be errors within the calibration limits of the equipment and facilities. The measurement uncertainty was calculated for all measurements listed in this test report acc. to TR-100028-01” Electromagnetic compatibility and Radio spectrum Matters (ERM);Uncertainties in the measurement of mobile radio equipment c…

Text truncated - open the document above for the full version.

Test Report

FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 & IC TEST REPORT RSS-210 Report Reference No. .....................: FCC ID . ............................................: IC. .....................................................: TRE1208004901 DI2-TDL6192 1700D-TDL6192 Compiled by ( position+printed name+signature) .. : File administrators Eric Zhang Supervised by ( position+printed name+signature) .. : Test Engineer Tim Zhang Approved by ( position+printed name+signature) .. : Manager Wenliang Li Date of issue ..................................... : Sep 10, 2012 Testing Laboratory Name .............. : Shenzhen Huatongwei International Inspection Co., Ltd Address ............................................ : Keji Nan No.12 Road, Hi-tech Park, Shenzhen, China Applicant’s name ............................ : Computime Ltd. Address ............................................ : 9/F, Tower One, Lippo Centre, 89 Queensway, Hong Kong Test specification: Standard ........................................... : FCC Part 15.247: Operation within the bands 902-928 MHz, 2400-2483.5 MHz and 5725-5850 MHz IC RSS-210 IC RSS-Gen issue 3 TRF Originator .................................. : Shenzhen Huatongwei International Inspection CO., Ltd Master TRF ....................................... : Dated 2006-06 Shenzhen Huatongwei International Inspection Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Huatongwei International Inspection Co., Ltd is acknowledged as copyright owner and source of the material. Shenzhen Huatongwei International Inspection Co., Ltd takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : US SMART PLUG Trade Mark ....................................... : / Model/Type reference ....................... : TDL6192 Listed Models .................................. : / Result................................................ : Positive Report No.: TRE1208004901 Page 2 of 43 Issued:2012-09-10 T E S T R E P O R T Test Report No. : TRE1208004901 Sep 10, 2012 ______________________________________________________________________________________________ Date of issue Equipment under Test : US SMART PLUG Model /Type : TDL6192 Listed Models : / Applicant : Computime Ltd. Address : 9/F, Tower One, Lippo Centre, 89 Queensway, Hong Kong Manufacturer Computime Ltd. Address : Computime Technology Park, DanZhuTou Cun, Buji, Longgang Region, Shenzhen, China Test Result according to the standards on page 4: Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: TRE1208004901 Page 3 of 43 Issued:2012-09-10 Contents 1. TEST STANDARDS .................................................................. 4 2. SUMMARY ............................................................................. 5 2.1. General Remarks 5 2.2. Equipment Under Test 5 2.3. Short description of the Equipment under Test (EUT) 5 2.4. EUT operation mode 5 2.5. EUT configuration 6 2.6. Related Submittal(s) / Grant (s) 6 2.7. Modifications 6 2.8. NOTE 6 3. TEST ENVIRONMENT ............................................................... 7 3.1. Address of the test laboratory 7 3.2. Test Facility 7 3.3. Environmental conditions 8 3.4. Test Description 8 3.5. Statement of the measurement uncertainty 8 3.6. Equipments Used during the Test 9 4. TEST CONDITIONS AND RESULTS ............................................ 10 4.1. AC Power Conducted Emission 10 4.2. Radiated Emission 13 4.3. Maximum Peak Output Power 19 4.4. Power Spectral Density 21 4.5. Band Edge Compliance of RF Emission 24 4.6. Spurious RF Conducted Emission 26 4.7. 6dB & 20dB Bandwidth Measurement 28 4.8. Receiver spurious Emissions (Not For FCC Review) 30 4.9. Antenna Requirement 35 5. TEST SETUP PHOTOS OF THE EUT .......................................... 36 6. EXTERNAL AND INTERNAL PHOTOS OF THE EUT ....................... 38 Report No.: TRE1208004901 Page 4 of 43 Issued:2012-09-10 1. TEST STANDARDS The tests were performed according to following standards: FCC Rules Part 15.247 : Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz. ANSI C63.10-2009 : American National Standard for Testing Unlicensed Wireless Devices KDB558074 :DTS Meas Guidance v01 of Measurement Procedure RSS-210 Issue 8 December 2010 : Licence-exempt Radio Apparatus (All Frequency Bands): Category I Equipment RSS-Gen Issue 3 December 2010 :General Requirements and Information for the Certification of Radio Apparatus Report No.: TRE1208004901 Page 5 of 43 Issued:2012-09-10 2. SUMMARY 2.1. General Remarks Date of receipt of test sample : Aug 15, 2012 Testing commenced on : Aug 15, 2012 Testing concluded on : Sep 10, 2012 2.2. Equipment Under Test Power supply system utilised Power supply voltage : ● 120V / 60 Hz ○ 115V / 60Hz ○ 12 V DC ○ 24 V DC ○ Other (specified in blank below) 2.3. Short description of the Equipment under Test (EUT) 2.4GHz (US SMART PLUG (TDL6192)) For more details, refer to the user’s manual of the EUT. Serial number: Prototype 2.4. EUT operation mode The EUT has been tested under typical operating condition. The Applicant provides AT command to control the EUT for staying in continous transmitting and receiving mode for testing. There are sixteen channels of EUT, and the test carried out at the channel 11(lowest), channel 18(middle) and channel 26 (highest) channels. Channel Frequency Channel Frequency 11 2405 MHz 19 2445 MHz 12 2410 MHz 20 2450 MHz 13 2415 MHz 21 2455 MHz 14 2420 MHz 22 2460 MHz 15 2425 MHz 23 2465 MHz 16 2430 MHz 24 2470 MHz 17 2435 MHz 25 2475 MHz 18 2440 MHz 26 2480 MHz Report No.: TRE12…

Text truncated - open the document above for the full version.

Test Setup Photos

AC conducted emission test photo Radiated emission test photo

Contact Information

Applicant

Philip Chung(Reliability Manager)
[email protected]852 2660 0464Fax: 852 2790-3996

Test Firm

Shenzhen Huatongwei International Insp. Co., LtdMoffy Yu
[email protected]86-755-26748078Fax: 86-755-26748089

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.40 GHz - 2.48 GHz88.00 mW
Confidentiality
Long Term
Grant Notes
Power output listed is peak conducted. In order to comply with the spurious emissions requirements the conducted output power on highest channel (2480MHz) shall not exceed 0.0012W. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter except in accordance with FCC accepted multi-transmitter procedures. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.
