DIJGFZM-T5321ZigBee

Preliminary Product Specification GFZM-T532x Zigbee/RF4CE Wireless Module for 2.4 GHz IEEE 802.15.4 / ZigBee Pro Stack GFZM-T532x Data Sheet 2 of 17 Sep. 09, 2009 Proprietary Information and Specifications are Subject to Change Table of Contents Revision History............................................................................ 3 Features........................................................................................................4 Applications.................................................................................................. 5 Block Diagram................................................................................... 6 ZigBee Module P/N Definition ..................................................................... 7 General Specification................................................................................... 8 Interface ...................................................................................................... 9 Rating..........................................................................................................10 RF Characteristics ......................................................................................11 Application Circuit...................................................................................... 12 Recommended Reflow Profile..................................................... 13 Pin Assignment.......................................................................................... 14 Dimensions............................................................................................... 15 Layout guide................................................................................... 16 Contact Window........................................................................................17 GFZM-T532x Data Sheet 3 of 17 Sep. 09, 2009 Proprietary Information and Specifications are Subject to Change Revision History： ：： ： Date Reason of Change Prepare by Approve by Aug. 05, 2009 Initial Release Owen Tang Sam Jen Dec. 29, 2009 Layout Guide Revised Owen Tang Sam Jen GFZM-T532x Data Sheet 4 of 17 Sep. 09, 2009 Proprietary Information and Specifications are Subject to Change F F e e a a t t u u r r e e s s ： ：： ： ： ：： ： Suitable for home/building automation, industrial control and monitoring, low power wireless sensor networks, PC peripherals, set: top boxes and remote controls, consumer Electronic. High performance and low power consumption. Wide supply voltage range (2.0V – 3.6V). Excellent receiver sensitivity and robustness to interferers. RoHS compliant. GFZM-T532x Data Sheet 5 of 17 Sep. 09, 2009 Proprietary Information and Specifications are Subject to Change A A p p p p l l i i c c a a t t i i o o n n s s ： ：： ： ： ：： ： Low Power Wireless Sensor Networks. 2.4GHz IEEE802.15.4 systems. Home and commercial building automation. RF4CE Remote Control Systems. ZigBee system (256KB Flash). Lighting Systems. Industrial control and monitoring system. Consumer Electronics. Health Care. GFZM-T532x Data Sheet 6 of 17 Sep. 09, 2009 Proprietary Information and Specifications are Subject to Change B B l l o o c c k k D D i i a a g g r r a a m m ： ：： ： ： ：： ： DC Power Supplies TI CC2530 32.768KHz SPI Freq=2405~2475MHz UART Digital I/O 32MHz Chip Antenna Murata Connector GFZM-T532x Data Sheet 7 of 17 Sep. 09, 2009 Proprietary Information and Specifications are Subject to Change ZigBee Module P/N Definition： ：： ： G F Z M - T 5 3 2 1 - AA 0 R R=RoHS Serial number Customer code Antenna Version RoHS 1= High Power 2= Low Power Power Version S=Sensor Board D=Dongle M= Module Z= ZigBee W=Wimax F=FR4 G=GFEC Chip Number Chip Vendor Product-type Property Substrate Company 0= Without Antenna 1= Chip Antenna 2= Print Antenna 0= Coordinator 1= Router 2= End Device GFZM-T532x Data Sheet 8 of 17 Sep. 09, 2009 Proprietary Information and Specifications are Subject to Change General Specification： ：： ： Interface Description Frequency 2.405GHz~2.475GHz Modulation Type O:QPSK Transmit power (Low Power) 2.0dBm Receiver sensitivity :95dBm (Nominal) Data Rate 250Kbps Antenna Impedance 50 ohm Package Size (Low Power) 22*16*3.3 (mm) GFZM-T532x Data Sheet 9 of 17 Sep. 09, 2009 Proprietary Information and Specifications are Subject to Change Interface： ：： ： Interface Description Antenna External Antenna 50G UART Interface TX, RX, RTS, CTS SPI Interface Synchronous Serial Interface PIO Interface 19 terminals GFZM-T532x Data Sheet 10 of 17 Sep. 09, 2009 Proprietary Information and Specifications are Subject to Change Rating： ：： ： Parameter Min Max Unit Operate Ambient Temperature Range :40 +125 °C Supply Voltage +2.0 +3.6 V Storage Temperature Range :40 +125 °C GFZM-T532x Data Sheet 11 of 17 Sep. 09, 2009 Proprietary Information and Specifications are Subject to Change RF Characteristics： ：： ： Parameter Min. Typ. Max. Unit Receiver Sensitivity :97 dBm Frequency Error Tolerance :50 +50 KHz Output Power (Low Power) 2.0 dBm EVM 30 % GFZM-T532x Data Sheet 12 of 17 Sep. 09, 2009 Proprietary Information and Specifications are Subject to Change Application Circuit： ：： ： GFZM-T532x Data Sheet 13 of 17 Sep. 09, 2009 Proprietary Information and Specifications are Subject to Change Recommended Reflow Profile： ：： ： GFZM-T532x Data Sheet 14 of 17 Sep. 09, 2009 Proprietary Information and Specifications are Subject to Change Pin Assignment： ：： ： Pin No. Name Pin Type Description 1 GND GND Ground 2 GND GND Ground 3 GND GND Ground 4 P2_2 Digital I/O Port 2.2 5 P2_1 Digital I/O Port 2.1 6 P2_0 Digital I/O Port 2.0 7 P1_7 Digital I/O Port 1.7 8 P1_6 Digital I/O Port 1.6 9 P1_5 Digital I/O Port 1.5 10 P1_4 Digital I/O Port 1.4 11 P1_3 Digital I/O Port 1.3 12 P1_2 Digital I/O Port 1.2 13 P1_1 Digital I/O Port 1.1 14 P1_0 Digital I/O Port 1.0 15 GND GND Ground 16 GND GND Ground 17 RESET Digital Input Reset, Active Low 18 P0_0 Analog / Digital I/O Port 0.0 19 P0_1 Analog / Digital I/O Port 0.1 20 P0_2 Analog / Digital I/O Port 0.2 21 P0_3 Analog / D…

Text truncated - open the document above for the full version.

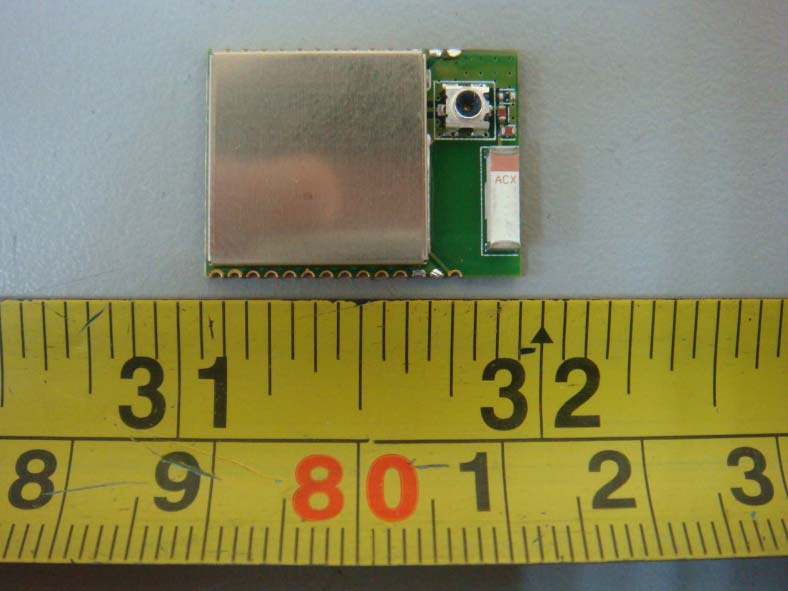

RV-0000000 Project No.: R1004002 Page 2 of 5 Neutron Engineering Inc. R1004002 R1004002

RV-0000000 Project No.: R1004002 Page 3 of 5 Neutron Engineering Inc. R1004002 R1004002 RV-0000000 Project No.: R1004002 Page 4 of 5 Neutron Engineering Inc. R1004002 R1004002 RV-0000000 Project No.: R1004002 Page 5 of 5 Neutron Engineering Inc. R1004002 R1004002

Report No.: NEI-FCCP-1-R1004002 Page 44 of 47 Neutron Engineering Inc. 9. RF EXPOSURE TEST 9.1 APPLIED PROCEDURES / LIMIT Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 9.1.1 MEASUREMENT INSTRUMENTS LIST Item Kind of Equipment Manufacturer Type No. Serial No. Calibrated until 1 Power Meter Anritsu ML2487A 6K00004714 Feb. 10, 2011 2 Power Meter Sensor Anritsu MA2491A 34138 Feb. 10, 2011 Remark: ” N/A” denotes No Model Name , Serial No. or No Calibration specified. 9.1.2 MPE CALCULATION METHOD E (V/m) ＝ d GP××30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Peak RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP × ×× From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained Report No.: NEI-FCCP-1-R1004002 Page 45 of 47 Neutron Engineering Inc. 9.1.3 DEVIATION FROM STANDARD No deviation. 9.1.4 TEST SETUP 9.1.5 EUT OPERATION CONDITIONS The EUT tested system was configured as the statements of 4.1.6 Unless otherwise a special operating condition is specified in the follows during the testing. 9.1.6 TEST RESULTS EUT： ZigBee Model No. ： GFZM-T5321 Temperature： 29°C Relative Humidity : 71% Te s t P o w e r ： AC 120V/60Hz Test Mode ： 2405MHz/2440MHz/2475MHz Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 1.30 1.3490 1.1200 1.2942 0.000347 1 PASS

Report No.: NEI-FCCP-1-R1004002 Page 1 of 47 Neutron Engineering Inc. Radio Test Report FCC ID: DIJGFZM-T5321 This report concerns (check one) : Original Grant Class I Change Issued Date : Apr. 22, 2010 Project No. : R1004002 Equipment : ZigBee Model Name : GFZM-T5321 Applicant : Galaxy Far East Corp. Address : 14F, 207-5, Sec3, Peihsin Rd., Hsintien, Taipei County 231, Taiwan, R.O.C. Tested by: Neutron Engineering Inc. EMC Laboratory Date of Receipt: Apr. 02, 2010 Date of Test: Apr. 02, 2010 ~ Apr. 14, 2010 Testing Engineer : (Rush Kao) Technical Manager : (Jeff Yang) Authorized Signatory : (Andy Chiu) Neutron Engineering Inc. B1, No. 37, Lane 365, YangGuang St., NeiHu District 114, Taipei, Taiwan. TEL: +886-2-2657-3299 FAX: +886-2-2657-3331 Report No.: NEI-FCCP-1-R1004002 Page 2 of 47 Neutron Engineering Inc. Declaration Neutron represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of R.O.C., or National Institute of Standards and Technology (NIST) of U.S.A. Neutron's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. Neutronshall have no liability for any declarations, inferences o r generalizations drawn by the client or others from Neutron issued reports. Neutron’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and Neutron-self, extracts from the test report shall not be reproduced except in full with Neutron’s authorized written approval. Neutron’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Report No.: NEI-FCCP-1-R1004002 Page 3 of 47 Neutron Engineering Inc. Table of Contents Page 1 . CERTIFICATION 5 2 . SUMMARY OF TEST RESULTS 6 2.1 TEST FACILITY 7 2.2 MEASUREMENT UNCERTAINTY 7 3 . GENERAL INFORMATION 8 3.1 GENERAL DESCRIPTION OF EUT 8 3.2 DESCRIPTION OF TEST MODES 9 3.3 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF RADIATED EMISSION TESTED 10 3.4 DESCRIPTION OF SUPPORT UNITS 11 4 . EMC EMISSION TEST 12 4.1 RADIATED EMISSION MEASUREMENT 12 4.1.1 RADIATED EMISSION LIMITS 12 4.1.2 MEASUREMENT INSTRUMENTS LIST 13 4.1.3 TEST PROCEDURE 13 4.1.4 DEVIATION FROM TEST STANDARD 13 4.1.5 TEST SETUP 14 4.1.6 EUT OPERATING CONDITIONS 14 4.1.7 TEST RESULTS-BETWEEN 30MHz – 1000MHz 15 4.1.8 TEST RESULTS-ABOVE 1000MHz 17 4.1.9 TEST RESULTS-RESTRICTED BANDS REQUIREMENTS 29 5 . BANDWIDTH TEST 33 5.1 APPLIED PROCEDURES / LIMIT 33 5.1.1 MEASUREMENT INSTRUMENTS LIST 33 5.1.2 TEST PROCEDURE 33 5.1.3 DEVIATION FROM STANDARD 33 5.1.4 TEST SETUP 33 5.1.5 EUT OPERATION CONDITIONS 33 5.1.6 TEST RESULTS 34 6 . PEAK OUTPUT POWER TEST 36 6.1 APPLIED PROCEDURES / LIMIT 36 6.1.1 MEASUREMENT INSTRUMENTS LIST 36 6.1.2 TEST PROCEDURE 36 6.1.3 DEVIATION FROM STANDARD 36 6.1.4 TEST SETUP 36 Report No.: NEI-FCCP-1-R1004002 Page 4 of 47 Neutron Engineering Inc. Table of Contents Page 6.1.5 EUT OPERATION CONDITIONS 36 6.1.6 TEST RESULTS 37 7 . ANTENNA CONDUCTED SPURIOUS EMISSION 38 7.1 APPLIED PROCEDURES / LIMIT 38 7.1.1 MEASUREMENT INSTRUMENTS LIST 38 7.1.2 TEST PROCEDURE 38 7.1.3 DEVIATION FROM STANDARD 38 7.1.4 TEST SETUP 38 7.1.5 EUT OPERATION CONDITIONS 38 7.1.6 TEST RESULTS 39 8 . POWER SPECTRAL DENSITY TEST 41 8.1 APPLIED PROCEDURES / LIMIT 41 8.1.1 MEASUREMENT INSTRUMENTS LIST 41 8.1.2 TEST PROCEDURE 41 8.1.3 DEVIATION FROM STANDARD 41 8.1.4 TEST SETUP 41 8.1.5 EUT OPERATION CONDITIONS 41 8.1.6 TEST RESULTS 42 9 . RF EXPOSURE TEST 44 9.1 APPLIED PROCEDURES / LIMIT 44 9.1.1 MEASUREMENT INSTRUMENTS LIST 44 9.1.2 MPE CALCULATION METHOD 44 9.1.3 DEVIATION FROM STANDARD 45 9.1.4 TEST SETUP 45 9.1.5 EUT OPERATION CONDITIONS 45 9.1.6 TEST RESULTS 45 10 . EUT TEST PHOTO 46 Report No.: NEI-FCCP-1-R1004002 Page 5 of 47 Neutron Engineering Inc. 1. CERTIFICATION E q u i p m e n t : ZigBee Brand Name : GFEC M o d e l N o . : GFZM-T5321 A p p l i c a n t : Galaxy Far East Corp. Date of Test : Apr. 02, 2010 ~ Apr. 14, 2010 Te s t I t e m : ENGINEERING SAMPLE Standards : FCC Part15, Subpart C(15.247) / ANCI C63.4 : 2003 The above equipment has been tested and found compliance with the requirement of the relative standards by Neutron Engineering Inc. EMC Laboratory. The test data, data evaluation, and equipment configuration contained in our test report (Ref No. NEI-FCCP-1-R1004002) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of NVLAP and TAF according to the ISO-17025 quality assessment standard and technical standard(s). Report No.: NEI-FCCP-1-R1004002 Page 6 of 47 Neutron Engineering Inc. 2. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15, Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission N/A 15.247 (c) Antenna conducted Spurious Emission PASS 15.247 (a)(2) 6dB Bandwidth PASS 15.247 (b) Peak Output Power PASS 15.247 (c) Radiated Spurious Emission PASS 15.247 (d) Power Spectral Density PASS 15.203 Antenna Requirement PASS 1.1307 1.1310 2.1091 2.1093 RF Exposure Compliance PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Report No.: NEI-FCCP-1-R1004002 Page 7 of 47 Neutron Engineering Inc. 2.1 TEST FACILITY The test facilities used to collect the test data in this report is CB08 (FCC R.N.: 95335) at the l…

Text truncated - open the document above for the full version.

Report No.: NEI-FCCP-1-R1004002 Page 46 of 47 Neutron Engineering Inc. 10. EUT TEST PHOTO Radiated Measurement Photos Report No.: NEI-FCCP-1-R1004002 Page 47 of 47 Neutron Engineering Inc. Radiated Measurement Photos
