March 16, 2022 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Ref: FCC ID: DKNHR44 Dear Examiner, Dish completed FCC Certification of our D45 model in 2021 under FCC ID: DKNRW33. This product is a composite device consisting of a 2.4GHz RF4CE radio, a 2.4GHz BT/BLE radio and a 5GHz 802.11ax client radio. The three radios operate independent of each other however we certified the whole product and not the individual radios under one FCC ID. Due to global silicon chipset shortages the original BT/BLE radio chipset vendor is unable to fulfill orders however we still desire to produce the D45 product. We have redesigned the BT/BLE radio portion of the product to accommodate a new BT/BLE radio chipset vendor which is more plentiful in commerce. The RF4CE and 802.11ax radio portions of the product and all other aspects (digital, PSU, etc.) remain wholly unchanged. The new FCC Certification submission for D45 under FCC ID: DKNHR44 is utilizing the data previously obtained for the RF4CE and 802.11ax radios under FCC ID: DKNRW33 and new data taken for the redesigned BT/BLE radio. We attest that the BT/BLE radio is the only change to D45 and that the RF4CE and 802.11ax radios operation, design, layout, signaling, firmware, etc. have not changed for this version of the product in any way. The previous data, reports, and operating parameters remain unchanged for FCC ID: DKNHR44. If you have any questions regarding this application, please feel free to contact me. Sincerely, Ian Schroeder Regulatory Compliance Engineer Dish Technologies L.L.C.

Date: 3-15-22 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern: I, the undersigned, hereby authorize UL Verification Services Inc. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL Verification Services Inc. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing UL Verification Services Inc. as our representative, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours Ian Schroeder Regulatory Compliance Engineer Dish Technologies LLC

Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: DKNHR44 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinite ly. Schematic Diagram Block Diagram Theory of Operation (including antenna description) SW Security Description Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments for a period of 180 days. External Photos Internal Photos Test Setup Photos User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Ian Schroeder Regulatory Compliance Engineer Dish Technologies LLC 3-15-22

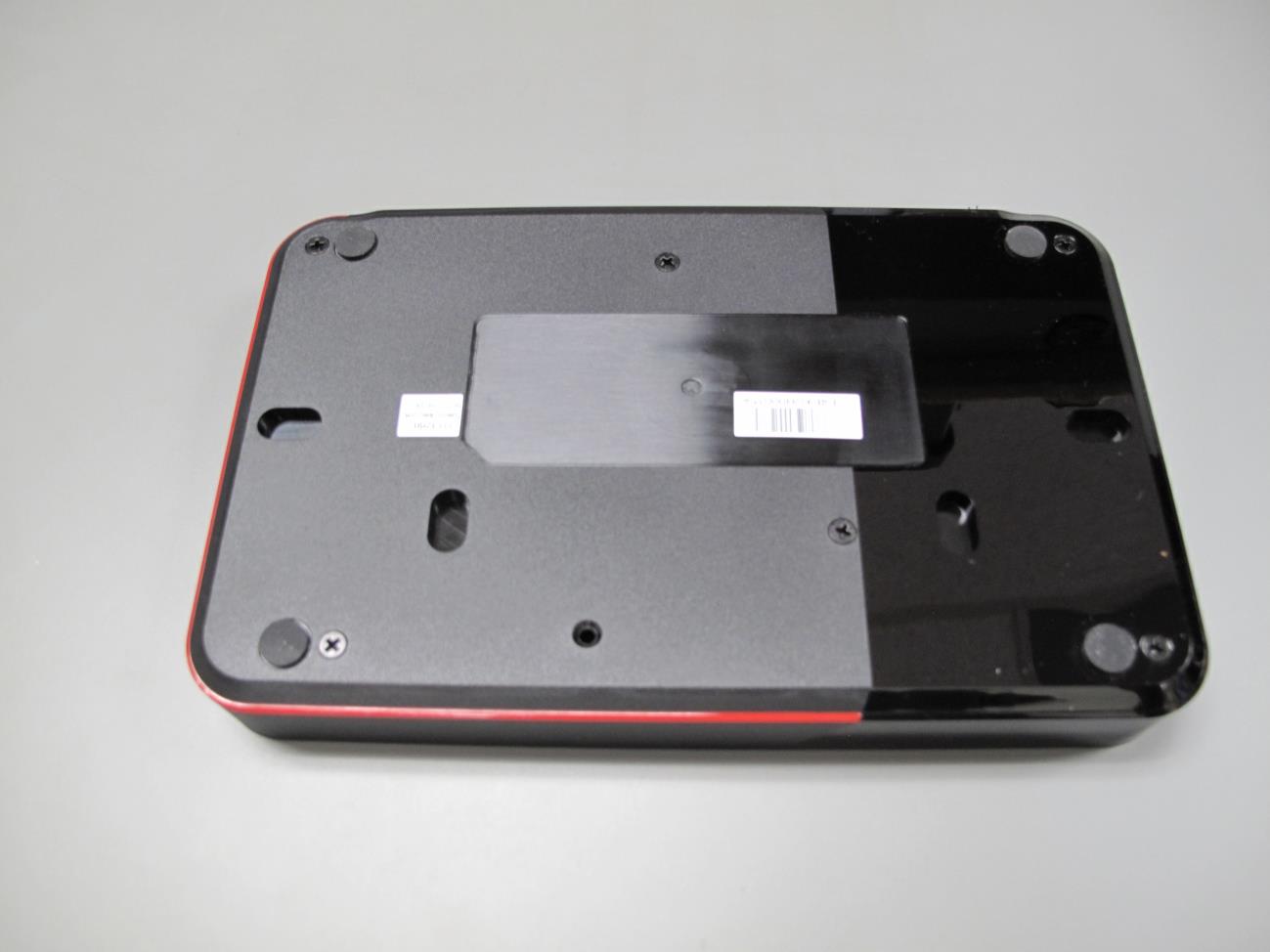

Product bottom surface FCC LABEL FCC ID: DKNHR44

TEST REPORT Report Number. : 14160419-E8V1 Applicant : DISH TECHNOLOGIES LLC 90 INVERNESS CIRCLE EAST ENGLEWOOD, CO 80112, UNITED STATES Model : D45 Brand : DISH FCC ID : DKNHR44 EUT Description : TV SET TOP BOX Test Standard(s) : FCC 47 CFR PART 1 SUBPART I FCC 47 CFR PART 2 SUBPART J Date Of Issue: March 17, 2022 Prepared by: UL Verification Services Inc. 47173 Benicia Street Fremont, CA 94538, U.S.A. TEL: (510) 319-4000 FAX: (510) 661-0888 REPORT NO: 14160419-E8V1 DATE: 3/17/2022 FCC ID: DKNHR44 Page 2 of 9 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 319-4000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of . UL Verification Services Inc. Revision History Rev. Issue Date Revisions Revised By V1 3/17/2022 Initial Issue --- REPORT NO: 14160419-E8V1 DATE: 3/17/2022 FCC ID: DKNHR44 Page 3 of 9 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 319-4000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of . UL Verification Services Inc. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ................................................................................. 4 2. TEST METHODOLOGY ..................................................................................................... 5 3. REFERENCES ................................................................................................................... 5 4. FACILITIES AND ACCREDITATION ................................................................................. 5 5. MAXIMUM PERMISSIBLE EXPOSURE (LIMITS AND EQUATIONS) ............................... 6 5.1. FCC RULES ................................................................................................................ 6 5.2. EQUATIONS ................................................................................................................ 7 6. RF EXPOSURE RESULTS ................................................................................................. 9 REPORT NO: 14160419-E8V1 DATE: 3/17/2022 FCC ID: DKNHR44 Page 4 of 9 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 319-4000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of . UL Verification Services Inc. 1. ATTESTATION OF TEST RESULTS COMPANY NAME: DISH TECHNOLOGIES LLC 90 INVERNESS CIRCLE EAST ENGLEWOOD, CO 80112, UNITED STATES EUT DESCRIPTION: TV SET TOP BOX MODEL: D45 BRAND: DISH APPLICABLE STANDARDS STANDARD TEST RESULTS FCC PART 1 SUBPART I & PART 2 SUBPART J Complies UL Verification Services Inc. tested the above equipment in accordance with the requirements set forth in the above standards. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. All samples tested were in good operating condition throughout the entire test program. Measurement Uncertainties are published for informational purposes only and were not taken into account unless noted otherwise. This document may not be altered or revised in any way unless done so by UL Verification Services Inc. and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by UL Verification Services Inc. will constitute fraud and shall nullify the document. This report must not be used by the client to claim product certification, approval, or endorsement by A2LA, NIST, any agency of the Federal Government, or any agency of the U.S. government. Approved & Released For UL Verification Services Inc. By: Prepared By: Francisco de Anda Tina Chu Staff Engineer Senior Project Engineer UL Verification Services Inc. UL Verification Services Inc. REPORT NO: 14160419-E8V1 DATE: 3/17/2022 FCC ID: DKNHR44 Page 5 of 9 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 319-4000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of . UL Verification Services Inc. 2. TEST METHODOLOGY All calculations were made in accordance with FCC Parts 1.1310, 2.1091, 2.1093, KDB 447498 D01 v06, KDB 447498 D03 V01, IEEE Std C95.1-2005, IEEE Std C95.3-2002. 3. REFERENCES This report contains data provided by the customer which can impact the validity of results. UL Verification Services Inc. is only responsible for the validity of results after the integration of the data provided by the customer. All measurements were made as documented in test reports; UL Verification Services Inc. Document 14160419-E5 for BLE operation in the 2.4 GHz band, UL Verification Services Inc. Document 14160419-E6 for BT operation in the 2.4 GHz band, UL Verification Services Inc. Document 13619076-E3 for Zigbee operation in the 2.4 GHz, UL Verification Services Inc. Document 13619076-E4 and 13619076-E5 for Wlan operation in the UNII 5 GHz. Duty cycle data is excerpted from the applicable test reports. Manufacturer maximum declared output power and antenna gain data are provided by the customer. 4. FACILITIES AND ACCREDITATION UL Verification Services Inc. is accredited by A2LA, Certificate Number 0751.05, for all testing performed within the scope of this report. Testing was performed at the locations noted below. Address ISED CABID ISED Company Number FCC Registration ☐ Building 1: 47173 Benicia Street, Fremont, CA 94538 US0104 2324A 550739 ☐ Building 2: 47266 Benicia Street, Fremont, CA 94538 US0104 22541 550739 ☐ Building 4: 47658 Kato…

Text truncated - open the document above for the full version.

TEST REPORT Report Number. : 14160419-E6V2 Applicant : DISH TECHNOLOGIES LLC 90 INVERNESS CIRCLE EAST ENGLEWOOD, CO 80112, UNITED STATES Model : D45 Brand : DISH FCC ID : DKNHR44 EUT Description : TV SET TOP BOX Test Standard(s) : FCC 47 CFR PART 15 SUBPART C Date Of Issue: March 22, 2022 Prepared by: UL VERIFICATION SERVICES 47173 Benicia Street Fremont, CA 94538 U.S.A. TEL: (510) 319-4000 FAX: (510) 661-0888 REPORT NO: 14160419-E6V2 DATE: 3/22/2022 FCC ID: DKNHR44 Page 2 of 73 UL VERIFICATION SERVICES 47173 Benicia Street, Fremont, CA 94538; USA TEL:(510) 319-4000 FAX:(510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL VERIFICATION SERVICES REPORT REVISION HISTORY Rev. Issue Date Revisions Revised By V1 3/17/2022 Initial Issue --- V2 3/22/2022 Updated Section 6.6 radiated setup description table Tina Chu REPORT NO: 14160419-E6V2 DATE: 3/22/2022 FCC ID: DKNHR44 Page 3 of 73 UL VERIFICATION SERVICES 47173 Benicia Street, Fremont, CA 94538; USA TEL:(510) 319-4000 FAX:(510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL VERIFICATION SERVICES TABLE OF CONTENTS REPORT REVISION HISTORY ................................................................................................. 2 TABLE OF CONTENTS ............................................................................................................ 3 1. ATTESTATION OF TEST RESULTS ................................................................................. 5 2. TEST RESULTS SUMMARY .............................................................................................. 7 3. TEST METHODOLOGY ..................................................................................................... 7 4. FACILITIES AND ACCREDITATION ................................................................................. 7 5. DECISION RULES AND MEASUREMENT UNCERTAINTY .............................................. 8 5.1. METROLOGICAL TRACEABILITY .............................................................................. 8 5.2. DECISION RULES ....................................................................................................... 8 5.3. MEASUREMENT UNCERTAINTY ............................................................................... 8 5.4. SAMPLE CALCULATION ............................................................................................ 8 6. EQUIPMENT UNDER TEST ............................................................................................... 9 6.1. EUT DESCRIPTION .................................................................................................... 9 6.2. MAXIMUM OUTPUT POWER...................................................................................... 9 6.3. DESCRIPTION OF AVAILABLE ANTENNAS .............................................................. 9 6.4. SOFTWARE AND FIRMWARE .................................................................................... 9 6.5. WORST-CASE CONFIGURATION AND MODE .........................................................10 6.6. DESCRIPTION OF TEST SETUP ...............................................................................11 7. TEST AND MEASUREMENT EQUIPMENT ......................................................................14 8. MEASUREMENT METHODS ............................................................................................15 9. ANTENNA PORT TEST RESULTS ...................................................................................16 9.1. ON TIME AND DUTY CYCLE .....................................................................................16 9.2. 20 dB BANDWIDTH ....................................................................................................17 9.2.1. BLUETOOTH BASIC DATA RATE GFSK MODULATION ...................................18 9.2.2. BLUETOOTH ENHANCED DATA RATE 8PSK MODULATION ...........................19 9.3. HOPPING FREQUENCY SEPARATION ....................................................................20 9.3.1. BLUETOOTH BASIC DATA RATE GFSK MODULATION ...................................21 9.3.2. BLUETOOTH ENHANCED DATA RATE 8PSK MODULATION ...........................22 9.4. NUMBER OF HOPPING CHANNELS .........................................................................23 9.4.1. BLUETOOTH BASIC DATA RATE GFSK MODULATION ...................................24 9.4.2. BLUETOOTH ENHANCED DATA RATE 8PSK MODULATION ...........................26 9.5. AVERAGE TIME OF OCCUPANCY............................................................................28 REPORT NO: 14160419-E6V2 DATE: 3/22/2022 FCC ID: DKNHR44 Page 4 of 73 UL VERIFICATION SERVICES 47173 Benicia Street, Fremont, CA 94538; USA TEL:(510) 319-4000 FAX:(510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL VERIFICATION SERVICES 9.5.1. BLUETOOTH BASIC DATA RATE GFSK MODULATION ...................................29 9.5.2. BLUETOOTH ENHANCED DATA RATE 8PSK MODULATION ...........................31 9.6. OUTPUT POWER.......................................................................................................33 9.6.1. BLUETOOTH BASIC DATA RATE GFSK MODULATION ...................................34 9.6.2. BLUETOOTH ENHANCED DATA RATE DQPSK MODULATION .......................34 9.6.3. BLUETOOTH ENHANCED DATA RATE 8PSK MODULATION ...........................34 9.7. AVERAGE POWER ....................................................................................................35 9.7.1. BLUETOOTH BASIC DATA RATE GFSK MODULATION ...................................36 9.7.2. BLUETOOTH ENHANCED DATA RATE DQPSK MODULATION .......................36 9.7.3. BLUETOOTH ENHANCED DATA RATE 8PSK MODULATION ...........................36 9.8. CONDUCTED SPURIOUS EMISSIONS .....................................................................37 9.8.1. BLUETOOTH BASIC DATA RATE …

Text truncated - open the document above for the full version.

REPORT NO: 14160419-E6V2 DATE: 3/22/2022 FCC ID: DKNHR44 Page 72 of 73 UL VERIFICATION SERVICES 47173 Benicia Street, Fremont, CA 94538; USA TEL:(510) 319-4000 FAX:(510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL VERIFICATION SERVICES 12. SETUP PHOTOS ANTENNA PORT AND AC LINE CONDUCTED SETUP RF ANTENNA PORT CONDUCTED AC LINE CONDUCTED (FRONT) AC LINE CONDUCTED (BACK) REPORT NO: 14160419-E6V2 DATE: 3/22/2022 FCC ID: DKNHR44 Page 73 of 73 UL VERIFICATION SERVICES 47173 Benicia Street, Fremont, CA 94538; USA TEL:(510) 319-4000 FAX:(510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL VERIFICATION SERVICES RADIATED RF MEASUREMENT SETUP BELOW 30MHz (FRONT) BELOW 30Hz (BACK) BELOW 1GHz (FRONT) BELOW 1GHz (BACK) ABOVE 1GHz (FRONT) ABOVE 1GHz (BACK) END OF TEST REPORT
