DNHXC-001-XTField Disturbance Sensor

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 December 29, 2004 RE: FCC ID: DNHXC-001-XT_ATCB002040 Attention: Yukari Ito I have a few comments on this Application. Please note that further comments may arise in response to answers provided to the questions below. 1. Please note that the report (page 4) says 38.7dB peak and 87.4dB average. These numbers do not agree with the table limits in 15.245. Please recalculate and correct as necessary. 2. Please explain where you got the limit of 107dBuV/m for the 5262.500MHz spurious emissions listed on pages 12 and 13 of the report. This does not calculate to any of the specified values in the table or paragraphs in 15.245. Please explain and/or correct as necessary. 3. Please note that on pages 14 and 15 of the report you state the limit are 97.5dBuV/m and 77.5dBuV/m. However please note that 25mv is 87.9dBuV/m not 77.5dBuV/m. Thus the peak limit would be 107.9dBuV/m and the average would be 87.9dBuV/m Please explain your calculations for the frequencies in the emissions tables and please correct as necessary. 4. Please review your calculations for limits in the report and explain and/or correct as necessary. Dennis Ward mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

Date: January 5, 2005 RE: ALEPH INTERNATIONAL CORPORATION FCC ID: DNHXC-001-XT Dear Mr. Dennis Ward, Regarding the above referenced application, please find our reply to your comments dated December 29, 2004: 1) The numbers on page 4 of test report are not the test data of peak and average, but margins to the limits. [15.242 Average limit 127.9dBuV/m (2500mV/m), 15.35(b) Peak limit 147.9dBuV/m] Please see page 14 and 15 for the actual test data. 2) The limit on page 12 and 13 of test report was not correct. We will modify it to 50dBc based on 15.245 (3), or 15.209. 3) Tested frequency, 21044MHz (Second harmonics) falls under “harmonic emission in the restricted bands above 17.7GHz” specified in 15.245(b)(1), and therefore we apply average limit: 77.5dBuV/m (7.5mV/m) in 15.245(b)(1)(ii) and peak limit: 97.5dBuV/m in 15.35(b). If there are any problems with the above reply, please let us know. Best regards, Yukari Ito (Ms.) UL Apex Co., Ltd.

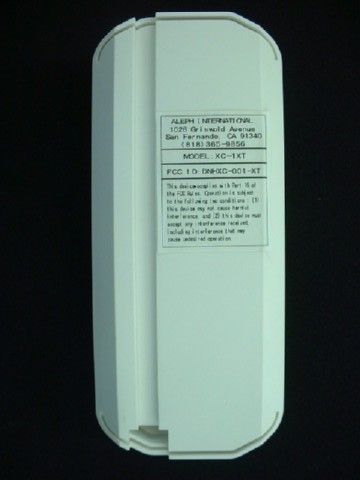

Aleph International Corporation FCC ID: DNHXC-001-XT External Photo Front View Aleph International Corporation FCC ID: DNHXC-001-XT Rear View

Aleph International Corporation FCC ID: DNHXC-001-XT Internal Photo Side A Aleph International Corporation FCC ID: DNHXC-001-XT Side B Aleph International Corporation FCC ID: DNHXC-001-XT

Test report No. : 25DE0238-HO Page : 2 of 23 Issued date : December 15, 2004 FCC ID : DNHXC-001-XT Revised date : January 7, 2005 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) CONTENTS PAGE SECTION 1: Client information...............................................................................................3 SECTION 2: Equipment under test (E.U.T.) ..........................................................................3 SECTION 3: Test specification, procedures & results ...........................................................4 SECTION 4: Operation of E.U.T. during testing....................................................................6 SECTION 5: Radiated emission (Fundamental and Spurious Emission) ............................7 APPENDIX 1: Photographs of test setup.................................................................................8 Radiated emission ...................................................................................................................8 Worst Case Position (Horizontal : X-axis/ Vertical: Y-axis) ..............................................9 APPENDIX 2:Test Instruments...............................................................................................10 APPENDIX 3: Data of EMI test ..............................................................................................11 Radiated Emission (Fundamental and Spurious Emission) .............................................11 -20dB Bandwidth ..................................................................................................................22 99% Occupied Bandwidth ...................................................................................................23 Test report No. : 25DE0238-HO Page : 3 of 23 Issued date : December 15, 2004 FCC ID : DNHXC-001-XT Revised date : January 7, 2005 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) SECTION 1: Client information Company Name : NIPPON ALEPH CORP. Address : 1-28-52 Komaoka, Turumi-ku, Yokohama-shi, Kanagawa-ken, 230-0071, Japan Telephone Number : +81-45-575-1197 Facsimile Number : +81-45-580-1679 Contact Person : Junichi Takada SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Outdoor Dual Technology Detector Model No. : XC-1XT Serial No. : 1 Rating : DC12V ( DC 9.5V to 16V ) Country of Manufacture : Japan Receipt Date of Sample : December 6, 2004 Condition of EUT : Production model 2.2 Product Description Model No: XC-1XT is the Outdoor Dual Technology Detector. The clock frequency of EUT is 4MHz (CPU). Equipment Type : Transmitter Frequency operation : 10.525GHz Type of modulation : Pulse Modulation Mode of operation : Simplex Antenna Type : Patch Antenna Antenna Gain : 13dBi Operating Voltage (Inner) : DC 5.0V +/-0.2V Temperature of operation : -30 deg.C. to 55 deg.C. FCC 15.31 (e) This EUT provides stable voltage(Inner DC5.0V) constantly to RF Module regardless of input voltage. Therefore, this EUT complies with the requirement. FCC Part 15.203 Antenna requirement It is impossible for end users to replace the antenna, because the antenna is mounted inside of the EUT. Therefore, the equipment complies with the antenna requirement of Section 15.203. Test report No. : 25DE0238-HO Page : 4 of 23 Issued date : December 15, 2004 FCC ID : DNHXC-001-XT Revised date : January 7, 2005 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) SECTION 3: Test specification, procedures & results 3.1 Test Specification Test Specification : FCC Part 15 Subpart C 2004 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.245 Operation within the bands 902 – 928MHz, 2435 – 2465MHz, 5785 – 5815MHz, 10500 – 10550MHz, and 24075 – 24175MHz. Remarks: The full port test filled all available ports was performed at the FCC part 15B. (Verification) 3.2 Procedures and results No. Item Test Procedure Specification Deviation Worst margin *0)Results 1 Electric Field Strength of Fundamental Emission ANSI C63.4:2003 13. Measurement of intentional radiators Section 15.245(b) N/A 38.7dB (PK) 87.4dB (AV) 10522.290MHz Horizontal Complied 3 Electric Field Strength of Spurious Emission ANSI C63.4:2003 13. Measurement of intentional radiators Section 15.205 Section 15.209 Section 15.245(b) N/A 7.1dB (PK) 31564.62MHz Vertical 20.0dB (AV) 42087.33MHz Vertical Complied 4 -20dB Bandwidth ANSI C63.4:2003 13. Measurement of intentional radiators Section 15.215(c) N/A - Complied *Note: UL Apex’s EMI Work Procedure QPM05. *0) The result is rounded off to the second decimal place. Therefore, there may be 0.1 difference for the result. 3.3 Addition to standards No. Item Test Procedure Specification Remarks Deviation Worst margin Results 1 99 ％ Occupied Band Width RSS210(issue 5): 2001 + Amendment:2002 + Amendment2:2003 + Amendment3:2004 RSS210(issue 5): 2001 + Amendment:2002 + Amendment2:2003 + Amendment3:2004 Radiated N/A N/A N/A Test report No. : 25DE0238-HO Page : 5 of 23 Issued date : December 15, 2004 FCC ID : DNHXC-001-XT Revised date : January 7, 2005 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) 3.4 Uncertainty Radiated Emission Test The measurement uncertainty (with a 95% confidence level) for this test using Biconical antenna is + 4.5dB. The measurement uncertainty (with a 95% confidence level) for this test using Logperiodic antenna is + 5.2dB. The measurement uncertainty (with a 95% confidence level) for this test using Horn Antenna is + 6.6dB. * The data listed in this test report has enough margin, more…

Text truncated - open the document above for the full version.

Test report No. : 25DE0238-HO Page : 8 of 23 Issued date : December 15, 2004 FCC ID : DNHXC-001-00 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) APPENDIX 1: Photographs of test setup Radiated emission Front Rear Test report No. : 25DE0238-HO Page : 9 of 23 Issued date : December 15, 2004 FCC ID : DNHXC-001-00 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) Worst Case Position (Horizontal : X-axis/ Vertical: Y-axis) X-axis Y-axis Z-axis
