DPB-0001Wireless Door Lock Control Set (Transmitter)

FCC ID: DPB-0001 1ECU Product Specification 1.1. Standard Voltage 12 VDC 1.2. Operation Voltage 9.5 V 16 V 1.3. Operation Frequency 315M Hz ± 250K Hz 1.4. Stand-by Current 6 mA (Max) / DC 12 V 1.5. Operation Temperature -30 65 1.6. Storage Temperature -40 85 1.7. ES TEST according to Criteria of the test items for TVSS Evaluation. FCC ID: DPB-0001 2Transmitter Product Specification 2.1. Standard Voltage6 VDC 2.2. Operation Voltage4.5 ~ 6.5 VDC 2.3. Operation Frequency315M Hz ± 250K Hz 2.4. Stand-by Current0 mA 2.5. Operation Current8mA / 6V 2.6. Operation Temperature-20 60 2.7. Storage Temperature-40 85 (no include battery) 2.8. ES TEST according to Criteria of the test items for TVSS Evaluation 2.9. Water-proof water temperature 18, under the surface 15 cm for 30 minutes. 2.10. Pull force on key ring Durability under the pull force 10 Kg and available for 10 minutes. 2.11. Stamina of batteryButton pushed for one second per minute and available for 10,000 times. (Battery :Panasonic CR2016*2) 2.12. LED OFF VoltageLower than 5 VDC. (V) 6.5V 6.5V 5V 4.5V operation range LED off but Tx operatable FCC ID: DPB-0001 3ECU Function Description 3.1. Code Learning A). On the DISARM status: 1). Anyone of the four doors open, Key in cylinder 2). IGN ONOFF 5 times within 10 sec. 3). LED kept lightened B). Finished steps A), LED remains lighting, push any bottom in the first transmitter once within 16 sec, LED OFF, then push the same bottom in the first transmitter again ,LED flash once then kept lighten means code learning succeeded. C). To learn the second code you must repeat B) within 16 sec after the first code learning succeeded. D). Closed the door, IGN turn on or no signal of the transmitter within 16 sec then the LED turn OFF, it means leave the code learning mode. E). 4 sets of code are available in memory. 3.2. Security Status ARM A). After IGN OFF, all doors / trunk / hood closed, pushed the LOCK button and then siren chirped once (0.15sec) flasher twinkled once, four doors locked simultaneously; system accessed ARM status and security LED twinkled slowly after 3 seconds. B). Setting Failure: Siren chirped long once (1.0sec) for ARM Failure, if doors at status of OPEN. C). IF door is closed and trunk/hood is not closed, the door lock is locked, however, system doesn’t access ARM status with keeping security LED lighting D). After that, trunk/hood is closed, system accessed ARM status automatically and security LED twinkled slowly after 3 seconds. 3.3. Security Status DISARM UNLOCK button pushed, doors unlocked and flasher twinkled two times and siren chirped two times and interior light ON for 30 seconds. System accessed the DISARM status. If system triggered before, flasher twinkled three times and siren chirped three times. Then security LED twinkled speedily. 3.4. SEARCHING Under ARM status, pushed LOCK button once. Siren chirped once (1.5sec) and flasher twinkled for (15secs). 3.5. Mute setting A). Pushed UNLOCK and PANIC once at the same time, sound of ARM /DISARM/SEARCHING disable B). Within 3 sec. pushing UNLOCK and PANIC twice, Siren will chirp once, sound of LOCK and UNLOCK will be enable FCC ID: DPB-0001 3ECU Function Description 3.6. PANIC Pushed PANIC button for over 1.5secs and system accessed PANIC status. Siren chirped 30 sec. and flasher twinkled for 30 sec. continuously. To exit PANIC status, pushed PANIC or UNLOCK button once. Siren chirp and flasher twinkle terminated immediately. 3.7. Security Activating(N=3,6,9, alternatives for user’s choice) A). Under ARM status, alarm activated for N cycles if IGN ON or door/ trunk/ hood opened and remained Open status. (1 circle = Siren chirped 30 sec. and flasher twinkled 30 sec. then suspend 15 sec.). 1). Within 3 cycles, system activated and doors closed status , doors locked automatically. 2). After 3 cycles , doors still on open status , doors locked automatically. B). Occasional strike or vibration, system alarmed by two stages: 1). Under ARM status, slight strike or vibration caused siren chirped once (0.15sec). If strike or vibration repeated three times within 10secs, siren chirped for 30 sec. and flasher twinkled for 30 sec. 2). Under ARM status, violent strike or vibrated caused siren chirped for 30 sec. and flasher twinkled for 30 sec. 3.8. Engine CUT Alarm activating, ST CUT RELAY will be operated to terminate the engine start 3.9. Alarm Suspend A). On activation of siren and flasher, pushed LOCK button to suspend activation. System accessed to ARM status after 3 sec. B). On activation of siren and flasher, pushed UNLOCK button to terminate operation. System accessed to DISARM status. 3.10. DISARM by key Under ARM status and TX lost, IGN ON / OFF for over 10 times within 15 sec. System accessed to DISARM status without TX. .Siren and flasher terminated. Strike Sensitivity Adjust FCC ID: DPB-0001 3ECU Function Description 3.11. RE-ARMING Pushed UNLOCK button on TX but without IGN ON/KEY IN/ Door /Hood/ Trunk opened within 30 sec. System accessed ARM status automatically with siren chirped once and flasher twinkled once, and doors locked. 3.12. Automatic Arming(Selectable; initial is “OFF”) 30 seconds after IGN OFF and KEY OUT, system accessed ARM status automatically. If door, trunk or hood opened within 30 seconds, system delayed another 30sec. to ARM after door, trunk, hood closed. (doors don’t lock) 3.13. Auto-Lock over the speed 20 /H Under Door closed, IGN ON status, doors closed and over-speed 20km/hr. Then doors locked automatically. When IGN OFF , doors unlocked automatically. 3.14. Interior Lights ON A). Pushed UNLOCK button on TX, doors unlocked and interior lights ON for 30sec.; B). Within the 30 sec. of interior light ON status, interior light will be OFF immediately when IGN ON. (Selectable) C). Under DISARM status, door opened and interior light ON. After 30 sec. , interior light OFF. (Selectable) 3.15. LED indicators A). LED twinkled slowly under ARM status. B). LED twinkled speedily after vibrated or syst…

Text truncated - open the document above for the full version.

TVSS Function Block Diagram FCC ID: DPB-0001 Transmit Modulation 315MHZ SAW Resonator Processor UNLOC K LOC K PANIC LED Carrier Signal Data Signal 315 0.25MHZ Radio Frequency Signal Receiver 314.5 0.25MHZ Oscillato r CPU Data Signal Turn indicator Siren Door Actuator Dome lamp Security LED Control device Door S W Hood SW Trunk SW Key in SW Ignition SW Speed Input Signal EEPROM Shock sensor Starter cut relay

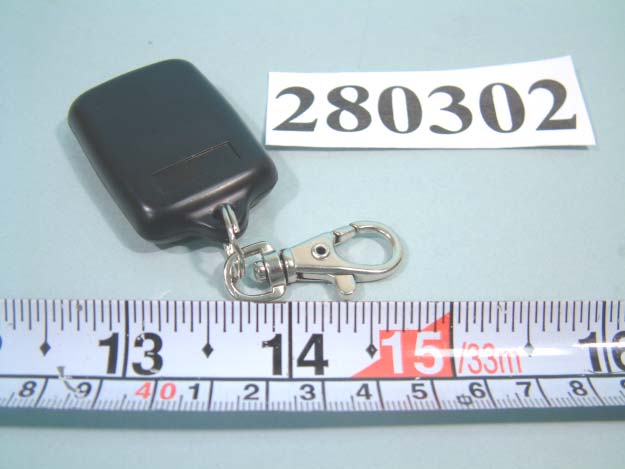

FCC ID : DPB-0001 NUMBER 1 FRONT SIDE OF EUT FCC ID : DPB-0001 NUMBER 2 REAR SIDE OF EUT

FCC ID : DPB-0001 Number 1 Mechanical Construction FCC ID : DPB-0001 Number 2 Mechanical Construction FCC ID : DPB-0001 Number 3 Front side of Main Board FCC ID : DPB-0001 Number 4 REAR side of Main Board

PAGE 1 of 65 Document NO Equipment: Wireless Door Lock Control Set (Transmitter) Model No. Model: 89704-YY010-A, 89704-YY202-A, 89704-YY030-A, 89704-YY040-A, 89704-YY050, 89704-YY060-A, 89704-YY080, 89704-YY090, 89704-YY100, 89704-YY110-A, 89704-YY140-A, 89704-YY160, 89704-YY120 FCC ID FCC ID: DPB-0001 Whetron Electronics Co., Ltd. Function Description PAGE 2 of 65 TABLE OF CONTENTS No. Section Content Page 1 ECU Product Specification 5 2 Transmitter Product Specification 6 3 ECU Function Description 3.1. Security Status ARM 3.2. Security Status DISARM 3.3. SEARCHING 3.4. PANIC 3.5. Security Activating 3.6. Disarm Siren 3.7. REARMING 3.8. DISARM by key 3.9. Auto-Lock over the speed of 20 /H 3.10.Remote Trunk Opening 3.11. Interior Lights On 3.12. Auto-closed Power Window 3.13. Motion Alarm in Chamber 3.14. Engine CUT 3.15. Smart Entry function 3.16. Code Learning 3.17. Transmitter disabled Condition 3.18. LED indicators 3.19 Mute Arming / Disarming 3.20 Automatic Arming 3.21. Status and Alarm Memory 3.22. Selectable arming ON/OFF 7 7 7 7 7 8 8 8 8 8 8 9 9 9 9 9 10 10 10 10 10 11 4 Operation method for all function of Tx 4.1. LOCK Button 4.2. UNLOCK Button: 4.3. PANIC button 4.4. Battery Protection 4.5. LED dimmed then off when power consumption to LOW of battery. 12 12 12 12 12 5 Schematic Diagram 5.1. Schematic Diagram 5.2. Basic Operation 13 14 PAGE 3 of 65 TABLE OF CONTENTS No. Section Content Page 6 Timing Chart 6.1. Security Status ARM / SEARCHING 6.2. Security Status ARM 6.3. Security Status DISARM / REARMING 6.3.1 Security Status DISARM / REARMING(Remark) 6.4. PANIC 6.5. Security Activating / Disarm Siren 6.5.1. Security Activating(Remark) 6.6. Security Activating 6.7. DISARM by key 6.8. Auto-Lock over the speed of 20 /H 6.9. Remote Trunk Opening 6.9.1 Door Closed Status 6.9.2 Door Open Status 6.9.3 Door Closed to Open Status 6.10. Interior Light On 6.11. Auto-Closed Power Window 6.12. Intrusion Sensor OFF 6.13. Engine CUT 6.14. Smart Entry Function 6.15. Code Learning 6.16. Transmitter Disabled Condition 6.17. Mute Arming/Disarming 6.18. Automatic Arming 6.18.1. Automatic Arming(Remark) 6.19. Status and Alarm Memory 6.20. Selectable Function On/OFF 15 16 17 18 19 20 21 22 23 24 25-27 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 7 Flow Chart 7.1. Security Status ARM 7.2. Security Status Disarming 7.3. SEARCHING 7.4. PANIC 7.5. Security Activating / Disarming 7.6. DISARM by key 7.7. Auto-Lock over the speed of 20 km / H 7.8. Remote Trunk Opening 7.9. Interior Light On 7.10. Auto-Closed Power Window 7.11. Intrusion Sensor OFF 7.12. CUT Relay 40 42 43 43 44 46 47 48 49 50 50 51 PAGE 4 of 65 1 ECU Product Specification No. Section Content Page 7 Flow Chart 7.13. SMART Entry function 7.14. Code Learning 7.15. Transmitter disabled condition 7.16. LED indicators 7.17. Mute Arming /Disarming 7.18. Automatic Arming 7.19. Status and Alarm Memory 7.20. Selectable arming ON/OFF 51 52 53 53 54 54 55 56 8 Transmitter Functional Description 8.1. Device Operation 8.2. EPROM Memory Organization 8.3. Transmitted Word 8.4. Special Features 57 58 61 63 PAGE 5 of 65 1 ECU Product Specification 1.1. Standard Voltage 12 VDC 1.2. Operation Voltage 9.5 V 16 V 1.3. Operation Frequency 315M Hz ± 250K Hz 1.4. Stand-by Current 6 mA (Max) / DC 12 V 1.5. Operation Temperature -30 65 1.6. Storage Temperature -40 85 1.7. ES TEST according to Criteria of the test items for TVSS Evaluation. 1.8. Telecommunication Approval is required. PAGE 6 of 65 2Transmitter Product Specification 2.1. Standard Voltage6 VDC 2.2. Operation Voltage4.5 ~ 6.5 VDC 2.3. Operation Frequency315M Hz ± 250K Hz 2.4. Stand-by Current0 mA 2.5. Operation Current8mA / 6V 2.6. Operation Temperature-20 60 2.7. Storage Temperature-40 85 (no include battery) 2.8. ES TEST according to Criteria of the test items for TVSS Evaluation 2.9. Telecommunication Approval is required. 2.10. Water-proof water temperature 18, under the surface 15 cm for 30 minutes. 2.11. Pull force on key ring Durability under the pull force 10 Kg and available for 10 minutes. 2.12. Stamina of batteryButton pushed for one second per minute and available for 10,000 times. (Battery :Panasonic CR2016*2) 2.13. LED OFF VoltageLower than 5 VDC. (V) 6.5V 6.5V 5V 4.5V operation range LED off but Tx operatable PAGE 7 of 65 3ECU Function Description 3.1. Security Status ARM A). After IGN OFF, all doors / trunk / hood closed, pushed the LOCK button and then siren chirped once (0.15sec) flasher twinkled once, four doors locked simultaneously; system accessed ARM status after 3 seconds. B). Setting Failure: Siren chirped long once (1.0sec) for ARM Failure, if doors at status of OPEN. C). IF door is closed and trunk/hood is not closed, the door lock is locked, however, system doesn’t access ARM status with keeping LED lighting D). After that, trunk/hood is closed, system accessed ARM status automatically. 3.2. Security Status DISARM UNLOCK button pushed, doors unlocked and flasher twinkled two times and siren chirped two times and interior light ON for 30 seconds. System accessed the DISARM status. If system triggered before, flasher twinkled three times and siren chirped three times. 3.3. SEARCHING Under ARM status, pushed LOCK button once. Siren chirped once (1.5sec) and flasher twinkled for (15secs). 3.4. PANIC Pushed PANIC button for over 1.5secs and system accessed PANIC status. Siren chirped 30secs and flasher twinkled for 30secs continuously. To exit PANIC status, pushed PANIC or UNLOCK button once. Siren chirp and flasher twinkle terminated immediately. 3.5. Security Activating(N=3,6,9, alternatives for user’s choice) A). Under ARM status, alarm activated for N cycles if IGN ON or door/ trunk/ hood opened and remained Open status. (1 circle = Siren chirped 30secs; flasher twinkled 30secs). 1). Within 3 cycle, system activated and doors closed status , doors locked automatically. 2). After 3 cycle , doors still on open status , doors locked automatically. B). Occasional strike or vibra…

Text truncated - open the document above for the full version.

FCC TEST REPORT Report No. : F280302 SPORTON International Inc. TEL : 886-2-2696-2468 FAX : 886-2-2696-2255 FCC TEST REPORT for 47 CFR, Part 15, Subpart C Equipment : Wireless Door Lock Control Set (Transmitter) Model No. : 89704-YY010-A, 89704-YY202-A, 89704-YY030-A, 89704-YY040-A , 89704-YY050, 89704-YY060-A, 89704-YY080, 89704-YY090, 89704-YY100, 89704-YY110-A, 89704-YY140-A, 89704-YY160, 89704-YY120 FCC ID : DPB-0001 Filing Type : Certification Applicant : Whetron Industrial Co., Ltd. No. 16, Shing Yeh Rd., Ta Fa Industrial Zone, Kaohsiung Hsien, Taiwan, R.O.C. ‚ The test result refers exclusively to the test presented test model / sample. ‚ Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. ‚ Certificate or Test Report must not be used by the applicant to claim the product in this test report endorsement by NVLAP or any agency of U.S. government. SPORTON International Inc. 6F, No.106, Sec. 1, Hsin Tai Wu Rd., Hsi Chih, Taipei Hsien, Taiwan, R.O.C. FCC TEST REPORT Report No. : F280302 SPORTON International Inc. FCC ID : DPB-0001 TEL : 886-2-2696-2468 Page No. : i FAX : 886-2-2696-2255 Issued Date : Oct. 25, 2002 Table of Contents History of this test report..................................................................................................................ii CERTIFICATE OF COMPLIANCE........................................................................................................................1 1. General Description of Equipment under Test.............................................................................................2 1.1. Applicant..........................................................................................................................................................................................2 1.2. Manufacturer ...................................................................................................................................................................................2 1.3. Basic Description of Equipment under Test ....................................................................................................................................2 1.4. Feature of Equipment under Test ...................................................................................................................................................2 2. Test Configuration of Equipment under Test ...............................................................................................3 2.1. Test Manner ....................................................................................................................................................................................3 2.2. Description of Test System .............................................................................................................................................................3 2.3. Connection Diagram of Test System ..............................................................................................................................................4 2.4. A plot shows the EUT meet the requirement of 15.231(c) ..............................................................................................................5 3. Test Software ...................................................................................................................................................6 4. General Information of Test............................................................................................................................7 4.1. Test Facility .....................................................................................................................................................................................7 4.2. Standard for Methods of Measurement...........................................................................................................................................7 4.3. Test in Compliance with ..................................................................................................................................................................7 4.4. Frequency Range Investigated .......................................................................................................................................................7 4.5. Test Distance ..................................................................................................................................................................................7 5. Test of Conducted Powerline .........................................................................................................................8 6. Test of Radiated Emission..............................................................................................................................9 6.1. Major Measuring Instruments..........................................................................................................................................................9 6.2. Test Procedures ............................................................................................................................................................................10 6.3. Typical Test Setup Layout of Radiated Emission..........................................................................................................................11 6.4. Test Result of Radiated Emission .................................................................................................................................................12 7. Antenna Factor & Cable Loss ......................................................................................................................15 8. EMI Suppression Component List ...............................................................................................................16 9. List of Measuring Equipments Used ......................…

Text truncated - open the document above for the full version.

FCC TEST REPORT Report No. : F280302 SPORTON International Inc. FCC ID : DPB-0001 TEL : 886-2-2696-2468 Page No. : 1 of 1 FAX : 886-2-2696-2255 Issued : Oct. 25, 2002 1.1. Photographs of Radiated Emission Test Configuration „ The photographs show the configuration that generates the maximum emission. FRONT VIEW REAR VIEW
