DV8LX5630ECG, Respiration and SpO2 Transmitter

ECG, Respiration and SpO 2 Transmitter LX-5630 Operation Manual l Before using the LX-5630 you must first thoroughly read this manual. l Remember to keep this operation manual in an easily accessible place near the unit for future reference. • Only a physician or a person under the guidance of a physician can use this product. • The information contained in this document is subject to change without notice due to improvement in the equipment. CAUTION Federal law restricts this device to sale by or on the order of a physician. CAUTION Users are advised to periodically contact the FCC or specified frequency coordinator and determine if other or your transmitter frequencies that may cause interference. CAUTION The manufacturers, installers and users of Wireless Medical Telemetry System equipment are cautioned that the operation of this equipment could result in harmful interference to other nearby medical devices. Copyright © 2003 by Fukuda Denshi Co., Ltd. No part of this document may be copied or transmitted in any form without the prior written permission of Fukuda Denshi Co., Ltd. Printed in Japan Important Information i TELEMETRY PRECAUTIONS For proper management of the telemetry installation, consult your Fukuda Denshi representative concerning the following: • Plan the installation of your telemetry system taking into account your entire medical facility needs and plant requirements. • Be sure the antenna system installed meets the facility and plant requirements. WARNING This radio frequency device is susceptible to interference from outside sources. Interference may prevent the monitoring of patients connected to this devices. If a problems exists, contact your local service representative. To assure safe and reliable operation, observe the following precautions: • Be sure that no other devices are using the frequency assigned to this transmitter. • This device is susceptible to interference from electrosurgical knives and other computerized equipment. If problems occur, contact your local Fukuda Denshi service representative. • Any obstruction such as reinforced concrete or large metallic surfaces between the receiver and the transmitter can affect reception. If problems occur contact your local Fukuda Denshi service representative. • When the low battery alarm is present, replace the battery. CAUTION The manufacturers, installers and users of WMTS equipment are cautioned that the operation of this equipment could result in harmful interference to other nearby medical devices. ii Thank you for purchasing this instrument from Fukuda Denshi. Before use, read this operation manual thoroughly for correct handling and operation. If you are familiar with a similar type of product, it is recommended this operation manual be read and understood since the LX-5630 has unique operation and handling methods. Safety Information and Messages • Be sure to observe the warning and cautionary messages related to important safety information. These instructions are described under the following message headings. Understand the meaning of the different types of messages while reading this operation manual. WARNING Erroneous operation by failure to follow this message may result in death or serious injury to the patient, operator, or create a fire hazard. CAUTION Erroneous operation by failure to follow this message may result in injury to the patient or operator, or may cause damage to the LX-5630 and/or related instruments. NOTE A NOTE is not a warning instruction but offers information for correct use of the LX-5630 to avoid erroneous operation. iii Safety Considerations in Using Medical Electrical Equipment Contents described here are general safety considerations to be taken for proper operation of medical electrical equipment and for the safety of both the patient and operator. Safety considerations specific to the use of the LX-5630 are described on the next page. WARNING Strangulation Hazard! l Make sure all patient cables, leadwires, and tubing are positioned away from the patient’s head to minimize the risk of accidental strangulation. l Under no circumstances should any pouch be tied solely around a patient’s neck. CAUTION 1. Do not use the equipment unless you are familiar with its operation. 2. Observe the following when installing or storing the equipment: · Select a place where the equipment may not be contaminated with splashing water. · Consider the atmospheric pressure, temperature and humidity and provide adequate ventilation. Avoid direct sunlight. The equipment should not be installed or stored in a location where it may be adversely affected by air containing dust, saline or sulfur. · Avoid inclination, vibration and shock, even during transport to ensure stable operating conditions. · Do not install or store the equipment where chemicals are stored or gases are generated. 3. Precautions before Operation · The equipment is not designed to be explosion-proof. Do not use the equipment in the presence of flammable gasses or anesthetics. · Make sure the equipment is operating safely and normally at all times. Ensure that all cords and cables are correctly connected. · Improper use of multiple instruments simultaneously may result in erroneous information or lead to a hazardous accident. 4. Precautions during Operation · Do not operate the equipment beyond the time period required for diagnosis, monitoring or treatment. · Observe the equipment and patient constantly for any abnormality. · If the equipment or patient indicates any abnormality, stop the equipment from operating or take proper measures (e.g. disconnect transducers and electrodes) to ensure patient safety. · Instruct the patient not to contact the equipment. iv CAUTION 5. Cares after Operation · Disconnect the cables by holding the connector plugs. Do not apply excessive force to cords by pulling. · Keep the equipment clean in preparation for the next use. 6. If the equipment is out of order, ensure patient safety by imme…

Text truncated - open the document above for the full version.

2-35-8 HONGO BUNKYO-KU TOKYO 113 JAPAN ・ Phone 81-3-5684-1300・ Fax 81-3-5684-1321 Request for Confidentiality Date June. 12, 2003 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 RE: Certification Application FCC ID: DV8LX5630 We, Fukuda Denshi Co., Ltd. request that the following information is to be held confidential pursuant to CFR 47, Section .457 and .459. Block Diagram Schematics Parts List Technical Description Tune Up Specification These contain schematic and operational details of the product for which certification is being sought. This information is classified as “Company Confidential” and disclosure of these exhibits would potentially be harmful to our business because this product incorporates innovative low power RF transmitter design techniques, ECG processing technology, and other such details that would be useful to a competitor in the medical telemetry business. This information is not available to the public since all service and repairs are done on a sub-assembly basis and the design details are hidden. It is expected that this information would remain sensitive for at least two years from the date of submission. Thank you for your attention to this matter. Yoshi Muraki General Manager Engineering Development Department

2-35-8 HONGO BUNKYO-KU TOKYO 113 JAPAN ・ Phone 81-3-5684-1300・ Fax 81-3-5684-1321 Letter Of Agency Date: June12, 2003 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: Please be advised that Fukuda Denshi Co., Ltd. authorizes UL Apex Co., Ltd. to act on our behalf, until otherwise notified, for applications submitted to American Telecommunications Certification Body, Inc. (ATCB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse ACT of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002(b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you for your attention to this matter. Yoshi Muraki General Manager Engineering Development Department

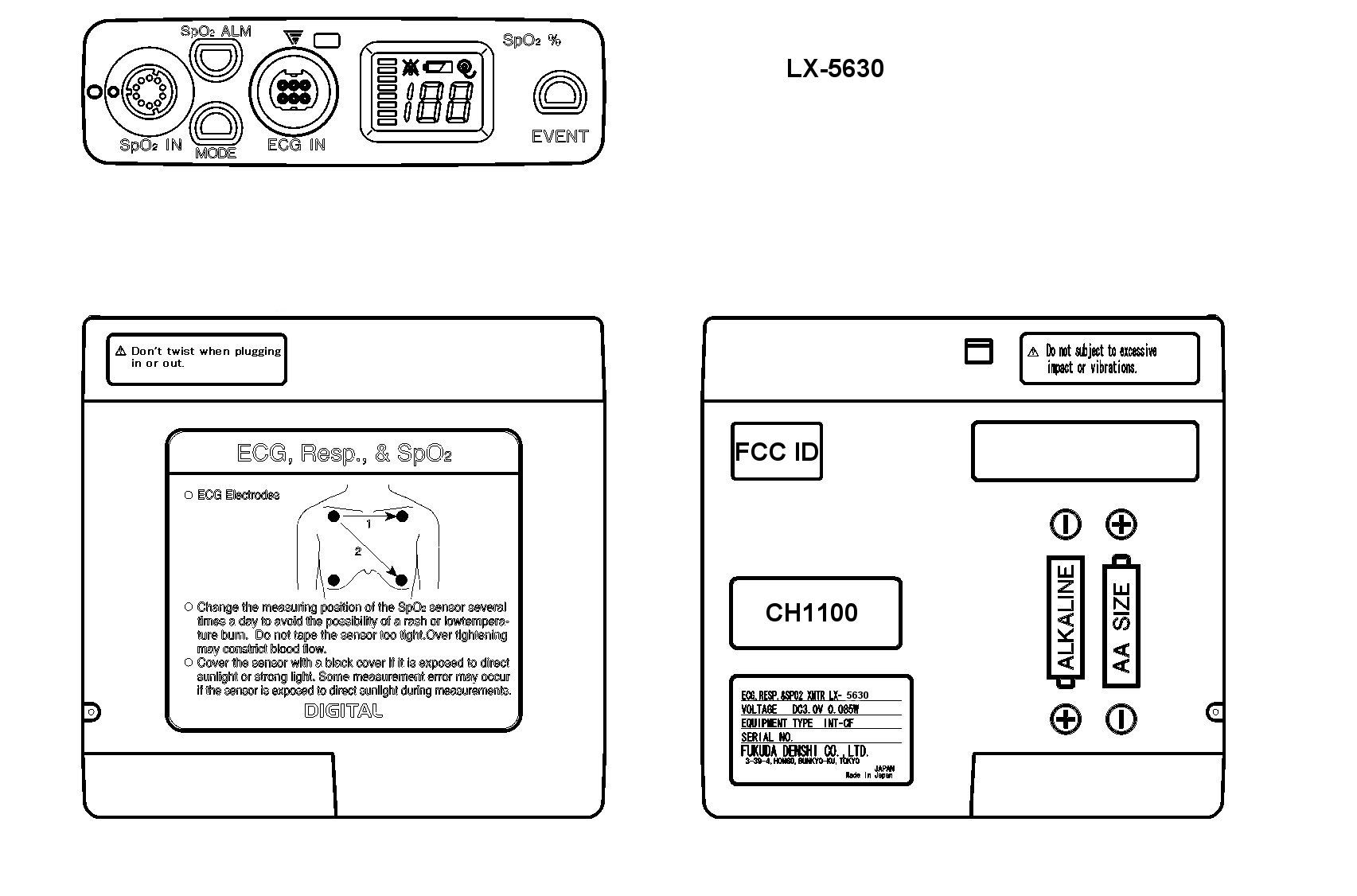

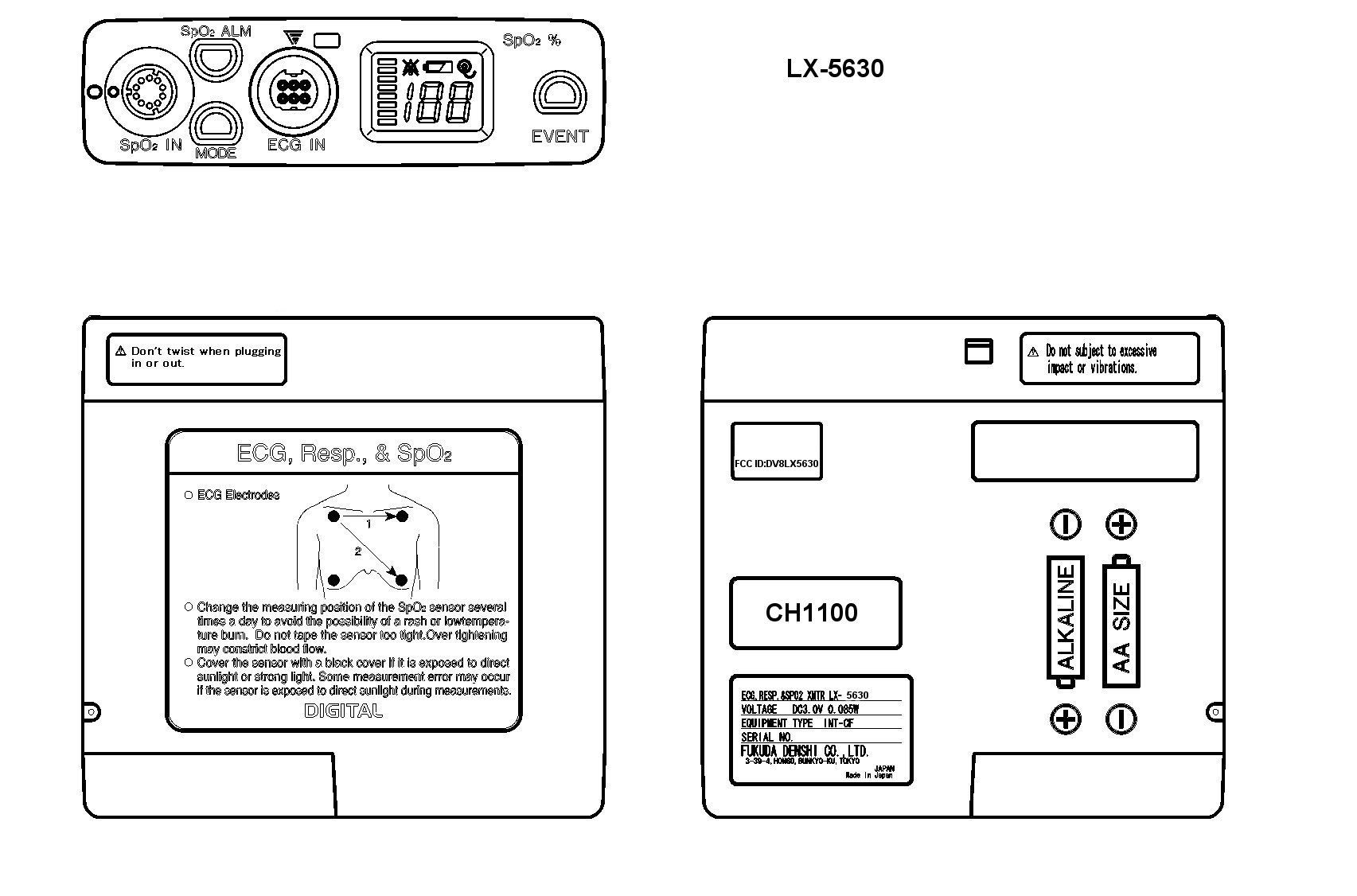

2-35-8 HONGO BUNKYO-KU TOKYO 113 JAPAN  Phone 81-3-5684-1300 Fax 81-3-5684-1321 FCC Labeling Requirements and Information Date: June. 12, 2003 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 RE: FCC Labeling Requirements FCC ID: DV8LX5630 The following label information is required by the FCC Rules and Regulations for certified devices. Also attached, please find marketing information required by the FCC Rules and Regulations. Thank you for your attention to these matters. Sincerely, Yoshi Muraki General Manager Engineering Development Department 2-35-8 HONGO BUNKYO-KU TOKYO 113 JAPAN  Phone 81-3-5684-1300 Fax 81-3-5684-1321 Request for Confidentiality Date June. 12, 2003 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 RE: Certification Application FCC ID: DV8LX5630 We, Fukuda Denshi Co., Ltd. request that the following information is to be held confidential pursuant to CFR 47, Section .457 and .459. Block Diagram Schematics Parts List Technical Description Tune Up Specification These contain schematic and operational details of the product for which certification is being sought. This information is classified as “Company Confidential” and disclosure of these exhibits would potentially be harmful to our business because this product incorporates innovative low power RF transmitter design techniques, ECG processing technology, and other such details that would be useful to a competitor in the medical telemetry business. This information is not available to the public since all service and repairs are done on a sub-assembly basis and the design details are hidden. It is expected that this information would remain sensitive for at least two years from the date of submission. Thank you for your attention to this matter. Yoshi Muraki General Manager Engineering Development Department 2-35-8 HONGO BUNKYO-KU TOKYO 113 JAPAN  Phone 81-3-5684-1300 Fax 81-3-5684-1321 Manufacturer’s Letter Date: June. 12, 2003 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 RE: Certification Application FCC ID: DV8LX5630 To Whom It May Concern: Please be advised that the manufacturer will ensure that the above-referenced model will be manufactured in accordance with the FCC Rules and Regulations. Thank you for your attention to this matter. Yoshi Muraki General Manager Engineering Development Department

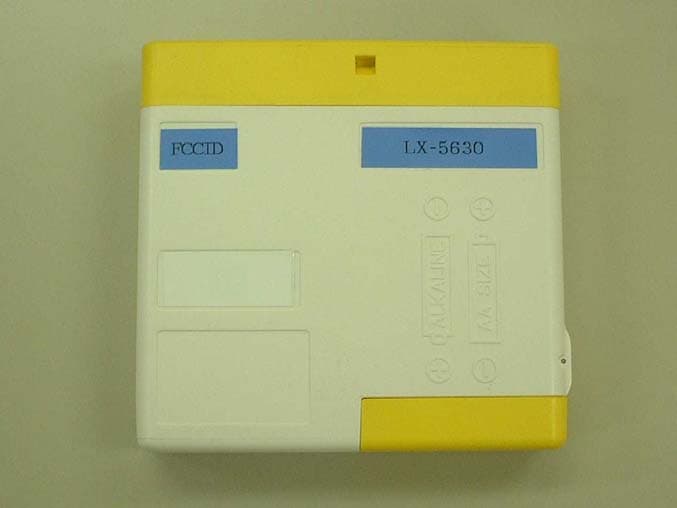

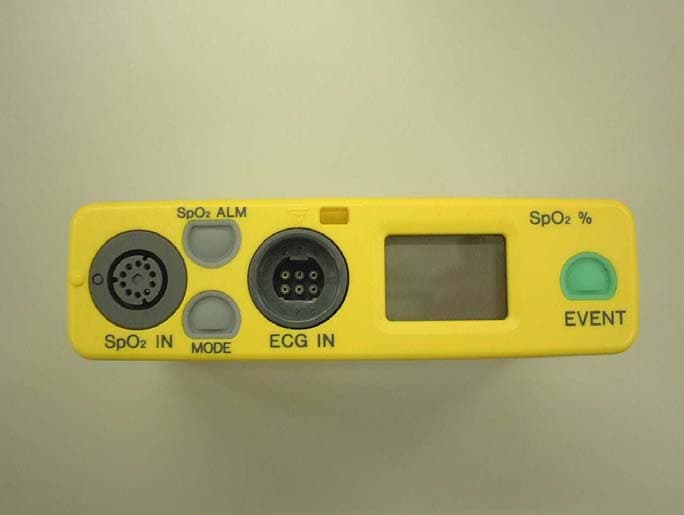

Fukuda Denshi Co., Ltd. FCC ID: DV8LX5630 External Photo Front View Rear View Fukuda Denshi Co., Ltd. FCC ID: DV8LX5630 To p Vi e w Bottom View Fukuda Denshi Co., Ltd. FCC ID: DV8LX5630 Left Side View Right Side View

Fukuda Denshi Co., Ltd. FCC ID: DV8LX5630 Internal Photo Fukuda Denshi Co., Ltd. FCC ID: DV8LX5630 Fukuda Denshi Co., Ltd. FCC ID: DV8LX5630

Test report No. : 23LE0077-HO Page : 2 of 53 Issued date : August 12,2003 FCC ID : DV8LX5630 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 CONTENTS PAGE SECTION 1 : Client information 3 SECTION 2 : Equipment under test (E.U.T.) 3 SECTION 3 : Requirements for compliance testing defined by the FCC 4 SECTION 4 : Dosimetric assessment setup 4 SECTION 5 : Test system specifications 8 SECTION 6 : Test setup of EUT 9 SECTION 7 : Measurement outline 10 SECTION 8 : Simulated tissue liquid parameter 11 SECTION 9 : System validation data 13 SECTION 10 : Evaluation procedure 14 SECTION 11 : Measurement uncertainty 15 SECTION 12 : Exposure limit 16 SECTION 13 : SAR Measurement results 17 SECTION 14 : Consideration of SAR evaluation 18 SECTION 15 : Equipment & calibration information 19 SECTION 16 : References 20 SECTION 17 : APPENDIX 20 APPENDIX 1 : Photographs of test setup APPENDIX 2 : SAR Measurement data APPENDIX 3 : Validation Measurement data APPENDIX 4 : System Validation Dipole (D900V2,S/N: 155) APPENDIX 5 : Dosimetric E-Field Probe Calibration(ET3DV6,S/N: 1684) Test report No. : 23LE0077-HO Page : 3 of 53 Issued date : August 12,2003 FCC ID : DV8LX5630 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 SECTION 1 : Client information Company Name : FUKUDA DENSHI CO., LTD. Address : 2-35-8 Hongo, Bunkyo-ku, Tokyo,113-8420 JAPAN Telephone Number : +81-3-5684-1337 Facsimile Number : +81-3-5684-1321 Contact Person : Tamotsu Toya SECTION 2 : Equipment under test (E.U.T.) 2.1 Identification of E.U.T. APPLICANT : FUKUDA DENSHI CO., LTD. Type of Equipment : ECG, Respiration and SpO 2 Transmitter Model No. : LX-5630 Serial No. : 2003020602 Rating : DC3.0V battery operation Country of Manufacture : Japan Condition of EUT : Production prototype Tx Frequency : 608.0125MHz~613.9875MHz Modulation : Digital Frequency Shift Keying Max.Output Power Tested : 0.67dBmPeak Conducted Antenna Type : Integrated antenna Position of Antenna : See Photograph of right Size of EUT : W94*L26.5*H90 Battery option : two “AA” size alkaline cell battery (LR-6) Receipt Date of Sample : August 04,2003 Category Identified : Portable device Test report No. : 23LE0077-HO Page : 4 of 53 Issued date : August 12,2003 FCC ID : DV8LX5630 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 SECTION 3 : Requirements for compliance testing defined by the FCC The US Federal Communications Commission has released the report and order “Guidelines for Evaluating the Environmental Effects of RF Radiation", ET Docket No. 93-62 in August 1996. The order requires routine SAR evaluation prior to equipment authorization of portable transmitter devices, including portable telephones. For consumer products, the applicable limit is 1.6 mW/g for an uncontrolled environment and 8.0 mW/g for an occupational/controlled environment as recommended by the ANSI/IEEE standard C95.1-1992. According to the Supplement C of OET Bulletin 65 “Evaluating Compliance with FCC Guide-lines for Human Exposure to Radio frequency Electromagnetic Fields", released on Jun 29, 2001 by the FCC, the device should be evaluated at maximum output power (radiated from the antenna) under “worst-case” conditions for normal or intended use, incorporating normal antenna operating positions, device peak performance frequencies and positions for maximum RF energy coupling. 1 Specific Absorption Rate (SAR) is a measure of the rate of energy absorption due to exposure to an RF transmitting source (wireless portable device). 2 IEEE/ANSI Std. C95.1-1992 limits are used to determine compliance with FCC ET Docket 93-62. SECTION 4 : Dosimetry assessment setup These measurements were performed with the automated near-field scanning system DASY4 from Schmid & Partner Engineering AG (SPEAG). The system is based on a high precision robot (working range greater than 0.9 m), which positions the probes with a positional repeatability of better than +/- 0.02 mm. Special E- and H-field probes have been developed for measurements close to material discontinuity, the sensors of which are directly loaded with a Schottky diode and connected via highly resistive lines to the data acquisition unit. The SAR measurements were conducted with the dosimetry probe ET3DV6, SN: 1684 (manufactured by SPEAG), designed in the classical triangular configuration and optimized for dosimetric evaluation. The probe has been calibrated according to the procedure described in [2] with accuracy of better than +/-10%. The spherical isotropy was evaluated with the procedure described in [3] and found to be better than +/-0.25 dB. The phantom used was the SAM Twin Phantom as described in FCC supplement C, IEE P1528 and CENELEC EN50361. Test report No. : 23LE0077-HO Page : 5 of 53 Issued date : August 12,2003 FCC ID : DV8LX5630 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 4.1 Configuration and peripherals The DASY4 system for performing compliance tests consist of the following items: 1. A standard high precision 6-axis robot (Stäubli RX family) with controller and software. An arm extension for accommodating the data acquisition electronics (DAE). 2. A dosimetric probe, i.e., an isotropic E-field probe optimized and calibrated for usage in tissue simulating liquid. The probe is equipped with an optical surface detector system. 3. A data acquisition electronic (DAE), which performs the signal amplification, signal multiplexing, AD-conversion, offset measurements, mechanical surface detection, collision detection, etc. The unit is battery powered with standard or rechargeable batteries. The signal is optically transmitted to the EOC. 4. The Electro-optical…

Text truncated - open the document above for the full version.

Test report No. : 23LE0077-HO Page : 30 of 53 Issued date : August 12,2003 FCC ID : DV8LX5630 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 APPENDIX 4 : System Validation Dipole (D900V2,S/N: 155)

Test report No. : 23LE0077-HO Page : 40 of 53 Issued date : August 12,2003 FCC ID : DV8LX5630 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 APPENDIX 5 : Dosimetric E-Field Probe Calibration (ET3DV6,S/N: 1684)

FCC ID : DV8LX5630 Test report No. : 23GE0033-YK Page : 2 of 40 Issued date : June 18, 2003 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b(23.04.02) Table of Contents Page 1 GENERAL INFORMATION 3 1.1 Tested Methodology 3 1.2 Test Facility 3 2 PRODUCT DESCRIPTION 4 3 SYSTEM TEST CONFIGURATION 5 3.1 Justification 5 3.2.Configuration of Tested System 5 4 MEASUREMENT UNCERTAINTY 6 5 SUMMARY OF TEST 7 5.1 §95.1115(a) Filed Strength (Radiated) 7 5.2 §95.1115(b) Out of Band Emissions (Radiated) 8 5.3 §2.1049 Bandwidth (Antenna port Conducted) 9 5.4 §2.1051 Out of Band Emissions (Antenna Port Conducted) 9 Contents of Appendixes 10 APPENDIX 1: Photographs of test setup 11 APPENDIX 2: Test Data 13 APPENDIX 3: Test instruments 40 FCC ID : DV8LX5630 Test report No. : 23GE0033-YK Page : 3 of 40 Issued date : June 18, 2003 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b(23.04.02) 1 GENERAL INFORMATION Company Name : FUKUDA DENSHI CO., LTD. Address : 2-35-8 Hongo, Bunkyo-ku, Tokyo, 113-8420 JAPAN Telephone Number : +81 3 5684 1337 Facsimile Number : +81 3 5684 1321 Contact Person : Tamotsu Toya Type of Equipment : ECG, Respiration and SpO 2 Transmitter Model Number : LX-5630 Serial Number : 2003020602 Rating : DC 3.0V, battery operation Condition of EUT : Production prototype Country of Manufacture : Japan Receipt Date of Sample : April 10 and June 4, 2003 Regulation(s) : FCC Part95 Subpart H ,Section 95.1115 (Except FCC 95.1115(e) Frequency stability) FCC Part2 Subpart J, Section 2.1049 and 2.1051 Test Site : UL Apex Yamakita EMC Lab. No.1 Open Test Site and No.4 Shielded Room 1.1 Tested Methodology The measurement was performed according to the procedures in ANSI C63.4 (2001). 1.2 Test Facility This site has been fully described in a report submitted to FCC office, and accepted on December 8, 2000. (No.1 Open Test Site Registration No.: 99354) NVLAP Lab. code : 200441-0 FCC ID : DV8LX5630 Test report No. : 23GE0033-YK Page : 4 of 40 Issued date : June 18, 2003 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b(23.04.02) 2 PRODUCT DESCRIPTION FUKUDA DENSHI CO., LTD., Model: LX-5630 (referred to as the EUT in this report) is an ECG, Respiration and SpO 2 Transmitter. Frequency Characteristics : 608.0125MHz through 613.9875MHz Reference for Carrier Frequency : 608-614MHz Reference For Carrier Frequency Fixed Crystal Oscillator TCXO : 9.600MHz No. of Channels and channel Spacing : 445 channels/ 12.5kHz channel spacing Modulation : Digital Frequency Shift Keying Antenna Type : Integrated antenna Antenna Gain : 2.15dBi Temperature Range : 10 to 40 deg. C. Power supply : DC 3.0V, battery operation ITU Emission Code(s) : 8K50F1DAN Clock for Gate Array : 84kHz Clock For CPU : 4.000MHz FCC ID : DV8LX5630 Test report No. : 23GE0033-YK Page : 5 of 40 Issued date : June 18, 2003 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b(23.04.02) 3 SYSTEM TEST CONFIGURATION 3.1 Justification The system was configured in typical fashion (as a customer would normally use it) for testing. Test mode: Transmitting mode The EUT transmits under constant modulation. 3.2 Configuration of Tested System Front View Top View *Cabling was taken into consideration and test data was taken under worse case conditions. Description of EUT and support equipment No. Item Model numberSerial numberManufacturer Remark FCC ID A ECG, Respiration and SpO 2 Transmitter LX-5630 2003020602 FUKUDA DENSHI CO., LTD. EUT. DV8LX5630 B Simulator PCB board - - FUKUDA DENSHI CO., LTD. Not EUT. - List of cables used No. Name Model number Length (m) Shield Backshell material Remark 1 ECG cable CM-85C 0.75 Shielded Polyvinyl chloride EUT. 2 SpO 2 Interconnection cable CI-128A 1.2 Shielded Polyvinyl chloride EUT. 3 SpO 2 probe SR-5C 0.26 Shielded Polyvinyl chloride EUT. 1 A: EUT B 23 1 B A: EUT 23 FCC ID : DV8LX5630 Test report No. : 23GE0033-YK Page : 6 of 40 Issued date : June 18, 2003 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b(23.04.02) 4 MEASUREMENT UNCERTAINTY Radiated emission test The measurement uncertainty (with 95% confidence level) for this test using Biconical antenna is ±4.8dB. The measurement uncertainty (with 95% confidence level) for this test using Logperiodic antenna is ±5.2dB. The measurement uncertainty (with 95% confidence level) for this test using Horn antenna is ±6.6dB. The data listed in this test report has enough margin, more than site margin. FCC ID : DV8LX5630 Test report No. : 23GE0033-YK Page : 7 of 40 Issued date : June 18, 2003 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b(23.04.02) 5 SUMMARY OF TESTS 5.1 § 95.1115 (a) Filed Strength (Radiated) Test Procedure EUT was placed on a platform of nominal size, 1m by 1.5m, raised 80cm above the conducting ground plane. The measurement antenna was varied in height above the conducting ground plane to obtain the maximum signal strength. The Radiated Electric Field Strength intensity has been measured on an open test site with a ground plane and at a distance of 3m. The measuring antenna height was varied between 1 and 4m and EUT was rotated a full revolution in order to obtain the maximum value of the electric field intensity. The measurements were performed for both vertical and horizontal antenna polarization. EUT emission levels were co…

Text truncated - open the document above for the full version.

17725 NE 65 th Street • Redmond, WA 98052 • Phone 1-800-365-6668 • Fax (425) 869-2018 Jun. 18, 2003 To whom it may concern, Re: Temperature - Frequency stability Certification This letter is to certify that the Temperature – Frequency stability of the LX- 5630 telemetry transmitter which is satisfied it’s specification over the operating temperature range. Yoshi Muraki General Manager, Engineering Development Department Fukuda Denshi Co., Ltd. Test report of Frequency Stability EUT : LX-5630, Serial No. =2003020602 Freq. Range : 608 to 614 MHz Freq. Stability : +/-2.5 ppm Operating temp. : +10 to +40 degrees C Date : Jun. 10. 2003 Manufacture : Fukuda Denshi Co., Ltd. Test engineer : Tamotsu Toya Test site : Fukuda Denshi, Hongo office, Engineering Development Department Temp. Chamber : LHU-112, TABAI ESPEC CORP. Serial No.1571794 Registration No. 224-046-001 Freq. Counter : TR5823H, ADVANTEST Serial No.00570534 Registration No.202-027-001 Measurement result: REF.FREQUENCY 611.00000 MHz Temp. degrees C Freq. MHz Difference, HzDifference, ppm 0 610.99902 -980 -1.60 +10 610.99979 -210 - 0.34 +20 610.99988 -120 - 0.20 +25 610.99980 -200 -0.33 +30 610.99967 -320 -0.52 +40 610.99946 -540 -0.88 +50 610.99950 -500 -0.82
