E5MDS-ENETL2TUENET-L2TU 40 watt amplifier

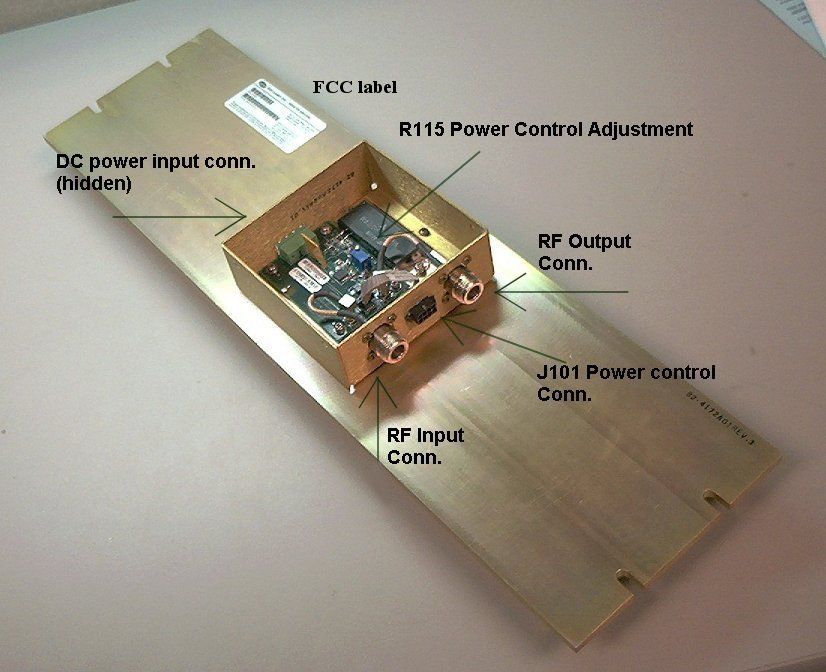

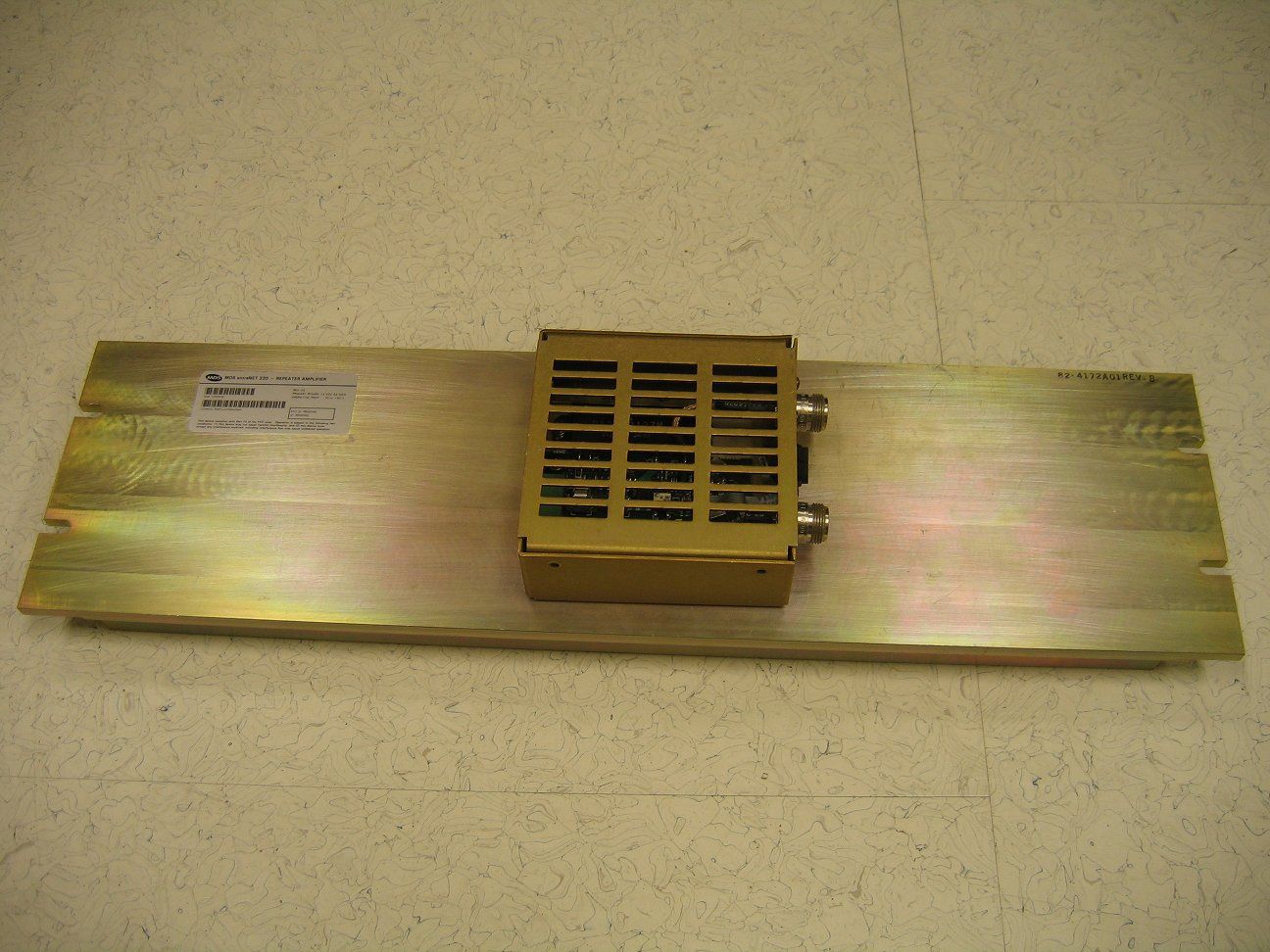

05-xxxxA01, Rev. AeNETL2T/U 40-Watt Power Amplifier Page 1 of 2 INTRODUCTION The eNETL2T is a 40-watt RF power amplifier designed for use in the 220–222 MHz frequency range. It is intended to serve as a 100% duty cycle amplifier for MDS entraNET 220 radio modules (ROR220) operating in point-to-multipoint repeater applications. The amplifier is designed to comply with FCC Part 90 and FCC Part 15 requirements. The eNETL2U is a similar model designed as an intermittent duty amplifier for the same purpose. Figure 1. MDS eNETL2 Series RF Power Amplifier (T-model shown, cover removed to show internal layout) Product Description The eNETL2T/U power amplifier consists of a RF amplifier and PCB mounted to a heat sink, with a DC Power interface, power control interface, and input/output RF connections on the sidewalls of the chassis. DC power is supplied to the amplifier from a regulated and filtered DC source capable of supplying 10-16 Vdc at a maximum current of 6 Amperes. The DC power source should be current limited or have a protective fuse or circuit breaker. INSTALLATION Mounting the Unit The amplifier is designed for mounting in a standard 19 -inch rack cabinet using the 3U panel provided. Four screws (not pro- vided) are required to attach the panel to the rack sides. This panel also serves as a heat sink for the PA module, and is nor- mally mounted with the cooling fins facing outward. External Connections To place the amplifier module in service, make the following ca- ble connections: 1. Using low loss 50-ohm coaxial cable, connect the RF Input connector (J103) to the RF output connector of the MDS entraNET 220 radio module (ROR220). 2. Using low loss 50-ohm coaxial cable, connect the RF Output connector (J102) to the station duplexer. 3. Connect the Power Control interface (J101) to the MDS entraNET 220 radio module (ROR220) in accordance with the pin connections listed below. J101 is an 8-pin Molex polarized connector. Pin 1—3 Vdc enable TX, low=off Pin 2—0.7 Vdc (varies to set RF power) Pin 3—Not used Pin 4—Ground 4. Connect 10-16 Vdc power supply to the Power connector (J100). The left pin is positive (+); the right is negative(–). RF Power Output Check/Adjustment To check/set the amplifier’s RF power output level, proceed as follows: 1. Connect a wattmeter (rated for use at 220 MHz, and at least 40 watts) to the amplifier’s RF output connector (J102). Terminate the wattmeter into a 50-ohm, non- inductive load. 2. Apply RF drive from the MDS entraNET 220 radio module (ROR220) and note the RF power indication at J102. 3. If necessary, adjust R115 (see Figure 1) with an insulated flat blade tool to achieve the desired output level. Access to R115 is available through a top cover vent slot. UNIT SPECIFICATIONS Operating Voltage: 10-16 Vdc Maximum Current Draw: 6 Amperes RF Drive Power: 100 mW RF Out: +40 to +46 dBm (10-40 watts), adjustable Operating Frequency: 220-220 MHz Mounting: standard 19-inch rack cabinet Approximate Weight: 5.15 lbs. Dimensions (T-model): 5.25” H x 19” W x 2.88” D (13.34 H x 48.26 W x 7.31 D cm) Dimensions (U-model): 5.25” H x 7” W x 2.88” D (13.34 H x 17.78 W x 7.31 D cm) TECHNICAL ASSISTANCE Technical assistance for MDS products is available by using one of these methods to contact us: Telephone: 585.241.5510 FAX: 585.242.8369 E-mail: [email protected] Web: www.GEmds.com Instruction Sheet MDS eNETL2T/U 40-Watt RF Amplifier Microwave Data Systems Inc., 175 Science Parkway, Rochester, NY 14620 USA Tel. 585.242-9600 FAX 585.242-9620 www.microwavedata.com Page 2 of 2eNETL2T/U 40-Watt Power Amplifier05-xxxxA01, Rev. A Professional installation required. The radio equipment described in this guide emits radio frequency energy. Although the power level is low, the concentrated energy from a directional antenna may pose a health hazard. Do not allow people to come closer than 2.07 meters (6.79 feet) to the antenna when the transmitter is operating in indoor or outdoor environments. More information on RF exposure can be found on the Internet at: www.fcc.gov/oet/info/documents/bulletins. RF Exposure FCC Part 15 Notice This unit complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undes- ired operation. This device is specifically designed to be used under Section 15.247 of the FCC Rules and Regulations. Any unauthorized modification or changes to this device without the express approval of GE MDS may void the users authority to operate this device. Furthermore, the unit is intended to be used only when installed in accordance with the instructions outlined in this document. Failure to comply with these instructions may also void the users authority to operate this device. Industry Canada RSS Notice Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

175 Science Parkway, Rochester, New York 14620 USA (585) 242-9600 Phone (585) 242-9620 Fax Oct 12th, 2007 FEDERAL COMMUNICATIONS COMMISSION 7435 Oakland Mills Road Columbia, MD 21046 U.S.A. Subject: Request for withholding from public disclosure the schematic diagrams, theory of operation, bill of materials and system block diagrams pursuant to an application for certification. Applicant: Microwave Data Systems Inc. Product: 40 watt 220MHz RF amplifier Model: ENET-L2TU FCC ID: E5MDS-ENETL2TU Dear Sir/Madam, We, Microwave Data Systems, would like to request that the schematic diagrams, system block diagram, Theory of Operation and Bill of Materials submitted with the application for certification be withheld from public disclosure as per Section 0.459 of FCC Rules. This request is made under the provisions of Section 0.457(d) of the Commission's Rules, and Section 552(b)(4) of the Freedom of Information Act. These sections authorize as a withholding from public inspection materials which would be privileged as a matter of law if retained by the person submitting them, and materials which would not customarily be released to the public by that person. If you have any queries, please do not hesitate to contact me at 585 242-8440: Yours truly, Dennis McCarthy Agency Compliance Engineer GE MDS LLC WWW.GEMDS.COM 175 Science Parkway Rochester NY 14620 [email protected] (Office) 585 242-8440 (Cell) 585 734-3899

175 Science Parkway, Rochester, New York 14620 USA (585) 242-9600 Phone (585) 242-9620 Fax Oct 12th, 2007 FEDERAL COMMUNICATIONS COMMISSION 7435 Oakland Mills Road Columbia, MD 21046 ATCB 6731 Whittier Avenue McLean, VA 22101 Subject: Authority to Act as an Agent to ATCB/FCC Applicant: GE MDS LLC Product: ENET-L2TU 40 watt 220MHz RF amplifier FCC ID: E5MDS-ENETL2TU Dear Sir/Madam, This is your letter of authorization to accept our appointment of Elliott Laboratories, Inc. as our Agent for GE MDS LLC, to sign applications before ATCB and to make representations to you on our behalf. Elliott Laboratories, Inc. is to receive and exchange data between our company and ATCB. If you have any queries, please do not hesitate to contact me at 585 242-8440: Yours truly, Dennis McCarthy Agency Compliance Engineer GE MDS LLC WWW.GEMDS.COM 175 Science Parkway Rochester NY 14620 [email protected] (Office) 585 242-8440 (Cell) 585 734-3899

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 November 7, 2007 RE: FCC ID: E5MDS-ENETL2TU_ATCB005587 Attention: David Bare I have a few comments on this Application. Please note that further comments may arise in response to answers provided to the questions below. 1. Please note that it is not clear from the documentation if this device can have more than one input signal. If this device can have more than one input, please provide the required intermodulation test data. 2. In regards to multiple input possibility for this device as mentioned above, please explain if the power out is per channel of composite of all channels. 3. Please provide that parts list for this device. 4. Please provide the MPE report for this device. Alternately, please explain if this device will always be used in a licensed site where MPE is addressed at the time of licensing. 5. Please note that as all documentation will be uploaded to the Industry Canada site all documentation will be public view. If confidentiality is desired for Industry Canada, please provide a request for confidentiality addressed to Industry Canada. 6. Please note that the label states MDS as the manufacturer, but the IC application form states GE MDS LLC. Please note that the IC company number 101D belongs to GE MICROWAVE DATA SYSTEMS LLC 175 Science Parkway, but the number of the manufacturer shown on the label (Microwave Data Systems) at the same address is 3738A. Please correct the label to reflect the actual IC company number being used for this device or please correct the other documentation to show the correct IC company number for MDS. Dennis Ward mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

Page 1 of 2 American TCB November 9, 2007 RE: FCC ID: E5MDS-ENETL2TU, IC: 101D-ENETL2TU ATCB005587 Attention: Dennis Ward Please find the applicant’s responses to your comments on this application below: 1. Please note that it is not clear from the documentation if this device can have more than one input signal. If this device can have more than one input, please provide the required intermodulation test data. This amplifier was designed only to support the 2watt MDS radio, the ROR220. It was custom designed for the railroads and is intended only to be used with the ROR220 licensed transceiver as a repeater amplifier. 2. In regards to multiple input possibility for this device as mentioned above, please explain if the power out is per channel of composite of all channels. I think the answer to question 1 should solve this. 3. Please provide that parts list for this device. A parts list has been uploaded, please treat this confidential. A new confidentiality letter has been uploaded to include the BOM. 4. Please provide the MPE report for this device. Alternately, please explain if this device will always be used in a licensed site where MPE is addressed at the time of licensing. This power amplifier will have the MPE safety detailed when the licensed 220MHz site antennas are installed. Alternately I did include the maximum MPE on the operating instructions and based this on the maximum gain antenna that we know the railroads will be using. Please see page 2 of the operation document that I previously sent. 5. Please note that as all documentation will be uploaded to the Industry Canada site all documentation will be public view. If confidentiality is desired for Industry Canada, please provide a request for confidentiality addressed to Industry Canada. We have uploaded a confidentiality letter for IC. 6. Please note that the label states MDS as the manufacturer, but the IC application form states GE MDS LLC. Please note that the IC company number 101D belongs to GE MICROWAVE DATA SYSTEMS LLC 175 Science Parkway, but the number of the manufacturer shown on the label (Microwave Data Systems) at the same address is 3738A. Please correct the label to reflect the actual IC company number being used for this device or please correct the other documentation to show the correct IC company number for MDS. This is an Industry Canada issue; I worked with Marianne Bosley at ATCB and Dave Guidotti from Elliott. IC wants to use the new 101D moving forward for all new grants. IC assigned this number. The IC number is what is licensed, just like the FCC. GE MDS LLC is simply GE Microwave Data Systems, Limited Liability Corp. We still use the brand name recognition of MDS but legally our name had to change and have the GE put in front of it. This is when IC said we need to use the GE IC number of 101D. Regards, David W. Bare CTO Page 2 of 2

175 Science Parkway, Rochester, New York 14620 USA (585) 242-9600 Phone (585) 242-9620 Fax October 29, 2007 FEDERAL COMMUNICATIONS COMMISSION 7435 Oakland Mills Road Columbia, MD 21046 USA Subject: Part 90.203(e) Compliance Attestation Applicant: Microwave Data Systems Inc. Product: ENET-L2TU RF 40 watt amplifier Model: ENET-L2TU FCC ID: E5MDS- ENETL2TU Dear Sir or Madam: The GE MDS LLC ENET-L2TU meets the requirements of the FCC Rules, Parts 90.203(e) except as provided in paragraph (g) of the section 203. The operator cannot program and transmit on frequencies other than those programmed by the manufacturer, service or maintenance personnel, using the equipment’s external operational controls. Yours sincerely Dennis McCarthy Agency Compliance Engineer GE MDS LLC WWW.GEMDS.COM 175 Science Parkway Rochester NY 14620 [email protected] (Office) 585 242-8440 (Dial Comm) *608.8440 (Cell) 585 734-3899

File: R69611 Page 1 of 20 2016-01 Electromagnetic Emissions Test Report In Accordance With Industry Canada RSS- 131 Issue 2 and FCC Part 90 on the GE MDS LLC Amplifier Model: ENET-L2TU FCC ID: E5MDS-ENETL2TU UPN: 101D-ENETL2TU GRANTEE: GE MDS LLC 175 Science Parkway Rochester, NY 14620 TEST SITE: Elliott Laboratories, Inc. 41039 Boyce Road Fremont, CA 94538 REPORT DATE: October 16, 2007 FINAL TEST DATE: October 5, 2007 AUTHORIZED SIGNATORY: ______________________________ David W. Bare Chief Technical Officer Elliott Laboratories, Inc. is accredited by the A2LA, certificate number 2016-01, to perform the test(s) listed in this report. This report shall not be reproduced, except in its entirety, without the written approval of Elliott Laboratories, Inc. Elliott Laboratories, Inc. -- EMC Department Test Report Report Date: October 16, 2007 File: R69611 Page 2 of 20 REVISION HISTORY Revision # Date Comments Modified By 1 November 2, 2007 Initial Release David Guidotti Elliott Laboratories, Inc. -- EMC Department Test Report Report Date: October 16, 2007 File: R69611 Page 3 of 20 TABLE OF CONTENTS COVER PAGE.............................................................................................................................................................1 REVISION HISTORY ................................................................................................................................................2 TABLE OF CONTENTS ............................................................................................................................................3 FCC CERTIFICATION INFORMATION...............................................................................................................4 DECLARATIONS OF COMPLIANCE....................................................................................................................6 SCOPE..........................................................................................................................................................................7 OBJECTIVE ................................................................................................................................................................7 SUMMARY OF TEST RESULTS .............................................................................................................................8 PART 90 AND RSS-131 TEST SUMMARY...............................................................................................................8 MEASUREMENT UNCERTAINTIES .....................................................................................................................9 EQUIPMENT UNDER TEST (EUT) DETAILS ....................................................................................................10 GENERAL..............................................................................................................................................................10 EUT ANTENNA DETAILS...................................................................................................................................10 ENCLOSURE.........................................................................................................................................................10 MODIFICATIONS.................................................................................................................................................10 SUPPORT EQUIPMENT.......................................................................................................................................11 EUT INTERFACE PORTS ....................................................................................................................................11 EUT OPERATION DURING TESTING...............................................................................................................11 TEST SITE.................................................................................................................................................................12 GENERAL INFORMATION.................................................................................................................................12 CONDUCTED EMISSIONS CONSIDERATIONS ..............................................................................................12 RADIATED EMISSIONS CONSIDERATIONS ..................................................................................................12 MEASUREMENT INSTRUMENTATION ............................................................................................................13 RECEIVER SYSTEM ............................................................................................................................................13 INSTRUMENT CONTROL COMPUTER ............................................................................................................13 PEAK POWER METER ........................................................................................................................................13 FILTERS/ATTENUATORS ..................................................................................................................................13 ANTENNAS...........................................................................................................................................................14 ANTENNA MAST AND EQUIPMENT TURNTABLE.......................................................................................14 INSTRUMENT CALIBRATION...........................................................................................................................14 TEST PROCEDURES ..............................................................................................................................................15 SPECIFICATION LIMITS AND SAMPLE CALCULATIONS..........................................................................20 RADIATED EMISSIONS SPECIFI…
