E5MDS-MERCODU3AWIRELESS IP/ETHERNET TRANSCEIVER

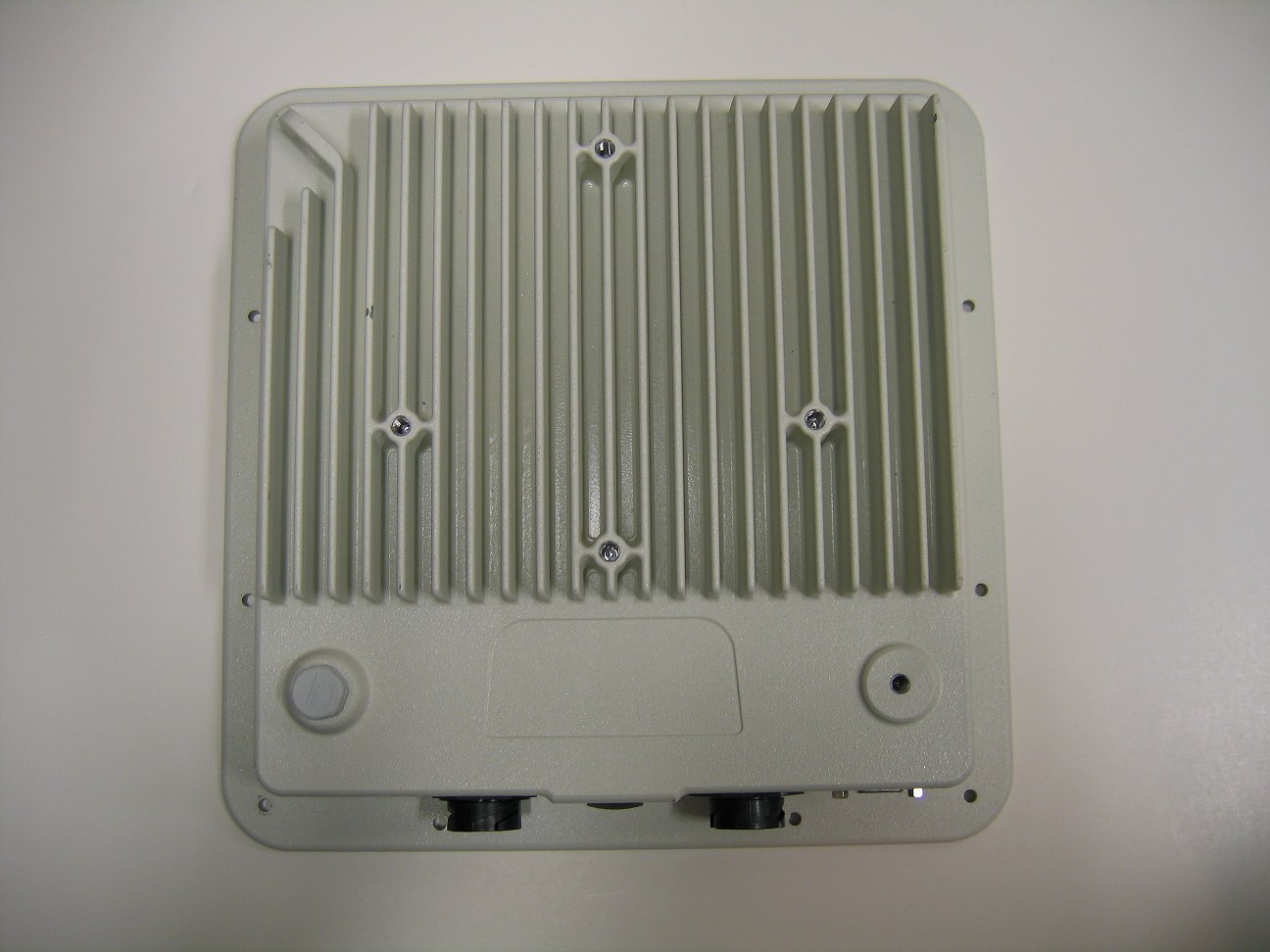

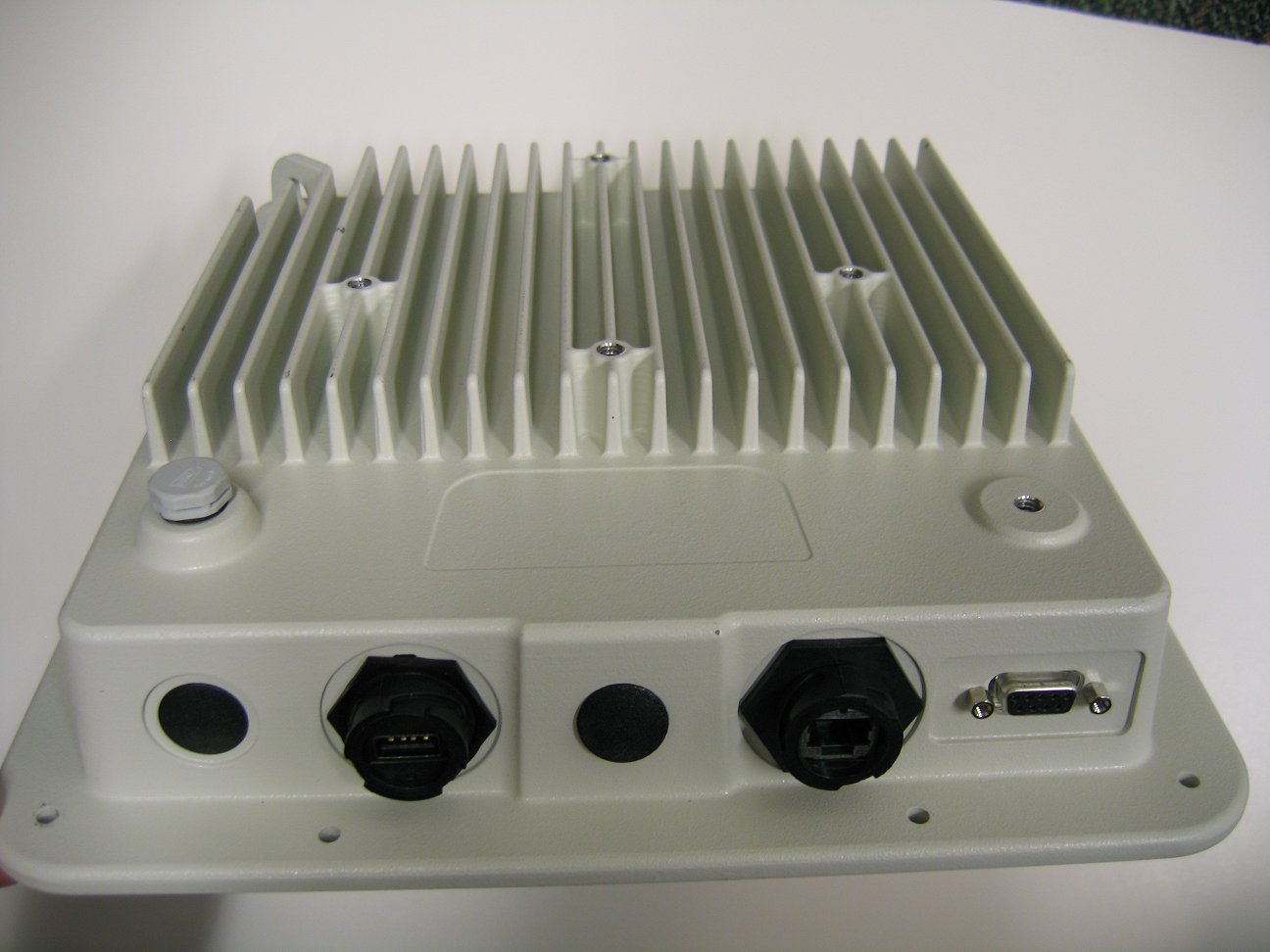

05-6301A01, Rev. 01MDS Mercury Series Quick Start1 MDS Mercury Series Setup Guide MDS Mercury TM Series transceivers provide an easy-to-install wireless network service with long range and secure operation at adaptive data rates approaching 30 Mbps. The transceiver is designed for demanding applications in industrial environments, where reliability and range are paramount. The transceiver comes in two primary models—Base Station (BS) and Subscriber Unit (SU), each with unique hardware profiles. Both models support Ethernet and serial services. A BS is a wire- less switch that usually provides connectivity into a wired Ethernet LAN/WAN. Subscriber Units associate over the air with a BS and are typically connected to an Ethernet or Serial device via a local cable. The outward appearance of the standard SU is very similar to the BS. NOTE:To determine whether a unit is an BS or Subscriber Unit, check the dome label on the top of the unit. Refer to the Mercury Series Technical Manual (05-6302A01) for advanced procedures and additional information. 1.1Connectors & Indicators Figure 1 shows the connectors and indicators of a Standard BS. These items are referenced in the installation and operation steps that follow. Note that SU radios may have an additional connector present for Wi-Fi service, depending on order requirements. If Wi-Fi is not provided on an SU, the GPS connector will also be absent. Invisible place holder Figure 1. Connectors and Indicators (Standard BS shown; SU Similar) 1.2Weatherproof Subscriber Unit In addition to the Standard Subscriber Unit, a weatherproof Out- door Unit (ODU) model is offered (see Figure 2). The ODU is designed for mounting on a tower, pole, or other elevated struc- ture, and includes an integral panel antenna. DC power is typically applied to the ODU through a Category 5 Ethernet cable (Cat. 5E, Cat. 6 also acceptable) which provides Power-over-Ethernet (PoE) service. The cable can be up to 100 meters in length (328 feet). For non-PoE models, a separate DC power cable is required to supply 10-65 Vdc. Invisible place holder Figure 2. Mercury ODU Subscriber Unit All operating parameters and commands for the ODU are identical to those of the indoor SU. The only difference is in the physical installation of the hardware on its support structure. There are three main requirements for installing all units in the transceiver system—adequate and stable primary power, a good antenna system, and the correct interface between the transceiver and the data device. Figure 3 shows a typical Mercury installation. 2.1Installation Steps Listed below are the basic steps for installation. It is highly recom- mended that the BS be installed first so that you can quickly check the operation of each associated SU as it is placed on the air. Invisible place holder Figure 3. Typical Mercury Installation (SU Shown; BS Similar) 1.0INTRODUCTION            !"# $    %& ' %& '    2.0INSTALLATION—ALL UNITS                !"!#!!  $  %"  $ "%  & '((&)'( *+#   $ " " &, #-./.)0) &--,#&*+#    " "   % )*-& *#&1!#+"!/ 2-# ! 1 #&"!/ 2MDS Mercury Series Quick Start05-6301A01, Rev. 01 2.1.1 Step 1a—Mount the Transceiver (BS/SU) Use the supplied 6-32 x 1/4 inch (6 mm) screws to attach the mounting brackets to the bottom of the radio. Figure 4 shows the mounting dimensions of the unit. Mount the radio to a stable sur- face. (Fasteners not supplied.) Invisible place holder Figure 4. Transceiver Mounting Dimensions (Dimensions for BS and SU identical) 2.1.2 Step 1b—Mount the ODU (if applicable) The ODU is a one-piece unit with an integrated, dual polararized panel antenna. It measures approximately 27 cm wide X 27 cm deep X 8 cm high. Using the bracket on the back of the unit, mount the ODU securely to a tower, pole or other stable surface that provides a clear path in the direction of the associated Base Station. 2.1.3 Step 2—Install the Antenna (Non-ODU models) BS units typically use sector antennas, while SU’s typically use a directional panel antenna. All antennas should be mounted in the clear to a sturdy support. Connect the antenna’s feedline cable to the transceiver’s WiMAX Antenna Port. To minimize RF interfer- ence, the antenna should be at least 9 inches (> 23 cm) away from connected device(s), sensors and other external components. Install GPS Antenna (if required) Install the GPS antenna in accordance with the manufacturer’s instructions. Connect it to the GPS Port on the unit’s front panel. 2.1.4 Step 3—Measure & Connect DC Power The DC input to the transceiver must be within 10–60 Vdc and capable of continuously providing at least 50 watts. ODUs, except for non-PoE units, receive power over the Ethernet cable. Power cabling for ODUs must be properly secured to the support structure the unit is mounted on. In addition, the ODU’s ground post must be connected to a low impedance Earth ground. For other models, a power connector with screw-terminals is pro- vided with each unit. Strip the wire leads to 6 mm (1/4 inch). Be sure to observe proper polarity with the positive lead (+) on the left, and the negative on the right. The unit is designed for use in neg- ative ground systems only. The power supply should be equipped with overload protection (NEC Class 2), to protect against a short circuit between its output ter- minals and the radio’s power connector. NOTE:It takes about 30 seconds for the unit to fully power up, and a few minutes to associate with another unit, espe- cially if GPS is required for time synchronization. 2.1.5 Step 4—Review the Transceiver’s Configuration One setting must be known before beginning configuration on a unit; The IP address. Check with your System Administrator for this information. (Default address…

Text truncated - open the document above for the full version.

175 Science Parkway, Rochester, New York 14620 USA (585) 242-9600 Phone (585) 242-9620 Fax July 9th, 2012 FEDERAL COMMUNICATIONS COMMISSION 7435 Oakland Mills Road Columbia, MD 21046 U.S.A. Subject: Authority to Act as an Agent to FCC Applicant: GE MDS LLC. Product: MDS MERCURY3650 FCC ID: E5MDS-MERCIDU3A IDU chassis FCC ID: E5MDS-MERCODU3A ODU chassis Gentlemen: This is your letter of authorization to accept our appointment of Elliott Laboratories LLC (NTS Silicon Valley) as Agent for GE MDS 175 Science Parkway, Rochester, New York 14620 USA, to sign applications before the Commission and to make representations to you on our behalf. Elliott Laboratories is to receive and exchange data between our company and the Commission. This authorization is made pursuant to Section 2.911(c) of the FCC Rules and expires on expiration date. I hereby certify on behalf of GE MDS 175 Science Parkway, Rochester, New York 14620 USA ("Applicant") that neither Applicant nor any party to the application (officers, directors, and 5% shareholders) is subject to a denial of Federal benefits that includes FCC benefits pursuant to section 5301 of the Anti-Drug Abuse Act of 1988. 21 U.S.C. 853a. Dennis McCarthy Agency Compliance Engineer GE Digital Energy -MDS 175 Science Parkway Rochester NY 14620 Phone (585) 242-8440 Email [email protected] 175 Science Parkway, Rochester, New York 14620 USA (585) 242-9600 Phone (585) 242-9620 Fax July 9th, 2012 FEDERAL COMMUNICATIONS COMMISSION 7435 Oakland Mills Road Columbia, MD 21046 U.S.A. I am writing to avoid the possibility of an inadvertent disclosure of proprietary information. The accompanying Form 731 is being filed with the commission on our behalf by Elliott Laboratories, Inc., a consulting and testing laboratory. Included as exhibits with the enclosed application are block diagrams, schematics, and a detailed description of the theory of operation of the device. It is our intention to provide the commission with a full disclosure of our product so that its merits can be evaluated. Indeed, we are pleased to provide any further information that the commission might wish to see. It is not our intention, however, to make our proprietary process a matter of public record. In view of the fact that the block diagrams, schematics, and associated theory of operation disclose the mechanism of our process, we ask that these portions (block diagrams, schematics, and theory of operation) of our application be withheld from public inspection as provided under FCC sections 0.457 and 0.459. These documents contain details of the proprietary operation of product. These details are not readily discernible - even to technically sophisticated individuals - from our hardware and constitute trade secrets. We request therefore that these documents be segregated from the body of our evaluation report and withheld from public inspection. Thank you for your attention. Please let the undersigned know if the Commission disagrees with our position or requires further justification. Dennis McCarthy Agency Compliance Engineer GE Digital Energy -MDS 175 Science Parkway Rochester NY 14620 Phone (585) 242-8440 Email [email protected]

175 Science Parkway, Rochester, New York 14620 USA (585) 242-9600 Phone (585) 242-9620 Fax July 9th, 2012 FEDERAL COMMUNICATIONS COMMISSION 7435 Oakland Mills Road Columbia, MD 21046 U.S.A. Subject: Authority to Act as an Agent to FCC Applicant: GE MDS LLC. Product: MDS MERCURY3650 FCC ID: E5MDS-MERCIDU3A IDU chassis FCC ID: E5MDS-MERCODU3A ODU chassis Gentlemen: This is your letter of authorization to accept our appointment of Elliott Laboratories LLC (NTS Silicon Valley) as Agent for GE MDS 175 Science Parkway, Rochester, New York 14620 USA, to sign applications before the Commission and to make representations to you on our behalf. Elliott Laboratories is to receive and exchange data between our company and the Commission. This authorization is made pursuant to Section 2.911(c) of the FCC Rules and expires on expiration date. I hereby certify on behalf of GE MDS 175 Science Parkway, Rochester, New York 14620 USA ("Applicant") that neither Applicant nor any party to the application (officers, directors, and 5% shareholders) is subject to a denial of Federal benefits that includes FCC benefits pursuant to section 5301 of the Anti-Drug Abuse Act of 1988. 21 U.S.C. 853a. Dennis McCarthy Agency Compliance Engineer GE Digital Energy -MDS 175 Science Parkway Rochester NY 14620 Phone (585) 242-8440 Email [email protected] 175 Science Parkway, Rochester, New York 14620 USA (585) 242-9600 Phone (585) 242-9620 Fax July 9th, 2012 FEDERAL COMMUNICATIONS COMMISSION 7435 Oakland Mills Road Columbia, MD 21046 U.S.A. I am writing to avoid the possibility of an inadvertent disclosure of proprietary information. The accompanying Form 731 is being filed with the commission on our behalf by Elliott Laboratories, Inc., a consulting and testing laboratory. Included as exhibits with the enclosed application are block diagrams, schematics, bill of materials and a detailed description of the theory of operation of the device. It is our intention to provide the commission with a full disclosure of our product so that its merits can be evaluated. Indeed, we are pleased to provide any further information that the commission might wish to see. It is not our intention, however, to make our proprietary process a matter of public record. In view of the fact that the block diagrams, schematics, bill of materials and associated theory of operation disclose the mechanism of our process, we ask that these portions (block diagrams, schematics, bill of materials and theory of operation) of our application be withheld from public inspection as provided under FCC sections 0.457 and 0.459. These documents contain details of the proprietary operation of product. These details are not readily discernible - even to technically sophisticated individuals - from our hardware and constitute trade secrets. We request therefore that these documents be segregated from the body of our evaluation report and withheld from public inspection. Thank you for your attention. Please let the undersigned know if the Commission disagrees with our position or requires further justification. Dennis McCarthy Agency Compliance Engineer GE Digital Energy -MDS 175 Science Parkway Rochester NY 14620 Phone (585) 242-8440 Email [email protected]

Page 1 of 3 FCC September 4, 2012 RE: FCC ID: E5MDS-MERCIDU3A Attention: Stan Lyles Please find our responses to your comments on this application below: Your operational description describes need to be Modified: 1) We would prefer to have separate CBP descriptions and Theory of Operation. In your case you can leave the Theory of Operation as is but cut and paste the CBP parts into a separate CBP description. Response: The Theory of Operation for each of these products and the CBP descriptions has been separated into their own documents. One CBP description document has been uploaded that is applicable for both Basestation and Subscriber versions of hardware. 2) Your CBP Description should not contain both Restricted Contention Protocol and Unrestricted Contention Protocol You need to remove the Restricted Contention Protocol. Response: The restricted contention protocol description has been removed from the documentation. 3) Then each CBT (GE MDS LLC, FCC ID: E5MDS-MERCIDU3A, EA551457 and FCC ID: E5MDS-MERCODU3A, EA347120) description should be add a simple sentence to indicate that this description is for the: Bases or remote as applicable. Then you need to define the compatible FCC IDs that the Base or remote is compatible with. This is only necessary to identify the far end compatible device by FCC ID in the initial application. Response: The new CBT description document is titled “GE MDS Contention Protocol Description.” Within this document, the FCC IDs of all GE MDS 3650 devices are listed and their compatibility with each other. Page 2 of 3 4) I would simply add at the beginning this description is for the Remote, then a brief statement that it will not initiate a transmission unless it sees a configured Base station, this is done every frame (5 ms) etc—Use your own words. Then say the following is the CBP system description for both the base and the remotes. Response: Within the CBP document, a paragraph has been added about the TDD system design having subscribers detect the CBP Basestation before beginning transmissions, thus the protocol is applicable to both Subscriber and Basestation units. 5) When a new device is granted you do not have to file a Class II change for to all other existing compatible devices. However, this is treated as a Class I Change and a manufacture would need to maintain records too identify all compatible devices. This would be typical of any good system provider. Response: Our subscriber and Basestation units have been internally validated to be operational only with each other at this time. If, in the future, we require compatibility with third party vendors to enable the CBP protocol we will perform extensive testing to ensure compliance with both regulatory and product performance expectations. 6) Define default value before users make any adjustment? Response: For each of the configurable parameters (Interference listening duration and Power detection Threshold) the default values have been added to the CBP description (Sections 2.a and 2.b 7) I do not see test results for demonstrating CBT threshold settings for the Base Station... Typical demonstration shows a conducted test between a Base Station and remote. A CW signal is introduced at (1) just outside and below occupied Bandwidth , (2) inside at low end of occupied Bandwidth, (3) inside at the middle of occupied Bandwidth, (4) inside at high end of occupied Bandwidth, (5) outside and just above occupied Bandwidth, This is done at two thresholds Low and high end of range A simple table showing CW signal at introduced Frequency at Threshold and just below threshold A Yes/NO indication for each cell to indicate CBT detection (Yes: CBT active remote not transmitting—at threshold No Below and No Out of band.) Response: A test report titled “GE MDS Mercury3650 CBT Test Report” has been uploaded reporting the functionality CBP when presented with CW interferers. In addition to your request for data at the lowest and highest threshold settings, measurement results for the default threshold have also been included. These tests were performed for each of the 5 operating bandwidths that we are capable of operating in. A list of frequencies used for the testing are listed in the document. We chose +/‐1MHz outside of the occupied signal bandwidth for the out‐of‐band CW tone Page 3 of 3 tests and used the lower, middle, and upper frequencies of the passband per your instructions for the in‐band tests. All of the data captured shows that our product detects the in‐band CW signals within 1dB of the configured threshold, while out of band CW interferers are not detected at threshold levels due to receive channel filtering. 8. User manual mentions the device has an associated / optional Wi-Fi and antenna; what is approval status for it please (FCC ID, modular or not, etc). Response: The WiFi module that we are using has a modular approval. All details including FCC ID, frequency range, and Grant date have been added to the Mercury2‐ MIMO 3659 ODU Theory Of Operation in Section 2.5, and the Mercury 2‐MIMO 3650 IDU Theory of operation in Section 2.4. 9. Provide the necessary bandwidth for each line item below per Section 2.202. FCC ID: E5MDS-MERCODU3A Confirmation Number: EA347120 Frequency Range Emissions Designator 1 3653‐3697 3M20G1D 2 3653‐3697 4M50G1D 3 3654‐3696 6M60G1D 4 3655‐3695 8M20G1D 5 3656‐3694 9M20G1D Regards, David W. Bare Chief Engineer DWB/dmg Uploaded Exhibits: GE MDS Contention Based Protocol Description 08-30-2012.pdf GEMDS_MERCURY3650_CBT_TEST_REPORT_8_30_12.pdf Mercury2-MIMO 3650 IDU Theory of Operation 08-30-2012.pdf

EMC Test Data Client: Contact: Standard: Test Specific Details General Test Configuration No Device complies with Power Density requirements at 20cm separation: Test Engineer: David Bare Calculation uses the free space transmission formula: S = (PG)/(4 πd 2 ) Where: S is power density (W/m 2 ), P is output power (W), G is antenna gain relative to isotropic, d is separation distance from the transmitting antenna (m). Summary of Results Maximum Permissible Exposure Objective: The objective of this test session is to perform final qualification testing of the EUT with respect to the specification listed above. Date of Test: 7/20/2012 Dennis McCarthy FCC Part 90, RSS-119Class: N/A GE MDSJob Number: J81612 Model: Mercury ODU T-Log Number: T81815 Account Manager: Susan Pelzl 25 20cm separation: If not, required separation distance (in cm): Modifications Made During Testing No modifications were made to the EUT during testing Deviations From The Standard No deviations were made from the requirements of the standard. T81815 GE PoE sample.xlsMPE Calc 20-Jul-12Page 1 of 2 EMC Test Data Client: Contact: Standard: Dennis McCarthy FCC Part 90, RSS-119Class: N/A GE MDSJob Number: J81612 Model: Mercury ODU T-Log Number: T81815 Account Manager: Susan Pelzl Use: General Antenna:Panel USE THIS FOR 1.5-15 GHz sin gle transmitters Cable AntPower Freq.LossGainat AntEIRP MHzdBmmW*dBdBidBmmW 3653-369718.062.402118.07852.36 For the cases where S > the MPE Limit Fre q. MHz 3653-3697 mW/cm^2mW/cm^2S <= MPE Limit 1.5621.00025.0cm S @ 20 cmMPE LimitDistance where Powe rat 20 cmat 20 cm mW/cm^2mW/cm^2 1.5621.000 EUTPower Densit y (S)MPE Limit T81815 GE PoE sample.xlsMPE Calc 20-Jul-12Page 2 of 2

File: R88351 Page 1 Radio Test Report FCC Part 90 Subpart Z 3650 MHz to 3700 MHz Model: Mercury 3650 Outdoor Subscriber COMPANY: GE MDS LLC 175 Science Parkway Rochester, NY 14620 TEST SITE(S): NTS Silicon Valley 41039 Boyce Road. Fremont, CA. 94538-2435 REPORT DATE: July 19, 2012 FINAL TEST DATES: January 19, 21, 28 and 31, February 3, 10, 11 and 14, 2011 TOTAL NUMBER OF PAGES: 83 PROGRAM MGR / QUALITY ASSURANCE DELEGATE / TECHNICAL REVIEWER: FINAL REPORT PREPARER: ______________________________ ______________________________ David W. Bare David Guidotti Chief Engineer Senior Technical Writer NTS Silicon Valley is accredited by the A2LA, certificate number 0214.26, to perform the test(s) listed in this report, except where noted otherwise. This report and the information contained herein represent the results of testing test articles identified and selected by the client performed to specifications and/or procedures selected by the client. National Technical Systems (NTS) makes no representations, expressed or implied, that such testing is adequate (or inadequate) to demonstrate efficiency, performance, reliability, or any other characteristic of the articles being tested, or similar products. This report should not be relied upon as an endorsement or certification by NTS of the equipment tested, nor does it represent any statement whatsoever as to its merchantability or fitness of the test article, or similar products, for a particular purpose. This report shall not be reproduced except in full NTS Silicon Valley -- EMC Department Test Report Report Date: July 19, 2012 File: R88351 Page 2 REVISION HISTORY Rev# Date Comments Modified By - 07-19-2012 First release NTS Silicon Valley -- EMC Department Test Report Report Date: July 19, 2012 File: R88351 Page 3 TABLE OF CONTENTS REVISION HISTORY ................................................................................................................................................ 2 TABLE OF CONTENTS ............................................................................................................................................ 3 SCOPE .......................................................................................................................................................................... 4 OBJECTIVE ................................................................................................................................................................ 5 STATEMENT OF COMPLIANCE ........................................................................................................................... 5 DEVIATIONS FROM THE STANDARDS .............................................................................................................. 5 TEST RESULTS .......................................................................................................................................................... 6 FCC PART 90Z – BASE AND FIXED STATIONS, 3650 – 3700 MHZ ...................................................................... 6 EXTREME CONDITIONS ...................................................................................................................................... 7 MEASUREMENT UNCERTAINTIES .................................................................................................................... 7 EQUIPMENT UNDER TEST (EUT) DETAILS ...................................................................................................... 8 GENERAL ................................................................................................................................................................ 8 OTHER EUT DETAILS ........................................................................................................................................... 8 ENCLOSURE ........................................................................................................................................................... 8 MODIFICATIONS ................................................................................................................................................... 8 SUPPORT EQUIPMENT ......................................................................................................................................... 8 EUT INTERFACE PORTS ...................................................................................................................................... 9 EUT OPERATION ................................................................................................................................................... 9 TESTING ................................................................................................................................................................... 10 GENERAL INFORMATION ................................................................................................................................. 10 RF PORT MEASUREMENT PROCEDURES ...................................................................................................... 11 OUTPUT POWER .................................................................................................................................................. 11 BANDWIDTH MEASUREMENTS ...................................................................................................................... 12 CONDUCTED SPURIOUS EMISSIONS .............................................................................................................. 12 TRANSMITTER MASK MEASUREMENTS ....................................................................................................... 13 FREQUENCY STABILITY ................................................................................................................................... 13 TRANSIENT FREQUENCY BEHAVIOR: .......................................................................................................…

Text truncated - open the document above for the full version.

Mercury‐E 3650 Contention Based Protocol Characterization and Test Data Mercury 3650E Contention Based Protocol Test Report Performed by: GE MDS LLC 175 Science Parkway Rochester, NY 14620 30‐APR‐2012 Mercury‐E 3650 Contention Based Protocol Characterization and Test Data Test Description The Mercury 3650E radio hardware was configured as shown in Figure 1, below. This test setup provides the ability to inject interfering CW tones into a Mercury 3650 Basestation to assess the performance of the contention based protocol when interferers are applied at various levels. The UUT has a configurable power threshold that will be evaluated herein. DC Supply Li ne Range Auto/ Ma n +20V Commo n Gnd V olt ageC urrent On Of f Chan 1Chan 2 Chan 3Chan 4 Me as u r eFo rma t S c al e/ Ref Di spl ayAvgCal Mark er Ma r k e r Search Ma r k er Functi on StartStopPower C ent erSpanSweep SystemLoc alP res et Video Save/ Recal l Seq Return Respons e Active Channel Por t 2Por t 1 Network Analyzer Entry 0.-Hz 123kHz 456MH z 789GH z Entry Off <- /\\/ Stimulus Instrument S tateR C h ann el Line On/Off Disk Ej ect Figure 1: Test setup for evaluation of the Contention based protocol Mercury‐E 3650 Contention Based Protocol Characterization and Test Data Test Description: The UUT hardware was linked to each other via the cabled RF connection. The Basestation transmitter power was configured for +20dBm, and the receive target RSSI of the Basestation from the Subscriber was ‐70dBm, which is fixed and not adjustable by the user. When subscriber station transmissions are received from the Basestation at levels higher than ‐70dBm, the Basestation requests that subscriber reduce his transmit power accordingly. This is typical of all 802.16E based data radios. While the Basestation and Subscriber units were associated with each other, Ethernet pings were sent from the Test PC through the subscriber to the Basestation as a payload. A 13.8VDC power source was supplied to both radio units. The test PC was connected to both the Subscriber and Basestation units via DB9 serial cables to configure channel BW and the CBP threshold on the Basestation, and to allow for monitoring of the RF link to determine when an interference event occurred and caused a channel closing. Test Procedure: With the radios linked at 3687.5MHz (Mid band of the upper 3675‐3700MHz FCC Band), the radio was set to each of the following bandwidths and the interference tests were performed; 3.5MHz 5MHz 7MHz 8.75MHz 10MHz For each of these bandwidths listed, the threshold interferer level was evaluated at the following setpoints: ‐40dBm (Maximum setting) ‐90dBm (Minimum setting) ‐70dBm (Default setting) Mercury‐E 3650 Contention Based Protocol Characterization and Test Data Test Procedure (Continued): The CW generator power was set to the 5dB below the radio threshold and increased in 0.1dB steps until the interferer was detected and the channel was closed. This process was repeated 5 times for each bandwidth at the Low, Mid, and High frequencies inside of the occupied bandwidth, and then at +/‐ 1MHz outside of the occupied bandwidth. Figure 2, below, is a visual diagram of the frequency locations for a given channel bandwidth. Table 1 below shows the frequencies that were used for testing. A 100 kHz offset was used to evaluate the center frequency threshold for each given bandwidth; this was to allow for accurate signal measurements as the radio receiver architecture is Zero‐IF with DC offset compensation that can skew the results. Figure 2: Measurement points for interferer in a given channel bandwidth BW 100kHz Offset FC+BW/2FC‐BW/2FC+BW/2+1FC‐BW/2‐1 3.5 3687.6 3689.253685.753690.253684.75 5 3687.6 3690368536913684 7 3687.6 3691368436923683 8.75 3687.6 3691.8753683.1253692.8753682.125 10 3687.6 3692.53682.53693.53681.5 All frequencies in MHz Mercury‐E 3650 Contention Based Protocol Characterization and Test Data Table 1: Measurement frequencies for interferers in a given channel bandwidth Mercury ‐ E 3650 Contention Based Protocol Characterization and Test Data Results UUT Settings Interference Detection occurred at threshold Y/N (Actual Level (dBm) in parenthesis) Over ‐ The ‐ Air signal bandwidth (MHz) Interferer Detection Threshold …
