E5MDS-MERCODU5Wimax Industrial Radio

Installation and Operation Guide Technical Manual MDS 05-6302A01, Rev. B.1 OCTOBER 2011 Covering Subscriber, Base, and Outdoor units (ODUs) of the Mercury 16E Series MDS Mercury Series Secure, Long Range IP/Ethernet & Serial F ea t ur i ng W eb- Ba s ed D e v i c e M a na ge r Need Quick-Start instructions for this product? Please refer to publication 05-6301A01. All GE MDS user guides are available online at www.gemds.com MDS 05-6302A01, Rev. AMDS Mercury 16E Technical Manuali TABLE OF CONTENTS 1.0 PRODUCT DESCRIPTION................................................................................................... 1 1.1 Product Models ............................................................................................................................. 2 1.2 Key Features ................................................................................................................................. 2 1.3 Key Specifications ......................................................................................................................... 3 2.0 QUICK-START INSTRUCTIONS .......................................................................................... 4 2.1 Connecting to the Device Manager ............................................................................................... 4 2.2 Configure IP Address and Identity ................................................................................................. 5 2.3 Basic Connectivity ......................................................................................................................... 7 Setup for Maximum Throughput ...................................................................................................... 9 3.0 FEATURE DESCRIPTIONS ................................................................................................. 9 3.1 Security Features .......................................................................................................................... 9 Overview .......................................................................................................................................... 9 Authentication .................................................................................................................................. 9 User Authentication........................................................................................................................ 10 PKMv2 Device Authentication........................................................................................................ 10 X.509 Certificates........................................................................................................................... 11 3.2 Multiple In / Multiple Out (MIMO) Operation ................................................................................ 11 3.3 ARQ and Hybrid ARQ ................................................................................................................. 12 ARQ Setup..................................................................................................................................... 12 HARQ Setup .................................................................................................................................. 13 4.0 Performing Common Tasks................................................................................................. 14 4.1 Basic Device Management .......................................................................................................... 14 USB Console ................................................................................................................................. 14 Using Configuration Scripts ........................................................................................................... 15 Perform Firmware Upgrade ........................................................................................................... 16 Instructions for Completing the Firmware Upgrade Process (Applies to all loading methods above) 17 Configuring Networking Features for VLAN ................................................................................... 18 Configure Serial Data Interface for TCP, UDP, MODBUS .............................................................. 21 Configure QOS .............................................................................................................................. 25 Flow Parameters ............................................................................................................................ 26 Quality of Service (QoS) Screen .................................................................................................... 27 Creating a Service Flow ................................................................................................................. 28 QOS Example: Low Latency .......................................................................................................... 28 QOS Example: Controlling Bandwidth in Video Applications......................................................... 28 QOS Example: Prioritizing a Data Flow ......................................................................................... 29 4.2 CONFIGURE SECURITY FEATURES & INTEGRATION WITH A RADIUS SERVER ............... 31 Device Management Interface Configuration................................................................................. 31 iiMDS Mercury 16E Technical ManualMDS 05-6302A01, Rev. A User Accounts................................................................................................................................ 31 4.3 RADIUS Server Configuration ..................................................................................................... 32 Creation of X.509 Certificates ........................................................................................................ 33 Load X.509 Certificates......…

Text truncated - open the document above for the full version.

175 Science Parkway, Rochester, New York 14620 USA (585) 242-9600 Phone (585) 242-9620 Fax Nov 2nd 2011 FEDERAL COMMUNICATIONS COMMISSION 7435 Oakland Mills Road Columbia, MD 21046 U.S.A. Subject: FCC part 15 unlicensed transmitter Professional installation request. Applicant: GE MDS LLC. Product: Mercury 5800 Model: Mercury wimax family NEW FCC ID’s: E5MDS-MERCODU5 Dear Sir/Madam, The MDS Mercury family of products is a Professional Installation Radio System and must be Installed by Trained Professional Installers, or Factory Trained Technicians. GE MDS has distributors, channel partners, and a field service department, that have all been trained in “Professional Installation” of part 15 unlicensed products. These products are NOT for sale to the general public and used for industrial applications where professional installers are used the system planning for path loss, cable selection, and antenna gain calculations. Our manual and all sales brochures will clearly list this system as “professional installation” is required. Below is an excerpt from our manual This section is designed to aid the professional installer in the proper methods of maintaining compliance with the FCC part 15 ERP limits. If you have any queries, please do not hesitate to contact me at 585 242-8440: Yours truly, Dennis McCarthy Agency Compliance Engineer GE MDS LLC 175 Science Parkway Rochester NY 14620 Phone (585) 242-8440 Email [email protected]

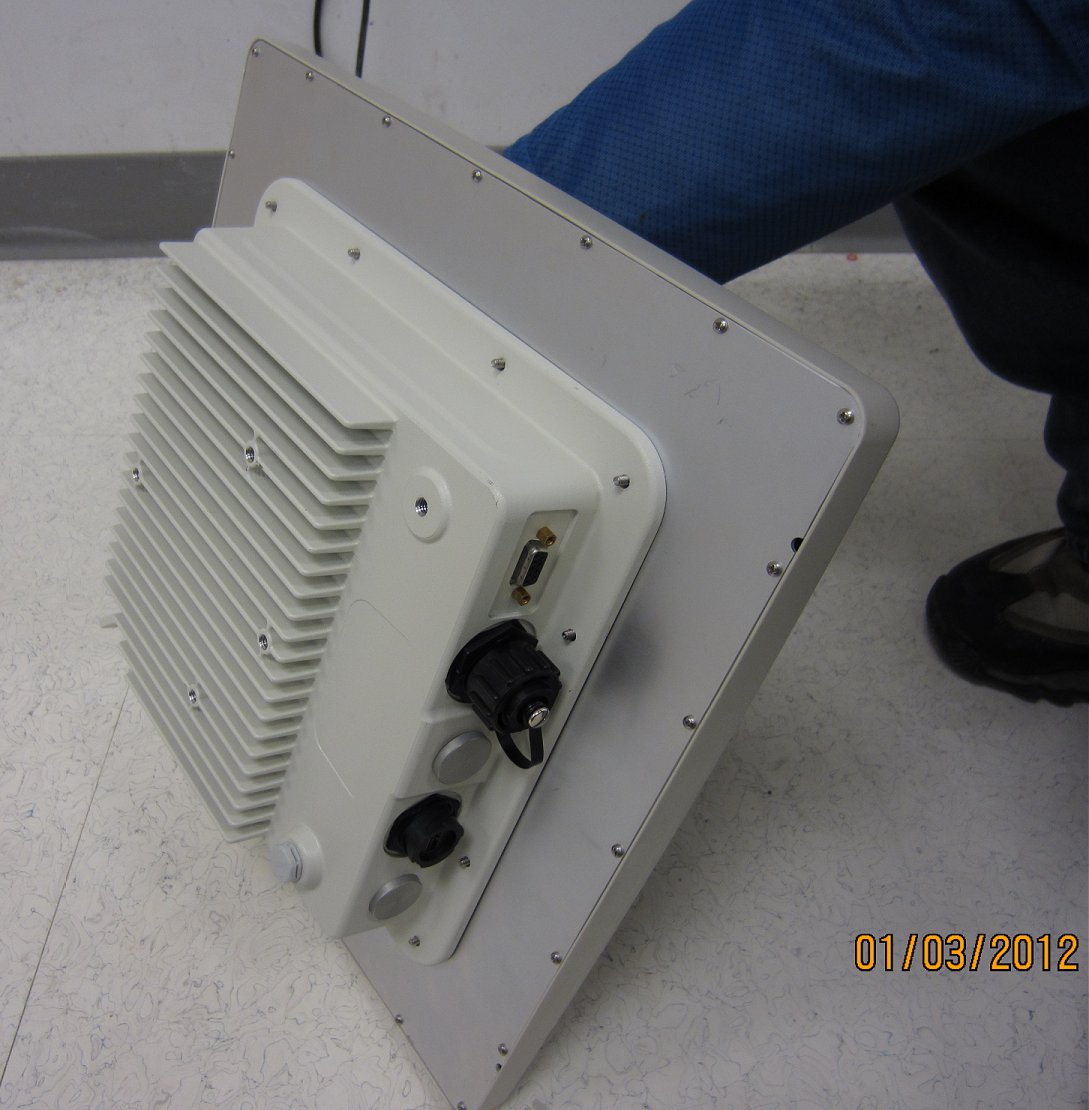

Page 1 of 1 ACB 6731 Whittier Ave. Suite C110 McLean, V. 22101 To whom it may concern: The enclosed documents constitute a formal submittal and application for Equipment Authorization for a wireless broadband service transmitter GE MDS LLC MERCURY 5800 OUTDOOR SUBSCRIBER pursuant to the following rules: Subpart C of Part 15 of FCC Rules (CFR 47) The Mercury 5800 radio operates as a 2x2 spacial-multiplexing radio in the 5725-5850 MHz frequency band as a digitally modulated radio under section 15.247. It uses a Panel antenna and is intended to be professionally installed. Elliott Laboratories, as duly authorized agent prepared this submittal. A copy of the letter of our appointment as agent is included with the application. If there are any questions or if further information is needed, please contact Elliott Laboratories for assistance. Sincerely, David W. Bare Chief Engineer DWB/dmg

022311 – 6 Authority to Act as Agent Date: 10/19/2011 American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: Elliott Labs,a NTS company is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: 01/31/2013 By: (Signature 1 ) (Print name) Title: Agency Compliance Engineer On behalf of: GE MDS LLC (Company Name) Telephone: 585 242-8440 1 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead. 022311 – 6 Request for Confidentiality Date: 10/19/2011 Subject: Confidentiality Request for: E5MDS-MERCODU5 Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent* 2 Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Parts List & Placement/BOM Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent* User’s Manual *Note: ______(Insert Explanation as Necessary)______ GE MDS LLC has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: Long term requested The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of NA days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: The applicant understands that until such time that IC distinguishes between Short Term and Permanent Confidentiality, either type of marked exhibit above will simply be marked Confidential when submitted to IC. Sincerely, 2 - The asterisked items (*) require further justification before permanent confidentiality will be allowed. These also currently require review by the FCC under their Permit-But-Ask policy before the grant is issued and can delay completion of an application. Further justification should be added to the note above. One such example for a potted device would be: “The EUT is FULLY potted using a non-removable epoxy based material. Removal of potting material causes irreparable damage to internal circuitry. See photographs exhibits that outline the device before and after potting.”

EMC Test Data Client: Contact: Standard: Test Specific Details General Test Configuration Yes GE MDS LLCJob Number: J83512 Model: Mercury5800 T-Log Number: T83697 Account Manager: Susan Pelzl Test Engineer: David Bare Dennis McCarthy FCC 15.247, RSS-210Class: N/A Objective: Evaluate the RF Exposure requirements per FCC 1.1310, 2.1091 and RSS-102. Date of Test: 12/10/2011 Maximum Permissible Exposure Calculation uses the free space transmission formula: S = (PG)/(4 πd 2 ) Where: S is power density (W/m 2 ), P is output power (W), G is antenna gain relative to isotropic, d is separation distance from the transmitting antenna (m). Summary of Results Device complies with Power Density requirements at 20 ti Yes Modifications Made During Testing No modifications were made to the EUT during testing Deviations From The Standard No deviations were made from the requirements of the standard. 20cm separation: If not, required separation distance (in cm): T83697 GE MDS LLC ODU.xlsMPE CalculationPage 1 of 2 EMC Test Data Client: Contact: Standard: GE MDS LLCJob Number: J83512 Model: Mercury5800 T-Log Number: T83697 Account Manager: Susan Pelzl Dennis McCarthy FCC 15.247, RSS-210Class: N/A Use: General Antenna:Panel Cable AntPower Freq.LossGainat AntEIRP MHzdBmmW*dBdBidBmmW 572918.063.101818.03981.07 578817.961.701817.93890.45 584418.063.101818.03981.07 For the cases where S > the MPE Limit Fre q. MHz 5729 5788 5844 EUTPower Densit y (S)MPE Limit Powe rat 20 cmat 20 cm mW/cm^2mW/cm^2 0.7921.000 0.7741.000 0.7921.000 S @ 20 cmMPE LimitDistance where mW/cm^2mW/cm^2S <= MPE Limit 0.7921.00017.8cm 0.7741.00017.6cm 0.7921.00017.8cm T83697 GE MDS LLC ODU.xlsMPE CalculationPage 2 of 2

File: R85224 Page 1 EMC Test Report Application for Grant of Equipment Authorization FCC Part 15 Subpart C Model: MERCURY 5800 OUTDOOR SUBSCRIBER FCC ID: E5MDS-MERCODU5 APPLICANT: GE MDS LLC 175 Science Parkway Rochester, NY 14620 TEST SITE(S): Elliott Laboratories 41039 Boyce Road. Fremont, CA. 94538-2435 IC SITE REGISTRATION #: 2845B-3; 2845B-4, 2845B-5, 2845B-7 REPORT DATE: January 12, 2012 FINAL TEST DATES: June 23, September 19 and 27, October 13, 17, 19, 21 and 24 and December 14, 2011 TOTAL NUMBER OF PAGES: 92 PROGRAM MGR / QUALITY ASSURANCE DELEGATE / TECHNICAL REVIEWER: FINAL REPORT PREPARER: ______________________________ ______________________________ David W. Bare David Guidotti Chief Engineer Senior Technical Writer Elliott Laboratories is accredited by the A2LA, certificate number 2016.01, to perform the test(s) listed in this report, except where noted otherwise. This report and the information contained herein represent the results of testing test articles identified and selected by the client performed to specifications and/or procedures selected by the client. National Technical Systems (NTS) makes no representations, expressed or implied, that such testing is adequate (or inadequate) to demonstrate efficiency, performance, reliability, or any other characteristic of the articles being tested, or similar products. This report should not be relied upon as an endorsement or certification by NTS of the equipment tested, nor does it represent any statement whatsoever as to its merchantability or fitness of the test article, or similar products, for a particular purpose. This report shall not be reproduced except in full. Elliott Laboratories -- EMC Department Test Report Report Date: January 12, 2012 File: R85224 Page 2 REVISION HISTORY Rev# Date Comments Modified By - 01-12-2012 First release Elliott Laboratories -- EMC Department Test Report Report Date: January 12, 2012 File: R85224 Page 3 TABLE OF CONTENTS REVISION HISTORY ................................................................................................................................................2 TABLE OF CONTENTS ............................................................................................................................................3 SCOPE..........................................................................................................................................................................4 OBJECTIVE ................................................................................................................................................................4 STATEMENT OF COMPLIANCE...........................................................................................................................5 DEVIATIONS FROM THE STANDARDS ..............................................................................................................5 TEST RESULTS SUMMARY ...................................................................................................................................6 DIGITAL TRANSMISSION SYSTEMS (5725 –5850 MHZ) .................................................................................6 MEASUREMENT UNCERTAINTIES....................................................................................................................7 EQUIPMENT UNDER TEST (EUT) DETAILS ......................................................................................................8 GENERAL................................................................................................................................................................8 ANTENNA SYSTEM ..............................................................................................................................................8 ENCLOSURE...........................................................................................................................................................8 MODIFICATIONS...................................................................................................................................................8 SUPPORT EQUIPMENT.........................................................................................................................................8 EUT INTERFACE PORTS ......................................................................................................................................9 EUT OPERATION ...................................................................................................................................................9 TEST SITE.................................................................................................................................................................10 GENERAL INFORMATION .................................................................................................................................10 CONDUCTED EMISSIONS CONSIDERATIONS ..............................................................................................10 RADIATED EMISSIONS CONSIDERATIONS ..................................................................................................10 MEASUREMENT INSTRUMENTATION ............................................................................................................11 RECEIVER SYSTEM ............................................................................................................................................11 INSTRUMENT CONTROL COMPUTER ............................................................................................................11 LINE IMPEDANCE STABILIZATION NETWORK (LISN)...............................................................................11 FILTERS/ATTENUATORS ..................................................................................................................................12 ANTENNAS.....................................................................…

Text truncated - open the document above for the full version.
