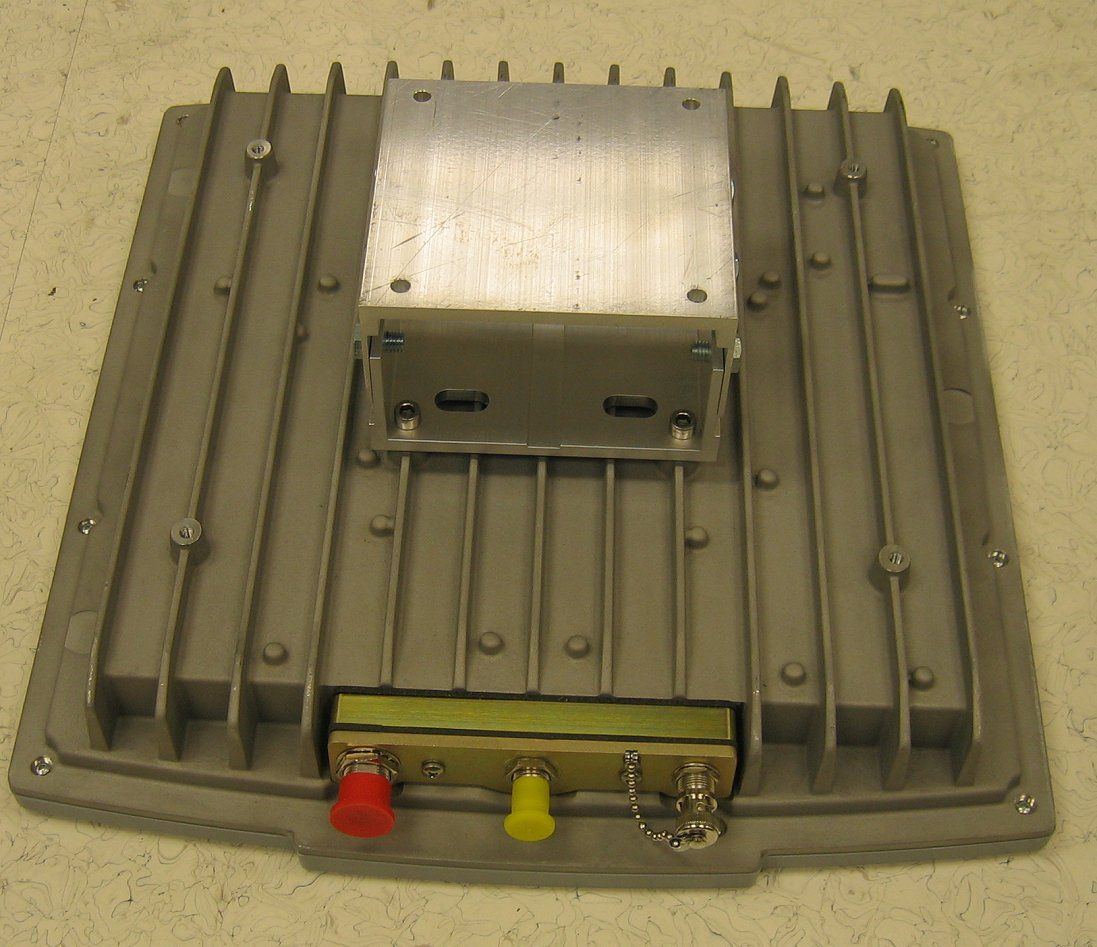

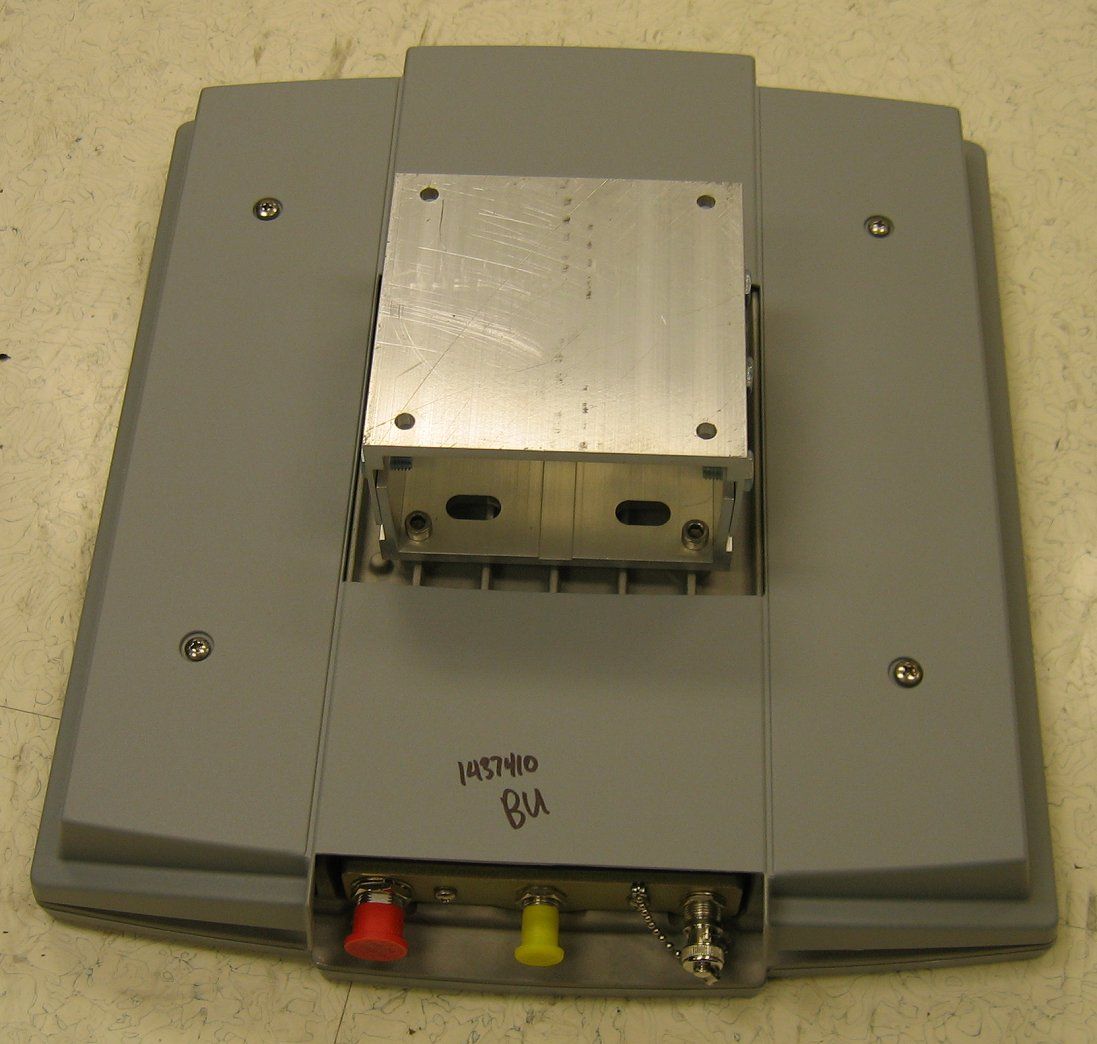

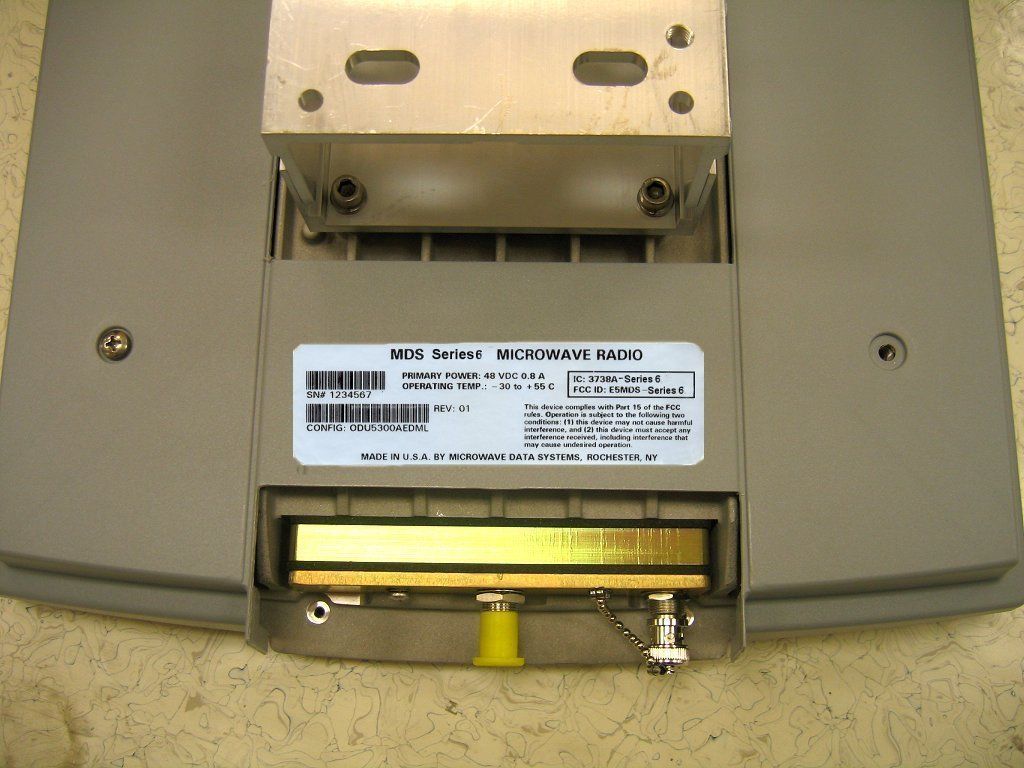

E5MDS-SERIES6Digital Radio System Six.4 Series

Microwave Data Systems Digital Radio System MDS FOUR.9 Series MDS SIX.4 Series User Reference and Installation Guide PRELIMINARY Part No. 05-4561A01, Rev. A Date: 9 JUNE 2006 © 2006 Microwave Data Systems Inc. All Rights Reserved. This book and the information contained herein is the proprietary and confidential information of Microwave Data Systems Inc. that is provided by Microwave Data Systems TM exclusively for evaluating the purchase of Microwave Data Systems Inc. technology and is protected by copyright and trade secret laws. No part of this document may be disclosed, reproduced, or transmitted in any form or by any means, electronic or mechanical, for any purpose without the express written permission of Microwave Data Systems Inc. For permissions, contact Microwave Data Systems Inc. Marketing Group at 1-585-241-5510 or 1-585- 242-8369 (FAX). Notice of Disclaimer The information and specifications provided in this document are subject to change without notice. Microwave Data Systems Inc. reserves the right to make changes in design or components as progress in engineering and manufacturing may warrant. The Warranty(s) that accompany Microwave Data Systems Inc., products are set forth in the sales agreement/contract between Microwave Data Systems Inc. and its customer. Please consult the sales agreement for the terms and conditions of the Warranty(s) proved by Microwave Data Systems Inc. To obtain a copy of the Warranty(s), contact your Microwave Data Systems Inc. Sales Representative at 1-585-241-5510 or 1-585-242-8369 (FAX). The information provided in this Microwave Data Systems Inc., document is provided “as is” without warranty of any kind, either expressed or implied, including, but not limited to, the implied warranties of merchantability, fitness for a particular purpose, or non-infringement. Some jurisdictions do not allow the exclusion of implied warranties, so the above exclusion may not apply to you. In no event shall Microwave Data Systems Inc. be liable for any damages whatsoever – including special, indirect, consequential or incidental damages or damages for loss of profits, revenue, use, or data whether brought in contract or tort, arising out of or connected with any Microwave Data Systems Inc., document or the use, reliance upon or performance of any material contained in or accessed from this Microwave Data Systems Inc. document. Microwave Data Systems’ license agreement may be provided upon request. Additional Terms and Conditions will be finalized upon negotiation or a purchase. The above information shall not be constructed to imply any additional warranties for Microwave Data Systems Inc. equipment including, but not limited to, warranties of merchantability or fitness for an intended use. Trademark Information Software Defined Indoor Unit TM (SDIDU TM ) is a product and trademark of CarrierComm Inc. Java TM is a trademark of Sun Microsystems Inc. Windows® is a registered trademark of Microsoft Corporation All other brand or product names are trademarks or registered trademarks of their respective companies or organizations. Table of Contents 1 SAFETY PRECAUTIONS ......................................................................................................................1-1 2 SYSTEM DESCRIPTION .......................................................................................................................2-1 2.1 About This Manual............................................................................................................................2-1 2.2 Introduction .......................................................................................................................................2-1 2.3 System Features ...............................................................................................................................2-5 2.4 Physical Description ........................................................................................................................2-6 2.4.1 Model Types ................................................................................................................................2-6 2.4.2 Options ........................................................................................................................................2-8 2.4.3 Front Panel Indicators .................................................................................................................2-8 2.4.4 Front Panel Connections .............................................................................................................2-9 2.5 System Description ........................................................................................................................2-13 2.6 Consecutive Point Architecture ....................................................................................................2-16 2.7 2 + 0 (East-West) Configuration ....................................................................................................2-18 2.8 1+1 Protection .................................................................................................................................2-19 2.9 1 + 1 Multi-hop Repeater Configuration .......................................................................................2-20 2.10 Data Interfaces ................................................................................................................................2-22 2.11 Power Management ........................................................................................................................2-22 2.12 MDS Digital Radio Series Software and Network Management.................................................2-23 3 INSTALLATION .....................................................................................................................................3-1 3.1 Unpacking........................................................................................…

Text truncated - open the document above for the full version.

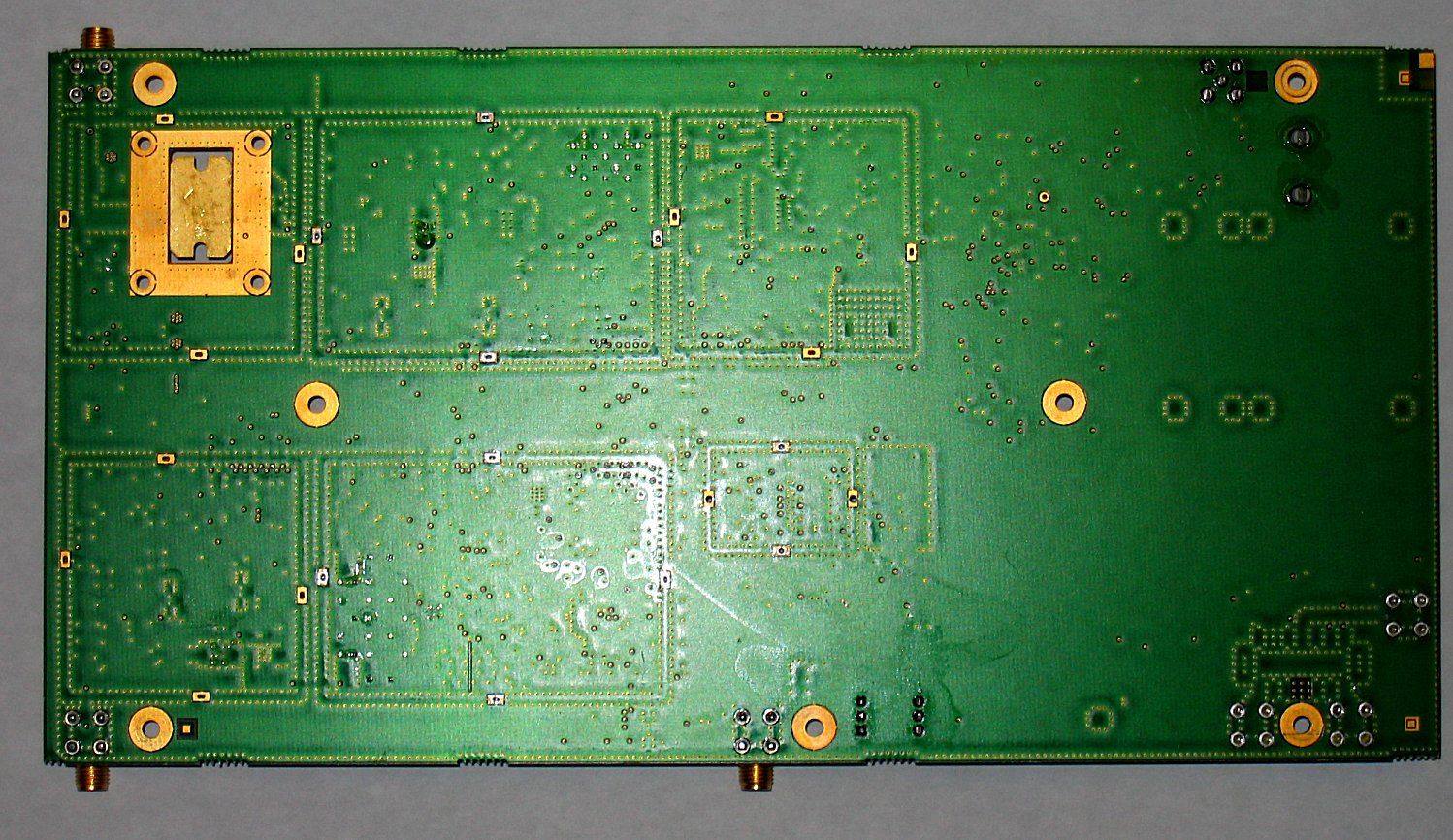

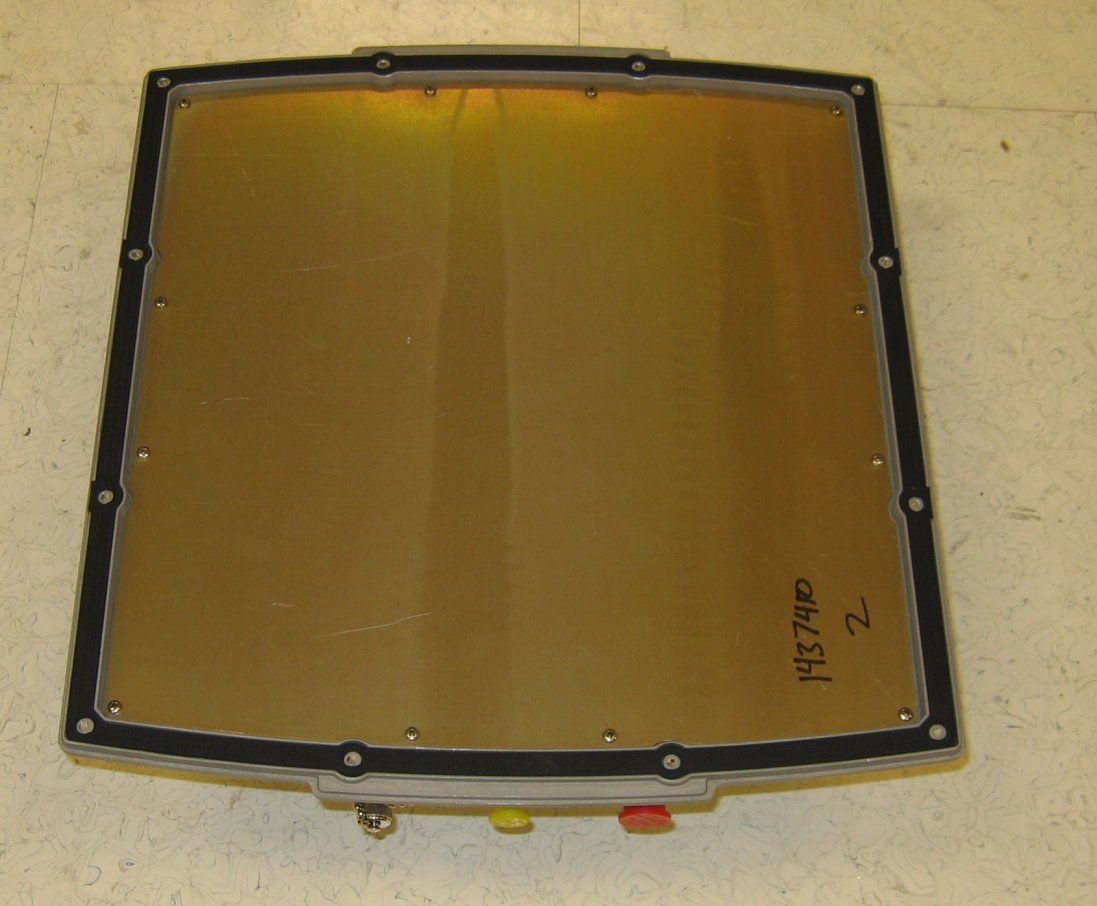

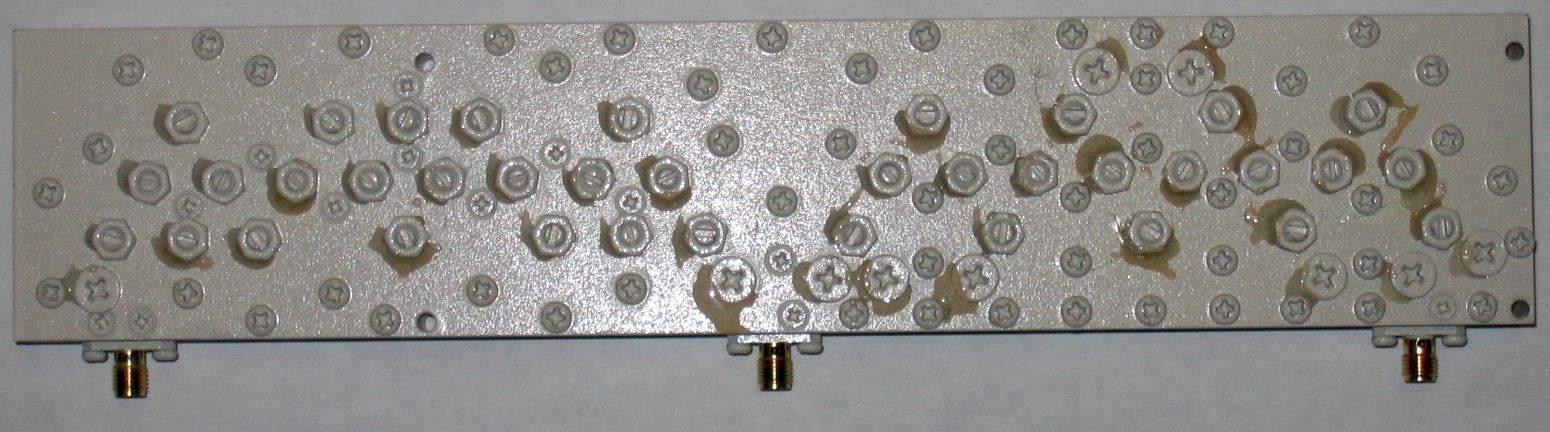

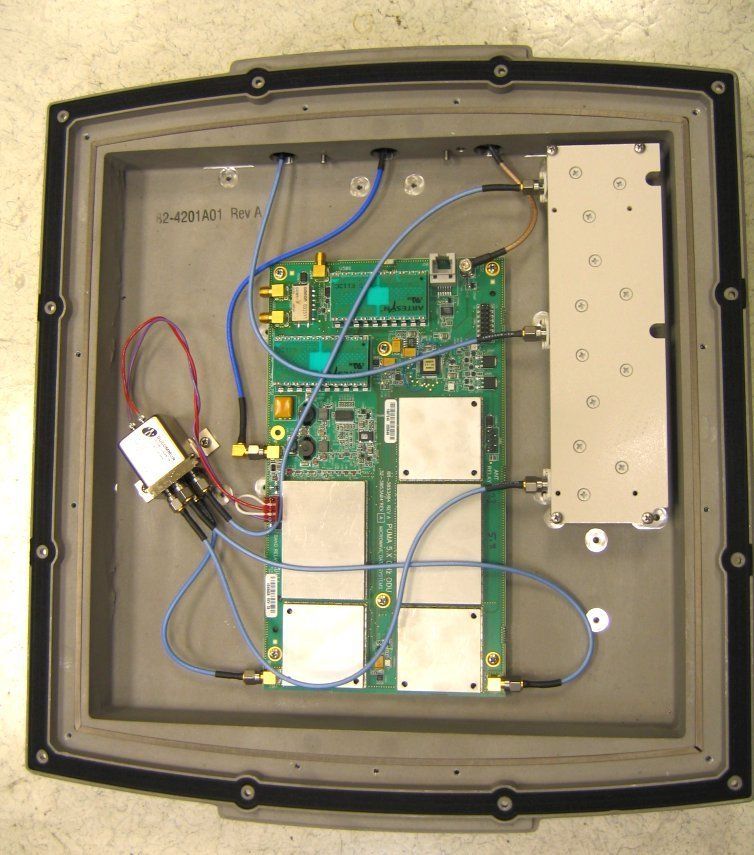

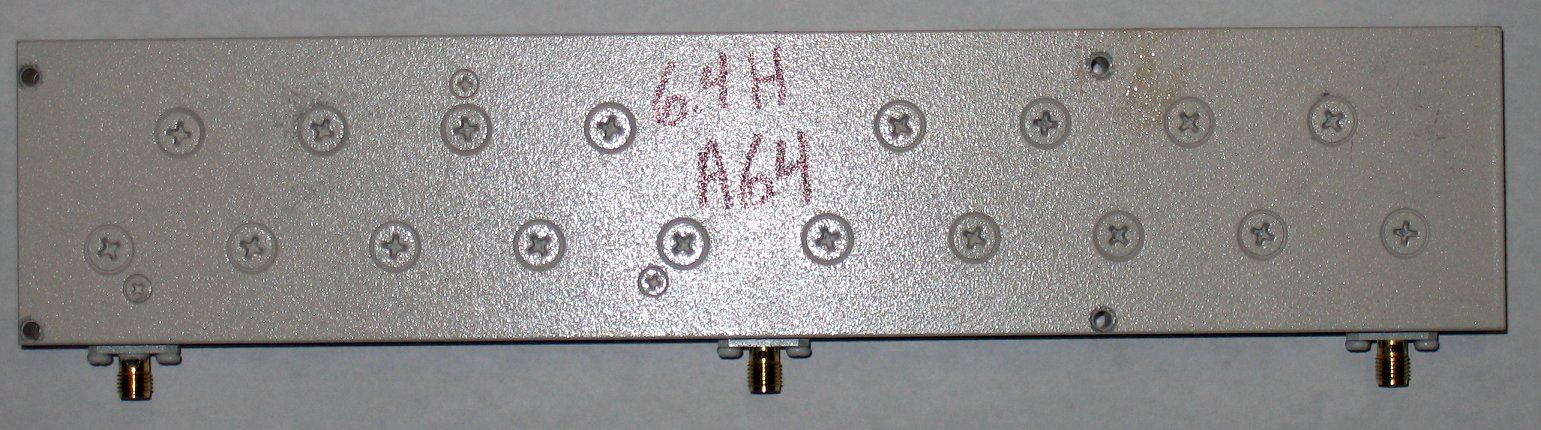

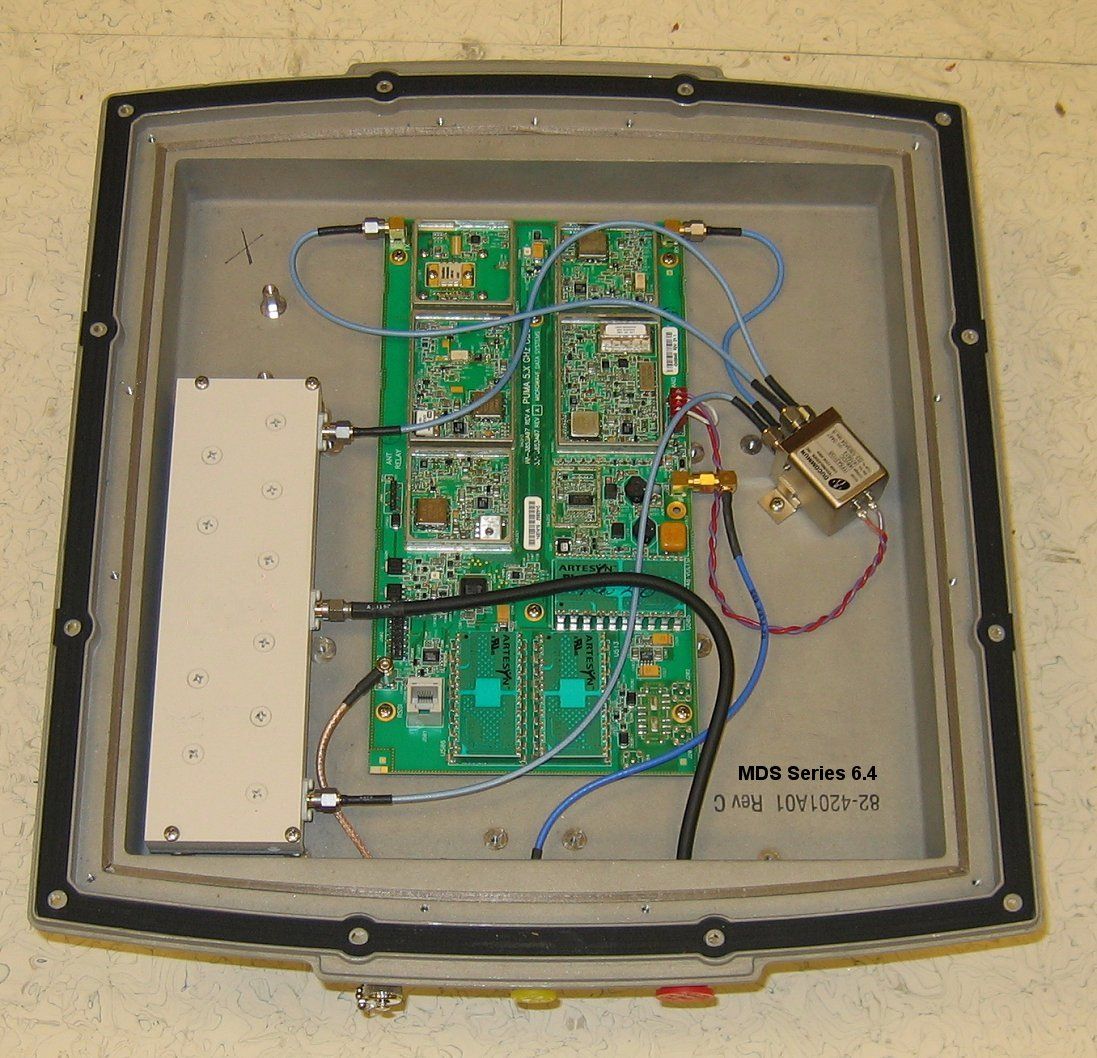

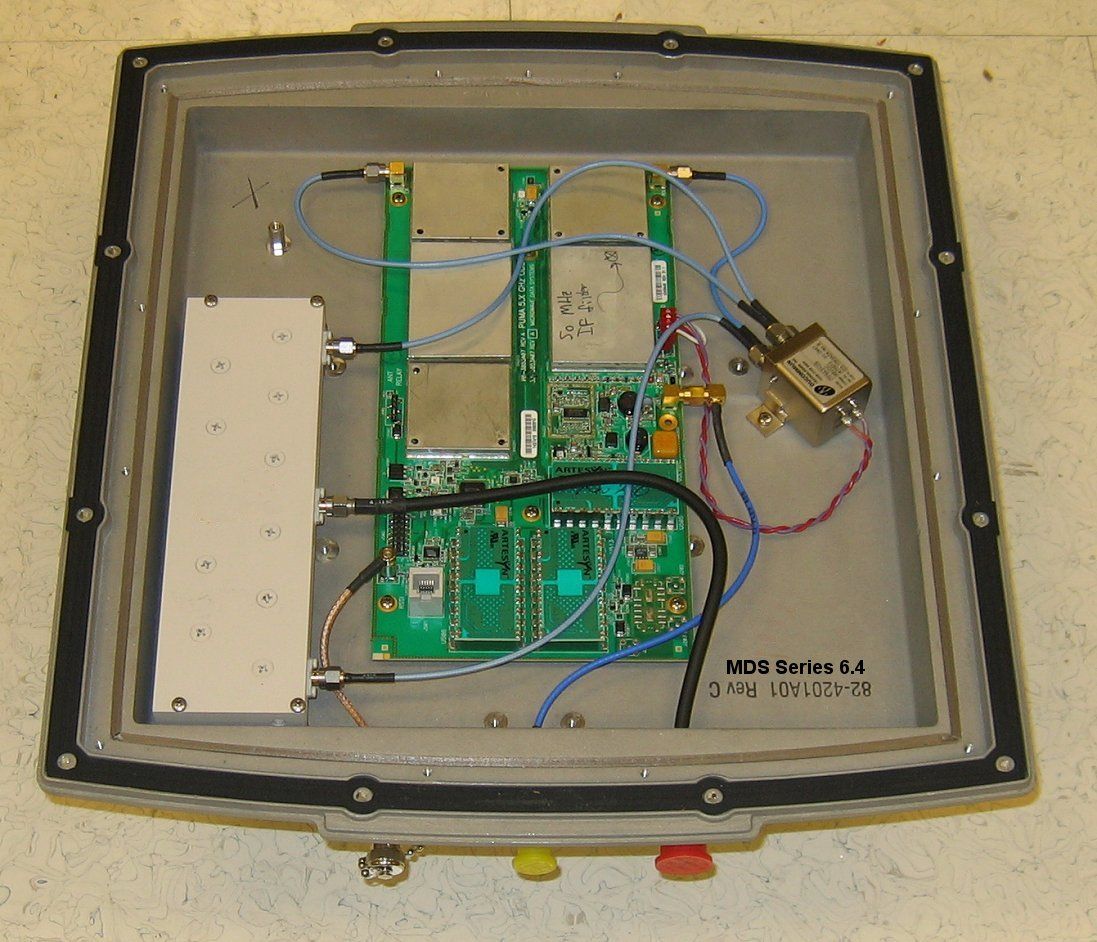

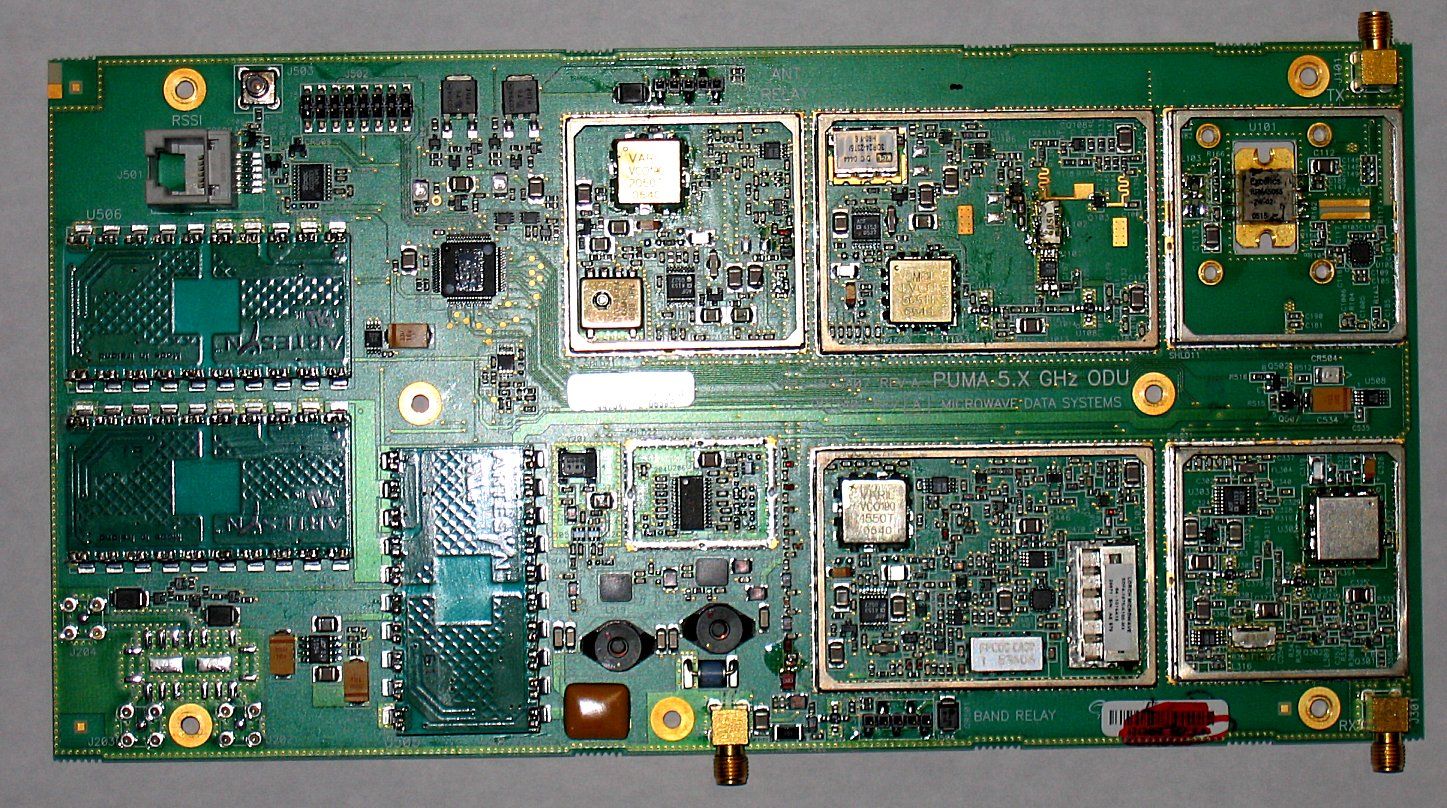

Page 1 of 2 American TCB August 21, 2006 RE: Microwave Data Systems FCC ID: E5MDS-SERIES6 Attention: David Waitt Please find our responses to your comments on this Application below: 1. Please provide an RF exposure exhibit supporting the RF exposure warning statement in the user manual in section 1.0 which mentions a safe distance of 3.17meters Response: An MPE calculation has been provided. Please keep in mind that for license radios, that have removable antennas, are not normally tested with antenna(s) attached per TIA-603. The power density limit is 1 mW/cm^2 above 1.5GHz and the limit is not frequency dependent so only the “assumed” antenna gain and maximum power output was used to determine the 3.17 meters RF safety distance. Also, the responsible Bureau will handle the RF exposure compliance during the license process. 2. Please provide the following internal photos: Close up photos of the internal boards Photos of the reverse side of the board Internal photos of the microwave module Photos in the internal antennas of the unit Response: The Duplexer is a passive cavity tuned band pass filter. There are no active parts and inside is just a milled out series of resonant slots all assembled by loads of screws that are glued after tuning. We can not take one apart without destroying/detuning it. The following photos have been provided: Front side of RF board with no shields Backside of RF board Front side showing the antenna 3. Plot 1 and plot 2 on pages 6 and 7 of 30 appear to be the same plot, Freq 6110.75. Should the second plot be6165.1, also plot for 6362 appears to have been omitted? Please verify and correct if necessary Response: Data has been correct please refer to revised report uploaded. Page 2 of 2 4. Is the RF TX power “field adjustable”. Please outline precautions that prevent unauthorized personnel from adjusting the TX power. Response: Yes the RF power is adjustable through the IDU controller software. This is a licensed device radio in the 6.4GHz band, the general public will not have access to the software that controls the RF power. Once the system path is planned out the professional installer will set the RF power in conjunction with the antenna gain to meet the FCC limit. This is referenced in the manual in section 3.6.6.2, 6.4GHz band and lists the maximum allowable power and restrictions. Regards, Juan Martinez Senior EMC Engineer

175 Science Parkway, Rochester, New York 14620 USA (585) 242-9600 Phone (585) 242-9620 Fax July 12th, 2006 FEDERAL COMMUNICATIONS COMMISSION 7435 Oakland Mills Road Columbia, MD 21046 U.S.A. Subject: Request for withholding from public disclosure the schematic diagrams and system block diagrams pursuant to an application for certification. Applicant: Microwave Data Systems Inc. Product: MDS Series 6.4 point to point microwave radio Model: MDS Series 6.4 FCC ID: E5MDS-Series6 Dear Sir/Madam, We, Microwave Data Systems, would like to request that the schematic diagrams, system block diagram, Theory of Operation and Bill of Materials submitted with the application for certification be withheld from public disclosure as per Section 0.459 of FCC Rules. This request is made under the provisions of Section 0.457(d) of the Commission's Rules, and Section 552(b)(4) of the Freedom of Information Act. These sections authorize as a withholding from public inspection materials which would be privileged as a matter of law if retained by the person submitting them, and materials which would not customarily be released to the public by that person. If you have any queries, please do not hesitate to contact me at 585 242-8440: Yours truly, Dennis McCarthy Agency Compliance Engineer Microwave Data Systems 175 Science Parkway Rochester NY 14620 Phone (585) 242-8440 Email [email protected]

MPE Exposure Formula: S = ( P X G ) / ( 4 X π X d^2 ) where: S = power density P = transmitter conducted power in (mW) G = antenna numeric gain d = distance to radiation center (m) or (.02^2 ) = .020 m 6.5GHz radio Gain =2290.9NumericEUT ant.:33.6dBi Power = 550mWEUT power:27.4dBm Frequency =MHzMPE limit:1.000 mW/cm^2 Cable Loss =0dB EIRP =1258925.4mW1258925.4mW R (cm) = S (20cm) = Enter Data in Linear Units 250.455316.5155622

File: R64548 Page 1 of 18 2016-01 Electromagnetic Emissions Test Report In Accordance With, FCC Part 101 on the Microwave Data Systems Transmitter Model: PUMA 4 ODUs FCC ID NUMBER: E5MDS-Series6 GRANTEE: Microwave Data Systems 175 Science Parkway Rochester, NY 14620 TEST SITE: Elliott Laboratories, Inc. 684 W. Maude Avenue Sunnyvale, CA 94086 REPORT DATE: July 5, 2006 FINAL TEST DATE: June 27, June 28 and June 29, 2006 AUTHORIZED SIGNATORY: ______________________________ Juan Martinez Senior EMC Engineer Elliott Laboratories, Inc. is accredited by the A2LA, certificate number 2016-01, to perform the test(s) listed in this report. This report shall not be reproduced, except in its entirety, without the written approval of Elliott Laboratories, Inc. Elliott Laboratories, Inc. -- EMC Department Test Report Report Date: July 5, 2006 File: R64548 Page 2 of 18 pages TABLE OF CONTENTS COVER PAGE..................................................................................................................................................................................1 TABLE OF CONTENTS.................................................................................................................................................................2 FCC CERTIFICATION INFORMATION....................................................................................................................................3 DECLARATIONS OF COMPLIANCE........................................................................................................................................5 SCOPE...............................................................................................................................................................................................6 OBJECTIVE.....................................................................................................................................................................................6 SUMMARY OF TEST RESULTS..................................................................................................................................................7 PART 101 TEST SUMMARY.....................................................................................................................................................7 MEASUREMENT UNCERTAINTIES...........................................................................................................................................8 EQUIPMENT UNDER TEST (EUT) DETAILS............................................................................................................................9 GENERAL......................................................................................................................................................................................9 OTHER EUT DETAILS...............................................................................................................................................................9 EUT ANTENNA DETAILS........................................................................................................................................................9 ENCLOSURE.................................................................................................................................................................................9 MODIFICATIONS.......................................................................................................................................................................9 SUPPORT EQUIPMENT...........................................................................................................................................................11 EUT INTERFACE PORTS.........................................................................................................................................................11 EUT OPERATION DURING TESTING...................................................................................................................................11 TEST SITE......................................................................................................................................................................................12 GENERAL INFORMATION.....................................................................................................................................................12 CONDUCTED EMISSIONS CONSIDERATIONS.................................................................................................................12 RADIATED EMISSIONS CONSIDERATIONS.....................................................................................................................12 MEASUREMENT INSTRUMENTATION..................................................................................................................................13 RECEIVER SYSTEM..................................................................................................................................................................13 INSTRUMENT CONTROL COMPUTER...............................................................................................................................13 PEAK POWER METER.............................................................................................................................................................13 FILTERS/ATTENUATORS......................................................................................................................................................13 ANTENNAS...............................................................................................................................................................................14 ANTENNA MAST AND EQUIPMENT TURNTABLE.......................................................................................................14 INSTRUMENT CALIBRATION..................................................................…

Text truncated - open the document above for the full version.

Radiated Emissions Test Configuration Photograph Radiated Emissions Test Configuration Photograph Conducted Emissions Test Configuration Photograph Conducted Emissions Test Configuration Photograph
