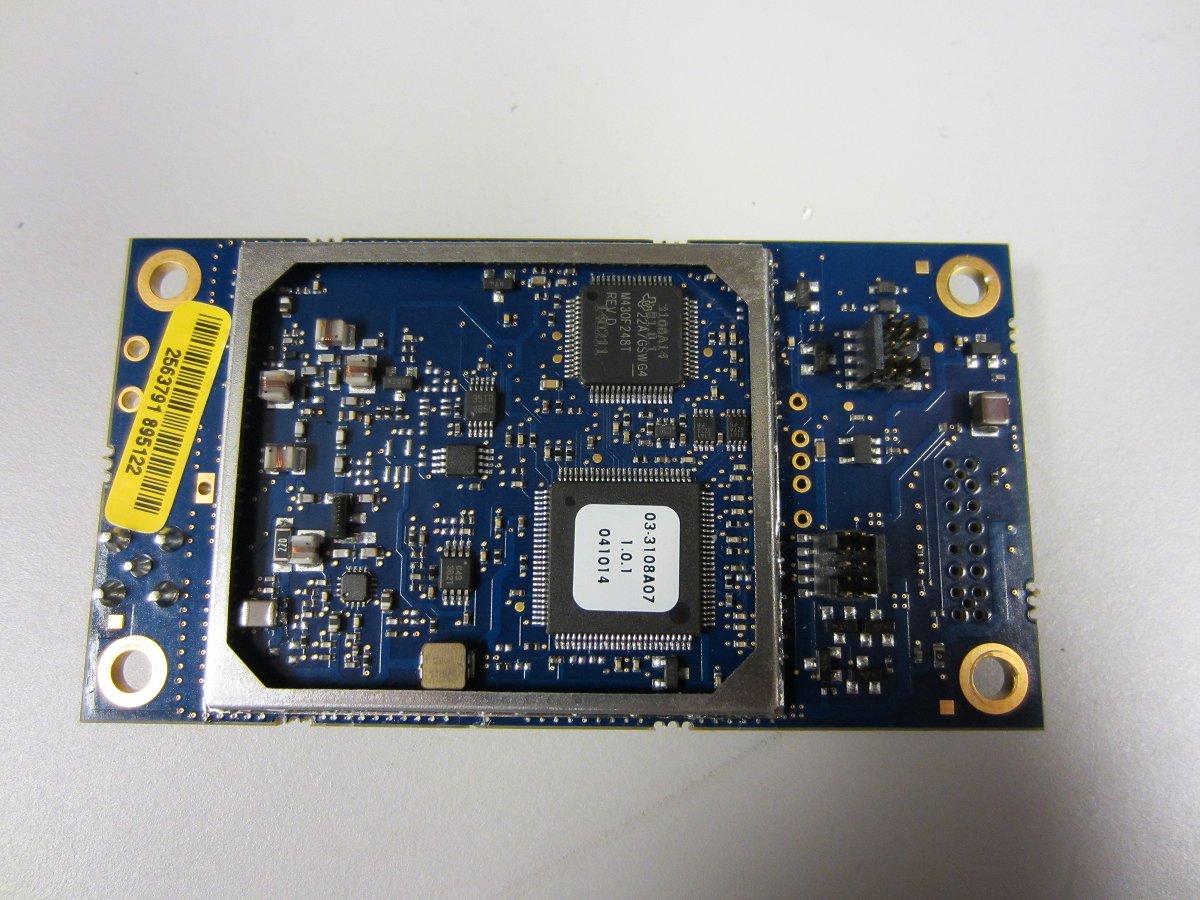

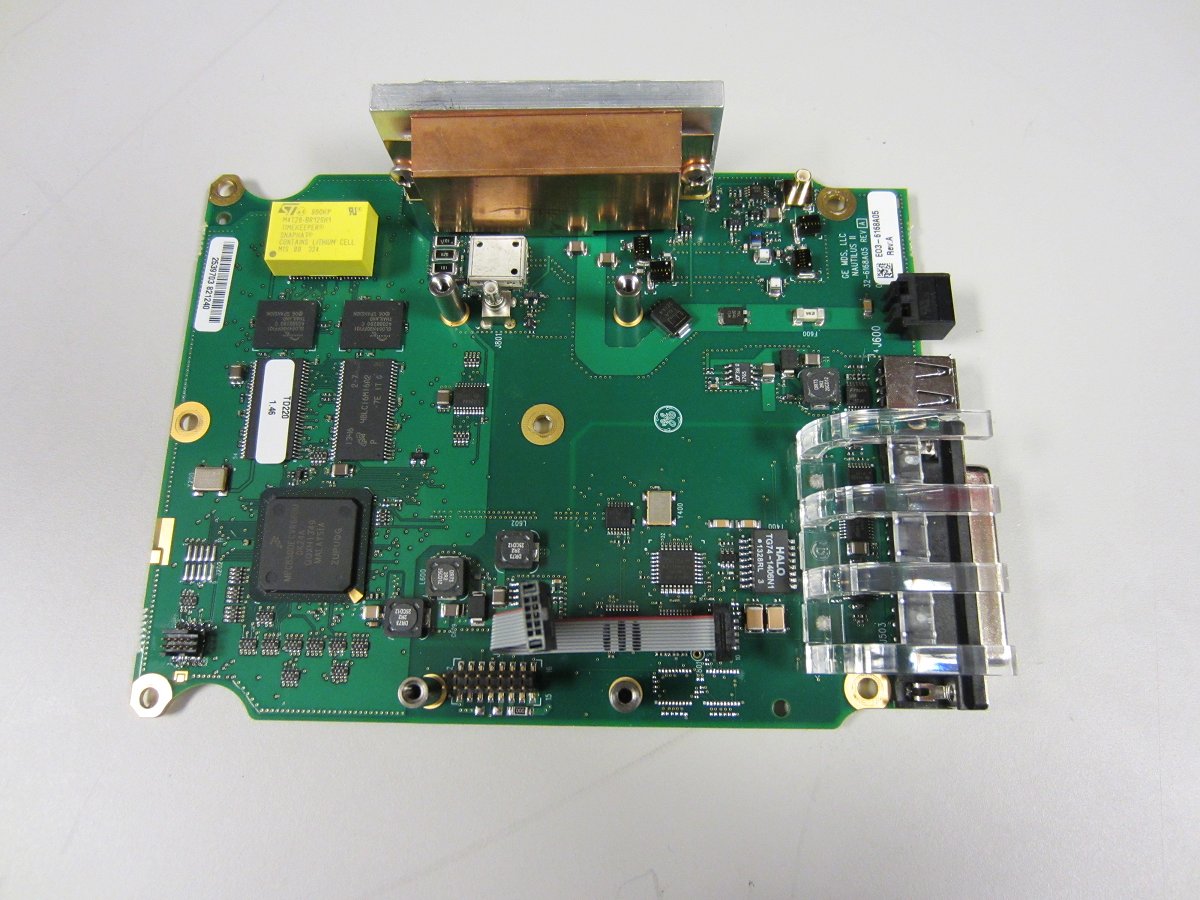

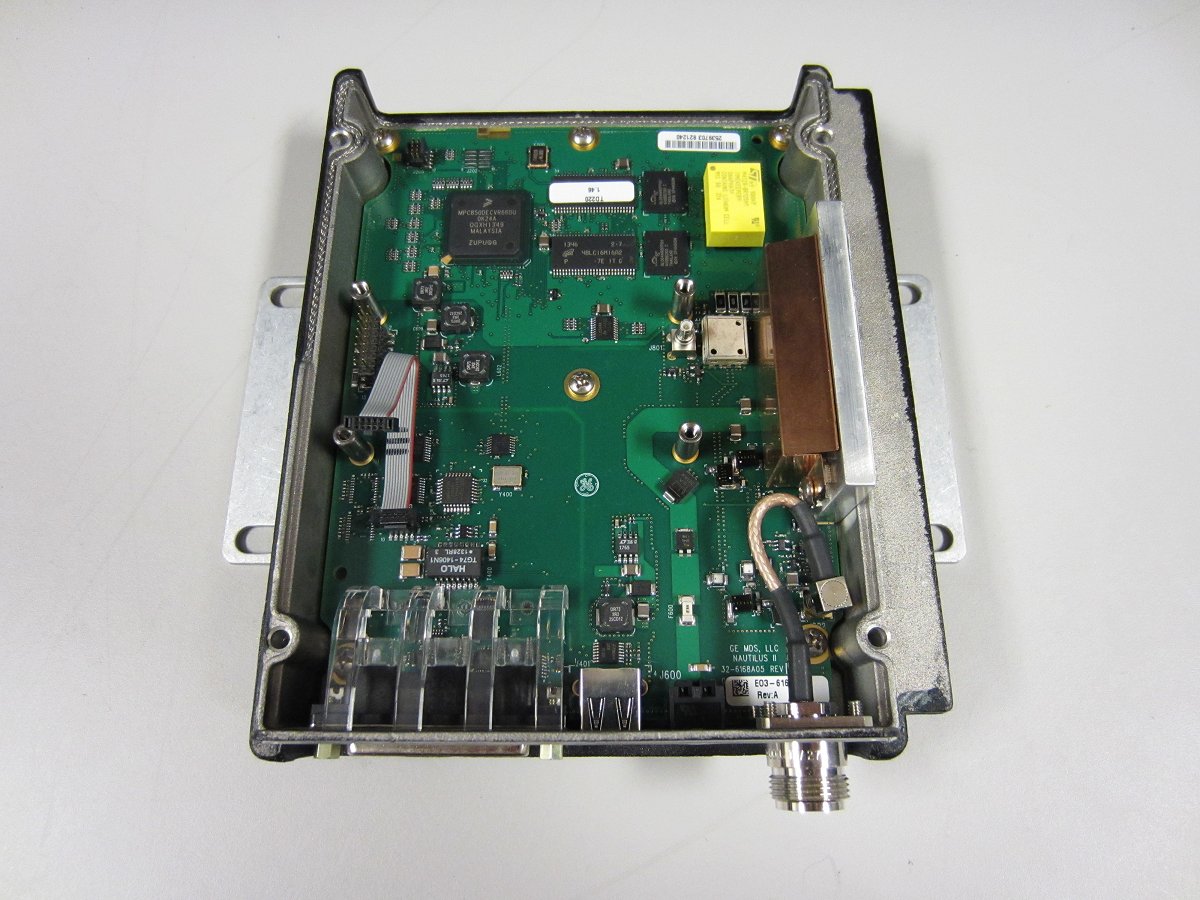

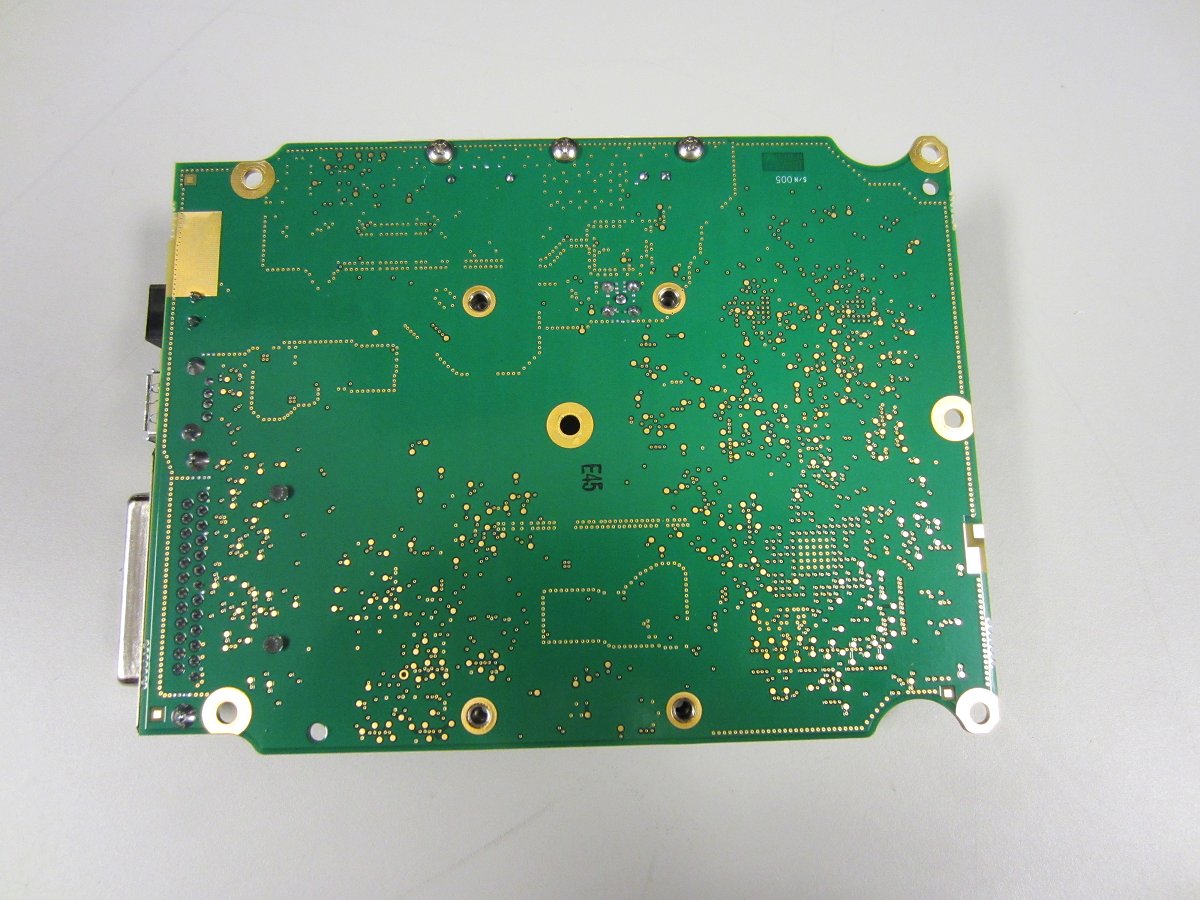

E5MDS-TD220MAXNarrowband Data Transceiver

TD220MAX_manual_v11.doc 05-6906A01 Page 1 of 49 7/31/2014 GE MDS TD220MAX Manual P/N 05-6906A01 Version 11 TD220MAX_manual_v11.doc 05-6906A01 Page 2 of 49 7/31/2014 Table of Contents 1 Important Information ............................................................................................................ 3 1.1 Antenna Installation Warnings ........................................................................................ 3 1.2 ESD Notice ..................................................................................................................... 3 1.3 FCC Approval Notice ...................................................................................................... 3 1.4 FCC Part 15 Notice ........................................................................................................ 3 1.5 FCC Part 80 Notice ........................................................................................................ 4 1.6 Industry Canada ICES-003 and RSS-119 (Pending) ..................................................... 4 2 Introduction ........................................................................................................................... 5 3 Interfaces .............................................................................................................................. 6 3.1 Data Interface (DB-25) ................................................................................................... 6 3.2 USB ................................................................................................................................ 7 3.3 Power .............................................................................................................................. 7 3.4 Antenna Connector ......................................................................................................... 7 4 Common Setup Tasks ........................................................................................................... 8 4.1 Key the Transmitter for Test Purposes ........................................................................... 8 4.2 Prepare the Network Interface for a Radio ..................................................................... 8 4.3 Upgrade the Firmware .................................................................................................... 8 4.3.1 Introduction .............................................................................................................. 8 4.3.2 Installing TD220X Firmware by TFTP ...................................................................... 9 4.3.3 Upload Procedure .................................................................................................... 9 4.4 Set Up a GPS Base Unit ................................................................................................ 9 4.5 Set Up a PTP Base Unit ................................................................................................. 10 4.6 Set Up an OTA Mobile Unit ............................................................................................ 10 4.7 Perform Test Polling ....................................................................................................... 11 4.8 Perform Field Survey ...................................................................................................... 18 4.8.1 Set up the Base System .......................................................................................... 18 4.8.2 Set up the Mobile System ........................................................................................ 21 5 Menu Interface ...................................................................................................................... 24 5.1 Main Menu ...................................................................................................................... 26 5.2 Network Configuration Menus ........................................................................................ 27 5.3 System Configuration Menu ........................................................................................... 31 5.4 Radio Configuration Menu .............................................................................................. 32 5.5 GPS Configuration Menu ................................................................................................ 34 5.6 PTP Configuration Menu ................................................................................................ 35 5.7 Security Configuration Menu .......................................................................................... 36 5.8 Statistics/Logging Menus ................................................................................................ 37 5.9 Device Information Menus .............................................................................................. 42 5.10 Maintenance/Tools Menus ............................................................................................. 44 6 Troubleshooting .................................................................................................................... 48 7 Change Log ........................................................................................................................... 49 TD220MAX_manual_v11.doc 05-6906A01 Page 3 of 49 7/31/2014 1 Important Information 1.1 Antenna Installation Warnings 1. All antenna installation and servicing is to be performed by qualified technical personnel only. When servicing the antenna, or working at distances closer than those listed below, ensure the transmitter has been disabled. 2. Depending upon the application and the gain of the antenna, the total composite power could exceed 90 watts EIRP. For fixed/mobile configuration, the distances in the table below must be followed. Antenna Gain vs. Minimum Safety Distance (Based upon a 50% Duty Cycle, 0 dB Feedline Loss) Uncontrolled Environment…

Text truncated - open the document above for the full version.

Page 1 of 1 National Technical Systems TCB 41039 Boyce Road Fremont, CA, 94538 FCC ID: E5MDS-TD220MAX To whom it may concern: The enclosed documents constitute a formal submittal and application for Equipment Authorization for a licensed radio operating in the 216-222 MHz bands pursuant to the following rules: Parts 80, 90 and 95 of FCC Rules (CFR 47) This radio is similar to a previously approved radio under FCC ID: E5MDS-TD220. National Technical Systems, as duly authorized agent prepared this submittal. A copy of the letter of our appointment as agent is included with the application. If there are any questions or if further information is needed, please contact National Technical Systems for assistance. Sincerely, David W. Bare Chief Engineer

175 Science Parkway, Rochester, New York 14620 USA (585) 242-9600 Phone (585) 242-9620 Fax July 2nd, 2014 National Technical Systems – Silicon Valley TCB 41039 Boyce Road Fremont, CA. 94538 Gentlemen: This is your letter of authorization to accept our appointment of National Technical Systems – Silicon Valley as our Agent for GE MDS LLC, 175 Science Parkway Rochester NY 14620, to sign applications before National Technical Systems – Silicon Valley TCB and to make representations to you on our behalf. National Technical Systems – Silicon Valley is to receive and exchange data between our company and National Technical Systems – Silicon Valley TCB. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in FCC and Industry Canada’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for Certification, as specified by National Technical Systems – Silicon Valley TCB, still resides with GE MDS LLC. I hereby certify on behalf of GE MDS LLC that neither Applicant nor any party to the application (officers, directors, and 5% shareholders) is subject to a denial of Federal benefits that includes FCC benefits pursuant to section 5301 of the Anti-Drug Abuse Act of 1988 21 U.S.C. 853a. Yours truly, Dennis McCarthy Agency Compliance Engineer GE Digital Energy -MDS 175 Science Parkway Rochester NY 14620 Phone (585) 242-8440 Email [email protected]

175 Science Parkway, Rochester, New York 14620 USA (585) 242-9600 Phone (585) 242-9620 Fax July 30th, 2014 Request for Confidentiality Subject: Confidentiality Request for: E5MDS-TD220MAX 101D-TD220MAX Pursuant to FCC 47 CRF 0.457(d) and 0.459 and/or RSP-100, the applicant requests that a part of the subject FCC and/or IC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Parts List & Placement/BOM Short Term Permanent Tune-up Procedure Short Term Permanent Schematics GE MDS LLC has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of NA days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify FCC in the event information regarding the product or the product is made available to the public. FCC will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. The applicant understands that until such time that Industry Canada distinguishes between Short Term and Permanent Confidentiality, either type of marked exhibit above will simply be marked Confidential when submitted to IC. Sincerely, By: (Signature/Title 1 ) (Printed name) 1 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

EMC Test Data Client: Contact: Standard: Test Specific Details General Test Configuration No Device complies with Power Density requirements at 20cm ti Test Engineer: David Bare Calculation uses the free space transmission formula: S = (PG)/(4 πd 2 ) Where: S is power density (W/m 2 ), P is output power (W), G is antenna gain relative to isotropic, d is separation distance from the transmitting antenna (m). Summary of Results Maximum Permissible Exposure Objective: The objective of this test session is to perform final qualification testing of the EUT with respect to the specification listed above. Date of Test: 7/7/2014 Dennis McCarthyProject Coordinator: - FCC Parts 80, 90 and 95, RSS-119Class: N/A GE MDS LLCJob Number: J95325 Model: TD220Max T-Log Number: T95356 Project Manager: Christine Krebill No 496.2 separa tion: If not, required separation distance (in cm): Modifications Made During Testing No modifications were made to the EUT during testing Deviations From The Standard No deviations were made from the requirements of the standard. T95356 GE MDS LLC.xlsMPE Calc 07-Jul-14Page 1 of 2 EMC Test Data Client: Contact: Standard: Dennis McCarthyProject Coordinator: - FCC Parts 80, 90 and 95, RSS-119Class: N/A GE MDS LLCJob Number: J95325 Model: TD220Max T-Log Number: T95356 Project Manager: Christine Krebill Use: General Antenna: 10 dBi 6 dBi Power Densit y calculated for max Dut y cycle of 50% Cable Loss AntPower Freq.LossGainat AntEIRP MHzdBmWdBdBidBmW 21644.628.8014.944.6891.3 21644.628.801044.6288.4 21644.628.80644.6114.8 21643.020.0016.543.0891.3 For the cases where S > the MPE Limit Ant Fre q.Gain MHzdBi 21614.9 21610 2166 88.650.144496.2 at 20 cmat 20 cmS <= MPE Limit mW/cm^2mW/cm^2cm 14.9 dBi (The highest EIRP allowed for the radio at maximum power using this antenna gain) MPE LimitDistance where mW/cm^2mW/cm^2 88.650.144 28.69 EUTPower Densit y (S)MPE Limit Powe rat 20 cmat 20 cm 88.650.144 0.144 28.690.144282.3 11.420.144 Power Densit y (S) 11.420.144178.1 2166 21616.588.650.144496.2 11.420.144178.1 T95356 GE MDS LLC.xlsMPE Calc 07-Jul-14Page 2 of 2

File: R95706 Rev 1 Page 1 Radio Test Report FCC Part 80, 90 and 95 and RSS 119 (216 MHz to 222 MHz) Model: TD220Max COMPANY: GE MDS LLC 175 Science Parkway Rochester, NY 14620 TEST SITE(S): NTS Silicon Valley 41039 Boyce Road. Fremont, CA. 94538-2435 REPORT DATE: July 9, 2014 RE-ISSUED DATE: July 29, 2014 FINAL TEST DATES: June 23, 24, July 8 and 30, 2014 TOTAL NUMBER OF PAGES: 65 PROGRAM MGR / QUALITY ASSURANCE DELEGATE / TECHNICAL REVIEWER: FINAL REPORT PREPARER: ______________________________ ______________________________ David W. Bare David Guidotti Chief Engineer Senior Technical Writer National Technical Systems - Silicon Valley is accredited by the A2LA, certificate number 0214.26, to perform the test(s) listed in this report, except where noted otherwise. This report and the information contained herein represent the results of testing test articles identified and selected by the client performed to specifications and/or procedures selected by the client. National Technical Systems (NTS) makes no representations, expressed or implied, that such testing is adequate (or inadequate) to demonstrate efficiency, performance, reliability, or any other characteristic of the articles being tested, or similar products. This report should not be relied upon as an endorsement or certification by NTS of the equipment tested, nor does it represent any statement whatsoever as to its merchantability or fitness of the test article, or similar products, for a particular purpose. This report shall not be reproduced except in full NTS Silicon Valley -- EMC Department Test Report Report Date: July 9, 2014, Re-issued: July 30, 2014 File: R95706 Rev 1 Page 2 REVISION HISTORY Rev# Date Comments Modified By - July 9, 2014 First release 1 July 30, 2014 Added mask measurements at 220.00625 MHz and 221.99875 MHz for Part 90 and highest channel in segment A and lowest channel in segment B for Part 95 dwb NTS Silicon Valley -- EMC Department Test Report Report Date: July 9, 2014, Re-issued: July 30, 2014 File: R95706 Rev 1 Page 3 TABLE OF CONTENTS REVISION HISTORY ................................................................................................................................................ 2 TABLE OF CONTENTS ............................................................................................................................................ 3 SCOPE .......................................................................................................................................................................... 4 OBJECTIVE ................................................................................................................................................................ 5 STATEMENT OF COMPLIANCE ........................................................................................................................... 5 DEVIATIONS FROM THE STANDARDS .............................................................................................................. 5 TEST RESULTS .......................................................................................................................................................... 6 FCC PART 90 AND RSS-119 (217-220 MHZ BAND) .............................................................................................. 6 FCC PART 90 AND RSS-119 (220-222 MHZ BAND) .............................................................................................. 7 FCC PART 80............................................................................................................................................................ 8 FCC PART 95............................................................................................................................................................ 9 EXTREME CONDITIONS .................................................................................................................................... 10 MEASUREMENT UNCERTAINTIES .................................................................................................................. 10 EQUIPMENT UNDER TEST (EUT) DETAILS .................................................................................................... 11 GENERAL .............................................................................................................................................................. 11 ENCLOSURE ......................................................................................................................................................... 11 MODIFICATIONS ................................................................................................................................................. 11 SUPPORT EQUIPMENT ....................................................................................................................................... 11 EUT INTERFACE PORTS .................................................................................................................................... 12 EUT OPERATION ................................................................................................................................................. 12 TESTING ................................................................................................................................................................... 13 GENERAL INFORMATION ................................................................................................................................. 13 RF PORT MEASUREMENT PROCEDURES ...................................................................................................... 14 OUTPUT POWER .................................................................................................................................................. 14 BANDWIDTH MEASUREMENTS ................................................................................................................…

Text truncated - open the document above for the full version.
