E5MDS9710NMDS Remote Data Transceiver

Installation and Operation Guide MDS 05-3305A01, Rev. B SEPTEMBER 2000 400 MHz/900 MHz Remote Data Transceiver MDS 4710/9710 Series (Including MDS 4710A/C and MDS 9710 A/C) QUICK START GUIDE Below are the basic steps for installing the transceiver. Detailed instructions are given in “INSTALLA- TION” on page 9 of this guide. 1. Install and connect the antenna system to the radio • Use good quality, low loss coaxial cable. Keep the feedline as short as possible. • Preset directional antennas in the direction of desired transmission. 2. Connect the data equipment to the radio’s INTERFACE connector • Connection to the radio must be made with a DB-25 Male connector. Connections for typical sys- tems are shown below. • Connect only the required pins. Do not use a straight-through RS-232 cable with all pins wired. • Verify the data equipment is configured as DTE. (By default, the radio is configured as DCE.) 3. Apply DC power to the radio (10.5–16 Vdc @ 2.5 A minimum) • Observe proper polarity. The red wire is the positive lead; the black is negative. 4. Set the radio’s basic configuration with a Hand-Held Terminal (HHT) • Set the transmit frequency ( TX xxx.xxxx ). • Set the receive frequency ( RX xxx.xxxx ). • Set the baud rate/data interface parameters as follows. Use the BAUD xxxxx abc command, where xxxxx equals the data speed (110–38400 bps) and abc equals the communication parameters as follows: a = Data bits (7 or 8) b = Parity (N for None, O for Odd, E for Even c = Stop bits (1 or 2) (Example: BAUD 9600 8N1 ) NOTE: 7N1, 8E2 and 8O2 are invalid parameters and are not supported by the transceiver. 5. Verify proper operation by observing the LED display • Refer to Table 5 on page 16 for a description of the status LEDs. • Refine directional antenna headings for maximum receive signal strength using the RSSI command.




























 !"#$  %
 %

%%



 !"#$ MDS 05-3305A01, Rev. BMDS 4710/9710 I/O Guidei TABLE OF CONTENTS 1.0 GENERAL.................................................................................... 1 1.1 Introduction ...................................................................................... 1 1.2 Applications ...................................................................................... 2 Point-to-Multipoint, Multiple Address Systems (MAS) ........................ 2 Point-to-Point System ......................................................................... 3 Continuously Keyed versus Switched Carrier Operation .................... 3 Single Frequency (Simplex) Operation ............................................... 3 1.3 Model Number Codes ...................................................................... 3 1.4 Accessories ...................................................................................... 4 2.0 GLOSSARY OF TERMS.............................................................. 6 3.0 INSTALLATION ............................................................................ 9 3.1 Installation Steps .............................................................................. 9 3.2 Transceiver Mounting ..................................................................... 11 3.3 Antennas and Feedlines ................................................................ 11 Feedlines .......................................................................................... 12 3.4 Power Connection .......................................................................... 13 3.5 Data Interface Connections ............................................................ 13 3.6 Using the Radio’s Sleep Mode ....................................................... 13 System Example............................................................................... 13 4.0 OPERATION .............................................................................. 15 4.1 LED Indicators ................................................................................ 16 4.2 RSSI Measurement ........................................................................ 16 5.0 TRANSCEIVER PROGRAMMING ............................................ 17 5.1 Hand-Held Terminal Connection & Startup .................................... 17 5.2 Hand-Held Terminal Setup ............................................................. 18 5.3 Keyboard Commands ..................................................................... 19 Entering Commands......................................................................... 19 Error Messages ................................................................................ 19 5.4 Detailed Command Descriptions ................................................... 22 AMASK [0000 0000–FFFF FFFF] .................................................... 22 ASENSE [HI/LO]............................................................................... 23 BAUD [xxxxx abc] ............................................................................. 23 BUFF [ON, OFF]............................................................................... 24 CKEY [ON–OFF] .............................................................................. 24 CTS [0–255] ..................................................................................... 24 DATAKEY [ON, OFF] ........................................................................ 24 DEVICE [DCE, CTS KEY] ................................................................ 25 DKEY ................................................................................................ 25 DLINK [ON/OFF/xxxx] ...................................................................... 25 iiMDS 4710/9710 I/O GuideMDS 05-3305A01, Rev. B DMGAP [xx] ...................................…

Text truncated - open the document above for the full version.

August 19, 2005 RE: Microwave Data Systems FCC ID: E5MDS9710N 1) Operational Description suggests this device is capable of operation well outside of the bands being Certified. Please explain. Response: This statement was intended to include FCC ID: E5MDS9710N-1. The same device can be set to transmit below 928 MHz. This is accomplished through software although one version of the product is available it has two different software version to enable the unit to enable operation in the 806 – 940 or 928 – 960 MHz. That is why in the other application, FCC ID: E5MDS9710N-1, will have the same documents. Which at will have the same replies to manual statement. 2) Operational Description also lists Part 90 and this has only been submitted under Part 101. Please explain. Response: Same as #1 3) Data on page 37 mentions 806 MHz. Please explain. Response: Data was mistakenly inserted to report. Correct data sheet has been inserted and revised report uploaded. 4) Please adjust the label to include the information required by 15.19(a)(1). Response: FCC ID label cannot be adjusted, so a separate label will be made to include this statement and will be located in the bottom of the unit. Location and statement has been uploaded. 5) Please explain where the information required by 15.105 and 15.21can be found. Note that 15.105 may not apply. Please justify or include as necessary. Response: Revised manual has been uploaded that includes the statements. Page 7 of 58. 6) Is this device intended for normal use connected to a computer via RS-232 or only to monitoring equipment? If intended for connection to computers, please explain compliance to 15B. Currently labeling and manual do not support this use. Response: These modems will be used in industrial environments, even though it was tested to Class B limits, we used the Class A statement on the manual. The EUT was tested as verification during the digital scan. 7) Justify the emission designators requested "F1D", "F2D" and "F3D". Response: Please Refer to Theory of operation Pages 4 and 5. F1D is an FM Digitized modulation without a subcarrier, in other words just data (Explained in page 5). F2D is the combination of a FM Digital signal plus a subcarrier, which could be a mix of audio or a pilot tone (Explained in page 5). F3D is the process of a FM digitized audio signal (Explained in page 5 and in page 9 there is an analog to digital converter). Regards, Juan Martinez Senior EMC Engineer JM/dmg

175 Science Parkway, Rochester, New York 14620 USA (585) 242-9600 Phone (585) 242-9620 Fax July 11th, 2005 FEDERAL COMMUNICATIONS COMMISSION 7435 Oakland Mills Road Columbia, MD 21046 U.S.A. Subject: Authority to Act as an Agent to FCC Applicant: Microwave Data Systems Inc. Product: MDS 9710 data transceiver NEW FCC ID: E5MDS9710N & E5MDS9710N-1 Dear Sir/Madam, I hereby appoint Elliott Labs of Sunnyvale Calif. to act as my agent in preparation of this application to F.C.C. for authorization of equipment under F.C.C. Rules. I also certify that the information provided, properly described the device or system for which authorization is required. If you have any queries, please do not hesitate to contact me at 585 242-8440: Yours truly, Dennis McCarthy Agency Compliance Engineer Microwave Data Systems 175 Science Parkway Rochester NY 14620 Phone (585) 242-8440 Email [email protected]

175 Science Parkway, Rochester, New York 14620 USA (585) 242-9600 Phone (585) 242-9620 Fax August 9, 2005 FEDERAL COMMUNICATIONS COMMISSION 7435 Oakland Mills Road Columbia, MD 21046 U.S.A. Applicant: Microwave Data Systems Inc. Product: MDS9710 Model: MDS9710 FCC ID: E5MDS9710N & E5MDS9710N-1 Dear Sir/Madam, We, Microwave Data Systems Inc., would like to request that the schematic diagrams, theory of operation, block diagram, and parts list submitted with the application for certification be withheld from public disclosure as per Section 0.459 of FCC Rules. This request is made under the provisions of Section 0.457(d) of the Commission's Rules, and Section 552(b)(4) of the Freedom of Information Act. These sections authorize as a withholding from public inspection materials which would be privileged as a matter of law if retained by the person submitting them, and materials which would not customarily be released to the public by that person. If you have any queries, please do not hesitate to contact me at 585 242-8440: Yours truly, Dennis McCarthy Agency Compliance Engineer Microwave Data Systems 175 Science Parkway Rochester NY 14620 Phone (585) 242-8440 Email [email protected]

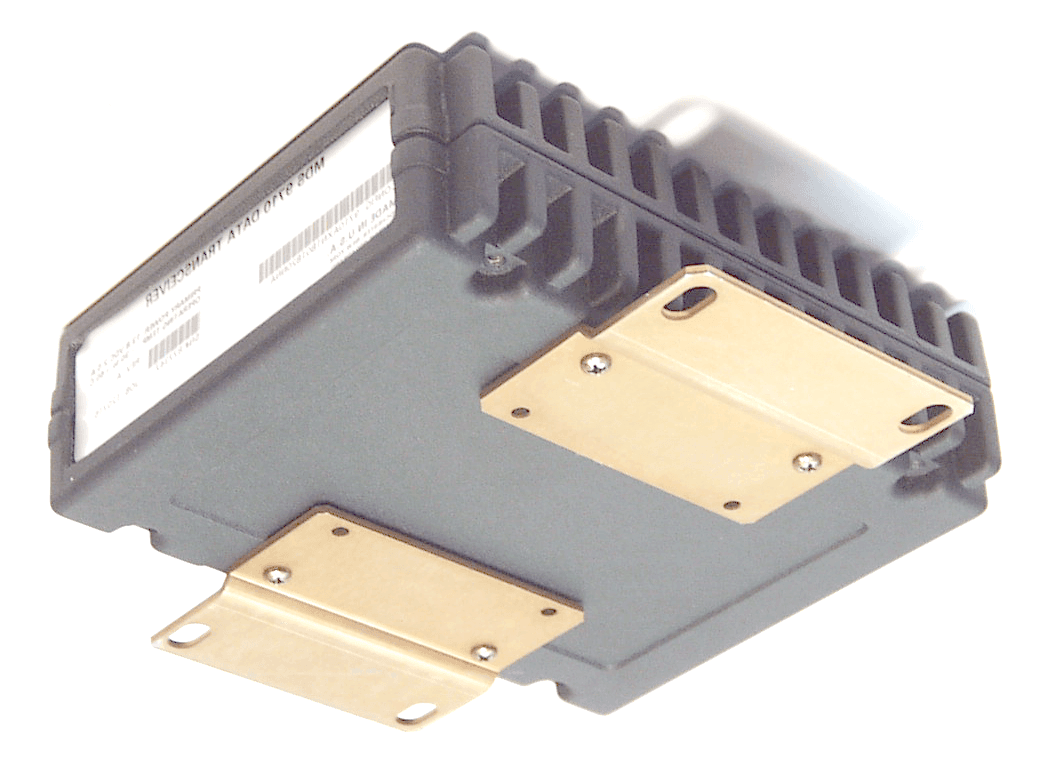

EXHIBIT 10 EXTERNAL EUT PHOTOS PHOTO 1 OF 2 EXHIBIT 10 EXTERNAL EUT PHOTOS PHOTO 2 OF 2

Extra label will be placed on the device, as there is no room on the FCC ID label. This device complies with Part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference.

17 Product Label The label which will be used on the MDS 9710A Data Transceiver is shown below. This label will be used after Type Acceptance has been granted by the FCC. CANADA: FCC ID: E5MDS9710N Location of identification label: Identification Label with FCC ID: E5MDS9710N

INTERNAL EUT PHOTOS

MPE Exposure Formula: S = ( P X G ) / ( 4 X π X d^2 ) where: S = power density P = transmitter conducted power in (mW) G = antenna numeric gain d = distance to radiation center (m) or (.02^2 ) = .020 m Gain =3.16Numeric5dBi Power = 5012mW37dBm Frequency =928MHz0.619 mW/cm^2 Cable Loss =0dB EIRP =15848.93mW15848.93mW R (cm) = S (20cm) = Gain =10.00Numeric10dBi Power = 5012mW37dBm Frequency =928MHz0.619 mW/cm^2 Cable Loss =0dB EIRP =50118.72mW50118.72mW R (cm) = S (20cm) = Gain =46.24Numeric16.65dBi Power = 5012mW37dBm Frequency =928MHz0.619 mW/cm^2 Cable Loss =0dB EIRP =231739.46mW231739.5mW R (cm) = S (20cm) = Enter Data in Linear Units 3.15345.1509310 Enter Data in Linear Units 80.29097099.971 Enter Data in Linear Units 172.650050446.103 Gain =73.28Numeric18.65dBi Power = 5012mW37dBm Frequency =928MHz0.619 mW/cm^2 Cable Loss =0dB EIRP =367282.30mW367282.3mW R (cm) = S (20cm) = Enter Data in Linear Units 217.353535873.068
