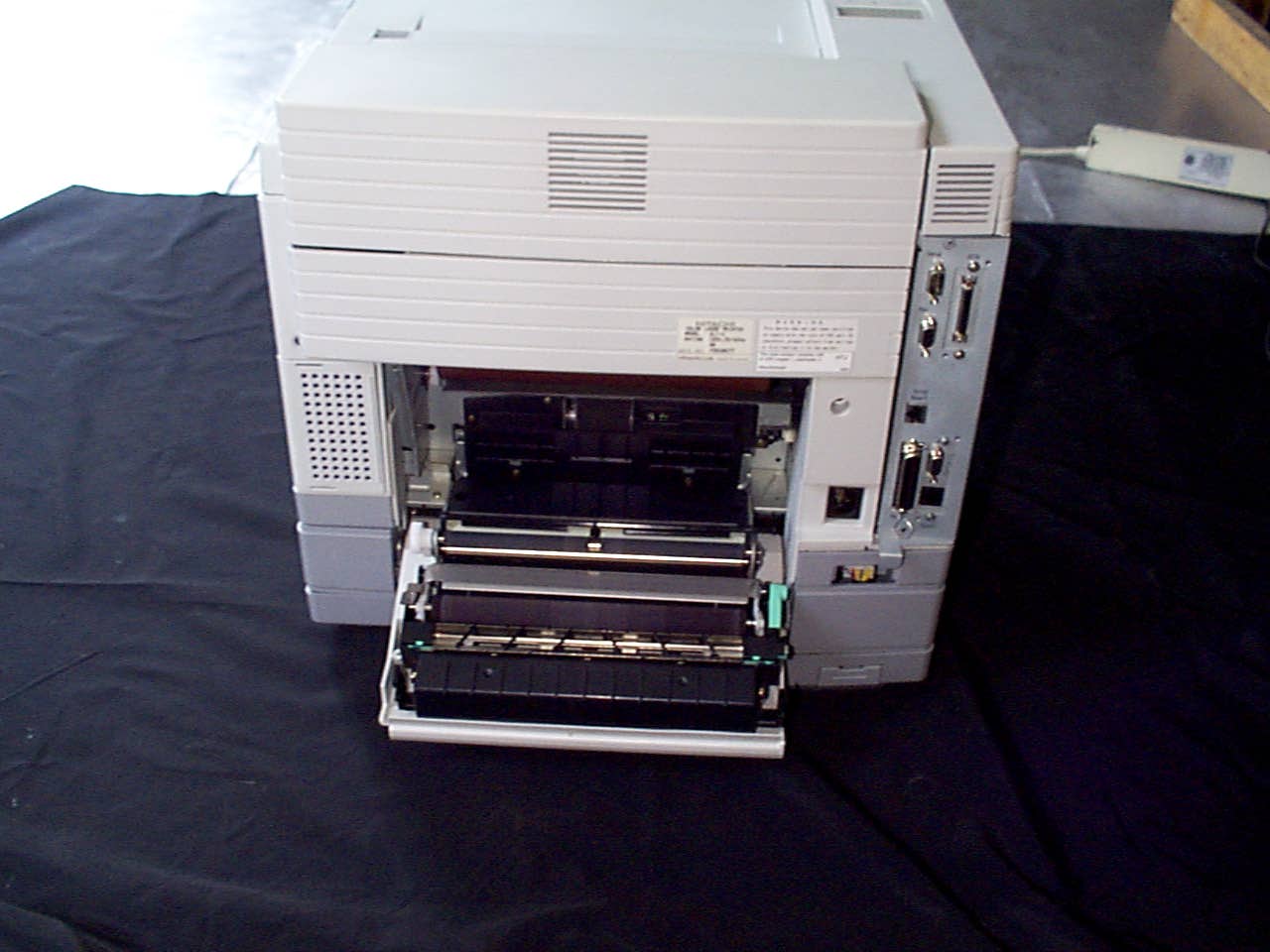

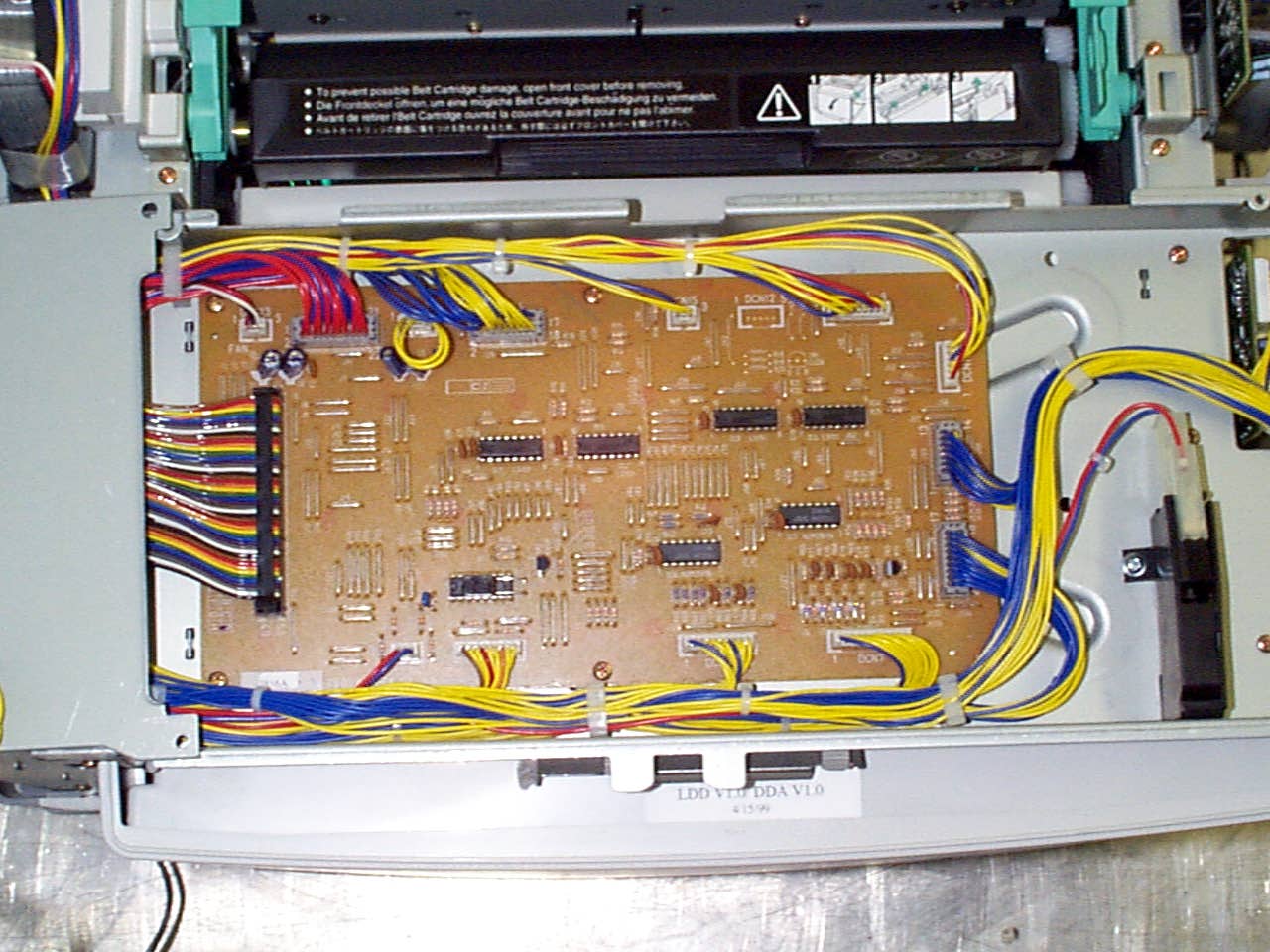

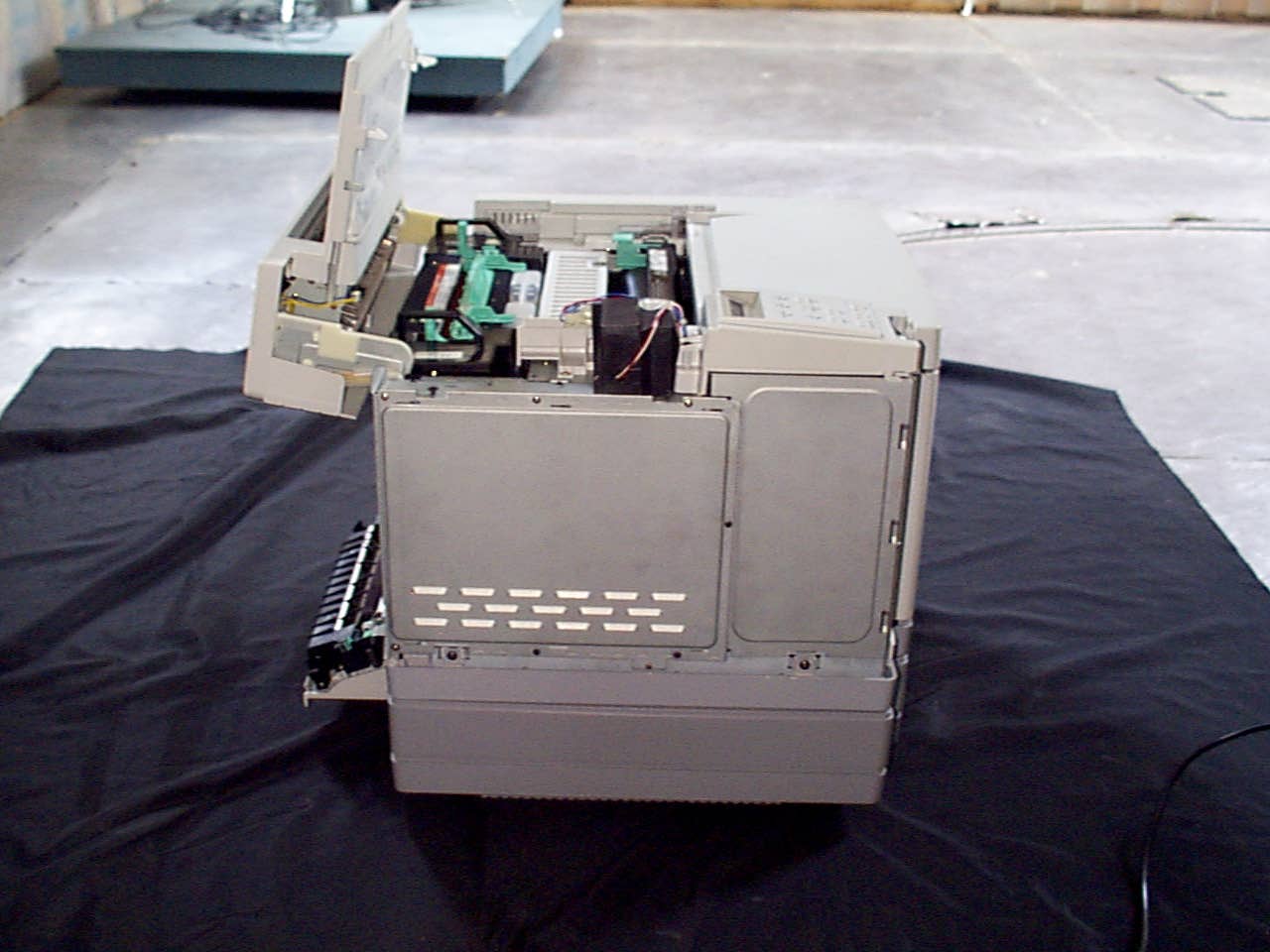

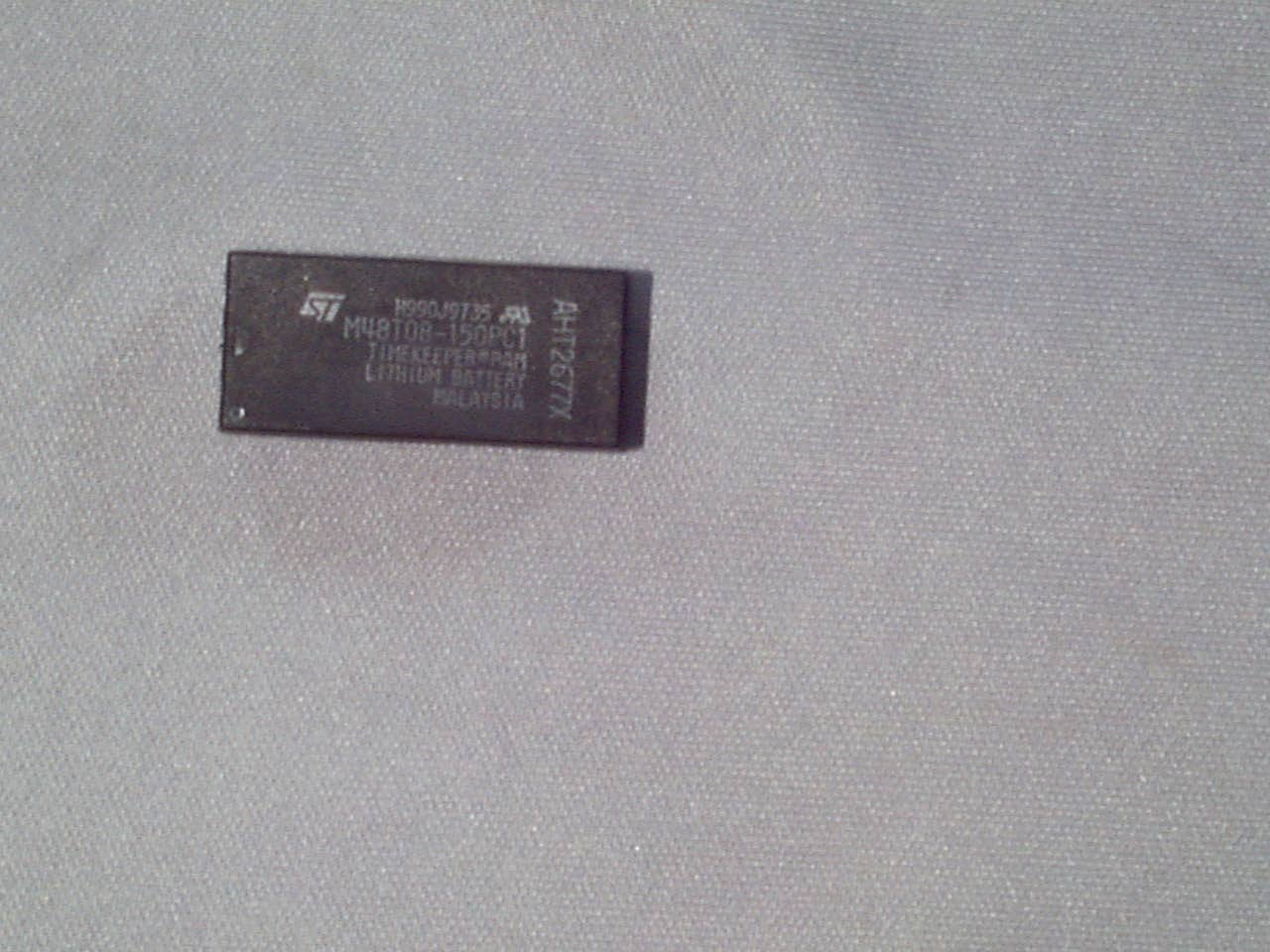

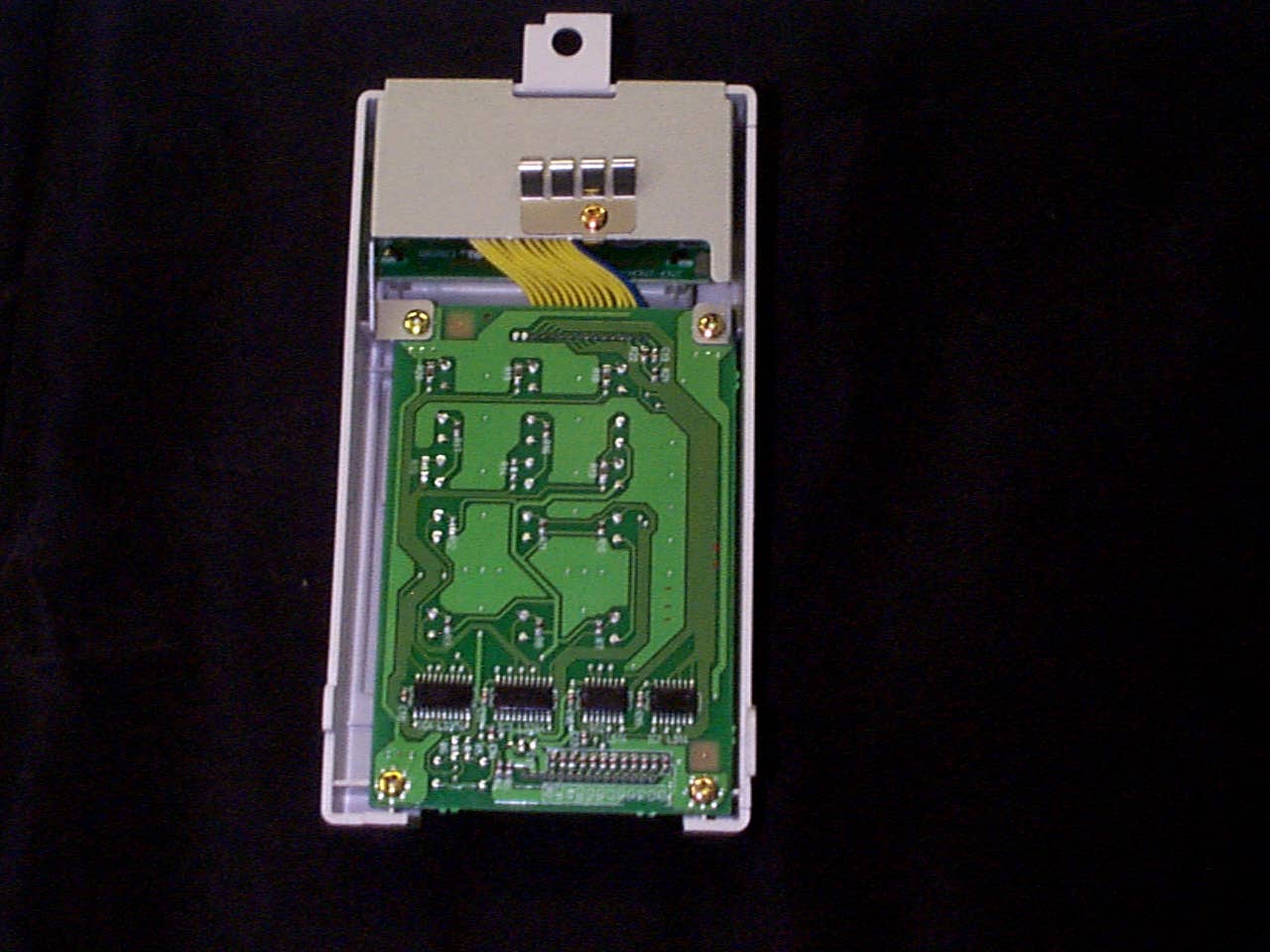

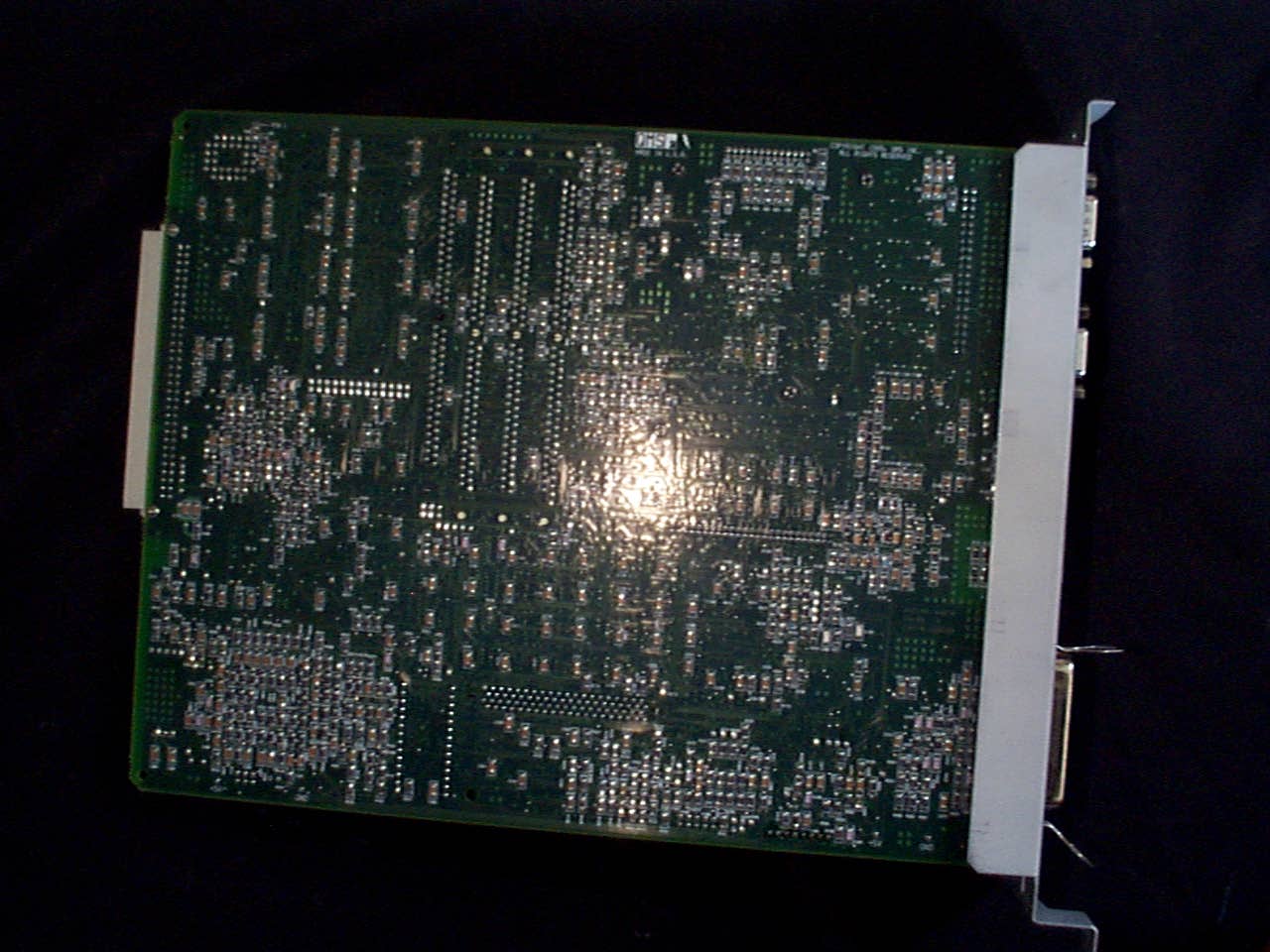

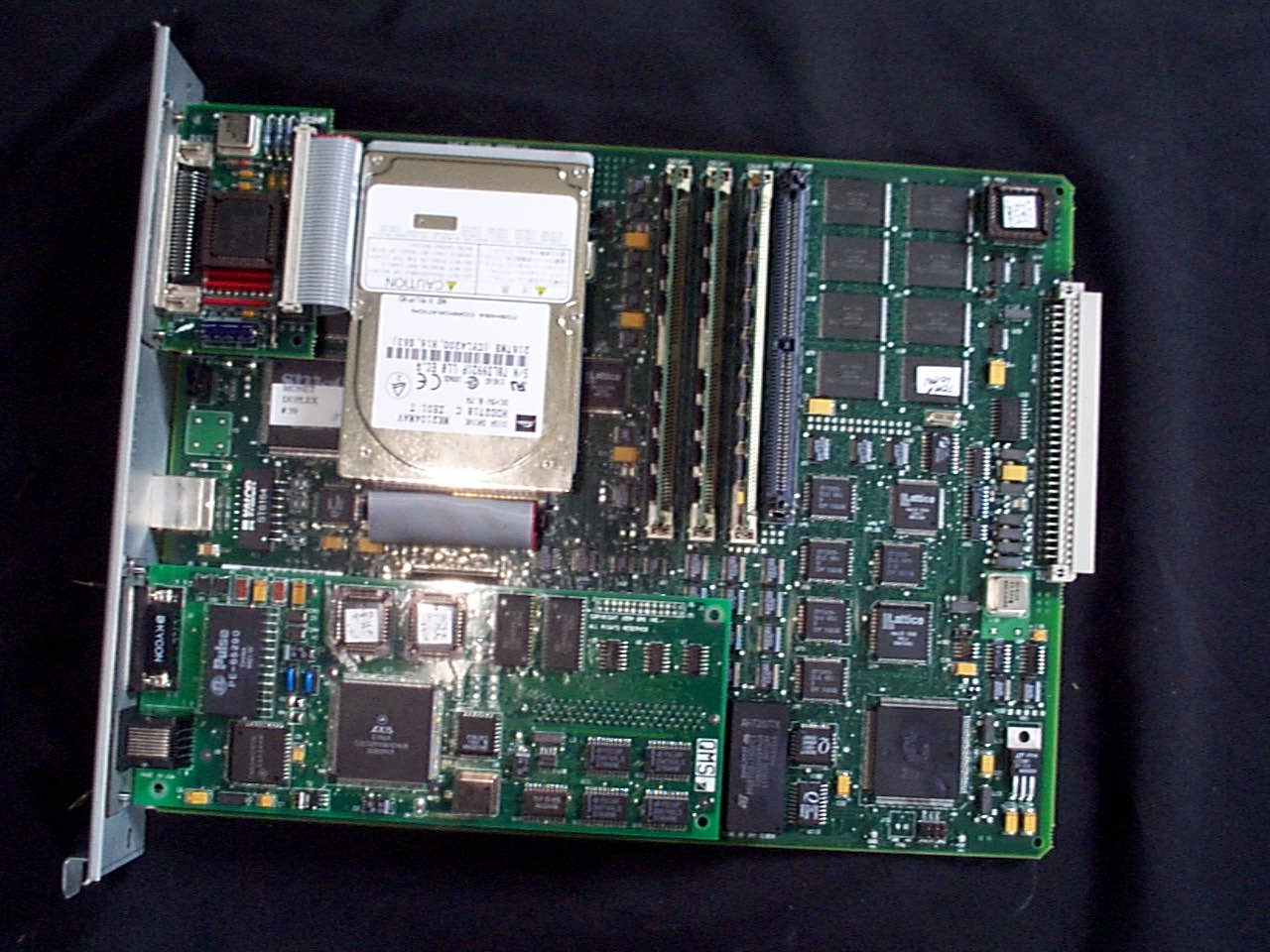

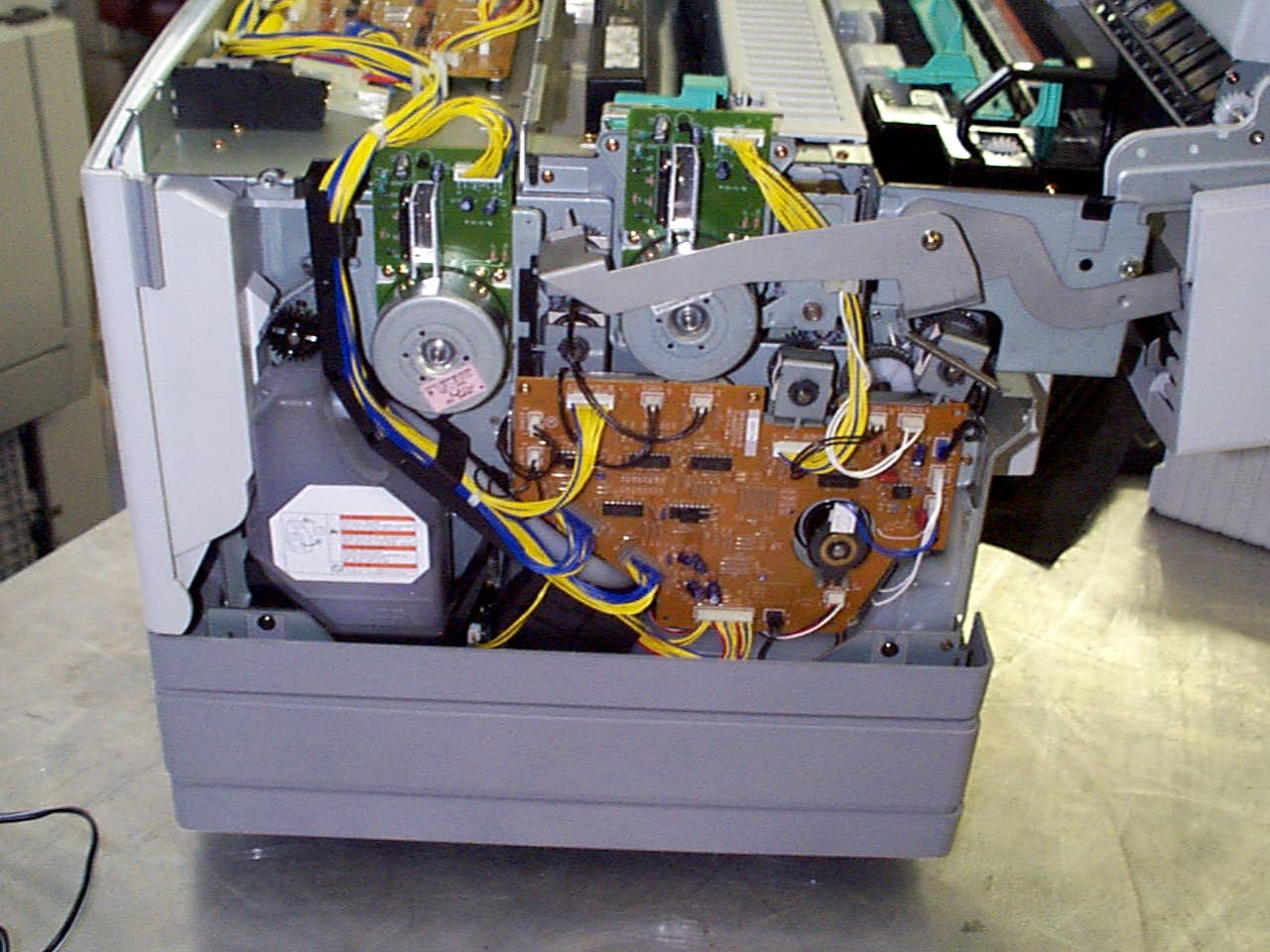

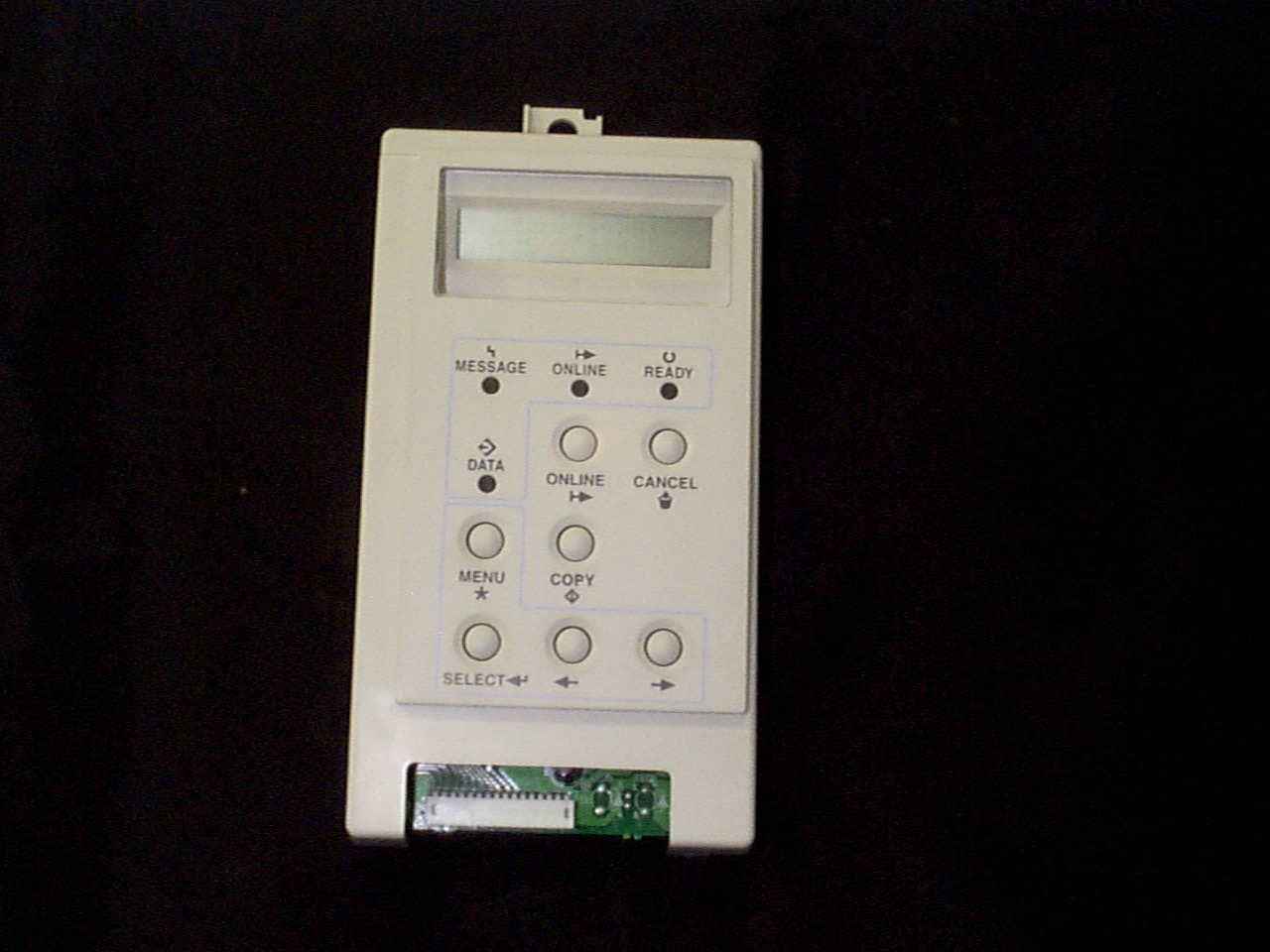

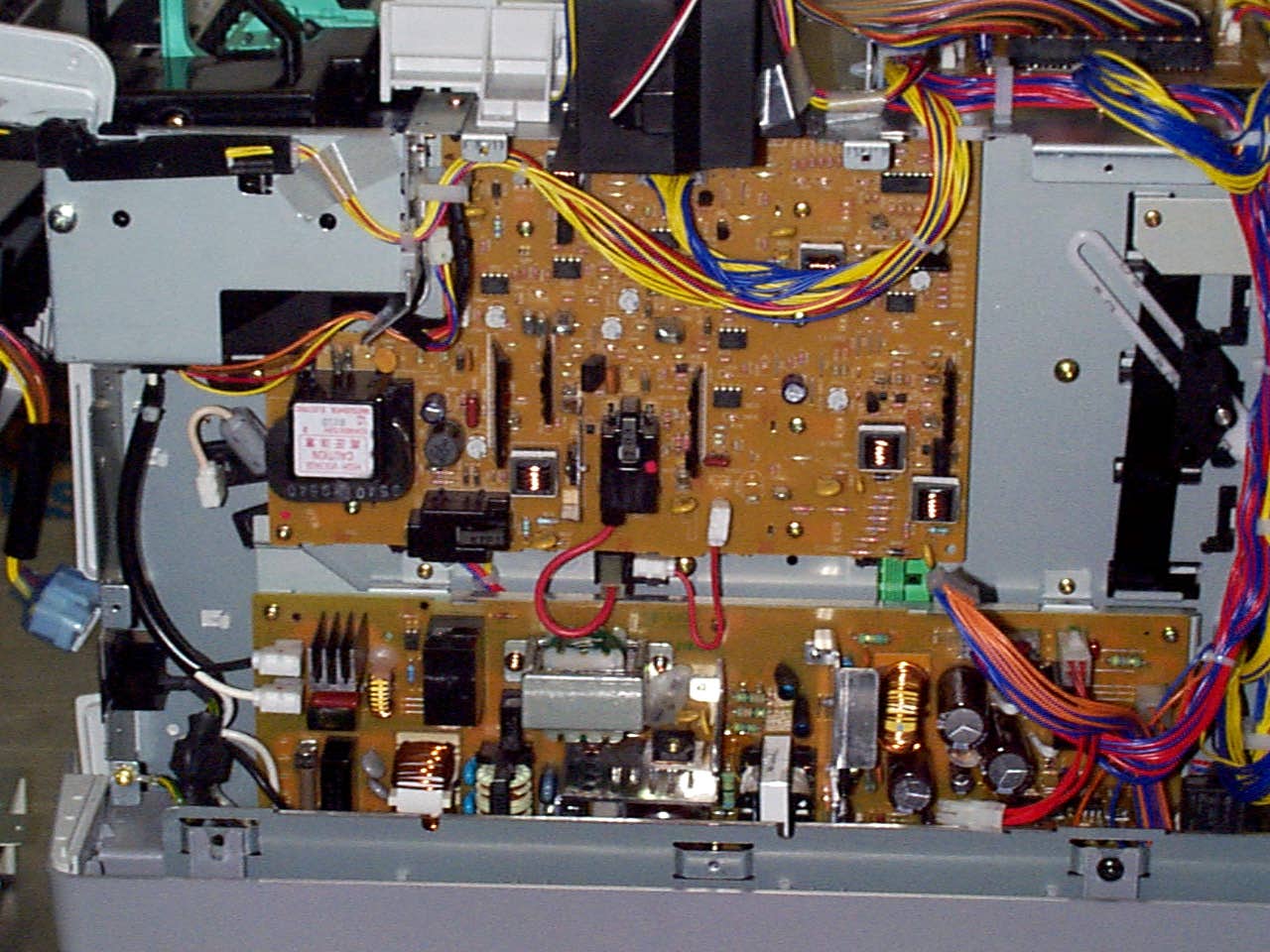

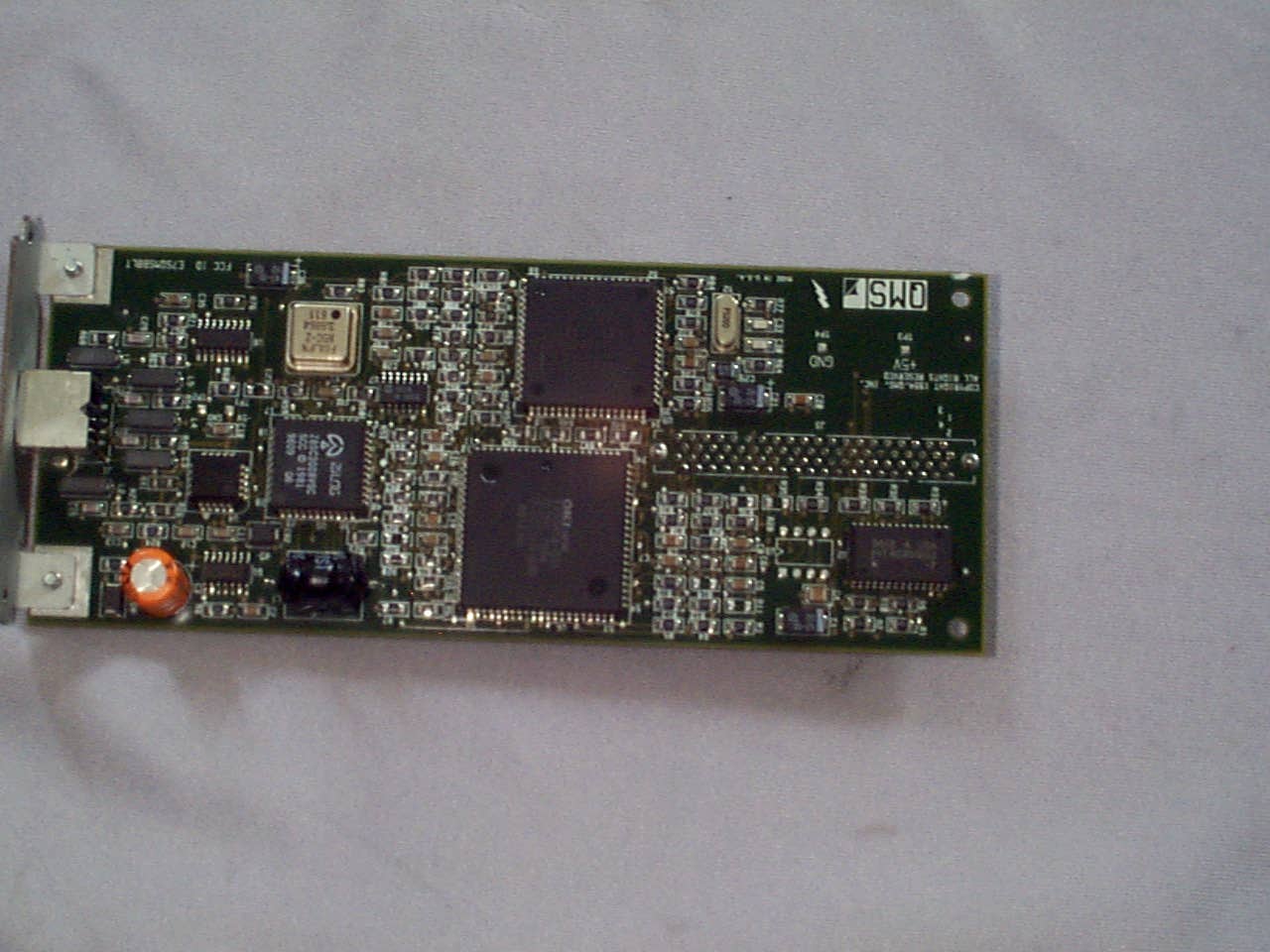

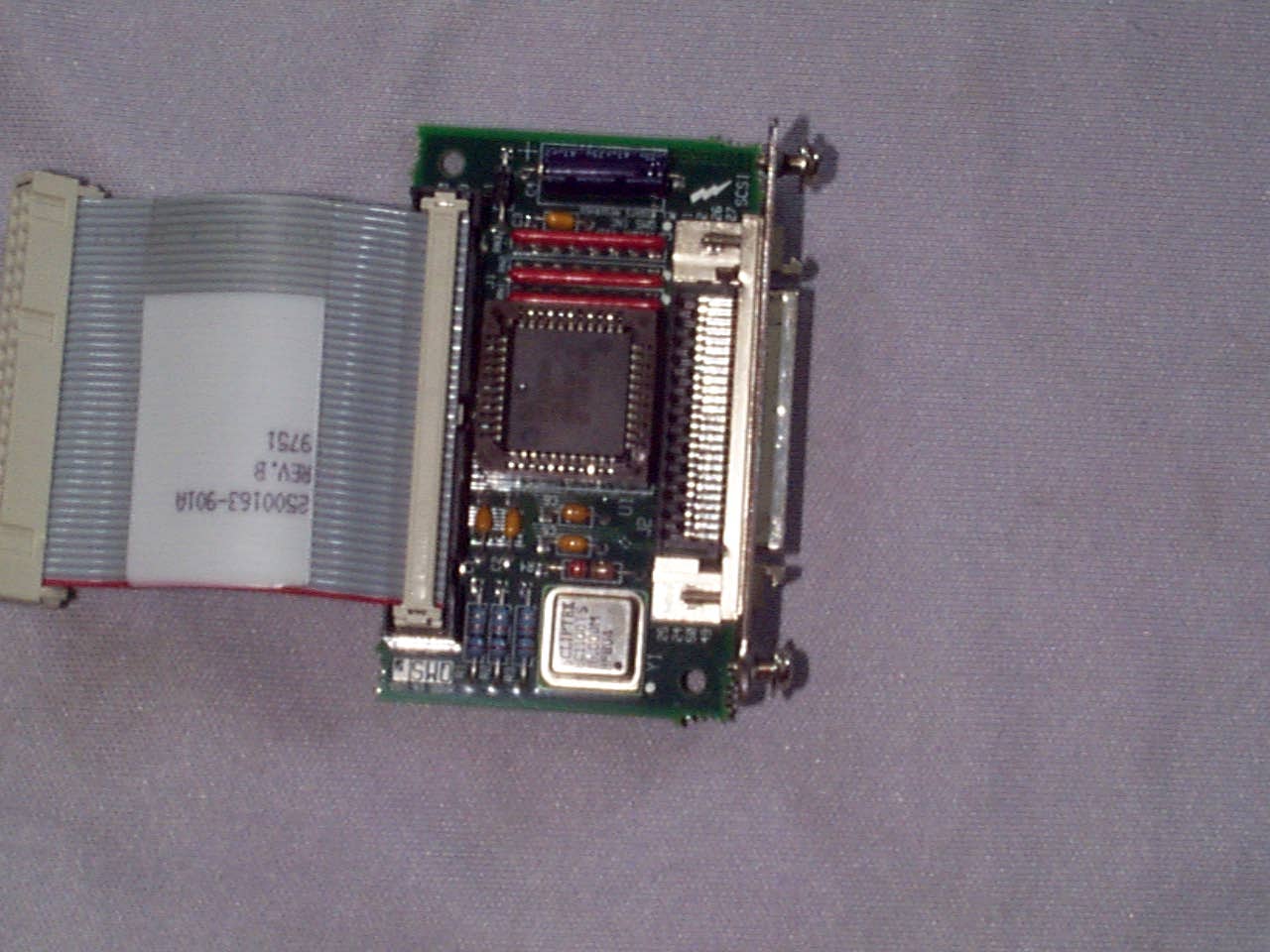

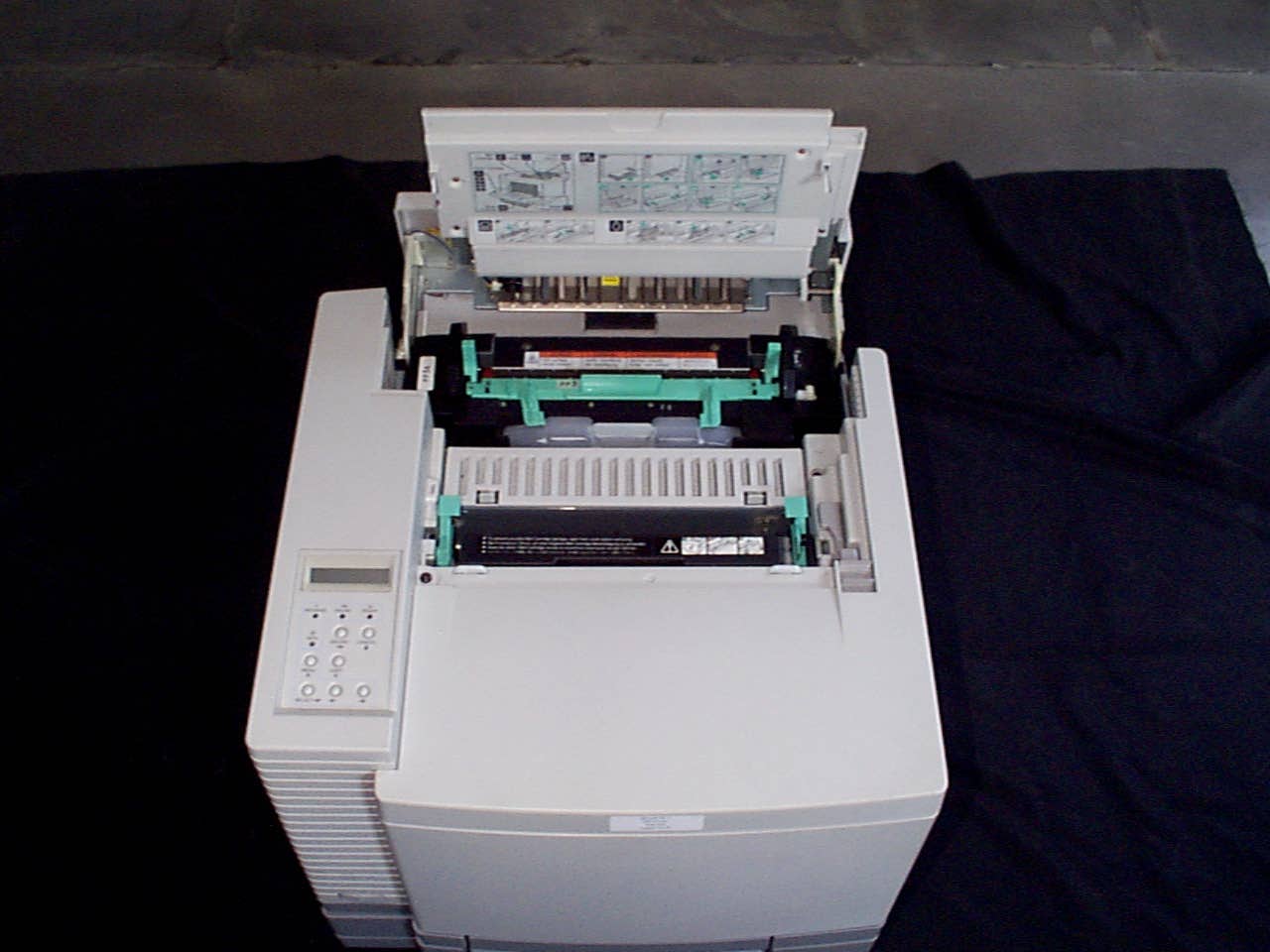

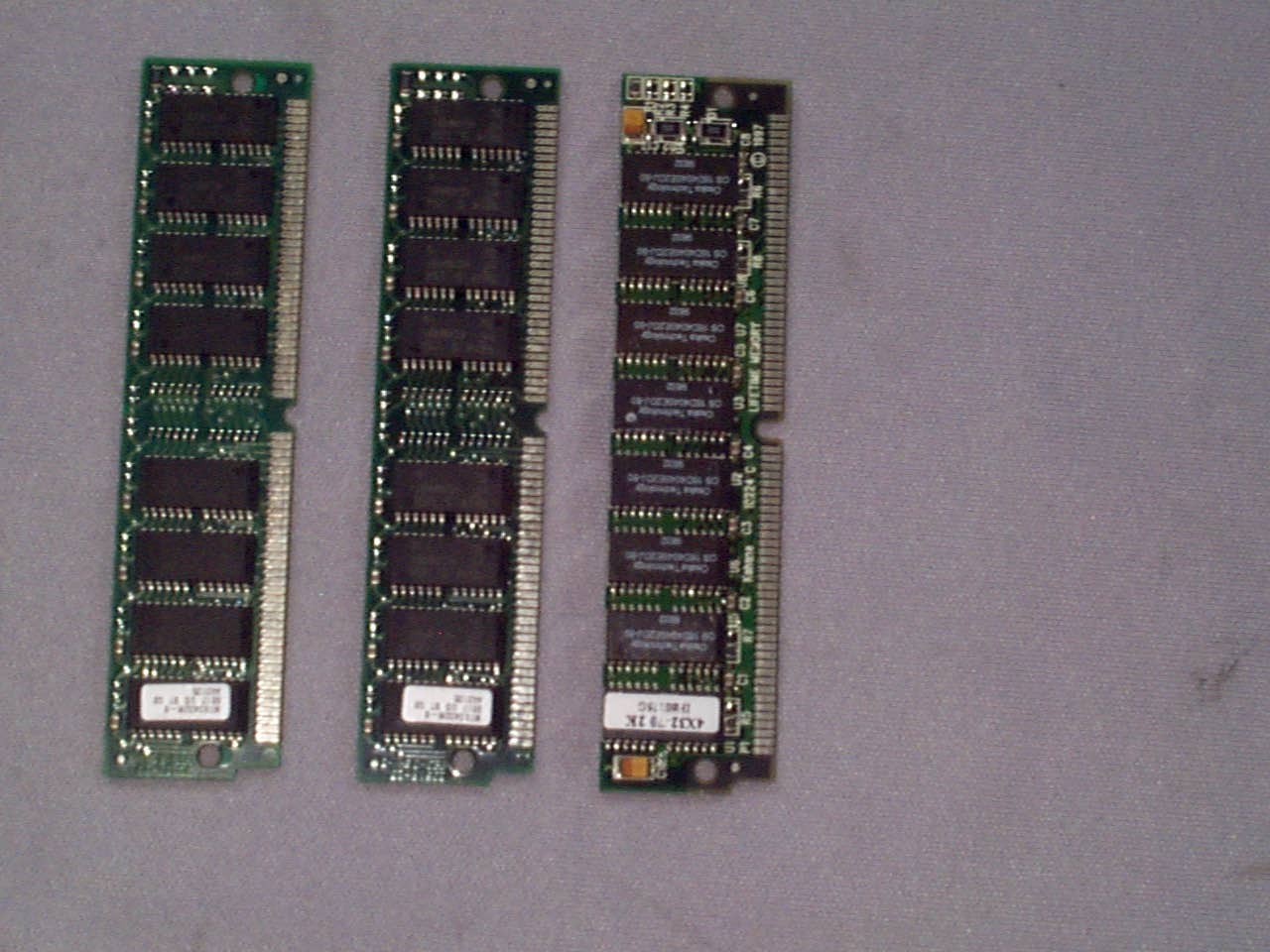

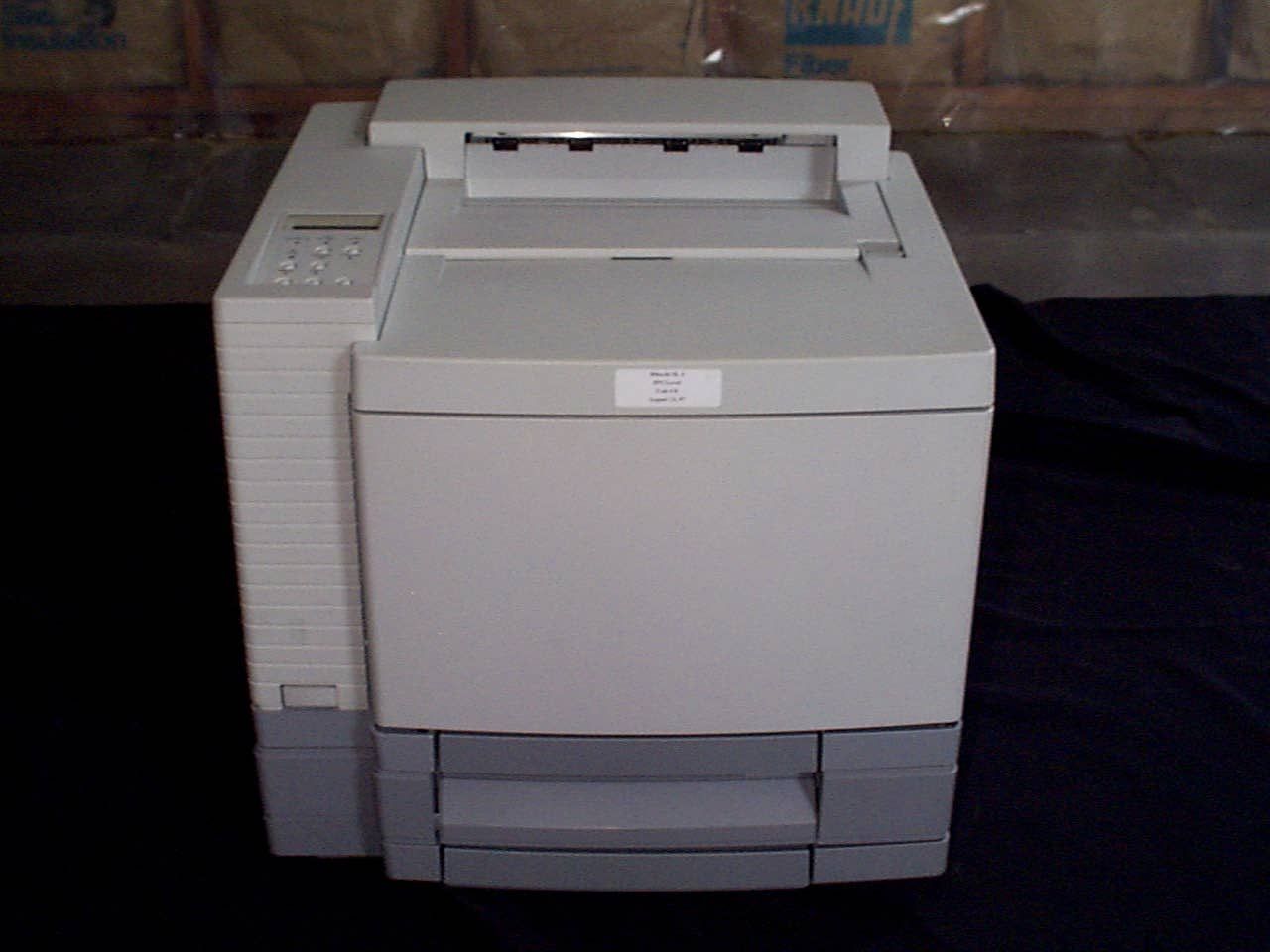

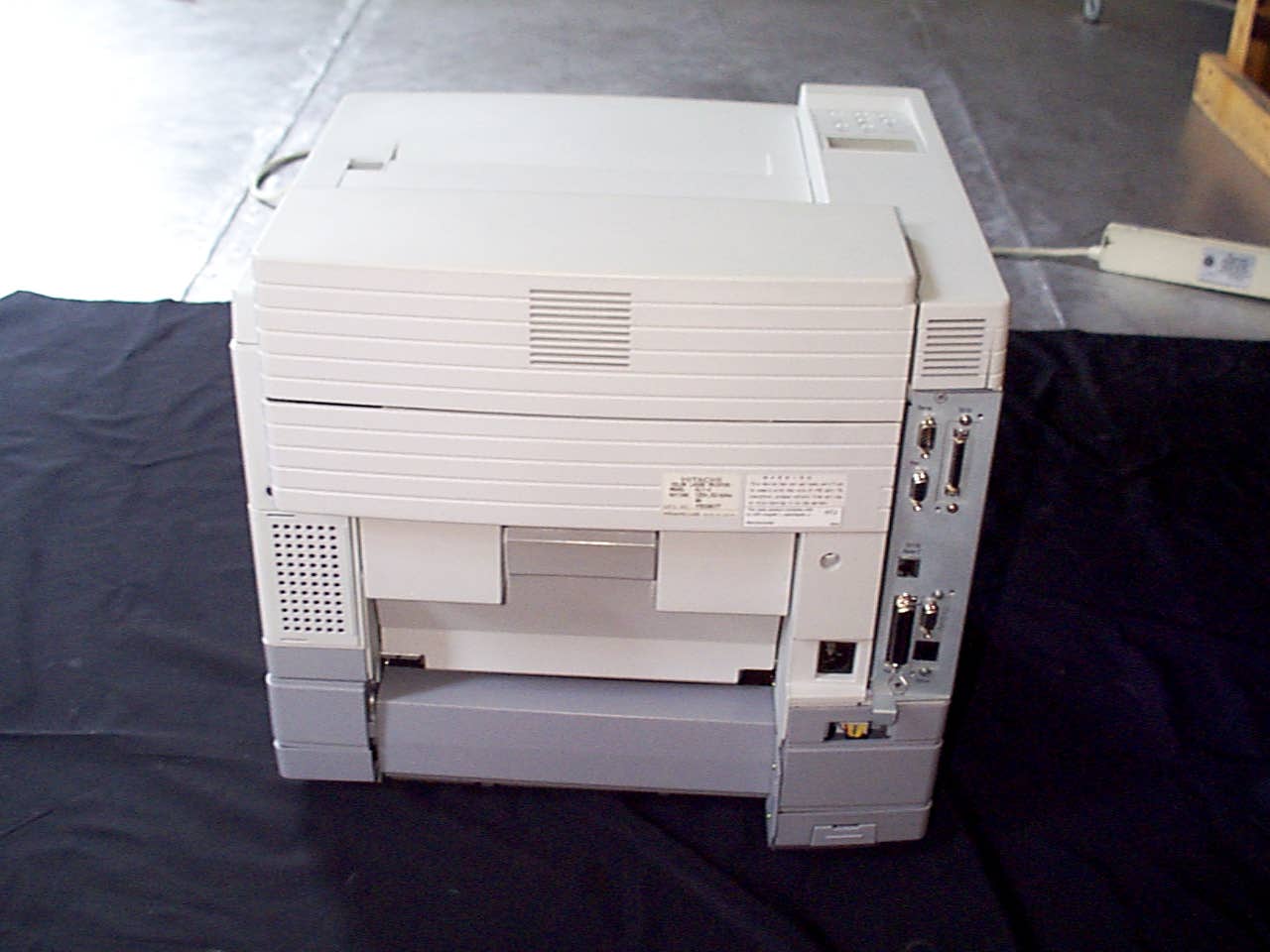

E7SMC2SIM-1Laser Printer

QMS magicolor 2 Print System FCC Compliance Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radiation frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and the receiver. • Connect the equipment into an outlet on a circuit different form that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. ➠ Note: A shielded cable is required to comply with the limit for a Class B digital device, pursuant to Part 15 of the FCC rules.  Caution: Any modifications or changes to this product not expressly approved in writing by the manufacturer responsible for compliance to Federal Regulations could void the user's authority to operate this product within the Laws and Regulations of the Federal Communications Commission. Canadian Users Notice This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

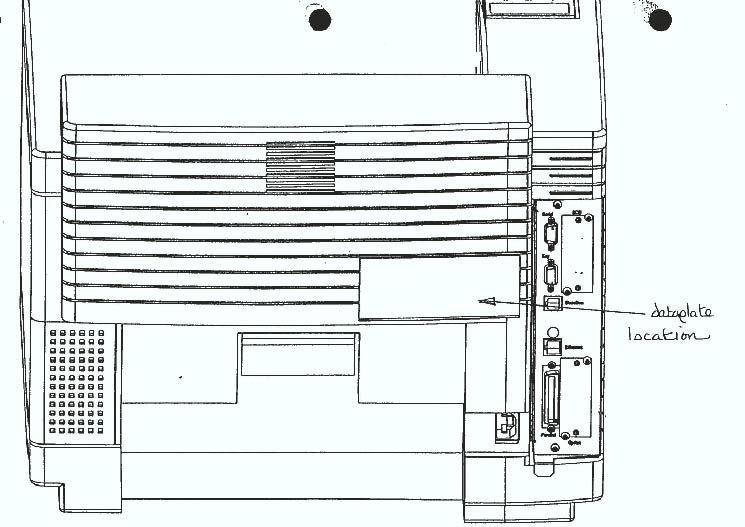

Model: QMS-MC2SIM-1 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. INFO. TECH. EQUIP. 66F7 This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. Pat. No. 4,942,541 Pat. No. 5,293,466 Product Of US Goods FCC ID: E7SMC2SIM-1 SN: Rated Voltage Range Rated Frequency Range Rated Current 12050/60 Hz8A

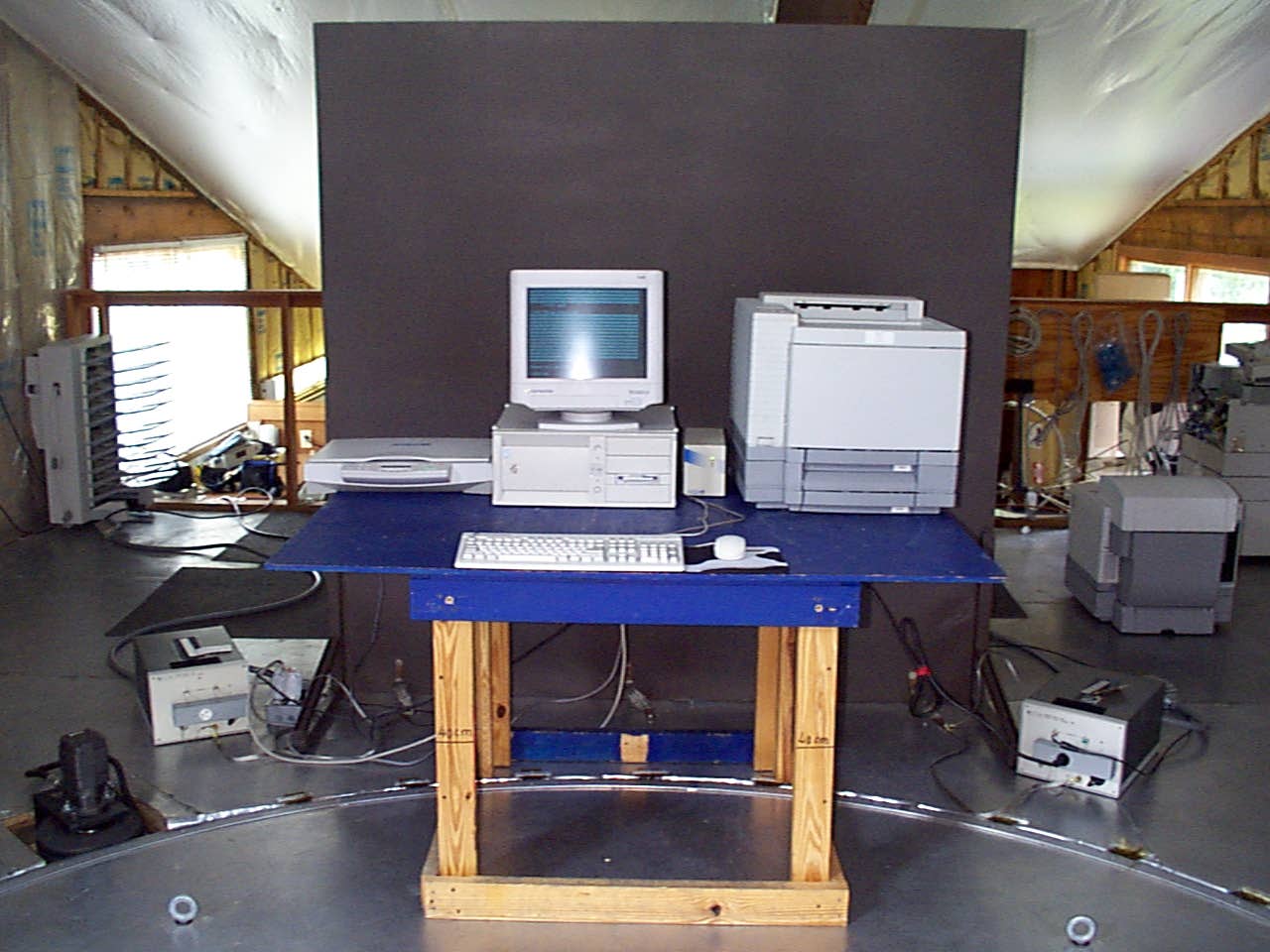

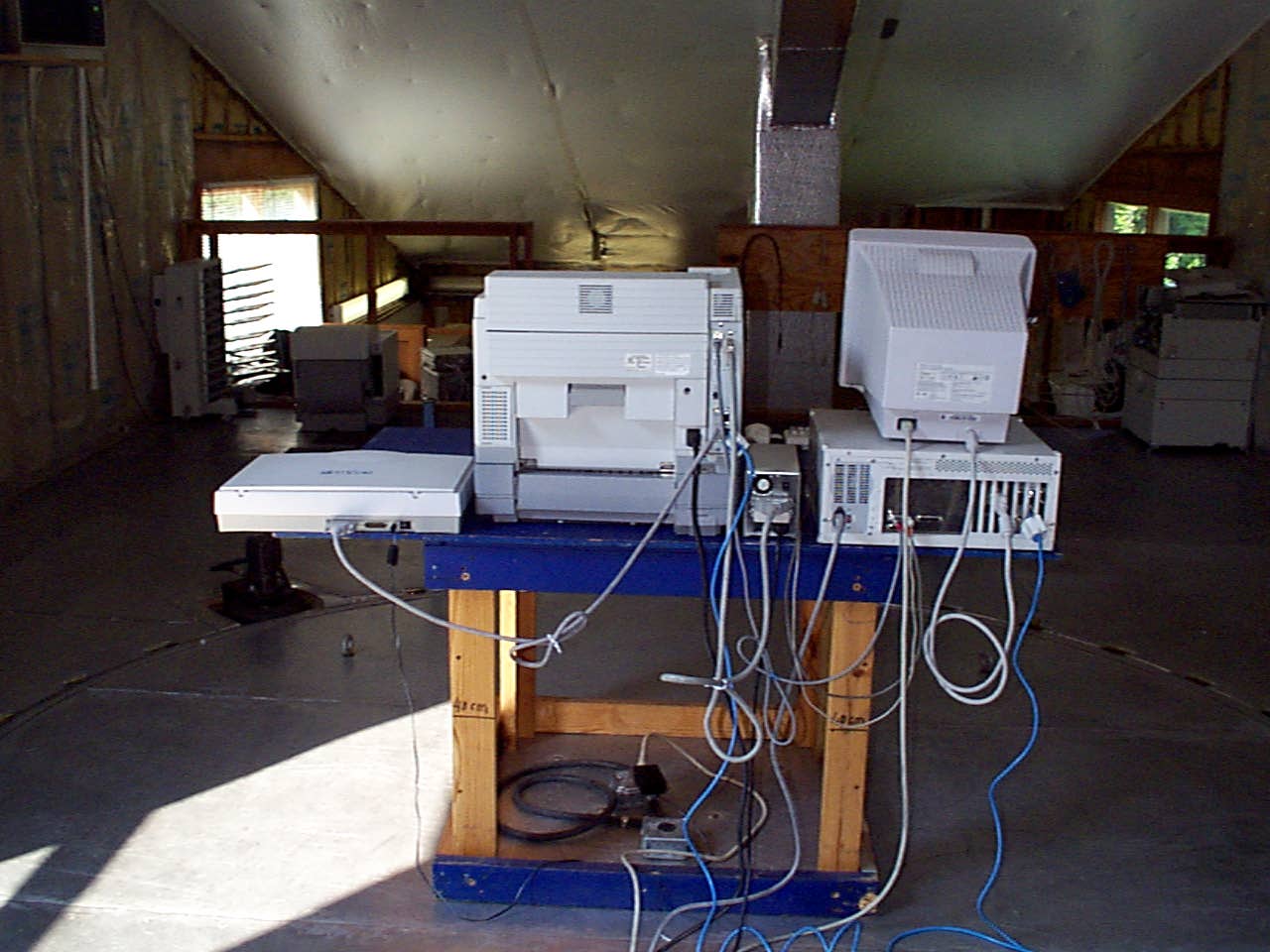

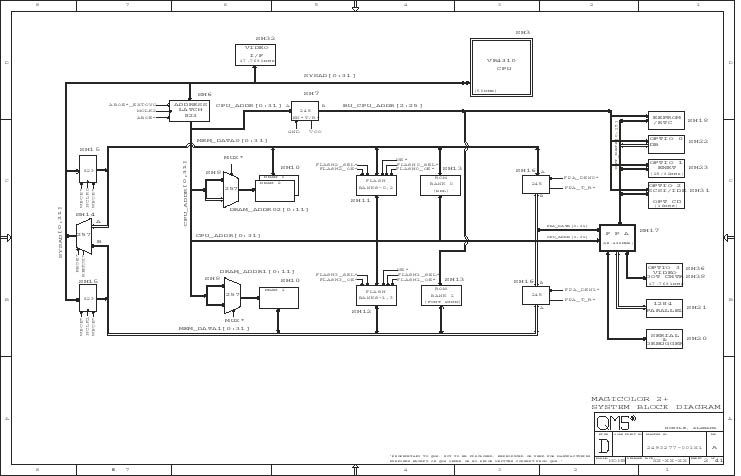

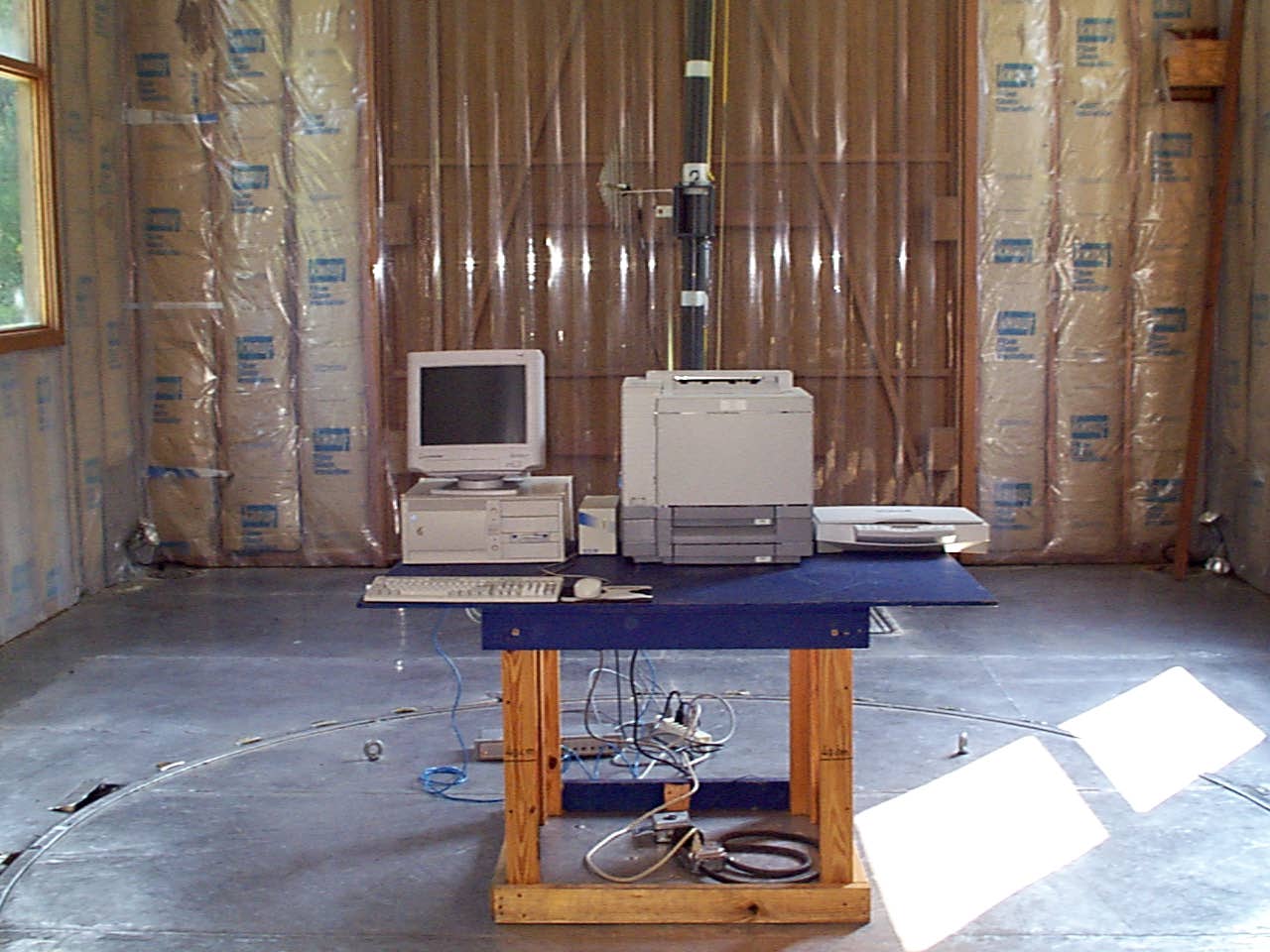

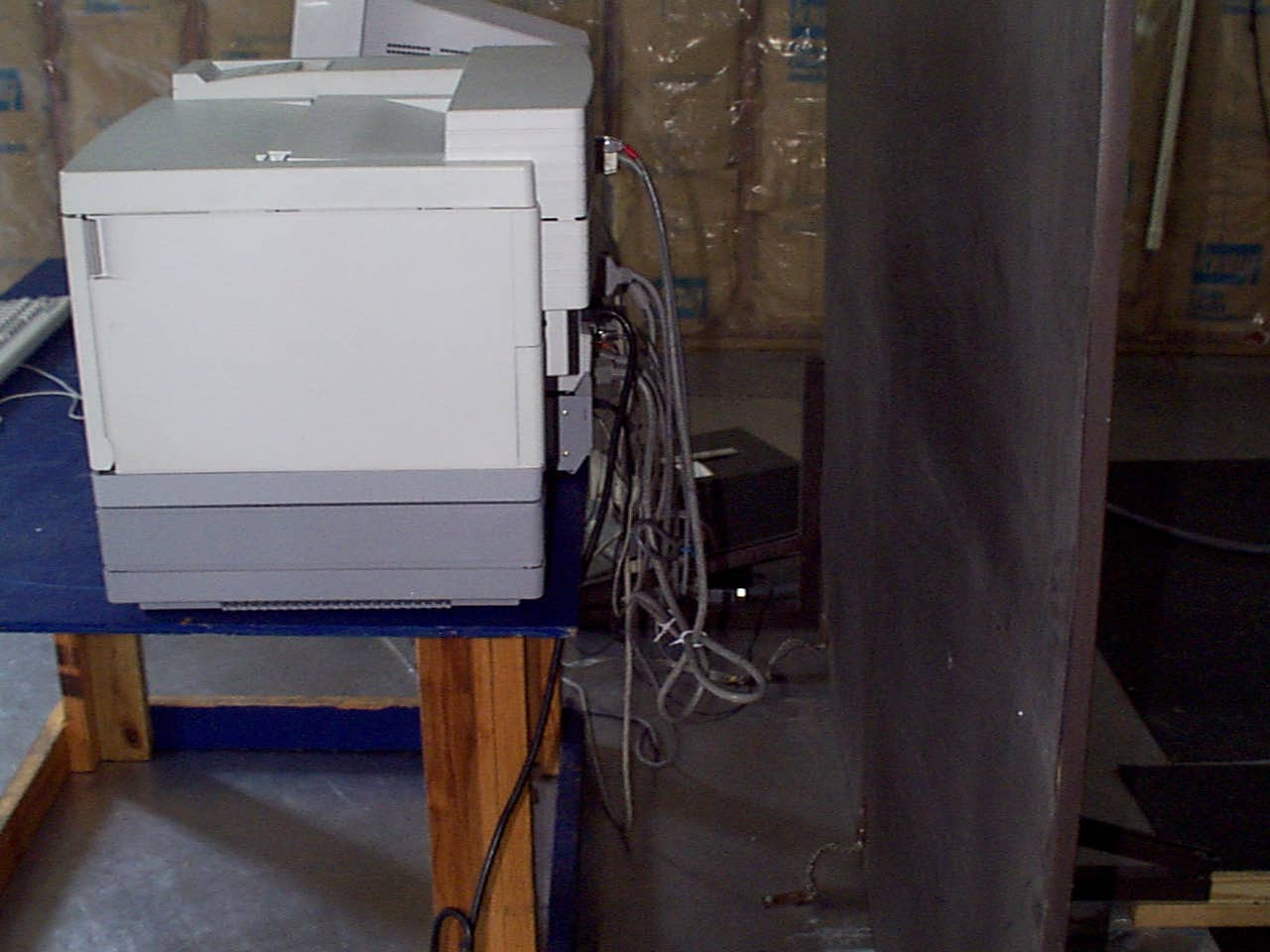

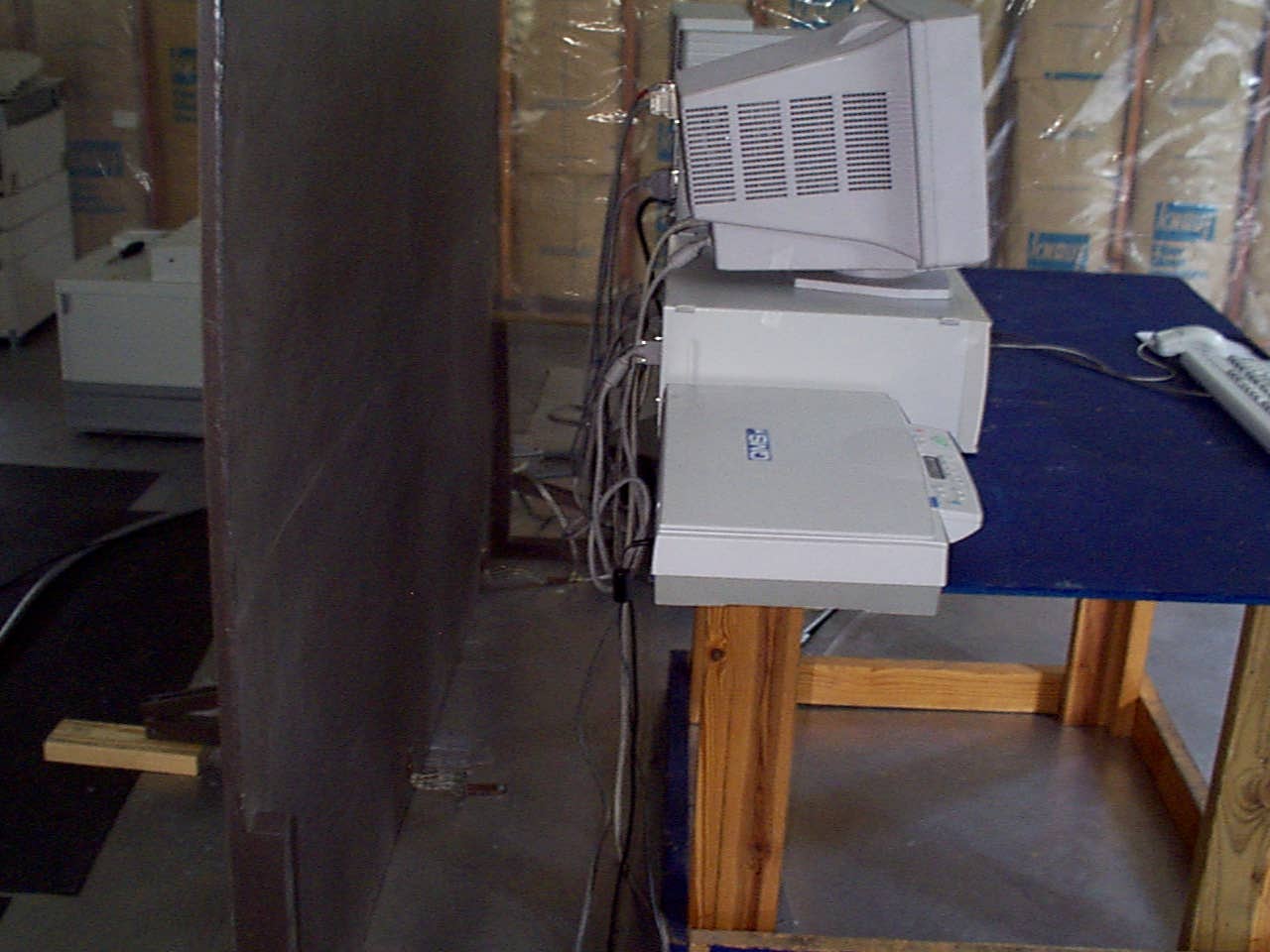

1 QMS, Inc. One Magnum Pass Mobile, AL 36618 Product Research & Development Regulatory Compliance Group Electromagnetic Interference Test Report FCC Class B Compliance of QMS magicolor 2 Print System Model: QMS-MC2SIM-1 FCC ID: E7SMC2SIM-1 Date of Test:June 15, 1999 through July 15, 1999 Date of Report:July 19, 1999 2 Table of Contents DescriptionPage Report of Measurement3 Declaration of Conformity4 Instrumentation5 Equipment Units Tested6 Personal Computers/Simulators Used6 Measurement Procedure7 Test Configurations7 Sample Calculations9 Emission Test Bands/Limits10 Appendix A - Radiated & Conducted Test Data11 Appendix B - Correction Factors23 Appendix C - Photographs of Test Setup & EUT26 Appendix D - Cable Diagram42 Appendix E - Label Drawing and Placement44 Appendix F - User Manual46 Appendix G - Block Diagram48 3 Report of Measurement This document contains the report and results of emissions testing of the QMS magicolor 2 Print System, Model QMS-MC2SIM-1, performed at the test site operated at QMS, Inc. General Information DEVICE TESTED:Computer Peripheral (laser printer) MANUFACTURER:QMS, Inc. One Magnum Pass Mobile, AL 36618 TESTED FOR COMPLIANCE WITH:ANSI C63.4 - 1992 FREQUENCY RANGE TESTED:450Khz - 30Mhz (conducted) 30Mhz - 1000Mhz (radiated) TEST DISTANCE:3 meters SITE LOCATION:QMS, Inc. One Magnum Pass Mobile, AL 36618 This site has been found by the Federal Communications Commission to be in compliance with the requirements of Section 2.948 of the Commission's Rules. The description has, therefore, been placed on file with the Federal Communications Commission and QMS, Inc. has been added to the Commission's list of facilities whose measurement data will be accepted in conjunction with applications for certification or notification under Parts 15 or 18 of the Commission's Rules. The Commission's list will also indicate that the facility complies with the radiated and AC conducted test site criteria in ANSI C63.4 - 1992. 4 Declaration of Conformity The device described on page 3 was tested to determine the maximum levels emanating from the device. Preliminary tests of each mode of operation were completed for both conducted and radiated emission tests. For each mode of operation the EUT was rotated 360 degrees until the highest level was found and then the antenna height was varied from 1 - 4 meters and the antenna was also configured for horizontal and vertical polarization to determine which height and polarization gave the highest emission reading. Once this reading was established, cables were manipulated and placement was varied to determine which configuration provided the highest emission reading. After determining the mode of operation which gave the highest reading in the preliminary tests, conducted and radiated, this mode or modes and configuration was used for the final emission test for conducted and radiated. The maximum emissions levels were compared to the limits of the Federal Communications Commission Rule Part 15, to determine if the device was compliant. The results shown within this report indicate compliance with the FCC Part 15 limits, for a Class B device. Tested by: A Tibor A. Steinberger Senior Compliance Specialist Report reviewed by: John A. Maynard Manager Regulatory Compliance 5 Instrumentation EQUIPMENTNAME/MODELCALIBRATION DATE Spectrum AnalyzerAnritsu MS2601AApril 29, 1999 AntennasBiconnical by A.H. Systems Model SAS-200/542, S/N 646 Frequency Range 20Mhz - 330MhzJune 17, 1998 Log Periodic by A.H. Systems Model SAS-200/512F, S/N 166 Frequency Range 200Mhz - 1.8GhzJune 17, 1998 Biconnical by A.H. Systems Model SAS-200/542, S/N 686 Frequency Range 20Mhz - 330MhzJune 14, 1999 Log Periodic by A.H. Systems Model SAS-200/512F, S/N 368 Frequency Range 200Mhz - 1.8GhzJune 14, 1999 AmplifierHewlett Packard 8447F Preamplifier/Power amplifier 26db gain, S/N 1937A01333 Frequency Range 100Khz - 1.3GhzFebruary 16, 1999 LISNEMCO Model 3825/2, S/N 1905 Providing 50 ohms from 450Khz - 30MhzJune 29, 1999 EMCO Model 3825/2, S/N 2268 Providing 50 ohms from 450Khz - 30 MhzJune 29, 1999 Note: All of the above test equipment is calibrated on 1 year cycles (annual). 6 Equipment Units Tested Type of Product:Laser Printer Product Name:QMS magicolor 2 Print System Product Model Number:QMS-MC2SIM-1 Identification/Description of Interconnecting Cables: Shielded cables are required to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. 1: Centronics Parallel1 meter double shielded parallel cable with molded plastic connector housings. 2: Serial1.67 meter shielded serial cable. 3: Ethernet 100BaseTX3 meter, Category 5 cables with RJ45 connectors. 4: AppleTalk 1.82 meter DIN8 shielded cable, DIN 8 AppleTalk Box, and DB9 AppleTalk box. 5: SCSI Drive1.21 meter double shielded cable with molded plastic connector housing. Personal Computers/Simulators Used PC Operation Voltage(X) 115V( ) 220V PC Operation Frequency( ) 50Hz(X) 60Hz ComputerGateway 2000 CPU model: LPMINI-TOWER, S/N: 0009855607, MonitorGateway 2000 model: Gateway 500-069CS, S/N: 150225B052115 FCC ID: BEJCS592 KeyboardGateway 2000 model: 2196003-XX-XXX, S/N: 56180851, FCC ID: D7J2196003-XX MouseMicrosoft InteliMouse PS, FCC ID: C3KMPS External SCSI DriveCrystal Data, model: ESHD-127, S/N: 9407-57, FCC ID: FZM40KESHD ScannerAvision, model: Scancopier, S/N: TN0001. (X) Other Simulator: (explanation required) Ethernet 100BaseTX hub with 5 ports, model: 5 Port Hub Addtron, S/N: 796B00574. 7 Measurement Procedure The ANSI C63.4-1992, Methods of Measurements of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9kHz to 40 GHz was used to demonstrate compliance to the FCC Part 15 limits for a Class B digital device. A spectrum analyzer having a memory function and two channels was used to obtain data on the emissions from the EUT and the ambient background noise level. This was used for both radiated and conducted emissions testing. In each ba…
