E8HDCC225U30DIGITAL VIDEO CAMERA

Wireless Camcorder User Manual | 1 English Tour of Your Camera Clip MountMagnet Mount Tripod Mount Strap Mount Record Button Status Mic Micro SD Card Slot Micro USB Port Strap Hook Speaker Video Mode Photo Mode Direct Mode Cloud Mode Mode Button Power Button 2 | English Getting Started Charging the Unit • Before first use, charge the battery fully by either adapter or PC USB. • Under charging, Status indicator will flash. Once complete, it will turn off automatically. Modes Navigation • Press Power button to turn on camera. • Press Mode button to switch between two camera modes (Video, Photo) and two wireless modes (Direct, Cloud). Two Camera Modes Insert micro SD card. (SD card is optional accessory) Take Video • Press Mode button to Video Mode. • Press Record button to take and again to stop. Take Photo • Press Mode button to Photo Mode. • Press Record button to take. Two Wireless Modes Before using wireless modes, install below applications: • Mobile APP: Download [Unieye] from Google Play or Apple Store. • PC Software: Install [Unieye] from camera (Windows). (page 6) Direct Mode To connect camera and mobile or PC directly for remote control, live view, managing album, and camera setup. Cloud Mode To connect camera to Cloud server via Access Point (AP) or mobile Hotspot for Internet live video and monitoring. | 3 English Cloud Mode (Internet) AP Cloud Server Cloud AP AP Mobile Hotspot Mobile / PC USTREAM 3G/4G Live broadcast social media. Download free USTREAM APP or go to http://www.ustream.tv/ Getting Started Direct Mode (Intranet) Mobile / PC Wireless Connection Direct Mode (Local) Cloud Mode (Internet) USTREAM Note: 1. Cloud service may change depending on their policy. 2. Some mobiles may not activate Hotspot where there is no 3G/4G service in some countries. Three Cloud servers are available for access: 4 | English Direct Mode (Mobile) Each camera has unique Camera ID. ( U2-xxxxxx) The Password is not required for first use, it is advised to go to [Setup] on APP to edit Password after connected. Cloud Mode (Mobile) For Android user: • Set camera to Direct Mode . • On mobile, activate WiFi connection. • Execute [Unieye] APP. • Press camera bar to start. For iOS user: • Set camera to Direct Mode . • On mobile, go to [Settings] [Wi-Fi]Choose a camera. • Execute [Unieye] APP. • Press camera bar to start. Connect Camera Android: iOS: Zoom In Zoom Out Invert Image Take Photo (SD card required) Take Video (SD card required) Loop Recording (SD card required) • Keep the last 10 minutes of recording at least. Two Way Voice • Press to turn on mobile microphone and speak to camera. • Camera microphone is mute while speaking. Quad View • Press to enable Quad View. (up to four cameras) • Press to optimize connection. • Select one window and press back to single view. | 5 English Before using Cloud Mode, setup Cloud AP and Cloud Server to camera. How to Setup Cloud AP on Direct Mode • On mobile, APP [Setup][Cloud Setting][Cloud AP]. Two ways to setup Cloud AP: 1. Select a WiFi network from [AP list] and enter Password. 2. Press [Other] from [AP list]Enter Network SSID and Password. Note: Mobile Hotspot can be set as Cloud AP. How to Setup Cloud Server on Direct Mode • New user, press then enter Email/Username/Password for auto-registration. Registered user, enter Email/Username/ Password only. • Select one server for camera to access. • Press [Save to Camera]. How to Connect Camera with Cloud Server Two ways to connect Cloud server: 1. On camera, set to Cloud Mode . 2. On mobile, press [Camera to Cloud] in [Setup] page. • Once connected successfully, camera Cloud indicator is slow- flashed in green. If connection failed, Cloud indicator is fast- flashed in red. Go back to check and correct the setting of [Cloud AP] and [Cloud Server]. How to View Live Video on Cloud Server 1. Using APP: USTREAM APP are available for download to view live video. 2. Go to website: USTREAM user Cloud Mode (Mobile) http://www.ustream.tv/ 6 | English PC Application To use PC application, install PC [Unieye] software first. The WiFi functions on PC application are similar to mobile APP. Install PC [Unieye] Software from Camera • Plug in USB to connect camera and PC. • [Unieye] AutoRuns/AutoPlay is activated automatically. • If AutoRuns/AutoPlay is not activated: Go to [My computer] search [Unieye] for installation. • Once installed, software will be auto-launched. • Unplug USB for WiFi application or keep USB plugged for additional USB application. Additional USB Application (USB plugged) Once USB plugged, [View] function on [Unieye] is invalid. Press camera Mode button to switch between Mass Storage Mode and Webcam Mode. Mass Storage Mode (default): (Indicator show orange) 1. Save Video/Photo to PC • Go to [Album]Select video/photoPress [Save to PC]. 2. Upload Video/Photo to YouTube, Facebook or Youku • Go to [Setup][Upload Setting]. • Enter Email/Username and Password. • Press [Save to PC]. • Go to [Album]Select video/photoPress [Upload]. Webcam Mode: (Indicator show green) • Exit and disfunction [Unieye]. • In Instant Messaging (Skype or QQ), select "U2 video device" and "U2 audio device". (For Win XP, select "video device") | 7 English Camera Indication Camera Hotkey Default Setting Press both Mode and Record buttons to reset and turn off. Forced Power OffPress Power button for 5 sec. to turn off. Loop Recording & Invert Image Press Record button for 4 sec. to turn on. ConditionStatus IndicatorSound Take VideoSlow flash GreenOne time ChargingSlow flash Red Fully ChargedTwo times Low Battery Flash Red every 5 sec. (Warning) Five times (Shutdown) Power OffTwo times Auto Power Off (5 mins idle) Slow flash RedTwo times Memory Full SD Card Error Slow flash RedThree times No Cloud AP No Cloud Account Fast flash RedThree times Direct Mode ReadySteady Green Wireless ConnectingFast flash Green StreamingSlow flash Green Loop RecordingSlow flash Orange 8 | English Trouble Shooting SituationSolution Camera cannot turn on Ba…

Text truncated - open the document above for the full version.

Chicony Electronics Co., Ltd. NO. 25, Wu-Gong 6th Rd., Wugu Dist., New Taipei City 248, Taiwan, R.O.C Tel: 886-2-22988120 Fax: 886-2-22988442 Federal Communications Commission Authorization and Evaluation Division Date: Sep. 6,2012 SUBJECT: Authorized signatories To whom it may concern, We, the undersigned, “Chicony Electronics Co., Ltd.” hereby authorize the following, to act on our behalf, as our agent, in all matters relating to all processes required according to FCC Part 15C for Chicony products (Grantee Code: E8H). Mr. Wei-Ming Chiu If you have any questions regarding the authorization, please don’t hesitate to contact me. Sincerely yours, ------------------------------------------ T.S. Chen / Manager Chicony Electronics Co., Ltd. Tel: +886 2-2298-8120 Fax: +886 2-2298-9745 E-mail : [email protected]

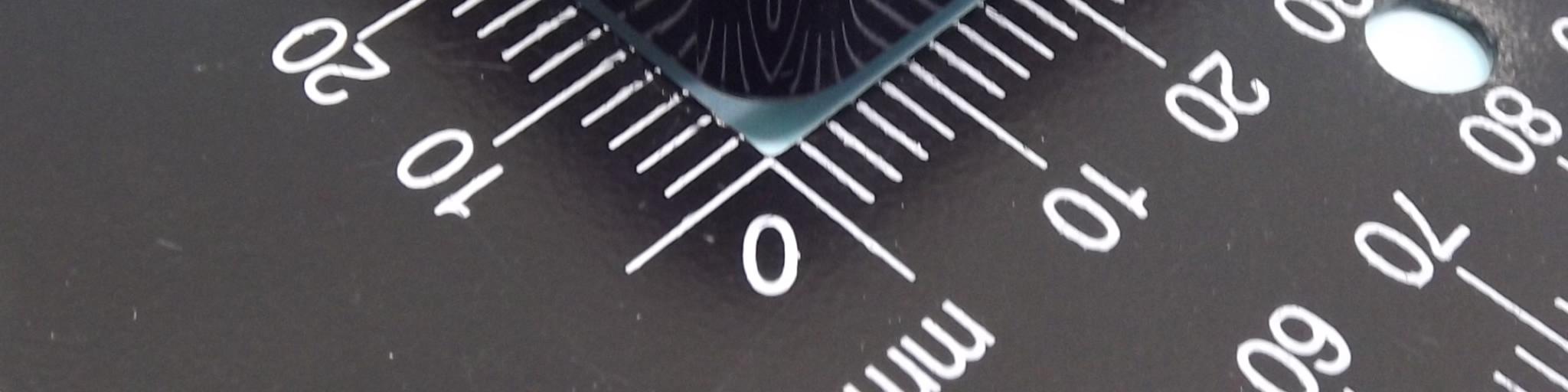

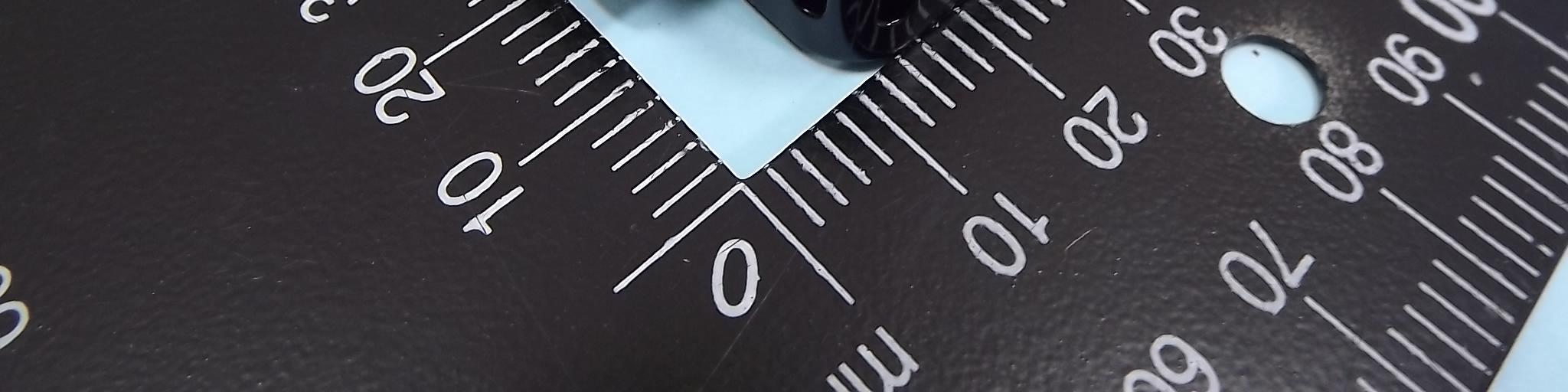

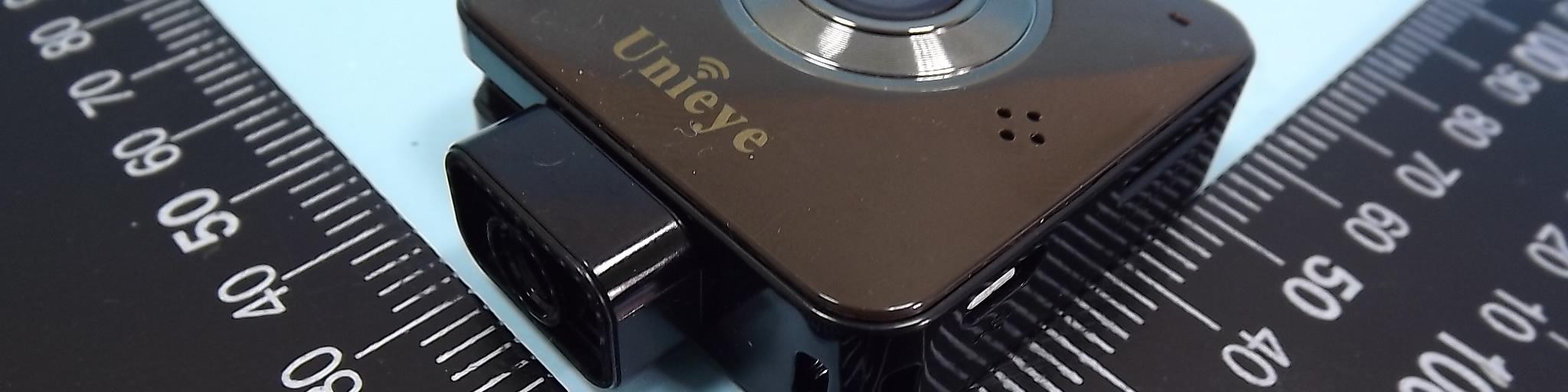

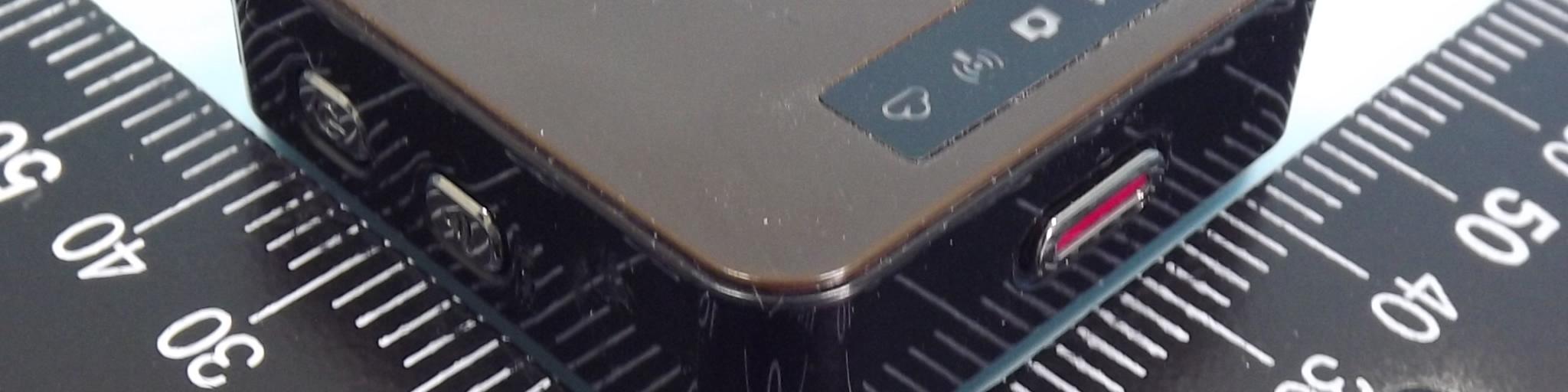

FCC Test Report Report No. : FR2D1005 SPORTON International Inc. PAGE NUMBER : B1 OF B13 TEL : 886-3-327-3456 ISSUED DATE : Feb. 04, 2013 FAX : 886-3-327-0973 APPENDIX B. Photographs of EUT FCC Test Report Report No. : FR2D1005 SPORTON International Inc. PAGE NUMBER : B2 OF B13 TEL : 886-3-327-3456 ISSUED DATE : Feb. 04, 2013 FAX : 886-3-327-0973

EUT Back Label Location

FCC Test Report Report No. : FR2D1005 SPORTON International Inc. PAGE NUMBER : B3 OF B13 TEL : 886-3-327-3456 ISSUED DATE : Feb. 04, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : FR2D1005 SPORTON International Inc. PAGE NUMBER : B4 OF B13 TEL : 886-3-327-3456 ISSUED DATE : Feb. 04, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : FR2D1005 SPORTON International Inc. PAGE NUMBER : B5 OF B13 TEL : 886-3-327-3456 ISSUED DATE : Feb. 04, 2013 FAX : 886-3-327-0973 PIFA Antenna FCC Test Report Report No. : FR2D1005 SPORTON International Inc. PAGE NUMBER : B6 OF B13 TEL : 886-3-327-3456 ISSUED DATE : Feb. 04, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : FR2D1005 SPORTON International Inc. PAGE NUMBER : B7 OF B13 TEL : 886-3-327-3456 ISSUED DATE : Feb. 04, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : FR2D1005 SPORTON International Inc. PAGE NUMBER : B8 OF B13 TEL : 886-3-327-3456 ISSUED DATE : Feb. 04, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : FR2D1005 SPORTON International Inc. PAGE NUMBER : B9 OF B13 TEL : 886-3-327-3456 ISSUED DATE : Feb. 04, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : FR2D1005 SPORTON International Inc. PAGE NUMBER : B10 OF B13 TEL : 886-3-327-3456 ISSUED DATE : Feb. 04, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : FR2D1005 SPORTON International Inc. PAGE NUMBER : B11 OF B13 TEL : 886-3-327-3456 ISSUED DATE : Feb. 04, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : FR2D1005 SPORTON International Inc. PAGE NUMBER : B12 OF B13 TEL : 886-3-327-3456 ISSUED DATE : Feb. 04, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : FR2D1005 SPORTON International Inc. PAGE NUMBER : B13 OF B13 TEL : 886-3-327-3456 ISSUED DATE : Feb. 04, 2013 FAX : 886-3-327-0973

SPORTON INTERNATIONAL INC. Page Number : 1 of 30 TEL : 886-3-327-3456 Report Issued Date : Feb. 04, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : E8HDCC225U30 FCC SAR Test Report Report No. : FA2D1005 FCC SAR Test Report APPLICANT : Chicony Electronics Co. Ltd. EQUIPMENT : Digital Video Camera BRAND NAME : U30 MODEL NAME : DC-C225 FCC ID : E8HDCC225U30 STANDARD : FCC 47 CFR Part 2 (2.1093) ANSI/IEEE C95.1-1992 IEEE 1528-2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) The product was completely tested on Jan. 25, 2013. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Jones Tsai / Manager SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON INTERNATIONAL INC. Page Number : 2 of 30 TEL : 886-3-327-3456 Report Issued Date : Feb. 04, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : E8HDCC225U30 FCC SAR Test Report Report No. : FA2D1005 Table of Contents 1. Statement of Compliance ............................................................................................................................................. 4 2. Administration Data ...................................................................................................................................................... 5 2.1 Testing Laboratory .................................................................................................................................................. 5 2.2 Applicant ................................................................................................................................................................ 5 2.3 Manufacturer .......................................................................................................................................................... 5 2.4 Application Details .................................................................................................................................................. 5 3. General Information ...................................................................................................................................................... 6 3.1 Description of Equipment Under Test (EUT) .......................................................................................................... 6 3.2 Maximum RF output power among production units .............................................................................................. 7 3.3 Product Photos....................................................................................................................................................... 7 3.4 Applied Standards .................................................................................................................................................. 7 3.5 Device Category and SAR Limits ........................................................................................................................... 7 3.6 Test Conditions ....................................................................................................................................................... 7 4. Specific Absorption Rate (SAR) ................................................................................................................................... 8 4.1 Introduction ............................................................................................................................................................ 8 4.2 SAR Definition ........................................................................................................................................................ 8 5. SAR Measurement System ........................................................................................................................................... 9 5.1 E-Field Probe ........................................................................................................................................................10 5.2 Data Acquisition Electronics (DAE) ....................................................................................................................... 11 5.3 Robot .................................................................................................................................................................... 11 5.4 Measurement Server ............................................................................................................................................. 11 5.5 Phantom ................................................................................................................................................................12 5.6 Device Holder........................................................................................................................................................13 5.7 Data Storage and Evaluation ................................................................................................................................14 5.8 Test Equipment List ...............................................................................................................................................16 6. Tissue Simulating Liquids ...........................................................................................................................................17 7. SAR Measurement Evaluation ....................................................................................................................................18 7.1 Purpose of System Performance check .....................................................…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013/1/25 System Check_Body_2450MHz_130125 DUT: D2450V2-SN:736 Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: MSL_2450_130125 Medium parameters used: f = 2450 MHz; σ = 2.015 mho/m; ε r = 53.957; ρ = 1000 kg/m 3 Ambient Temperature：22.5 °C; Liquid Temperature：21.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3578; ConvF(6.43, 6.43, 6.43); Calibrated: 2012/6/21; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn910; Calibrated: 2012/12/5 - Phantom: ELI v4.0; Type: QDOVA001BB; Serial: 1173 - Measurement SW: DASY52, Version 52.8 (1); SEMCAD X Version 14.6.5 (6469) Configuration/Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (interpolated) = 20.7 mW/g Configuration/Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5m m Reference Value = 98.760 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 28.279 mW/g SAR(1 g) = 12.2 mW/g; SAR(10 g) = 5.34 mW/g Maximum value of SAR (measured) = 19.1 mW/g 0 dB = 19.1 mW/g = 25.62 dB mW/g

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013/1/25 #01_WLAN 2.4G_802.11b_Front_0cm_Ch6 DUT: 2D1005 Communication System: 802.11b ; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium: MSL_2450_130125 Medium parameters used: f = 2437 MHz; σ = 1.996 mho/m; ε r = 53.979; ρ = 1000 kg/m 3 Ambient Temperature：22.5 °C; Liquid Temperature：21.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3578; ConvF(6.43, 6.43, 6.43); Calibrated: 2012/6/21; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn910; Calibrated: 2012/12/5 - Phantom: ELI v4.0; Type: QDOVA001BB; Serial: 1173 - Measurement SW: DASY52, Version 52.8 (1); SEMCAD X Version 14.6.5 (6469) Configuration/Ch6/Area Scan (61x71x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (interpolated) = 1.49 mW/g Configuration/Ch6/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 21.991 V/m; Power Drift = 0.04 dB Peak SAR (extrapolated) = 1.666 mW/g SAR(1 g) = 0.969 mW/g; SAR(10 g) = 0.574 mW/g Maximum value of SAR (measured) = 1.30 mW/g Configuration/Ch6/Zoom Scan (7x7x7)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 21.991 V/m; Power Drift = 0.04 dB Peak SAR (extrapolated) = 1.652 mW/g SAR(1 g) = 0.885 mW/g; SAR(10 g) = 0.495 mW/g Maximum value of SAR (measured) = 1.24 mW/g 0 dB = 1.24 mW/g = 1.87 dB mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013/1/25 #14_WLAN 2.4G_802.11b_Front_0cm_Ch1 DUT: 2D1005 Communication System: 802.11b ; Frequency: 2412 MHz;Duty Cycle: 1:1 Medium: MSL_2450_130125 Medium parameters used: f = 2412 MHz; σ = 1.959 mho/m; ε r = 54.047; ρ = 1000 kg/m 3 Ambient Temperature：22.5 °C; Liquid Temperature：21.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3578; ConvF(6.43, 6.43, 6.43); Calibrated: 2012/6/21; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn910; Calibrated: 2012/12/5 - Phantom: ELI v4.0; Type: QDOVA001BB; Serial: 1173 - Measurement SW: DASY52, Version 52.8 (1); SEMCAD X Version 14.6.5 (6469) Configuration/Ch1/Area Scan (61x71x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (interpolated) = 2.15 mW/g Configuration/Ch1/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5m m Reference Value = 27.358 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 1.871 mW/g SAR(1 g) = 1.07 mW/g; SAR(10 g) = 0.624 mW/g Maximum value of SAR (measured) = 1.45 mW/g Configuration/Ch1/Zoom Scan (7x7x7)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 27.358 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 2.428 mW/g SAR(1 g) = 0.983 mW/g; SAR(10 g) = 0.543 mW/g Maximum value of SAR (measured) = 1.48 mW/g 0 dB = 1.48 mW/g = 3.41 dB mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013/1/25 #16_WLAN 2.4G_802.11b_Front_0cm_Ch11 DUT: 2D1005 Communication System: 802.11b ; Frequency: 2462 MHz;Duty Cycle: 1:1 Medium: MSL_2450_130125 Medium parameters used: f = 2462 MHz; σ = 2.032 mho/m; ε r = 53.942; ρ = 1000 kg/m 3 Ambient Temperature：22.5 °C; Liquid Temperature：21.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3578; ConvF(6.43, 6.43, 6.43); Calibrated: 2012/6/21; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn910; Calibrated: 2012/12/5 - Phantom: ELI v4.0; Type: QDOVA001BB; Serial: 1173 - Measurement SW: DASY52, Version 52.8 (1); SEMCAD X Version 14.6.5 (6469) Configuration/Ch11/Area Scan (61x71x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (interpolated) = 1.50 mW/g Configuration/Ch11/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5m m Reference Value = 22.069 V/m; Power Drift = 0.08 dB Peak SAR (extrapolated) = 1.585 mW/g SAR(1 g) = 0.726 mW/g; SAR(10 g) = 0.420 mW/g Maximum value of SAR (measured) = 1.06 mW/g Configuration/Ch11/Zoom Scan (7x7x7)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 22.069 V/m; Power Drift = 0.08 dB Peak SAR (extrapolated) = 1.653 mW/g SAR(1 g) = 0.717 mW/g; SAR(10 g) = 0.388 mW/g Maximum value of SAR (measured) = 1.08 mW/g 0 dB = 1.08 mW/g = 0.67 dB mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013/1/25 #02_WLAN 2.4G_802.11b_Back_0cm_Ch6 DUT: 2D1005 Communication System: 802.11b ; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium: MSL_2450_130125 Medium parameters used: f = 2437 MHz; σ = 1.996 mho/m; ε r = 53.979; ρ = 1000 kg/m 3 Ambient Temperature：22.5 °C; Liquid Temperature：21.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3578; ConvF(6.43, 6.43, 6.43); Calibrated: 2012/6/21; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn910; Calibrated: 2012/12/5 - Phantom: ELI v4.0; Type: QDOVA001BB; Serial: 1173 - Measurement SW: DASY52, Version 52.8 (1); SEMCAD X Version 14.6.5 (6469) Configuration/Ch6/Area Scan (61x71x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (interpolated) = 1.50 mW/g Configuration/Ch6/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5m m Reference Value = 24.796 V/m; Power Drift = 0.08 dB Peak SAR (extrapolated) = 2.173 mW/g SAR(1 g) = 0.991 mW/g; SAR(10 g) = 0.559 mW/g Maximum value of SAR (measured) = 1.49 mW/g 0 dB = 1.49 mW/g = 3.46 dB mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013/1/25 #15_WLAN 2.4G_802.11b_Back_0cm_Ch1 DUT: 2D1005 Communication System: 802.11b ; Frequency: 2412 MHz;Duty Cycle: 1:1 Medium: MSL_2450_130125 Medium parameters used: f = 2412 MHz; σ = 1.959 mho/m; ε r = 54.047; ρ = 1000 kg/m 3 Ambient Temperature：22.5 °C; Liquid Temperature：21.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3578; ConvF(6.43, 6.43, 6.43); Calibrated: 2012/6/21; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn910; Calibrated: 2012/12/5 - Phantom: ELI v4.0; Type: QDOVA001BB; Serial: 1173 - Measurement SW: DASY52, Version 52.8 (1); SEMCAD X Version 14.6.5 (6469) Configuration/Ch1/Area Scan (61x71x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (interpolate…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 D2450V2, serial no. 736 Extended Dipole Calibrations Referring to KDB 450824, if dipoles are verified in return loss (<-20dB, within 20% of prior calibration), and in impedance (within 5 ohm of prior calibration), the annual calibration is not necessary and the calibration interval can be extended. <Justification Procedure of Extended Dipole Calibration> 1. Setup a Network Analyzer (Agilent N5230A) and set the start frequency and stop frequency to Network Analyzer according to the dipole frequency, at least +/- 200MHz around the calibration point. 2. Using calibration kit to perform Network Analyzer Open, Short and Load calibration. 3. Connect the dipole with the calibrated Network Analyzer. 4. Place the dipole underneath the phantom which is filled with head-simulating or body-simulating liquid. 5. Set the Network Analyzer frequency by the dipole calibration frequency. Monitor the return-loss and impedance results with Log Magnitude format and Smith Chart, respectively. 6. Record the result and compare with the prior calibration. Please check the Appendix C for detail records. <Justification of the extended calibration> D2450V2 – serial no. 736 2450 Head 2450 Body Date of Measurement Return-Loss (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedance (ohm) Delta (ohm) Return-Loss (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedance (ohm) Delta (ohm) 7.25.2011 -27.042 54.398 1.4805 -30.696 50.812 2.8262 7.25.2012 -27.950 -3.365 52.541 1.857 0.77343 0.707 -31.781 -3.535 50.572 0.24 1.5953 1.2309 The return loss is < -20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 <Dipole Verification Data> - D2450 V2, serial no. 736 (Date of Measurement : 7.25.2012) 2450 MHz - Head SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 2450 MHz – Body

FCC Test Report Report No. : FR2D1005 SPORTON INTERNATIONAL INC. Page No. : 1 of 47 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 FCC Test Report Equipment : Wireless Camcorder Brand Name : U30 Model No. : DC-C225 FCC ID : E8HDCC225U30 Standard : 47 CFR FCC Part 15.247 Operating Band : 2400 MHz – 2483.5 MHz Equipment Class : DTS Applicant Manufacturer : Chicony Electronics Co., Ltd No.25, Wugong 6th Rd., Wugu Dist., New Taipei City 248, Taiwan (R.O.C.) The product sample received on Jan. 14, 2013 and completely tested on Jan. 24, 2013. We, SPORTON, would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI C63.10-2009 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Wayne Hsu / Assistant Manager FCC Test Report Report No. : FR2D1005 SPORTON INTERNATIONAL INC. Page No. : 2 of 47 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 Table of Contents 1 GENERAL DESCRIPTION ............................................................................................................... 5 1.1 Information ........................................................................................................................................ 5 1.2 Accessories and Support Equipment ................................................................................................. 7 1.3 Testing Applied Standards ................................................................................................................ 7 1.4 Testing Location Information ............................................................................................................. 7 1.5 Measurement Uncertainty ................................................................................................................. 8 2 TEST CONFIGURATION OF EUT .................................................................................................... 9 2.1 The Worst Case Modulation Configuration ........................................................................................ 9 2.2 Test Channel Frequencies Configuration ........................................................................................... 9 2.3 The Worst Case Power Setting Parameter ........................................................................................ 9 2.4 The Worst Case Measurement Configuration .................................................................................. 10 2.5 Test Setup Diagram ........................................................................................................................ 11 3 TRANSMITTER TEST RESULT ..................................................................................................... 13 3.1 AC Power-line Conducted Emissions .............................................................................................. 13 3.2 6dB Bandwidth ................................................................................................................................ 16 3.3 RF Output Power ............................................................................................................................ 18 3.4 Power Spectral Density ................................................................................................................... 23 3.5 Transmitter Radiated Bandedge Emissions ..................................................................................... 25 3.6 Transmitter Radiated Unwanted Emissions ..................................................................................... 29 4 TEST EQUIPMENT AND CALIBRATION DATA ............................................................................. 46 APPENDIX A. TEST PHOTOS .................................................................................................................. A7 APPENDIX B. PHOTOGRAPHS OF EUT ................................................................................................ B13 FCC Test Report Report No. : FR2D1005 SPORTON INTERNATIONAL INC. Page No. : 3 of 47 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 Summary of Test Result Conformance Test Specifications Report Clause Ref. Std. Clause Description Measured Limit Result 1.1.2 15.203 Antenna Requirement Antenna connector mechanism complied FCC 15.203 Complied 3.1 15.207 AC Power-line Conducted Emissions [dBuV]: 0.1876100MHz 34.62 (Margin 19.52dB) - AV 51.85 (Margin 12.29dB) - QP FCC 15.207 Complied 3.2 15.247(a) 6dB Bandwidth 6dB Bandwidth Unit [MHz]: 16.62 •500kHz Complied 3.3 15.247(b) RF Output Power (Maximum Peak Conducted Output Power) Power [dBm]: 24.81 Power [dBm]: 30 Complied 3.4 15.247(d) Power Spectral Density PSD [dBm/3kHz]: -8.86 PSD [dBm/3kHz]: 8 Complied 3.5 15.247(c) Transmitter Radiated Bandedge Emissions Non-Restricted Bands: 2527.90MHz: 35.21dB Restricted Bands [dBuV/m at 3m]: 2390.00MHz 71.58 (Margin 2.42dB) - PK 50.95 (Margin 3.05dB) - AV Non-Restricted Bands: > 20 dBc Restricted Bands: FCC 15.209 Complied 3.6 15.247(c) Transmitter Radiated Unwanted Emissions Restricted Bands [dBuV/m at 3m]: 86.260MHz 36.77 (Margin 3.23dB) - PK Non-Restricted Bands: > 20 dBc Restricted Bands: FCC 15.209 Complied FCC Test Report Report No. : FR2D1005 SPORTON INTERNATIONAL INC. Page No. : 4 of 47 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 Revision History Report No. Version Description Issued Date FR2D1005 Rev. 01 Initial issue of report Feb. 04, 2013 FR2D1005 Rev. 02 Revised FCC ID No. Feb. 06, 2013 2500-2690 FCC Test Report Report No. : FR2D1005 SPORTON INTERNATIONAL INC. Page No. : 5 of 47 TEL : 886-3…

Text truncated - open the document above for the full version.
