E8HDCD220C120WIRELESS CAMCORDER

Wireless Camcorder User Manual English | Battery/SD Card CoverTripod Socket Names of Parts | 1 Getting Started IndicatorLight External Lens/ Filter Mount Microphone Wide/Tele LeverPhoto Button Lens Pause Button LCD Touch Panel Power Button Speaker Record Button Indicator Mini USB Port HDMI Port Wireless On/Off Button ||| 1 Getting Started Charging the Unit • Before initial use, fully charge the camera via power adapter or USB to computer system. • During charging, the indicator flashes. When the camera is fully charged, the indicator turns off. Shoot Video Press Record button to shoot videos and press it again to stop. Take Photo Press Pho to button halfway down to focus, and then press it all the way down to take photos. Before using wireless modes, install below applications: • Mobile app: Download [Unieye Cam] from Google Play or Apple Store. • PC software: Install [PC APP] from camera (Windows)(page 6). Modes Navigation Tap the LCD touch panel to display the main menu. [Direct Mode] Connecting camera to mobile or PC for remote controlling, live viewing, album managing, and camera setup. [Cloud Mode] Connecting camera to cloud server via access point (AP) or mobile hotspot for internet videos and live monitoring. [Playback] To view or delete the videos or photos. [Setup] To setup camera (refer to page 7). English | 2 English | Mobile / PC Direct Mode (Local) For initial use, install [Unieye Cam] app on mobile. Each camera has a unique Camera ID ( C2-xxxxxxxx). Password is not required for the initial use, however, it is advised to go to [Setup] in [Unieye Cam] to setup password after the connection is established. Connect to Camera For iOS user: • Set camera to Direct Mode . • On mobile, go to [Settings] [Wi-Fi]Select camera. 3G connection will switch to WiFi within 1 min. • Run [Unieye Cam]. • Press camera bar to start. For Android user: • Set camera to Direct Mode and wait until the is lit. • Activate WiFi on mobile. • Run [Unieye Cam]. • Press camera bar to start. | 3 Zoom In Zoom Out Take Photo Shoot Video Two Way Voice • Tap to talk to the camera from mobile; tap again to allow the camera to talk back to mobile. Invert Image Android: iOS: Note:1. Move the camera further away from mobile when echo occurs. 2. Mobiles with poor CPU performance may affect audio during broadcasting. | 3 Cloud Mode (Internet) AP Cloud Server Cloud AP AP Mobile Hotspot Mobile / PC USTREAM 3G/4G Before using Cloud Mode, setting up cloud AP and cloud server on camera are required. Step 1: Setup Cloud AP in Direct Mode On mobile, go to app [Setup] [Cloud Settings] [Cloud AP]. Select a WiFi network from [AP List]; enter network password when prompted. If no preferred AP is found, press [Other...] from [AP List] Enter network name and password. Note: Mobile hotspot can be set as Cloud AP. Step 2: Setup Cloud Server in Direct Mode • New user, press then enter email/username/password/confirm for auto-registration. Returning user, enter username/password only. • Press [Save to Camera]. A live broadcasting social media. USTREAM Recommended Cloud Server for Access: English | 4 English | Step 3: Connect Camera to Cloud Server Options to connect to cloud server: 1. On mobile, press [Camera to Cloud] in [Setup] page. 2. On camera, set to Cloud Mode . If connection fails, one of the following situations will be shown. Step 4: View Live Video on Cloud Server Options to view live videos: 1. Use mobile app: USTREAM is available in Google Play or Apple Store. 2. Visit website: http://www.ustream.tv Then search for username and select "username's show" to watch live video through camera. Note: 1. Cloud service may change depending on their policy. 2. In some areas, mobile may not activate hotspot where there is no 3G/4G. 3. Experiencing delays while viewing live video may be due to high internet traffic. SituationCause/Solution Cannot connect to cloud AP or invalid network password. Camera not inside WiFi area or weak signal. Check AP settings or move camera closer to cloud AP. No internet or the cloud server is not accessible. Cannot log in cloud server via internet. Cloud service may be blocked by firewall. Cloud server username or password incorrect. Refer toin [Setup] for instructions. Username already taken. Create new account in [Unieye Cam]. | 5 Cloud Mode (Internet) | PC Applications To use [Unieye Cam] features on PC, install [PC APP] first. The [PC APP] has similar features and interface to [Unieye Cam] for easy user experience. Install [PC APP] from Camera • Connect the camera to PC via a USB cable. • [PC APP] AutoRun/AutoPlay activates. • If AutoRun/AutoPlay is not starting: Go to [My computer] and search [PC APP] for installation. • Once installed, unplug the camera from PC then run [PC APP]. [PC APP] Features • Press [View HD] or double-click the viewing window to maximize it into full screen. Double-click again to return to the [PC APP] interface. • To save videos or photos to PC: Go to [Album] Select videos or photos Press [Save to PC]. Cloud Mode (Internet) English | 6 English Setup List in Camera Resolution FHD 1920x1080p (30fps) HD60 1280x720p (60fps) HD30 1280x720p (30fps) LightTurn on/off the LED light. Night ModeSet for night scenes. Slow MotionRecord video in slow motion; resolution 720p. Time Lapse Record one frame per second; 30 frames per second in playback. Self-TimerActivate 10-second self-timer. SoundOperation sound on/off. TV Format NTSC (60Hz) For NTSC TV standard. PAL (50Hz) For PAL TV standard. Format SD CardFormat memory card. Default SettingsRestore camera to factory default. Language English, Spanish, French, German, Portuguese, Italian, Simplified Chinese, Traditional Chinese, Japanese, Korean. | 7 | Setup List in CameraTroubleshooting SituationCause/Solution Camera cannot turn onBattery power is low. Recharge the battery. Camera cannot turn on after plugging power adapter Use the power adapter provided. Connect it to power outlet correctly. Camera is frozen Remove the battery / unplug…

Text truncated - open the document above for the full version.

Chicony Electronics Co., Ltd. NO. 25, Wu-Gong 6th Rd., Wugu Dist., New Taipei City 248, Taiwan, R.O.C Tel: 886-2-22988120 Fax: 886-2-22988442 Federal Communications Commission Authorization and Evaluation Division Date: Sep. 6,2012 SUBJECT: Authorized signatories To whom it may concern, We, the undersigned, “Chicony Electronics Co., Ltd.” hereby authorize the following, to act on our behalf, as our agent, in all matters relating to all processes required according to FCC Part 15C for Chicony products (Grantee Code: E8H). Mr. Wei-Ming Chiu If you have any questions regarding the authorization, please don’t hesitate to contact me. Sincerely yours, ------------------------------------------ T.S. Chen / Manager Chicony Electronics Co., Ltd. Tel: +886 2-2298-8120 Fax: +886 2-2298-9745 E-mail : [email protected]

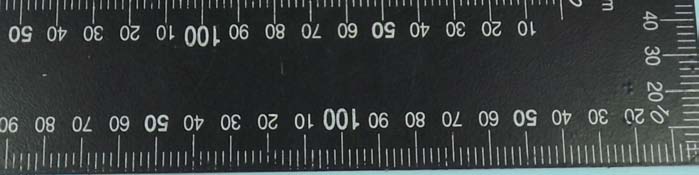

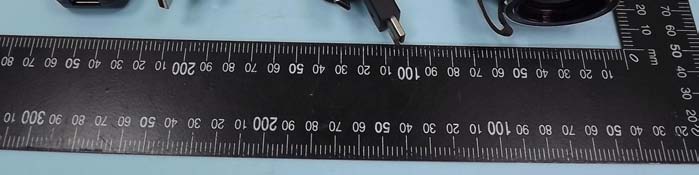

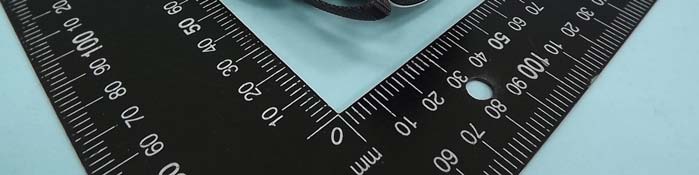

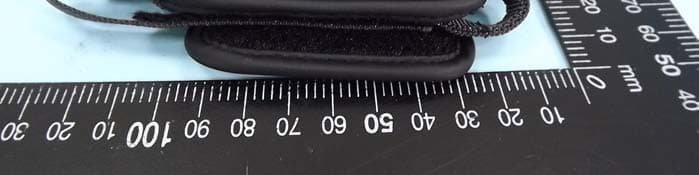

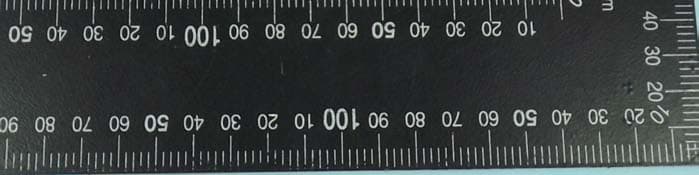

FCC Test Report Report No. : EP320716 SPORTON International Inc. PAGE NUMBER : B1 OF B30 TEL : 886-3-327-3456 ISSUED DATE : Jul. 17, 2013 FAX : 886-3-327-0973 APPENDIX B. Photographs of EUT FCC Test Report Report No. : EP320716 SPORTON International Inc. PAGE NUMBER : B2 OF B30 TEL : 886-3-327-3456 ISSUED DATE : Jul. 17, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP320716 SPORTON International Inc. PAGE NUMBER : B3 OF B30 TEL : 886-3-327-3456 ISSUED DATE : Jul. 17, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP320716 SPORTON International Inc. PAGE NUMBER : B4 OF B30 TEL : 886-3-327-3456 ISSUED DATE : Jul. 17, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP320716 SPORTON International Inc. PAGE NUMBER : B5 OF B30 TEL : 886-3-327-3456 ISSUED DATE : Jul. 17, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP320716 SPORTON International Inc. PAGE NUMBER : B6 OF B30 TEL : 886-3-327-3456 ISSUED DATE : Jul. 17, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP320716 SPORTON International Inc. PAGE NUMBER : B7 OF B30 TEL : 886-3-327-3456 ISSUED DATE : Jul. 17, 2013 FAX : 886-3-327-0973

FCC Test Report Report No. : EP320716 SPORTON International Inc. PAGE NUMBER : B8 OF B30 TEL : 886-3-327-3456 ISSUED DATE : Jul. 17, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP320716 SPORTON International Inc. PAGE NUMBER : B9 OF B30 TEL : 886-3-327-3456 ISSUED DATE : Jul. 17, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP320716 SPORTON International Inc. PAGE NUMBER : B10 OF B30 TEL : 886-3-327-3456 ISSUED DATE : Jul. 17, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP320716 SPORTON International Inc. PAGE NUMBER : B11 OF B30 TEL : 886-3-327-3456 ISSUED DATE : Jul. 17, 2013 FAX : 886-3-327-0973 WLAN Antenna FCC Test Report Report No. : EP320716 SPORTON International Inc. PAGE NUMBER : B12 OF B30 TEL : 886-3-327-3456 ISSUED DATE : Jul. 17, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP320716 SPORTON International Inc. PAGE NUMBER : B13 OF B30 TEL : 886-3-327-3456 ISSUED DATE : Jul. 17, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP320716 SPORTON International Inc. PAGE NUMBER : B14 OF B30 TEL : 886-3-327-3456 ISSUED DATE : Jul. 17, 2013 FAX : 886-3-327-0973 WLAN Module FCC Test Report Report No. : EP320716 SPORTON International Inc. PAGE NUMBER : B15 OF B30 TEL : 886-3-327-3456 ISSUED DATE : Jul. 17, 2013 FAX : 886-3-327-0973 WLAN Module FCC Test Report Report No. : EP320716 SPORTON International Inc. PAGE NUMBER : B16 OF B30 TEL : 886-3-327-3456 ISSUED DATE : Jul. 17, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP320716 SPORTON International Inc. PAGE NUMBER : B17 OF B30 TEL : 886-3-327-3456 ISSUED DATE : Jul. 17, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP320716 SPORTON International Inc. PAGE NUMBER : B18 OF B30 TEL : 886-3-327-3456 ISSUED DATE : Jul. 17, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP320716 SPORTON International Inc. PAGE NUMBER : B19 OF B30 TEL : 886-3-327-3456 ISSUED DATE : Jul. 17, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP320716 SPORTON International Inc. PAGE NUMBER : B20 OF B30 TEL : 886-3-327-3456 ISSUED DATE : Jul. 17, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP320716 SPORTON International Inc. PAGE NUMBER : B21 OF B30 TEL : 886-3-327-3456 ISSUED DATE : Jul. 17, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP320716 SPORTON International Inc. PAGE NUMBER : B22 OF B30 TEL : 886-3-327-3456 ISSUED DATE : Jul. 17, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP320716 SPORTON International Inc. PAGE NUMBER : B23 OF B30 TEL : 886-3-327-3456 ISSUED DATE : Jul. 17, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP320716 SPORTON International Inc. PAGE NUMBER : B24 OF B30 TEL : 886-3-327-3456 ISSUED DATE : Jul. 17, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP320716 SPORTON International Inc. PAGE NUMBER : B25 OF B30 TEL : 886-3-327-3456 ISSUED DATE : Jul. 17, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP320716 SPORTON International Inc. PAGE NUMBER : B26 OF B30 TEL : 886-3-327-3456 ISSUED DATE : Jul. 17, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP320716 SPORTON International Inc. PAGE NUMBER : B27 OF B30 TEL : 886-3-327-3456 ISSUED DATE : Jul. 17, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP320716 SPORTON International Inc. PAGE NUMBER : B28 OF B30 TEL : 886-3-327-3456 ISSUED DATE : Jul. 17, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP320716 SPORTON International Inc. PAGE NUMBER : B29 OF B30 TEL : 886-3-327-3456 ISSUED DATE : Jul. 17, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP320716 SPORTON International Inc. PAGE NUMBER : B30 OF B30 TEL : 886-3-327-3456 ISSUED DATE : Jul. 17, 2013 FAX : 886-3-327-0973

SPORTON INTERNATIONAL INC. Page Number : 1 of 31 TEL : 886-3-327-3456 Report Issued Date : Jul. 18, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : E8HDCD220C120 FCC SAR Test Report Report No. : FA320716 FCC SAR Test Report APPLICANT : Chicony Electronics Co., Ltd EQUIPMENT : Wireless Camcorder BRAND NAME : C120 MODEL NAME : DC-D220 FCC ID : E8HDCD220C120 STANDARD : FCC 47 CFR Part 2 (2.1093) ANSI/IEEE C95.1-1992 IEEE 1528-2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) The product was completely tested on Jun. 14, 2013. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. Approved by: Jones Tsai / Manager Reviewed by: Eric Huang / Deputy Manager SPORTON INTERNATIONAL INC. Page Number : 2 of 31 TEL : 886-3-327-3456 Report Issued Date : Jul. 18, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : E8HDCD220C120 FCC SAR Test Report Report No. : FA320716 Table of Contents 1. Statement of Compliance ............................................................................................................................................. 4 2. Administration Data ...................................................................................................................................................... 5 2.1 Testing Laboratory .................................................................................................................................................. 5 2.2 Applicant ................................................................................................................................................................ 5 2.3 Manufacturer .......................................................................................................................................................... 5 2.4 Application Details .................................................................................................................................................. 5 3. General Information ...................................................................................................................................................... 6 3.1 Description of Equipment Under Test (EUT) .......................................................................................................... 6 3.2 Maximum RF output power among production units .............................................................................................. 6 3.3 Applied Standard .................................................................................................................................................... 7 3.4 Device Category and SAR Limits ........................................................................................................................... 7 3.5 Test Conditions ....................................................................................................................................................... 7 4. Specific Absorption Rate (SAR) ................................................................................................................................... 8 4.1 Introduction ............................................................................................................................................................ 8 4.2 SAR Definition ........................................................................................................................................................ 8 5. SAR Measurement System ........................................................................................................................................... 9 5.1 E-Field Probe ........................................................................................................................................................10 5.2 Data Acquisition Electronics (DAE) .......................................................................................................................10 5.3 Robot .................................................................................................................................................................... 11 5.4 Measurement Server ............................................................................................................................................. 11 5.5 Phantom ................................................................................................................................................................12 5.6 Device Holder........................................................................................................................................................13 5.7 Data Storage and Evaluation ................................................................................................................................14 5.8 Test Equipment List ...............................................................................................................................................16 6. Tissue Simulating Liquids ...........................................................................................................................................17 7. System Verification Procedures .................................................................................................................................19 7.1 Purpose of System Performance check ................................................................................................................19 7.2 System Setup .................................................…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013/6/14 System Check_Body_2450MHz_130614 DUT: D2450V2-SN:736 Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: MSL_2450_130614 Medium parameters used: f = 2450 MHz; σ = 2.015 mho/m; ε r = 51.065; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(6.57, 6.57, 6.57); Calibrated: 2012/9/28; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1279; Calibrated: 2013/1/28 - Phantom: ELI v4.0; Type: QDOVA001BB; Serial: 1173 - Measurement SW: DASY52, Version 52.8 (4); SEMCAD X Version 14.6.8 (7028) Configuration/Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 21.6 W/kg Configuration/Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 98.940 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 28.2 W/kg SAR(1 g) = 12.9 W/kg; SAR(10 g) = 5.97 W/kg Maximum value of SAR (measured) = 19.9 W/kg 0 dB = 19.9 W/kg = 12.99 dBW/kg

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013/6/14 #01_WLAN2.4GHz_802.11b 1Mbps_Front_0cm_Ch11;Display screen close DUT: 320716 Communication System: 802.11b; Frequency: 2462 MHz;Duty Cycle: 1:1 Medium: MSL_2450_130614 Medium parameters used: f = 2462 MHz; σ = 2.032 mho/m; ε r = 51.048; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(6.57, 6.57, 6.57); Calibrated: 2012/9/28; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1279; Calibrated: 2013/1/28 - Phantom: ELI v4.0; Type: QDOVA001BB; Serial: 1173 - Measurement SW: DASY52, Version 52.8 (4); SEMCAD X Version 14.6.8 (7028) Configuration/Ch11/Area Scan (71x131x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 0.505 W/kg Configuration/Ch11/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5m m Reference Value = 7.896 V/m; Power Drift = -0.15 dB Peak SAR (extrapolated) = 0.679 W/kg SAR(1 g) = 0.326 W/kg; SAR(10 g) = 0.153 W/kg Maximum value of SAR (measured) = 0.471 W/kg 0 dB = 0.471 W/kg = -3.27 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013/6/14 #02_WLAN2.4GHz_802.11b 1Mbps_Back_0cm_Ch11;Display screen close DUT: 320716 Communication System: 802.11b; Frequency: 2462 MHz;Duty Cycle: 1:1 Medium: MSL_2450_130614 Medium parameters used: f = 2462 MHz; σ = 2.032 mho/m; ε r = 51.048; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(6.57, 6.57, 6.57); Calibrated: 2012/9/28; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1279; Calibrated: 2013/1/28 - Phantom: ELI v4.0; Type: QDOVA001BB; Serial: 1173 - Measurement SW: DASY52, Version 52.8 (4); SEMCAD X Version 14.6.8 (7028) Configuration/Ch11/Area Scan (71x131x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 0.178 W/kg Configuration/Ch11/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5m m Reference Value = 3.559 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 0.160 W/kg SAR(1 g) = 0.064 W/kg; SAR(10 g) = 0.031 W/kg Maximum value of SAR (measured) = 0.0947 W/kg 0 dB = 0.0947 W/kg = -10.24 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013/6/14 #03_WLAN2.4GHz_802.11b 1Mbps_Left Side_0cm_Ch11;Display screen close DUT: 320716 Communication System: 802.11b; Frequency: 2462 MHz;Duty Cycle: 1:1 Medium: MSL_2450_130614 Medium parameters used: f = 2462 MHz; σ = 2.032 mho/m; ε r = 51.048; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(6.57, 6.57, 6.57); Calibrated: 2012/9/28; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1279; Calibrated: 2013/1/28 - Phantom: ELI v4.0; Type: QDOVA001BB; Serial: 1173 - Measurement SW: DASY52, Version 52.8 (4); SEMCAD X Version 14.6.8 (7028) Configuration/Ch11/Area Scan (71x131x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 0.187 W/kg Configuration/Ch11/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5m m Reference Value = 5.411 V/m; Power Drift = -0.15 dB Peak SAR (extrapolated) = 0.423 W/kg SAR(1 g) = 0.075 W/kg; SAR(10 g) = 0.013 W/kg Maximum value of SAR (measured) = 0.423 W/kg 0 dB = 0.423 W/kg = -3.74 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013/6/14 #04_WLAN2.4GHz_802.11b 1Mbps_Right Side_0cm_Ch11;Display screen close DUT: 320716 Communication System: 802.11b; Frequency: 2462 MHz;Duty Cycle: 1:1 Medium: MSL_2450_130614 Medium parameters used: f = 2462 MHz; σ = 2.032 mho/m; ε r = 51.048; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(6.57, 6.57, 6.57); Calibrated: 2012/9/28; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1279; Calibrated: 2013/1/28 - Phantom: ELI v4.0; Type: QDOVA001BB; Serial: 1173 - Measurement SW: DASY52, Version 52.8 (4); SEMCAD X Version 14.6.8 (7028) Configuration/Ch11/Area Scan (71x131x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 0.906 W/kg Configuration/Ch11/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5m m Reference Value = 16.109 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 1.60 W/kg SAR(1 g) = 0.381 W/kg; SAR(10 g) = 0.176 W/kg Maximum value of SAR (measured) = 0.567 W/kg 0 dB = 0.567 W/kg = -2.46 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013/6/14 #05_WLAN2.4GHz_802.11b 1Mbps_Top Side_0cm_Ch11;Display screen close DUT: 320716 Communication System: 802.11b; Frequency: 2462 MHz;Duty Cycle: 1:1 Medium: MSL_2450_130614 Medium parameters used: f = 2462 MHz; σ = 2.032 mho/m; ε r = 51.048; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(6.57, 6.57, 6.57); Calibrated: 2012/9/28; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1279; Calibrated: 2013/1/28 - Phantom: ELI v4.0; Type: QDOVA001BB; Serial: 1173 - Measurement SW: DASY52, Version 52.8 (4); SEMCAD X Version 14.6.8 (7028) Configuration/Ch11/Area Scan (71x71x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 0.660 W/kg Configuration/Ch11/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5m m Reference Value = 11.026 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 0.339 W/kg SAR(1 g) = 0.201 W/kg; SAR(10 g) = 0.105 W/kg Maximum value of SAR (measured) = 0.270 W/kg 0 dB = 0.270 W/kg = -5.69 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013/6/14 #06_WLAN2.4GHz_802.11b 1Mbps_Bottom Side_0cm_Ch11;Display screen close DUT: 320716 Communication System: 802.11b; Frequency: 2462 MHz;Duty Cycle: 1:1 Medium: MSL_2450_130614 Medium parameters used: f = 2462 MHz; σ = 2.032 mho/m; ε r = 51.048; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(6.57, 6.57, 6.57); Calibrated: 2012/9/28; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1279; Calibrated: 2…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 D2450V2, serial no. 736 Extended Dipole Calibrations Referring to KDB 865664 D01v01r01, if dipoles are verified in return loss (<-20dB, within 20% of prior calibration), and in impedance (within 5 ohm of prior calibration), the annual calibration is not necessary and the calibration interval can be extended. <Justification Procedure of Extended Dipole Calibration> 1. Setup a Network Analyzer (Agilent N5230A) and set the start frequency and stop frequency to Network Analyzer according to the dipole frequency, at least +/- 200MHz around the calibration point. 2. Using calibration kit to perform Network Analyzer Open, Short and Load calibration. 3. Connect the dipole with the calibrated Network Analyzer. 4. Place the dipole underneath the phantom which is filled with head-simulating or body-simulating liquid. 5. Set the Network Analyzer frequency by the dipole calibration frequency. Monitor the return-loss and impedance results with Log Magnitude format and Smith Chart, respectively. 6. Record the result and compare with the prior calibration. Please check the Appendix C for detail records. <Justification of the extended calibration> D2450V2 – serial no. 736 2450 Head 2450 Body Date of Measurement Return-Loss (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedance (ohm) Delta (ohm) Return-Loss (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedance (ohm) Delta (ohm) 7.25.2011 -27.042 54.398 1.4805 -30.696 50.812 2.8262 7.25.2012 -27.950 -3.365 52.541 1.857 0.77343 0.707 -31.781 -3.535 50.572 0.24 1.5953 1.2309 The return loss is < -20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 <Dipole Verification Data> - D2450 V2, serial no. 736 (Date of Measurement : 7.25.2012) 2450 MHz - Head SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 2450 MHz – Body

FCC Test Report Report No. : FR320716 SPORTON INTERNATIONAL INC. Page No. : 1 of 46 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 FCC Test Report Equipment : Wireless Camcorder Brand Name : C120 Model No. : DC-D220 FCC ID : E8HDCD220C120 Standard : 47 CFR FCC Part 15.247 Operating Band : 2400 MHz – 2483.5 MHz Equipment Class : DTS Applicant Manufacturer : Chicony Electronics Co., Ltd No.25, Wugong 6th Rd., Wugu Dist., New Taipei City 248, Taiwan (R.O.C.) The product sample received on Apr. 26, 2013 and completely tested on Jun. 04, 2013. We, SPORTON, would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI C63.10-2009 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Wayne Hsu / Assistant Manager FCC Test Report Report No. : FR320716 SPORTON INTERNATIONAL INC. Page No. : 2 of 46 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Table of Contents 1 GENERAL DESCRIPTION ............................................................................................................... 5 1.1 Information ........................................................................................................................................ 5 1.2 Accessories and Support Equipment ................................................................................................. 7 1.3 Testing Applied Standards ................................................................................................................ 7 1.4 Testing Location Information ............................................................................................................. 7 1.5 Measurement Uncertainty ................................................................................................................. 8 2 TEST CONFIGURATION OF EUT .................................................................................................... 9 2.1 The Worst Case Modulation Configuration ........................................................................................ 9 2.2 Test Channel Frequencies Configuration ........................................................................................... 9 2.3 The Worst Case Power Setting Parameter ........................................................................................ 9 2.4 The Worst Case Measurement Configuration .................................................................................. 10 2.5 Test Setup Diagram ........................................................................................................................ 11 3 TRANSMITTER TEST RESULT ..................................................................................................... 13 3.1 AC Power-line Conducted Emissions .............................................................................................. 13 3.2 6dB Bandwidth .........................................................…

Text truncated - open the document above for the full version.
