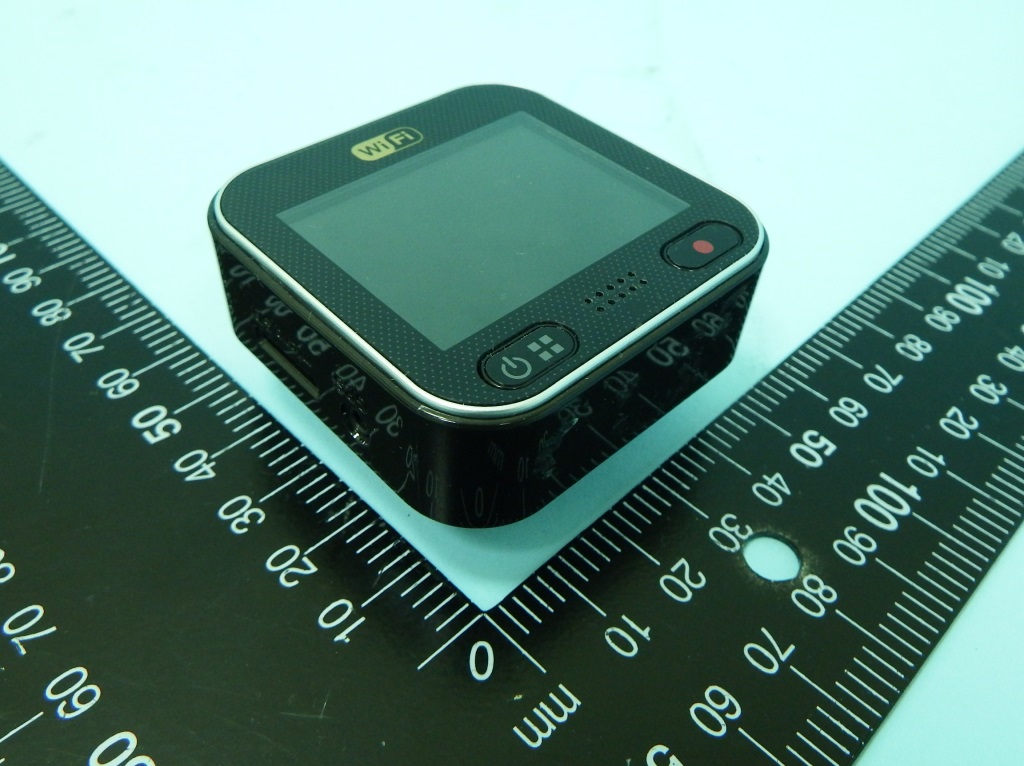

WiFi Car DVR User Manual | 1 English Names of Parts Speaker LCD Panel Status Indicator Tripod Mount Mic microSD Card Slot Lens GPS Receiver Slot GPS Receiver (Optional) Power/Menu/Emergency Button Record Button Micro USB Port Micro HDMI Port Shooting a Video 1. Power on: Press to turn on camcorder. 2. Record: Press to start recording. Press again to stop. 3. Playback: Press to enter menu settings. Select [Playback]. Press [Play ] to play the video and press [Stop] to stop. Inserting a microSD Card Before initial use, insert a microSD card. (suggested at least 4GB, up to 64GB) Getting Started microSD card Charging the Unit Fully charge camcorder for initial use by: • Car charger • PC USB port • USB adapter (not included) During charging, screen shows [] or status indicator flashes in orange. When camcorder is fully charged, the indicator turns off. 4. Return to preview: Switch to [ ] to return. 5. Power off: Press and hold for 2 seconds. | 2 English | 3 English Camcorder Operation In preview, press to enter menu settings. Menu SettingsDescriptions Play recorded images Switch between Portable mode and Car mode Enable/Disable WiFi for wireless connection Enable/Disable internet cloud connection Enable/Disable voice recording (car mode only) Auto REC Enable/Disable auto recording when car engine starts (car mode only) 60 SEC OFF Screen turns off after 60 seconds of non- operation (car mode only) Reset to factory default settings Screen Auto Off Factory Settings Voice Record WiFi Auto Record Car Mode Playback Portable Mode Cloud Menu Settings Camcorder has eight menu settings. Advanced settings can be set up via mobile APP. Button functions indicated above .Use to navigate menu settings. Note: After 30 seconds of non-operation in menu settings, screen returns to preview. Transfer Files to PC: 1. Connect camcorder to PC via Micro USB cable. 2. Find video at "My computer\Removable Disk\". 3. Copy, move, delete, and playback videos on PC. View Camcorder Screen on TV: 1. Connect camcorder to TV via Micro HDMI cable (not included). 2. Turn on camcorder. 3. Camcorder screen displays on TV simultaneously. Camcorder has two recording modes for different applications: Portable Mode: Shoot normal videos. Car Mode: Shoot loop and emergency videos. Record Modes ModePortable Mode Car Mode Record typeNormal Loop Emergency Record trigger Record duration Display info . • Car impact • Press during loop recording Press in preview Three min. sectionsUnlimited One min. section (30 seconds before and after the event) Note: During loop recording, oldest files are overwritten if microSD card is full. SD card remaining timeCurrent date & time 2014/01/01 21:06:36 2013-10-07 21:06:36 Comparison between modes: 00:06:36 | 4 English | 5 English MobileCamcorder Local LocalInternet Mobile connects to camcorder directly via WiFi for remote control, live view, album management and camcorder setup. Mobile connects to cloud server to view live videos uploaded from internet remote camcorder. Wireless & APP Operation Before inital using wirless connections, download and install APP [Unieye Drive] from Google Play Store and Apple Store. [Unieye Drive] has two functions: (1) Local - Direct control (2) Internet - Internet live view Unieye Drive 【 Local 】 (1) LocalInternet 【 Internet 】 (2) LocalInternet AP Unieye Server AP 3G/4G Mobile Hotspot 3G/4G Mobile Wireless Router Wireless Router Camcorder AP Mobile Internet Mobile Connects to Camcorder 1. For Android: Turn on [Wi-Fi]. For iOS: Go to [Settings] [Wi-Fi]. Turn on [Wi-Fi] and select the camcorder name. 2. Run [Unieye Drive]. 3. Tap 【 Local 】 and select the camcorder to enter 【 Local 】 View Page. Tap [ ] to scan again if camcorder is not found. Note: • Mobile cannot connect to camcorder while camcorder is recording. • For first use, password is not required. User can set camcorder password in Setup Page. 【 Local 】 Function iOS Settings LocalInternet Before using mobile APP's 【 Local 】 function, ensure camcorder WiFi is on and camcorder Cloud setting is off. Once WiFi is ready, preview shows camcorder name (R2-xxxxxxxx) for few seconds. Local View PageLocal Main Page | 6 English | 7 English ItemsDescriptions Shoot videos and files are saved into camcorder microSD card Shoot videos or Take photos and files are saved into mobile "Album\Unieye Drive\" For multiple camcorders user : • Enable Quad-View for multiple live view on mobile • In Quad-View, select a window for single view. Upside down image Talk to camcorder from mobile GroupsDescriptions Camcorder Settings Edit name, password, format SD card, etc. Internet Settings Edit Email and AP and save in camcorder. (For internet cloud server connection) Car DVR Settings Set motion detector, impact sensor, etc. View Page Album Page (for camcorder) Setup Page (for camcorder) 4. 【 Local 】 function has three function pages: View, Album and Setup. FoldersDescriptions View or delete video files recorded in portable mode View or delete video files recorded in car mode Note: In Setup Page, tap [Save] to complete settings to camcorder. 1. Go to [Setup] [ Internet Settings ] Edit Email and AP 2. Tap [Save] to complete Email & AP settings. Camcorder Internet Setup Before using internet cloud service, Email and AP must be properly set up. Camcorder SD Card Setup Go to [Setup] [ Camcorder Settings ] Adjust slide bar and press [Format] button to complete SD card setup. When SD card is first-time use or reformatted in camcorder, user should allocate memory for Portable Mode and Car Mode. Note: AP(Access Point) can be • Wireless Router or • 3G/4G Mobile Wireless Router or • 3G/4G Mobile Hotspot AP AP AP Wireless Router AP AP AP 3G/4G Mobile Wireless Router AP AP AP 3G/4G Mobile Hotspot | 8 English | English Camcorder Connects to Cloud Server Enable [Cloud ] in camcorder to upload video streaming to cloud server. Connecting status will be shown on screen. 【 Internet 】 Function LocalInternet StatusDescriptions Connection successful. Preview shows [ ] …

Text truncated - open the document above for the full version.

Chicony Electronics Co., Ltd. NO. 25, Wu-Gong 6th Rd., Wugu Dist., New Taipei City 248, Taiwan, R.O.C Tel: 886-2-22988120 Fax: 886-2-22988442 Federal Communications Commission Authorization and Evaluation Division Date: Sep. 6,2012 SUBJECT: Authorized signatories To whom it may concern, We, the undersigned, “Chicony Electronics Co., Ltd.” hereby authorize the following, to act on our behalf, as our agent, in all matters relating to all processes required according to FCC Part 15C for Chicony products (Grantee Code: E8H). Mr. Wei-Ming Chiu If you have any questions regarding the authorization, please don’t hesitate to contact me. Sincerely yours, ------------------------------------------ T.S. Chen / Manager Chicony Electronics Co., Ltd. Tel: +886 2-2298-8120 Fax: +886 2-2298-9745 E-mail : [email protected]

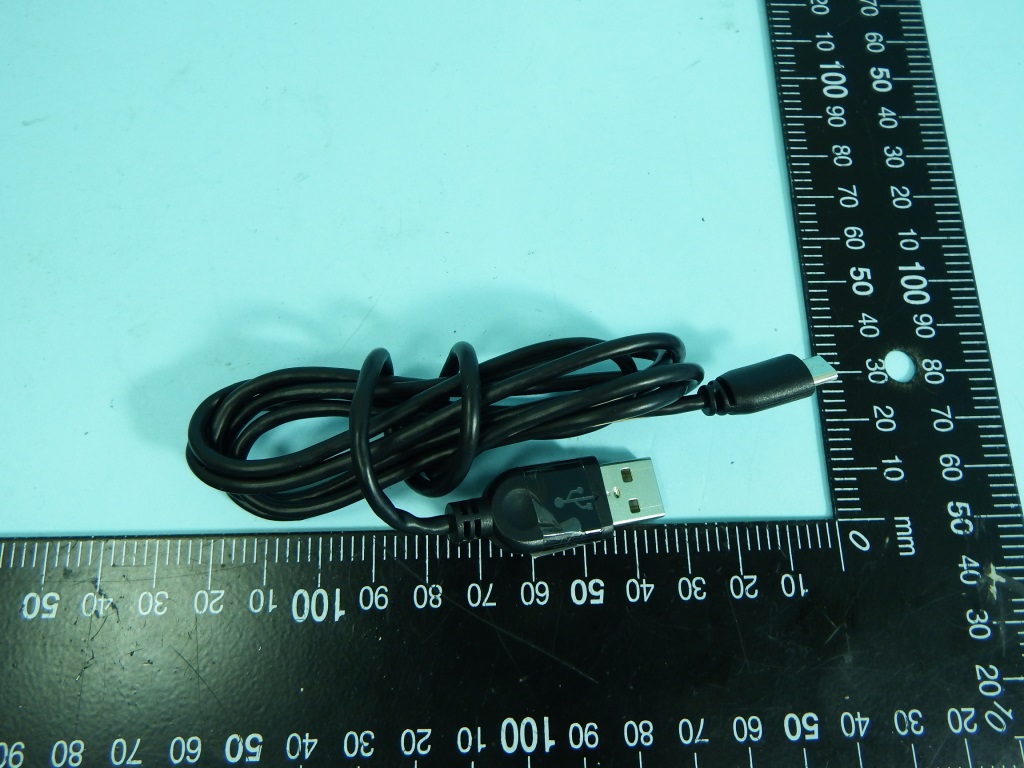

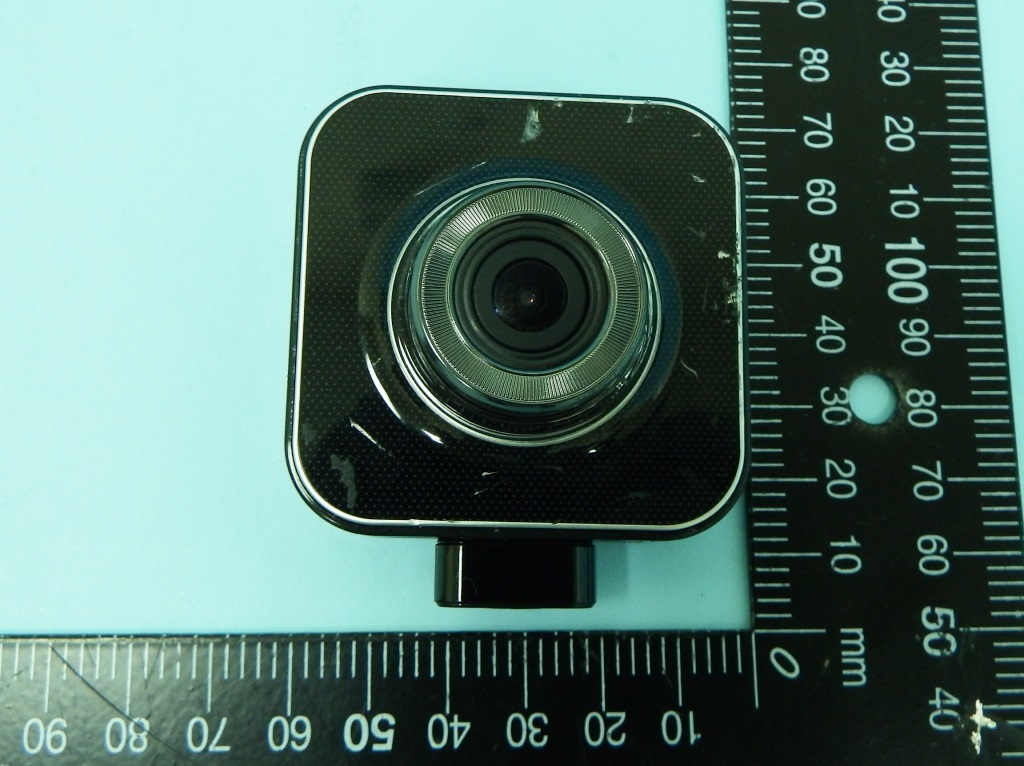

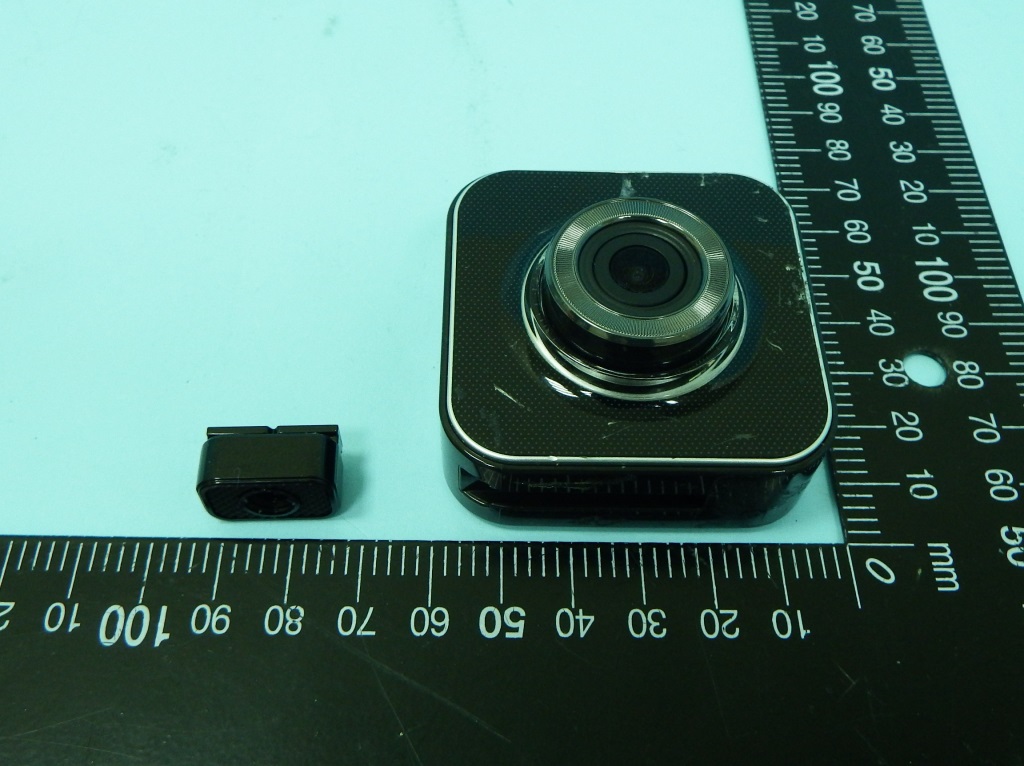

FCC Test Report Report No. : EP3N2602 SPORTON International Inc. PAGE NUMBER : B1 OF B16 TEL : 886-3-327-3456 ISSUED DATE : Mar. 06, 2014 FAX : 886-3-327-0973 APPENDIX B. Photographs of EUT FCC Test Report Report No. : EP3N2602 SPORTON International Inc. PAGE NUMBER : B2 OF B16 TEL : 886-3-327-3456 ISSUED DATE : Mar. 06, 2014 FAX : 886-3-327-0973 FCC Test Report Report No. : EP3N2602 SPORTON International Inc. PAGE NUMBER : B3 OF B16 TEL : 886-3-327-3456 ISSUED DATE : Mar. 06, 2014 FAX : 886-3-327-0973 FCC Test Report Report No. : EP3N2602 SPORTON International Inc. PAGE NUMBER : B4 OF B16 TEL : 886-3-327-3456 ISSUED DATE : Mar. 06, 2014 FAX : 886-3-327-0973 Charger cable 1 FCC Test Report Report No. : EP3N2602 SPORTON International Inc. PAGE NUMBER : B5 OF B16 TEL : 886-3-327-3456 ISSUED DATE : Mar. 06, 2014 FAX : 886-3-327-0973 Charger cable 2 Charger cable 3 FCC Test Report Report No. : EP3N2602 SPORTON International Inc. PAGE NUMBER : B6 OF B16 TEL : 886-3-327-3456 ISSUED DATE : Mar. 06, 2014 FAX : 886-3-327-0973 Car Charger FCC Test Report Report No. : EP3N2602 SPORTON International Inc. PAGE NUMBER : B7 OF B16 TEL : 886-3-327-3456 ISSUED DATE : Mar. 06, 2014 FAX : 886-3-327-0973

FCC Test Report Report No. : EP3N2602 SPORTON International Inc. PAGE NUMBER : B8 OF B16 TEL : 886-3-327-3456 ISSUED DATE : Mar. 06, 2014 FAX : 886-3-327-0973 FCC Test Report Report No. : EP3N2602 SPORTON International Inc. PAGE NUMBER : B9 OF B16 TEL : 886-3-327-3456 ISSUED DATE : Mar. 06, 2014 FAX : 886-3-327-0973 FCC Test Report Report No. : EP3N2602 SPORTON International Inc. PAGE NUMBER : B10 OF B16 TEL : 886-3-327-3456 ISSUED DATE : Mar. 06, 2014 FAX : 886-3-327-0973 Antenna Antenna FCC Test Report Report No. : EP3N2602 SPORTON International Inc. PAGE NUMBER : B11 OF B16 TEL : 886-3-327-3456 ISSUED DATE : Mar. 06, 2014 FAX : 886-3-327-0973 FCC Test Report Report No. : EP3N2602 SPORTON International Inc. PAGE NUMBER : B12 OF B16 TEL : 886-3-327-3456 ISSUED DATE : Mar. 06, 2014 FAX : 886-3-327-0973 FCC Test Report Report No. : EP3N2602 SPORTON International Inc. PAGE NUMBER : B13 OF B16 TEL : 886-3-327-3456 ISSUED DATE : Mar. 06, 2014 FAX : 886-3-327-0973 FCC Test Report Report No. : EP3N2602 SPORTON International Inc. PAGE NUMBER : B14 OF B16 TEL : 886-3-327-3456 ISSUED DATE : Mar. 06, 2014 FAX : 886-3-327-0973 FCC Test Report Report No. : EP3N2602 SPORTON International Inc. PAGE NUMBER : B15 OF B16 TEL : 886-3-327-3456 ISSUED DATE : Mar. 06, 2014 FAX : 886-3-327-0973 FCC Test Report Report No. : EP3N2602 SPORTON International Inc. PAGE NUMBER : B16 OF B16 TEL : 886-3-327-3456 ISSUED DATE : Mar. 06, 2014 FAX : 886-3-327-0973

SPORTON INTERNATIONAL INC. Page Number : 1 of 28 TEL : 886-3-327-3456 Report Issued Date : Mar. 05, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : E8HDCD248R40 FCC SAR Test Report Report No. : FA3N2602 FCC SAR Test Report APPLICANT : Chicony Electronics Co., Ltd. EQUIPMENT : Wireless Digital Camera BRAND NAME : Chicony MODEL NAME : DC-D248 FCC ID : E8HDCD248R40 STANDARD : FCC 47 CFR Part 2 (2.1093) ANSI/IEEE C95.1-1992 IEEE 1528-2003 The product was testing completed on Jan. 16, 2014. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. Approved by: Jones Tsai / Manager Reviewed by: Eric Huang / Deputy Manager SPORTON INTERNATIONAL INC. Page Number : 2 of 28 TEL : 886-3-327-3456 Report Issued Date : Mar. 05, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : E8HDCD248R40 FCC SAR Test Report Report No. : FA3N2602 Table of Contents 1. Statement of Compliance ............................................................................................................................................. 4 2. Administration Data ...................................................................................................................................................... 4 2.1 Testing Laboratory .................................................................................................................................................. 4 2.2 Applicant ................................................................................................................................................................ 4 2.3 Manufacturer .......................................................................................................................................................... 4 2.4 Application Details .................................................................................................................................................. 4 3. General Information ...................................................................................................................................................... 5 3.1 Description of Equipment Under Test (EUT) .......................................................................................................... 5 3.2 Maximum RF output power among production units .............................................................................................. 5 3.3 Applied Standard .................................................................................................................................................... 5 3.4 Device Category and SAR Limits ........................................................................................................................... 5 3.5 Test Conditions ....................................................................................................................................................... 5 4. Specific Absorption Rate (SAR) ................................................................................................................................... 6 4.1 Introduction ............................................................................................................................................................ 6 4.2 SAR Definition ........................................................................................................................................................ 6 5. SAR Measurement System ........................................................................................................................................... 7 5.1 E-Field Probe ......................................................................................................................................................... 8 5.2 Data Acquisition Electronics (DAE) ........................................................................................................................ 8 5.3 Robot ..................................................................................................................................................................... 9 5.4 Measurement Server .............................................................................................................................................. 9 5.5 Phantom ................................................................................................................................................................10 5.6 Device Holder........................................................................................................................................................ 11 5.7 Data Storage and Evaluation ................................................................................................................................12 5.8 Test Equipment List ...............................................................................................................................................14 6. Tissue Simulating Liquids ...........................................................................................................................................15 7. System Verification Procedures .................................................................................................................................17 7.1 Purpose of System Performance check ................................................................................................................17 7.2 System Setup .........................................................................................…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2014/1/16 System Check_Body_2450MHz_140116 DUT: D2450V2-SN:924 Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: MSL_2450_140116 Medium parameters used: f = 2450 MHz; σ = 1.965 S/m; ε r = 51.537; ρ = 1000 kg/m 3 23.422.4 DASY5 Configuration: - Probe: EX3DV4 - SN3954; ConvF(7.34, 7.34, 7.34); Calibrated: 2013/11/4; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1399; Calibrated: 2013/11/7 - Phantom: ELI v5.0 Left; Type: QDOVA002AA; Serial: TP:1131 - Measurement SW: DASY52, Version 52.8 (6); SEMCAD X Version 14.6.9 (7117) Configuration/Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 19.9 W/kg Configuration/Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 98.870 V/m; Power Drift = 0.06 dB Peak SAR (extrapolated) = 26.4 W/kg SAR(1 g) = 12.9 W/kg; SAR(10 g) = 6.06 W/kg Maximum value of SAR (measured) = 19.6 W/kg 0 dB = 19.6 W/kg = 12.92 dBW/kg

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2014/1/16 #01_WLAN2.4GHz_802.11b 1Mbps_Front_0cm_Ch11 Communication System: 802.11b; Frequency: 2462 MHz;Duty Cycle: 1:1 Medium: MSL_2450_140116 Medium parameters used: f = 2462 MHz; σ = 1.981 S/m; ε r = 51.494; ρ = 1000 kg/m 3 23.422.4 DASY5 Configuration: - Probe: EX3DV4 - SN3954; ConvF(7.34, 7.34, 7.34); Calibrated: 2013/11/4; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1399; Calibrated: 2013/11/7 - Phantom: ELI v5.0 Left; Type: QDOVA002AA; Serial: TP:1131 - Measurement SW: DASY52, Version 52.8 (6); SEMCAD X Version 14.6.9 (7117) Configuration/Ch11/Area Scan (61x61x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 0.371 W/kg Configuration/Ch11/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 13.446 V/m; Power Drift = 0.04 dB Peak SAR (extrapolated) = 0.488 W/kg SAR(1 g) = 0.240 W/kg; SAR(10 g) = 0.121 W/kg Maximum value of SAR (measured) = 0.362 W/kg 0 dB = 0.362 W/kg = -4.41 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2014/1/16 #02_WLAN2.4GHz_802.11b 1Mbps_Back_0cm_Ch11 Communication System: 802.11b; Frequency: 2462 MHz;Duty Cycle: 1:1 Medium: MSL_2450_140116 Medium parameters used: f = 2462 MHz; σ = 1.981 S/m; ε r = 51.494; ρ = 1000 kg/m 3 23.422.4 DASY5 Configuration: - Probe: EX3DV4 - SN3954; ConvF(7.34, 7.34, 7.34); Calibrated: 2013/11/4; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1399; Calibrated: 2013/11/7 - Phantom: ELI v5.0 Left; Type: QDOVA002AA; Serial: TP:1131 - Measurement SW: DASY52, Version 52.8 (6); SEMCAD X Version 14.6.9 (7117) Configuration/Ch11/Area Scan (61x61x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 0.359 W/kg Configuration/Ch11/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 13.765 V/m; Power Drift = 0.09 dB Peak SAR (extrapolated) = 0.504 W/kg SAR(1 g) = 0.248 W/kg; SAR(10 g) = 0.123 W/kg Maximum value of SAR (measured) = 0.366 W/kg 0 dB = 0.366 W/kg = -4.37 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2014/1/16 #03_WLAN2.4GHz_802.11b 1Mbps_Left Side_0cm_Ch11 Communication System: 802.11b; Frequency: 2462 MHz;Duty Cycle: 1:1 Medium: MSL_2450_140116 Medium parameters used: f = 2462 MHz; σ = 1.981 S/m; ε r = 51.494; ρ = 1000 kg/m 3 23.422.4 DASY5 Configuration: - Probe: EX3DV4 - SN3954; ConvF(7.34, 7.34, 7.34); Calibrated: 2013/11/4; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1399; Calibrated: 2013/11/7 - Phantom: ELI v5.0 Left; Type: QDOVA002AA; Serial: TP:1131 - Measurement SW: DASY52, Version 52.8 (6); SEMCAD X Version 14.6.9 (7117) Configuration/Ch11/Area Scan (51x61x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 2.20 W/kg Configuration/Ch11/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 30.660 V/m; Power Drift = -0.12 dB Peak SAR (extrapolated) = 3.03 W/kg SAR(1 g) = 1.16 W/kg; SAR(10 g) = 0.458 W/kg Maximum value of SAR (measured) = 2.02 W/kg 0 dB = 2.02 W/kg = 3.05 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2014/1/16 #04_WLAN2.4GHz_802.11b 1Mbps_Right Side_0cm_Ch11 Communication System: 802.11b; Frequency: 2462 MHz;Duty Cycle: 1:1 Medium: MSL_2450_140116 Medium parameters used: f = 2462 MHz; σ = 1.981 S/m; ε r = 51.494; ρ = 1000 kg/m 3 23.422.4 DASY5 Configuration: - Probe: EX3DV4 - SN3954; ConvF(7.34, 7.34, 7.34); Calibrated: 2013/11/4; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1399; Calibrated: 2013/11/7 - Phantom: ELI v5.0 Left; Type: QDOVA002AA; Serial: TP:1131 - Measurement SW: DASY52, Version 52.8 (6); SEMCAD X Version 14.6.9 (7117) Configuration/Ch11/Area Scan (51x61x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 0.411 W/kg Configuration/Ch11/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 14.053 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 0.502 W/kg SAR(1 g) = 0.256 W/kg; SAR(10 g) = 0.121 W/kg Maximum value of SAR (measured) = 0.380 W/kg 0 dB = 0.380 W/kg = -4.20 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2014/1/16 #05_WLAN2.4GHz_802.11b 1Mbps_Top Side_0cm_Ch11 Communication System: 802.11b; Frequency: 2462 MHz;Duty Cycle: 1:1 Medium: MSL_2450_140116 Medium parameters used: f = 2462 MHz; σ = 1.981 S/m; ε r = 51.494; ρ = 1000 kg/m 3 23.422.4 DASY5 Configuration: - Probe: EX3DV4 - SN3954; ConvF(7.34, 7.34, 7.34); Calibrated: 2013/11/4; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1399; Calibrated: 2013/11/7 - Phantom: ELI v5.0 Left; Type: QDOVA002AA; Serial: TP:1131 - Measurement SW: DASY52, Version 52.8 (6); SEMCAD X Version 14.6.9 (7117) Configuration/Ch11/Area Scan (51x61x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 1.29 W/kg Configuration/Ch11/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 21.461 V/m; Power Drift = -0.16 dB Peak SAR (extrapolated) = 1.41 W/kg SAR(1 g) = 0.627 W/kg; SAR(10 g) = 0.295 W/kg Maximum value of SAR (measured) = 0.979 W/kg 0 dB = 0.979 W/kg = -0.09 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2014/1/16 #06_WLAN2.4GHz_802.11b 1Mbps_Bottom Side_0cm_Ch11 Communication System: 802.11b; Frequency: 2462 MHz;Duty Cycle: 1:1 Medium: MSL_2450_140116 Medium parameters used: f = 2462 MHz; σ = 1.981 S/m; ε r = 51.494; ρ = 1000 kg/m 3 23.422.4 DASY5 Configuration: - Probe: EX3DV4 - SN3954; ConvF(7.34, 7.34, 7.34); Calibrated: 2013/11/4; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1399; Calibrated: 2013/11/7 - Phantom: ELI v5.0 Left; Type: QDOVA002AA; Serial: TP:1131 - Measurement SW: DASY52, Version 52.8 (6); SEMCAD X Version 14.…

Text truncated - open the document above for the full version.

FCC Test Report Report No. : FR3N2602 SPORTON INTERNATIONAL INC. Page No. : 1 of 46 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 FCC Test Report Equipment : Wireless Digital Camera Brand Name : Chicony Model No. : DC-D248 FCC ID : E8HDCD248R40 Standard : 47 CFR FCC Part 15.247 Operating Band : 2400 MHz – 2483.5 MHz Equipment Class : DTS Applicant : Chicony Electronics Co., Ltd. No.25, Wugong 6th Rd., Wugu Dist., New Taipei City 248, Taiwan (R.O.C.) Manufacturer : Chicony Electronics (Dong Guan) Co.,Ltd. San Zhong Guan Li Qu, Qingxi Town, Dongguan City Guangdong 523651 China The product sample received on Dec. 06, 2013 and completely tested on Dec. 17, 2013. We, SPORTON, would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI C63.10-2009 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Wayne Hsu / Assistant Manager FCC Test Report Report No. : FR3N2602 SPORTON INTERNATIONAL INC. Page No. : 2 of 46 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information.............................................................................................................................................. 5 1.2 Accessories and Support Equipment ..................................................................................................... 7 1.3 Testing Applied Standards ..................................................................................................................... 8 1.4 Testing Location Information .................................................................................................................. 8 1.5 Measurement Uncertainty ...................................................................................................................... 9 2 TEST CONFIGURATION OF EUT ...................................................................................................... 10 2.1 The Worst Case Modulation Configuration .......................................................................................... 10 2.2 Test Channel Frequencies Configuration ............................................................................................. 10 2.3 The Worst Case Power Setting Parameter .......................................................................................... 10 2.4 The Worst Case Measurement Configuration ...................................................................................... 11 2.5 Test Setup Diagram ............................................................................................................................. 12 3 TRANSMITTER TEST RESULT .......................................................................................................... 15 3.1 AC Power-line Conducted Emissions .................................................................................................. 15 3.2 6dB Bandwidth ..................................................................................................................................... 18 3.3 RF Output Power .................................................................................................................................. 20 3.4 Power Spectral Density ........................................................................................................................ 23 3.5 Transmitter Bandedge Emissions ........................................................................................................ 25 3.6 Transmitter Unwanted Emissions......................................................................................................... 28 4 TEST EQUIPMENT AND CALIBRATION DATA ................................................................................ 45 APPENDIX A. TEST PHOTOS APPENDIX B. PHOTOGRAPHS OF EUT FCC Test Report Report No. : FR3N2602 SPORTON INTERNATIONAL INC. Page No. : 3 of 46 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Summary of Test Result Conformance Test Specifications Report Clause Ref. Std. Clause Description Measured Limit Result 1.1.2 15.203 Antenna Requirement Antenna connector mechanism complied FCC 15.203 Complied 3.1 15.207 AC Power-line Conducted Emissions [dBuV]: 0.186395MHz 49.92 (Margin 14.28dB) - QP 39.34 (Margin 14.86dB) - AV FCC 15.207 Complied 3.2 15.247(a) Bandwidth 6dB Bandwidth Unit [MHz]:8.12≥500kHz Complied 3.3 15.247(b) RF Output Power (Maximum Peak Conducted Output Power) Power [dBm]: 20.38 Power [dBm]:30 Complied 3.4 15.247(d) Power Spectral Density PSD [dBm/100kHz]: -10.96 PSD [dBm/3kHz]:8 Complied 3.5 15.247(c) Transmitter Radiated Bandedge Emissions Non-Restricted Bands: 2398.03MHz: 35.75dB Restricted Bands [dBuV/m at 3m]: 2390MHz 72.66 (Margin 1.34dB) - PK 49.82 (Margin 4.18dB) - AV Non-Restricted Bands: > 20 dBc Restricted Bands: FCC 15.209 Complied 3.6 15.247(c) Transmitter Radiated Unwanted Emissions [dBuV/m at 3m]: 36.79MHz 35.61 (Margin 4.39dB) - QP Non-Restricted Bands: > 20 dBc Restricted Bands: FCC 15.209 Complied FCC Test Report Report No. : FR3N2602 SPORTON INTERNATIONAL INC. Page No. : 4 of 46 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Revision History Report No. Version Description Issued Date FR3N2602 Rev. 01 Initial issue of report Mar. 06, 2014 2483.5-2650 FCC Test Report Report No. : FR3N2602 SPORTON INTERNATIONAL INC. Page No. : 5 of 46 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 General Description 1.1 Information 1.1.1 RF General Information RF General Information Frequency Range (MHz) IEEE Std. 802.11 Ch. Freq. (MHz) Ch…

Text truncated - open the document above for the full version.

FCC Test Report Report No. : FR3N2602 SPORTON INTERNATIONAL INC. Page No. : A1 of A6 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Appendix A. Test Photos FCC Test Report Report No. : FR3N2602 SPORTON INTERNATIONAL INC. Page No. : A2 of A6 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 Photographs of Conducted Emissions Test Configuration Mode 1 FRONT VIEW REAR VIEW FCC Test Report Report No. : FR3N2602 SPORTON INTERNATIONAL INC. Page No. : A3 of A6 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 SIDE VIEW FCC Test Report Report No. : FR3N2602 SPORTON INTERNATIONAL INC. Page No. : A4 of A6 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 2 Photographs of Radiated Emissions Test Configuration For radiated emissions 9kHz~30MHz FRONT VIEW REAR VIEW FCC Test Report Report No. : FR3N2602 SPORTON INTERNATIONAL INC. Page No. : A5 of A6 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 For radiated emissions 30MHz~1GHz Mode 2 FRONT VIEW REAR VIEW FCC Test Report Report No. : FR3N2602 SPORTON INTERNATIONAL INC. Page No. : A6 of A6 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 For radiated emissions above 1GHz Mode 1 FRONT VIEW REAR VIEW

SPORTON INTERNATIONAL INC. Page Number : D1 of D1 TEL : 886-3-327-3456 Report Issued Date : Mar. 05, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : E8HDCD248R40 FCC …
