Smart WiFi Baby Monitor User Manual | 1 English Names of Parts Status Indicator microSD Card Slot Lens Night Light Button Temperature Sensor Micro USB Port Night Light Micro USB Port Speaker WPS Button Power/Mode Button Microphone 2 | English 1. Insert a microSD Card (suggested class 10, up to 64GB) For initial use, mobile needs to: 1. Connects to internet (via WiFi, 3G/4G). 2. Download and install App [Unieye Care] from Google Play Store or Apple App Store. Getting Started 2. Power on: Plug a USB power cable into one of • PC USB port • USB output adapter Unieye Care 3. Power off: Pressfor 2 seconds to turn off camera. Mobile connects to smart WiFi baby monitor directly via App [Unieye Care] for remote control, live view, lullaby playback, Night Light control and receives push alerts when events are detected. Modes Switch in Camera Camera status indicator shows current funciton. Pressto switch. • Steady orange for direct control • Steady green for Internet control Power/Mode Camera needs to: Status Indicator | 3 English Wireless & App Operation Run App [Unieye Care] on mobile and navigate either one of functions: (I) Local - Direct control (II) Internet - Internet control Unieye Care 【 Local 】 (I) LocalInternet 【 Internet 】 (II) LocalInternet MobileCamera Local Status: Orange Unieye Server AP 3G/4G Mobile Hotspot Wireless Router AP WPS Camera 3G/4G Mobile Wireless Router AP Mobile Internet Status: Green Mobile directly connects to camera via WiFi for remote control, live view, lullaby playback, night light control, camera setup, and receives push notification when noise and motion events are detected. Mobile connects to camera via internet to accomplish the same features as in [Local] function, and links to partner's camera to enjoy the instant live sharing. 4 | English Mobile Connects to Camera 1. For Android: Turn on [Wi-Fi]. For iOS: Go to [Settings] [Wi-Fi]. Turn on [Wi-Fi] and select the camera name. 2. Run [Unieye Care]. 3. Tap 【 Local 】 and select the camera to enter View Page. Tap [] to scan again if camera is not found. Note: For first use, password is not required. User can set camera password in Setup Page. 【 Local 】 Function iOS Settings LocalInternet Before using mobile App's 【 Local 】 function, ensure mobile WiFi been on and camera status indicator shows steady orange. Local View Page Local Main Page | 5 English ItemsDescriptions Adjust brightness level of night light. Play lullaby. Mute the sound from camera. Shoot videos or take photos and saved files into mobile "Album\Unieye Care\". Talk to camera from mobile. GroupsDescriptions Camera Settings Edit name, password. Format SD card. Adjust night vision, noise detection, motion detection, etc. Internet Settings Edit Email and AP for 【 Internet 】 function. View Page Events Page (for camera) 4. 【 Local 】 function has three function pages: View, Album and Setup. In [Setup] Page, tap [Save] to complete settings to camera. ItemsDescriptions Camera Videos View or delete video files recorded and saved in camera during motion and noise detection. Setup Page (for camera) 6 | English 1. Go to [Setup] [ Internet Settings ] Edit Email and AP 2. Tap [Save] to complete Email & AP settings. Camera Internet Setup Note: AP(Access Point) can be • Wireless Router or • 3G/4G Mobile Wireless Router or • 3G/4G Mobile Hotspot AP AP AP Wireless Router AP AP AP 3G/4G Mobile Wireless Router AP AP AP 3G/4G Mobile Hotspot (I) AP without WPS (II) WPS Wireless Router Before using internet, Internet Settings must be properly setup. Camera has two different procedures to complete Internet Settings: (I) AP without WPS (II) WPS wireless router 1. Setup Mobile App Go to [Setup] [ Internet Settings ] Edit Email Tap [Save] to complete Email settings. 2. Setup Router Press WPS button of WPS wireless router. 3. Setup Camera Press WPS Status indicator shows steady green when connects 【 Internet 】 function successfully. WPS Button | 7 English Remote Control Functions 【 Internet 】 function has two function pages: View and Setup. 【 Internet 】 Function LocalInternet A camera can setup 【 Internet 】 Function by 2 methods: (I) Setup Wizard (II) Others 1. Run [Unieye Care] and tap 【 Internet 】 . 2. Tap Others in list. Enter camera ID and password. (I) Setup Wizard 1. Run [Unieye Care] and tap 【 Internet 】 . 2. Tap and follow the instructions to view internet live videos. (II) Others Before adding a configured camera or using another mobile, ensure the camera is in 【 Internet 】 function and status indicator shows steady green. Intenet Main Page View Page: Same as the 6 features in 【 Local 】 function. GroupsDescriptions Camera Settings Adjust night vision, noise detection, motion detection, firmware upgrade, etc. In [Setup] Page, tap [Save] to complete settings to camera. Setup Page (for camera) Push Notification When camera is in 【 Internet 】 function and events are detected, Push Notification and Email will be sent to mobile and events clips to be saved to SD card. 8 | English Micro USB Port Transfer Files to PC 1. Use Micro USB cable to connect camera to PC. 2. Find videos at "My computer\Removable Disk\". 3. Copy, move, delete, or playback videos on PC. ConditionStatus IndicatorBeep Power On Flash in orange for few seconds, then turn to steady orange 1 time Mass Storage Mode Steady redN/A 【 Local 】 functionSteady orangeN/A 【 Internet 】 functionSteady greenN/A Power OffNo indication1 time Low BatteryNo change 2 times Fail connect to 【 Internet 】 Flash in green for few seconds, then turn to orange N/A Factory ResetNo change3 times Camera Hotkey Forced Shutdown Press and holdfor 5 seconds to turn off camera. Forced Factory Settings • Camera: Power on camera Press and hold Night Light button and press WPS Alert beep tones to complete the default settings. • Mobile: Go to App [Unieye Care] Connect 【 Local 】 function [Setup] page Reset factory settings. Camera Indication Camera Hotkey | 9 English SituationCause/Solution Camera cannot turn onPower is low. Recharge battery Ca…

Text truncated - open the document above for the full version.

Chicony Electronics Co., Ltd. NO. 25, Wu-Gong 6th Rd., Wugu Dist., New Taipei City 248, Taiwan, R.O.C Tel: 886-2-22988120 Fax: 886-2-22988442 Federal Communications Commission Authorization and Evaluation Division Date: Mar. 20,2014 SUBJECT: Authorized signatories To whom it may concern, We, the undersigned, “Chicony Electronics Co., Ltd.” hereby authorize the following, to act on our behalf, as our agent, in all matters relating to all processes required according to FCC Part 15C for Chicony products (Grantee Code: E8H). Mr. Wei-Ming Chiu Mr. Tony Chien If you have any questions regarding the authorization, please don’t hesitate to contact me. Sincerely yours, ------------------------------------------ T.S. Chen / Manager Chicony Electronics Co., Ltd. Tel: +886 2-2298-8120 Fax: +886 2-2298-9745 E-mail : [email protected]

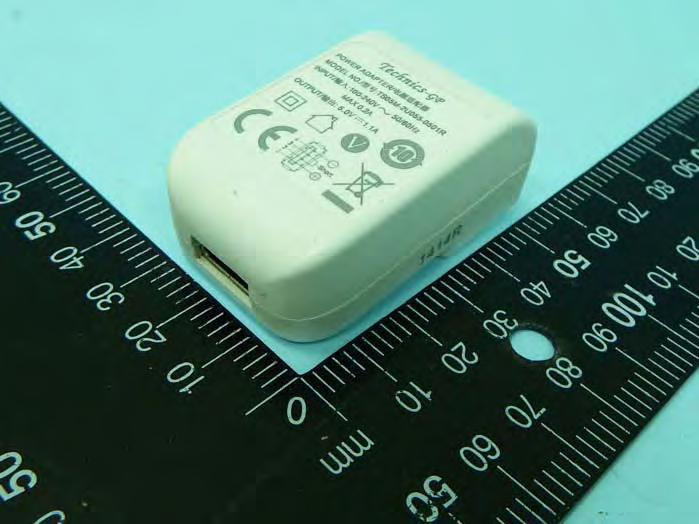

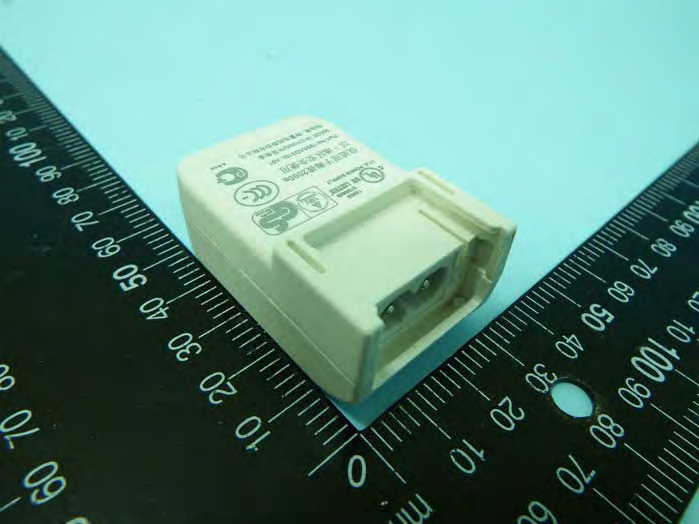

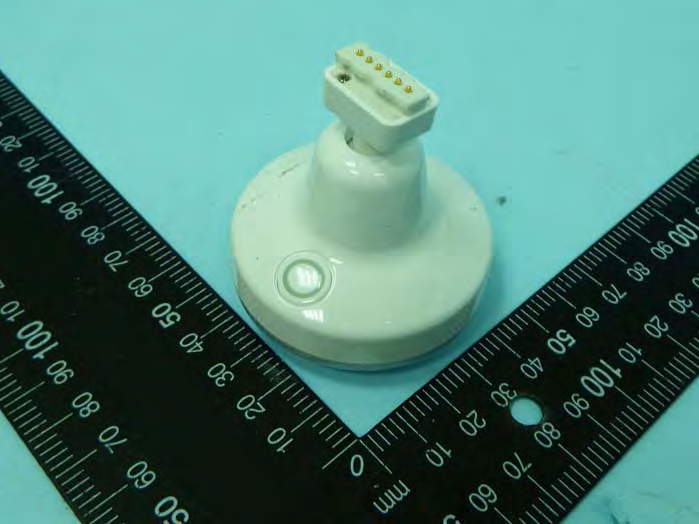

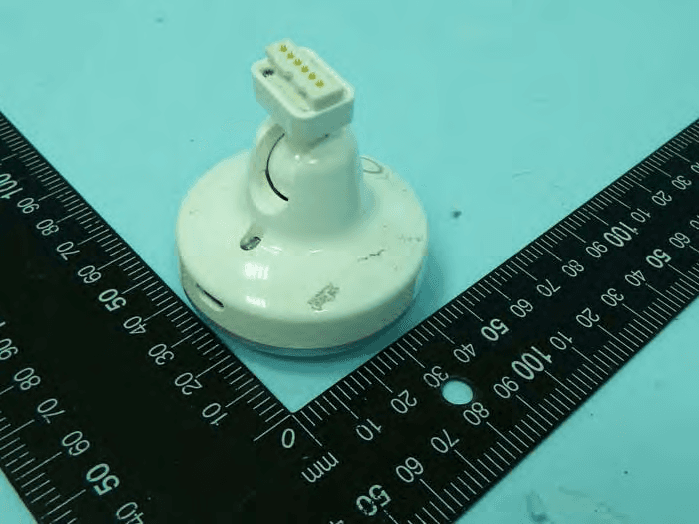

FCC Test Report Report No. : EP441112 SPORTON International Inc. PAGE NUMBER : B1 OF B18 TEL : 886-3-327-3456 ISSUED DATE : Sep. 05, 2014 FAX : 886-3-327-0973 APPENDIX B. Photographs of EUT FCC Test Report Report No. : EP441112 SPORTON International Inc. PAGE NUMBER : B2 OF B18 TEL : 886-3-327-3456 ISSUED DATE : Sep. 05, 2014 FAX : 886-3-327-0973 FCC Test Report Report No. : EP441112 SPORTON International Inc. PAGE NUMBER : B12 OF B18 TEL : 886-3-327-3456 ISSUED DATE : Sep. 05, 2014 FAX : 886-3-327-0973 FCC Test Report Report No. : EP441112 SPORTON International Inc. PAGE NUMBER : B13 OF B18 TEL : 886-3-327-3456 ISSUED DATE : Sep. 05, 2014 FAX : 886-3-327-0973 FCC Test Report Report No. : EP441112 SPORTON International Inc. PAGE NUMBER : B14 OF B18 TEL : 886-3-327-3456 ISSUED DATE : Sep. 05, 2014 FAX : 886-3-327-0973 FCC Test Report Report No. : EP441112 SPORTON International Inc. PAGE NUMBER : B15 OF B18 TEL : 886-3-327-3456 ISSUED DATE : Sep. 05, 2014 FAX : 886-3-327-0973 FCC Test Report Report No. : EP441112 SPORTON International Inc. PAGE NUMBER : B16 OF B18 TEL : 886-3-327-3456 ISSUED DATE : Sep. 05, 2014 FAX : 886-3-327-0973 FCC Test Report Report No. : EP441112 SPORTON International Inc. PAGE NUMBER : B17 OF B18 TEL : 886-3-327-3456 ISSUED DATE : Sep. 05, 2014 FAX : 886-3-327-0973 FCC Test Report Report No. : EP441112 SPORTON International Inc. PAGE NUMBER : B18 OF B18 TEL : 886-3-327-3456 ISSUED DATE : Sep. 05, 2014 FAX : 886-3-327-0973

FCC Test Report Report No. : EP441112 SPORTON International Inc. PAGE NUMBER : B3 OF B18 TEL : 886-3-327-3456 ISSUED DATE : Sep. 05, 2014 FAX : 886-3-327-0973 FCC Test Report Report No. : EP441112 SPORTON International Inc. PAGE NUMBER : B4 OF B18 TEL : 886-3-327-3456 ISSUED DATE : Sep. 05, 2014 FAX : 886-3-327-0973 Battery 1 FCC Test Report Report No. : EP441112 SPORTON International Inc. PAGE NUMBER : B5 OF B18 TEL : 886-3-327-3456 ISSUED DATE : Sep. 05, 2014 FAX : 886-3-327-0973 FCC Test Report Report No. : EP441112 SPORTON International Inc. PAGE NUMBER : B6 OF B18 TEL : 886-3-327-3456 ISSUED DATE : Sep. 05, 2014 FAX : 886-3-327-0973 FCC Test Report Report No. : EP441112 SPORTON International Inc. PAGE NUMBER : B7 OF B18 TEL : 886-3-327-3456 ISSUED DATE : Sep. 05, 2014 FAX : 886-3-327-0973 FCC Test Report Report No. : EP441112 SPORTON International Inc. PAGE NUMBER : B8 OF B18 TEL : 886-3-327-3456 ISSUED DATE : Sep. 05, 2014 FAX : 886-3-327-0973 FCC Test Report Report No. : EP441112 SPORTON International Inc. PAGE NUMBER : B9 OF B18 TEL : 886-3-327-3456 ISSUED DATE : Sep. 05, 2014 FAX : 886-3-327-0973 FCC Test Report Report No. : EP441112 SPORTON International Inc. PAGE NUMBER : B10 OF B18 TEL : 886-3-327-3456 ISSUED DATE : Sep. 05, 2014 FAX : 886-3-327-0973 FCC Test Report Report No. : EP441112 SPORTON International Inc. PAGE NUMBER : B11 OF B18 TEL : 886-3-327-3456 ISSUED DATE : Sep. 05, 2014 FAX : 886-3-327-0973 Battery 2

FCC SAR Test Report Report No. : FA441112 SPORTON INTERNATIONAL INC. Page No. : 2 of 24 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 Table of Contents 1 STATEMENT OF COMPLIANCE .......................................................................................................... 5 1.1 Guidance Standard ................................................................................................................................ 5 1.2 Testing Location Information .................................................................................................................. 5 2 EQUIPMENT UNDER TEST (EUT) ....................................................................................................... 6 2.1 General Information ................................................................................................................................ 6 2.2 Maximum Tune-up Limit ......................................................................................................................... 7 3 RF EXPOSURE LIMITS ......................................................................................................................... 8 3.1 Uncontrolled Environment ...................................................................................................................... 8 3.2 Controlled Environment .......................................................................................................................... 8 4 SPECIFIC ABSORPTION RATE (SAR) ................................................................................................ 9 4.1 Introduction ............................................................................................................................................. 9 4.2 SAR Definition ........................................................................................................................................ 9 5 SYSTEM DESCRIPTION AND SETUP ............................................................................................... 10 6 MEASUREMENT PROCEDURES ....................................................................................................... 11 6.1 Spatial Peak SAR Evaluation ............................................................................................................... 11 6.2 Power Reference Measurement .......................................................................................................... 12 6.3 Area Scan ............................................................................................................................................. 12 6.4 Zoom Scan ........................................................................................................................................... 13 6.5 Volume Scan Procedures ..................................................................................................................... 13 6.6 Power Drift Monitoring .......................................................................................................................... 13 7 TEST EQUIPMENT LIST ..................................................................................................................... 14 8 SYSTEM VERIFICATION .................................................................................................................... 15 8.1 Tissue Verification ................................................................................................................................ 15 8.2 System Performance Check Results ................................................................................................... 16 9 RF EXPOSURE POSITIONS ............................................................................................................... 17 9.1 SAR Testing for Tablet ......................................................................................................................... 17 10 CONDUCTED RF OUTPUT POWER (UNIT: DBM) ............................................................................ 18 11 ANTENNA LOCATION ........................................................................................................................ 19 12 SAR TEST RESULTS .......................................................................................................................... 20 12.1 Body SAR ............................................................................................................................................. 20 13 UNCERTAINTY ASSESSMENT .......................................................................................................... 21 14 REFERENCES ..................................................................................................................................... 24 FCC SAR Test Report Report No. : FA441112 SPORTON INTERNATIONAL INC. Page No. : 3 of 24 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 APPENDIX A. Plots of System Performance Check APPENDIX B. Plots of SAR Measurement Appendix C. DASY Calibration Certificate Appendix D. Test setup Photos FCC SAR Test Report Report No. : FA441112 SPORTON INTERNATIONAL INC. Page No. : 4 of 24 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 Revision History Report No. Version Description Issued Date FA441112 Rev. 01 Initial issue of report Sep. 10, 2014 FA441112 Rev. 02 Correct Body Sar outcome Sep. 15, 2014 FCC SAR Test Report Report No. : FA441112 SPORTON INTERNATIONAL INC. Page No. : 5 of 24 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 1 Statement of Compliance The maximum results of Specific Absorption Rate (SAR) found during testing as follows. Exposure Position Frequency Band Reported 1g SAR (W/kg) Equipment Class Highest Reported 1g SAR (W/kg) Body WLAN2.4GHz Band 0.33 DTS 0.33 This device is in compliance with Specific Absorption Rate (SAR) for general population/uncontrolled exposure lim…

Text truncated - open the document above for the full version.

FCC Test Report Report No. : FR441112 SPORTON INTERNATIONAL INC. Page No. : 2 of 47 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information.............................................................................................................................................. 5 1.2 Accessories And Support Equipment ..................................................................................................... 7 1.3 Testing Applied Standards ..................................................................................................................... 7 1.4 Testing Location Information .................................................................................................................. 7 1.5 Measurement Uncertainty ...................................................................................................................... 8 2 TEST CONFIGURATION OF EUT ........................................................................................................ 9 2.1 The Worst Case Modulation Configuration ............................................................................................ 9 2.2 The Worst Case Power Setting Parameter ............................................................................................ 9 2.3 The Worst Case Measurement Configuration ...................................................................................... 10 2.4 Test Setup Diagram ............................................................................................................................. 12 3 TRANSMITTER TEST RESULT .......................................................................................................... 14 3.1 AC Power-line Conducted Emissions .................................................................................................. 14 3.2 6dB Bandwidth ..................................................................................................................................... 17 3.3 RF Output Power .................................................................................................................................. 19 3.4 Power Spectral Density ........................................................................................................................ 24 3.5 Transmitter Bandedge Emissions ........................................................................................................ 26 3.6 Transmitter Unwanted Emissions......................................................................................................... 29 4 TEST EQUIPMENT AND CALIBRATION DATA ................................................................................ 46 APPENDIX A. TEST PHOTOS APPENDIX B. PHOTOGRAPHS OF EUT FCC Test Report Report No. : FR441112 SPORTON INTERNATIONAL INC. Page No. : 3 of 47 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 Summary of Test Result Conformance Test Specifications Report Clause Ref. Std. Clause Description Measured Limit Result 1.1.2 15.203 Antenna Requirement Antenna connector mechanism complied FCC 15.203 Complied 3.1 15.207 AC Power-line Conducted Emissions [dBuV]: 0.478649MHz 31.90 (Margin 14.46dB) - AV 43.39 (Margin 12.97dB) - QP FCC 15.207 Complied 3.2 15.247(a) 6dB Bandwidth 6dB Bandwidth Unit [MHz] 20M: 8.64 ≥500kHz Complied 3.3 15.247(b) RF Output Power (Maximum Peak Conducted Output Power) Power [dBm]: 21.06 Power [dBm]:30 Complied 3.4 15.247(d) Power Spectral Density PSD [dBm/100kHz]: -9.18 PSD [dBm/3kHz]:8 Complied 3.5 15.247(c) Transmitter Radiated Bandedge Emissions Non-Restricted Bands: 2399.82MHz: 34.26dB Restricted Bands [dBuV/m at 3m]: 2390.00MHz 71.88 (Margin 2.12dB) - PK 47.52 (Margin 6.48dB) - AV Non-Restricted Bands: > 20 dBc Restricted Bands: FCC 15.209 Complied 3.6 15.247(c) Transmitter Radiated Unwanted Emissions [dBuV/m at 3m]: 431.58MHz 45.54 (Margin 0.46dB) - QP Non-Restricted Bands: > 20 dBc Restricted Bands: FCC 15.209 Complied FCC Test Report Report No. : FR441112 SPORTON INTERNATIONAL INC. Page No. : 4 of 47 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 Revision History Report No. Version Description Issued Date FR441112 Rev. 01 Initial issue of report Sep. 05, 2014 FR441112 Rev. 02 Revise PF Power Test Method Sep. 15, 2014 2500-2690 FCC Test Report Report No. : FR441112 SPORTON INTERNATIONAL INC. Page No. : 5 of 47 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 1 General Description 1.1 Information 1.1.1 RF General Information RF General Information Frequency Range (MHz) IEEE Std. 802.11 Ch. Freq. (MHz) Channel Number Transmit Chains (N TX ) RF Output Power (dBm) 2400-2483.5 b 2412-2462 1-11 [11] 1 19.87 2400-2483.5 g 2412-2462 1-11 [11] 1 21.06 Note 1: RF output power specifies that Maximum Peak Conducted Output Power. Note 2: 802.11b uses a combination of DSSS-DBPSK, DQPSK, CCK modulation. Note 3: 802.11g/n uses a combination of OFDM-BPSK, QPSK, 16QAM, 64QAM modulation. 1.1.2 Antenna Information Antenna Category Integral antenna (antenna permanently attached) Temporary RF connector provided No temporary RF connector provided Transmit chains bypass antenna and soldered temporary RF connector provided for connected measurement. In case of conducted measurements the transmitter shall be connected to the measuring equipment via a suitable attenuator and correct for all losses in the RF path. Antenna General Information No. Ant. Cat. Ant. Type Gain (dBi) 1 Integral PIFA 2.73 FCC Test Report Report No. : FR441112 SPORTON INTERNATIONAL INC. Page No. : 6 of 47 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 1.1.3 Type of EUT Identify EUT EUT Serial Number N/A Presentation of Equipment Production ; Pre-Production ; Prototype Type of EUT Stand-alone Combined (E…

Text truncated - open the document above for the full version.

FCC Test Report Report No. : FR441112 SPORTON INTERNATIONAL INC. Page No. : A1 of A6 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Appendix A. Test Photos FCC Test Report Report No. : FR441112 SPORTON INTERNATIONAL INC. Page No. : A2 of A6 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 Photographs of Conducted Emissions Test Configuration Mode 1 FRONT VIEW REAR VIEW FCC Test Report Report No. : FR441112 SPORTON INTERNATIONAL INC. Page No. : A3 of A6 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 SIDE VIEW FCC Test Report Report No. : FR441112 SPORTON INTERNATIONAL INC. Page No. : A4 of A6 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 2 Photographs of Radiated Emissions Test Configuration For radiated emissions 9kHz~30MHz FRONT VIEW REAR VIEW FCC Test Report Report No. : FR441112 SPORTON INTERNATIONAL INC. Page No. : A5 of A6 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 For radiated emissions 30MHz~1GHz Mode 2 FRONT VIEW REAR VIEW FCC Test Report Report No. : FR441112 SPORTON INTERNATIONAL INC. Page No. : A6 of A6 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 For radiated emissions above 1GHz Mode 1 FRONT VIEW REAR VIEW

FCC SAR Test Report Report No. : FA441112 SPORTON INTERNATIONAL INC. Page No. : D1 of D1 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Appendix D. SAR Test Setup Photos Rear Face, Test Separation 0 cm
