E8HDCD670FUHUWireless Camera

Table of Contents Safety Instructions.....................................................................1 Getting Started...........................................................................3 Turning on your nabi Cam...............................................................3 Registration (Pairing).......................................................................3 Using the nabi Cam...................................................................4 Setting up.........................................................................................4 Night Vision Mode............................................................................4 Talk Mode........................................................................................4 Speaker...........................................................................................4 Zoom................................................................................................4 Multi-Cam........................................................................................4 Settings............................................................................................4 Camera Control.........................................................................5 Add (pair) a camera.........................................................................5 View a camera.................................................................................5 Renaming your camera...................................................................5 Deleting your camera.......................................................................5 General Information...................................................................6 FCC and IC Regulations............................................................7 NABI CAM 1 Safety Instructions WARNING This baby monitor is compliant with all relevant standards regarding electromagnetic fields and is, when handled as described in the User’s Manual, safe to use. Therefore, always read the instructions in the User’s Manual carefully prior to using the device. • Adult assembly is required. Keep small parts away from children while assembling. • This product is not a toy. • This baby monitor is not a substitute for adult supervision. • Keep this user manual for future reference. • Do not place the camera or cords in the crib or within reach of the baby (the camera and cords should be at least 3 feet away) • Keep cords out of reach of children WARNING: STRANGULATION HAZARD – Keep the unit and adapter cord more than 3 feet from the crib and out of baby’s reach. NEVER place camera or cords within the crib. Secure the cord more than 3 feet away from baby’s reach. Never use extension cords with AC Adapters. Only use the AC Adapters provided. CAMERA SET UP & USE 1. Determine a location for the CAMERA that will provide the best view of your baby in his cot 2. Place the CAMERA on a flat surface, such as dresser, table, or shelf 3. NEVER place camera or cords within cot. NABI CAM 2 • Do not use this baby monitor near water • Do not install the baby monitor near a heat source • Only use the cables and power adapters provided. Do not use other cables or power adapters as this may damage the device. NABI CAM 3 Getting Started Turning on your nabi Cam 1. Detach the stand from the camera 2. Connect the Baby Monitor to a power outlet using the cable and power adapter provided. 3. Attach the camera to the stand 4. Press and hold the Power button for 2 seconds to turn the Baby Monitor on. 5. Press and hold the Power button for 2 seconds to turn the Baby Monitor off. Registration (Pairing) To start using your nabi Cam, please follow the procedure below 1. Read and agree with the nabi Cam EULA 2. Plug nabi Cam into a wall outlet. Make sure nabi Cam and your device are within range of your Wi-Fi network. Click “Pair” when ready 3. Enter a name for nabi Cam. This name will help you identify this camera on your network 4. Set Password. Enter a password for this camera 4 Using the nabi Cam Setting up • Place the nabi Cam in a convenient location (e.g. on the table) and point the camera lens towards the area you want to monitor • Adjust the nabi Cam by rotating the camera up and down until you are satisfied with the image in your device Night Vision Mode The nabi Cam has 4 high-intensity infrared LEDs for picking up clear images in the dark. When the sensor detects a low level of light, the LEDs will automatically activate. Talk Mode Tap the icon to enable 2-way communication with the camera. Tap again to disable. Speaker Tap the icon to mute sounds from camera. Tap again to enable sounds Zoom Tap the icon to zoom in. Zoom levels range from 1X to 5X. After 5X, user will be reverted back to 1X. Multi-Cam Tap the icon to be taken to the multi-camera screen to view multiple cameras at once Settings Tap the icon for nabi Cam settings. Add a new camera, set up your camera, or to go into Cloud Mode. 5 Camera Control Add (pair) a camera 1. Tap the icon to go into nabi Cam settings 2. Tap “Add Camera” 3. Look for the icon that says “+ camera” and tap it 4. Follow the on-screen instructions to complete the process View a camera 1. Tap the icon to view the connected cameras. 2. Select the camera you want to view by tapping on the screen with the camera you want to view Renaming your camera 1. Tap the icon to go into nabi Cam settings 2. Tap the icon to view the connected cameras. 3. Select the camera you want to set up by tapping on the image 4. Tap the arrow next to the name of the camera to rename the camera Deleting your camera 1. Tap the icon to go into nabi Cam settings 2. Tap on “Add Camera” 3. Next to the camera’s name is a white dash “-”. Click on that and follow the on-screen instructions 6 General Information If your product is not working properly... 1. Read this User’s Manual or the Quick Start Guide 2. Visit our website 3. Contact Customer Service 7 FCC and IC Regulations FCC Part 15 NOTE: This equipment h…

Text truncated - open the document above for the full version.

Chicony Electronics Co., Ltd. NO. 25, Wu-Gong 6th Rd., Wugu Dist., New Taipei City 248, Taiwan, R.O.C Tel: 886-2-22988120 Fax: 886-2-22988442 Federal Communications Commission Authorization and Evaluation Division Date: Sep. 6,2012 SUBJECT: Authorized signatories To whom it may concern, We, the undersigned, “Chicony Electronics Co., Ltd.” hereby authorize the following, to act on our behalf, as our agent, in all matters relating to all processes required according to FCC Part 15C for Chicony products (Grantee Code: E8H). Mr. Wei-Ming Chiu If you have any questions regarding the authorization, please don’t hesitate to contact me. Sincerely yours, ------------------------------------------ T.S. Chen / Manager Chicony Electronics Co., Ltd. Tel: +886 2-2298-8120 Fax: +886 2-2298-9745 E-mail : [email protected]

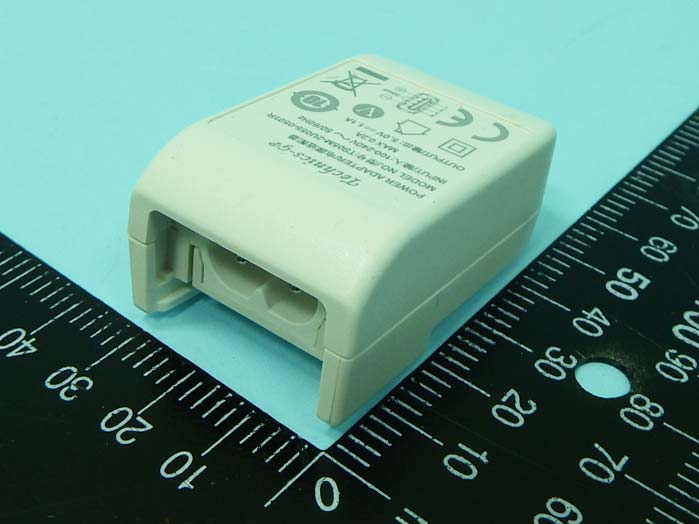

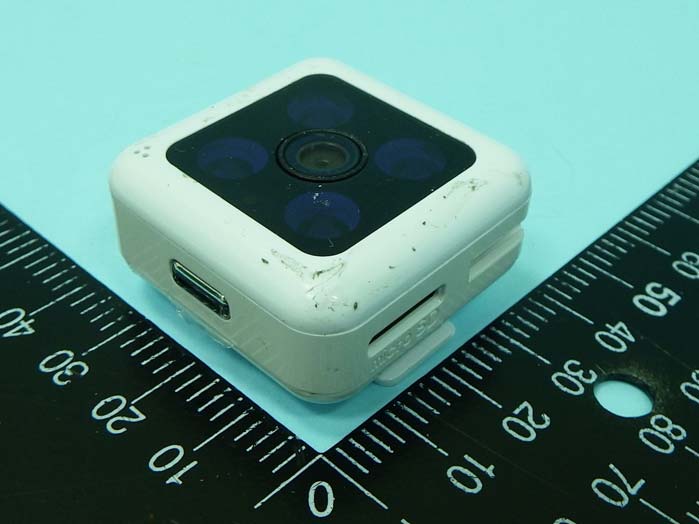

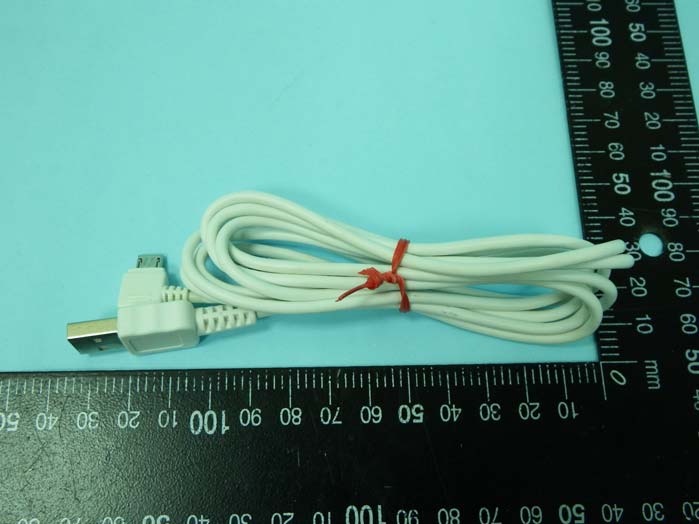

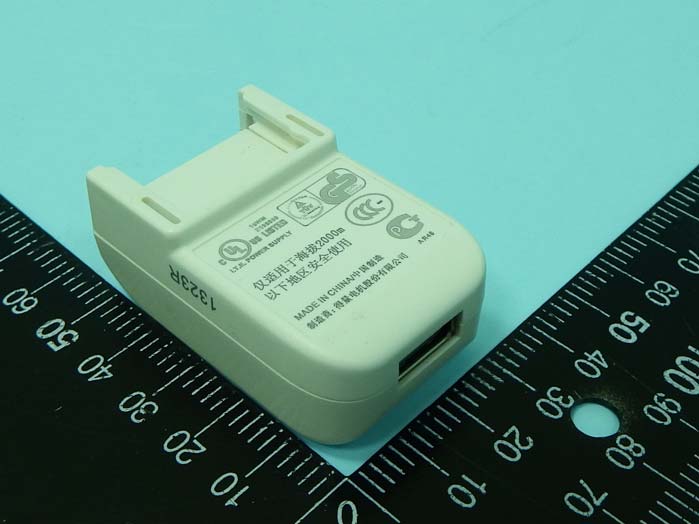

FCC Test Report Report No. : EP390307 SPORTON International Inc. PAGE NUMBER : B1 OF B19 TEL : 886-3-327-3456 ISSUED DATE : Oct. 30, 2013 FAX : 886-3-327-0973 APPENDIX B. Photographs of EUT FCC Test Report Report No. : EP390307 SPORTON International Inc. PAGE NUMBER : B2 OF B19 TEL : 886-3-327-3456 ISSUED DATE : Oct. 30, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP390307 SPORTON International Inc. PAGE NUMBER : B14 OF B19 TEL : 886-3-327-3456 ISSUED DATE : Oct. 30, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP390307 SPORTON International Inc. PAGE NUMBER : B16 OF B19 TEL : 886-3-327-3456 ISSUED DATE : Oct. 30, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP390307 SPORTON International Inc. PAGE NUMBER : B18 OF B19 TEL : 886-3-327-3456 ISSUED DATE : Oct. 30, 2013 FAX : 886-3-327-0973

FCC Test Report Report No. : EP390307 SPORTON International Inc. PAGE NUMBER : B4 OF B19 TEL : 886-3-327-3456 ISSUED DATE : Oct. 30, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP390307 SPORTON International Inc. PAGE NUMBER : B5 OF B19 TEL : 886-3-327-3456 ISSUED DATE : Oct. 30, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP390307 SPORTON International Inc. PAGE NUMBER : B6 OF B19 TEL : 886-3-327-3456 ISSUED DATE : Oct. 30, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP390307 SPORTON International Inc. PAGE NUMBER : B7 OF B19 TEL : 886-3-327-3456 ISSUED DATE : Oct. 30, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP390307 SPORTON International Inc. PAGE NUMBER : B8 OF B19 TEL : 886-3-327-3456 ISSUED DATE : Oct. 30, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP390307 SPORTON International Inc. PAGE NUMBER : B11 OF B19 TEL : 886-3-327-3456 ISSUED DATE : Oct. 30, 2013 FAX : 886-3-327-0973

FCC EMF Test Report Report No. : FA390307 SPORTON INTERNATIONAL INC. Page No. : 1 of 3 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 Human Exposure Assessment 1.1 Maximum Permissible Exposure 1.1.1 Limit of Maximum Permissible Exposure Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 - - F/300 6 1500-100,000 - - 5 6 Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 - - F/1500 30 1500-100,000 - - 1.0 30 Note 1: f = frequency in MHz ; *Plane-wave equivalent power density Note 2: For the applicable limit, see FCC 1.1310 FCC EMF Test Report Report No. : FA390307 SPORTON INTERNATIONAL INC. Page No. : 2 of 3 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 RF Field Strength Limits for Controlled Use Devices (Controlled Environment) Frequency Range (MHz) Electric Field (V/m rms) Magnetic Field (A/m rms) Power Density (W/m2) Averaging Time (minutes) 0.003-1 600 4.9 - 6 1-10 600/ƒ 4.9/ƒ - 6 10-30 60 4.9/ƒ - 6 30-300 60 0.163 10* 6 300-1500 3.54 ƒ 0.5 0.0094 ƒ 0.5 ƒ/30 6 1500-15000 137 0.364 50 6 15000-150000 137 0.364 50 616000/ƒ 1.2 150000-300000 0.354 ƒ 0.5 9.4 x 10-4 ƒ 0.5 3.33 x 10-4 ƒ 616000/ƒ 1.2 RF Field Strength Limits for Devices Used by the General Public (Uncontrolled Environment) Frequency Range (MHz) Electric Field (V/m rms) Magnetic Field (A/m rms) Power Density (W/m2) Averaging Time (minutes) 0.003-1 280 2.19 - 6 1-10 280/ƒ 2.19/ƒ - 6 10-30 28 2.19/ƒ - 6 30-300 28 0.073 2* 6 300-1500 1.585 ƒ 0.5 0.0042 ƒ 0.5 ƒ/150 6 1500-15000 61.4 0.163 10 6 15000-150000 61.4 0.163 10 616000/ƒ 1.2 150000-300000 0.158 ƒ 0.5 4.21 x 10 -4 ƒ 0.5 6.67 x 10 -5 ƒ 616000/ƒ 1.2 Note 1: ƒ is frequency in MHz. Note 2: For the applicable limit, see IC RSS-102 1.1.2 MPE Calculation Method E (V/m) = d GP30 Power Density: Pd (W/m 2 ) = 377 E 2 E = Electric field (V/m) P = RF output power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 d377 GP30   FCC EMF Test Report Report No. : FA390307 SPORTON INTERNATIONAL INC. Page No. : 3 of 3 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.1.3 Result of Maximum Permissible Exposure Transmitter Chains & Receiver Chains Information IEEE Std. 802.11 Protocol Number of Transmit Chains (N TX ) Number of Receive Chains (N RX ) Correlation Signals with Multiple N TX RF Output Power (dBm) b 1 1 Correlated 13.82 g 1 1 Correlated 13.59 Note 1: RF output power specifies that Maximum Conducted (Average) Output Power. Worst Maximum RF Output Power Result Exposure Environment General Population / Uncontrolled Exposure Separation Distance (cm) 20 Power Level 1 RF Output Power (dBm) Modulation Mode N TX RF Output Power (dBm) Gain (dBi) EIRP Power PD (S) (mW/cm²) 11B-20M 1 13.82 -1.59 12.23 0.00332 11G-20M 1 13.59 -1.59 12.00 0.00315 Maximum Permissible Exposure Limit (mW/cm²) 1 Note 1: N TX = Number of Transmit Chains

FCC Test Report Report No. : FR390307 SPORTON INTERNATIONAL INC. Page No. : 2 of 47 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information.............................................................................................................................................. 5 1.2 Accessories and Support Equipment ..................................................................................................... 7 1.3 Testing Applied Standards ..................................................................................................................... 7 1.4 Testing Location Information .................................................................................................................. 8 1.5 Measurement Uncertainty ...................................................................................................................... 8 2 TEST CONFIGURATION OF EUT ........................................................................................................ 9 2.1 The Worst Case Modulation Configuration ............................................................................................ 9 2.2 The Worst Case Power Setting Parameter ............................................................................................ 9 2.3 The Worst Case Measurement Configuration ...................................................................................... 10 2.4 Test Setup Diagram ............................................................................................................................. 11 3 TRANSMITTER TEST RESULT .......................................................................................................... 13 3.1 AC Power-line Conducted Emissions .................................................................................................. 13 3.2 6dB Bandwidth ..................................................................................................................................... 16 3.3 RF Output Power .................................................................................................................................. 18 3.4 Power Spectral Density ........................................................................................................................ 23 3.5 Transmitter Bandedge Emissions ........................................................................................................ 25 3.6 Transmitter Unwanted Emissions......................................................................................................... 29 4 TEST EQUIPMENT AND CALIBRATION DATA ................................................................................ 46 APPENDIX A. TEST PHOTOS APPENDIX B. PHOTOGRAPHS OF EUT FCC Test Report Report No. : FR390307 SPORTON INTERNATIONAL INC. Page No. : 3 of 47 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Summary of Test Result Conformance Test Specifications Report Clause Ref. Std. Clause Description Measured Limit Result 1.1.2 15.203 Antenna Requirement Antenna connector mechanism complied FCC 15.203 Complied 3.1 15.207 AC Power-line Conducted Emissions [dBuV]: 0.1903870MHz 53.30 (Margin 10.72dB) - QP 42.98 (Margin 11.04dB) - AV FCC 15.207 Complied 3.2 15.247(a) Bandwidth 6dB Bandwidth Unit [MHz] 11b: 8.64 / 11g: 16.51 ≥500kHz Complied 3.3 15.247(b) RF Output Power (Maximum Peak Conducted Output Power) Power [dBm]:18.55 Power [dBm]:30 Complied 3.4 15.247(d) Power Spectral Density PSD [dBm/100kHz]: -12.04 PSD [dBm/3kHz]:8 Complied 3.5 15.247(c) Transmitter Radiated Bandedge Emissions Non-Restricted Bands: 2399.820MHz: 32.87dB Restricted Bands [dBuV/m at 3m]: 2483.500MHz 70.48 (Margin 3.52dB) - PK 49.51 (Margin 4.49dB) - AV Non-Restricted Bands: > 20 dBc Restricted Bands: FCC 15.209 Complied 3.6 15.247(c) Transmitter Radiated Unwanted Emissions Restricted Bands [dBuV/m at 3m]: 32.910MHz 35.44 (Margin 4.56dB) - PK Non-Restricted Bands: > 20 dBc Restricted Bands: FCC 15.209 Complied FCC Test Report Report No. : FR390307 SPORTON INTERNATIONAL INC. Page No. : 4 of 47 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Revision History Report No. Version Description Issued Date FR390307 Rev. 01 Initial issue of report Oct. 30, 2013 2500-2690 FCC Test Report Report No. : FR390307 SPORTON INTERNATIONAL INC. Page No. : 5 of 47 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 General Description 1.1 Information 1.1.1 RF General Information RF General Information Frequency Range (MHz) IEEE Std. 802.11 Ch. Freq. (MHz) Channel Number Transmit Chains (N TX ) RF Output Power (dBm) Co-location 2400-2483.5 b 2412-2462 1-11 [11] 1 16.81 N/A 2400-2483.5 g 2412-2462 1-11 [11] 1 18.55 N/A Note 1: RF output power specifies that Maximum Peak Conducted Output Power. Note 2: 802.11b uses a combination of DSSS-DBPSK, DQPSK, CCK modulation. Note 3: 802.11g uses a combination of OFDM-BPSK, QPSK, 16QAM, 64QAM modulation. Note 4: Co-location, Co-location is generally defined as simultaneously transmitting (co-transmitting) antennas within 20 cm of each other. (i.e., EUT has simultaneously co-transmitting that operating 2.4GHz and 5GHz.) 1.1.2 Antenna Information Antenna Category Integral antenna (antenna permanently attached) Temporary RF connector provided No temporary RF connector provided Transmit chains bypass antenna and soldered temporary RF connector provided for connected measurement. In case of conducted measurements the transmitter shall be connected to the measuring equipment via a suitable attenuator and correct for all losses in the RF path. Antenna General Information No. Ant. Cat. Ant. Type Gain (dBi) 1 Integral PIFA -1.59 FCC Test Report Report No. : FR390307 SPORTON INTERNATIONAL INC. Page No. : 6 of 47 TEL : 886-3-3…

Text truncated - open the document above for the full version.

FCC Test Report Report No. : FR390307 SPORTON INTERNATIONAL INC. Page No. : A1 of A6 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Appendix A. Test Photos FCC Test Report Report No. : FR390307 SPORTON INTERNATIONAL INC. Page No. : A2 of A6 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 Photographs of Conducted Emissions Test Configuration FRONT VIEW REAR VIEW FCC Test Report Report No. : FR390307 SPORTON INTERNATIONAL INC. Page No. : A3 of A6 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 SIDE VIEW FCC Test Report Report No. : FR390307 SPORTON INTERNATIONAL INC. Page No. : A4 of A6 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 2 Photographs of Radiated Emissions Test Configuration For radiated emissions 9kHz~30MHz FRONT VIEW REAR VIEW FCC Test Report Report No. : FR390307 SPORTON INTERNATIONAL INC. Page No. : A5 of A6 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 For radiated emissions 30MHz~1GHz Mode 2 FRONT VIEW REAR VIEW FCC Test Report Report No. : FR390307 SPORTON INTERNATIONAL INC. Page No. : A6 of A6 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 For radiated emissions above 1GHz FRONT VIEW REAR VIEW
