E8HDCD932U30AWIRELESS CAMCORDER

Looxcie, Inc. Project: PAMPHLET, LX3 QUICK START GUIDE File Name: LX3 Quick Start Guide_89-0099-00_R8 Date Created: 09-14-12 Date Modified: 05-28-13 PANTONE 186 PROCESS BLACK PROCESS BLACK DIELINE DOES NOT PRINT Record, Share & Stream live! Quick Start Guide 1. Connect Looxcie 3 to computer with micro USB cable. 1. Download LooxcieDesktop utility onto a PC or Mac. 2. Connect camera to your computer with USB cable. 3. Launch LooxcieDesktop to check for firmware updates. 1. To turn on, hold power button for two seconds until status indicator flashes green. When the status indicator is solid green, the Looxcie 3 is ready to connect. 2. Launch Looxcie mobile app and pair your smartphone to the Looxcie 3 following instructions on screen. From the Looxcie app: 1. To start streaming, tap “Streaming” icon. 2. To add a title, tap “Tap to title” on video image. 3. To invite friends or stream publicly, swipe screen to the left for options. 4. To view your recorded streams, tap “My Profile” in the menu bar. 1. To view streams, tap video thumbnails on home screen. 2. To watch online, install Looxcie App for Facebook. !"#$%!"##$%&'!(!)*++#,-)!%./))!0!/12!*+!3&%,#45!%/,2)6!*+!-#!7089! 1. Insert microSD card into microSD slot. 2. Push card into the slot until it clicks. 3. To remove, push again and card will pop out. 4. Note: Looxcie 3 supports class 4 or greater microSD cards, up to 32GB. www.looxcie.com/apps 1. Download Looxcie mobile app onto an Android or iOS smartphone or tablet. Download the Looxcie 3 User Manual for Android & iOS * Record & share videos instantly with friends * Stream live video – privately to friends or publicly * Talk to friends during live streams The Looxcie mobile app works with Looxcie 3 or your smartphone’s front and back cameras. The Looxcie App for Facebook lets you interact and engage with friends & other Looxcie users. * View live streams from your friends * Explore videos from other Looxcie users * Like, comment & share videos online Send and receive live stream notifications in messages or on your timeline and newsfeed. Insert memory card (not included). Desktop App and Firmware Update Mobile App Get both apps: www.looxcie.com/support Learn more at: To download videos: Streaming Live Viewing Streams connect camera to computer via USB and find FAQs and troubleshooting tips at www.looxcie.com/support Sign in with your Facebook login! Download free from the App Store and Google Play. Search for “Looxcie” on Facebook and install the Looxcie App Go Live! ConnectDownloadSetup Facebook AppMobile App More Info PANTONE 187 PROCESS BLACK PROCESS GRAY PROCESS GRAY PROCESS GRAY CMYK C: 68% M: 62% Y: 61% K: 50% CMYK C: 58% M: 50% Y: 49% K: 17% CMYK C: 0% M: 0% Y: 0% K: 30% 5 1. Launch Looxcie mobile app. 2. Create Looxcie account following steps on screen. 3. To start recording, tap bottom Record button. 4. To review your clips, tap Me then tap On Camera. 5. To share clips, tap on clip name & swipe screen for options. Record, Capture, Share Record Button USB Port Status Indicator Power Button When connected to app 1. Video: Press the “video” button on the app to toggle recording on and off. 2. Photo: Press the “camera” button on the app to take a photo. 3. Preview video/photo on the Looxcie app and share with friends and family. When not connected to app 1. Video: Press [Mode] button to toggle to Video mode. Press [Record] button to start recording and press again to stop. 2. Photo: Press [Mode] button to toggle to camera mode. Press [Record] button to capture photo. Tip: Status indicator is red when recording video. Record, Snap & Share 4.5 in 2.625 in 2.625 in 2.625 in Mode Button microSD Slot Mode View Fully charge battery before first use. Indicators Status Indicator Condition Green Fast flash green Red Camera ready Recording Camera booting up Register your product: www.looxcie.com/register For accessories information: www.looxcie.com/accessories For warranty information: www.looxcie.com/warranty (Feature coming soon in firmware udpate) (Feature coming soon)

6 6 . 6 8 m m

Chicony Electronics Co., Ltd. NO. 25, Wu-Gong 6th Rd., Wugu Dist., New Taipei City 248, Taiwan, R.O.C Tel: 886-2-22988120 Fax: 886-2-22988442 Federal Communications Commission Authorization and Evaluation Division Date: Sep. 6,2012 SUBJECT: Authorized signatories To whom it may concern, We, the undersigned, “Chicony Electronics Co., Ltd.” hereby authorize the following, to act on our behalf, as our agent, in all matters relating to all processes required according to FCC Part 15C for Chicony products (Grantee Code: E8H). Mr. Wei-Ming Chiu If you have any questions regarding the authorization, please don’t hesitate to contact me. Sincerely yours, ------------------------------------------ T.S. Chen / Manager Chicony Electronics Co., Ltd. Tel: +886 2-2298-8120 Fax: +886 2-2298-9745 E-mail : [email protected]

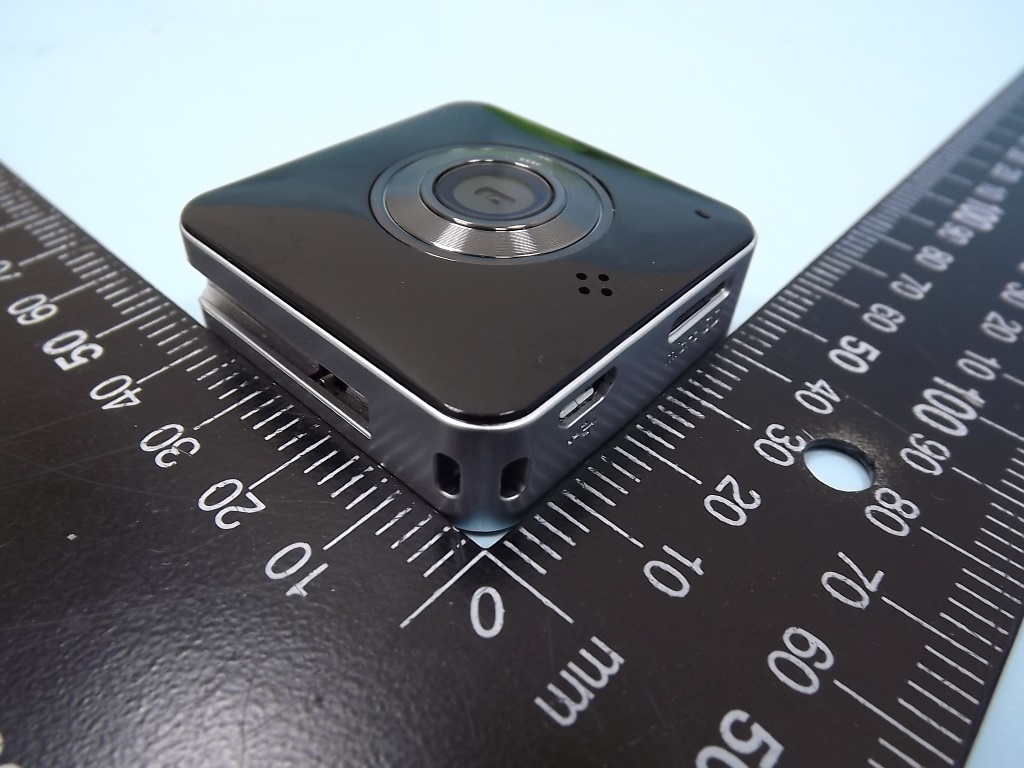

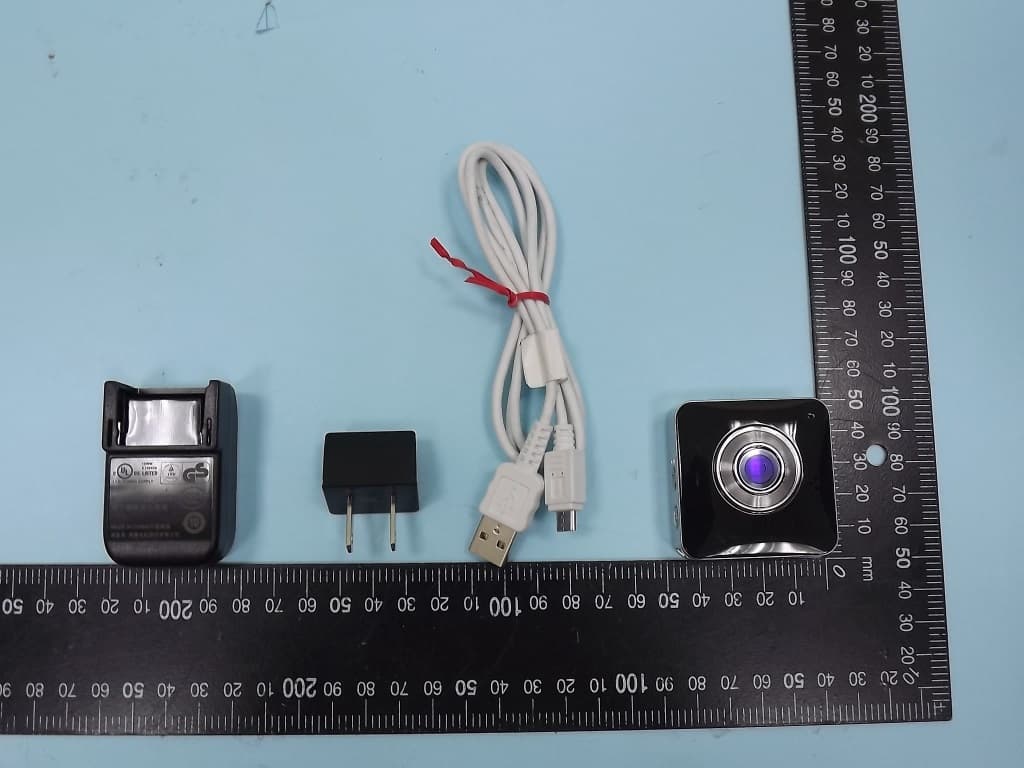

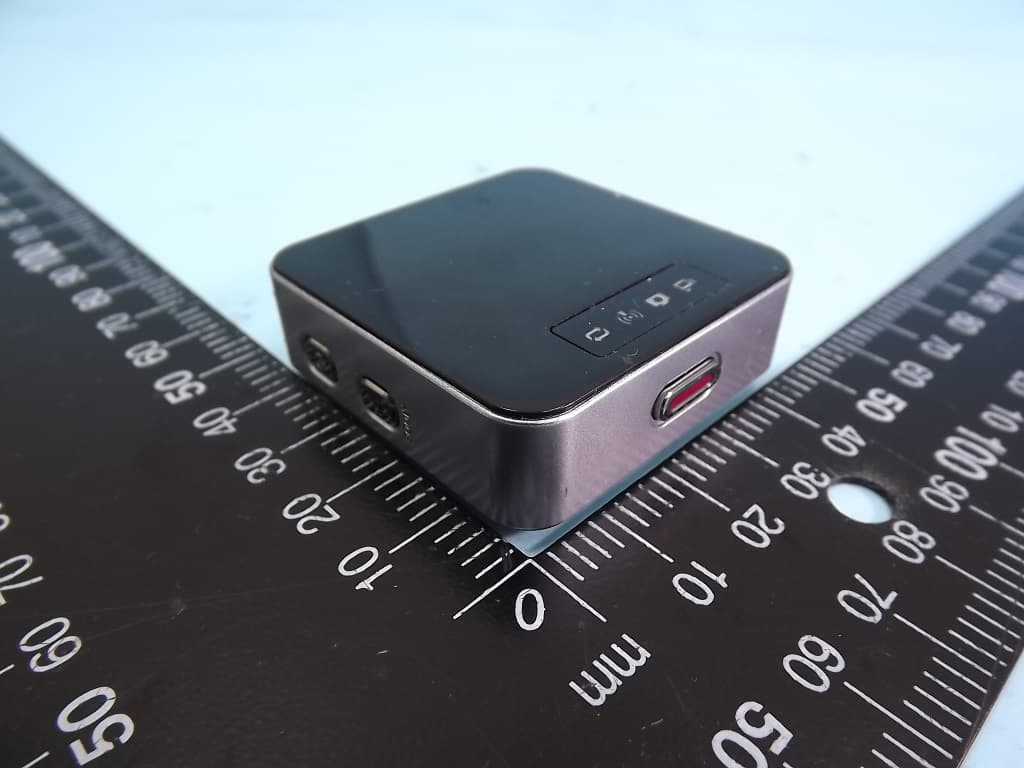

FCC Test Report Report No. : EP380224 SPORTON International Inc. PAGE NUMBER : B1 OF B16 TEL : 886-3-327-3456 ISSUED DATE : Sep. 06, 2013 FAX : 886-3-327-0973 APPENDIX A. Photographs of EUT FCC Test Report Report No. : EP380224 SPORTON International Inc. PAGE NUMBER : B2 OF B16 TEL : 886-3-327-3456 ISSUED DATE : Sep. 06, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP380224 SPORTON International Inc. PAGE NUMBER : B3 OF B16 TEL : 886-3-327-3456 ISSUED DATE : Sep. 06, 2013 FAX : 886-3-327-0973

EUT Back Label Location

FCC Test Report Report No. : EP380224 SPORTON International Inc. PAGE NUMBER : B4 OF B16 TEL : 886-3-327-3456 ISSUED DATE : Sep. 06, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP380224 SPORTON International Inc. PAGE NUMBER : B5 OF B16 TEL : 886-3-327-3456 ISSUED DATE : Sep. 06, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP380224 SPORTON International Inc. PAGE NUMBER : B6 OF B16 TEL : 886-3-327-3456 ISSUED DATE : Sep. 06, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP380224 SPORTON International Inc. PAGE NUMBER : B7 OF B16 TEL : 886-3-327-3456 ISSUED DATE : Sep. 06, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP380224 SPORTON International Inc. PAGE NUMBER : B8 OF B16 TEL : 886-3-327-3456 ISSUED DATE : Sep. 06, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP380224 SPORTON International Inc. PAGE NUMBER : B9 OF B16 TEL : 886-3-327-3456 ISSUED DATE : Sep. 06, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP380224 SPORTON International Inc. PAGE NUMBER : B10 OF B16 TEL : 886-3-327-3456 ISSUED DATE : Sep. 06, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP380224 SPORTON International Inc. PAGE NUMBER : B11 OF B16 TEL : 886-3-327-3456 ISSUED DATE : Sep. 06, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP380224 SPORTON International Inc. PAGE NUMBER : B12 OF B16 TEL : 886-3-327-3456 ISSUED DATE : Sep. 06, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP380224 SPORTON International Inc. PAGE NUMBER : B13 OF B16 TEL : 886-3-327-3456 ISSUED DATE : Sep. 06, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP380224 SPORTON International Inc. PAGE NUMBER : B14 OF B16 TEL : 886-3-327-3456 ISSUED DATE : Sep. 06, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP380224 SPORTON International Inc. PAGE NUMBER : B15 OF B16 TEL : 886-3-327-3456 ISSUED DATE : Sep. 06, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP380224 SPORTON International Inc. PAGE NUMBER : B16 OF B16 TEL : 886-3-327-3456 ISSUED DATE : Sep. 06, 2013 FAX : 886-3-327-0973

SPORTON INTERNATIONAL INC. Page Number : 1 of 29 TEL : 886-3-327-3456 Report Issued Date : Sep. 17, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : E8HDCD932U30A FCC SAR Test Report Report No. : FA380224 FCC SAR Test Report APPLICANT : Chicony Electronics Co., Ltd. EQUIPMENT : Wireless Camcorder BRAND NAME : Chicony MODEL NAME : DC-D932 FCC ID : E8HDCD932U30A STANDARD : FCC 47 CFR Part 2 (2.1093) ANSI/IEEE C95.1-1992 IEEE 1528-2003 We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. Approved by: Jones Tsai / Manager Reviewed by: Eric Huang / Deputy Manager SPORTON INTERNATIONAL INC. Page Number : 2 of 29 TEL : 886-3-327-3456 Report Issued Date : Sep. 17, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : E8HDCD932U30A FCC SAR Test Report Report No. : FA380224 Table of Contents 1. Statement of Compliance ............................................................................................................................................. 4 2. Administration Data ...................................................................................................................................................... 4 2.1 Testing Laboratory .................................................................................................................................................. 4 2.2 Applicant ................................................................................................................................................................ 4 2.3 Manufacturer .......................................................................................................................................................... 4 2.4 Application Details .................................................................................................................................................. 4 3. General Information ...................................................................................................................................................... 5 3.1 Description of Equipment Under Test (EUT) .......................................................................................................... 5 3.2 Maximum RF output power among production units .............................................................................................. 5 3.3 Applied Standard .................................................................................................................................................... 6 3.4 Device Category and SAR Limits ........................................................................................................................... 6 3.5 Test Conditions ....................................................................................................................................................... 6 4. Specific Absorption Rate (SAR) ................................................................................................................................... 7 4.1 Introduction ............................................................................................................................................................ 7 4.2 SAR Definition ........................................................................................................................................................ 7 5. SAR Measurement System ........................................................................................................................................... 8 5.1 E-Field Probe ......................................................................................................................................................... 9 5.2 Data Acquisition Electronics (DAE) ........................................................................................................................ 9 5.3 Robot ....................................................................................................................................................................10 5.4 Measurement Server .............................................................................................................................................10 5.5 Phantom ................................................................................................................................................................ 11 5.6 Device Holder........................................................................................................................................................12 5.7 Data Storage and Evaluation ................................................................................................................................13 5.8 Test Equipment List ...............................................................................................................................................15 6. Tissue Simulating Liquids ...........................................................................................................................................16 7. System Verification Procedures .................................................................................................................................18 7.1 Purpose of System Performance check ................................................................................................................18 7.2 System Setup .................................................................................................................................................…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013/9/16 System Check_Body_2450MHz_130916 DUT: D2450V2-SN:869 Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: MSL_2450_130916 Medium parameters used: f = 2450 MHz; σ = 1.93 mho/m; ε r = 53.6; ρ = 1000 kg/m 3 DASY4 Configuration: - Probe: ES3DV3 - SN3071; ConvF(4.02, 4.02, 4.02); Calibrated: 2013/6/18 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1279; Calibrated: 2013/1/28 - Phantom: SAM_Right; Type: SAM; Serial: TP-1303 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (interpolated) = 17.8 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 94.1 V/m; Power Drift = -0.014 dB Peak SAR (extrapolated) = 25.4 W/kg SAR(1 g) = 12.6 mW/g; SAR(10 g) = 5.94 mW/g Maximum value of SAR (measured) = 16.3 mW/g 0 dB = 16.3mW/g

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013/9/16 #01_WLAN2.4GHz_802.11b 1Mbps_Front_0cm_Ch6 Communication System: 802.11b ; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium: MSL_2450_130916 Medium parameters used: f = 2437 MHz; σ = 1.91 mho/m; ε r = 53.6; ρ = 1000 kg/m 3 DASY4 Configuration: - Probe: ES3DV3 - SN3071; ConvF(4.02, 4.02, 4.02); Calibrated: 2013/6/18 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1279; Calibrated: 2013/1/28 - Phantom: SAM_Right; Type: SAM; Serial: TP-1303 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Ch6/Area Scan (61x61x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (interpolated) = 0.491 mW/g Ch6/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 9.50 V/m; Power Drift = -0.190 dB Peak SAR (extrapolated) = 0.571 W/kg SAR(1 g) = 0.271 mW/g; SAR(10 g) = 0.135 mW/g Maximum value of SAR (measured) = 0.342 mW/g 0 dB = 0.342mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013/9/16 #02_WLAN2.4GHz_802.11b 1Mbps_Back_0cm_Ch6 Communication System: 802.11b ; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium: MSL_2450_130916 Medium parameters used: f = 2437 MHz; σ = 1.91 mho/m; ε r = 53.6; ρ = 1000 kg/m 3 DASY4 Configuration: - Probe: ES3DV3 - SN3071; ConvF(4.02, 4.02, 4.02); Calibrated: 2013/6/18 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1279; Calibrated: 2013/1/28 - Phantom: SAM_Right; Type: SAM; Serial: TP-1303 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Ch6/Area Scan (61x61x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (interpolated) = 0.380 mW/g Ch6/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 8.06 V/m; Power Drift = -0.088 dB Peak SAR (extrapolated) = 0.652 W/kg SAR(1 g) = 0.305 mW/g; SAR(10 g) = 0.151 mW/g Maximum value of SAR (measured) = 0.398 mW/g 0 dB = 0.398mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013/9/16 #05_WLAN2.4GHz_802.11b 1Mbps_Left Side_0cm_Ch6 Communication System: 802.11b ; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium: MSL_2450_130916 Medium parameters used: f = 2437 MHz; σ = 1.91 mho/m; ε r = 53.6; ρ = 1000 kg/m 3 DASY4 Configuration: - Probe: ES3DV3 - SN3071; ConvF(4.02, 4.02, 4.02); Calibrated: 2013/6/18 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1279; Calibrated: 2013/1/28 - Phantom: SAM_Right; Type: SAM; Serial: TP-1303 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Ch6/Area Scan (41x61x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (interpolated) = 0.606 mW/g Ch6/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 16.3 V/m; Power Drift = 0.115 dB Peak SAR (extrapolated) = 0.980 W/kg SAR(1 g) = 0.470 mW/g; SAR(10 g) = 0.217 mW/g Maximum value of SAR (measured) = 0.582 mW/g 0 dB = 0.482mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013/9/16 #06_WLAN2.4GHz_802.11b 1Mbps_Right Side_0cm_Ch6 Communication System: 802.11b ; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium: MSL_2450_130916 Medium parameters used: f = 2437 MHz; σ = 1.91 mho/m; ε r = 53.6; ρ = 1000 kg/m 3 DASY4 Configuration: - Probe: ES3DV3 - SN3071; ConvF(4.02, 4.02, 4.02); Calibrated: 2013/6/18 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1279; Calibrated: 2013/1/28 - Phantom: SAM_Right; Type: SAM; Serial: TP-1303 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Ch6/Area Scan (41x61x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (interpolated) = 0.359 mW/g Ch6/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 14.0 V/m; Power Drift = -0.177 dB Peak SAR (extrapolated) = 0.530 W/kg SAR(1 g) = 0.259 mW/g; SAR(10 g) = 0.118 mW/g Maximum value of SAR (measured) = 0.339 mW/g 0 dB = 0.339mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013/9/16 #03_WLAN2.4GHz_802.11b 1Mbps_Top Side_0cm_Ch6 Communication System: 802.11b ; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium: MSL_2450_130916 Medium parameters used: f = 2437 MHz; σ = 1.91 mho/m; ε r = 53.6; ρ = 1000 kg/m 3 DASY4 Configuration: - Probe: ES3DV3 - SN3071; ConvF(4.02, 4.02, 4.02); Calibrated: 2013/6/18 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1279; Calibrated: 2013/1/28 - Phantom: SAM_Right; Type: SAM; Serial: TP-1303 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Ch6/Area Scan (41x61x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (interpolated) = 0.513 mW/g Ch6/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 15.3 V/m; Power Drift = -0.161 dB Peak SAR (extrapolated) = 0.981 W/kg SAR(1 g) = 0.385 mW/g; SAR(10 g) = 0.164 mW/g Maximum value of SAR (measured) = 0.543 mW/g 0 dB = 0.543mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013/9/16 #04_WLAN2.4GHz_802.11b 1Mbps_Bottom Side_0cm_Ch6 Communication System: 802.11b ; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium: MSL_2450_130916 Medium parameters used: f = 2437 MHz; σ = 1.91 mho/m; ε r = 53.6; ρ = 1000 kg/m 3 DASY4 Configuration: - Probe: ES3DV3 - SN3071; ConvF(4.02, 4.02, 4.02); Calibrated: 2013/6/18 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1279; Calibrated: 2013/1/28 - Phantom: SAM_Right; Type: SAM; Serial: TP-1303 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Ch6/Area Scan (41x61x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (interpolated) = 0.131 mW/g Ch6/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 7.00 V/m; Power Drift = 0.114 dB Peak SAR (extrapolated) = 0.169 W/kg SAR(1 g) = 0.088 mW/g; SAR(10 g) = 0.045 mW/g Maximum value of SAR (measured) = 0…

Text truncated - open the document above for the full version.

FCC Test Report Report No. : FR380224 SPORTON INTERNATIONAL INC. Page No. : 1 of 47 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 FCC Test Report Equipment : Wireless Camcorder Brand Name : Chicony Model No. : DC-D932 FCC ID : E8HDCD932U30A Standard : 47 CFR FCC Part 15.247 Operating Band : 2400 MHz – 2483.5 MHz FCC Classification : DTS Applicant : Chicony Electronics Co., Ltd. No. 25, Wugong 6th Rd., Wugu Dist., New Taipei City 248, Taiwan (R.O.C.) Manufacturer : Chicony Electronics ( Mainland China II ) Co., Ltd. San Zhong Gong Li Qu, Qingxi, Dongguan, China The product sample received on Aug. 09, 2013 and completely tested on Aug. 22, 2013. We, SPORTON, would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI C63.10-2009 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Wayne Hsu / Assistant Manager FCC Test Report Report No. : FR380224 SPORTON INTERNATIONAL INC. Page No. : 2 of 47 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information.............................................................................................................................................. 5 1.2 Accessories and Support Equipment ..................................................................................................... 7 1.3 Testing Applied Standards ..................................................................................................................... 7 1.4 Testing Location Information .................................................................................................................. 8 1.5 Measurement Uncertainty ...................................................................................................................... 8 2 TEST CONFIGURATION OF EUT ........................................................................................................ 9 2.1 The Worst Case Modulation Configuration ............................................................................................ 9 2.2 The Worst Case Power Setting Parameter ............................................................................................ 9 2.3 The Worst Case Measurement Configuration ...................................................................................... 10 2.4 Test Setup Diagram ............................................................................................................................. 11 3 TRANSMITTER TEST RESULT .......................................................................................................... 13 3.1 AC Power-line Conducted Emissions .................................................................................................. 13 3.2 6dB Bandwidth ..................................................................................................................................... 16 3.3 RF Output Power .................................................................................................................................. 18 3.4 Power Spectral Density ........................................................................................................................ 23 3.5 Transmitter Bandedge Emissions ........................................................................................................ 25 3.6 Transmitter Unwanted Emissions......................................................................................................... 29 4 TEST EQUIPMENT AND CALIBRATION DATA ................................................................................ 46 APPENDIX A. TEST PHOTOS APPENDIX B. PHOTOGRAPHS OF EUT FCC Test Report Report No. : FR380224 SPORTON INTERNATIONAL INC. Page No. : 3 of 47 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Summary of Test Result Conformance Test Specifications Report Clause Ref. Std. Clause Description Measured Limit Result 1.1.2 15.203 Antenna Requirement Antenna connector mechanism complied FCC 15.203 Complied 3.1 15.207 AC Power-line Conducted Emissions [dBuV]: 0.5408230MHz 35.78 (Margin 10.22dB) - AV 43.00 (Margin 13.00dB) - QP FCC 15.207 Complied 3.2 15.247(a) Bandwidth 6dB Bandwidth Unit [MHz] 11b: 9.28 / 11g: 16.14 ≥500kHz Complied 3.3 15.247(b) RF Output Power (Maximum Peak Conducted Output Power) Power [dBm]:18.28 Power [dBm]:30 Complied 3.4 15.247(d) Power Spectral Density PSD [dBm/100kHz]:-10.45 PSD [dBm/3kHz]:8 Complied 3.5 15.247(c) Transmitter Radiated Bandedge Emissions Non-Restricted Bands: 2400.000MHz: 30.03dB Restricted Bands [dBuV/m at 3m]: 2390.000MHz 70.16 (Margin 3.84dB) - PK 52.82 (Margin 1.18dB) - AV Non-Restricted Bands: > 20 dBc Restricted Bands: FCC 15.209 Complied 3.6 15.247(c) Transmitter Radiated Unwanted Emissions Restricted Bands [dBuV/m at 3m]: 335.55MHz 42.35 (Margin 3.65dB) - PK Non-Restricted Bands: > 20 dBc Restricted Bands: FCC 15.209 Complied FCC Test Report Report No. : FR380224 SPORTON INTERNATIONAL INC. Page No. : 4 of 47 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Revision History Report No. Version Description Issued Date FR380224 Rev. 01 Initial issue of report Aug. 30, 2013 2500-2690 FCC Test Report Report No. : FR380224 SPORTON INTERNATIONAL INC. Page No. : 5 of 47 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 General Description 1.1 Information 1.1.1 RF General Information RF General Information Frequency Range (MHz) IEEE Std. 802.11 Ch. Freq. (MHz) Channel Number Transmit Chains (N TX ) RF Output Power (dBm) Co-location 2400-2483.5 b 2412-2462 1-11 [11] 1 18.28 …

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL INC. Page Number : D1 of D1 TEL : 886-3-327-3456 Report Issued Date : Sep. 17, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : E8HDCD932U30A FCC SAR Test Report Report No. : FA380224 Appendix D. SAR Test Setup Photos Front, Test Separation 0 cm Back, Test Separation 0 cm Left Side, Test Separation 0 cm Right Side, Test Separation 0 cm Top Side, Test Separation 0 cm Bottom Side, Test Separation 0 cm

FCC Test Report Report No. : FR380224 SPORTON INTERNATIONAL INC. Page No. : A1 of A7 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Appendix A. Test Photos FCC Test Report Report No. : FR380224 SPORTON INTERNATIONAL INC. Page No. : A2 of A7 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 Photographs of Conducted Emissions Test Configuration FRONT VIEW REAR VIEW FCC Test Report Report No. : FR380224 SPORTON INTERNATIONAL INC. Page No. : A3 of A7 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 SIDE VIEW FCC Test Report Report No. : FR380224 SPORTON INTERNATIONAL INC. Page No. : A4 of A7 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 2 Photographs of Radiated Emissions Test Configuration For radiated emissions 9kHz~30MHz FRONT VIEW REAR VIEW FCC Test Report Report No. : FR380224 SPORTON INTERNATIONAL INC. Page No. : A5 of A7 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 For radiated emissions 30MHz~1GHz FRONT VIEW REAR VIEW FCC Test Report Report No. : FR380224 SPORTON INTERNATIONAL INC. Page No. : A6 of A7 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 For radiated emissions above 1GHz FRONT VIEW REAR VIEW FCC Test Report Report No. : FR380224 SPORTON INTERNATIONAL INC. Page No. : A7 of A7 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 FIXTURE 1 FIXTURE 2
