Wireless Keyboard + Mouse Kits User’s Manual ~ English ~ A. FEDERAL COMMUNICATIONS COMMISSION (FCC) STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, Pursuant to Part 15 the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ● Reorient or relocate the receiving antenna. ● Increase the separation between the equipment and receiver. ● Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ● Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. WARNING: Use only shielded cables to connect I/O devices to this equipment. You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. CAUTION: AVOID PROLONGED USE OF THE KEYBOARD WITHOUT BREAKS. Take regular breaks and keep a good posture. Consult your physician promptly if you notice any lost of motion or pain in your wrist when using the keyboard. INFORMATION FOR OPTICAL POINTING DEVICES ONLY: This product has been tested to comply with International Standard IEC 60825- 1: (1993), incld. Amd. 2(2001). This product users LEDs that are inherently Class 1. IMPORTANT BATTERY INFORMATION ● Keep batteries out of reach of children. ● Insert the batteries in the proper direction as indicated by the positive (+) and negative (-) markings in the battery compartment. ● Do not mix old and new batteries or batteries of different types (for example, carbon and alkaline batteries). ● Always remove old, weak, or worn-out batteries promptly and recycle or proper disposal of them in accordance with Local and National Disposal Regulations. ● If a battery leaks, remove all batteries and recycle or dispose of them in accordance with the battery manufacture's instructions and Local and National Disposal Regulations. Before inserting new batteries, thoroughly clean the compartment with a damp paper towel, or follow the battery manufacture's recommendations for cleanup. If fluid from the battery comes into contact with skin or clothes, flush skin with water immediately. ● Remove the batteries if your device is to be stored for an extended period of time without being used. PRODUCT DISPOSAL INFORMATION Dispose of this product in accordance with Local and National Disposal Regulations. B. PRODUCT SPECIFICATION 1. Power requirement: 3V 2. Battery : Keyboard : 2 pieces of AAA Batteries Mouse : 2 pieces of AA Batteries 3. Battery life time : Keyboard : 900 hours reference (operating mode) Mouse : 300 hours reference (operating mode) 4. Operation distance : Keyboard : 10 M without signal disturbance and no direction limit. Mouse : 10 M without signal disturbance and no direction limit. 5. Mouse resolution : 1000 DPI 6. System OS support: Windows 2000/XP/Vista/Windows 7 7. Operating temperature : 0°C ~ +40°C 8. Storage temperature : -40°C ~ +65°C Wireless Keyboard + Mouse Kits User’s Manual - 1 - ¦ § ¦ Getting Started Thank you for choosing this 2.4G Wireless keyboard and Mouse Kits. It operates with digital radio technology to ensure no hinder communication between the keyboard, the mouse and your computer without connecting cable. The transmission and receiving of keyboard and mouse are free from angle restriction. Features ● Complies with Directive 1995/5/EC of the European Parliament and Commission. ● Complies with the mutual recognition of conformity 1999 for radio and telecommunications Equipment. ● Manufactured with environmental friendly recycled materials. ● Fully compliant with original USB version 2.0 and HID Version 1.11. Preparing Keyboard, mouse and receiver Before working with your new keyboard and mouse, look at the "Hardware Installation", and take a few one-time preparations. Hardware Installation ● Place the receiver at least 20 cm from other electrical devices (e.g. monitor) to achieve optimum performance. ● The distance between the keyboard, mouse and receiver should not exceed 10 M. ● Do not place the receiver on metal surfaces. ● Do not move optical mouse on following surface - Glass or any transparent materials Dark surface Mirror or reflecting surface Mouse pad with too many colors Rough surface. Step 1: Connect the receiver ● Plug the dongle connector into an USB port. ● SYSTEM will take around 10 sec to find your keyboard and mouse automatically. Step 2: Insert batteries Inserting batteries in mouse The mouse requires two alkaline AA batteries. ● Remove the battery compartment cover on the bottom of the mouse ● First push the battery puller in then insert two AA batteries into battery compartment. ● Fix the battery compartment cover ¦ on the bottom of mouse again. CAUTION: Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to instructions. Refer to "Important Battery Information" for disposal instructions. Inserting batteries in keyboard The keyboard requires two alkaline batteries (AAA). ● Remove the battery compartme…

Text truncated - open the document above for the full version.

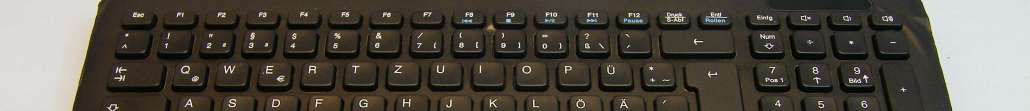

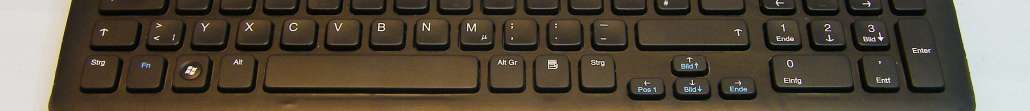

Page 1 CONSTRUCTION PHOTOS OF EUT

FCC ID: E8HKG-1027 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label

Page 2 Page 3 Page 4

FCC ID: E8HKG-1027 Report No.: RF990702D12 Operational Description The transmitter of the EUT (Wireless Keyboard) is powered by 3Vdc from batteries. The type of antenna is Strip Antenna. The output power of this device is very low. Under normal use condition, the transmitter and the receiver are quite close, so high EIRP power is neither necessary nor allowed because of interference.

Report No.: RF990702D12 1 Report Format Version 3.0.1 FCC TEST REPORT REPORT NO.: RF990702D12 MODEL NO.: KG-1027 FCC ID: E8HKG-1027 RECEIVED: July 2, 2010 TESTED: July 7, 2010 ISSUED: July 20, 2010 APPLICANT: Chicony Electronics Co., Ltd. ADDRESS: No. 25, Wu-Gong 6th Rd., Wu Ku Industrial Park, Taipei Hsien, Taiwan, R.O.C. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB LOCATION: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang, Taipei Hsien, 244 Taiwan This test report consists of 24 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF990702D12 2 Report Format Version 3.0.1 Table of Contents 1. CERTIFICATION...........................................................................................3 2. SUMMARY OF TEST RESULTS...................................................................4 2.1 MEASUREMENT UNCERTAINTY................................................................4 3. GENERAL INFORMATION...........................................................................5 3.1 GENERAL DESCRIPTION OF EUT..............................................................5 3.2 DESCRIPTION OF TEST MODES................................................................6 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST...........................................6 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL:...............7 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS...............................8 3.4 DESCRIPTION OF SUPPORT UNITS..........................................................8 4. TEST TYPES AND RESULTS.......................................................................9 4.1 CONDUCTED EMISSION MEASUREMENT................................................9 4.2 RADIATED EMISSION MEASUREMENT.....................................................9 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT...................................9 4.2.2 TEST INSTRUMENTS................................................................................10 4.2.3 TEST PROCEDURES.................................................................................11 4.2.4 DEVIATION FROM TEST STANDARD.......................................................11 4.2.5 TEST SETUP..............................................................................................12 4.2.6 EUT OPERATING CONDITIONS................................................................12 4.2.7 TEST RESULTS..........................................................................................13 4.3 BAND EDGES MEASUREMENT................................................................19 4.3.1 LIMITS OF BAND EDGES MEASUREMENT.............................................19 4.3.2 TEST INSTRUMENTS................................................................................19 4.3.3 TEST PROCEDURE...................................................................................19 4.3.4 DEVIATION FROM TEST STANDARD.......................................................19 4.3.5 EUT OPERATING CONDITION..................................................................19 4.3.6 TEST RESULTS..........................................................................................19 5. PHOTOGRAPHS OF THE TEST CONFIGURATION..................................22 6. INFORMATION ON THE TESTING LABORATORIES................................23 7. APPENDIX A – MODIFICATIONS RECORDERS FOR ENGINEERING CHANGES TO THE EUT BY THE LAB.......................................................24 Report No.: RF990702D12 3 Report Format Version 3.0.1 1. CERTIFICATION PRODUCT: Wireless Keyboard BRAND NAME: Chicony MODEL NO.: KG-1027 APPLICANT: Chicony Electronics Co., Ltd. TESTED: July 7, 2010 TEST ITEM: ENGINEERING SAMPLE STANDARDS: FCC Part 15, Subpart C (Section 15.249) ANSI C63.4-2003 The above equipment has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE: July 20, 2010 ( Celia Chen / Senior Specialist ) TECHNICAL ACCEPTANCE : , DATE: July 20, 2010 Responsible for RF ( Jamison Chan / Supervisor ) APPROVED BY : , DATE: July 20, 2010 ( Ken Liu / Assistant Manager ) Report No.: RF990702D12 4 Report Format Version 3.0.1 2. SUMMARY OF TEST RESULTS The EUT has been tested according to the following specifications: APPLIED STANDARD: FCC Part 15, Subpart C (Section 15.249) STANDARD SECTION TEST TYPE AND LIMIT RESULT REMARK 15.207 Conducted Emission Test N/A Power supply is 3Vdc from batteries 15.209 15.249 15.249 (d) Radiated Emission Test Band Edge Measurement Limit: 50dB less than the peak value of fundamental frequency or meet radiated emission limit in section 12.209 PASS Minimum passing margin is –7.7dB at 2390.00MHz 2.1 MEASUREMENT UNCERTAINTY Where relevant, the following measurement uncertainty levels have been estimated for tests performed on the EUT as specified in CISPR 16-4-2: This uncertainty represents an expanded uncertainty expressed at approximately the 95% confidence level using a coverage factor of k=2. Measurement Frequency Uncertainty 30MHz ~ 1GHz 3.67 dB Radiated emissions Above 1GHz 2.89 dB Report No.: RF990702D12 5 Report Format Version 3.0.1 3. GENERAL INFORMATION 3.1 GENERAL DESCRIPTION OF EUT EUT Wireless Keyboard MODEL NO. KG-1027 FCC ID E8HKG-1027 POWER SUPPLY 3Vdc from batteries MODULATION TYPE GFSK OPERATING FREQUENCY 2403MHz ~ 2480MHz NUMBER OF CHANNEL 78 ANT…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION RADIATED EMISSION TEST
