E8HKG-1128Wireless Keyboard

English Wireless Keyboard + Mouse Kits Getting Started Thank you for choosing this 2.4G Wireless Keyboard and Mouse Kit. It operates with digital radio technology to ensure unhindered communication among the keyboard, the mouse and your computer without a cable connection. The transmission and reception of the keyboard and mouse are free from angle restrictions. Preparing Keyboard, Mouse and Receiver Before working with your new keyboard and mouse, please look at "Hardware Installation", and take a few steps for a one-time preparation. Hardware Installation Optimal usage environment • Place the receiver at least 20 cm from other electrical devices (e.g. monitor) to achieve optimum performance. • The distance among the keyboard, mouse and receiver should not exceed 6 M long in distance. • Do not place the receiver on any metal surfaces. • Do not move optical mouse on the following surfaces - Glass or any transparent materials Dark surface Mirrored or reflective surface Mouse pad with too many colors Rough surface Set up the mouse Step 1: Take out the USB receiver • Open the battery compartment cover at the bottom of the mouse; Take out the USB receiver (1) under the battery cover. Step 2: Insert the battery into the mouse The mouse requires one alkaline AA battery. • Open the battery compartment cover at the bottom of the mouse. • Push the battery puller in and then insert one AA battery (2) into the battery compartment. • Replace the battery compartment cover. Step 3: Connect the USB receiver • Plug the USB receiver dongle into a USB port on your PC. • The system will take around 10 sec to detect your keyboard and mouse automatically. Step 4: Turn on the mouse • Ensure the switch (3) at the bottom of the mouse is “ON” Setting up the keyboard Insert the battery. • Remove the battery compartment cover (4) at the bottom of the keyboard by pushing it in the direction of the arrow. • Insert two AAA batteries. • Place back the battery compartment cover (4). CAUTION: Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to instructions. Refer to "Important Battery Information" for disposal instructions. Working with Keyboard and Mouse The following sections contain information on using the keyboard and the mouse. Mouse In addition to two buttons, the mouse also has a wheel that can be used as followings: • As a 3rd button: By pressing on the wheel. • For scrolling, e.g. in reading document or on viewing Internet pages: Scroll the wheel forward or backward. Keyboard • Re-install battery indicator One amber-colored LED on upper-right edge of keyboard will keep lit up for 5 seconds when you re-install a new battery to the keyboard. • Low battery warning Amber-colored LED on upper-right edge of keyboard will keep flashing when it operates in low power. *ST.12300.040* ST.12300.040 1 2 3 4 Power indicator • The following description of keys applies for the operating systems that support these functions: (e.g. Windows 2000/XP/Vista/Windows 7) Vista Key Press Vista key to open Start Menu. Application Key Pressing the Application key is the same as clicking the right mouse key to open the current function menu. Sleep (Fn+F1) Depending on the settings in the BIOS setup or operating system, the computer switches to standby mode (not under Windows NT) by pressing this key. Search (Fn+F2) Activate the default Internet/file search function. E-mail (Fn+F3) Use this key to start the standard e-mail for your system. Internet (Fn+F4) You can start the standard browser for your system with this key. My favorite (Fn+F5) You can start your favorite website with this key. Mute (Fn+F6) Press this key to mute/unmute the audio. Volume Down (Fn+F7) Press this key to decrease the volume. Volume Up (Fn+F8) Press this key to increase the volume. Previous Track (Fn+F9) Multimedia key to skip to the previous track in the active player. Stop (Fn+F10) Multimedia key to stop the track or video in the active player. Play/Pause (Fn+F11) Multimedia key to play or pause the track or video in the active player. Next Track( Fn+F12) Multimedia key to skip to the next track in the active player. My Computer Open My Computer folder. Calculator Open the Calculator program. FEDERAL COMMUNICATIONS COMMISSION (FCC) STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. WARNING: Use only shielded cables to connect I/O devices to this equipment. You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. CAUTION: AVOID PROLONGED USE OF THE KEYBOARD WITHOUT BREAKS. Take regular breaks and keep a good posture. Consult your physic…

Text truncated - open the document above for the full version.

Chicony Electronics Co., Ltd. No.25 Wu-Gong 6 Th Rd. Wu-Ku Industrial Park, Taipei, Taiwan, R.O.C. Tel: 886-2-22988120 Fax: 886-2-22989745 Federal Communications Commission Authorization and Evaluation Division Date: 12/8/2011 Confidentiality Request FCC ID: E8HKG-1128 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Thank you! Sincerely yours, ------------------------------------------ T.S.Chen / Manager Chicony Electronics Co., Ltd. Tel: +886 2-2298-8120 Fax: +886 2-2298-9745 E-mail : [email protected]

Chicony Electronics Co., Ltd. No.25 Wu-Gong 6 Th Rd. Wu-Ku Industrial Park, Taipei, Taiwan, R.O.C. Tel: 886-2-22988120 Fax: 886-2-22989745 Power of Attorney To whom it may concern: Date: December 8, 2011 We, the undersigned, Chicony Electronics Co., Ltd., hereby authorize Bureau Veritas Consumer Products Services(H.K.) Ltd., Taoyuan Branch (BV CPS Taoyuan) of Taiwan to act on our behalf in all matters relating to all processes required in the FCC Part 15C approval and any communication needed with the national authority. Any and all acts carried out by BV CPS Taoyuan on our behalf shall have the same effects as acts of our own. Product Name Model FCC ID Wireless Keyboard KG-1128 E8HKG-1128 Wireless Mouse MG-1131 E8HMG-1131 If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, ------------------------------------------ T.S. Chen / Manager Chicony Electronics Co., Ltd. Tel: +886 2-2298-8120 Fax: +886 2-2298-9745 E-mail : [email protected]

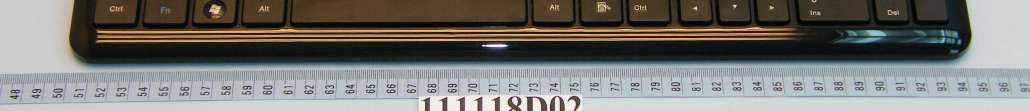

Page 1 CONSTRUCTION PHOTOS OF EUT

FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label

Page 2 Page 3 Page 4

FCC ID: E8HKG-1128 Report No.: RF111118D02 Operational Description The transmitter of the EUT (Wireless Keyboard) is powered by 3Vdc from batteries. The type of antenna is Strip antenna. The output power of this device is very low. Under normal use condition, the transmitter and the receiver are quite close, so high EIRP power is neither necessary nor allowed because of interference.

Report No.: RF111118D02 1 Report Format Version 4.0.0 FCC TEST REPORT REPORT NO.: RF111118D02 MODEL NO.: KG-1128 FCC ID: E8HKG-1128 RECEIVED: Nov. 18, 2011 TESTED: Nov. 21, 2011 ISSUED: Nov. 30, 2011 APPLICANT: Chicony Electronics Co., Ltd. ADDRESS: No. 25, Wu-Gong 6th Rd., Wu Ku Industrial Park, Taipei Hsien, Taiwan, R.O.C. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB LOCATION: No. 47, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan ( R.O.C. ) This test report consists of 24 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF111118D02 2 Report Format Version 4.0.0 Table of Contents RELEASE CONTROL RECORD..............................................................................3 1. CERTIFICATION...........................................................................................4 2. SUMMARY OF TEST RESULTS...................................................................5 2.1 MEASUREMENT UNCERTAINTY...............................................................5 3. GENERAL INFORMATION...........................................................................6 3.1 GENERAL DESCRIPTION OF EUT............................................................6 3.2 DESCRIPTION OF TEST MODES..............................................................7 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST.........................................7 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL:.............8 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS.............................9 3.4 DESCRIPTION OF SUPPORT UNITS........................................................9 4. TEST TYPES AND RESULTS.....................................................................10 4.1 CONDUCTED EMISSION MEASUREMENT............................................10 4.2 RADIATED EMISSION MEASUREMENT.................................................10 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT...............................10 4.2.2 TEST INSTRUMENTS..............................................................................11 4.2.3 TEST PROCEDURES...............................................................................12 4.2.4 DEVIATION FROM TEST STANDARD.....................................................12 4.2.5 TEST SETUP............................................................................................13 4.2.6 EUT OPERATING CONDITIONS..............................................................13 4.2.7 TEST RESULTS........................................................................................14 4.3 BAND EDGES MEASUREMENT..............................................................19 4.3.1 LIMITS OF BAND EDGES MEASUREMENT............................................19 4.3.2 TEST INSTRUMENTS..............................................................................19 4.3.3 TEST PROCEDURE.................................................................................19 4.3.4 DEVIATION FROM TEST STANDARD.....................................................19 4.3.5 EUT OPERATING CONDITION................................................................19 4.3.6 TEST RESULTS........................................................................................19 5. PHOTOGRAPHS OF THE TEST CONFIGURATION..................................22 6. INFORMATION ON THE TESTING LABORATORIES................................23 7. APPENDIX A – MODIFICATIONS RECORDERS FOR ENGINEERING CHANGES TO THE EUT BY THE LAB.......................................................24 Report No.: RF111118D02 3 Report Format Version 4.0.0 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED RF111118D02 Original release Nov. 30, 2011 Report No.: RF111118D02 4 Report Format Version 4.0.0 1. CERTIFICATION PRODUCT: Wireless Keyboard BRAND NAME: acer MODEL NO.: KG-1128 APPLICANT: Chicony Electronics Co., Ltd. TESTED: Nov. 21 2011 TEST ITEM: ENGINEERING SAMPLE STANDARDS: FCC Part 15, Subpart C (Section 15.249) ANSI C63.4-2003 ANSI C63.10-2009 The above equipment has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE: ( Annie Chang / Senior Specialist ) APPROVED BY : , DATE: ( Ken Liu / Manager ) Report No.: RF111118D02 5 Report Format Version 4.0.0 2. SUMMARY OF TEST RESULTS The EUT has been tested according to the following specifications: APPLIED STANDARD: FCC Part 15, Subpart C (Section 15.249) STANDARD SECTION TEST TYPE AND LIMIT RESULT REMARK 15.207 Conducted Emission Test N/A Power supply is 3Vdc from batteries 15.209 15.249 15.249 (d) Radiated Emission Test Band Edge Measurement Limit: 50dB less than the peak value of fundamental frequency or meet radiated emission limit in section 12.209 PASS Minimum passing margin is –10.2dB at 2390.00MHz 2.1 MEASUREMENT UNCERTAINTY Where relevant, the following measurement uncertainty levels have been estimated for tests performed on the EUT as specified in CISPR 16-4-2: This uncertainty represents an expanded uncertainty expressed at approximately the 95% confidence level using a coverage factor of k=2. Measurement Frequency Uncertainty 30MHz ~ 1GHz 3.87 dB Radiated emissions Above 1GHz 3.36 dB Report No.: RF111118D02 6 Report Format Version 4.0.0 3. GENERAL INFORMATION 3.1 GENERAL DESCRIPTION OF EUT EUT Wireless Keyboard MODEL NO. KG-1128 FCC ID E8HKG-1128 POWER SU…

Text truncated - open the document above for the full version.

Report No.: RF111118D02 1 Report Format Version 4.0.0 PHOTOGRAPHS OF THE TEST CONFIGURATION RADIATED EMISSION TEST
