E8HKR-0350Wireless Keyboard

Neutron Engineering Inc. No. 132-1, Lane 329, Sec. 2, Palain Rd., Shijr Jen, Taipei, Taiwan, R.O.C. Applicant: Chicony Electronics. Co., Ltd. FCC ID: E8HMR-0350T ; E8HMR-0350B ; E8HKR-0350 Request for Confidentiality Dir Sir, We are the agent of Chicony Electronics. Co., Ltd. We apply for FCC ID: E8HMR-0350T ; E8HMR-0350B ; E8HKR-0350 and my client would like to request for confidentiality about these parts of the document as following: 1. Schematics 2. Block Diagram Thank you very much. Sincerely, Andy Chiu Neutron Engineering Inc.

NEUTRON EMC LAB. Report No.NEI-FCC-P-03028 24/34 Photo # 1

NEUTRON EMC LAB. Report No.NEI-FCC-P-03028 31/34 -- FCC ID label -- The remained portion of label statement required by FCC is attached in the user’s manual. n Location of Label on EUT -- 0.4 cm 3.2 cm

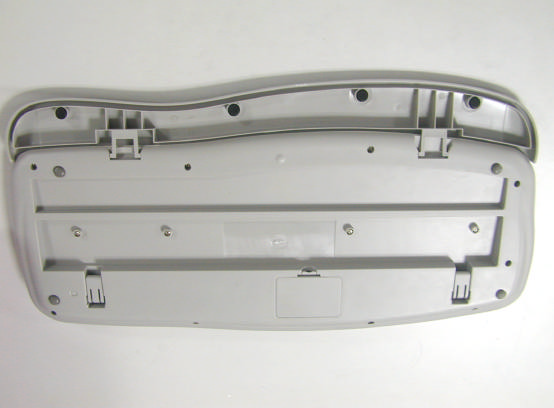

NEUTRON EMC LAB. Report No.NEI-FCC-P-03028 25/34 Photo # 2 NEUTRON EMC LAB. Report No.NEI-FCC-P-03028 26/34 Photo # 3 NEUTRON EMC LAB. Report No.NEI-FCC-P-03028 27/34 Photo # 4 NEUTRON EMC LAB. Report No.NEI-FCC-P-03028 28/34 Photo # 5

NEUTRON EMC LAB. Report No.NEI-FCC-P-03028 5/34 1. General Information 1.1 Applicant Name Chicony Electronics Co., Ltd. Address No. 25 Wu-Gong 6 Th Rd., Wu-Ku Industrial Park, Taipei Hsien, Taiwan, R.O.C. 1.2 Manufacturer Name N/A Address N/A 1.3 Equipment Under Tested Name: Wireless Keyboard Trade Name: Chicony Model No.: KR-0350 1.4 OEM Brand/Model (if applicable) OEM Brand(s)/Model(s) except the basic model in sub-clause 1.3 is(are) the follows: OEM Brand: N/A Model No.: N/A 1.5 Product Descriptions(Application/Features/Specification) The EUT is a Wireless Keyboard. A major technical descriptions of EUT is described as following: A. Operation Frequency CH1: 27.145 MHz and CH2: 27.195 MHz B. Modulation Type FSK C. Antenna Designation Integral D. Number Of Channel 2 E. Channel Spacing N/A F. Operation Methodology The EUT encoder generates a pulse code serially transmit (typical designation) into the modulator(or called as mixer) stage in circuit. This pulse signal mixed with the carrier at modulator(mixer) stage by way of FSK mode frequency modulation. The modulation depth is designed such as ± 5KHz in this application, that means the pulse(may be at high level state or low level state) will trigger the oscillator to generate a frequency at a specified fundamental frequency +5KHz or −5KHz, depended on the designation. For example, if the carrier frequency defined as fundamental frequency +5KHz at high level state, then the alternative carrier frequency will be fundamental frequency −5KHz at low level state. Based on the application, features, or specification exhibited in User's Manual, the EUT is considered as an ITE/Computing Device. More details of EUT technical specification, please refer to the User's Manual (Attachment - E.)

NEUTRON EMC LAB. Report No.NEI-FCC-P-03028 2/34 Declaration Neutron represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of R.O.C., or National Institute of Standards and Technology (NIST) of U.S.A. Neutron's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. Neutron shall have no liability for any declarations , inferences or generalizations drawn by the client or others from Neutron issued reports. Neutron’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and Neutron-self, extracts from the test report shall not be reproduced except in full with Neutron’s authorized written approval. Neutron’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Assessment Authorities Test Standard/Scope/Item Acceptance FCC Part 15 Subpart B IEC/CISPR22 AS/NZS 3548 CNS 13438 FCC Part 15 Subpart B CISPR 22/EN 55022 AS/NZS 3548 VCCI -Technical Requirement CNS 13438 SS IEC/CISPR 22 IEC/EN 61000-3-2 IEC/EN 61000-4-5 IEC/EN 61000-3-3 IEC/EN 61000-4-6 IEC/EN 61000-4-2 IEC/EN 61000-4-8 IEC/EN 61000-4-3 IEC/EN 61000-4-11 IEC/EN 61000-4-4 NEUTRON EMC LAB. Report No.NEI-FCC-P-03028 3/34 Table of Contents Page 1 General Information 5 1.1 Applicant 5 1.2 Manufacturer 5 1.3 Equipment Under Tested 5 1.4 OEM Brand/Model 5 1.5 Product Description 5 1.6 Connecting I/O Port(s) 5 1.7 Power Supplied 5 1.8 Products Covered 6 1.9 Model Difference (Series, Versions, if any) 6 1.10 EUT Modifications 6 1.11 Electric Block Diagram 6 1.12 Photos of EUT 6 2 RFI Emissions Measurement 7 2.1 Test Facility 7 2.2 Standard Compliance 7 2.3 Test Conditions and Channel 7 2.4 Test Methodology 7 2.5 Deviations from Standard Test Method 7 2.6 Sample(s) Tested 8 2.7 Measurement Instrument 8 2.8 Measurement Uncertainty 8 2.9 Tested System Set-Up/Configuration Details 8 Table -1 Equipments Used in Tested System 9 Diagram -1 Block diagram showing the configuration of system tested 10 Table - 2 Equipments Used in Tested System 11 Table - 3 Information of Interface Cable 11 2.10 Max.(Worst Case) RF Emission Evaluation 12 2.11 EUT Operation 12 3 Justification 13 3.1 Limitations 13 3.1.1 Power Line Conducted Emission 13 3.1.2 Radiated Emission Limits 13 3.2 Measurement Justification 14 3.2.1 Conducted Emission 14 3.2.2 Radiated Emission 14 3.2.3 Field Strength Calculation 15 3.3 Measurement Data 15 Table 4 Conducted Emission Data 15 Table 5 Radiated Emission Data 15 NEUTRON EMC LAB. Report No.NEI-FCC-P-03028 4/34 Table of Contents Page Attachment 18 A. Electric Block Diagram 19 B. EUT Modification Description 20 C. EUT Test Photos 21 D. EUT Photos 23 E. User’s Manual 29 F. Product Labeling 30 G. Bandwidth Requirement 32 H. Laboratory Accreditation Certificate 34 NEUTRON EMC LAB. Report No.NEI-FCC-P-03028 5/34 1. General Information 1.1 Applicant Name Chicony Electronics Co., Ltd. Address No. 25 Wu-Gong 6 Th Rd., Wu-Ku Industrial Park, Taipei Hsien, Taiwan, R.O.C. 1.2 Manufacturer Name N/A Address N/A 1.3 Equipment Under Tested Name: Wireless Keyboard Trade Name: Chicony Model No.: KR-0350 1.4 OEM Brand/Model (if applicable) OEM Brand(s)/Model(s) except the basic model in sub-clause 1.3 is(are) the follows: OEM Brand: N/A Model No.: N/A 1.5 Product Descriptions(Application/Features/Specification) The EUT is a Wireless Keyboard. A major technical descriptions of EUT is described as following: A. Operation Frequency CH1: 27.145 MHz and CH2: 27.195 MHz B. Modulation Type FSK C. Antenna Designation Integral D. Number Of Channel 2 E. Channel Spacing N/A F. Operation Methodology The EUT encoder generates a pulse code serially transmit (typical designation) into the modulator(or called as mixer) stage in circuit. This pulse signal mixed with the carrier at modulator(mixer) stage by way of FSK mode frequency modulation. The modulation depth is designed such as ± 5KHz in this application, that means the pulse(may be at high level state or low level state) will trigger the oscillator to generate a frequency at a specified fundamental frequency +5KHz or −5KHz, depended on the designation. For example, if the carrier frequency defined as fundamental frequency +5KHz at high level state, then the alternative carrier frequency will be fundamental frequency −5KHz at low level state. Based on the application, features, or specification exhibited in User's Manual, the EUT is considered as an ITE/Computing Device. More details of EUT technical specification, please refer to the User's Manual (Attachment - E.) NEUTRON EMC LAB. Report No.NEI-FCC-P-03028 6/34 1.6 Connecting I/O Port(s) Please refer to the User's Manual ( Attachment - E.) 1.7 Power Supplied Power Source: Battery supplied Power Cord: N/A Power Rating: DC 3 V, 50mA(Max) 1.8 Products Covered (if applicable) The sample tested including the following sub-system/module/accessory : Sub-system/ Module/ Accessory Model/Type No. Int. Inst./ Ext. Cont. Wireless Mouse MR-0305T Ext. Receiver RR-0350U Ext. 1.9 Model Difference (Series, Versions, if any) Except the basic model no. (model designation of the sample tested in this test report), additional model no. covered is(are) : N/A. 1.10 EUT Modifications (if applicable) No any modification required for the EUT to…

Text truncated - open the document above for the full version.

NEUTRON EMC LAB. Report No.NEI-FCC-P-03028 33/34 Bandwidth Requirement CH2

NEUTRON EMC LAB. Report No.NEI-FCC-P-03028 22/34 Radiated Measurement Photos
