E8HMG-0637TWireless Mouse

A. FEDERAL COMMUNICATIONS COMMISSION (FCC) STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, Pursuant to Part 15 the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. CAUTION: AVOID PROLONGED USE OF THE KEYBOARD WITHOUT BREAKS. Take regular breaks and keep a good posture. Consult your physician promptly if you notice any lost of motion or pain in your wrist when using the keyboard. INFORMATION FOR OPTICAL POINTING DEVICES ONLY: This product has been tested to comply with International Standard IEC 60825-1: (1993), incld. Amd. 2(2001).  This product users LEDs that are inherently Class 1. IMPORTANT BATTERY INFORMATION • Keep batteries out of reach of children. • Insert the batteries in the proper direction as indicated by the positive (+) and negative (-) markings in the battery chamber. • Do not mix old and new batteries or batteries of different types (for example, carbon and alkaline batteries). • Always remove old, weak, or worn-out batteries propmptly and recycle or proper disposal of them in accordance with Local and National Disposal Regulations. • If a battery leaks, remove all batteries and recycle or dispose of them in accordance with the battery manufacture's instructions and Local and National Disposal Regulations. Before inserting new batteries, thoroughly clean the compartment with a damp paper towel, or follow the battery manufacture's recommendations for cleanup. If fluid from the battery comes into contact with skin or clothes, flush skin with water immediately. • Remove the batteries if your device is to be stored for an extended period of time without being used. PRODUCT DISPOSAL INFORMATION Dispose of this product in accordance with Local and National Disposal Regulations. B. PRODUCT SPECIFICATION 1. Frequency Deviation: ± 320 KHz 2. ModulationTypp: GFSK Mode 3. Transmitter Power: 0dBm Max 4. Power requirement: 1.9V~3.6V 5. Battery: Keyboard : 2 pieces of AA Batteries  Mouse : 2 pieces of AA Batteries 6. Battery life time : Keyboard : 800 hours reference (operating mode) Mouse : 80 hours reference (operating mode) 7. Operation distance : Keyboard : 10 M without signal disturbance and no direction limit. Mouse: 10 M without signal disturbance and no direction limit. 8. Mouse resolution : 1000 DPI 9. Operating temperature : -10º C ~ +40º C 10. Storage temperature : -40º C ~ +85º C. English Class 1 LED Product CAUTION: Any changes of modifications not expressly approved by the grantee of this device could void the user's authority to operate the equipment. Contents Getting Started .................................................................................................................. 1 Features ............................................................................................................................. 1 Preparing Keyboard, Mouse and Receiver .......................................................................... 1 Hardware Installation ......................................................................................................... 1 Connect the Dongle ....................................................................................................... 1 Remove battery tabs ....................................................................................................... 1 Remove battery tabs from mouse ............................................................................... 1 Remove battery tabs from keyboard ........................................................................... 1 Connection ...................................................................................................................... 1 Working with Keyboard and Mouse ..................................................................................... 2 Using mouse wheel ......................................................................................................... 2 Keyboard ............................................................................................................................ 2 Multimedia-keys ........................................................................................................... 2 Special Features of Multimedia Keys ........................................................................... 3 System Board (motherboard) and BIOS ..................................................................... 3 How to use the keyboard properly ....................................................................................... 3 Cleaning the keyboard and the mouse .......................................................................... 3 Troubleshooting and Tips English .....................…

Text truncated - open the document above for the full version.

Chicony Electronics Co., Ltd. No.25 Wu-Gong 6 Th Rd. Wu-Ku Industrial Park, Taipei, Taiwan, R.O.C. Tel: 886-2-22988120 Fax: 886-2-22989745 Federal Communications Commission Authorization and Evaluation Division Date: February 8, 2007 Confidentiality Request FCC ID: E8HKG-0636 for Wireless Keyboard, FCC ID: E8HMG-0637T for Wireless Mouse, FCC ID: E8HRG-0638 for Wireless Receiver Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Thank you! Sincerely yours, ------------------------------------------ T.S.Chen / Manager Chicony Electronics Co., Ltd. Tel: +886 2-2298-8120 Fax: +886 2-2298-9745

Chicony Electronics Co., Ltd. No.25 Wu-Gong 6 Th Rd. Wu-Ku Industrial Park, Taipei, Taiwan, R.O.C. Tel: 886-2-22988120 Fax: 886-2-22989745 Power of Attorney Date: February 8, 2007 To whom it may concern: We, the undersigned, Chicony Electronics Co., Ltd., hereby authorize Advance Data Technology Corporation (ADT) of Taiwan to act on our behalf in all matters relating to all processes required in the FCC Part 15C approval and any communication needed with the national authority. Any and all acts carried out by ADT on our behalf shall have the same effects as acts of our own. Product Name Model FCC ID Wireless Mouse MG-0637T E8HMG-0637T Wireless Keyboard KG-0636 E8HKG-0636 Wireless Receiver RG-0638 E8HRG-0638 If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, ------------------------------------------ T.S.Chen / Manager Chicony Electronics Co., Ltd. Tel: +886 2-2298-8120 Fax: +886 2-2298-9745

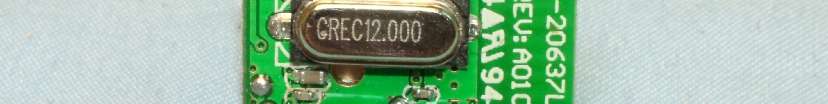

Page 1 CONSTRUCTION PHOTOS OF EUT

FCC ID: E8HMG-0637T FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. LABEL

Page 2 Page 3 Page 4 Page 5

FCC ID: E8HMG-0637T Report No.: RF960104A04A Reference No.: 960104A04 Operational Description The transmitter of the EUT (Wireless Mouse) is powered by 3.0Vdc from batteries. The type of antenna is Strip antenna. The output power of this device is very low. Under normal use condition, the transmitter and the receiver are quite close, so high EIRP power is neither necessary nor allowed because of interference.

Report No.: RF960104A04A 1 Report Format Version 2.0.5 Reference No.: 960104A04 FCC TEST REPORT REPORT NO. : RF960104A04A MODEL NO. : MG-0637T RECEIVED : Jan. 4, 2007 TESTED : Jan. 9 ~ 12, 2007 ISSUED : Feb. 2, 2007 APPLICANT : Chicony Electronics Co., Ltd. ADDRESS : No. 25, Wu-Gong 6th Rd., Wu Ku Industrial Park, Taipei Hsien, Taiwan, R.O.C. ISSUED BY : Advance Data Technology Corporation LAB LOCATION : No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. This test report consists of 22 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF960104A04A 2 Report Format Version 2.0.5 Reference No.: 960104A04 Table of Contents 1. CERTIFICATION...........................................................................................3 2. SUMMARY OF TEST RESULTS...................................................................4 2.1 MEASUREMENT UNCERTAINTY................................................................4 3. GENERAL INFORMATION...........................................................................5 3.1 GENERAL DESCRIPTION OF EUT..............................................................5 3.2 DESCRIPTION OF TEST MODES................................................................6 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST...........................................7 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL................8 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS...............................9 3.4 DESCRIPTION OF SUPPORT UNITS..........................................................9 4. TEST TYPES AND RESULTS.....................................................................10 4.1 CONDUCTED EMISSION MEASUREMENT..............................................10 4.2 RADIATED EMISSION MEASUREMENT...................................................10 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT.................................10 4.2.2 TEST INSTRUMENTS................................................................................11 4.2.3 TEST PROCEDURES.................................................................................12 4.2.4 DEVIATION FROM TEST STANDARD.......................................................12 4.2.5 TEST SETUP..............................................................................................13 4.2.6 EUT OPERATING CONDITIONS................................................................13 4.2.7 TEST RESULTS..........................................................................................14 4.3 BAND EDGES MEASUREMENT................................................................18 4.3.1 LIMITS OF BAND EDGES MEASUREMENT.............................................18 4.3.2 TEST INSTRUMENTS................................................................................18 4.3.3 TEST PROCEDURE...................................................................................18 4.3.4 DEVIATION FROM TEST STANDARD.......................................................18 4.3.5 EUT OPERATING CONDITION..................................................................18 4.3.6 TEST RESULTS..........................................................................................18 5. INFORMATION ON THE TESTING LABORATORIES................................21 APPENDIX-A.......................................................................................................A-1 Report No.: RF960104A04A 3 Report Format Version 2.0.5 Reference No.: 960104A04 1. CERTIFICATION PRODUCT : Wireless Mouse BRAND NAME : hp MODEL NO. : MG-0637T TEST SAMPLE : ENGINEERING SAMPLE APPLICANT : Chicony Electronics Co., Ltd. TESTED : Jan. 9 ~ 12, 2007 STANDARDS : FCC Part 15, Subpart C (Section 15.249) ANSI C63.4-2003 The above equipment has been tested by Advance Data Technology Corporation, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE: Feb. 2, 2007 ( Annie Chang ) TECHNICAL ACCEPTANCE : , DATE: Feb. 2, 2007 Responsible for RF ( Jamison Chan ) APPROVED BY : , DATE: Feb. 2, 2007 ( Ken Liu / Deputy Manager ) Report No.: RF960104A04A 4 Report Format Version 2.0.5 Reference No.: 960104A04 2. SUMMARY OF TEST RESULTS The EUT has been tested according to the following specifications: APPLIED STANDARD: FCC Part 15, Subpart C (Section 15.249) STANDARD PARAGRAPH TEST TYPE RESULT REMARK 15.207 Conducted Emission Test N/A Power supply is 3Vdc from batteries 15.209 15.249 15.249 (d) Radiated Emission Test Band Edge Measurement Limit: 50dB less than the peak value of fundamental frequency or meet radiated emission limit in section 12.209 PASS Minimum passing margin is -6.65 dB at 2483.50MHz 2.1 MEASUREMENT UNCERTAINTY Where relevant, the following measurement uncertainty levels have been estimated for tests performed on the EUT as specified in CISPR 16-4: This uncertainty represents an expanded uncertainty expressed at approximately the 95% confidence level using a coverage factor of k=2. Measurement Uncertainty Radiated emissions 3.55 dB Report No.: RF960104A04A 5 Report Format Version 2.0.5 Reference No.: 960104A04 3. GENERAL INFORMATION 3.1 GENERAL DESCRIPTION OF EUT EUT Wireless Mouse MODEL NO. MG-0637T FCC ID E8HMG-0637T POWER SUPPLY 3.0Vdc from batteries MODULATION TYPE GFSK RADIO TECHNOLOGY DSSS FREQUENCY RANGE 2402MHz ~2478MHz NUMBER OF CHANNEL 77 ANTENNA TYPE Strip antenna with -0.71dBi gain DATA CABLE N/A I/O PORT N/A NOTE: 1. The EUT is a Wire…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION RADIATED EMISSION TEST
