E8HMR-0350TRWireless Mouse

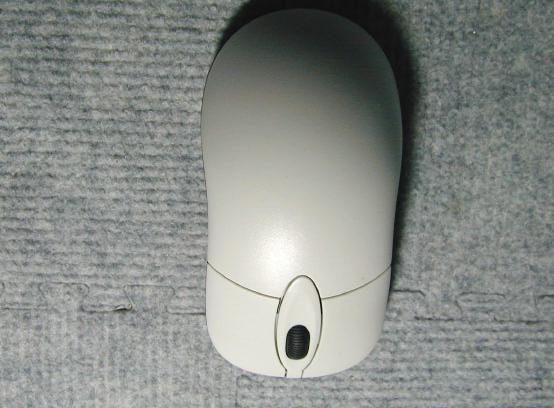

NEUTRON EMC LAB. Report No.NEI-FCC-P-03039 23/29 Photo # 1

Product Descriptions(Application/Features/Specification) The EUT is a Wireless Mouse. A major technical descriptions of EUT is described as following: A. Operation Frequency CH1: 26.995 MHz and CH2: 27.045 MHz B. Modulation Type FSK C. Antenna Designation Integral D. Number Of Channel 2 E. Channel Spacing 50 KHz Based on the application, features, or specification exhibited in User's Manual, the EUT is considered as an ITE/Computing Device. More details of EUT technical specification, please refer to the User's Manual.

NEUTRON EMC LAB. Report No.NEI-FCC-P-03039 29/29 Bandwidth Requirement CH2

NEUTRON EMC LAB. Report No.NEI-FCC-P-03039 2/29 Declaration Neutron represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of R.O.C., or National Institute of Standards and Technology (NIST) of U.S.A. Neutron's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. Neutron shall have no liability for any declarations , inferences or generalizations drawn by the client or others from Neutron issued reports. Neutron’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and Neutron-self, extracts from the test report shall not be reproduced except in full with Neutron’s authorized written approval. Neutron’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Assessment Authorities Test Standard/Scope/Item Acceptance FCC Part 15 Subpart B IEC/CISPR22 AS/NZS 3548 CNS 13438 FCC Part 15 Subpart B CISPR 22/EN 55022 AS/NZS 3548 VCCI -Technical Requirement CNS 13438 SS IEC/CISPR 22 IEC/EN 61000-3-2 IEC/EN 61000-4-5 IEC/EN 61000-3-3 IEC/EN 61000-4-6 IEC/EN 61000-4-2 IEC/EN 61000-4-8 IEC/EN 61000-4-3 IEC/EN 61000-4-11 IEC/EN 61000-4-4 NEUTRON EMC LAB. Report No.NEI-FCC-P-03039 3/29 Table of Contents Page 1 General Information 5 1.1 Applicant 5 1.2 Manufacturer 5 1.3 Equipment Under Tested 5 1.4 OEM Brand/Model 5 1.5 Product Description 6 1.6 Connecting I/O Port(s) 7 1.7 Power Supplied 7 1.8 Products Covered 7 1.9 Model Difference (Series, Versions, if any) 7 1.10 Photos of EUT 7 2 RFI Emissions Measurement 8 2.1 Test Facility 8 2.2 Standard Compliance 8 2.3 Test Conditions and Channel 8 2.4 Test Methodology 8 2.5 Deviations from Standard Test Method 9 2.6 Sample(s) Tested 9 2.7 Measurement Uncertainty 9 2.8 Tested System Set-Up/Configuration Details 9 Table -1 Equipments Used in Tested System 10 Diagram -1 Block diagram showing the configuration of system tested 11 Table - 2 Equipments Used in Tested System 12 Table - 3 Information of Interface Cable 12 2.9 Max.(Worst Case) RF Emission Evaluation 13 2.10 EUT Operation 13 3 Justification 14 3.1 Limitations 14 3.1.1 Power Line Conducted Emission 14 3.1.2 Radiated Emission Limits 14 3.2 Measurement Justification 15 3.2.1 Conducted Emission 15 3.2.2 Radiated Emission 15 3.2.3 Field Strength Calculation 16 3.3 Measurement Data 16 Table 5 Radiated Emission Data 18 NEUTRON EMC LAB. Report No.NEI-FCC-P-03039 4/29 Table of Contents Page Attachment 19 A. EUT Test Photos 20 B. EUT Photos 22 C. Bandwidth Requirement 28 NEUTRON EMC LAB. Report No.NEI-FCC-P-03039 5/29 1. General Information 1.1 Applicant Name Chicony Electronics Co., Ltd. Address No. 25 Wu-Gong 6 Th Rd., Wu-Ku Industrial Park, Taipei Hsien, Taiwan, R.O.C. 1.2 Manufacturer Name N/A Address N/A 1.3 Equipment Under Tested Name: Wireless Mouse Trade Name: Chicony Model No.: MR-0350TR 1.4 OEM Brand/Model (if applicable) OEM Brand(s)/Model(s) except the basic model in sub-clause 1.3 is(are) the follows: OEM Brand: N/A Model No.: N/A NEUTRON EMC LAB. Report No.NEI-FCC-P-03039 6/29 1.5 Product Descriptions(Application/Features/Specification) The EUT is a Wireless Mouse. A major technical descriptions of EUT is described as following: A. Operation Frequency CH1: 26.995 MHz and CH2: 27.045 MHz B. Modulation Type FSK C. Antenna Designation Integral D. Number Of Channel 2 E. Channel Spacing 50 KHz Based on the application, features, or specification exhibited in User's Manual, the EUT is considered as an ITE/Computing Device. More details of EUT technical specification, please refer to the User's Manual. NEUTRON EMC LAB. Report No.NEI-FCC-P-03039 7/29 1.6 Connecting I/O Port(s) Please refer to the User's Manual ( Attachment - E.) 1.7 Power Supplied Power Source: Battery supplied Power Cord: N/A Power Rating: DC 3 V, 50mA(Max) 1.8 Products Covered (if applicable) The sample tested including the following sub-system/module/accessory : Sub-system/ Module/ Accessory Model/Type No. Int. Inst./ Ext. Cont. N/A N/A N/A 1.9 Model Difference (Series, Versions, if any) Except the basic model no. (model designation of the sample tested in this test report), additional model no. covered is(are) : N/A. 1.10 Photos of EUT Please refer to the Attachment – B. NEUTRON EMC LAB. Report No.NEI-FCC-P-03039 8/29 2. RFI Emissions Measurement 2.1Test Facility The test facilities used to collect the test data in this report located at No.132-1, Lane 329, Sec. 2, Palain Road, Shijr City, Taipei, Taiwan. 2.2 Standard Compliance The test data contained in this report relate only to the item(s) listed below : FCC Part15, Subpart C / RSS-210:2001/ ANCI C63.4 : 1992 2.3 Test Conditions and Channel Test Channel (1) EUT Channel Test Frequency(MHz) 1 CH 1 26.995 2 CH 2 27.045 Note: (1) The measurements are performed at the highest and lowest available channels with the modulation enabled, and the mouse - CH2 (27.045MHz) / keyboard - CH2 (27.195MHz) was found to be the worst case during the pr-scanning test. This channel (CH2) of the worst case was used for final testing and collecting test data included in this report. 2.4 Test Methodology Only radiated testing was performed during the max. EMI emission evaluation. Conducted testing excepted because of the EUT is a battery operating device and no…

Text truncated - open the document above for the full version.

NEUTRON EMC LAB. Report No.NEI-FCC-P-03039 21/29 Radiated Measurement Photos
