E8HMR-0404TWireless Mouse

A. FEDERAL COMMUNICATIONS COMMISSION (FCC) STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, Pursuant to Part 15 the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. WARNING: Use only shielded cables to connect I/O devices to this equipment. You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. CAUTION: AVOID PROLONGED USE OF THE KEYBOARD WITHOUT BREAKS. Take regular breaks and keep a good posture. Consult your physician promptly if you notice any lost of motion or pain in your wrist when using the keyboard. INFORMATION FOR OPTICAL POINTING DEVICES ONLY: User-observable light is 15 microwatts in normal operation. This product has been tested to comply with International Standard IEC 60825-1: (1993), incld. Amd. 2(2001). This product users LEDs that are inherently Class 1. English Class 1 LED Product B. PRODUCT SPECIFICATION 1. Frequency band : Two channels for keyboard and two channels for mouse. K eyboard – 27.145 , 27.195 MHz Mouse – 27.045 , 26.995 MHz 2. Frequency modulation : FSK mode 3. Radio power : < 1 mW 4. Power rating : Keyboard : 3 V , 30 mA (MAX.) Mouse : 3 V , 50 mA (MAX.) Receiver : 5 V , 100mA (MAX.) for USB 5. Battery: Keyboard : 2 pieces of AA Batteries Mouse : 2 pieces of AA Batteries (for Optical mouse) 6. Battery life time : Keyboard : 500 hours reference (operating mode) Mouse : 50 hours reference (operating mode) 7. Operation distance : Keyboard : 6 feet without signal disturbance and no direction limit. Mouse: 5 feet without signal disturbance and no direction limit. 8. Mouse detection method : Roll ball optical sensor 9. Mouse resolution : 800 DPI 10. Operating temperature : 0º C~ 40º C. 11. Storage temperature : -10º C ~ 60º C. Contents Getting Started .................................................................................................................. 1 Features ............................................................................................................................. 1 Preparing Keyboard, Mouse and Receiver .......................................................................... 1 Hardware Installation ......................................................................................................... 1 Connect the receiver ...................................................................................................... 1 USB Interface ............................................................................................................. 1 Inserting batteries ........................................................................................................... 1 Inserting batteries into mouse .................................................................................. 1 Inserting batteries into keyboard ............................................................................... 2 Setting frequency channel or ID ..................................................................................... 2 Setting frequency channel on keyboard and mouse ................................................. 2 Setting ID on keyboard and mouse ........................................................................... 2 Software Installation ............................................................................................................ 2 Installing software for mouse ............................................................................................ 2 Installing software for keyboard ........................................................................................ 2 Displaying Keyboard Modes ................................................................................................ 2 Working with Keyboard and Mouse ..................................................................................... 3 Using mouse wheel ......................................................................................................... 3 Keyboard ............................................................................................................................ 3 Multimedia-keys ........................................................................................................... 3 Additional Hotkeys ....................................................................................................... 3 Special Features of Multimedia Keys ........................................................................... 3 System Board (motherboard) and BIOS ..................................................................... 3 Keyboard battery Indicator .......................…

Text truncated - open the document above for the full version.

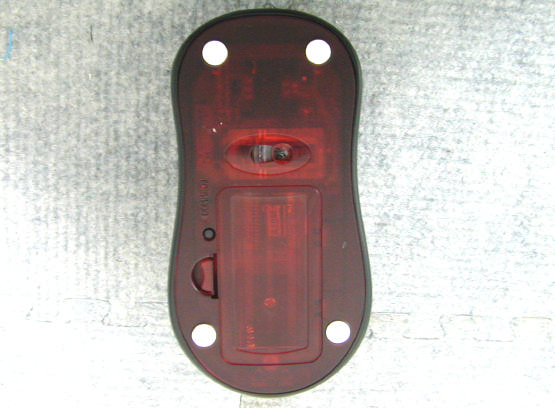

NEUTRON EMC LAB. Report No.04E0057 3/3 Photo # 2

NEUTRON EMC LAB. Report No.NEI-FCCP-2-04E0057 24/27 -- FCC ID label -- The remained portion of label statement required by FCC is attached in the user’s manual. n Location of Label on EUT -- 0.3 cm 2.2 cm

Product Descriptions(Application/Features/Specification) The EUT is a Wireless Mouse. A major technical descriptions of EUT is described as following: A. Operation Frequency CH1: 26.995 MHz and CH2: 27.045 MHz B. Modulation Type FSK C. Antenna Designation Integral D. Number Of Channel 2 Based on the application, features, or specification exhibited in User's Manual, the EUT is considered as an ITE/Computing Device. More details of EUT technical specification, please refer to the User's Manual .

NEUTRON EMC LAB. Report No.NEI-FCCP-2-04E0057 26/27 Bandwidth Requirement CH1 NEUTRON EMC LAB. Report No.NEI-FCCP-2-04E0057 27/27 Bandwidth Requirement CH2

NEUTRON EMC LAB. Report No.NEI-FCC-P-04002 2/27 Declaration Neutron represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of R.O.C., or National Institute of Standards and Technology (NIST) of U.S.A. Neutron's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. Neutron shall have no liability for any declarations , inferences or generalizations drawn by the client or others from Neutron issued reports. Neutron’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and Neutron-self, extracts from the test report shall not be reproduced except in full with Neutron’s authorized written approval. Neutron’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Assessment Authorities Test Standard/Scope/Item Acceptance FCC Part 15 Subpart B IEC/CISPR22 AS/NZS 3548 CNS 13438 FCC Part 15 Subpart B CISPR 22/EN 55022 AS/NZS 3548 VCCI -Technical Requirement CNS 13438 SS IEC/CISPR 22 IEC/EN 61000-3-2 IEC/EN 61000-4-5 IEC/EN 61000-3-3 IEC/EN 61000-4-6 IEC/EN 61000-4-2 IEC/EN 61000-4-8 IEC/EN 61000-4-3 IEC/EN 61000-4-11 IEC/EN 61000-4-4 NEUTRON EMC LAB. Report No.NEI-FCC-P-04002 3/27 Table of Contents Page 1 General Information 5 1.1 Applicant 5 1.2 Manufacturer 5 1.3 Equipment Under Tested 5 1.4 OEM Brand/Model 5 1.5 Model Difference (Series, Versions, if any) 5 1.6 Product Description 6 1.7 Connecting I/O Port(s) 6 1.8 Power Supplied 6 1.9 Products Covered 6 1.10 Description of Test Mode(s) 6 1.11 Summary of Test Results 7 2 RFI Emissions Measurement 8 2.1 Test Facility 8 2.2 Standard Compliance 8 2.3 Test Methodology 8 2.4 Deviations from Standard Test Method 8 2.5 Sample(s) Tested 8 2.6 Measurement Instruments 8 2.7 Measurement Uncertainty 9 2.8 Tested System Set-Up/Configuration Details 9 Table -1 Equipments Used in Tested System 10 Diagram -1 Block diagram showing the configuration of system tested 11 Table - 2 Equipments Used in Tested System 12 Table - 3 Information of Interface Cable 12 2.9 EUT Operation 13 3 Justification 14 3.1 Limitations 14 3.1.1 Power Line Conducted Emission 14 3.1.2 Radiated Emission Limits 14 3.2 Measurement Justification 15 3.2.1 Conducted Emission 15 3.2.2 Radiated Emission 15 3.2.3 Field Strength Calculation 15 3.3 Measurement Data 15 Table 5 Radiated Emission Data 18 NEUTRON EMC LAB. Report No.NEI-FCC-P-04002 4/27 Table of Contents Page Attachment 20 A. EUT Test Photos 21 B. Product Labeling 23 C. Bandwidth Requirement 28 NEUTRON EMC LAB. Report No.NEI-FCC-P-04002 5/27 1. General Information 1.1 Applicant Name Chicony Electronics Co., Ltd. Address No. 25 Wu-Gong 6 Th Rd., Wu-Ku Industrial Park, Taipei Hsien, Taiwan, R.O.C. 1.2 Manufacturer Name N/A Address N/A 1.3 Equipment Under Tested Name: Wireless Mouse Model No.: MR-0404T 1.4 OEM Brand/Model (if applicable) OEM Brand(s)/Model(s) except the basic model in sub-clause 1.3 is(are) the follows: OEM Brand: N/A Model No.: N/A 1.5 Model Difference (Series, Versions, if any) Except the basic model no. (model designation of the sample tested in this test report), additional model no. covered is(are) : N/A. NEUTRON EMC LAB. Report No.NEI-FCC-P-04002 6/27 1.6 Product Descriptions(Application/Features/Specification) The EUT is a Wireless Mouse. A major technical descriptions of EUT is described as following: A. Operation Frequency CH1: 26.995 MHz and CH2: 27.045 MHz B. Modulation Type FSK C. Antenna Designation Integral D. Number Of Channel 2 Based on the application, features, or specification exhibited in User's Manual, the EUT is considered as an ITE/Computing Device. More details of EUT technical specification, please refer to the User's Manual . 1.7 Connecting I/O Port(s) Please refer to the User's Manual. 1.8 Power Supplied DC 3 V, 50mA(Max.)/ Battery supplied 1.9 Products Covered (if applicable) The sample tested including the following sub-system/module/accessory : Sub-system/ Module/ Accessory Model/Type No. Int. Inst./ Ext. Cont. N/A N/A N/A 1.10 Description of Test Mode(s) To investigate the maximum EMI emission characteristics generates from EUT, the test system was pre- scanning tested base on the consideration of following EUT operation mode or test configuration mode which possible have effect on EMI emission level. Each of these EUT operation mode(s) or test configuration mode(s) mentioned above was evaluated respectively. Mode 1 CH1 (26.995MHz) Mode 2 CH2 (27.045MHz) The EUT system operated Mode 1/2, mentioned above was found to be the worst case during the pre-scanning test. These operation modes were used for final testing and collecting test data included in this report. NEUTRON EMC LAB. Report No.NEI-FCC-P-04002 7/27 1.11 Summary of Test Results Test procedures according to the technical standards: (Antenna to EUT distance is 3 m) FCC Part15 (15.227), Subpart C Section Test Item Limit Frequency Range (MHz) Result 15.209 Radiated Emission Class B 30-1000 PASS 15.227 Radiated Emission 10000 μV/m (80dBμV/m) @ 3 m 26.96-27.28 PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report NEUTRON EMC LAB. Report No.NEI-FCCP-2-04E0057 8/27 2. RFI Emissions Measurement 2.1Test Facility The test facilities used to collect the test data in this report loca…
