E8HMR-0522TWireless Mouse

A. FEDERAL COMMUNICATIONS COMMISSION (FCC) STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, Pursuant to Part 15 the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. INFORMATION FOR OPTICAL POINTING DEVICES ONLY : User-observable light is 15 microwatts in normal operation. This product has been tested to comply with international Standard IEC 60825-1:(1993), incid. Amd.2(2001). This product uses LEDs that are inherently Class 1. Class 1 LED Product B. PRODUCT SPECIFICATION 1. SYSTEM AND INTERFACE Receiver Interface: USB interface designed to be fully compatible with Microsoft Windows 98, ME, 2000, XP system. 2. FREQUENCY BAND : Mouse – 27.045 MHz 3. FREQUENCY MODULATION : FSK MODE 5. POWER RATING : Mouse: 1.5 V , 50 mA (MAX)_ Receiver (Dongle): 5 V , 100mA (MAX) for USB 6. BATTERY: Mouse: 1 piece of AA Batteries 7. BATTERY LIFE TIME : Mouse: 60 hours reference (operating mode) 8. OPERATION DISTANCE Mouse: 2 feet without signal disturbance and no direction limit. 9. MOUSE DETECTION METHOD Mouse: Mechanical tracking method 10. MOUSE RESOLUTION: 800 DPI 11. OPERATING TEMPERATURE : 0º C~ 40º C. 12 STORAGE TEMPERATURE : -10º C ~ 60º C. C. HARDWARE INSTALLATION 1. Plug the receiver (Dongle) connector into an USB port. 2. SYSTEM will take around 10 sec to find your mouse automatically. (PS : If your OS is Windows® 98, please follow the screen instruction to complete your mouse installation) 3. Please keep your receiver (Dongle) from the other electrical devices about 8 inches. The otherelectrical devices may influence your receiver (Dongle) sensitivity. 4. Put one battery into your mouse battery chamber. D. Setting ID on keyboard and mouse (1) There is one LED on the top of receiver (Dongle). The LED will be blinking during the ID setting or data received. The LED will be always ON. (2) Push the connection button on the top of receiver (Dongle). The indicator on the top of receiver (Dongle) will be blinking. (3) Hold down the button on the bottom of mouse until 3 seconds. The ID will be changed after the button released

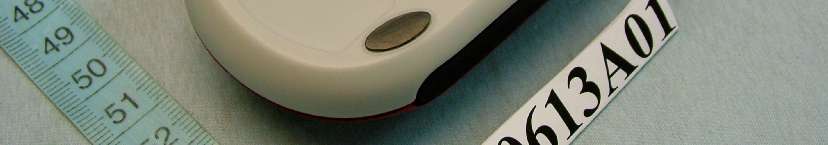

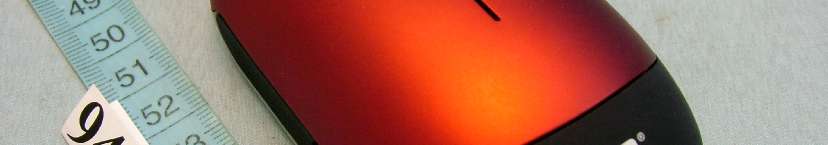

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

FCC ID: E8HMR-0522T FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. LABEL

CHICONY MR-0522T MR-0522T 05/09-'05 MR-0522T-Chicony FCC-X0 253-00522- SCALE: 1 : 1 DWG NO.: NOTES NOTES NOTES MODEL NO. MODEL NO.: REMARKPART NO. MAT.: TOL: UNIT: MM Q'TYSIZE: A4 SPEC: APPROVEDCHECKEDDESIGNED NAME: FINISH: REV LTRREV . DIMENSIONDATEDESIGNAPPROVE A B CLAIRE SPEC. ID LABEL NOTES: 1.MATERIAL: SYNTHETIC PAPER t=0.15mm (WITH GLUE) 2.BACKGROUND COLOR: WHITE 3.CHARACTER COLOR: PANTONE Process Black C 4.FINISHED: ADHESIVE. 5.LABEL VENDOR HAS TO BE APPRD. BY UL/CSA. 6.THIS PRODUCT/COMPONENT MUST COMPLY WITH CHICONY SPECIFICATION "ISO 361" (FOR MOUSE) FCC ID: E8HMR-0522T FCC ID: E8HMR-0522T Made in China Made in China Canada 210 Canada 210 Model No.: MR-0522T Power Rating: 1.5V 50mA Serial No.: Model No.: MR-0522T Power Rating: 1.5V 50mA Serial No.: R R SCALE 1: 1.5

Page 3

FCC ID: E8HMR-0522T Report No.: RF940613A01 Operational Description The transmitter of the EUT (Wireless mouse) is powered by 1.5V battery. The type of antenna is Loop antenna. The output power of this device is very low. Under normal use condition, the transmitter and the receiver are quite close, so high EIRP power is neither necessary nor allowed because of interference.

FCC ID: E8HMR-0522T Report No.: RF940613A011Report Format Version 2.0.2 FCC TEST REPORT REPORT NO.: RF940613A01 MODEL NO.: MR-0522T RECEIVED: June 13, 2005 TESTED: June 13 ~ 14, 2005 ISSUED: July 8, 2005 APPLICANT: Chicony Electronics Co., Ltd. ADDRESS: No. 25, Wu-Gong 6th Rd., Wu Ku Industrial Park, Taipei Hsien, Taiwan, R.O.C. ISSUED BY : Advance Data Technology Corporation LAB LOCATION : No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. This test report consists of 16 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA No. 2177-01 FCC ID: E8HMR-0522T Report No.: RF940613A012Report Format Version 2.0.2 Table of Contents 1CERTIFICATION.............................................................................................3 2SUMMARY OF TEST RESULTS.....................................................................4 2.1MEASUREMENT UNCERTAINTY..................................................................4 3GENERAL INFORMATION.............................................................................5 3.1 GENERAL DESCRIPTION OF EUT................................................................5 3.1DESCRIPTION OF TEST MODES..................................................................6 3.1.1CONFIGURATION OF SYSTEM UNDER TEST.............................................6 3.1.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL:.................7 3.2GENERAL DESCRIPTION OF APPLIED STANDARDS.................................8 3.3DESCRIPTION OF SUPPORT UNITS............................................................8 4TEST PROCEDURE AND RESULT................................................................9 4.1CONDUCTED EMISSION MEASUREMENT..................................................9 4.2RADIATED EMISSION MEASUREMENT.......................................................9 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT.....................................9 4.2.2TEST INSTRUMENT.....................................................................................10 4.2.3TEST PROCEDURE......................................................................................11 4.2.4TEST SETUP................................................................................................12 4.2.5EUT OPERATING CONDITION....................................................................12 4.2.6TEST RESULT..............................................................................................13 5PHOTOGRAPHS OF THE TEST CONFIGURATION....................................15 6INFORMATION ON THE TESTING LABORATORIES..................................16 FCC ID: E8HMR-0522T Report No.: RF940613A013Report Format Version 2.0.2 1 CERTIFICATION PRODUCT: Wireless mouse BRAND NAME: Chicony MODEL NO: MR-0522T TEST SAMPLE: ENGINEERING SAMPLE TESTED: June 13 ~ 14, 2005 APPLICANT: Chicony Electronics Co., Ltd. STANDARDS: FCC Part 15, Subpart C (Section 15.227), ANSI C63.4 -2003 The above equipment has been tested by Advance Data Technology Corporation, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY:, DATE:July 8, 2005 ( Jessica Cheng ) TECHNICAL ACCEPTANCE:, DATE:July 8, 2005 Responsible for EMI (Henry Lai ) APPROVED BY:, DATE:July 8, 2005 ( Cody Chang, Deputy Manager ) FCC ID: E8HMR-0522T Report No.: RF940613A014Report Format Version 2.0.2 2 SUMMARY OF TEST RESULTS The EUT has been tested according to the following specifications: APPLIED STANDARD: FCC Part 15, Subpart C STANDARD PARAGRAPH TEST TYPERESULTREMARK 15.207Conducted Emission TestN/A Power supply is 3Vdc from batteries 15.227 15.209 Radiated Emission TestPASS Minimum passing margin is –7.36dB at 31.94MHz 2.1 MEASUREMENT UNCERTAINTY Where relevant, the following measurement uncertainty levels have been estimated for tests performed on the EUT as specified in CISPR 16-4: MEASUREMENTUNCERTAINTY Radiated emissions3.86 dB FCC ID: E8HMR-0522T Report No.: RF940613A015Report Format Version 2.0.2 3 GENERAL INFORMATION 3.1 GENERAL DESCRIPTION OF EUT PRODUCT Wireless mouse MODEL NO. MR-0522T POWER SUPPLY 1.5Vdc from battery MODULATION TYPE FSK CARRIER FREQUENCY OF EACH CHANNEL 27.045MHz NUMBER OF CHANNEL 1 ANTENNA TYPE Loop antenna DATA CABLE NA I/O PORTS NA ASSOCIATED DEVICES NA NOTE: 1. The EUT is a Wireless mouse/ Dongle included transmitter part (wireless mouse) and receiver part. 2. For a more detailed features description, please refer to the manufacturer’s specifications or the User's Manual. FCC ID: E8HMR-0522T Report No.: RF940613A016Report Format Version 2.0.2 3.1 DESCRIPTION OF TEST MODES One channel was provided to this EUT ChannelFrequency (MHz) 1 27.045MHz 3.1.1 CONFIGURATION OF SYSTEM UNDER TEST Test Table EUT (Mouse) (Power from battery) FCC ID: E8HMR-0522T Report No.: RF940613A017Report Format Version 2.0.2 3.1.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL: Applicable to EUT configure mode PLCRE<1G Description 1NotevNA Where PLC: Power Line Conducted EmissionRE<1G RE: Radiated Emission below 1GHz Note: No need to concern of Conducted Emission due to the EUT is powered by battery. Radiated Emission Test (Below 1 GHz): Following channel(s) was (were) selected for the final test as listed below. EUT Available Channel Tested Channel Modulation Type Wireless mouse11FSK FCC ID: E8HMR-0522T Report No.: RF940613A018Report Format Version 2.0.2 3.2 GENERAL DESCRIPTION OF APPLIED STANDARDS The EUT is a Wireless Mouse. According to the specif…

Text truncated - open the document above for the full version.

FCC ID: E8HMR-0522T Report No.: RF940613A0115Report Format Version 2.0.2 5 PHOTOGRAPHS OF THE TEST CONFIGURATION RADIATED EMISSION TEST
