E8HMUR0208Wireless Mouse

1 User’s Guide for Wireless Input Device A. FEDERAL COMMUNICATIONS COMMISSION (FCC) STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, Pursuant to Part 15 the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ??Reorient or relocate the receiving antenna ??Increase the separation between the equipment and receiver ??Connect the equipment into an outlet on a circuit different from that to which the receiver is connected ??Consult the dealer or an experienced radio/TV technician for help WARNING: A shieled-type power cord is required in order to meet FCC emission limits and also to prevent interference to the nearby radio and television reception. It is essential that only the supplied power cord be used. Use only shielded cables to connect I/O devices to this equipment. You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. CAUTION: AVOID PROLONGED USE OF THE KEYBOARD WITHOUT BREAKS. Take regular breaks and keep a good posture. Consult your physician promptly if you notice any lost of motion or pain in your wrist when using the keyboard. 2 B. PRODUCT SPECIFICATION 1. Frequency Band: Keyboard 27.145 27.195 Mouse 27.045 27.095 2. Channel: 2 channels for keyboard & 2 channels for mouse 3. Frequency Modulation: FSK mode 4. Power Ratting: Keyboard 3V, 30mA (max) Mouse 3V, 50mA (max) Receiver 5V, 100mA (max) 5. RF Power: <10mW 6. Battery Life Time: Keyboard: 500 working hours with continuous operation Mouse: 50 working hours with continuous operation 7. Operating Temperature: 0 ~ 40 Storage Temperature: -10 ~ 60 C. HARDWARE INSTALLATION 1. Plug the receiver connector into USB port on your computer 2. Load two AA batteries into battery chamber on the back of keyboard and two AA batteries to battery chamber of mouse D. CHANNEL SETTING WHEN INTERFERENCE OCCURS 1. The first binding by user Step 1 – Push the button on receiver Step 2 – Push the button on back of keyboard Step 3 – Push the button on receiver Step 4 - Push the button on back of mouse 2. Change Channel Push the button on the back of keyboard or mouse Alternate: Step 1 – Press receiver button, LED green light is blinking Step 2 – Push keyboard or mouse button on back of device and then LED light stops blinking on receiver to confirm channel is changed. 3 3. Change ID Step 1 – Press receiver button, LED green light is blinking. Step 2 – Push the button on the back of keyboard or mouse more than two seconds and release, LED green light becomes blinking faster in 3 seconds and then light is off. Note: To have maximum performance, avoid placing receiver, keyboard and mouse on metallic surface. Operating distance between keyboard, mouse and receiver will depend on the environment around. User can try various locations for the receiver in order to find best operating performance.

Chicony Electronics Co., Ltd. 群光電子股份有限公司 總公司:台北縣五股工業區五工六路25號 No.25 Wu-Gong 6 Th Rd. Wu-Ku Industrial Park, Taipei, Taiwan, R.O.C. Tel: 886-2-22988120 Fax: 886-2-22989745 Dear Customer, According to FCC’s regulation, the following Declaration of Conformity has to be made by a company located in USA. They are: This device has been confirmed to be in compliance with the requirements of ANSI C63.4 & FCC part 15 regulations. The test result has been shown in the ADT test report with number RF910814R02B. And this compliance is subject to the following two conditions: This device may not cause harmful interference and, This device must accept any interference received, including interference that may cause undesired operation. This declaration can be a separate sheet and be sure that the following message will be also included in this declaration: Product name, model name and trade name. Company name, and address of the one who is responsible for this declaration. Name, title, telephone and fax number as well as the signature of the contact person. Thanks for your attention.

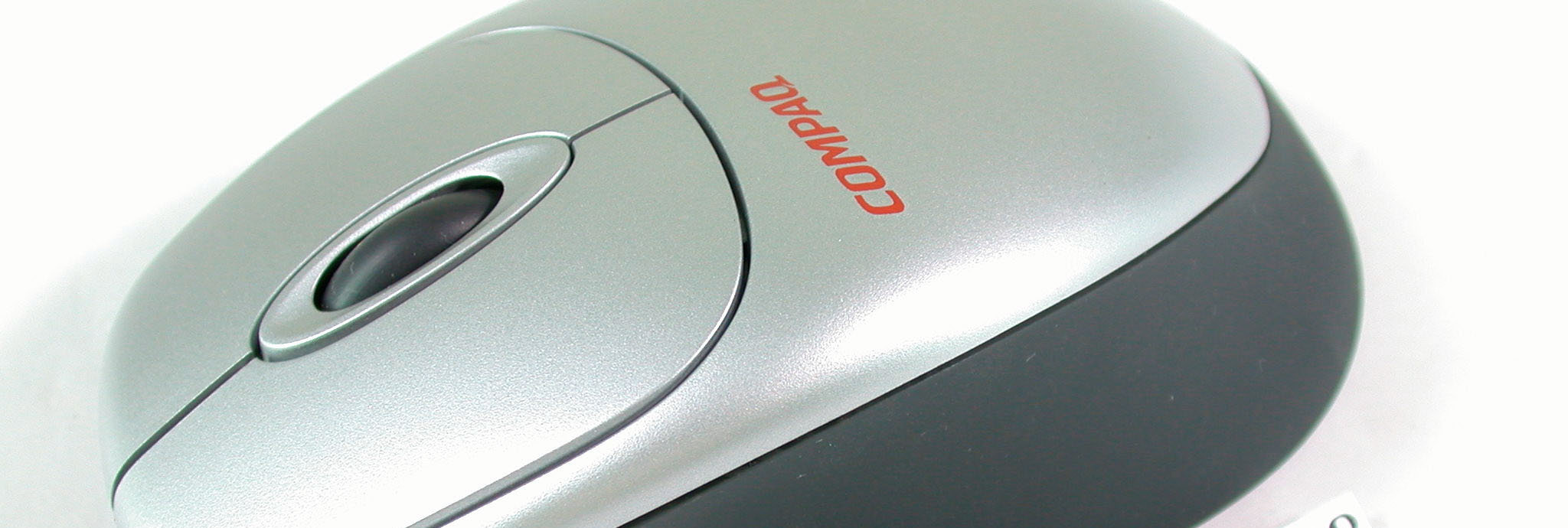

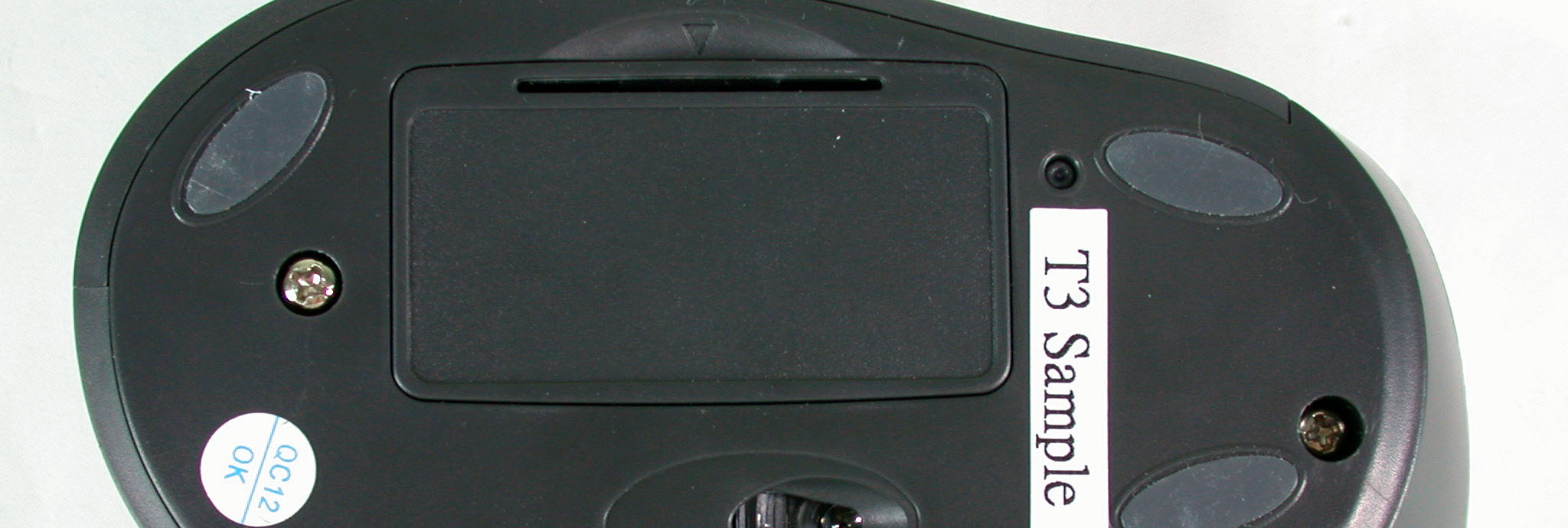

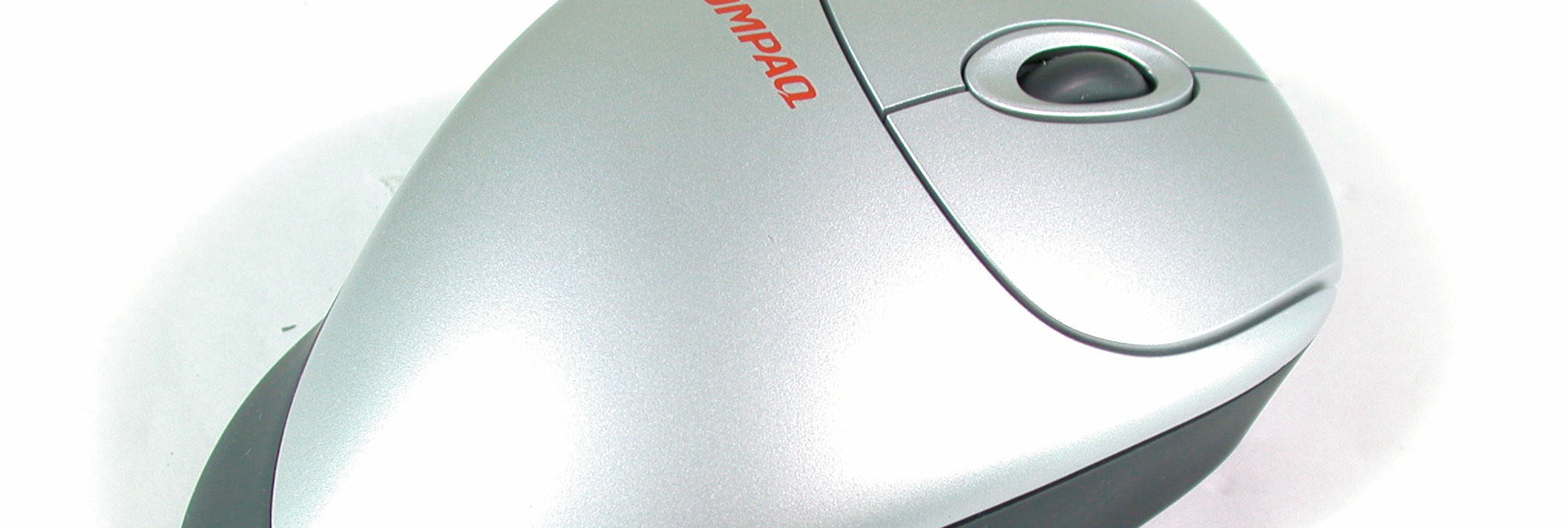

Page 1 ANNEX PHOTOGRAPHS OF EUT Page 2

REV: 0 NO BRAND MUR0208... MUR0208... 08/06-'02 R0208-A 253-R0208- SCALE: 1 : 1 DWG NO.: NOTES NOTES NOTES MODEL NO. MODEL NO.: REMARKPART NO. MAT.: TOL: UNIT: MM Q'TYSIZE: A4 SPEC: APPROVEDCHECKEDDESIGNED NAME: FINISH: REV LTRREV . DIMENSIONDATEDESIGNAPPROVE A B TAMMY SPEC. ID LABEL NOTES: 1.MATERIAL: SYNTHETIC PAPER t=0.15mm (WITH GLUE) (UL/CSA APPROVED) 2.BACKGROUND COLOR: WHITE 3.CHARACTER COLOR: PANTONE Process Black C 4.FINISHED: ADHESIVE. (SONY NP303) 5.LABEL VENDOR HAS TO BE APPRD. BY UL/CSA. VENDER UL MARK. CET \ LR94275 CEM 2 \ LR114370 CEM 3 \ 156913 CET Made in Thailand CEM Made in China (FOR MOUSE) FCC ID: E8HMUR0208 0560 R R ******** E164844 Made in ******** Canada 210 XXXXXXXX Model No.: MUR0208 Part No.: 299499-008 Spare P/N: 301029-001 Power Rating: 3V 50mA Serial No.: R31310 N119 TUV Rheinland .. FCC ID Label Location

Page 3 Page 4 Page 5 Page 6

FCC ID: E8HMUR0208 ADT No.910814R02B Operational Description The transmitter of the EUT (Wireless Mouse) which uses Printed Antenna is powered by 3V Battery. The output power of this device is very low. Under normal use condition, the transmitter and the receiver are quite close, so high EIRP power is neither necessary nor allowed because of interference.

FCC ID: E8HMUR0208 Report No.: RF910814R02B 1 Issued: August 30, 2002 FCC TEST REPORT REPORT NO.: RF910814R02B MODEL NO.: MUR0208 RECEIVED: August 17, 2002 TESTED: August 23 ~ August 27, 2002 APPLICANT:Chicony Electronics Co., Ltd. ADDRESS: No. 25, Wu-Gong 6th Rd., Wu Ku Industrial Park, Taipei Hsien, Taiwan, R.O.C. ISSUED BY:Advance Data Technology Corporation LAB LOCATION:47 14th Lin, Chia Pau Tsuen, Linkou Hsiang, Taipei, Taiwan, R.O.C. This test report consists of 14 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by NVLAP or any U.S. government agencies. The test results in the report only apply to the tested sample. Lab Code: 200102-0 0528 ILAC MRA FCC ID: E8HMUR0208 Report No.: RF910814R02B 2 Issued: August 30, 2002 Table of Contents 1CERTIFICATION..............................................................................................3 2SUMMARY OF TEST RESULTS .....................................................................4 3GENERAL INFORMATION..............................................................................5 3.1GENERAL DESCRIPTION OF EUT ................................................................5 3.2DESCRIPTION OF TEST MODES ..................................................................6 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS .................................6 3.4DESCRIPTION OF SUPPORT UNITS ............................................................6 4TEST PROCEDURE AND RESULT ................................................................7 4.1CONDUCTED EMISSION MEASUREMENT...................................................7 4.2RADIATED EMISSION MEASUREMENT........................................................7 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT .....................................7 4.2.2 TEST INSTRUMENT .......................................................................................8 4.2.3 TEST PROCEDURE........................................................................................9 4.2.4 DEVIATION FROM TEST STANDARD............................................................9 4.2.5 TEST SETUP.................................................................................................10 4.2.6 EUT OPERATING CONDITION.....................................................................10 4.2.7 TEST RESULT............................................................................................... 11 5PHOTOGRAPHS OF THE TEST CONFIGURATION ....................................13 6INFORMATION ON THE TESTING LABORATORIES ..................................14 FCC ID: E8HMUR0208 Report No.: RF910814R02B 3 Issued: August 30, 2002 1 CERTIFICATION PRODUCT : Wireless Mouse BRAND NAME : COMPAQ MODEL NO : MUR0208 APPLICANT : Chicony Electronics Co., Ltd. STANDARDS : 47 CFR Part 15, Subpart C(15.227) ANSI C63.4-1992 We, Advance Data Technology Corporation, hereby certify that one sample of the designation has been tested in our facility from August 23, 2002 to August 27, 2002. The test record, data evaluation and Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample's EMC characteristics under the conditions herein specified. FCC ID: E8HMUR0208 Report No.: RF910814R02B 4 Issued: August 30, 2002 2 SUMMARY OF TEST RESULTS The EUT has been tested according to the following specifications: APPLIED STANDARD: 47 CFR Part 15, Subpart C STANDARD PARAGRAPH TEST TYPERESULTREMARK 15.207Conducted Emission TestN/A Power supply is 3VDC from batteries 15.227Radiated Emission TestPASS Minimum passing margin is –25.30dBuV at 216.36MHz NOTE: The receiver part to communicate with the EUT has been verified to comply with FCC Part 15, Subpart B, Class B (DoC). The test report can be provided upon request. FCC ID: E8HMUR0208 Report No.: RF910814R02B 5 Issued: August 30, 2002 3 GENERAL INFORMATION 3.1 GENERAL DESCRIPTION OF EUT PRODUCTWireless Mouse MODEL NO.MUR0208 POWER SUPPLY3VDC from battery MODULATION TYPEFSK CARRIER FREQUENCY OF EACH CHANNEL 27.045MHz & 27.095MHz NUMBER OF CHANNEL2 ANTENNA TYPEPrinted antenna DATA CABLE NA I/O PORTSNA ASSOCIATED DEVICESNA NOTE: 1. The EUT is the transmitter part of Wireless Mouse. 2. For more detailed features description of the EUT, please refer to the manufacturer's specifications or the User's Manual. FCC ID: E8HMUR0208 Report No.: RF910814R02B 6 Issued: August 30, 2002 3.2 DESCRIPTION OF TEST MODES Two channels were provided to this EUT. ChannelFrequency 127.045MHz 227.095MHz 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS The EUT is the transmitter part of a Wireless Mouse. According to the specifications of the manufacturer, it must comply with the requirements of the following standards: FCC CFR 47 Part 15, Subpart C (15.227) ANSI C63.4-1992 All tests have been performed and recorded as per the above standards. 3.4 DESCRIPTION OF SUPPORT UNITS NA FCC ID: E8HMUR0208 Report No.: RF910814R02B 7 Issued: August 30, 2002 4 TEST PROCEDURE AND RESULT 4.1 CONDUCTED EMISSION MEASUREMENT NA 4.2 RADIATED EMISSION MEASUREMENT 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT According to 15.227 the field strength of emissions from intentional radiators operated under these frequencies bands shall not exceed the following: Fundamental Frequency (MHz) Field Strength of Fundamental (dBuV/m) PeakAverage 26.96-27.28 10080 Field strength limits are at the distance of 3 meters, emissions radiated outside of the specified bands, shall be according to the general radiated limits in 15.209 as following: Field Strength of Fundamental Other Frequencies (MHz) uV/meterdBuV/meter 30-8810040.0 88-21615043.5 216-96020046.0 Above 96050054.0 As shown in 15.35(b), for frequencies above 1000MHz, the field strength limits are based on average detector, however, the pea…

Text truncated - open the document above for the full version.

FCC ID: E8HMUR0208 Report No.: RF910814R02B 13 Issued: August 30, 2002 5 PHOTOGRAPHS OF THE TEST CONFIGURATION RADIATED EMISSION TEST
