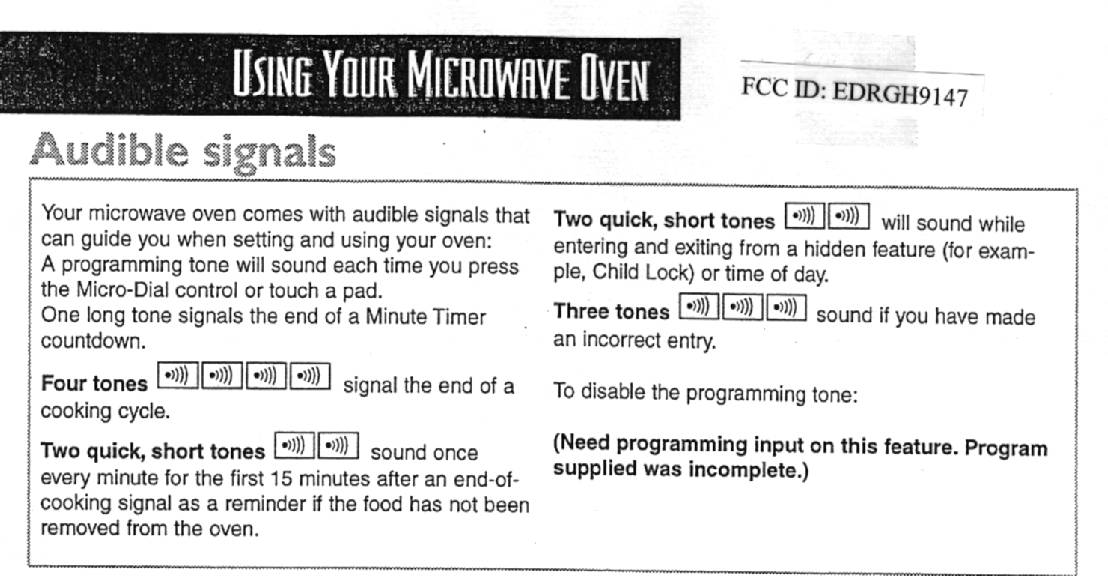

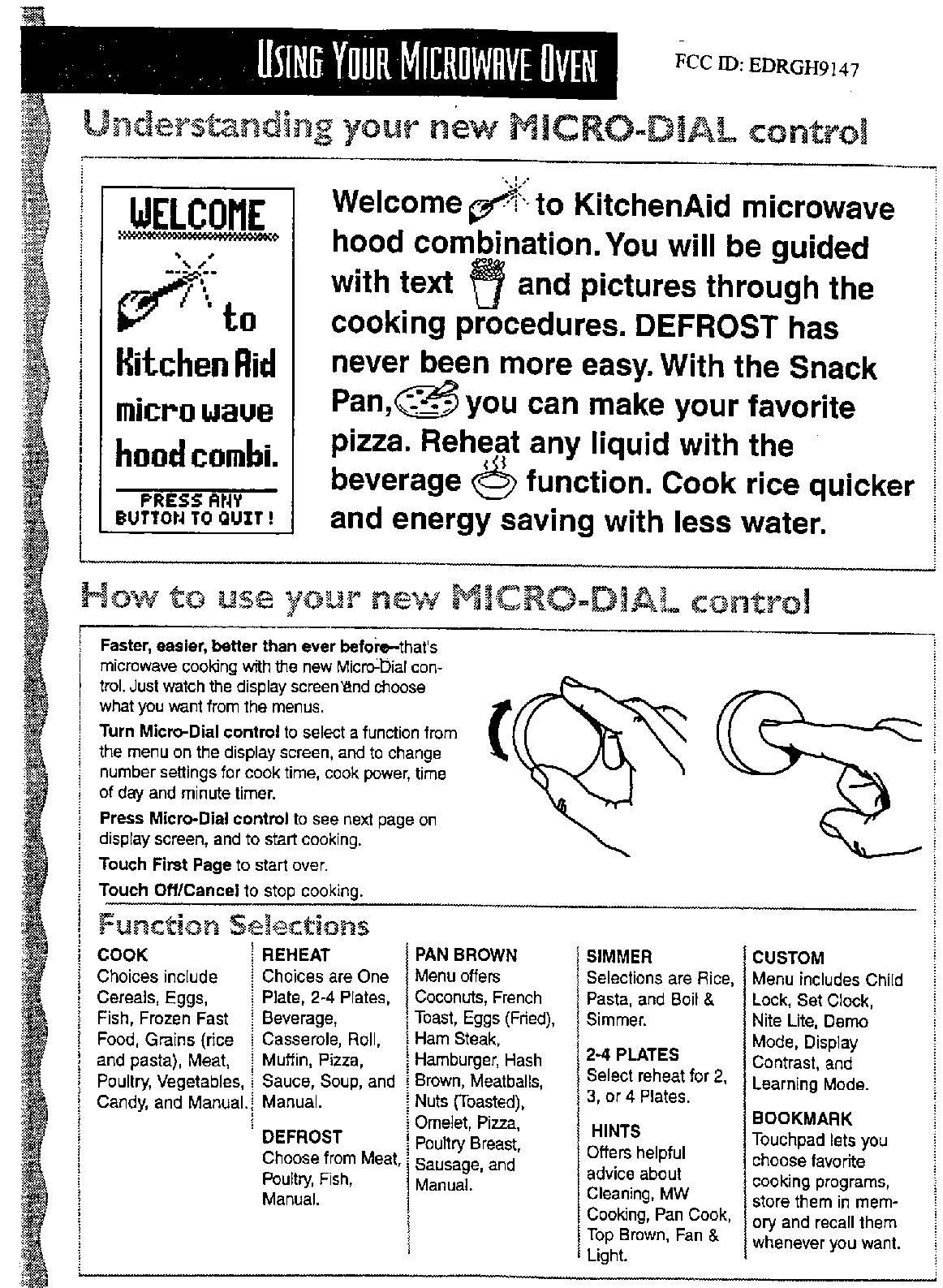

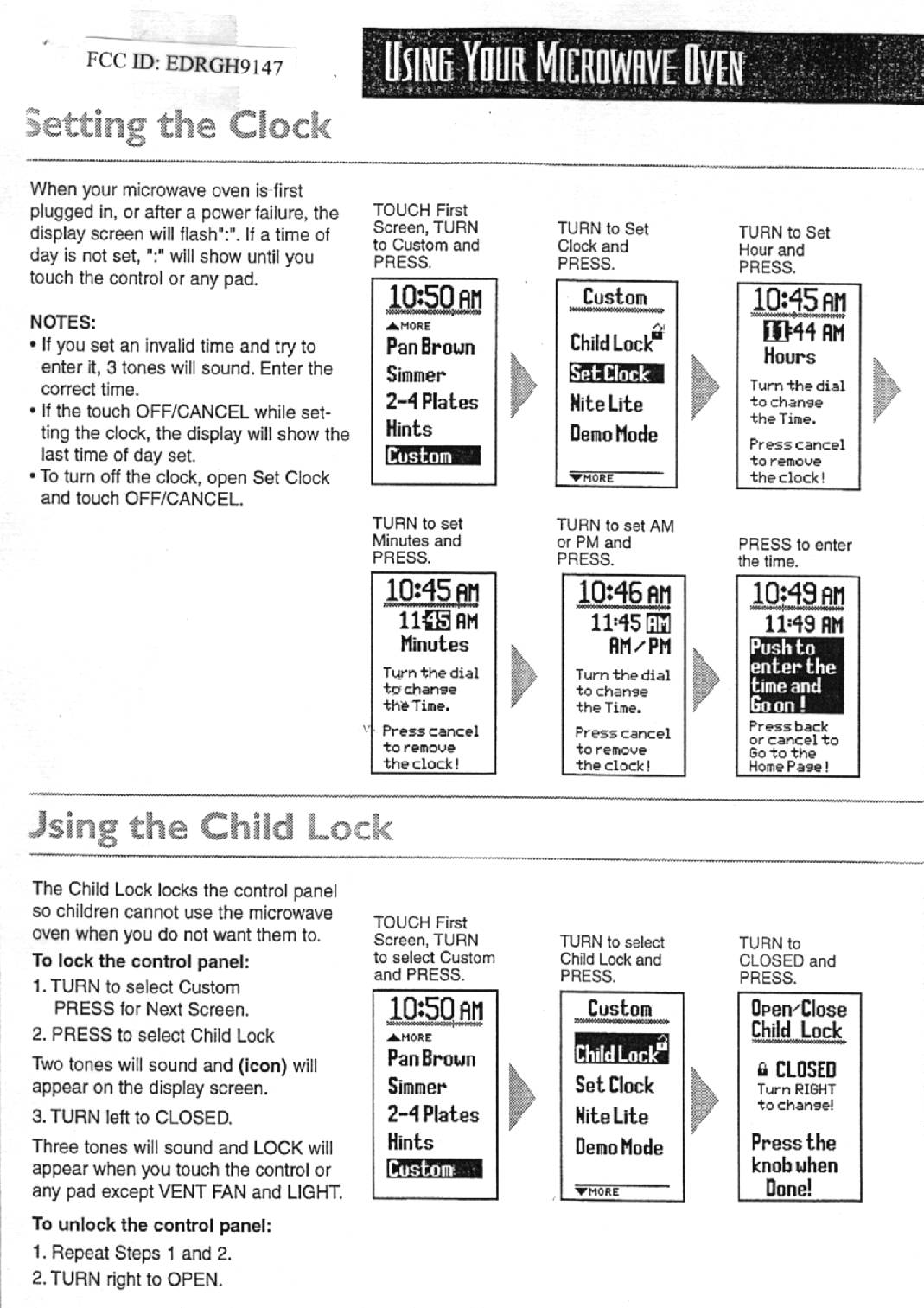

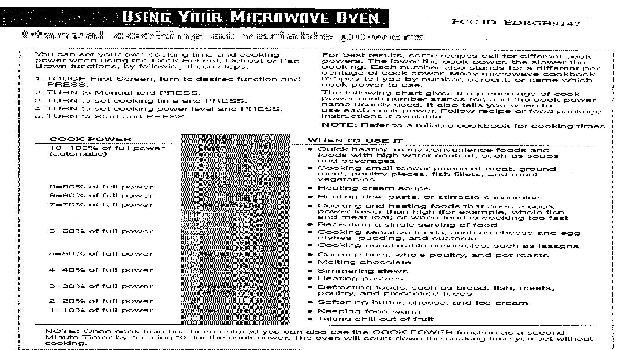

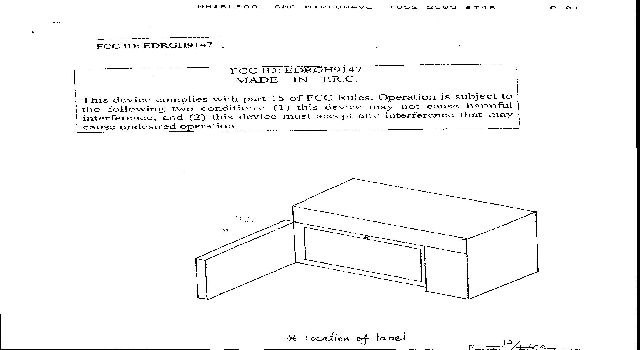

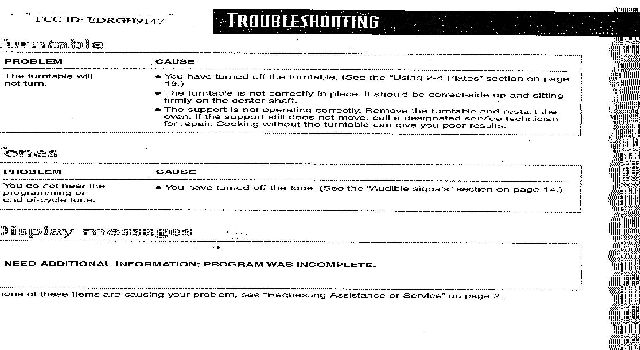

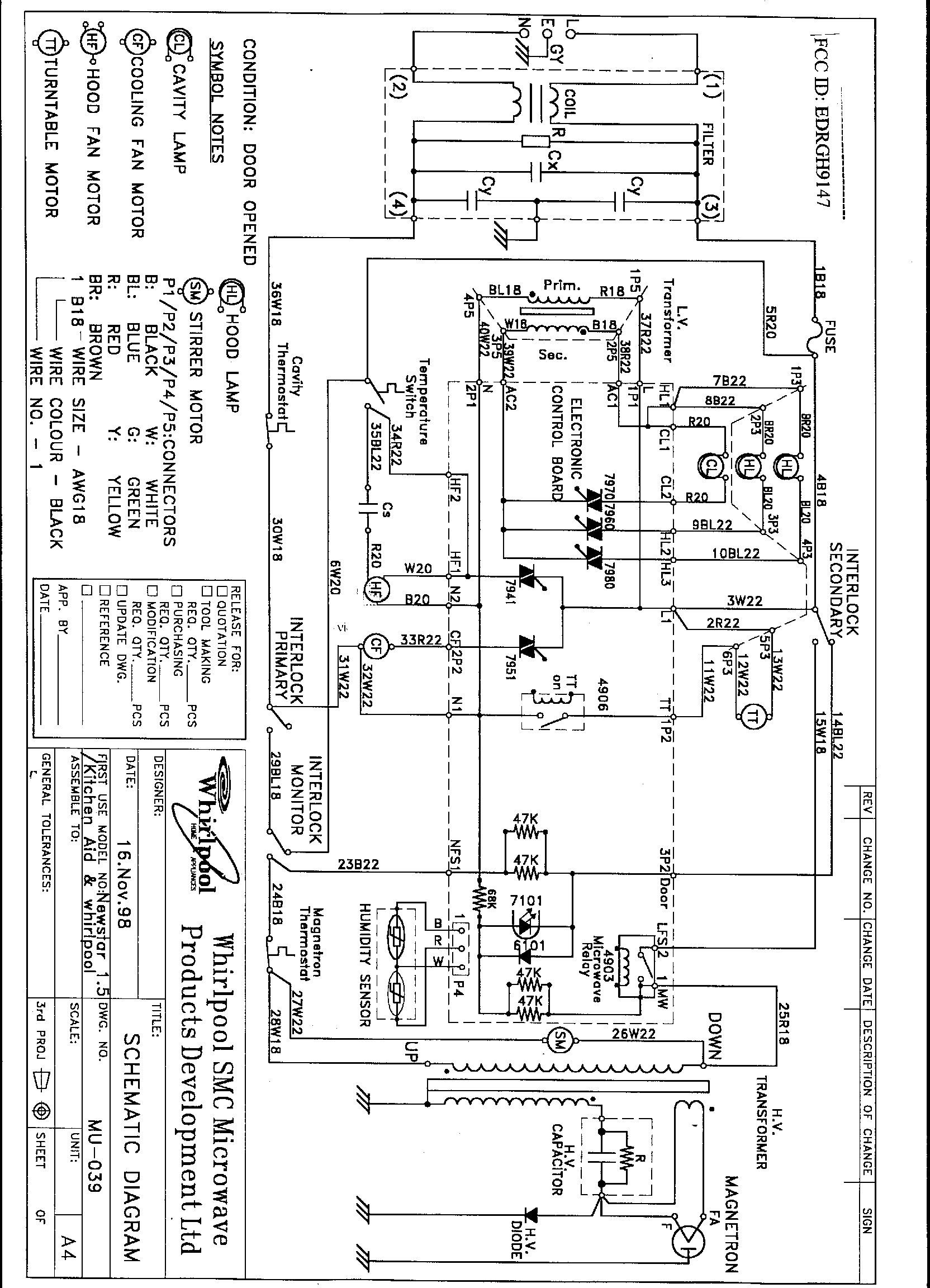

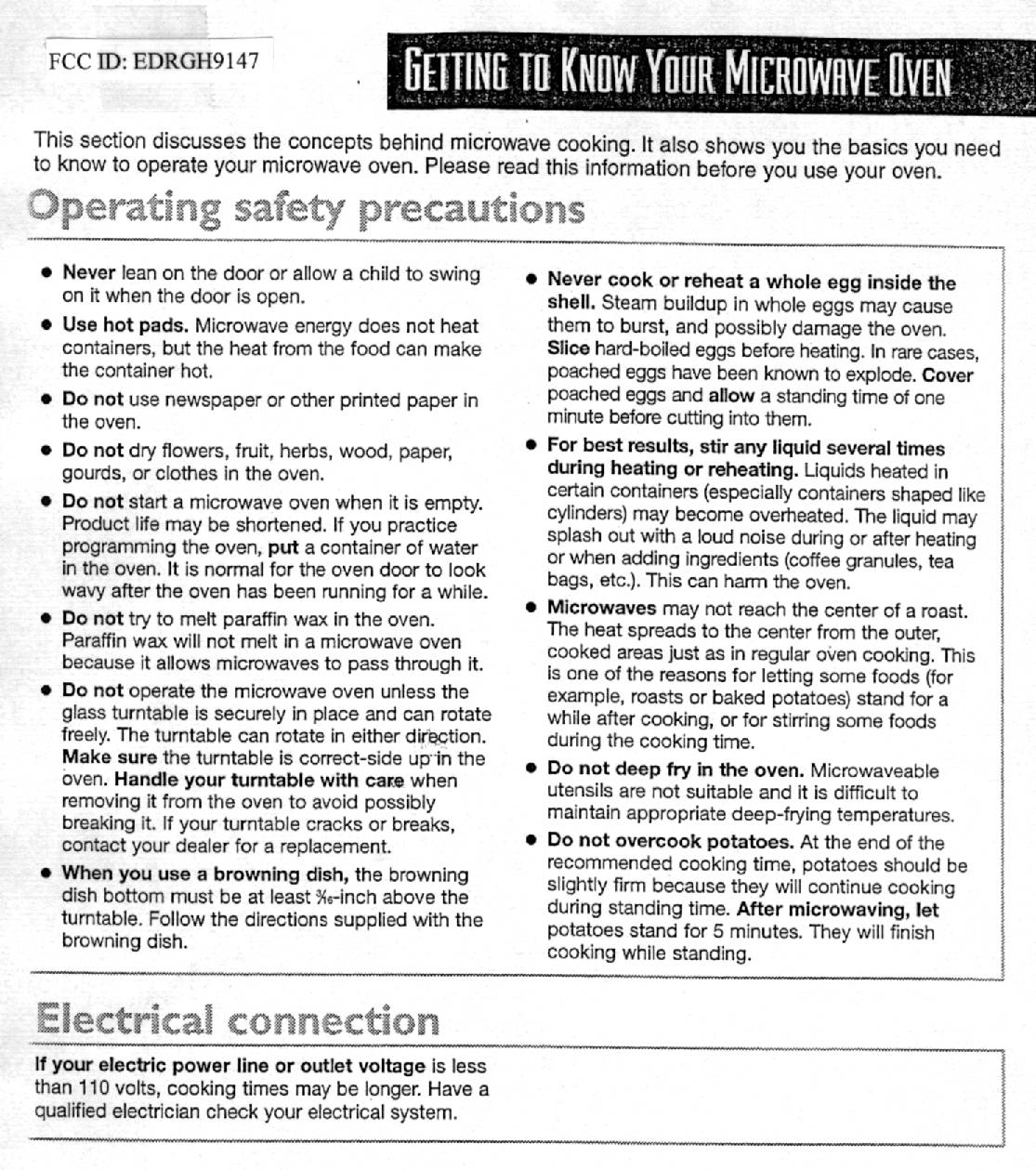

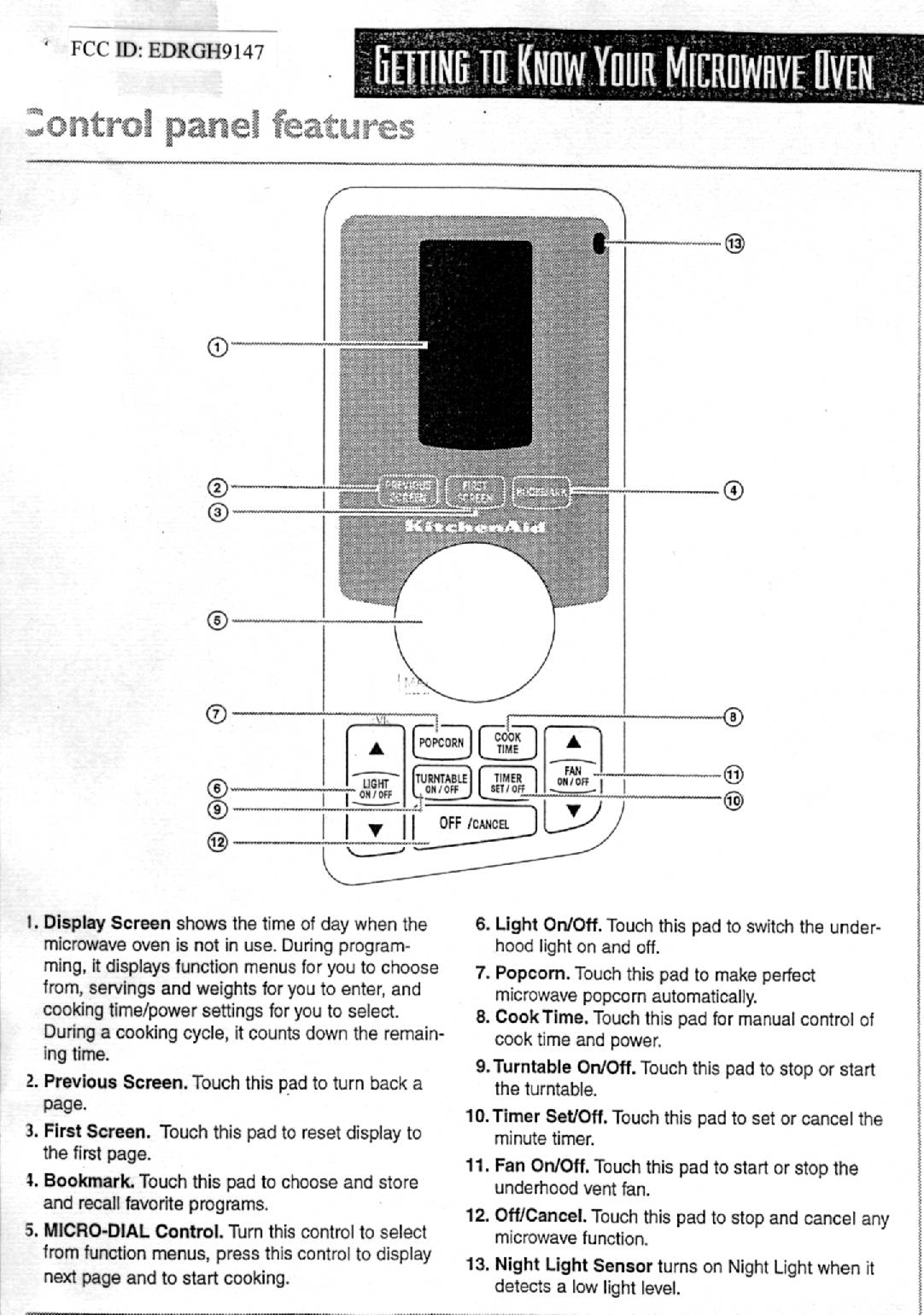

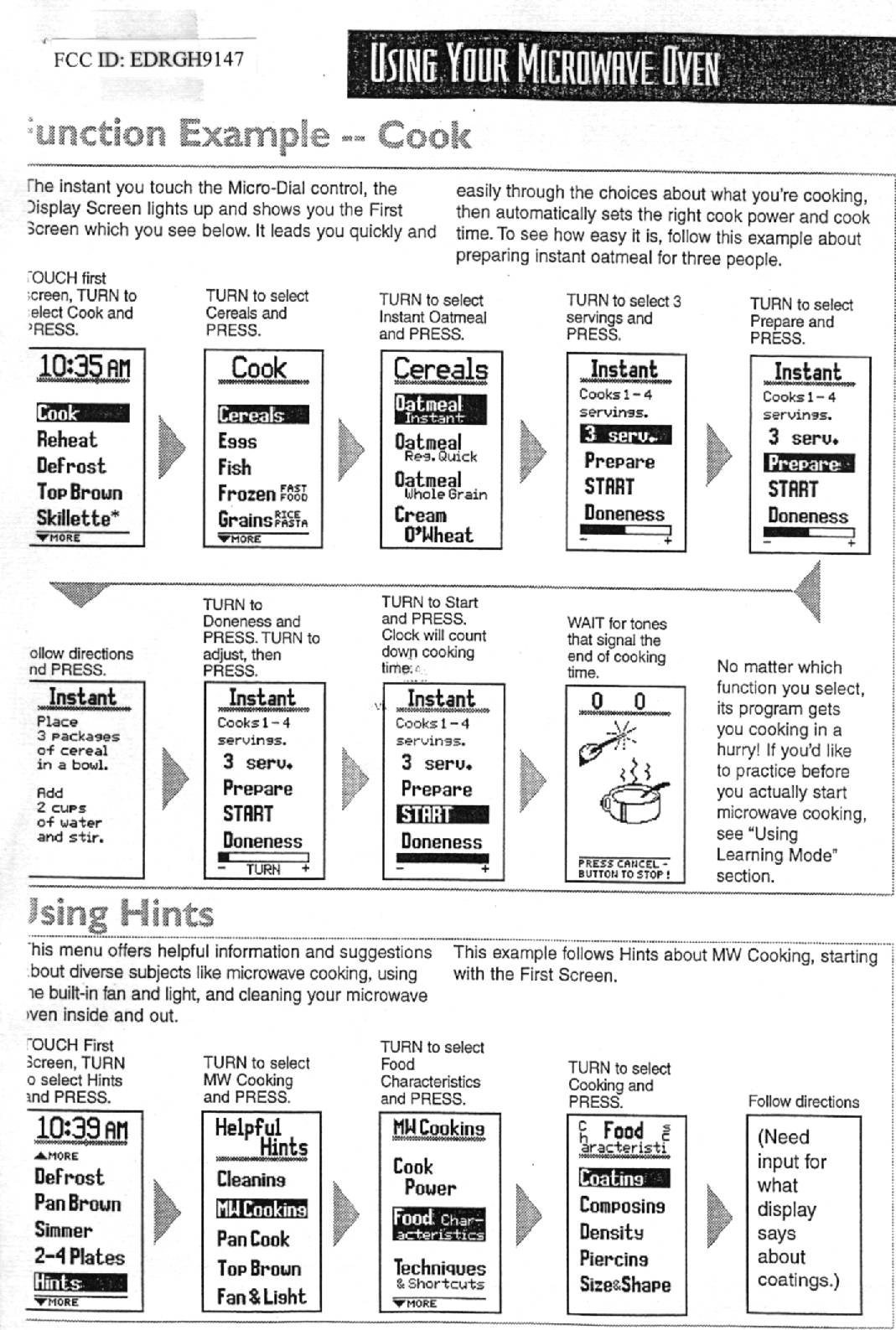

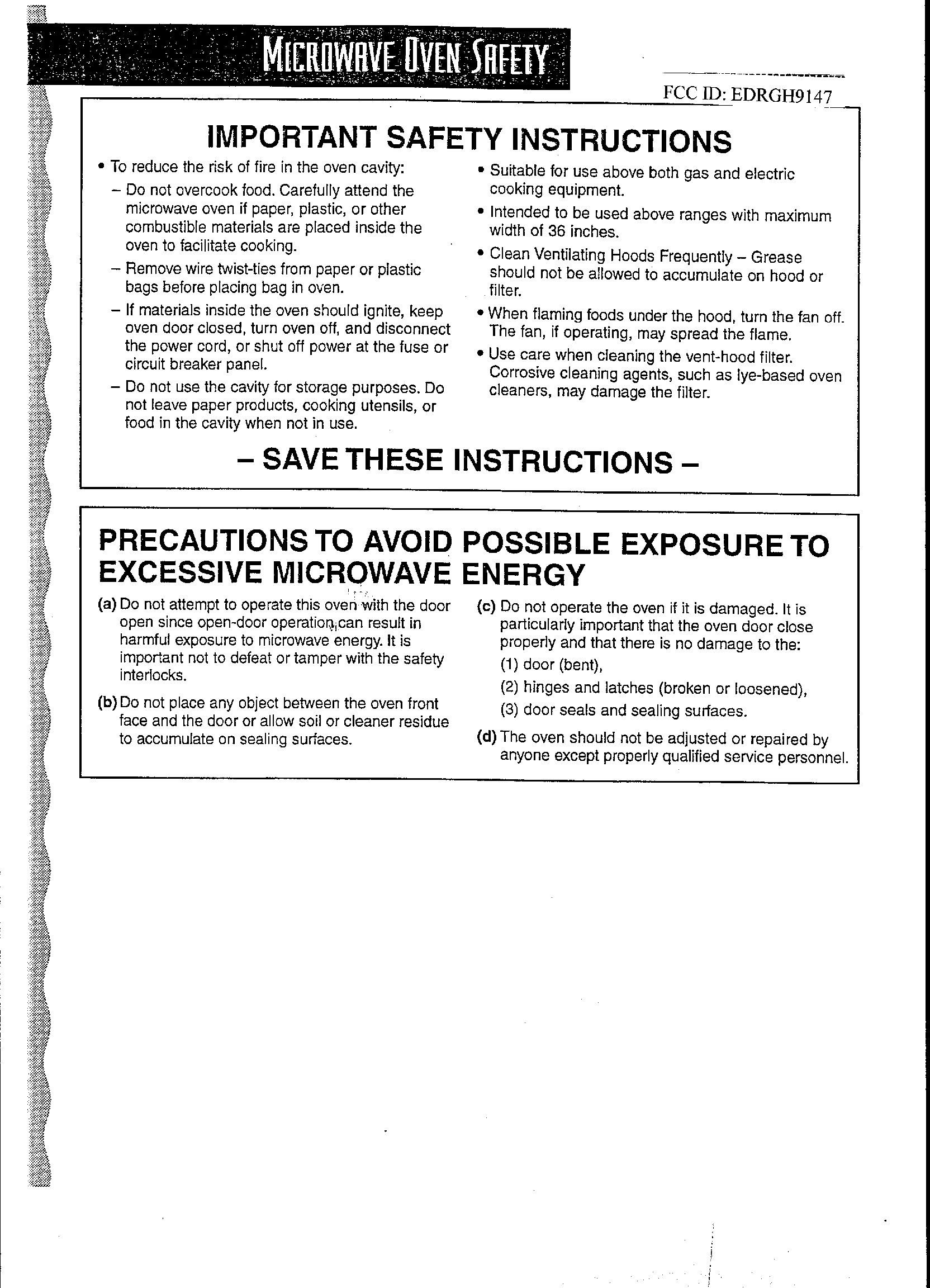

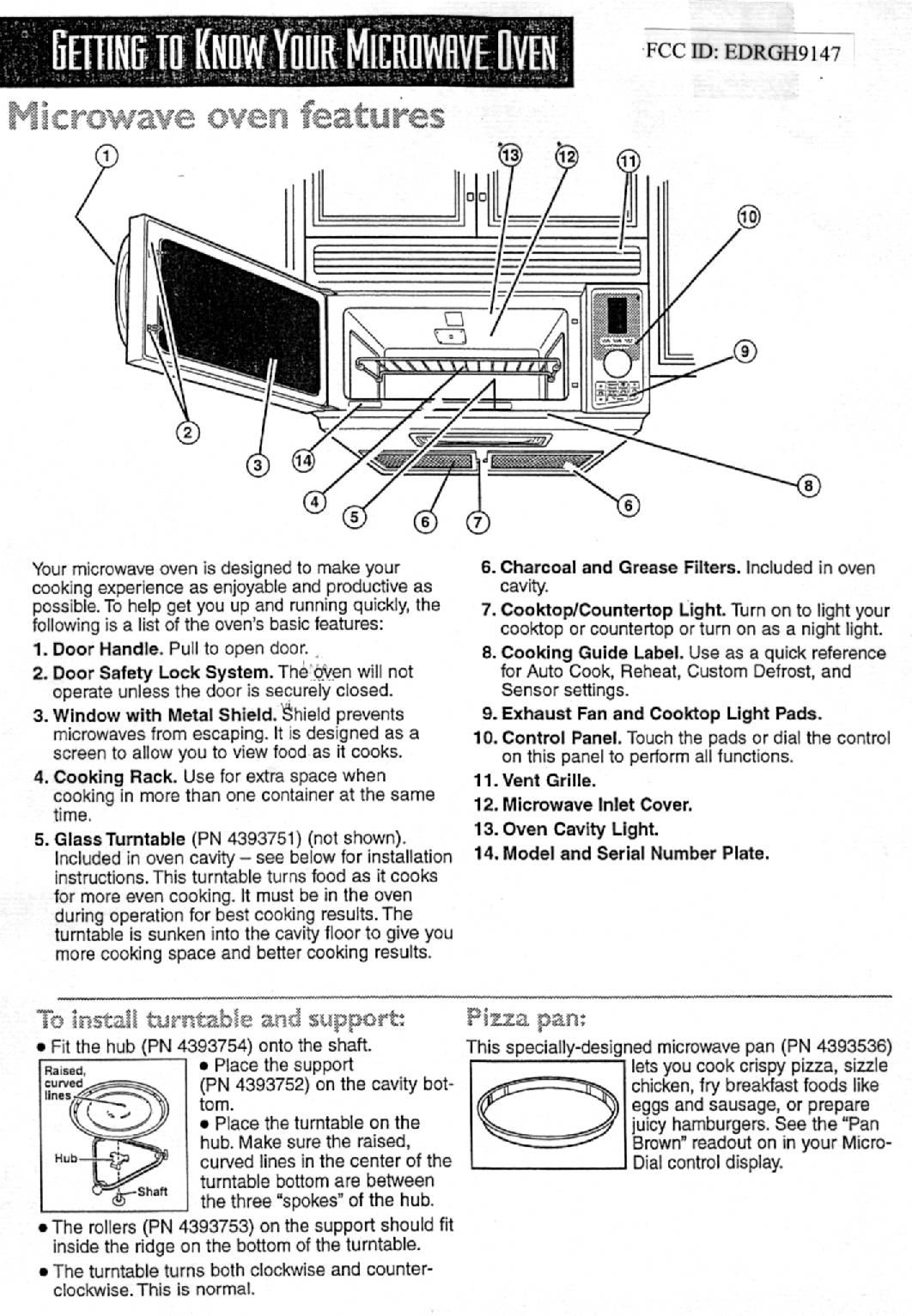

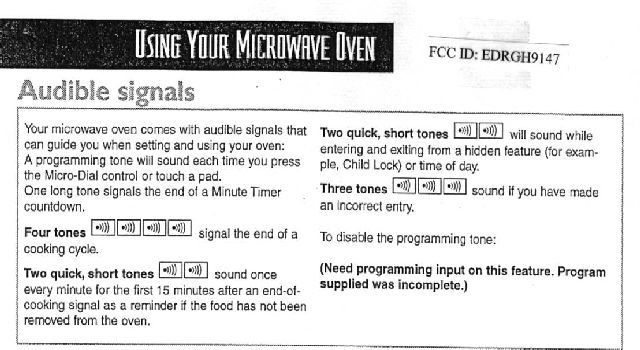

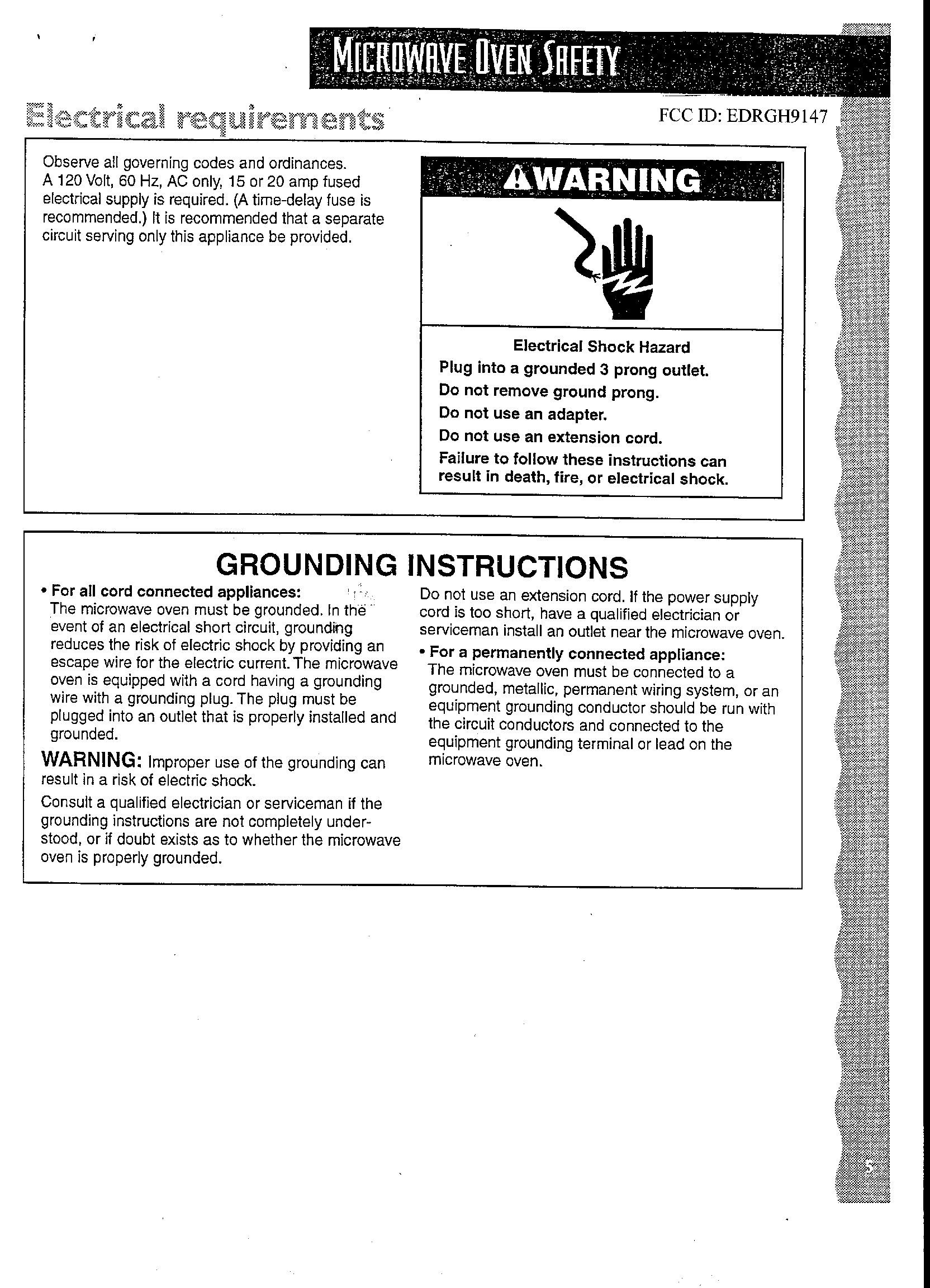

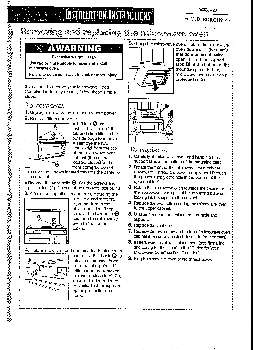

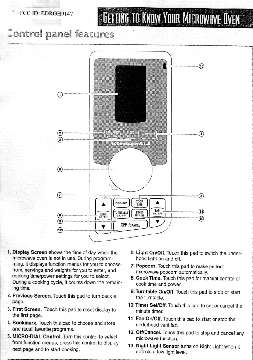

EDRGH9147MICROWAVE HOOD COMBINATION

Date: 1998-11-30TEST REPORTPage 1 of 9 No.: HM1500B/504 ____________________________________________________________ Testing EngineerVerify byPatrick Wong for Managing Director 1.1.1.1.1 Conditions in issuance of Test Report 1. This Report is issued in confidence to the client and it will be strictly treated as such by the Hong Kong Standards and Testing Centre Ltd. It may not be reproduced either in its entirety or in part and it may not be used for advertising. The client to whom the Report is issued may, however, show or send it, or a certified copy thereof prepared by the Hong Kong Standards and Testing Centre Ltd. to his customer, supplier or other persons directly concerned. The Hong Kong Standards and Testing Centre Ltd. will not, without the consent of the client, enter into any discussion or correspondence with any third party concerning the contents of the Report. 2. The report refers only to the sample tested and does not apply to the bulk, unless the sampling has been carried out by the Hong Kong Standards and Testing Centre Ltd. and is stated as such in the Report. 3. In the event of the improper use of the report, the Hong Kong Standards and Testing Centre Ltd. reserves the rights to withdraw it, and to adopt any other remedies which may be appropriate. 4. Samples submitted for testing are accepted on the understanding that the Report issued cannot form the basis of, or be the instrument for, any legal action against the Hong Kong Standards and Testing Centre Ltd. 5. The Hong Kong Standards and Testing Centre Ltd. will not be liable for or accept responsibility for any loss or damage howsoever arising from the use of information contained in any of its Reports or in any communication whatsoever about its said tests or investigations APPLICANT:(Code: 019506) Whirlpool SMC Microwave Product Development Limited. 2/F., Shell Industrial Building, 12 Lee Chung St., Chai Wan, Hong Kong. DATE SAMPLE(S) RECEIVED: 1998-11-18 TEST DURATION: 1998-11-19 to 1998-11-30 DESCRIPTION OF SAMPLE(S): A sample of product said to be Product:Microwave Hood Combination Manufacturer:Shunde Whirlpool SMC Microwave Products Co., Ltd. Brand Name:Kenmore Magnetrons:Panasonic type 2M167B-M14 Model Number:68640-1 Rating:120Va.c. 60Hz 1800W 15A Origin:China INVESTIGATIONS REQUESTED: Perform relevant tests for F.C.C. part 18 certification. RESULT/REMARK: Please see attached sheet(s). Please see report no.: HM1500/504 for measurement of performed in accordance with F.C.C. part 15. Date: 1998-11-30TEST REPORTPage 2 of 9 No.: HM1500B/504 APPENDICES: Appendix A - Test Facility Appendix B - Test Equipment Appendix C - Photos Appendix D - Additional Models Appendix E - Graphical Data CONCLUSION: From the measurement data obtained, the tested sample was considered to have COMPLIED with the requirements for the relevant clauses of Part 18 of the Federal Communication Commission Rules for Microwave Oven. Date: 1998-11-30TEST REPORTPage 3 of 9 No.: HM1500B/504 SUMMARY: TEST CONDITIONTEST REQUIREMENT TEST METHODSTATUS Radiated Emission, 100MHz to 18GHz FCC Part 18 Subpart C FCC / OST MP-5Pass Input Power MeasurementFCC Part 18 Subpart C FCC / OST MP-5Pass Output Power MeasurementFCC Part 18 Subpart C FCC / OST MP-5Pass Measurement of Output Frequency FCC Part 18 Subpart C FCC / OST MP-5Pass Output Frequency StabilityFCC Part 18 Subpart C FCC / OST MP-5Pass Date: 1998-11-30TEST REPORTPage 4 of 9 No.: HM1500B/504 TEST RESULTS: 1. Test:Radiated Emissions (100MHz to 18GHz) Test Requirement:FCC Part 18 Subpart C Test Method:FCC / OST MP-5 Test Date(s):1998-11-29 Test Method: Measurements were in accordance with F.C.C. Part 18 requirement and F.C.C. / OST MP-5. Please see Appendix A for details of measuring procedure. The following measurement bandwidths were used:- Frequency Range (GHz)Resolution Bandwidth (MHz)Video Bandwidth (Hz) 0.1 to 10.121200 1 to 181.01 Result: In the frequency range 100MHz to 18GHz, no emissions were detected above the noise floor of the test instrumentation. The noise floor of the test instrumentation are less than 20dBμV/m in the frequency range 100MHz to 18GHz. Date: 1998-11-30TEST REPORTPage 5 of 9 No.: HM1500B/504 2. Test:Input Power Measurement Test Requirement:FCC Part 18 Subpart C Test Method:FCC / OST MP-5 Test Date(s):1998-11-19 Test Method: Input power was measured using a Wattmeter. A 1000ml water load was located at the center of the oven. The oven was operated at full output power. Result: Input MeasurementManufacturer’s Rating Voltage (Vac)Current (A)Input Power (W)Current (A)Input Power (W) 12015.91810.015.01800.0 Date: 1998-11-30TEST REPORTPage 6 of 9 No.: HM1500B/504 3. Test:Output Power Measurement Test Requirement:FCC Part 18 Subpart C Test Method:FCC / OST MP-5 Test Date(s):1998-11-19 Test Method: The output power was measured by the calorimetric method, using 1000ml load and evaluate the power output from the observed temperature rise of the load over a period of time. The test method was based on clause 8 of IEC 705, Edition 3, 1996, Household Microwave Ovens - Methods for Measuring Performance. Result: Initial Temp ( o C)Final Temp. ( o C)Observed Period (s)Output Power (W) 10.021.251.0919.5 Remark: Power (W) = 4 187 51 .(/ )()joulescalxVolumemlxT∆ Power (W) = 4 187 1000 11 2 51 919 5 .. .( ) xx W= Date: 1998-11-30TEST REPORTPage 7 of 9 No.: HM1500B/504 4. Test:Measurement of Output Frequency Test Requirement:FCC Part 18 Subpart C Test Method:FCC / OST MP-5 Test Date(s):1998-11-26 Test Method: The fundamental frequency was measured using a spectrum analyser with precision frequency reference, with 1000ml load at the center of the oven. Results: Measured Frequency (MHz)Manufacturer’s Rated Frequency (MHz) 24712450 Date: 1998-11-30TEST REPORTPage 8 of 9 No.: HM1500B/504 5. Test:Output Frequency Stability Test Requirement:FCC Part 18 Subpart C Test Method:Based on FCC / OST MP-5 Test Date(s):1998-11-27 Frequency variation with time: Test Method: A spectrum analyser was used to …

Text truncated - open the document above for the full version.

Date: 1998-11-30TEST REPORTPage A1 of A1 No.: HM1500B/504APPENDIX A NOTES FOR THE RADIATION MEASUREMENT (1) Test site facility: Open field test site located at Taipo (Hong Kong) with a metal ground plane in compliance with the requirement of ANSI C63.4 - 1992. The facility is F.C.C. listed for part 15 & 18 (F.C.C. reference 31040-SIT 1300F2) (2) Test Equipment: HP 8572A EMI receiver was set to CISPR quasi-peak mode (100MHz to 1GHz) and Average mode (1GHz to 18GHz). (3) Test Set-up: The EUT and support equipment are placed in accordance with F.C.C. / OST MP-5. (4) Measuring Procedure: An initial pre-scan measurement was performed in a semi-anechoic chamber using a 25dB gain (100MHz to 1GHz) pre-amplifier and 30dB gain (1GHz to 18GHz) pre-amplifier. The receiver antenna in the chamber was 1.5m above the groundplane and 3m from the sample. The sample was placed 0.8m above the groundplane. Measurements in both horizontal and vertical polarities were performed and rotated through 360 o in order to maximized emissions with the sample exercised in accordance with FCC / OST MP-5. Emissions recorded during the pre-scan were then re-measured on an open area test site (OATS) in accordance with F.C.C. part 18 Requirement (FCC /OST MP-5). The ambient noise scanning was made before powering on the EUT and support equipment to identify the emissions from the environment. During the test, each emission was maximized by having the EUT continuously working, arranging and manipulating interconnecting cables, rotating turntable and varying antenna height from 1m to 4m in both horizontal and vertical polarization. The frequency range tested is from 100MHz to 18GHz and the emissions are shown in Test Results. Remark: Purpose of this test is to provide the Applicant with the necessary test data of their device for the submission to FCC with application for Equipment Authorization under FCC’s Equipment Authorization Program. This test itself is not an Approval Test.

Date: 1998-11-30TEST REPORTPage B1 of B2 No.: HM1500B/504APPENDIX B EQUIPMENT LIST Measurement of Input Power EQP NO.DESCRIPTIONMANUFACTURERMODEL NO.SERIAL NO.LAST CAL E413POWER METERIDRCIDRC CP-210A22625330/04/98 Measurement of Output Power EQP NO.DESCRIPTIONMANUFACTURERMODEL NO.SERIAL NO.LAST CAL HIREDPRECISION THERMOMETERAMARELL100DN/A05/06/98 HIREDPRECISION THERMOMETERAMARELL N63800N/AN/A05/06/98 E0147SCALEISHIDAN/AN/A25/09/98 Measurement of Output Frequency EQP NO.DESCRIPTIONMANUFACTURERMODEL NO.SERIAL NO.LAST CAL EM012PRE-AMPLIFIERHEWLETT PACKARDHP8449B3008A0026229/05/98 EM082SEMI-ANECHOIC CHAMBERFELJAS & MASSONN/AN/A05/06/98 EM020HORN ANTENNAEMCO3115403230/06/97 EM131SPECTRUM ANALYSERHEWLETT PACKARD8595EM3710A0252127/10/97 EM5220.5m COAXIAL CABLESUHNERMULTIFLEX 141N/A16/12/97 EM5231.0m COAXIAL CABLESUHNERMULTIFLEX 141N/A16/12/97 EM5245.0m COAXIAL CABLESUHNERMULTIFLEX 141N/A16/12/97 Measurement of Output Frequency Stability EQP NO.DESCRIPTIONMANUFACTURERMODEL NO.SERIAL NO.LAST CAL EM012PRE-AMPLIFIER HEWLETT PACKARD HP8449B3008A0026229/05/98 EM082SEMI-ANECHOIC CHAMBER FELJAS & MASSON N/AN/A10/12/96 EM020HORN ANTENNAEMCO3115403230/06/97 EM131SPECTRUM ANALYSERHEWLETT PACKARD8595EM3710A0252127/10/97 EM5220.5m COAXIAL CABLESUHNERMULTIFLEX 141N/A16/12/97 EM5231.0m COAXIAL CABLESUHNERMULTIFLEX 141N/A16/12/97 EM5245.0m COAXIAL CABLESUHNERMULTIFLEX 141N/A16/12/97 Date: 1998-11-30TEST REPORTPage B2 of B2 No.: HM1500B/504APPENDIX B Radiated Emission EQP NO.DESCRIPTIONMANUFACTURERMODEL NO.SERIAL NO.LAST CAL. EM007SPECTRUM ANALYZERHEWLETT PACKARDHP85660B3144A2119229/05/98 EM008SPECTRUM ANALYZER DISPLAYHEWLETT PACKARDHP85662A3144A2051429/05/98 EM009QUASI PEAK ADAPTORHEWLETT PACKARDHP85650A3303A0170229/05/98 EM010RF PRESELECTORHEWLETT PACKARDHP85685A3221A0141029/05/98 EM011ATTENUATION/SWITCHHEWLETT PACKARDHP11713A2508A1059529/05/98 EM012PRE-AMPLIFIERHEWLETT PACKARDHP8449B3008A0026229/05/98 EM013CONTROLLER (COMPUTER), COLOR MONITOR, KEYBOARD & MOUSE FLOPPY DRIVE HEWLETT PACKARD HEWLETT PACKARD HEWLETT PACKARD HP9000 HP A1097C HP9133L 6226A60314 3151J39517 2623A02468 CM EM017ANTENNAARA INC.LPB-2513/A106930/12/97 EM072SIGNAL GENERATORHEWLETT PACKARD8640B1948A1189230/03/98 EM083HKSTC OPEN AREA TEST SITEHKSTCN/AN/A16/02/98 EM020HORN ANTENNAEMCO3115403230/06/97 EM5220.5m COAXIAL CABLESUHNERMULTIFLEX 141N/A16/12/97 EM5231.0m COAXIAL CABLESUHNERMULTIFLEX 141N/A16/12/97 EM5245.0m COAXIAL CABLESUHNERMULTIFLEX 141N/A16/12/97 Remarks:- CMCorrective Maintenance N/ANot Applicable or Not Available TBDTo Be Determined

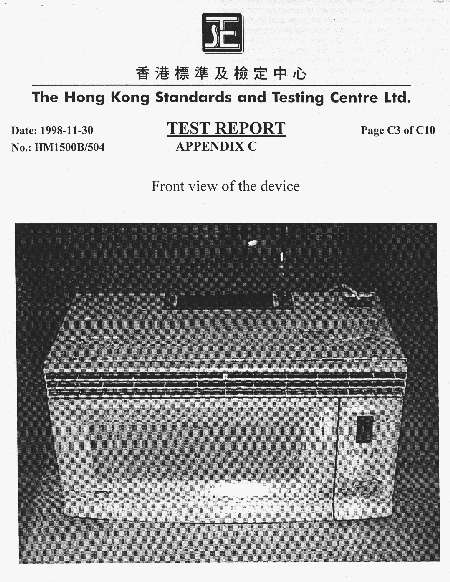

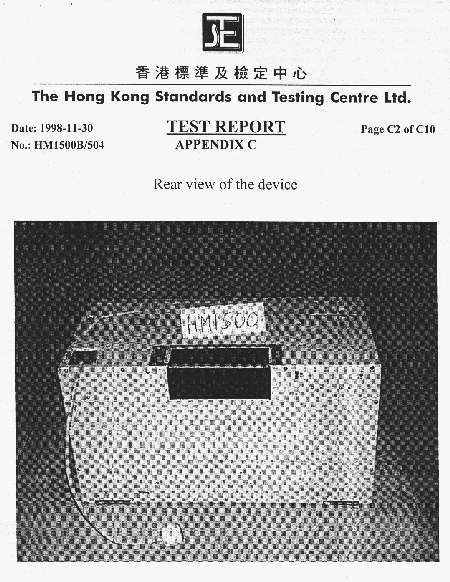

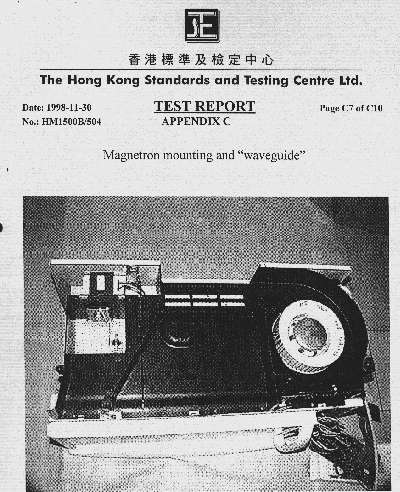

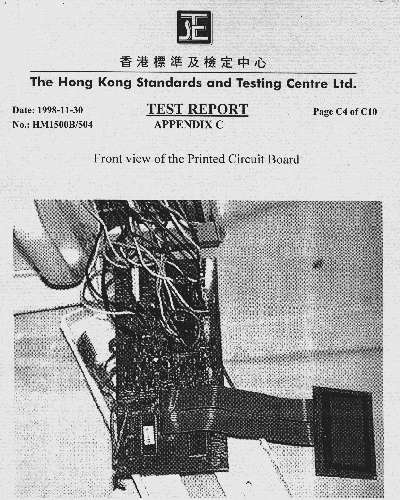

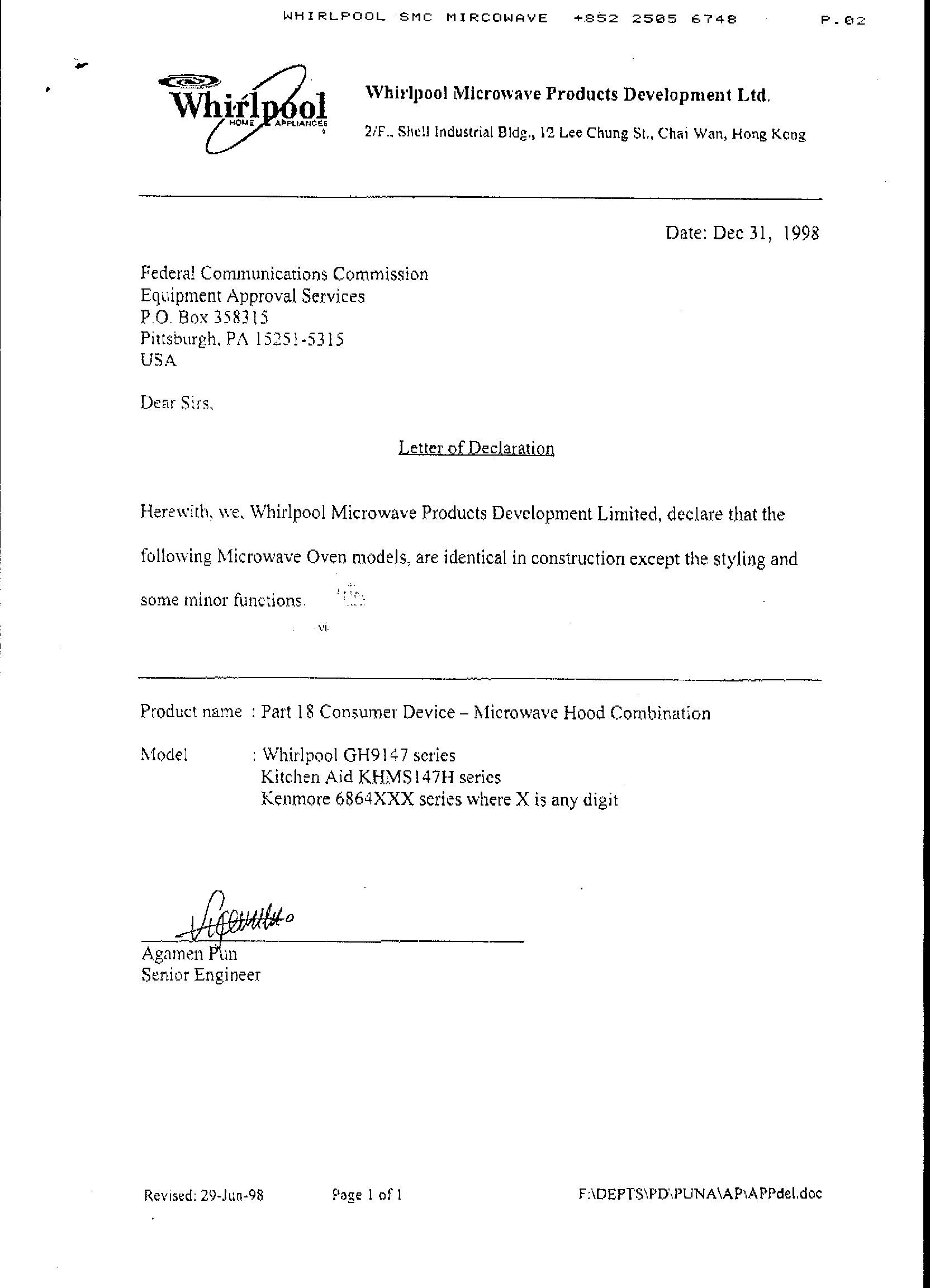

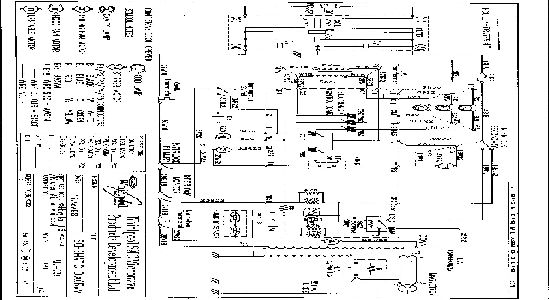

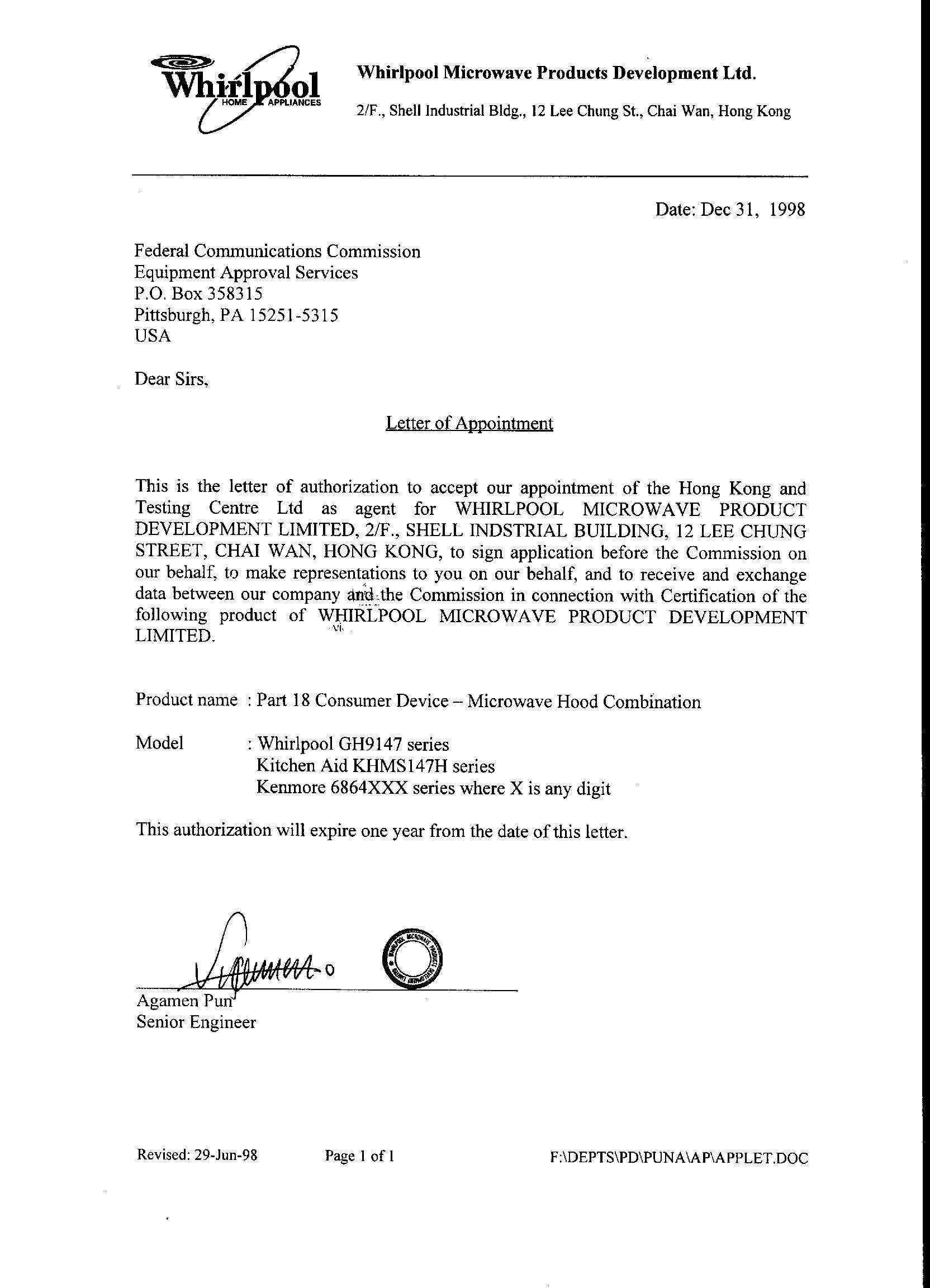

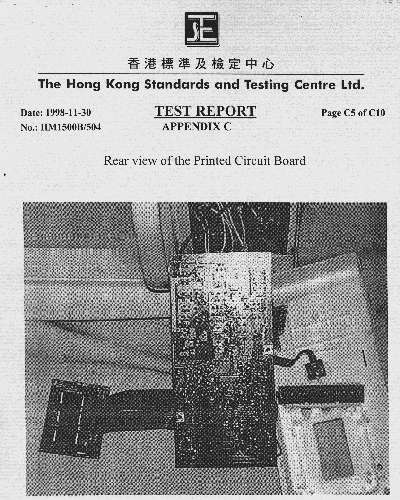

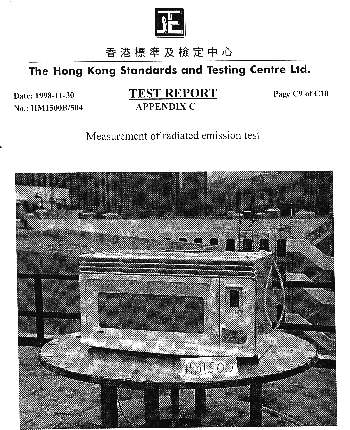

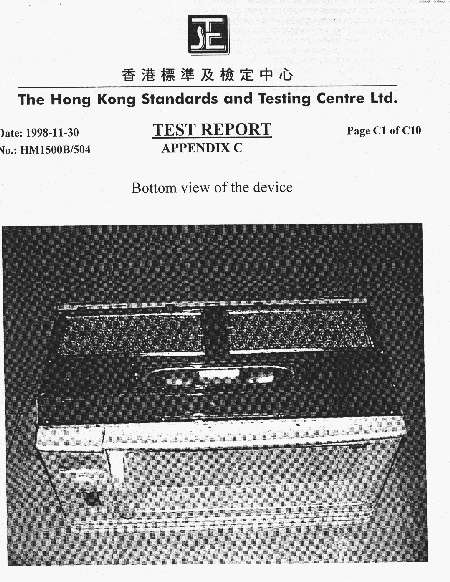

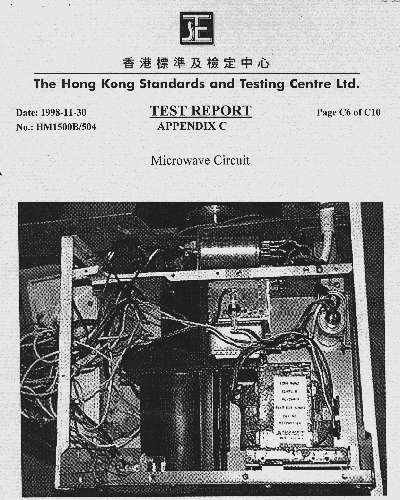

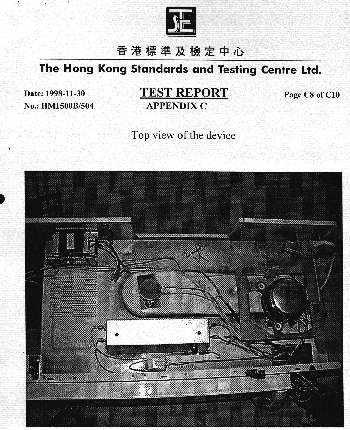

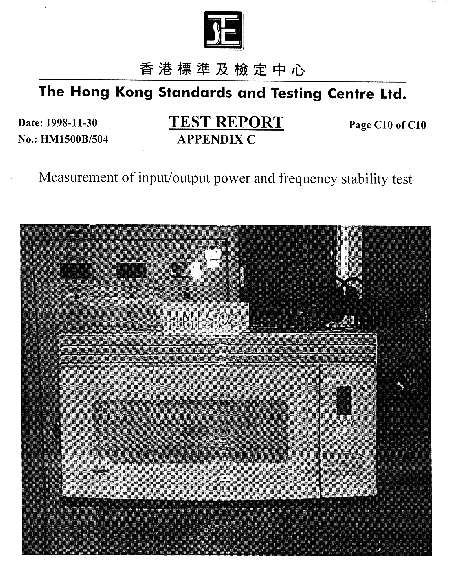

Date: 1998-11-30 TEST REPORT Page D1 of D1 No.: HM1500B/504 APPENDIX D ADDITIONAL MODEL: The following model listed below are identical to Model No: 68640-1 in construction except the styling and some minor functions. Brand:Whirlpool Family Name:GH9147 series Brand:Kenmore Family Name:686 series:68640, 68641, 68642, 6864XSS Brand:Kitchen Aid Family Name:KHMS147H series:KHMS147HSS, KHMS147HWH, KHMS147HBL, KHMS147HAL Please refer to the letter from Agamen Pun (Whirlpool) dated 31 Dec, 1998 for more information.

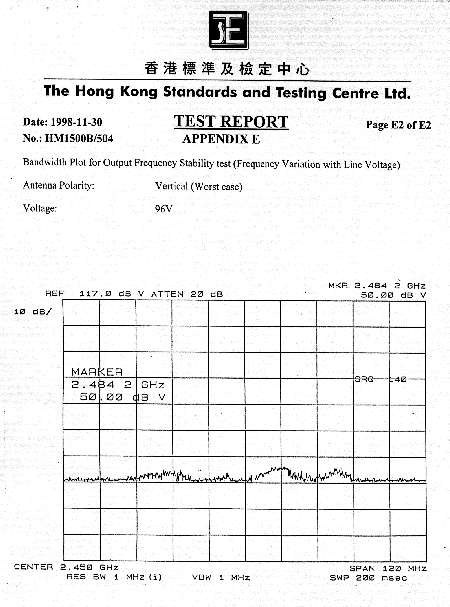

Date: 1998-11-30TEST REPORTPage 1 of 9 No.: HM1500B/504 ____________________________________________________________ Testing EngineerVerify byPatrick Wong for Managing Director 1.1.1.1.1 Conditions in issuance of Test Report 1. This Report is issued in confidence to the client and it will be strictly treated as such by the Hong Kong Standards and Testing Centre Ltd. It may not be reproduced either in its entirety or in part and it may not be used for advertising. The client to whom the Report is issued may, however, show or send it, or a certified copy thereof prepared by the Hong Kong Standards and Testing Centre Ltd. to his customer, supplier or other persons directly concerned. The Hong Kong Standards and Testing Centre Ltd. will not, without the consent of the client, enter into any discussion or correspondence with any third party concerning the contents of the Report. 2. The report refers only to the sample tested and does not apply to the bulk, unless the sampling has been carried out by the Hong Kong Standards and Testing Centre Ltd. and is stated as such in the Report. 3. In the event of the improper use of the report, the Hong Kong Standards and Testing Centre Ltd. reserves the rights to withdraw it, and to adopt any other remedies which may be appropriate. 4. Samples submitted for testing are accepted on the understanding that the Report issued cannot form the basis of, or be the instrument for, any legal action against the Hong Kong Standards and Testing Centre Ltd. 5. The Hong Kong Standards and Testing Centre Ltd. will not be liable for or accept responsibility for any loss or damage howsoever arising from the use of information contained in any of its Reports or in any communication whatsoever about its said tests or investigations APPLICANT:(Code: 019506) Whirlpool SMC Microwave Product Development Limited. 2/F., Shell Industrial Building, 12 Lee Chung St., Chai Wan, Hong Kong. DATE SAMPLE(S) RECEIVED: 1998-11-18 TEST DURATION: 1998-11-19 to 1998-11-30 DESCRIPTION OF SAMPLE(S): A sample of product said to be Product:Microwave Hood Combination Manufacturer:Shunde Whirlpool SMC Microwave Products Co., Ltd. Brand Name:Kenmore Magnetrons:Panasonic type 2M167B-M14 Model Number:68640-1 Rating:120Va.c. 60Hz 1800W 15A Origin:China INVESTIGATIONS REQUESTED: Perform relevant tests for F.C.C. part 18 certification. RESULT/REMARK: Please see attached sheet(s). Please see report no.: HM1500/504 for measurement of performed in accordance with F.C.C. part 15. Date: 1998-11-30TEST REPORTPage 2 of 9 No.: HM1500B/504 APPENDICES: Appendix A - Test Facility Appendix B - Test Equipment Appendix C - Photos Appendix D - Additional Models Appendix E - Graphical Data CONCLUSION: From the measurement data obtained, the tested sample was considered to have COMPLIED with the requirements for the relevant clauses of Part 18 of the Federal Communication Commission Rules for Microwave Oven. Date: 1998-11-30TEST REPORTPage 3 of 9 No.: HM1500B/504 SUMMARY: TEST CONDITIONTEST REQUIREMENT TEST METHODSTATUS Radiated Emission, 100MHz to 18GHz FCC Part 18 Subpart C FCC / OST MP-5Pass Input Power MeasurementFCC Part 18 Subpart C FCC / OST MP-5Pass Output Power MeasurementFCC Part 18 Subpart C FCC / OST MP-5Pass Measurement of Output Frequency FCC Part 18 Subpart C FCC / OST MP-5Pass Output Frequency StabilityFCC Part 18 Subpart C FCC / OST MP-5Pass Date: 1998-11-30TEST REPORTPage 4 of 9 No.: HM1500B/504 TEST RESULTS: 1. Test:Radiated Emissions (100MHz to 18GHz) Test Requirement:FCC Part 18 Subpart C Test Method:FCC / OST MP-5 Test Date(s):1998-11-29 Test Method: Measurements were in accordance with F.C.C. Part 18 requirement and F.C.C. / OST MP-5. Please see Appendix A for details of measuring procedure. The following measurement bandwidths were used:- Frequency Range (GHz)Resolution Bandwidth (MHz)Video Bandwidth (Hz) 0.1 to 10.121200 1 to 181.01 Result: In the frequency range 100MHz to 18GHz, no emissions were detected above the noise floor of the test instrumentation. The noise floor of the test instrumentation are less than 20dBμV/m in the frequency range 100MHz to 18GHz. Date: 1998-11-30TEST REPORTPage 5 of 9 No.: HM1500B/504 2. Test:Input Power Measurement Test Requirement:FCC Part 18 Subpart C Test Method:FCC / OST MP-5 Test Date(s):1998-11-19 Test Method: Input power was measured using a Wattmeter. A 1000ml water load was located at the center of the oven. The oven was operated at full output power. Result: Input MeasurementManufacturer’s Rating Voltage (Vac)Current (A)Input Power (W)Current (A)Input Power (W) 12015.91810.015.01800.0 Date: 1998-11-30TEST REPORTPage 6 of 9 No.: HM1500B/504 3. Test:Output Power Measurement Test Requirement:FCC Part 18 Subpart C Test Method:FCC / OST MP-5 Test Date(s):1998-11-19 Test Method: The output power was measured by the calorimetric method, using 1000ml load and evaluate the power output from the observed temperature rise of the load over a period of time. The test method was based on clause 8 of IEC 705, Edition 3, 1996, Household Microwave Ovens - Methods for Measuring Performance. Result: Initial Temp ( o C)Final Temp. ( o C)Observed Period (s)Output Power (W) 10.021.251.0919.5 Remark: Power (W) = 4 187 51 .(/ )()joulescalxVolumemlxT∆ Power (W) = 4 187 1000 11 2 51 919 5 .. .( ) xx W= Date: 1998-11-30TEST REPORTPage 7 of 9 No.: HM1500B/504 4. Test:Measurement of Output Frequency Test Requirement:FCC Part 18 Subpart C Test Method:FCC / OST MP-5 Test Date(s):1998-11-26 Test Method: The fundamental frequency was measured using a spectrum analyser with precision frequency reference, with 1000ml load at the center of the oven. Results: Measured Frequency (MHz)Manufacturer’s Rated Frequency (MHz) 24712450 Date: 1998-11-30TEST REPORTPage 8 of 9 No.: HM1500B/504 5. Test:Output Frequency Stability Test Requirement:FCC Part 18 Subpart C Test Method:Based on FCC / OST MP-5 Test Date(s):1998-11-27 Frequency variation with time: Test Method: A spectrum analyser was used to …

Text truncated - open the document above for the full version.

Date: 1998-11-30 TEST REPORT Page A1 of A1 No.: HM1500B/504 APPENDIX A NOTES FOR THE RADIATION MEASUREMENT (1) Test site facility: Open field test site located at Taipo (Hong Kong) with a metal ground plane in compliance with the requirement of ANSI C63.4 - 1992. The facility is F.C.C. listed for part 15 & 18 (F.C.C. reference 31040-SIT 1300F2) (2) Test Equipment: HP 8572A EMI receiver was set to CISPR quasi-peak mode (100MHz to 1GHz) and Average mode (1GHz to 18GHz). (3) Test Set-up: The EUT and support equipment are placed in accordance with F.C.C. / OST MP-5. (4) Measuring Procedure: An initial pre-scan measurement was performed in a semi-anechoic chamber using a 25dB gain (100MHz to 1GHz) pre-amplifier and 30dB gain (1GHz to 18GHz) pre-amplifier. The receiver antenna in the chamber was 1.5m above the groundplane and 3m from the sample. The sample was placed 0.8m above the groundplane. Measurements in both horizontal and vertical polarities were performed and rotated through 360 o in order to maximized emissions with the sample exercised in accordance with FCC / OST MP-5. Emissions recorded during the pre-scan were then re-measured on an open area test site (OATS) in accordance with F.C.C. part 18 Requirement (FCC /OST MP-5). The ambient noise scanning was made before powering on the EUT and support equipment to identify the emissions from the environment. During the test, each emission was maximized by having the EUT continuously working, arranging and manipulating interconnecting cables, rotating turntable and varying antenna height from 1m to 4m in both horizontal and vertical polarization. The frequency range tested is from 100MHz to 18GHz and the emissions are shown in Test Results. Remark: Purpose of this test is to provide the Applicant with the necessary test data of their device for the submission to FCC with application for Equipment Authorization under FCC’s Equipment Authorization Program. This test itself is not an Approval Test.

Date: 1998-11-30TEST REPORTPage B1 of B2 No.: HM1500B/504APPENDIX B EQUIPMENT LIST Measurement of Input Power EQP NO.DESCRIPTIONMANUFACTURERMODEL NO.SERIAL NO.LAST CAL E413POWER METERIDRCIDRC CP-210A22625330/04/98 Measurement of Output Power EQP NO.DESCRIPTIONMANUFACTURERMODEL NO.SERIAL NO.LAST CAL HIREDPRECISION THERMOMETERAMARELL100DN/A05/06/98 HIREDPRECISION THERMOMETERAMARELL N63800N/AN/A05/06/98 E0147SCALEISHIDAN/AN/A25/09/98 Measurement of Output Frequency EQP NO.DESCRIPTIONMANUFACTURERMODEL NO.SERIAL NO.LAST CAL EM012PRE-AMPLIFIERHEWLETT PACKARDHP8449B3008A0026229/05/98 EM082SEMI-ANECHOIC CHAMBERFELJAS & MASSONN/AN/A05/06/98 EM020HORN ANTENNAEMCO3115403230/06/97 EM131SPECTRUM ANALYSERHEWLETT PACKARD8595EM3710A0252127/10/97 EM5220.5m COAXIAL CABLESUHNERMULTIFLEX 141N/A16/12/97 EM5231.0m COAXIAL CABLESUHNERMULTIFLEX 141N/A16/12/97 EM5245.0m COAXIAL CABLESUHNERMULTIFLEX 141N/A16/12/97 Measurement of Output Frequency Stability EQP NO.DESCRIPTIONMANUFACTURERMODEL NO.SERIAL NO.LAST CAL EM012PRE-AMPLIFIER HEWLETT PACKARD HP8449B3008A0026229/05/98 EM082SEMI-ANECHOIC CHAMBER FELJAS & MASSON N/AN/A10/12/96 EM020HORN ANTENNAEMCO3115403230/06/97 EM131SPECTRUM ANALYSERHEWLETT PACKARD8595EM3710A0252127/10/97 EM5220.5m COAXIAL CABLESUHNERMULTIFLEX 141N/A16/12/97 EM5231.0m COAXIAL CABLESUHNERMULTIFLEX 141N/A16/12/97 EM5245.0m COAXIAL CABLESUHNERMULTIFLEX 141N/A16/12/97 Date: 1998-11-30TEST REPORTPage B2 of B2 No.: HM1500B/504APPENDIX B Radiated Emission EQP NO.DESCRIPTIONMANUFACTURERMODEL NO.SERIAL NO.LAST CAL. EM007SPECTRUM ANALYZERHEWLETT PACKARDHP85660B3144A2119229/05/98 EM008SPECTRUM ANALYZER DISPLAYHEWLETT PACKARDHP85662A3144A2051429/05/98 EM009QUASI PEAK ADAPTORHEWLETT PACKARDHP85650A3303A0170229/05/98 EM010RF PRESELECTORHEWLETT PACKARDHP85685A3221A0141029/05/98 EM011ATTENUATION/SWITCHHEWLETT PACKARDHP11713A2508A1059529/05/98 EM012PRE-AMPLIFIERHEWLETT PACKARDHP8449B3008A0026229/05/98 EM013CONTROLLER (COMPUTER), COLOR MONITOR, KEYBOARD & MOUSE FLOPPY DRIVE HEWLETT PACKARD HEWLETT PACKARD HEWLETT PACKARD HP9000 HP A1097C HP9133L 6226A60314 3151J39517 2623A02468 CM EM017ANTENNAARA INC.LPB-2513/A106930/12/97 EM072SIGNAL GENERATORHEWLETT PACKARD8640B1948A1189230/03/98 EM083HKSTC OPEN AREA TEST SITEHKSTCN/AN/A16/02/98 EM020HORN ANTENNAEMCO3115403230/06/97 EM5220.5m COAXIAL CABLESUHNERMULTIFLEX 141N/A16/12/97 EM5231.0m COAXIAL CABLESUHNERMULTIFLEX 141N/A16/12/97 EM5245.0m COAXIAL CABLESUHNERMULTIFLEX 141N/A16/12/97 Remarks:- CMCorrective Maintenance N/ANot Applicable or Not Available TBDTo Be Determined

Date: 1998-11-30 TEST REPORT Page 1 of 9 No.: HM1500B/504 ____________________________________________________________ Testing EngineerVerify byPatrick Wong for Managing Director 1.1.1.1.1 Conditions in issuance of Test Report 1. This Report is issued in confidence to the client and it will be strictly treated as such by the Hong Kong Standards and Testing Centre Ltd. It may not be reproduced either in its entirety or in part and it may not be used for advertising. The client to whom the Report is issued may, however, show or send it, or a certified copy thereof prepared by the Hong Kong Standards and Testing Centre Ltd. to his customer, supplier or other persons directly concerned. The Hong Kong Standards and Testing Centre Ltd. will not, without the consent of the client, enter into any discussion or correspondence with any third party concerning the contents of the Report. 2. The report refers only to the sample tested and does not apply to the bulk, unless the sampling has been carried out by the Hong Kong Standards and Testing Centre Ltd. and is stated as such in APPLICANT: (Code: 019506) Whirlpool SMC Microwave Product Development Limited. 2/F., Shell Industrial Building, 12 Lee Chung St., Chai Wan, Hong Kong. DATE SAMPLE(S) RECEIVED: 1998-11-18 TEST DURATION: 1998-11-19 to 1998-11-30 DESCRIPTION OF SAMPLE(S): A sample of product said to be Product:Microwave Hood Combination Manufacturer:Shunde Whirlpool SMC Microwave Products Co., Ltd. Brand Name:Kenmore Magnetrons:Panasonic type 2M167B-M14 Model Number:68640-1 Rating:120Va.c. 60Hz 1800W 15A Origin:China INVESTIGATIONS REQUESTED: Perform relevant tests for F.C.C. part 18 certification. RESULT/REMARK: Please see attached sheet(s). Please see report no.: HM1500/504 for measurement of performed in accordance with F.C.C. part 15. Date: 1998-11-30 TEST REPORT Page 2 of 9 No.: HM1500B/504 APPENDICES: Appendix A - Test Facility Appendix B - Test Equipment Appendix C - Photos Appendix D - Additional Models Appendix E - Graphical Data CONCLUSION: From the measurement data obtained, the tested sample was considered to have COMPLIED with the requirements for the relevant clauses of Part 18 of the Federal Communication Commission Rules for Microwave Oven. Date: 1998-11-30 TEST REPORT Page 3 of 9 No.: HM1500B/504 SUMMARY: TEST CONDITIONTEST REQUIREMENT TEST METHODSTATUS Radiated Emission, 100MHz to 18GHz FCC Part 18 Subpart C FCC / OST MP-5Pass Input Power MeasurementFCC Part 18 Subpart C FCC / OST MP-5Pass Output Power MeasurementFCC Part 18 Subpart C FCC / OST MP-5Pass Measurement of Output Frequency FCC Part 18 Subpart C FCC / OST MP-5Pass Output Frequency StabilityFCC Part 18 Subpart C FCC / OST MP-5Pass Date: 1998-11-30 TEST REPORT Page 4 of 9 No.: HM1500B/504 TEST RESULTS: 1. Test:Radiated Emissions (100MHz to 18GHz) Test Requirement:FCC Part 18 Subpart C Test Method:FCC / OST MP-5 Test Date(s):1998-11-29 Test Method: Measurements were in accordance with F.C.C. Part 18 requirement and F.C.C. / OST MP-5. Please see Appendix A for details of measuring procedure. The following measurement bandwidths were used:- Frequency Range (GHz)Resolution Bandwidth (MHz)Video Bandwidth (Hz) 0.1 to 10.121200 1 to 181.01 Result: In the frequency range 100MHz to 18GHz, no emissions were detected above the noise floor of the test instrumentation. The noise floor of the test instrumentation are less than 20dB μ V/m in the frequency range 100MHz to 18GHz. Date: 1998-11-30 TEST REPORT Page 5 of 9 No.: HM1500B/504 2. Test:Input Power Measurement Test Requirement:FCC Part 18 Subpart C Test Method:FCC / OST MP-5 Test Date(s):1998-11-19 Test Method: Input power was measured using a Wattmeter. A 1000ml water load was located at the center of the oven. The oven was operated at full output power. Result: Input MeasurementManufacturer’s Rating Voltage (Vac)Current (A)Input Power (W)Current (A)Input Power (W) 12015.91810.015.01800.0 Date: 1998-11-30 TEST REPORT Page 6 of 9 No.: HM1500B/504 3. Test:Output Power Measurement Test Requirement:FCC Part 18 Subpart C Test Method:FCC / OST MP-5 Test Date(s):1998-11-19 Test Method: The output power was measured by the calorimetric method, using 1000ml load and evaluate the power output from the observed temperature rise of the load over a period of time. The test method was based on clause 8 of IEC 705, Edition 3, 1996, Household Microwave Ovens - Methods for Measuring Performance. Result: Initial Temp ( o C)Final Temp. ( o C)Observed Period (s)Output Power (W) 10.021.251.0919.5 Remark: Power (W) = 4 187 51 .(/ )() joulescalxVolumemlxT∆ Power (W) = 4 187 1000 11 2 51 919 5 .. .( ) xx W= Date: 1998-11-30 TEST REPORT Page 7 of 9 No.: HM1500B/504 4. T est:Measurement of Output Frequency Test Requirement:FCC Part 18 Subpart C Test Method:FCC / OST MP-5 Test Date(s):1998-11-26 Test Method: The fundamental frequency was measured using a spectrum analyser with precision frequency reference, with 1000ml load at the center of the oven. Results: Measured Frequency (MHz)Manufacturer’s Rated Frequency (MHz) 24712450 Date: 1998-11-30 TEST REPORT Page 8 of 9 No.: HM1500B/504 5. T est:Output Frequency Stability Test Requirement:FCC Part 18 Subpart C Test Method:Based on FCC / OST MP-5 Test Date(s):1998-11-27 Frequency variation with time: Test Method: A spectrum analyser was used to measure the frequency variation with time, with a 1000ml load located at the center of the oven with maximum power. The test was performed until the volume was reduced by evaporation to approximately 20% of the original quantity. During the test, the spectrum analyser trace was put on maximum hold in order to obtain a bandwidth plot showing the sideband edges. Measurements were performed with the antenna in both horizontal and vertical polarities. Results: LoadMaximum sideband edgeMinimum sideband edge (GHz) Initial Volume (ml)Final Volume (ml)MeasuredLimitMeasuredLimit 10002002.4822.5002.4102.400 Spectrum analyser Settings Resolution bandwidth:1MHFrequency span:1…

Text truncated - open the document above for the full version.

Date: 1998-11-30TEST REPORTPage A1 of A1 No.: HM1500B/504APPENDIX A NOTES FOR THE RADIATION MEASUREMENT (1) Test site facility: Open field test site located at Taipo (Hong Kong) with a metal ground plane in compliance with the requirement of ANSI C63.4 - 1992. The facility is F.C.C. listed for part 15 & 18 (F.C.C. reference 31040-SIT 1300F2) (2) Test Equipment: HP 8572A EMI receiver was set to CISPR quasi-peak mode (100MHz to 1GHz) and Average mode (1GHz to 18GHz). (3) Test Set-up: The EUT and support equipment are placed in accordance with F.C.C. / OST MP-5. (4) Measuring Procedure: An initial pre-scan measurement was performed in a semi-anechoic chamber using a 25dB gain (100MHz to 1GHz) pre-amplifier and 30dB gain (1GHz to 18GHz) pre-amplifier. The receiver antenna in the chamber was 1.5m above the groundplane and 3m from the sample. The sample was placed 0.8m above the groundplane. Measurements in both horizontal and vertical polarities were performed and rotated through 360 o in order to maximized emissions with the sample exercised in accordance with FCC / OST MP-5. Emissions recorded during the pre-scan were then re-measured on an open area test site (OATS) in accordance with F.C.C. part 18 Requirement (FCC /OST MP-5). The ambient noise scanning was made before powering on the EUT and support equipment to identify the emissions from the environment. During the test, each emission was maximized by having the EUT continuously working, arranging and manipulating interconnecting cables, rotating turntable and varying antenna height from 1m to 4m in both horizontal and vertical polarization. The frequency range tested is from 100MHz to 18GHz and the emissions are shown in Test Results. Remark: Purpose of this test is to provide the Applicant with the necessary test data of their device for the submission to FCC with application for Equipment Authorization under FCC’s Equipment Authorization Program. This test itself is not an Approval Test.

Date: 1998-11-30 TEST REPORT Page B1 of B2 No.: HM1500B/504 APPENDIX B EQUIPMENT LIST Measurement of Input Power EQP NO.DESCRIPTIONMANUFACTURERMODEL NO.SERIAL NO.LAST CAL E413POWER METERIDRCIDRC CP-210A22625330/04/98 Measurement of Output Power EQP NO.DESCRIPTIONMANUFACTURERMODEL NO.SERIAL NO.LAST CAL HIREDPRECISION THERMOMETERAMARELL100DN/A05/06/98 HIREDPRECISION THERMOMETERAMARELL N63800N/AN/A05/06/98 E0147SCALEISHIDAN/AN/A25/09/98 Measurement of Output Frequency EQP NO.DE…
