GD00Z-1GARAGE DOOR OPENERREMOTE COMMANDCONTROLLERwith TILT SENSORInstallation Instructions 1. PRODUCT DESCRIPTIONThe Model GD00Z-1 is a garage door opener Remote Command Controller with built-in Z-Wave ® interoperable two-way RF mesh networking technology designed for use with Lowe’s Iris ® hub. A garage door opener connected to the Controller can be remotely activated using the Iris web interface or Iris mobile applications.The GD00Z-1 Controller connects to the garage door opener’s pushbutton wall console terminals and communicates with the Iris hub using Z-Wave radio signals. A wireless tilt sensor mounts on the garage door and reports the door’s position to the Controller. When the Controller receives a command from the Iris hub, it will open or close the garage door.Anytime the garage door opener is activated remotely by the Controller, a warning indicator fl ashes and a beeper sounds for fi ve seconds before the door begins to move.If, due to an obstruction or other cause, the door does not completely open or close when it is activated remotely, the Controller will pause for 30 seconds. After the delay, a second remote activation can be attempted. If the door does not complete its motion on the second attempt, the Controller will suspend operation until the door is operated locally with the opener’s pushbutton wall console.The Controller is powered by a plug-in power supply. The Model TILT 345 tilt sensor is powered by a 2032 lithium battery. If the tilt sensor battery is low, it will be reported to the Iris hub by the Controller. A link button and status light are provided on the Controller for adding or removing the device with the Iris hub.Four screws and anchors are provided for mounting the Controller. An adjustable controller mounting bracket with hardware is supplied for installing the unit onto the door opener’s hanging hardware. The wireless tilt sensor mounts with double sided tape or the two screws supplied. 2. SAFETY NOTES 3. PRODUCT FEATURES 4. TILT SENSOR INSTALLATION AND BATTERY 5. PAIRING WITH IRIS USA & Canada (800) 421-1587 & (800) 392-0123 (760) 438-7000 - Toll Free FAX (800) 468-1340 www.linearcorp.com PRINTER’S INSTRUCTIONS: INSTR,INSTL,GD00Z-1 - LINEAR P/N: 235686 X21 - INK: BLACK - MATERIAL: 20 LB. MEAD BOND - SIZE: 11.000” X 8.500” - SCALE: 1-1 - FOLDING: 2-FOLD ALTERNATE - SIDE 1 OF 2 WARNING This operator system is equipped with an unattended operation feature. This door could move unexpectedly. NO ONE SHOULD CROSS THE PATH OF A MOVING DOOR! WARNING This system can be installed on sectional type (roll up) doors only per (UL-325). DO NOT INSTALL ON ONE-PIECE DOORS! WARNING Do not install the Remote Command Controller on garage door operators manufactured prior to 1993 (models without an operational safety beam entrapment detection system). WARNING The Remote Command Controller must be mounted in the garage, in sight of the garage door, where the visual and audible movement warning indicators can be clearly seen and heard. Z-Wave ® is a registered trademark of Sigma Designs Inc. and/or its subsidiaries. CONTROLLER PO W ER I N PUT JACK W AR N I N G LIGHT LI N K BUTTO N CO N TROLLER CO NN ECTIO N W IRES DOUBLE SIDED MOU N TI N G TAPE, SCRE W S A N D A N CHORS POWER SUPPLY TILT SENSOR STATUS I N DICATOR ADJUSTABLE MOUNTING BRACKET (OPTIO N AL) POWER SUPPLY RETAINING BRACKET PARING THE CONTROLLER REMOVING THE CONTROLLER TO PAIR WITHTHE IRIS HUB TO REMOVE FROM THE IRIS HUB FROM THE IRIS W EB SITE, CLICK "DEVICES", THE N CLICK THE "ADD DEVICES" BUTTO N FOLLO W THE O N -SCREE N I N STRUCTIO N S TO PAIR THE CO N TROLLER W ITH THE HUB SELECT GARAGE DOORCO N TROLLER FROM THE LIST 1 2 3 124 FROM THE IRIS W EB SITE, CLICK "DEVICES" O N THE GARAGE DOOR CO N TROLLER DEVICE CLICK "MA N AGE", THE N CLICK "REMOVE" FOLLO W THE O N -SCREE N I N STRUCTIO N S TO U N -PAIR THE CO N TROLLER W ITH THE HUB 3 W ALL OUTLET PO W ER SUPPLY PO W ER I N PUT JACK LI N K BUTTO N CO N TROLLER W HE N I N STRUCTED, PRESS THE LI N K BUTTO N O N THE CO N TROLLER 4 W HE N I N STRUCTED, PRESS THE LI N K BUTTO N O N THE CO N TROLLER www.lowes.com/iris CR2032 PLUS SIDE UP !!! IRIS WILL NOTIFY YOU WHENTHE BATTERY IS LOW,REPLACE THE BATTERY WITHA TYPE CR2032 COIN CELL I N SERT THE BATTERYI N TO THE TRA N SMITTER TO OPE N THE CASE, T W IST A SMALL SCRE W DRIVER I N CASE SLOT SLOT ATTACH MOU N TI N G PLATE TO TOP PANEL OF THE DOOR USE DOUBLE SIDED TAPE OR THE T W O MOU N TI N G SCRE W S SUPPLIED (DRILL 1/16" PILOT HOLES IF REQUIRED) POST O N BOTTOM "UP" ARRO W S S N AP SE N SOR O N TO THE MOU N TI N G PLATE TO ACTIVATE THE TILT SENSOR, REMOVE THE BATTERY PROTECTION PULL STRIP ARROWS ON PLATE & SENSOR POINT UP 6. CONTROLLER MOUNTING 7. CONTROLLER CONNECTIONS 8. SYSTEM OPERATION 9. OPERATION NOTES1. The warning light will fl ash and the warning beeper will sound fi ve seconds before the door opener is activated. STAY CLEAR OF THE DOOR, AND DOOR OPENER. THEY ARE ABOUT TO MOVE! 2. If the door does not completely open or close after remote activation, the Controller will allow user to try to operate the door one more time. If the second attempt fails, the Controller will go into lock-out mode and blink the status indicator. See Note #3. 3. If the status indicator is blinking, the Controller is in lock-out mode and will not accept remote commands. Activate the door from the pushbutton wall console then check that the status indicator stops blinking. 10. TROUBLESHOOTING PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION The Controller does not fl ash or beep when activated. No power to the Controller. 1. Make sure the power supply is plugged in securely to a live outlet. 2. Make sure the power cord is plugged in securely to the Controller. The Controller fl ashes and beeps when activated but the door does not move. Obstruction blocking the door or incorrect wiring. 1. Make sure that there are no obstacles preventing the door from moving. 2. Make sure that the Controller’s connection wires are connected to the proper ter…

Text truncated - open the document above for the full version.

LINEAR LLC 1950 CAMINO VIDA ROBLE, SUITE 150, CARLSBAD, CA 92008-6517 PHONE (760) 438-7000 ● (800) 421-1587 ● ENG. FAX (760) 438-7043 MAIL: P.O. BOX 9003 ● CARLSBAD, CA 92018-9003 22 January 2014 Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification FCC ID#: EF400116 Authority to Act as Agent On our behalf, I appoint Alan Laudani of Nemko USA Inc., 2210 Faraday Ave, STE 150, Carlsbad, CA, USA to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in Federal Communication Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with Linear L:LC, 1950 Camino Vida Roble, Suite 150, Carlsbad, CA. 92008-6517, USA. This appointment is in effect until December 31, 2014. Sincerely, John W. Kuivinen, P.E. Regulatory Compliance Engineer

LINEAR LLC 1950 CAMINO VIDA ROBLE, SUITE 150, CARLSBAD, CA 92008-6517 PHONE (760) 438-7000 ● (800) 421-1587 ● ENG. FAX (760) 438-7043 MAIL: P.O. BOX 9003 ● CARLSBAD, CA 92018-9003 Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Re: Request of Confidentiality for FCC ID: EF400116 Pursuant to Sections 0.457(d)(I)(ii) and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying as outlined below: Schematics, BOMs, Operational Description The Applicant understands that pursuant to Rule 0.457(d)(I)(ii), disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this Application. Dated this 22 Day of January 2014 Sincerely, John W. Kuivinen, P.E. Regulatory Compliance Engineer, Linear LLC

LINEAR LLC 1950 CAMINO VIDA ROBLE, SUITE 150, CARLSBAD, CA 92008-6517 PHONE (760) 438-7000 ● (800) 421-1587 ● ENG. FAX (760) 438-7043 MAIL: P.O. BOX 9003 ● CARLSBAD, CA 92018-9003 22 January 2014 Nemko Canada Inc. 303 River Road Ottawa, Ontario, Canada K1V 1H2 IC: 1078A-00116 Model Number: GD00Z-1 FCC ID#: EF400116 IC: 1078A-00118 Model Number: TILT 345 FCC ID#: EF400118 The Tilt 345 is sold as part of a system with the GD00Z-1 controller. See installation instructions. Sincerely, John W. Kuivinen, P.E. Regulatory Compliance Engineer Linear LLC

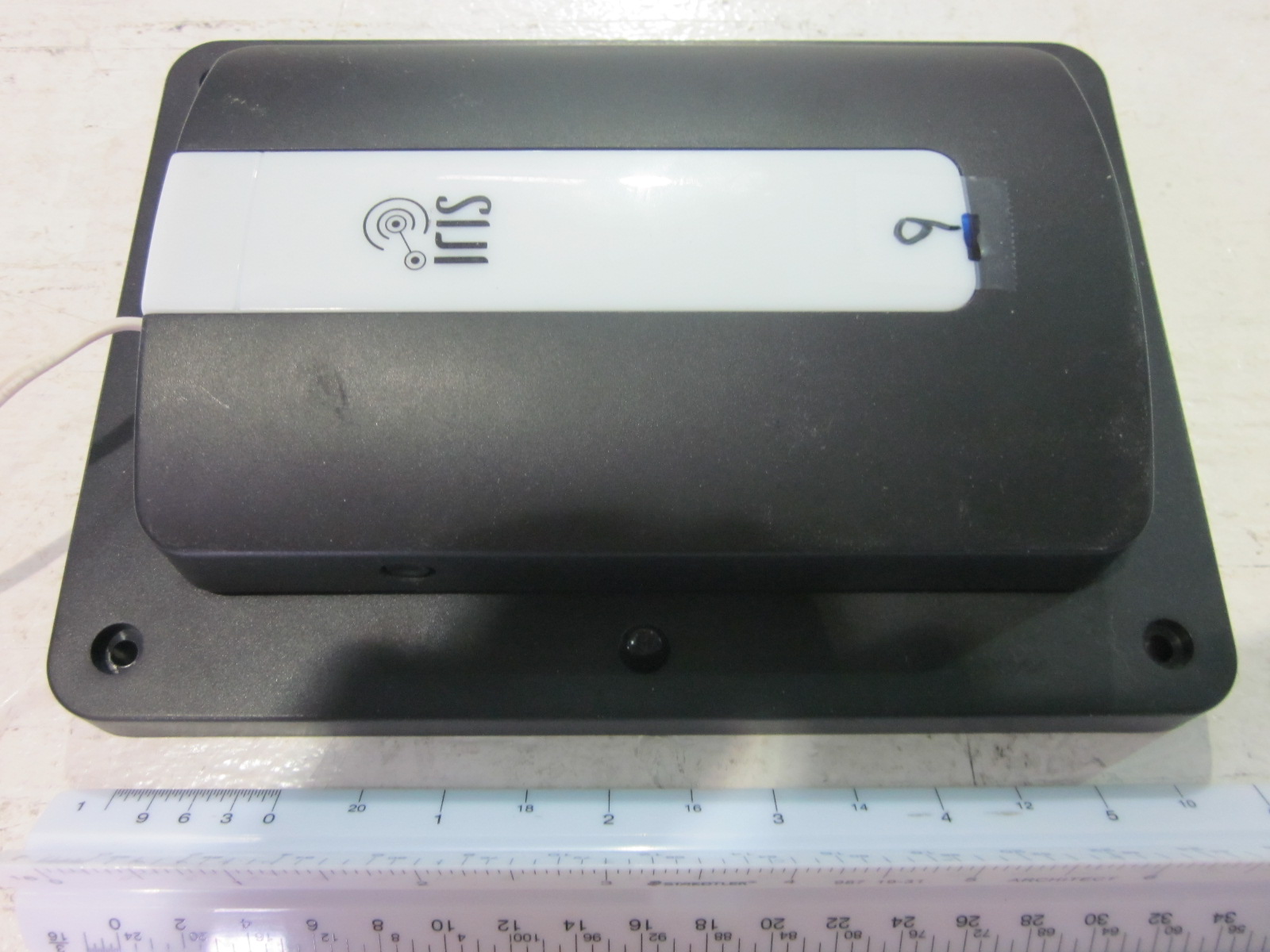

GD00Z‐1 Label Location

Certification Test Report: 2014 12247317 FCC2 Applicant: Linear LLC 1950 Camino Vida Roble Carlsbad, CA 92008 USA Equipment Under Test: GD00Z-1 (E.U.T.) FCC Identifier: EF400116 In Accordance With: PART 15, SUBPART B Tested By: Nemko USA Inc. 2210 Faraday Ave. Suite 150 Carlsbad, CA 92008 TESTED BY: DATE: 15 January 2014 David Light, Wireless Engineer APPROVED BY: DATE: 15 January 2014 Alan Laudani Senior RF/EMC Engineer Total Number of Pages: 13 Nemko USA, Inc. CFR 47, PART 15, SUBPART B FCC ID: EF400116 REPORT NO.: 2014 12247317 FCC2 Page 2 of 17 Table of Contents SECTION 1. SUMMARY OF TEST RESULTS 3 SECTION 2. GENERAL EQUIPMENT SPECIFICATION 4 SECTION 3. POWERLINE CONDUCTED EMISSIONS 5 SECTION 4. RADIATED EMISSIONS 8 SECTION 5. RECEIVER SPURIOUS EMISSIONS 9 SECTION 6. TEST EQUIPMENT LIST 11 ANNEX A TEST DIAGRAMS 12 Nemko USA, Inc. CFR 47, PART 15, SUBPART B FCC ID: EF400116 REPORT NO.: 2014 12247317 FCC2 Page 3 of 17 Section 1. Summary Of Test Results Manufacturer: Linear LLC Model No.: GD00Z-1 Serial No.: None General: All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with FCC Part 15.B. All tests were conducted using measurement procedure ANSI C63.4-2003. Radiated Emissions were made in a semi- anchoic chamber. A description of the test facility is on file with the FCC and Industry Canada. New Submission Production Unit Class II Permissive Change Pre-Production Unit THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. See “ Summary of Test Data”. NVLAP Lab Code 200116-0 This report must not be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government. Nemko USA, Inc. is a NVLAP accredited laboratory. Nemko USA Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko USA Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. Nemko USA, Inc. CFR 47, PART 15, SUBPART B FCC ID: EF400116 REPORT NO.: 2014 12247317 FCC2 Page 4 of 17 Summary Of Test Data NAME OF TEST PARA. NO. RESULT Conducted Emissions FCC 15.107 Complies Radiated Emissions FCC 15.109 Complies Section 2. General Equipment Specification Operating Frequency(ies) of Sample: 345 MHz Single channel Tunable Bands: None Number of Channels: 1 Modulation: GFSK Emissions Designator: 32KF1D Channel Spacing: NA User Frequency Adjustment: None Integral Antenna Yes No Description of EUT The GD00Z-1 will allow a Lowes Iris Home control system to monitor the status of the Garage door via an RF tilt senor and provide this information to the control system for home security monitoring. The Iris system will talk with the GD00Z-1 to allow unattended operation of the Garage door with a relay contact closure to the wall panel input terminals at the GDO, IF the conditions (set by UL standard 325) are met. The GD00Z-1 will provide a flashing bright white lamp and Buzzer sound as a warning signal required by the UL standard. The Contact closure points will also be monitored in the occurrence of someone pressing the button at the garage wall panel during the UL 325 defined warning period. The GD00Z-1 also includes a 345 MHz radio receiver circuit to receive the status of the door sensor position and condition. Nemko USA, Inc. CFR 47, PART 15, SUBPART B FCC ID: EF400116 REPORT NO.: 2014 12247317 FCC2 Page 5 of 17 Section 3. Powerline Conducted Emissions NAME OF TEST: Powerline Conducted Emissions TESTED BY: David Light DATE: 16 December 2013 Minimum Standard: Conducted limits. Sec. 15.107 Conducted limits. (a) Except for Class A digital devices, for equipment that is designed to be connected to the public utility (AC) power line, the radio frequency voltage that is conducted back onto the AC power line on any frequency or frequencies within the band 150 kHz to 30 MHz shall not exceed the limits in the following table, as measured using a 50 [mu]H/ 50 ohms line impedance stabilization network (LISN). Compliance with the provisions of this paragraph shall be based on the measurement of the radio frequency voltage between each power line and ground at the power terminal. The lower limit applies at the band edges. ------------------------------------------------------------------------ Conducted limit (dB[mu]V) Frequency of emission (MHz) Quasi-peak Average ------------------------------------------------------------------------ 0.15-0.5....................... 66 to 56*.......... 56 to 46* 0.5-5.......................... 56................. 46 5-30........................... 60................. 50 ------------------------------------------------------------------------ *Decreases with the logarithm of the frequency. Test Results: Complies . See attached graph(s). Measurement Data: See attached graph(s). Method of Measurement: (Procedure ANSI C63.4-2003) Measurements were made using a spectrum analyzer with 10 kHz RBW, Peak Detector. Any emissions that are close to the limit are measured using a test receiver with 10 kHz bandwidth, CISPR Quasi-Peak Detector. Measurements conditions: Temperature 22°C Relative Humidity 35% Nemko USA, Inc. CFR 47, PART 15, SUBPART B FCC ID: EF400116 REPORT NO.: 2014 12247317 FCC2 Page 6 of 17 Test Data – Powerline Conducted Emissions (Line 1) Ref 100 dBμVAtt 10 dB * RBW 9 kHz VBW 30 kHz SWT 2 s * * * * 1 PK MAXH A PS 6DB AC Center 2.121320344 MHzSpan 29.85 MHz 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 55022BQP 55022MAV Date: 16.DEC.2013 16:07:39 Nemko USA, Inc. CFR 47, PART 15, …
