EF400117Security / Remote Control Transmitter

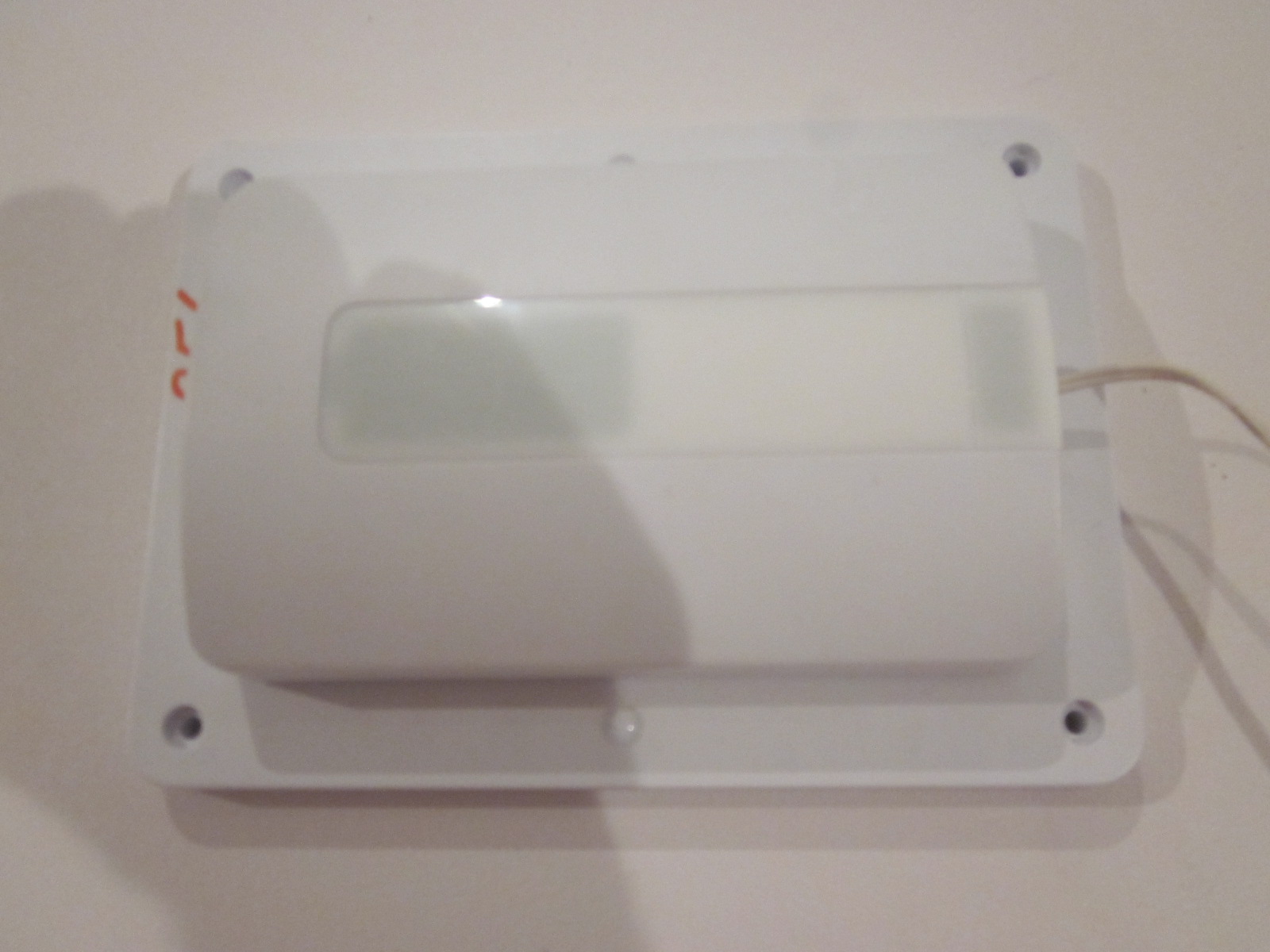

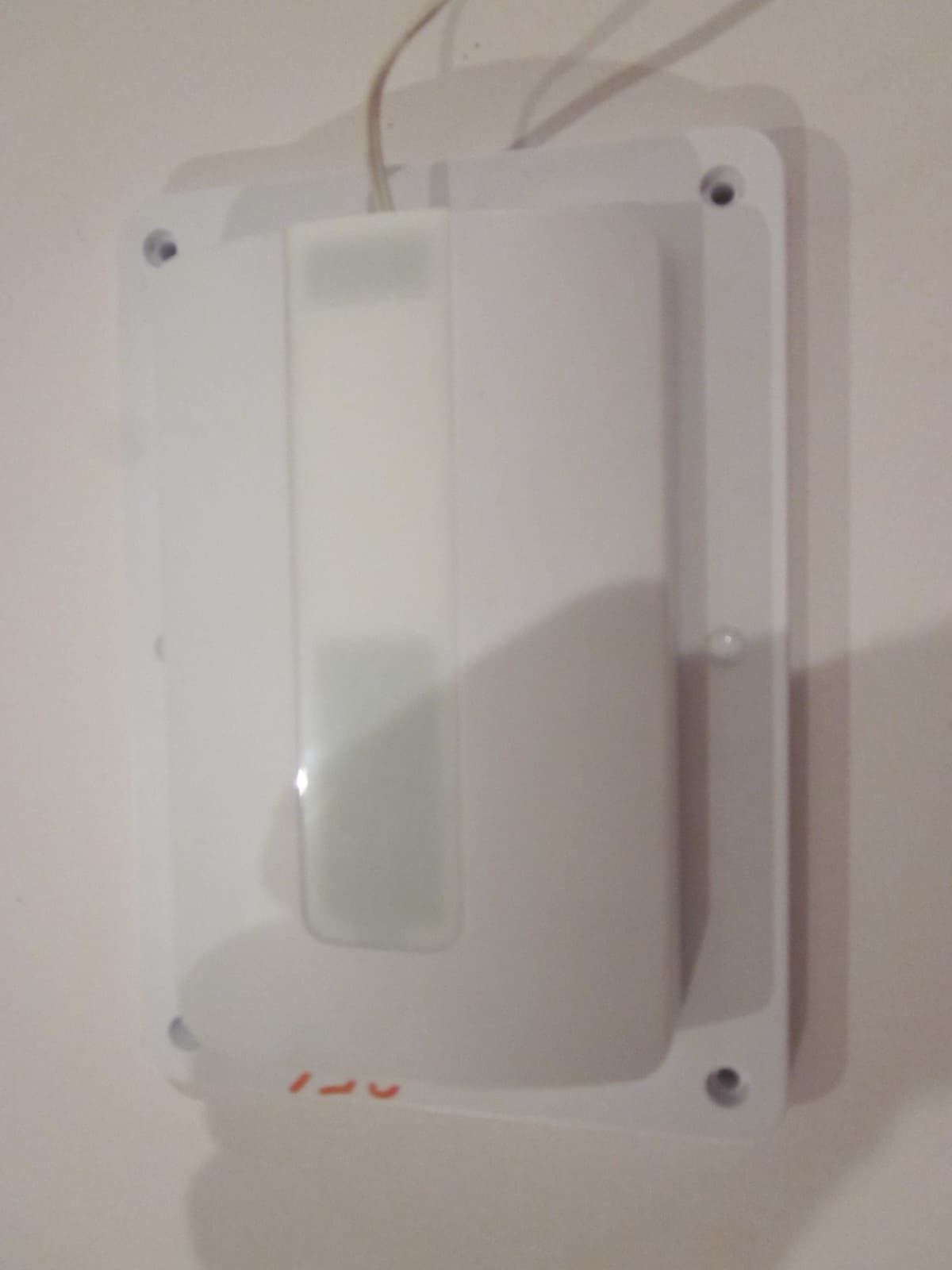

Garage Door Controller Installation Instructions Product Description The Garage Door Controller (GDC) is designed to work with your existing garage door opener. The GDC will give you remote access to open and close your garage door when used with Digital Life Service. A garage door opener connected to the GDC can be remotely activated using the Digital Life Web interface or via mobile devices that communicate with the system. The GDC connects to the garage door opener’s pushbutton terminals and communicates with the Digital Life Control Panel (DLC) using 915 MHz radio signals. A wireless garage door sensor mounts on the garage door and reports the door’s position to the GDC. When the GDC receives a command from the DLC, the GDC will open or close the garage door. Anytime the garage door opener is activated remotely via the Digital Life System, a warning indicator fl ashes and a beeper sounds for fi ve seconds before the door begins to move. If, due to an obstruction or other cause, the door does not completely open or close when it is activated remotely, the GDC will pause for 30 seconds. After the delay, a second remote activation can be attempted. If the door does not complete its motion on the second attempt, the GDC will lock-out and suspend operation. The GDC will report the lock-out condition to the DLC. Once the garage door is operated by a garage door remote or locally by pushing the opener’s wall station button, the DLC will be reset to allow remote access. The GDC is powered by a plug-in power supply. The garage door sensor is powered by a 2032 lithium battery. If the garage door sensor battery is low, or the case has been opened, it will be reported to the DLC by the GDC. A discovery button and status light are provided on the GDC for adding or removing the device with the DLC. Four screws and anchors are provided for mounting the GDC. An adjustable GDC mounting bracket with hardware is supplied for installing the unit onto the door opener’s hanging hardware. The wireless garage door sensor mounts with the two screws supplied. Discovering and Registering the GDC 1. Place the Digital Life Control Panel into Discovery Mode. 2. Plug the GDC power supply into a 115 VAC outlet. 3. Put the GDC into discovery mode by pressing the Discovery Button. 4. Confi rm that the GDC has been discovered. Garage Door Sensor Battery To activate the garage door sensor, remove the battery protection pull strip. When the system indicates the garage door sensor battery is low, open the garage door sensor case as shown and replace the old 2032 battery with a new one. Install the battery, plus side up. PRINTER’S INSTRUCTIONS: INSTR,INSTL,SW-ATT-GDC - LINEAR P/N: 235667 X14 - INK: BLACK - MATERIAL: 20 LB. MEAD BOND - SIZE: 11.000” X 8.500” - SCALE: 1-1 - FOLDING: 2-FOLD ALTERNATE - SIDE 1 OF 2 GARAGE DOOR CONTROLLER (GDC) POWER INPUT JACK WARNING LIGHT DISCOVERY BUTTON OPENER PUSHBUTTON WIRES MOUNTING SCREWS AND ANCHORS POWER SUPPLY GARAGE DOOR SENSOR STATUS INDICATOR ADJUSTABLE MOUNTING BRACKET POWER SUPPLY RETAINING BRACKET Figure 1. Garage Door Controller and Garage Door Sensor Figure 2. Product Features Figure 3. Discovering the GDC Figure 4. Garage Door Sensor Battery WARNING This operator system is equipped with an unattended operation feature. This door could move unexpectedly. NO ONE SHOULD CROSS THE PATH OF A MOVING DOOR! WARNING This system can be installed on sectional type (roll up) doors only (per UL-325). WARNING GDC is to be installed only on garage door openers manufactured after 1992 (models with an operational safety beam entrapment protection system, per UL-325). WARNING The GDC must be mounted in the garage, in sight of the garage door, where the visual and audible movement warning indicators can be clearly seen and heard. WALL OUTLET POWER SUPPLY POWER INPUT JACK DISCOVERY BUTTON GARAGE DOOR CONTROLLER (GDC) STATUS INDICATOR ✴ BLINKS SLOWLY WHILE IN DISCOVERY MODE ✴ LIGHTS FOR 15 SECONDS FOR DISCOVERY SUCCESS ✴ FLASHES FOR 15 SECONDS IF DISCOVERY FAILS CR2032 PLUS SIDE UP !!! WHEN THE BATTERY IS LOW REPLACE THE BATTERY WITH A TYPE CR2032 COIN CELL TO OPEN THE CASE, TWIST A SMALL SCREWDRIVER IN THE CASE SLOT SLOT NOTICE TO USERS IN CALIFORNIA - CR COIN CELL LITHIUM BATTERY INFORMATION: THIS PRODUCT CONTAINS A CR COIN CELL LITHIUM BATTERY WHICH CONTAINS PERCHLORATE MATERIAL - SPECIAL HANDLING MAY APPLY - SEE www.dtsc.ca.gov/hazardouswaste/perchlorate KEEP AWAY FROM SMALL CHILDREN. IF BATTERY IS SWALLOWED, PROMPTLY SEE A DOCTOR. DO NOT TRY TO RECHARGE THIS BATTERY. DISPOSAL OF USED BATTERIES MUST BE MADE IN ACCORDANCE WITH THE WASTE RECOVERY AND RECYCLING REGULATIONS IN YOUR AREA. GARAGE DOOR SENSOR Garage Door Controller Installation Instructions Garage Door Sensor Installation The garage door sensor installs on the top panel of the garage door. 1. Use the garage door sensor mounting plate as a guide to mark the mounting holes. 2. Drill two 1/16” pilot holes if necessary. 3. Attach the mounting plate with the two screws provided. Be sure the post on the mounting plate is on the bottom. 4. Snap the garage door sensor onto the mounting plate. Be sure the arrow on the side of the garage door sensor case is up. GDC Installation The GDC typically mounts on the ceiling near the garage door opener and power outlet. Alternately, the GDC can be mounted to other structures with the adjustable mounting bracket supplied (shown in Figure 2). ✓NOTE: The GDC’s warning lamp must be visible in all door positions. Use the four screws and anchors to mount the GDC. -OR- Use the adjustable mounting bracket to mount the GDC. GDC Connections The GDC connects to the opener’s pushbutton terminals. ✓NOTE: Do not disconnect any wires currently connected to the garage door opener. 1. Connect the GDC wires to the pushbutton terminals on the garage door opener. Either wire can connect to either terminal. 2. Remove the power outlet wall plate’s center screw (or one end screw on the decorator style wall plate). Align…

Text truncated - open the document above for the full version.

LINEAR LLC 1950 CAMINO VIDA ROBLE, SUITE 150, CARLSBAD, CA 92008-6517 PHONE (760) 438-7000 ● (800) 421-1587 ● ENG. FAX (760) 438-7043 MAIL: P.O. BOX 9003 ● CARLSBAD, CA 92018-9003 25 February 2014 Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification FCC ID#: EF400117 Authority to Act as Agent On our behalf, I appoint Alan Laudani of Nemko USA Inc., 2210 Faraday Ave, STE 150, Carlsbad, CA, USA to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in Federal Communication Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with Linear L:LC, 1950 Camino Vida Roble, Suite 150, Carlsbad, CA. 92008-6517, USA. This appointment is in effect until December 31, 2014. Sincerely, John W. Kuivinen, P.E. Regulatory Compliance Engineer

LINEAR LLC 1950 CAMINO VIDA ROBLE, SUITE 150, CARLSBAD, CA 92008-6517 PHONE (760) 438-7000 ● (800) 421-1587 ● ENG. FAX (760) 438-7043 MAIL: P.O. BOX 9003 ● CARLSBAD, CA 92018-9003 Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Re: Request of Confidentiality for FCC ID: EF400117 Pursuant to Sections 0.457(d)(I)(ii) and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying as outlined below: BOM, schematics, operation description, block diagram. The Applicant understands that pursuant to Rule 0.457(d)(I)(ii), disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this Application. Dated this 25 February 2014 Sincerely, John W. Kuivinen, P.E. Regulatory Compliance Engineer, Linear LLC

LABEL,FCC,SW-ATT-GDC LINEAR P/N: 235681 X3 INK: PERMANENT BLACK MATERIAL: 60 LB. WHITE COATED, ADHESIVE BACKED SCALE: 1-1 NOTE: PRINTER AND MATERIAL MUST BE UL OR ETL RECOGNIZED Conforms to ANSI/UL 244 Edition 3 LINEAR LLC MODEL: SW-ATT-GDC FREQUENCY: 915 MHz FCC ID: EF400117 IC: 1078A-00117 INPUT: 12VDC 2A OUTPUT: CLASS 2, 30V MAX. LISTED WIRELESS RECEIVER 235681 X3 2.500” 1.500” MADE IN CHINA This device complies with Part 15 of the FCC and Industry Canada license exempt RSS Standard Rules and Regulations. Operation subject to the following two conditions: (1) This device may not cause harmful interference and (2) This device must accept any interference received, including interference that may cause undesired operation. Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. 3061503

Nemko Test Report: 2014 01247316 FCC Applicant: Linear LLC 1950 Camino Vida Roble Carlsbad, CA 92008 USA Equipment Under Test: SW-ATT-GDC (E.U.T.) FCC ID: EF400117 Industry Canada: 1078A-00117 In Accordance With: FCC Part 15, Subpart C, 15.249 and Industry Canada RSS-210, Issue 8 Operation within the bands 902-928 MHz, 2400-2483.5 MHz, 5725-5875 MHz, and 24.0-24.25 GHz. Tested By: Nemko USA Inc. 2210 Faraday Ave. Suite 150 Carlsbad, CA 92008 TESTED BY: DATE: 15 January 2014 David Light, Wireless Engineer APPROVED BY: DATE: 25 January 2014 Alan Laudani Senior RF/EMC Engineer Total Number of Pages: 21 Nemko USA, Inc. CFR 47, PART 15, SUBPART C, Paragraph 15.249 and Industry Canada RSS-210, Issue 8 Operation within the bands 902-928 MHz, 2400-2483.5 MHz, 5725-5875 MHz, and 24.0-24.25 GHz. FCC ID: EF400117 IC: 1078A-00117 Report number: 2014 01247316 FCC Page 2 of 21 Table of Contents SECTION 1. SUMMARY OF TEST RESULTS 3 SECTION 2. GENERAL EQUIPMENT SPECIFICATION 5 SECTION 3. POWERLINE CONDUCTED EMISSIONS 6 SECTION 4. RADIATED EMISSIONS 9 SECTION 5. RECEIVER SPURIOUS EMISSIONS 18 SECTION 6. TEST EQUIPMENT LIST 21 ANNEX A TEST DIAGRAMS 22 Nemko USA, Inc. CFR 47, PART 15, SUBPART C, Paragraph 15.249 and Industry Canada RSS-210, Issue 8 Operation within the bands 902-928 MHz, 2400-2483.5 MHz, 5725-5875 MHz, and 24.0-24.25 GHz. FCC ID: EF400117 IC: 1078A-00117 Report number: 2014 01247316 FCC Page 3 of 21 Section 1. Summary Of Test Results Manufacturer: Linear LLC Model No.: GD00Z-1 Serial No.: None General: All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with FCC Part 15.249 and Industry Canada RSS-210, Issue 8. All tests were conducted using measurement procedure ANSI C63.4-2003. Radiated Emissions were made in a semi-anchoic chamber. A description of the test facility is on file with the FCC and Industry Canada. New Submission Production Unit Class II Permissive Change Pre-Production Unit THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. See “ Summary of Test Data”. NVLAP Lab Code 200116-0 This report must not be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government. Nemko USA, Inc. is a NVLAP accredited laboratory. Nemko USA Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko USA Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. Nemko USA, Inc. CFR 47, PART 15, SUBPART C, Paragraph 15.249 and Industry Canada RSS-210, Issue 8 Operation within the bands 902-928 MHz, 2400-2483.5 MHz, 5725-5875 MHz, and 24.0-24.25 GHz. FCC ID: EF400117 IC: 1078A-00117 Report number: 2014 01247316 FCC Page 4 of 21 Summary Of Test Data NAME OF TEST PARA. NO. RESULT Conducted Emissions FCC 15.207 / RSS-Gen 7.2.4 Complies Radiated Emissions FCC 15.249 / RSS-210 A2.9 Complies Receiver Spurious Emissions RSS-Gen 6.1 Complies Nemko USA, Inc. CFR 47, PART 15, SUBPART C, Paragraph 15.249 and Industry Canada RSS-210, Issue 8 Operation within the bands 902-928 MHz, 2400-2483.5 MHz, 5725-5875 MHz, and 24.0-24.25 GHz. FCC ID: EF400117 IC: 1078A-00117 Report number: 2014 01247316 FCC Page 5 of 21 Section 2. General Equipment Specification Frequency Range: 902 – 928 MHz Operating Frequencies of Sample: 908.42 to 919.78 MHz Tunable Bands: None Number of Channels: 4 Modulation: OOK Emissions Designator: 30KA1D User Frequency Adjustment: None Integral Antenna Yes No Description of EUT The SW-ATT-GDC will allow a Lowes Iris Home control system to monitor the status of the Garage door via an RF tilt senor and provide this information to the control system for home security monitoring. The Iris system will talk with the SW-ATT-GDC to allow unattended operation of the Garage door with a relay contact closure to the wall panel input terminals at the GDO, IF the conditions (set by UL standard 325) are met. The SW-ATT-GDC will provide a flashing bright white lamp and Buzzer sound as a warning signal required by the UL standard. The Contact closure points will also be monitored in the occurrence of someone pressing the button at the garage wall panel during the UL 325 defined warning period. The SW-ATT-GDC also includes a 433.92MHz radio receiver circuit to receive the status of the door sensor position and condition. Nemko USA, Inc. CFR 47, PART 15, SUBPART C, Paragraph 15.249 and Industry Canada RSS-210, Issue 8 Operation within the bands 902-928 MHz, 2400-2483.5 MHz, 5725-5875 MHz, and 24.0-24.25 GHz. FCC ID: EF400117 IC: 1078A-00117 Report number: 2014 01247316 FCC Page 6 of 21 Section 3. Powerline Conducted Emissions NAME OF TEST: Powerline Conducted Emissions PARA. NO.: 15.207 / 7.2.4 TESTED BY: David Light DATE: 16 December 2013 Minimum Standard: Conducted limits. (a) Except as shown in paragraphs (b) and (c) of this section, for an intentional radiator that is designed to be connected to the public utility (AC) power line, the radio frequency voltage that is conducted back onto the AC power line on any frequency or frequencies, within the band 150 kHz to 30 MHz, shall not exceed the limits in the following table, as measured using a 50 mH/50 ohms line impedance stabilization network (LISN). Compliance with the provisions of this paragraph shall be based on the measurement of the radio frequency voltage between each power line and ground at the power terminal. The lower limit applies at the boundary between the frequency ranges. Frequency of Conducted Limit (dBmV) Emiss…
