EF400127Door Chime Button

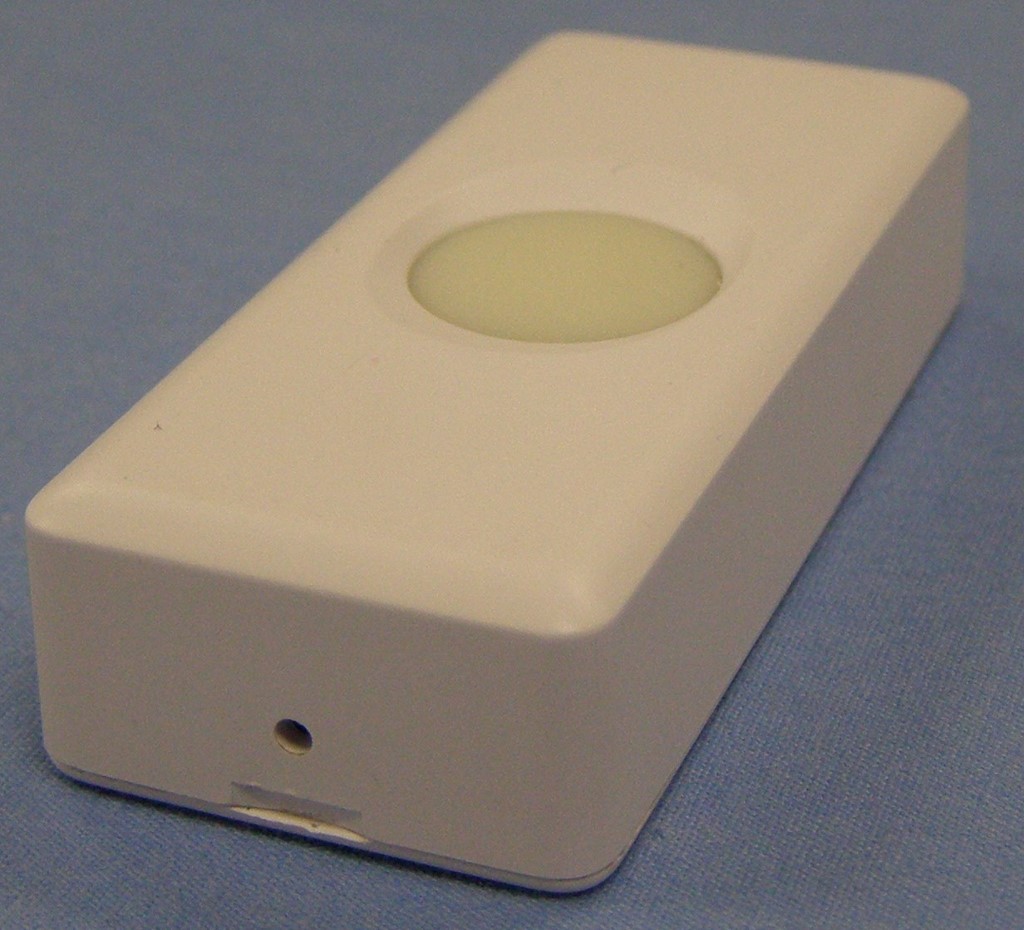

Product Description The AT&T model number SW-ATT-DB is a fully supervised proprietary two-way 915 MHz door chime button transmitter designed to signal the DLC and ring a local door chime when its pushbutton is pressed. Two terminals in the transmitter connect to the existing household door chime wires. The transmitter is powered by the voltage present on the door chime button wires. When the transmitter’s pushbutton is pressed, the two terminals provide a circuit closure that activates the household door chime. Installing the Transmitter The transmitter typically mounts in the location that replaces the current hardwired door chime pushbutton. Follow these steps to install the transmitter: 1. Remove the current hardwired door chime pushbutton. Disconnect the two door chime wires and prepare them to connect to the new transmitter. 2. Twist a small screwdriver in the slot on the end of the transmitter and remove the mounting plate. 3. Route the door chime wires through the mounting plate. Be sure the arrow on the mounting plate points up and attach the mounting plate to the surface with the two screws provided. 4. Connect the two door chime wires to the two screw terminals inside the transmitter. Polarity is not important. Wait to close the sensor until after the discovery process. Discovering and Registering the Transmitter Follow these steps to discover and register the SW-ATT-DB sensor with the customer’s system: 1. Use the Web tool to place the system into Discovery Mode. 2. Make the SW-ATT-DB discoverable by pressing and holding the sensor’s LEARN button for three seconds. The signal indicator will slowly blink during discovery. The LED will turn solid for 15 seconds if discovery successfully completes. The LED will blink fast for 15 seconds if discovery fails. 3. Confi rm that the SW-ATT-DB sensor has been discovered by the system. 4. If desired, edit the sensor’s name and/or location in the system. 5. Attach the sensor to the mounting plate by inserting the two tabs on the bottom end of the mounting plate into the terminal end of the sensor’s top case, then snap the case closed. 6. Use the Web tool to place the system into Test Mode then test the sensor by pressing the sensor’s pushbutton. The existing household doorbell should also ring when the sensor’s pushbutton is pressed. Specifi cations • Operating Temperature: -25° to 55° C • Operating Frequency: 915 MHz • Dimensions: 2.75 x 1.17 x 0.63 in. (6.98 x 2.97 x 1.00 cm) • External Input: 16VAC Class 2 transformer • Weight: approx. 1 oz. • Housing Material: ABS plastic • Color: White PRINTER’S INSTRUCTIONS: INSTR,INSTL,SW-ATT-DB; LINEAR P/N: 236839 X2; INK: BLACK; MATERIAL: 20# MEAD BOND; SIZE: 8.500” x 11.000”; SCALE: 1-1 SW-ATT-DB Installation Instructions PUSHBUTTON DRAIN HOLE SIGNAL INDICATOR LEARN BUTTON CONNECTION TERMINALS EXISTING DOOR CHIME WIRES MOUNTING PLATE MOUNTING SCREWS UP ARROW SW-ATT-DB Door Chime Button/Sensor SW-ATT-DB Component Locations Door Chime/Sensor Mounting FCC Compliance Statement This device complies with FCC Rules and Regulations as Part 15 devices as well as Industry Canada license exempt RSS Rules and Regulations. Operation is subject to the following two (2) conditions: This device may not cause harmful interference. This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for Class B Digital Device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures. • Reorient or relocate the receiving antenna • Increase the separation between the equipment and receiver • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected • Consult the dealer or an experienced radio/TV technician for help. Any changes or modifi cations not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes: (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. Copyright © 2014 Linear LLC 236839 X2

01/14/2015 CETCB 114 Olinda Drive Brea, CA 92823 Gentlemen: This is a letter of authorization to accept Compatible Electronics, Inc., specifically including the employees of Compatible Electronics, as an Agent for Nortek Security & Controls LLC, 1950 Camino Vida Roble Suite 150, Carlsbad CA 92008, for a period of one year, to sign applications before the Commission on our behalf, to make representations to you on our behalf, and to receive and exchange data between our company and the Commission in connection with certification of the following Nortek Security & Controls LLC product: Door Chime Button Model: SW-ATT-DB FCC ID: EF400127 Under FCC Docket Number 20780 and General Docket Number 80-284 pursuant to Part 15 of FCC Rules and Regulations. Please also accept this letter as an attestation that neither Nortek Security & Controls LLC nor any of its officers, directors, or persons holding 5% or more of the outstanding stock or shares, voting or non-voting, have been denied federal benefits under section 5301 of the Anti-Drug- Abuse act of 1988.21 U.S.C. 853(a). In addition, Nortek Security & Controls LLC will notify the Federal Communications Commission if, at any time, the situation changes causing Nortek Security & Controls LLC to be denied federal benefits. If you have any questions or need additional information, please feel free to give me a call at (760) 438-7179 Sincerely, Josh Hansen Regulatory Engineer Access Control | Security & Home Automation | Health & Wellness | Home Technology 1950 Camino Vida Roble Suite 150 Carlsbad CA 92008 800.421.1587 www.nortekcontrol.com

01/14/2015 CETCB 114 Olinda Drive Brea, California 92823 Gentlemen: We, Nortek Security & Controls LLC, would like to declare that the application being submitted for the device with FCC ID: EF400127, has not been submitted to another TCB or FCC for certification. Sincerely, Josh Hansen Regulatory Engineer Access Control | Security & Home Automation | Health & Wellness | Home Technology 1950 Camino Vida Roble Suite 150 Carlsbad CA 92008 800.421.1587 www.nortekcontrol.com

01/14/2015 CETCB 114 Olinda Drive Brea, California 92823 Gentlemen: We, Nortek Security & Controls LLC, would like to request that all schematics, block diagrams, and operational descriptions submitted with the application for certification be withheld from public disclosure as per Section 0.459 of FCC Rules. This request is made under the provisions of Section 0.457 (d) of the Commission’s Rules, and Section 552 (b)(4) of the Freedom of Information Act. These sections authorize the withholding from public inspection, those materials which would be privileged as a matter of law if retained by the person submitting them, and materials which would not customarily be released to the public by that person. If you have any questions, please feel free to give me a call at (760) 438-7179 Sincerely, Josh Hansen Regulatory Engineer Access Control | Security & Home Automation | Health & Wellness | Home Technology 1950 Camino Vida Roble Suite 150 Carlsbad CA 92008 800.421.1587 www.nortekcontrol.com

LABEL,FCC ID,SW-ATT-DB LINEAR P/N: 237032 X1 INK: PERMANENT WHITE MATERIAL: 60 LB. WHITE COATED, ADHESIVE BACKED NOTE: PART MUST BE RoHs COMPLIANT TOLERANCE: +/- 0.040" SCALE: 1-1 Linear LLC Model: SW-ATT-DB FCC ID: EF400127 IC: 1078A-00127 .750" .450" Made in China

This device FCC ID: is excluded from SAR testing by the following justification The maximum power that the transmitter is capable o f is 0.51 mW Applied duty cycle? no Using the following formula from section 4.3.1 of K DB 447498 at test separation distances ≤ 50 mm [(max. power of channel, including tune-up toleranc e, mW) / (min. test separation distance, mm)] * [ √ f(GHz)] Duty Cycle 11.00% Value 1-g (mW) 10-g (mW) 0.10 (120) 115 "Value" shall be ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR 1-g power limit 10-g power limit 156 391 “source-based” time-averaging based on an inherent property or duty-cycle of a device is allowed. An e xample of this is the determination of exposure from a device that uses digital technology such as a time-division mu ltiple-access (TDMA) scheme for transmission of a EF400127 Max Peak Power (dBm) Min Separation distance (mm) Fre quency (Ghz) < 50mm power limits for above frequency and distanc e When the minimum test separation distance is < 5 mm , a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. 0.91978 5 -2.93

Report Number: D50114R1 FCC ID: EF400127 FCC Part 15 Subpart C Section 15.249 Test Report Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 1 of 18 FCC PART 15 SUBPART C SECTION 15.249 TEST REPORT for DOOR CHIME BUTTON Model: SW-ATT-DB (Fixed Mode) Prepared for NORTEK SECURITY & CONTROLS LLC 1950 CAMINO VIDA ROBLE, SUITE 150 CARLSBAD, CA 92008 Prepared by:_____________________ MATT HARRISON Approved by:____________________ JEFF KLINGER COMPATIBLE ELECTRONICS INC. 20621 PASCAL WAY LAKE FOREST, CALIFORNIA 92630 (949) 587-0400 DATE: JANUARY 14, 2015 REPORT APPENDICES TOTAL BODY A B C D E PAGES 18 2 2 2 15 17 56 This report shall not be reproduced except in full, without the written approval of Compatible Electronics. Report Number: D50114R1 FCC ID: EF400127 FCC Part 15 Subpart C Section 15.249 Test Report Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 2 of 18 TABLE OF CONTENTS Section / Title PAGE GENERAL REPORT SUMMARY 4 SUMMARY OF TEST RESULTS 5 1. PURPOSE 6 2. ADMINISTRATIVE DATA 7 2.1 Location of Testing 7 2.2 Traceability Statement 7 2.3 Cognizant Personnel 7 2.4 Date Test Sample was Received 7 2.5 Disposition of the Test Sample 7 2.6 Abbreviations and Acronyms 7 3. APPLICABLE DOCUMENTS 8 4. DESCRIPTION OF TEST CONFIGURATION 9 4.1 Description of Test Configuration 9 4.1.1 Photograph Test Configuration 9 4.1.2 Cable Construction and Termination 10 5. LISTS OF EUT, ACCESSORIES AND TEST EQUIPMENT 11 5.1 EUT and Accessory List 11 5.2 EMI Test Equipment 12 6. TEST SITE DESCRIPTION 13 6.1 Test Facility Description 13 6.2 EUT Mounting, Bonding and Grounding 13 6.3 Facility Environmental Characteristics 13 7. CHARACTERISTICS OF THE TRANSMITTER 14 7.1 Channel Number and Frequencies 14 7.2 Antenna 14 8. TEST PROCEDURES 15 8.1 RF Emissions 15 8.1.1 Conducted Emissions Test 15 8.1.2 Radiated Emissions (Spurious and Harmonics) Test 16 8.1.3 Fundamental Field Strength 17 8.1.4 Emissions Radiated Outside of the Fundamental Frequency Band 17 9. TEST PROCEDURE DEVIATIONS 18 10. CONCLUSIONS 18 Report Number: D50114R1 FCC ID: EF400127 FCC Part 15 Subpart C Section 15.249 Test Report Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 3 of 18 LIST OF APPENDICES APPENDIX TITLE A Laboratory Accreditations and Recognitions B Modifications to the EUT C Additional Models Covered Under This Report D Diagrams, Charts, and Photos  Test Setup Diagrams  Antenna and Amplifier Factors  Radiated and Conducted Emissions Photos E Radiated and Conducted Emissions Data Sheets LIST OF FIGURES FIGURE TITLE 1 Plot Map And Layout of Test Site Below 1GHz 2 Plot Map And Layout of Test Site Above 1GHz 3 Conducted Emissions Test Setup Report Number: D50114R1 FCC ID: EF400127 FCC Part 15 Subpart C Section 15.249 Test Report Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 4 of 18 GENERAL REPORT SUMMARY This electromagnetic emission test report is generated by Compatible Electronics Inc., which is an independent testing and consulting firm. The test report is based on testing performed by Compatible Electronics personnel according to the measurement procedures described in the test specifications given below and in the "Test Procedures" section of this report. The measurement data and conclusions appearing herein relate only to the sample tested and this report may not be reproduced in any form unless done so in full with the written permission of Compatible Electronics. This report must not be used to claim product certification, approval or endorsement by NVLAP, NIST, or any agency of the federal government. Device Tested: Door Chime Button Model: SW-ATT-DB (Fixed Mode) S/N: N/A Product Description: The EUT is designed to integrate with the AT&T Digital Life security system. The SW-ATT- DB is used to ring the door chime and send a power-up message to the security system. Modifications: The EUT was not modified during testing. Manufacturer: Nortek Security & Controls LLC 1950 Camino Vida Roble, Suite 150 Carlsbad, CA 92008 Test Date: January 13 & 14, 2015 Test Specifications: EMI requirements CFR Title 47, Part 15 Subpart C Sections 15.205, 15.207, 15.209 and 15.249 Test Procedure: ANSI C63.10 Report Number: D50114R1 FCC ID: EF400127 FCC Part 15 Subpart C Section 15.249 Test Report Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 5 of 18 SUMMARY OF TEST RESULTS TEST DESCRIPTION RESULTS 1 Conducted RF Emissions, 150 kHz - 30 MHz. Complies with the limits of CFR Title 47 Part 15 Subpart C Section 15.207 2 Radiated RF Emissions & Harmonics, 9 kHz – 10,000 MHz. Complies with the limits of CFR Title 47 Part 15 Subpart C Section 15.205, 15.209, & 15.249 SIX HIGHEST RADIATED EMISSIONS READINGS Reading Type (PK / QP / AV) Polarization (Vert / Horz) Frequency (MHz) Level (dBμV/m) Limit (dBμV/m) Delta (dB) Test Distance 1 Peak H 918.78 92.29 93.97 -1.68 3-Meter 2 Peak V 9187.8 52.13 53.98 -1.…
