EF400131HubZ

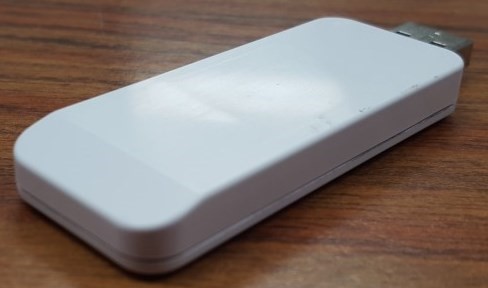

HUSBZB-1 USB Z-Wave & ZigBee Adapter PRINTER’S INSTRUCTIONS: INSTR, INSTL, HUSBZB-1; P/N: 10006647 X8; INK: BLACK; MATERIAL: 20# MEAD BOND; SIZE: 8.500” x 11.000”; TOL ± .125”; SCALE: 1-1; FOLDING: 4-FOLD ALTERNATE Copyright © 2015 Nortek Security & Control LLC 10006647 X8 INTRODUCTION HubZ is a USB v2.0 full speed low power Z-Wave and ZigBee adapter in a USB Stick form factor. When plugged into computer or similar host device, it appears as two (2) serial ports. This device requires an application from a third party to operate. When power is supplied through the USB port, a blue LED on the front will be illuminated. Once the user application is running, the LED may be used to display various types of status information. Z-WAVE OPERATION HubZ is an independently controlled Z-Wave static controller that requires an application from a third party to operate. The application will control such functions as Inclusion, Exclusion and Replication. Inclusion – The process of adding a node into the Z-Wave network Exclusion – The process of removing a node from the Z-Wave network Replication – The process of copying network information from one controller to another This product can be included and operated in any Z-Wave network with other Z-Wave certifi ed devices from other manufacturers. All non-battery operated nodes within the network will act as repeaters, regardless of vendor, to increase reliability of the network. ZIGBEE OPERATION HubZ is effectively a USB to UART bridge connected to a Silicon Labs EM3581 ZigBee module that allows connectivity to a computer’s USB port. UPGRADE ABILITY HubZ is designed to support fi rmware upgrades via the USB port. SPECIFICATIONS Operating Temp -32 to 122 F (0 to 50 C) Minimum Operating Voltage (USB VBUS supply) 0.4V Maximum Operating Voltage (USB VBUS supply) 6V Typical current consumption 80 mA Dimensions 2.39” x 0.99” x 0.33” Z-Wave Developer’s Kit 6.51.06 Z-Wave Operating Frequency 908.42 MHz / 916 MHz ZigBee Developer’s Kit Silicon Labs EmberZNet Pro Release 5.4 ZigBee Operating Frequency: 2.4 GHz REGULATORY INFORMATION We, Nortek Security & Control, LLC of 1950 Camino Vida Roble STE 150, Carlsbad, CA 92008, declare under our sole responsibility that the device, HUSBZB-1, complies with Part 15 of the FCC rules. To satisfy FCC/IC RF exposure safety requirements, a separation distance of 20 cm or more should be maintained between this device and person’s body (excluding extremities: hands, wrists, feet and ankles). FCC Notice This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference received that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected • Consult the dealer or an experienced radio/TV technician to help. IC Notice This Class B digital apparatus complies with Canadian ICES-003 Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. This device complies with Industry Canada license exempt standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. WARRANTY This Nortek Security & Control product is warranted against defects in material and workmanship for twelve (12) months. This warranty extends only to wholesale customers who buy direct from Nortek Security & Control or through Nortek Security & Control’s normal distribution channels. Nortek Security & Control does not warrant this product to consumers. Consumers should inquire from their selling dealer as to the nature of the dealer’s warranty, if any. There are no obligations or liabilities on the part of Nortek Security & Control for consequential damages arising out of or in connection with use or performance of this product or other indirect damages with respect to loss of property, revenue, or profi t, or cost of removal, installation, or reinstallation. All implied warranties, including implied warranties for merchantability and implied warranties for fi tness, are valid only until Warranty Expiration Date as labeled on the product. This Nortek Security & Control LLC Warranty is in lieu of all other warranties express or implied. All products returned for warranty service require a Return Product Authorization Number (RPA#). Contact Returns at 1-855-546-3279 for an RPA# and other important details. IMPORTANT !!! Radio controls provide a reliable communications link and fi ll…

Text truncated - open the document above for the full version.

Access Control | Security & Home Automation | Health & Wellness | Home Technology 1950 Camino Vida Roble Suite 150 Carlsbad CA 92008 800.421.1587  www.nortekcontrol.com CETCB 114 Olinda Drive Brea, CA 92823 Gentlemen: This is a letter of authorization to accept Compatible Electronics, Inc., specifically including the employees of Compatible Electronics, as an Agent for Nortek Security & Control LLC, 1950 Camino Vida Roble Suite 150, Carlsbad CA 92008, for a period of one year, to sign applications before the Commission on our behalf, to make representations to you on our behalf, and to receive and exchange data between our company and the Commission in connection with certification of the following Nortek Security & Control LLC product: Model: FCC ID: Under FCC Docket Number 20780 and General Docket Number 80‐284 pursuant to Part 15 of FCC Rules and Regulations. Please also accept this letter as an attestation that neither Nortek Security & Control LLC nor any of its officers, directors, or persons holding 5% or more of the outstanding stock or shares, voting or non‐voting, have been denied federal benefits under section 5301 of the Anti‐Drug‐Abuse act of 1988.21 U.S.C. 853(a). In addition, Nortek Security & Control LLC will notify the Federal Communications Commission if, at any time, the situation changes causing Nortek Security & Control LLC to be denied federal benefits. If you have any questions or need additional information, please feel free to give me a call at (760) 438‐7179 Sincerely, Josh Hansen Regulatory Engineer

Ac cess Control | Security & Home Automation | Health & Wellness | Home Technology 1950 Camino Vida Roble Suite 150 Carlsbad CA 92008 800.421.1587  www.nortekcontrol.com CETCB 114 Olinda Drive Brea, California 92823 Gentlemen: We, Nortek Security & Control LLC, would like to declare that the application being submitted for the device with FCC ID: , has not been submitted to another TCB or FCC for certification. Sincerely, Josh Hansen Regulatory Engineer

Ac cess Control | Security & Home Automation | Health & Wellness | Home Technology 1950 Camino Vida Roble Suite 150 Carlsbad CA 92008 800.421.1587  www.nortekcontrol.com CETCB 114 Olinda Drive Brea, California 92823 Gentlemen: We, Nortek Security & Control LLC, would like to request that all schematics, block diagrams, and operational descriptions submitted with the application for certification be withheld from public disclosure as per Section 0.459 of FCC Rules. This request is made under the provisions of Section 0.457 (d) of the Commission’s Rules, and Section 552 (b)(4) of the Freedom of Information Act. These sections authorize the withholding from public inspection, those materials which would be privileged as a matter of law if retained by the person submitting them, and materials which would not customarily be released to the public by that person. If you have any questions, please feel free to give me a call at (760) 438‐7179 Sincerely, Josh Hansen Regulatory Engineer

2.390" .990" LABEL,MODEL/FCC,HUSBZB-1 P/N: 10007045 X3 INK: GRAY (PMS 423 C) MFG. PROCESS: PAD PRINTING TOLERANCE: ±.040” SCALE: 1-1 Nortek Security & Control Model: HUSBZB-1 FCC ID: EF400131 IC: 1078A-00131 Made in China

2405 MHz 15.49 dBm FCC ID: EF400131 Frequency Power to Antenna 15.49 dBm 0 dBi 0.007043 mW/cm2 1 mW/cm2 -0.99296 mW/cm2 Power to Antenna Antenna gain Power Density Limit Margin

Report Number: D50603R2 FCC ID: EF400131 FCC Part 15 Subpart B & Subpart C Section 15.247 Test Report Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 1 of 19 FCC PART 15 SUBPART B & C TEST REPORT for HUBZ Model: HUSBZB-1 Prepared for NORTEK SECURITY & CONTROL 1950 CAMINO VIDA ROBLE CARLSBAD, CA 92008 Prepared by: _____________________ MATT HARRISON Approved by:____________________ JEFF KLINGER COMPATIBLE ELECTRONICS INC. 20621 PASCAL WAY LAKE FOREST, CALIFORNIA 92630 (949) 587-0400 DATE: JULY 21, 2015 REPORT APPENDICES TOTAL BODY A B C D E PAGES 19 2 2 2 17 53 95 This report shall not be reproduced except in full, without the written approval of Compatible Electronics. Report Number: D50603R2 FCC ID: EF400131 FCC Part 15 Subpart B & Subpart C Section 15.247 Test Report Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 2 of 19 TABLE OF CONTENTS Section / Title PAGE GENERAL REPORT SUMMARY 4 SUMMARY OF TEST RESULTS 5 1. PURPOSE 6 2. ADMINISTRATIVE DATA 7 2.1 Location of Testing 7 2.2 Traceability Statement 7 2.3 Cognizant Personnel 7 2.4 Date Test Sample was Received 7 2.5 Disposition of the Test Sample 7 2.6 Abbreviations and Acronyms 7 3. APPLICABLE DOCUMENTS 8 4. DESCRIPTION OF TEST CONFIGURATION 9 4.1 Description of Test Configuration 9 4.1.1 Photograph Test Configuration 9 4.1.2 Cable Construction and Termination 10 5. LISTS OF EUT, ACCESSORIES AND TEST EQUIPMENT 11 5.1 EUT and Accessory List 11 5.2 EMI Test Equipment 12 6. TEST SITE DESCRIPTION 13 6.1 Test Facility Description 13 6.2 EUT Mounting, Bonding and Grounding 13 6.3 Facility Environmental Characteristics 13 7. CHARACTERISTICS OF THE TRANSMITTER 14 7.1 Channel Number and Frequencies 14 7.2 Antenna 14 8. TEST PROCEDURES 15 8.1 RF Emissions 15 8.1.1 Conducted Emissions Test 15 8.1.2 Radiated Emissions (Spurious and Harmonics) Test 16 8.1.3 DTS Bandwidth 17 8.1.4 Maximum Peak Conducted Output Power 17 8.1.5 Maximum Peak Power Spectral Density Level In The Fundamental Emission 17 8.1.6 Emissions in Non-Restricted Frequency Bands (in 100kHz Bandwidth) 18 8.1.7 Emissions in the Restricted Bands (Radiated) 18 8.1.8 Emissions Radiated Outside of the Fundamental Frequency Band 18 9. TEST PROCEDURE DEVIATIONS 19 10. CONCLUSIONS 19 Report Number: D50603R2 FCC ID: EF400131 FCC Part 15 Subpart B & Subpart C Section 15.247 Test Report Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 3 of 19 LIST OF APPENDICES APPENDIX TITLE A Laboratory Accreditations and Recognitions B Modifications to the EUT C Additional Models Covered Under This Report D Diagrams, Factors, Charts, and Photos  Test Setup Diagrams  Antenna and Amplifier Factors  Radiated and Conducted Emissions Photos E Radiated and Conducted Emissions Data Sheets LIST OF FIGURES FIGURE TITLE 1 Plot Map And Layout of Test Site Below 1GHz 2 Plot Map And Layout of Test Site Above 1GHz 3 Conducted Emissions Test Setup Report Number: D50603R2 FCC ID: EF400131 FCC Part 15 Subpart B & Subpart C Section 15.247 Test Report Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 4 of 19 GENERAL REPORT SUMMARY This electromagnetic emission test report is generated by Compatible Electronics Inc., which is an independent testing and consulting firm. The test report is based on testing performed by Compatible Electronics personnel according to the measurement procedures described in the test specifications given below and in the "Test Procedures" section of this report. The measurement data and conclusions appearing herein relate only to the sample tested and this report may not be reproduced in any form unless done so in full with the written permission of Compatible Electronics. This report must not be used to claim product endorsement by NVLAP, NIST, or any other agency of the U.S. Government or other governments. Device Tested: HubZ Model: HUSBZB-1 S/N: None Product Description: HubZ is a USB v2.0 full speed low power CDC-ACM compliant Z-Wave/Zigbee adapter in a thumb drive form factor. When plugged into computer or similar host device, it appears as a serial port so no additional drivers are required. HubZ is an independently controlled Z- Wave/Zigbee hub that requires an application from a third party to operate. The application will control such function as Inclusion, Exclusion and Replication. Modifications: The EUT was not modified in order to comply with specifications. Manufacturer: Nortek Security & Control 1950 Camino Roble Carlsbad, CA 92008 Test Dates: May 29, June 3, 2015 Test Specifications: EMI requirements CFR Title 47, Part 15 Subpart B Section 15.109, & Subpart C Sections 15.205, 15.209 & 15.247. Test Procedure: ANSI C63.4 & C63.10, and KDB 558074 D01 v03R01. Report Number: D50603R2 FCC ID: EF400131 FCC Part 15 Subpart B & Subpart C Section 15.247 Test Report Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 5 of 19 SUMMARY OF TEST RESUL…
