EF400204DIGITAL KEYPAD

SCREW ANCHORS MOUNTING SCREWS KEYPAD PRINTER’S INSTRUCTIONS: INSTR,INSTL, MMK100 - GTO P/N: 10015840 - INK: BLACK - MATERIAL: thin - SIZE: 11.000” X 17.00” - SCALE: 1-1 HINGED COVER PROTECTS THE KEYPAD SOFT BLUE LIGHTS ILLUMINATE THE KEYS FOR NIGHTTIME USE LIGHT BUTTON TURNS THE GARAGE DOOR OPERATOR’S LIGHT ON AND OFF WHEN THE DOOR IS OPEN UP/DOWN ( ) BUTTON STAYS ACTIVE FOR 30 SECONDS AFTER A CODE IS USED SO THE OPENER CAN BE STOPPED OR REVERSED TEN KEYS ENTERING 1-6 KEYPAD CODES USING NUMBERS OR LETTERS KEY FEATURES: MMK100 DIGITAL KEYPAD Instructions PACKAGE INCLUDES: PROGRAMMING A KEYPAD CODE TO THE GARAGE DOOR OPENER Press the opener’s LEARN BUTTON for 1 second and release. The opener should BEEP and the LIGHT should BLINK once. The RED LED will remain lit in Learn Mode for 15 seconds. While the RED LED is lit, enter a 1-6 digit code into the keypad. Then PRESS and HOLD the keypad’s START/STOP key until the opener BEEPS and the light BLINKS once. RED LED Press LEARN button UP DOWN LEARN 11 2 2 Repeat Steps 1 & 2 for any additional keypad codes. Printed in China for GTO Access Systems, LLC. Copyright © 2016 GTO Access Systems, LLC Document Number: 10015840 REV A MOUNT THE KEYPAD INCLEAR VIEW OF THE DOORWITH THE TWO SCREWS SUPPLIED USE THE ANCHORS SUPPLIED IF REQUIRED REMOVE BATTERIES BEFORE MOUNTING 3 INSTALL 3 FRESH AAA BATERIES 4 SLIDE BATTERY COVER CLOSED 12 SLIDE BATTERY COVER OPEN REMOVE THE OLD BATTERIES AND DISPOSE OF THEM PROPERLY WALL MOUNTING: CHANGING BATTERIES: KEYPAD OPERATION: MIGHTY MULE LIMITED WARRANTY This product is warranted to the consumer against defects in material and workmanship for one year from the date of purchase. This warranty applies to first retail buyers of new devices. Mighty Mule will repair, or at its option, replace, any device it finds that requires service under this warranty, and will return the repaired or replaced device to the consumer at the Might Mule’s cost. For warranty service and shipping instructions contact Mighty Mule Tech Service. Devices must be sent to Mighty Mule for service at owner’s expense. The remedies provided by this warranty are exclusive. Implied warranties under state law are to the one year period of this written warranty. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. In order to be protected by this warranty, save your proof of purchase and send copy with equipment should repair be required. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. All products returned for warranty service require a Return Product Authorization Number (RPA#). Contact Mighty Mule Technical Services at 1-800-543-1236 for an RPA# and other important details. Mighty Mule® is the retail brand of GTO Access Systems, LLC 3121 Hartsfield Road • Tallahassee, FL 32303 Mighty Mule Sales: 800-543-4283 • Fax 850-575-8912 Mighty Mule Technical Service 800-453-1236 For more information on Mighty Mule’s full line of Garage Door Openers, Gate Openers and Access Controls visit www.mightymule.com ENTER USER KEYPAD CODE 1 PRESS ( ) BUTTON 2 OVERHEAD LIGHT OPERATION NOTE: The overhead light cannot be operated from the keypad unless the door is open. DAYTIME OPERATION 1 2 PRESS THE LIGHT ( ) BUTTON (TO LIGHT KEYPAD) 1 2 3 NIGHTTIME OPERATION 1-6 DIGIT KEYPAD CODE THAT WAS ENTERED INTO OPENER ENTER THE KEYPAD CODE PRESS ENTER THE KEYPAD CODE PRESS 1-6 DIGIT KEYPAD CODE THAT WAS ENTERED INTO OPENER WARNING: Changes, modifications or adjustments not expressly approved by GTO Access Systems, LLC could void the user’s authority to operate this equipment. There Are No User Serviceable Parts. NOTICE: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device complies with Industry Canada License-exempt RSS standards. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. KEEP BATTERIES OUT REACH OF CHILDREN. Swallowing batteries can lead to serious injury or death. If you suspect someone has swallowed a battery, go to the hospital immediately. Do not induce vomiting or eat or drink anything. For more information, call the National Battery Ingestion Hotline: 202- 625-3333. The battery identification number for this product is AAA Alkaline (LR03). WARNING To delete a keypad code that you no longer want follow the same steps above. The opener will recognize the code and delete it from memory. The RED LED and LIGHT will blink 4 times to show the code was successfully deleted. DELETING A KEYPAD CODE 3 AAA batteries included. DESCRIPTION: This MMK100 Digital Keypad is designed for use with Mighty Mule garage door openers. The radio format provides unparalleled security with more than a million different codes. To activate the garage door opener, the user enters their unique 1 to 6 digit long code on the unit’s keypad and presses the ( ) button. For up to 30 seconds after the last activation, the keypad can be re-triggered by simply pressing the ( ) button again. This allows the user to stop or reverse the opener quickly, without having to re-enter their code. The keypad has built-in lighting for use at night or in dark areas. The clear silicone keys are backlit with a pleasing blue glow. Pressing any key will activate the backlight. The keypad lockout timer will disable the keypad after 10 unsuccessful activations. The keypad must remain idle for 30 seconds before new attempts. The Mighty Mule garage door opener contains a built-in receiver that is programmed by sending a signal from the keypad. This stores the keypad’s code into the receiver…

Text truncated - open the document above for the full version.

Ac cess Control | Security & Home Automation | Health & Wellness | Home Technology 5919 Sea Otter Place, Suite 100, Carlsbad CA 92010 800.421.1587 www.nortekcontrol.com Date: Mar 17, 2020 FCC ID: EF400204 Model Number: MMK100, MMK200 To: Federal Communication Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21048 To Whom It May Concern, We, Nortek Security & Control LLC, declare that this EUT (FCC ID: EF400204) will conduct FCC compliance testing, the SDOC part recognized test lab(Shenzhen NTEK Testing Technology Co., Ltd.( ShenZhen Lab.). 1/F, Building E, Fenda Science Park, Sanwei Community,Xixiang Street Bao’an District, Shenzhen 518126 P.R. China) Pl ease contact me if you have any question. Sincerely, Name / Title: Josh Hansen/ Engineering Manager, Regulatory Company: Nortek Security & Control LLC Address: 5919 Sea Otter Place Suite 100, Carlsbad, California, 92010 United States Phone: 7604387179 Fax: 760-438-7043 Email: [email protected]

Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID:EF400204 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block Diagram Schematic Diagram Operational Description POFIT_Block POFIT_SCH POFIT_OPS The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Pursuant to DA04-1705 June 15, 2004 of the Commission’s public notice, we also request temporary confidential treatment of information accompanying this application for180 days as outlined below: Exhibit Type File Name Test Setup Photos Internal Photos External Photos User Manual MMK100_Test Setup photo---DSC MMK100_INT PHOTO MMK100_External Photos MMK100_User Manual Sincerely, Signature: Name: Josh Hansen Date: 2020/03/17

Access Control | Security & Home Automation | Health & Wellness | Home Technology 5919 Sea Otter Place, Suite 100, Carlsbad CA 92010 800.421.1587 www.nortekcontrol.com Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: 2020/03/17 SUBJECT: FCC Application for FCC ID: EF400204 To Whom It May Concern: We, the undersigned, hereby authorize Alex Li NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park Sanwei Community, Xixiang Street, Baoan District Shenzhen China Tel: +86-0755-61156584 Email: alex.li @ntek.org.cn on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by NTEK Testing Technology Co., Ltd. on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti- Drug Abuse Act. We, the applicant, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Regards, Signatory 2020-03-17 Josh Hansen Applicant: Nortek Security & Control LLC Address: 5919 Sea Otter Place,Suite 100, Carlsbad, California, 92010 United States

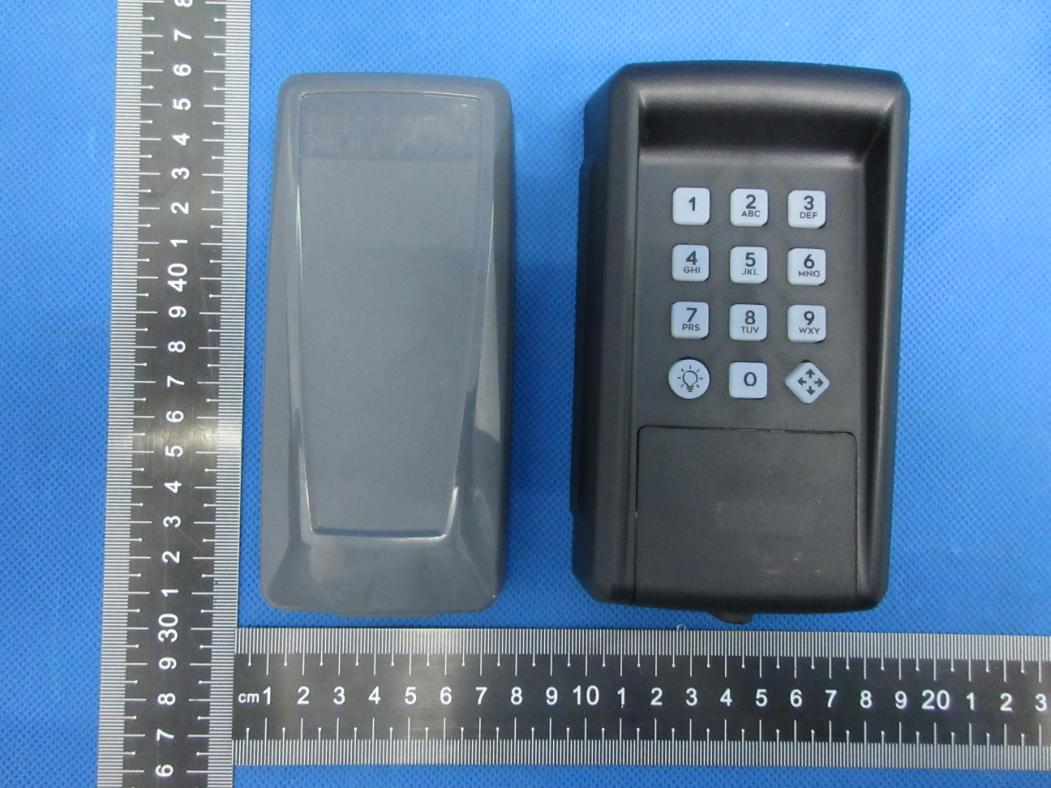

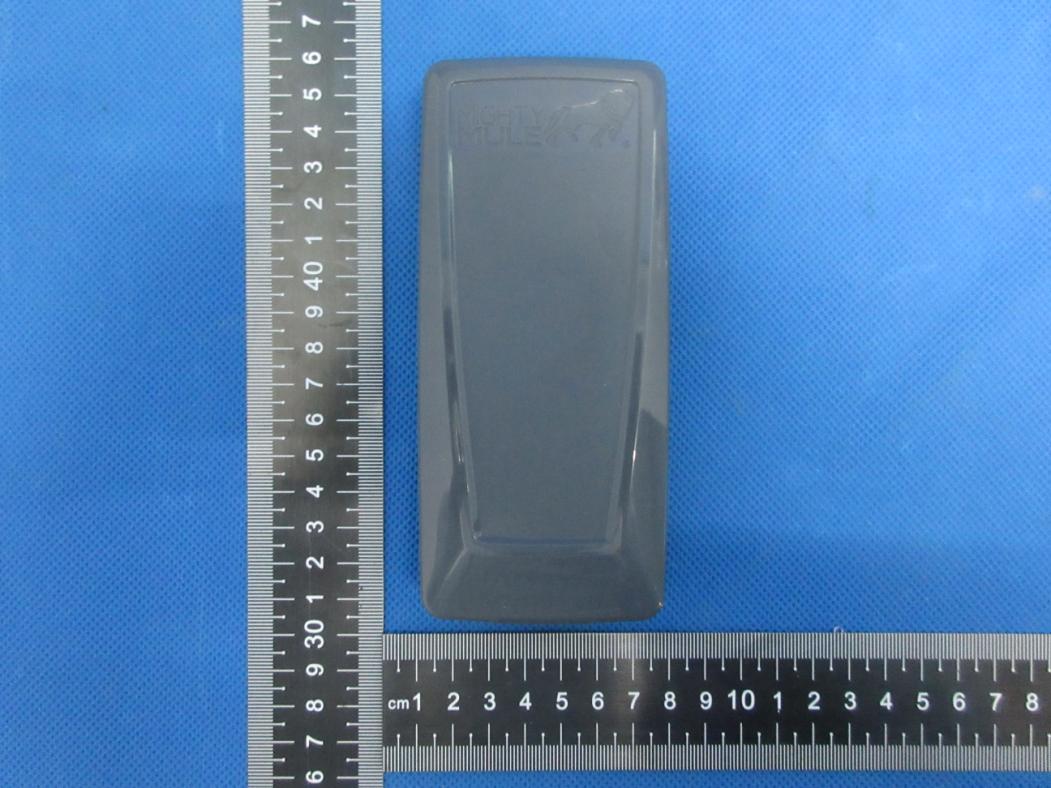

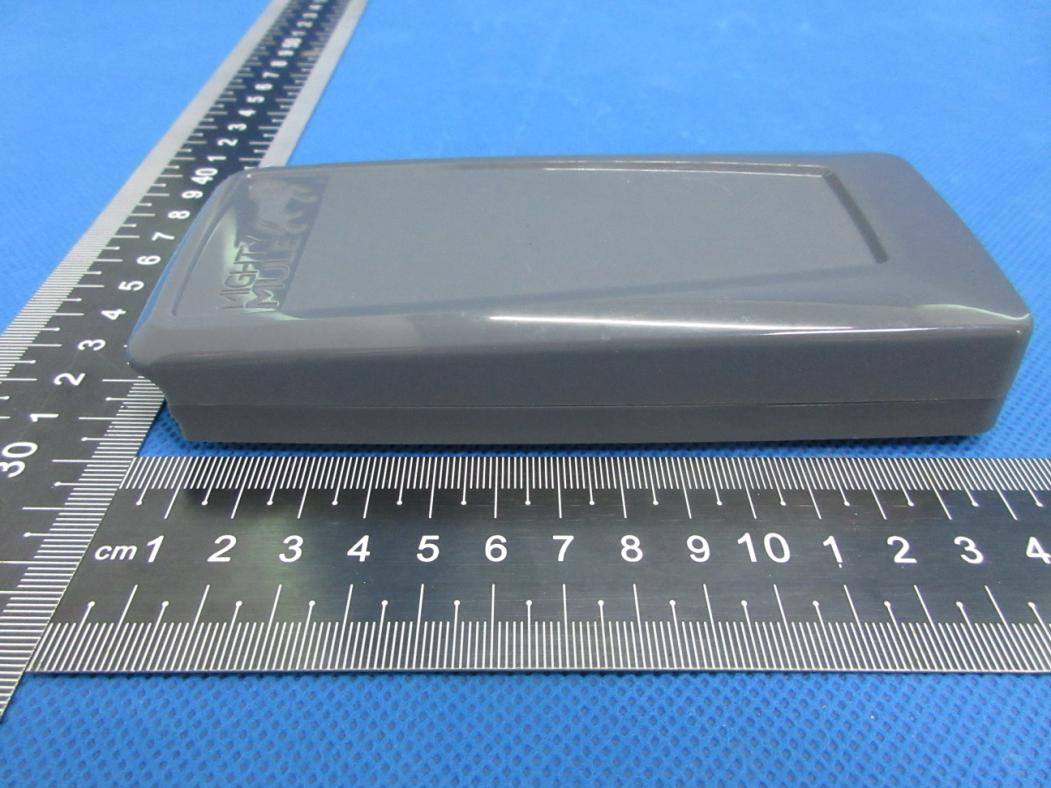

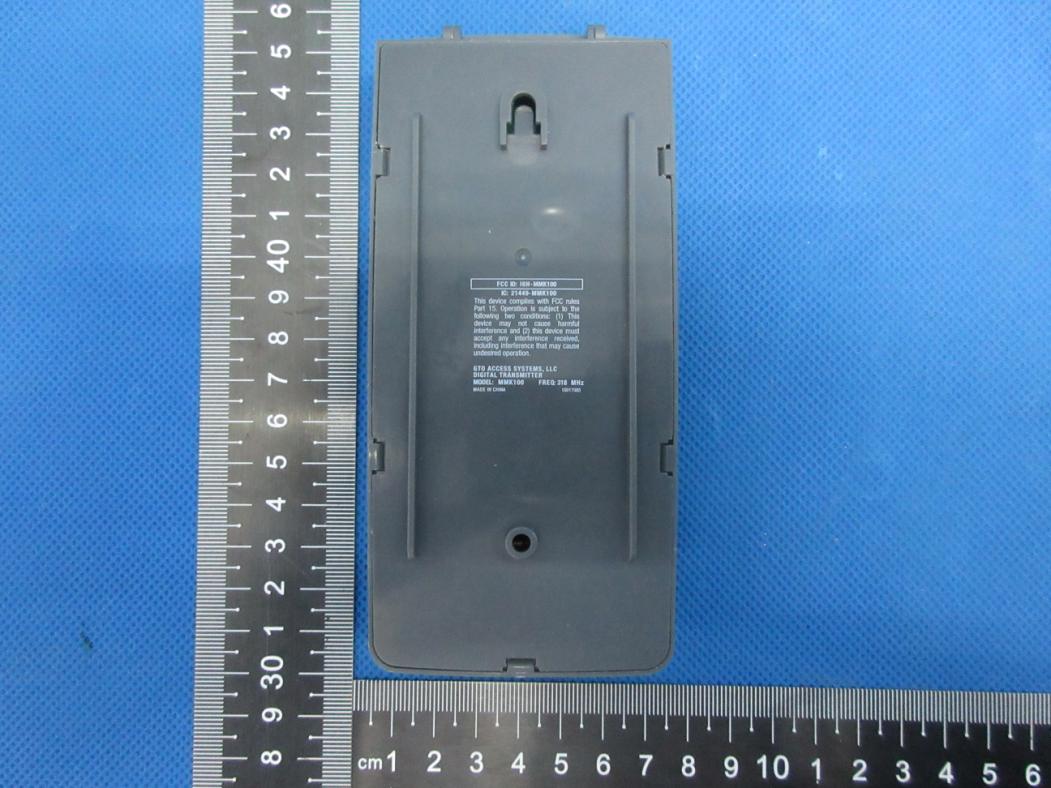

ATTACHMENT PHOTOGRAPHS OF EUT Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 7 Photo 8

REV.DESCRIPTIONDATEAPPROVED WHEN DIMENSIONS ARE IN mm TOLERANCES: ANGULAR: 2 Xmm = 1mm X.Xmm = .5mm X.XXmm = .15mm SCALE: 1:1 REV: DRAWING/PART NUMBER: A SIZE: TITLE: Q.A. MFG APPR: ENG APPR: CHECKED: DRAWN:MATERIAL: INK: NOTES: UNLESS OTHERWISE SPECIFIED: WHEN DIMENSIONS ARE IN INCHES TOLERANCES: FRACTIONAL 1/16 ANGULAR: 2 .XX = .01 .XXX = .005 WEIGHT: ACCESS SYSTEMS, LLC PROPRIETARY AND CONFIDENTIAL THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF GTO ACCESS SYSTEMS, LLC. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT WRITTEN PERMISSION OF GTO ACCESS SYSTEMS, LLC IS PROHIBITED. 3121 HARTSFIELD ROAD TALLAHASSEE, FL 32303 ® X1 LABEL, FCC/DOC, MMK100 X1 10029367 INITIAL RELEASE SHEET 1 OF 1 LABEL,FCC/DOC,MMK100 GTO P/N: 10029367_Rev-X1 MFG. PROCESS: PRINTED LABEL OR PAD PRINTING LABEL INK: PERMANENT WHITE LABEL MATERIAL: CLEAR ACETATE, ADHESIVE BACKED THICKNESS: .0015" PAD PRINTING INK: WHITE (AGILE P/N 213337-001) SCALE: 1-1 This device complies with FCC rules Part 15. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. 02/26/20 I C : 1078A-00204 GTO ACCESS SYSTEMS, LLC DIGI TAL TRANSMITTER M O D EL : MMK100 FREQ : 31 8 MHz MADE IN CHIN A FCC ID : EF400204 10029367_Rev-X1

ATTACHMENT PHOTOGRAPHS OF EUT Photo 1 Photo 2 Photo 3 Photo 4 TX ANT

Report No.: S20022402102001 ` Page 1 of 27 RADIO TEST REPORT FCC ID: EF400204 Product: DIGITAL KEYPAD Trade Mark: MIGHTY MULE Model No.: MMK100 Family Model: MMK200 Report No.: S20022402102001 Issue Date: 16 Mar. 2020 Prepared for Nortek Security & Control LLC 5919 Sea Otter Place Carlsbad, CA 92010 United States Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen 518126 P.R. China Tel.: +86-755-6115 6588 Fax.: +86-755-6115 6599 Website:http://www.ntek.org.cn Report No.: S20022402102001 ` Page 2 of 27 Table of Contents Page 1.TEST RESULT CERTIFICATION 3 2. SUMMARY OF TEST RESULTS 4 3.FACILITIES AND ACCREDITATIONS 5 3.1 FACILITIES 5 3.2 LABORATORY ACCREDITATIONS AND LISTINGS 5 3.3 MEASUREMENT UNCERTAINTY 5 4. GENERAL DESCRIPTION OF EUT 6 5. DESCRIPTION OF TEST MODES 8 6. SETUP OF EQUIPMENT UNDER TEST 9 6.1 BLOCK DIAGRAM CONFIGURATION OF TEST SYSTEM 9 6.2 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 10 6.3 EQUIPMENTS LIST FOR ALL TEST ITEMS 11 7. ANTENNA REQUIREMENT 12 7.1 STANDARD REQUIREMENT 12 7.2 EUT ANTENNA 12 8. CONDUCTED EMISSION MEASUREMENT 13 8.1 APPLICABLE STANDARD 13 8.2 CONFORMANCE LIMIT 13 8.3 MEASURING INSTRUMENTS 13 8.4 TEST CONFIGURATION 13 8.5 TEST PROCEDURE 13 8.6 TEST RESULTS 14 9. RADIATED EMISSION MEASUREMENT 15 9.1 APPLICABLE STANDARD 15 9.2 RADIATED EMISSION LIMITS 15 9.3 TEST PROCEDURE 17 9.4 TEST SETUP 19 9.5 TEST RESULTS 20 10. BANDWIDTH TEST 25 10.1 TEST PROCEDURE 25 10.2 DEVIATION FROM STANDARD 25 10.3 TEST SETUP 25 10.4 TEST RESULTS 26 11. TRANSMITTER TIMEOUT 27 11.1 REQUIREMENTS 27 Report No.: S20022402102001 ` Page 3 of 27 1.TEST RESULT CERTIFICATION Applicant’s name ......................... : Nortek Security & Control LLC Address ....................................... : 5919 Sea Otter Place Carlsbad, CA 92010 United States Manufacturer's Name .................. : Flextronics Electronics Technology (Shenzhan) Co., Ltd Address ....................................... : 89 Yong Fu Road, Tong Fu Yu Industrial Park, Fu Yong Town, Bao An District, Shenzhen 518103, China Product description Product name .............................. : DIGITAL KEYPAD Model and/or type reference ..... : MMK100 Family Model ............................... : MMK200 Measurement Procedure Used: APPLICABLE STANDARDS APPLICABLE STANDARD/ TEST PROCEDURE TEST RESULT FCC 47 CFR Part 15, Subpart C KDB 174176 D01 Line Conducted FAQ v01r01 ANSI C63.10-2013 Complied This device described above has been tested by Shenzhen NTEK Testing Technology Co., Ltd., and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of Shenzhen NTEK Testing Technology Co., Ltd., this document may be altered or revised by Shenzhen NTEK Testing Technology Co., Ltd., personnel only, and shall be noted in the revision of the document. The test results of this report relate only to the tested sample identified in this report. Date of Test : 25 Feb. 2020 ~ 16 Mar. 2020 Testing Engineer : (Allen Liu) Technical Manager : (Jason Chen) Authorized Signatory : (Sam Chen) Report No.: S20022402102001 ` Page 4 of 27 2. SUMMARY OF TEST RESULTS FCC Part15 (15.231), Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission N/A Note(1) 15.203 Antenna Requirement Pass 15.231(b) 15.209 15.205 Radiated Spurious Emission Pass 15.231(c) Occupied Bandwidth Pass 15.231(a)(2) Transmitter Timeout Pass NOTE: (1) ” N/A” denotes test is not applicable in this Test Report. (2) The EUT is using a new battery Report No.: S20022402102001 ` Page 5 of 27 3.FACILITIES AND ACCREDITATIONS 3.1 FACILITIES All measurement facilities used to collect the measurement data are located at 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao’an District, Shenzhen 518126 P.R. China The sites are constructed in conformance with the requirements of ANSI C63.7, ANSI C63.10 and CISPR Publication 22. 3.2 LABORATORY ACCREDITATIONS AND LISTINGS Site Description CNAS-Lab. : The Laboratory has been assessed and proved to be in compliance with CNAS-CL01:2006 (identical to ISO/IEC 17025:2005) The Certificate Registration Number is L5516. IC-Registration The Certificate Registration Number is 9270A. CAB identifier:CN0074 FCC- Accredited Test Firm Registration Number: 463705. Designation Number: CN1184 A2LA-Lab. The Certificate Registration Number is 4298.01 This laboratory is accredited in accordance with the recognized International Standard ISO/IEC 17025:2005 General requirements for the competence of testing and calibration laboratories. This accreditation demonstrates technical competence for a defined scope and the operation of a laboratory quality management system (refer to joint ISO-ILAC-IAF Communiqué dated 8 January 2009). Name of Firm : Shenzhen NTEK Testing Technology Co., Ltd. Site Location : 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao’an District, Shenzhen 518126 P.R. China. 3.3 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y±U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %. No. Item Uncertainty 1 Conducted Emission Test ±2.80dB 2 RF power, conducted ±0.16dB 3 Spurious emissions, conducted ±0.21dB 4 All emissions, radiated(30MHz~1GHz) ±2.64dB 5 All emissions, radiated(1GHz~6GHz) ±2.40dB 6 All emissions, radiated(＞6GHz) ±2.52dB 7 Temperature ±0.5°C 8 Humidity ±2% Report No.: S20022402102001 ` Page 6 of 27 4. GENERAL DESCRIPTION OF EUT Equipment DIGITAL KEYPAD Trade Name MIGHTY MULE Model Name MMK100 Family Model MMK200 Model Difference All models are the same circuit and RF module, In addition to model and appearance. Product Description The EUT is a DIGITAL KEYPAD Op…

Text truncated - open the document above for the full version.

Model: MMK100 Radiated Measurement Photos END OF REPORT
