EF400208WIRELESS KEYPAD TRANSMITTER

IN THESE EXAMPLES, THE USER'S SECRET MDKP WIRELESS KEYP AD TRANSMITTER Installation Instructions DESCRIPTION The MDKP Wireless Keypad is one of Nortek’s MegaCode door and gate operators. The MegaCode radio for mat provides unparalleled security with more than a million different codes. In operation, the user enters their unique code (1 to 6 digits long) on the unit’s keypad then presses the “#” key to send a signal to the door or gate operator receiver . The MDKP can be illuminated for use at night or in dark areas. Pressing the “#” key before entering a code turns on tw o yellow lights that shine do wn on the keypad’s keys. To illuminate the keypad after beginning to enter a code, press the “#” key twice, then re-enter the entire code. The keypad lights remain on for 30-seconds, or until a code is sent. The option jumper controls tw o features, the keypad loc kout timer and the 30-second repeat feature. The keypad lockout timer will disable the keypad after 10 repeated activations. The keypad must remain idle for 30 seconds before an y ne w code attempts are accepted. The 30-second repeat feature allows the user to press the “#” key again within 30 seconds to send another signal without ha ving to re-enter their code. These features are available only when option jumper is installed. NOTE: Having the option jumper installed will reduce the unit’s battery lif e. The MDKP is po wered by a 9-volt lithium battery. Without the option jumper installed the battery life is expected to be 5 years with 25 activations-a-day. MegaCode receivers are programmed by sending a signal from the user ’s tr ansmitters. This stores the transmitter’s code into the receiver ’s memory. The receiver will only activate from these “memoriz ed” tr ansmitters. Each code entered on the MDKP keypad will appear to the receiver as a unique MegaCode transmitter. MegaCode receivers ha ve limits on the number of tr ansmitters that can be programmed into them. An y combination of portable tr ansmitters and keypad codes up to the maximum number of transmitters allowed can be programmed into a receiver . WARNING: Change or modications not expressively approved by the manufacturer could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the Federal Communications Commission (FCC) rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. ® series of wireless radio controls designed for use with automatic garage 1. COMPONENT LOCATIONS 2. KEYP AD MOUNTING3. CONNECT BATTERY4. SET JUMPER & LOCK KEYP AD 5. PROGRAM RECEIVER6. TEST OPERATIONLIMITED WARRANTY This Nortek Security & Control LLC product is warranted against defects in material and wor kmanship for tw elve (12) months. The Warranty Expiration Date is labeled on the product. This warranty extends only to wholesale customers who buy direct from Nortek or through Nortek’s normal distrib ution channels. Nortek does not warrant this pr oduct to consumers.Consumers should inquire from their selling dealer as to the nature of the dealer’s warranty, if an y. There are no obligations or liabilities on the part of Nortek for consequential damages arising out of or in connection with use or performance of this product or other indirect damages with respect to loss of pr operty , re venue , or pr ofit, or cost of removal, installation, or reinstallation. All implied warranties, including implied warranties for merchantability and implied warranties for fi tness, are valid only until Warranty Expiration Date as labeled on the product. This Nortek Warranty is in lieu of all other warranties express or implied. All products returned for warr anty service require a Return Product Authorization Number (RPA#). Contact Nortek Technical Services at 1-800-421-1587 for an RPA# and other important details. FCC & IC NOTICE This device contains licence-exempt transmitter(s) / receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: 1. This device may not cause interference. 2. This device must accept any interference, including interference that may cause undesired operation of the device. L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes: 1. L’appareil ne doit pas produire de brouillage; 2. L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. DOWN LIGHTS KEYLOCK TACTILE KEYPAD ANTENNA (HIDDEN) OPTION JUMPER SOUNDER 9-VOLT LITHIUM BATTERY PEDESTAL MOUNTING MOUNT BACKPLATE WITH SECURITY BOLTS AND LOCKNUTS USE CONCRETE WEDGE ANCHORS OR MOLLY ANCHORS WALL MOUNTING WARNING! TO AVOID SERIOUS INJURY OR DEATH, MAKE SURE THAT THE UNIT IS FAR ENOUGH FROM THE DOOR OR GATE SO THAT THE USER CANNOT TOUCH THE DOOR OR GATE WH…

Text truncated - open the document above for the full version.

Date: Aug 18, 2020 FCC ID: EF400208 Model Number: MDKP To: Federal Communication Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21048 To Whom It May Concern, We, Nortek Security & Control LLC, declare that this EUT (FCC ID: EF400208) will conduct FCC compliance testing, the SDOC part recognized test lab(Shenzhen NTEK Testing Technology Co., Ltd.( ShenZhen Lab.). 1/F, Building E, Fenda Science Park, Sanwei Community,Xixiang Street Bao’an District, Shenzhen 518126 P.R. China) Please contact me if you have any question. Sincerely, (Signed) Name / Title: Horsen Ma/ Sr. Manager, Hardware Engineering Company: Nortek Security & Control LLC Address: 5919 Sea Otter Place,Suite 100, Carlsbad, California, 92010 United States Phone: +86 755 2751 1888 ext 8106 Fax: Email: [email protected]

Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID:EF400208 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name  Block Diagram  Schematic Diagram  Operational Description  Block  SCH  OPS The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Pursuant to DA04-1705 June 15, 2004 of the Commission’s public notice, we also request temporary confidential treatment of information accompanying this application for180 days as outlined below: Exhibit Type File Name  Test Setup Photos  Internal Photos  External Photos  User Manual  Test Setup photo---DSC  INT PHOTO  External Photos  User Manual Sincerely, Signature: Name: Horsen Ma Date: 2020/08/18

Access Control | Security & Home Automation | Health & Wellness | Home Technology 1950 Camino Vida Roble Suite 150 Carlsbad CA 92008 800.421.1587 www.nortekcontrol.com 5/13/2020 Federal Communications Commission 445 12th Street, SW Washington, DC 20554 This is a letter of authorization to accept Horsen Ma of Nortek Security & Control LLC, to sign documentation on my behalf, make representations on my behalf, and to receive and exchange data in connection with FCC certification of all Nortek Security & Control LLC products on my behalf. If you have any questions or need additional information, please feel free to give me a call at (760) 438-7179 Sincerely, Josh Hansen Engineering Manager, Regulatory & Compliance

Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: 2020/08/18 SUBJECT: FCC Application for FCC ID: EF400208 To Whom It May Concern: We, the undersigned, hereby authorize Alex Li NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park Sanwei Community, Xixiang Street, Baoan District Shenzhen China Tel: +86-0755-61156584 Email: [email protected] on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by NTEK Testing Technology Co., Ltd. on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti- Drug Abuse Act. We, the applicant, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Regards, Signatory 2020-08-18 Horsen Ma Applicant: Nortek Security & Control LLC Address: 5919 Sea Otter Place,Suite 100, Carlsbad, California, 92010 United States

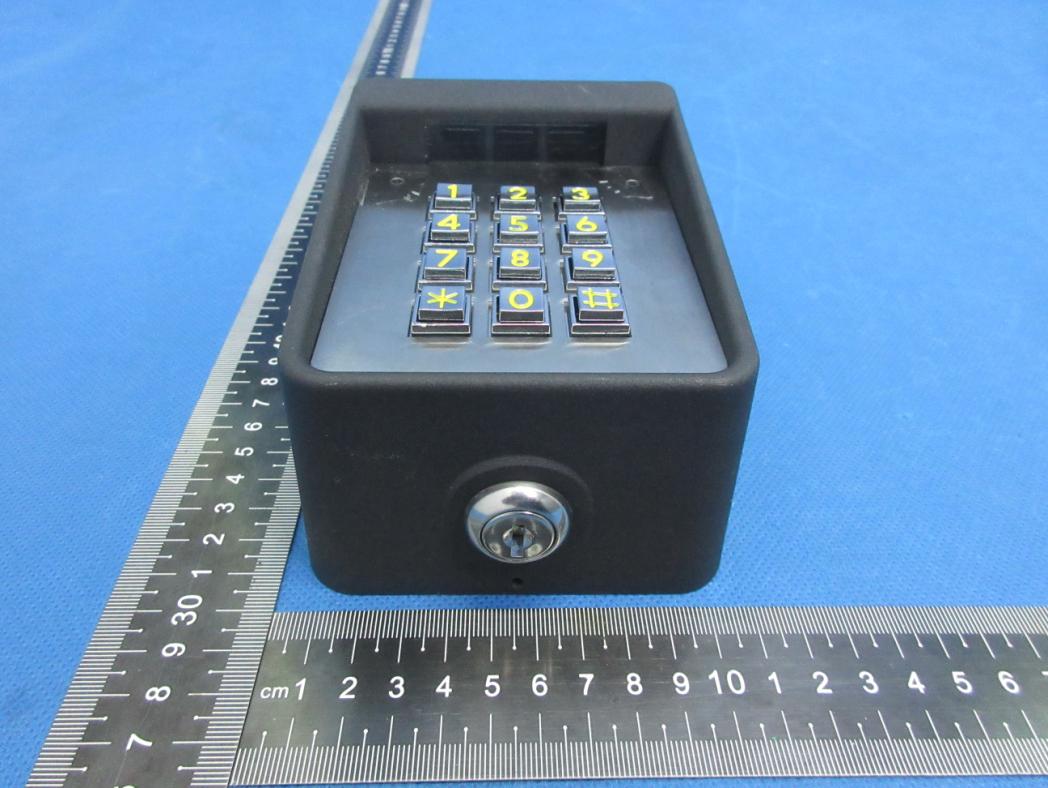

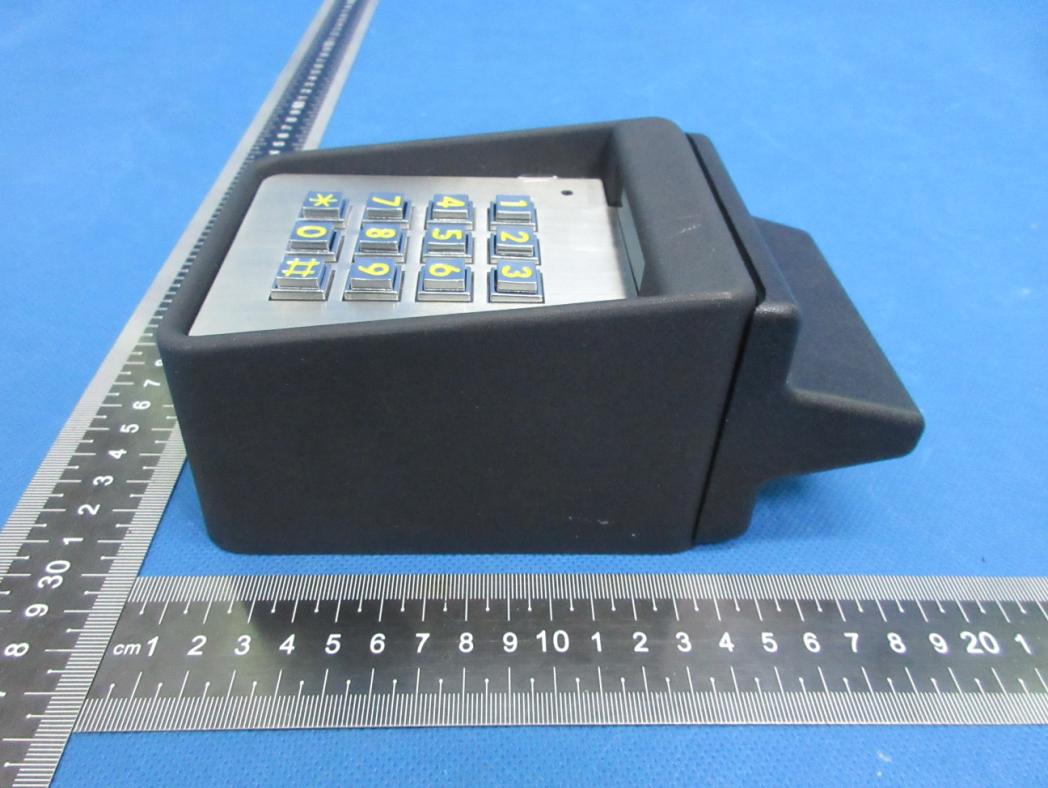

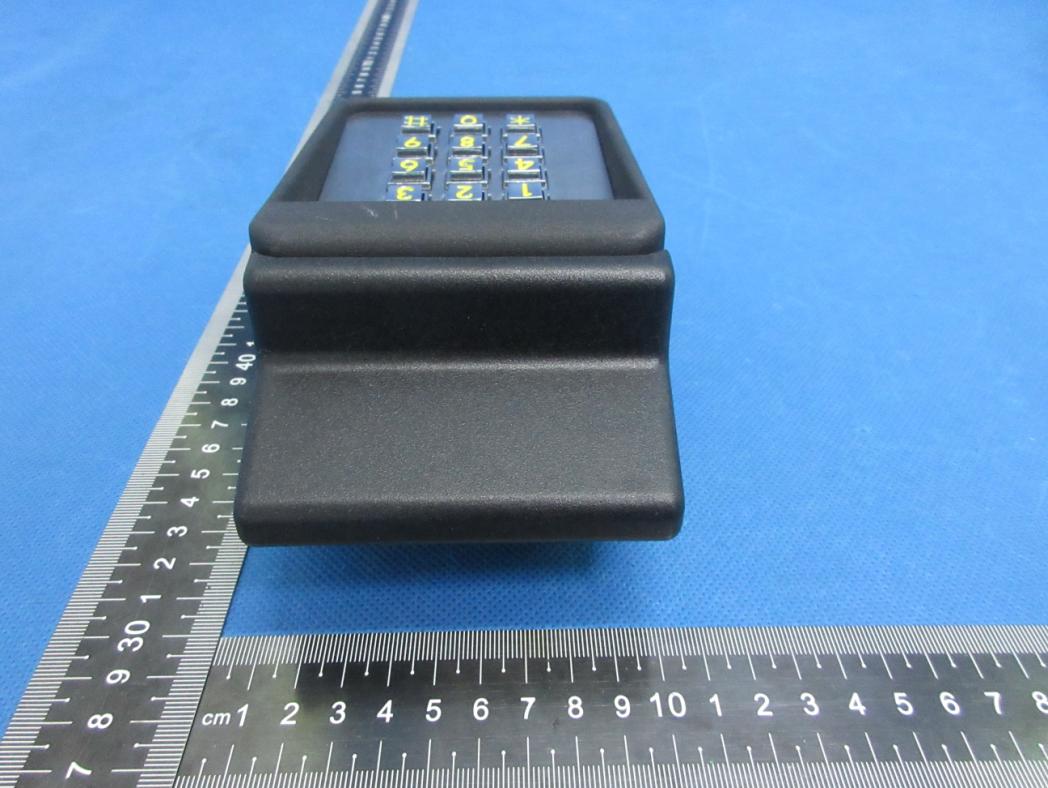

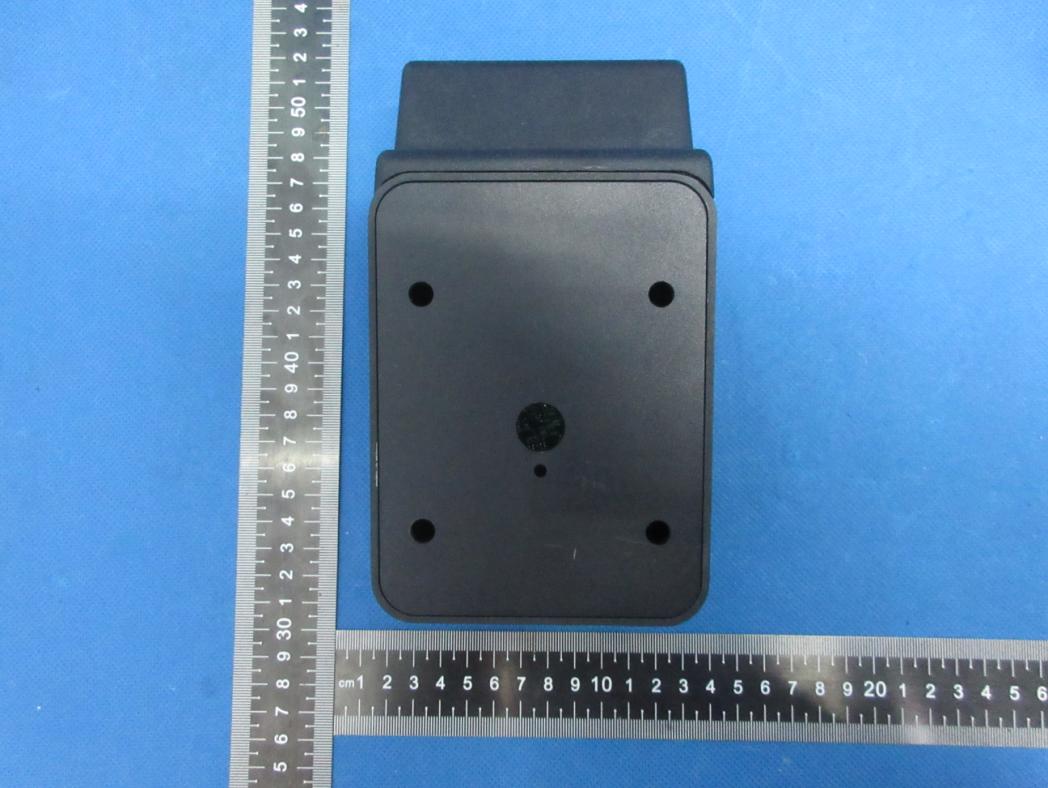

ATTACHMENT PHOTOGRAPHS OF EUT Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6
